ELGA PURELAB Quest User manual

WATER PURIFICATION
Operator Manual
MANU41196 VERSION 02 2/20
Product No. PQDIUVM1
Product No. PQDIXXM1
®

QUICK START GUIDE ENGLISH
WELCOME
HEALTH & SAFETY
Thank you for purchasing the PURELAB QUEST. Please read the following Health and Safety notice before proceeding.
®
Reverse Osmosis
Module LC217 (Serviced Part)
UV Lamp LC210
PQDIUVM1
Vent Filter LC291
Bypass Pack
Release Handle
Auto-Volume
Dispense Button
Water Purity Display
Scrolling information bar -
Bar indicating the status.
Auto-Volume or
Reservoir Volume Display
Up Button
Accept Button
Down Button
Dispenser Tip
Display Screen
Menu Buttons
Bypass Pack
LA728
(Transit Pack)
USB Port
Software Update /
Data Logging
Port 3: DrainPort 2: Overow Outlet
Port 1: Feedwater Inlet Port 4: Type 2
Water Outlet
(Application)
Port 5: Type 3 Water
Outlet (External
Reservoir)
Port 6 and 7:
Free-standing
Dispenser Connection
COMMS Port
Puried Water
Outlet Valve Type 2
Please follow the safety information detailed in this instruction sheet.
Failure to observe these instructions could result in damage to the
equipment and associated equipment resulting injury or death.
Control Of Substance Hazardous to Health (COSHH).
ELGA Veolia
Tel: [phone] Fax: [phone]
Email: [e-mail] Website: www.elgalabwater.com
Unit 10 Lane End Industrial Park, Lane End, High Wycombe HP14 3BY
ELGA is the global laboratory water brand name of Veolia.
PURELAB is an ELGA trademark and technology.
Owning to a policy of continual improvement, we reserve the right to amend
the specications given in this document.
2020 ELGA VEOLIA / VWS (UK) Ltd. All rights reserved.
POSITION THE POWER SUPPLY SO THAT IT CANNOT COME INTO
CONTACT WITH WATER.
UNDER NO CIRCUMSTANCES SHOLD THE LAMP BE CONNECTED
AND ACTIVATED WHEN OUTSIDE THE UV HOUSING.
EXPOSURE COULD CAUSE SERIOUS INJURY TO EYES ANDS SKIN.
DURING THE COMMISSIONING CYCLE TRACES OF RESIDUAL
PRESERVATIVE ARE FLUSHED FROM THE SYSTEM. COSHH
MATERIAL SAFETY DATA SHEET ARE AVAILABLE UPON REQUEST.
1. Electricity
WARNING!
WARNING!
WARNING!
2. Ultraviolet Light
3. Residual Preservative
®

Dispenser Port 1: Inlet
Dispenser Port 5: Return
SYSTEM CONFIGURATION
Example 1: 1 X PURELAB QUEST RO/DI/UV or RO/DI - Wall Mounting Bracket LA735 - LA648 Boost Pump
Type 1
Type 1
Type 1
Type 1
Max Distance 5000mm
Max Distance 5000mm
(LA648 Boost Pump - Feedwater Below 2 Bar)
Max Distance 5000mm
Air Break Device
Air Break Device
Air Break Device
Air Break Device
Wall Mounting Bracket LA735 (INST39088)
See Wall Mounting instructions for details.
Quest Port 1: Feedwater
Quest Port 2: Overow
Quest Port 3: Drain
Quest Port 5: Type 3 Outlet
Reservoir Port 1: Inlet
Reservoir Port 4a: Outlet
Reservoir Comms: J2
Quest Port 1: Feedwater
Quest Port 2: Overow
Quest Port 3: Drain
Quest Port 1: Feedwater
Quest Port 2: Overow
Quest Port 3: Drain
Quest Port 5: Type 3 Outlet
Quest Port 6: Dispenser Return
Quest Port 7: Dispenser Outlet
Raw Feedwater
Connection
Raw Feedwater
Connection
Example 2: 1 X PURELAB QUEST RO/DI/UV or RO/DI and 15L or 30L Reservoir LA757 / LA758.
Example 3: 1 X PURELAB QUEST RO/DI/UV or RO/DI and Free-standing Dispenser.
COMMS
Key
Power
Water
Valve
8mm Flow Bend
8mm Tube Clip
Regulator LA512
2
4a 2
2
5
J2
®
®
®
7
1
6
5
Type 3
Raw Feedwater
Connection
Overow

SET - UP / COMMISSIONING
POSITIONING PURELAB QUEST
RECOMMENDED MAINS FEEDWATER CONNECTION
RECOMMENDED DRAIN AND OVERFLOW CONNECTIONS
1
2
3
The PURELAB QUEST unit should be installed on a at, level surface, in a clean dry environment 15 - 25 ˚C. The unit can also be wall mounted
using the LA735 wall mounting kit against a vertical wall capable of supporting the combined weight of the unit and mounting kit.
Temperature 10 - 25°C / Minimum Pressure 2.0 bar - 30 psi (<2 Bar install LA648), Optimum
Running Pressure 4.0 bar - 60 psi, Maximum Pressure 6.0 bar - 90 psi. (Regulate to 4 bars using LA512).
The drain and overow tubes will require a drain or a sink capable of handling at least 1.5L / Min with a gravity fall
below the level of the unit. Any connections directed to drain or sink should have an air-break device tted.
a) Use lifting aids to move the product into position. (Fig.1) b) Place the product on a at level surface, remove from the packaging. (Fig.2)
a) ISOLATE the water supply to the sink (Potable water supply).
b) Cut the 15mm copper or plastic inlet water pipe with a suitable 15mm tube cutter.
a) Use 6 X ow bends from the basic installation kit LA762.
b) Fix 8mm ow bends to the wall if required. (Fig.6) c) Clip in the 8mm pipe. (Fig.7) d) Example of an air-break device. (Fig.8)
(Fig.6)
Sink Waste Pipe
(Fig.7)
(Fig.8)
c) CONNECT: Attach a 15mm John Guest Slip Tee
Connector to both ends of the cut pipe, ensuring
that it is fully connected. push until it stops (Fig.3)
d) LOCKING: Twist the screw cap until the cap meets
the body of the Slip Tee Connector.
Pull to check the connection is secure. (Fig.4)
e) ASSEMBLE the above parts,
this will be for the Feedwater
connection for Port 1. (Fig.5)
(Fig.3) (Fig.4)
(Fig.5)
15mm
to 10mm
Stem Elbow
15mm
Emergency
Shut-o
Slip T
Connector
15mm pipe
10mm to 8mm Reducer,
feedwater Outlet
Connection.
Health and Safety Executive, INDG143 (REV 3), Open Government License.
SUPPLY INSTALLED BY A COMPETENT PERSON ONLY. SERVICE ENGINEER OR FACILITIES MANAGER.
CAUTION! Must be lifted by two people.
REY
20KG
®
®
(Fig.1)
(Fig.2)

SET - UP / COMMISSIONING
CONNECT THE WATER
CONNECT THE OVERFLOW
CONNECT THE DRAIN
4
5
6
RO/DI/UV - Potable Water Supply
RO/DI - Potable Water Supply
See Operator's Manual - Feedwater Specications for more information.
(Fig.10)
(Fig.11)
(Fig.13)
(Fig.10)
Fit a pressure
regulator LA512,
regulate to 4 bar.
(Fig.9)
(Fig.12)
(Fig.14)

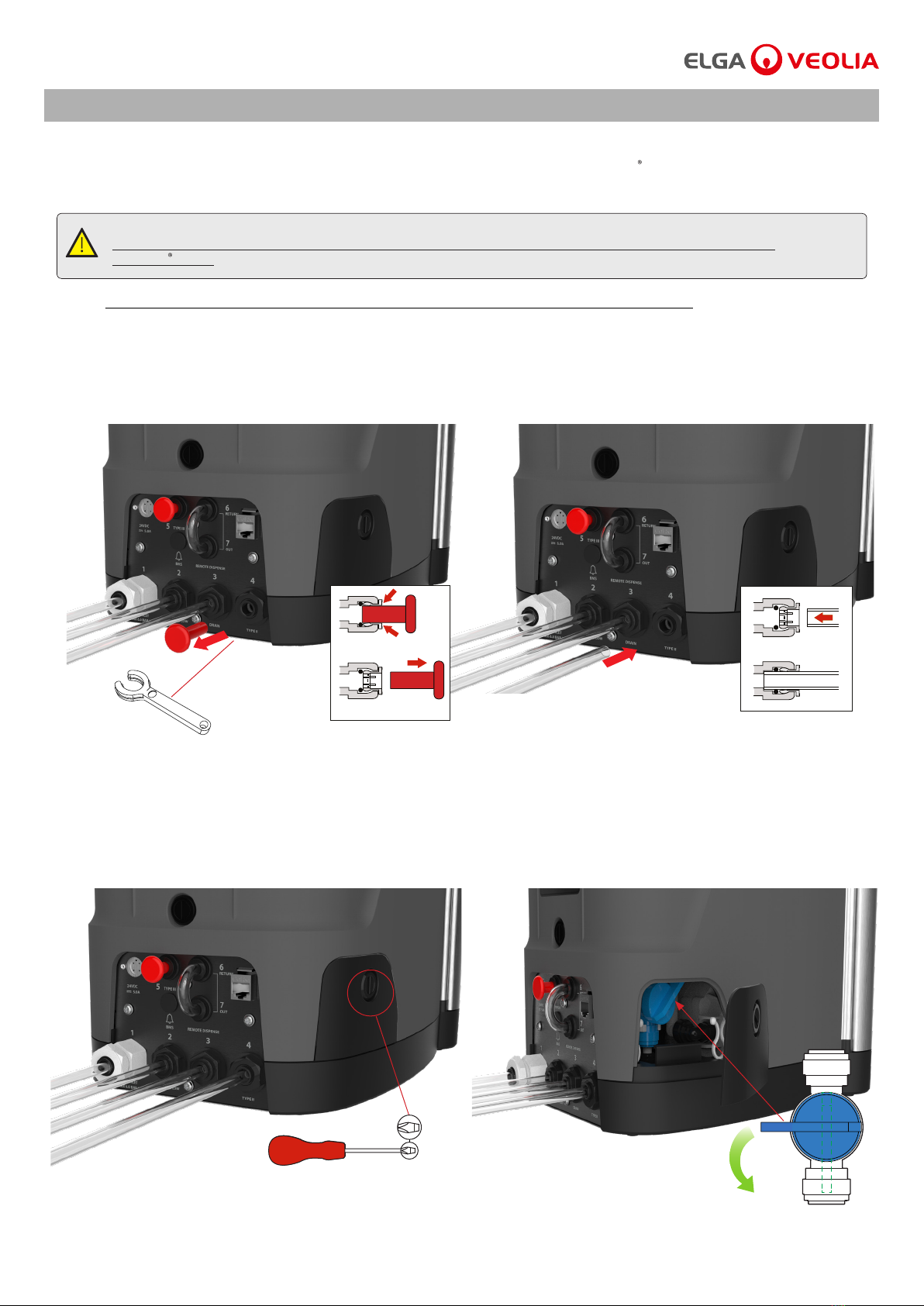

a) Remove the transit plug from the Overow connection. (Fig.11)
a) Remove the transit plug from the Drain connection. (Fig.13)
Connect the other end of the drain and overow tubes to a sink or suitable drain capable of handling at least 90L/hr.
The drain point should have a gravity fall below the level of the unit and any connections directed to drain should have an air break device tted.
(See Quick Start Guide - Step 3 for details)
C. Turn on the Feedwater supply, open 15mm emergency shut-o valve and regulator the pressure to 4 bars.
Ports 4,5,6 and 7 do not need to be connected for a standard installation (See Operator's manual - Section 6 for details).
b) Using the tube supplied, rmly push one end securely
into the water inlet connection. (Fig.10)
b) Using the tube supplied, rmly push one end securely
into the Overow connection. (Fig.12)
b) Using the tube supplied, rmly push one end securely
into the Drain connection. (Fig.14)
Push in collet
Remove Transit Plug
ADDITIONAL PURIFIED WATER OUTLET CONNECTIONS
7
Push in collet
Remove Transit Plug
Push in collet
Remove Transit Plug
a) Remove the transit plug from the water inlet connection. (Fig.9)

SET - UP / COMMISSIONING
CONNECT THE POWER LANGUAGE
FOLLOW THE ON SCREEN INSTRUCTIONS
8 9
10
a) Connect the power cable as shown. (Fig.15)
a) Scroll to nd your language.
b) Press to accept to conrm.
c) Turn on the power supply,
the screen will as shown. (Fig.16)
b) Only use the power supply provided by ELGA.
The power supply and electrical feed must be earthed.
(Fig.21)
(Fig.22)
(Fig.23)
(Fig.24)
(Fig.20)
(Fig.19)
a) Write the installation date. (Fig.19)
c) Open the right-hand door. (Fig.21) d) Remove Bypass Pack LC728.
(Fig.22)
e) Remove LC292 transit caps.
(Fig.23)
f) Fit LC292 and follow
the on screen instructions. (Fig.24)
b) Insert LC291 Vent Filter and turn clockwise until hand tight only. (Fig.20)
g) Please wait for PURELAB QUEST 7L internal reservoir to ll and reach full purity before dispensing any puried water.
If an addtional external reservoir is also connected this will start to ll once the internal reservoir is full.
WARNING! CAREFULLY POSITION THE POWER SUPPLY, AVOIDING WATER CONTACT.
(Fig.15)
(Fig.16)
(Fig.17)
(Fig.18)
3
2
1
LC292
LA728
LC292
®

Quick Start
1. Health and Safety Notes Page 1
1.1 Environnent Page 1
1.2 Electricity Page 1
1.3 Ultraviolet Light Page 1
1.4 Residual Biostat Page 1
1.5 Personal Protective Equipment (PPE) Page 1
1.6 Control of Substance Hazardous to Health (COSHH) Page 1
2. Introduction Page 2
2.1 Health and Safety Page 2
2.2 Product Models Page 2
2.3 Use of this Manual Page 2
2.4 Installation Page 2
2.5 Environment Page 2
2.6 Commissioning Page 2
2.7 Customer Support Page 2
3. Guide to Your PURELAB®QUEST Page 3
4. Product Consumables and Accessories Page 4
5. Register Your Product Page 5
6. Additional Puried Water Outlet Connections Page 6 - 8
6.1 Port 4: Type 2 - Water Outlet Connection for an application Page 6
6.2 Port 5: Type 3 - Water Outlet Connection for an external reservoir Page 7
6.3 Port 6 and 7 - Water Outlet Connection for a Free-standing Dispenser Page 8
7. Quick Reference Guide Page 9 - 10
7.1 Manual Dispense Page 9
7.2 Auto Volume Dispense Page 9
7.3 Deactivating - Auto Volume Dispense Page 10
7.4 ON - OFF, Menu and Accept Page 10
8. Maintenance Page 11 - 21
8.1 Replacing Ultraviolet Lamp LC210 Page 11 - 13
8.2 Replacing DI Purication Pack LC292 Page 14
8.3 Cleaning the Inlet Filter Page 15 - 16
8.4 Replacing the Reverse Osmosis Module LC217 Page 17
8.5 Replacing the Vent Filter LC291 and Point-of-Use Filter LC134 / LC145 / LC197 Page 17 - 18
8.6 Sanitization Procedure - LC209 Sanitization Pack Page 19 - 20
8.7 Sanitization Procedure - LC209-M2 Sanitization Pack Page 20 - 21
9. Troubleshooting Page 22 - 23
10. Customize Operation Page 24
10.1 Set Alarm Points Page 24
10.2 Advanced Data Logging Page 24
10.3 Software Update Page 24
11. Technical Specications Page 25 - 26
12. Warranty / Conditions of sale Page 27
Copyright Note
The information contained in this document is the property of VWS (UK) Ltd, trading as ELGA Veolia , and is supplied without liability for errors or omissions.
No part of this document may be reproduced or used except as authorized by contract or other written permission from VWS (UK) Ltd.
The copyright and all restrictions on reproducing and use apply to all media in which this information may be placed.
VWS (UK) Ltd. Pursue a policy of continual product improvement and reserve the right to alter without notice the specication, design,
price or conditions of supply of any product or service.
© VWS (UK) Ltd. 2020 - All rights reserved. ELGA and PURELAB are registered trademarks of VWS (UK) Ltd.
Copyright Note
Eersan™ is a registered trademark of Activon Inc.
CONTENT

HEALTH AND SAFETY NOTES
1.1 Environment
1.3 Ultraviolet Light
1.4 Residual Biostat
1.6 Control of Substances Hazardous to Health (COSHH)
1.5 Personal Protective Equipment (PPE)
1.2 Electricity
Clean dry indoor. Temp 5-40°c. Humidity max 80%, non-condensing.
Caution!
The appliance coupler (mains lead) or power supply connected to the rear of the unit can be removed to isolate the
power supply. If access to this is restricted then it is recommended that access to the mains socket is easily
available to disconnect the power supply.
ONLY USE THE APPLIANCE COUPLER (MAINS LEAD) AND POWER SUPPLY PROVIDED, USE OF THESE WILL
ENSURE ADEQUATE EARTH PROTECTION. DISCONNECT ELECTRICAL MAINS POWER SUPPLY BEFORE ANY
MAINTENANCE WORK IS STARTED. IF THE EQUIPMENT IS USED IN A MANNER NOT SPECIFIED BY ELGA VEOLIA ,
THE PROTECTION PROVIDED BY THE EQUIPMENT MAY BE IMPAIRED.
WARNING!
Caution!
Failure to observe the instructions could result in damage to the equipment.
WARNING!
Please follow the safety information detailed in this instruction sheet. Failure to observe these instructions
could result in damage to the equipment, process, associated equipment and injury or death to persons.
Material safety data sheets covering the Purication Packs are available upon request.
Note: Ensure the consuambles are disposed of in accordance with local regulations.
MAINTENANCE MUST BE CARRIED OUT WITH PROPER PROTECTIVE EQUIPMENT THAT INCLUDES STERILE LATEX -
NITRILE GLOVES CAT 3 AND SAFETY GLASSES WHEN HANDLING GLASS CONSUMABLES.
WARNING!
Caution!
The PURELAB®QUEST is not designed for use in fume cupboards where chemicals could damage the system.
WARNING!
ALWAYS ENSURE THAT THE ELECTRICAL MAINS POWER SUPPLY IS ISOLATED BEFORE WORKING INSIDE.
UNDER NO CIRCUMSTANCES SHOULD THE UV LAMP BE CONNECTED AND ACTIVATED WHEN OUTSIDE THE
HOUSING. EXPOSURE COULD CAUSE SERIOUS INJURY TO EYES AND SKIN.
ENSURE UV LAMP IS DISPOSED OF IN ACCORDANCE WITH LOCAL REGULATIONS.
WARNING!
DURING THE COMMISSIONING CYCLE TRACE RESIDUAL BIOSTAT IS FLUSHED FROM THE SYSTEM.
COSHH MATERIAL SAFETY DATA SHEET ARE AVAILABLE UPON REQUEST.
WARNING!
PURELAB® Quest Operator Manual MANU41196 Version 02 2/20 Page 1
*Not supplied in basic installation Kit
EN14126
EN388 & EN374
SanitizationTablets
Tape Measure
Plastic Pipe CuttersTube Keys
Adjustable Spanner
5.5 x 125
Goggles
1. HEALTH AND SAFETY NOTICES

PURELAB® Quest Operator Manual MANU41196 Version 02 2/20 Page 2
INTRODUCTION
2.1 Health & Safety
Please ensure you read the Health & Safety notes in the front of this Operator Manual.
2.2 Product Range
This Operator manual has been prepared for PURELAB® Quest product models:
• PURELAB® Quest RO/DI/UV Product No. PQDIUVM1
• PURELAB® Quest RO/DI Product No. PQDIXXM1
PURELAB® Quest converts tap water directly to Type 1, 2 and 3 lab water. The unit is specically designed for
low volume applications and the intermittent demand of the modern laboratory.
2.3 Use of this Manual
This manual guides you through the operation and maintenance of PURELAB® QUEST
allowing you to obtain a guaranteed supply of puried water to meet your requirements.
2.4 Installation
The Quick Start Guide shown in the front of this manual shows you how to install and commission the
PURELAB® QUEST.
2.5 Environment
The PURELAB® Quest unit should be installed on a at, level surface, in a clean, dry environment.
The unit can also be wall mounted using the purpose designed wall mounting kit against a
vertical wall capable of supporting the combined weight of the unit and mounting kit LA735.
See INST39088 in-box wall mounting instructions for details.
2.6 Commissioning
PURELAB® Quest is supplied in a preset commissioning mode which must be completed before
puried water can be dispensed, see quick start to complete this procedure.
2.7 Customer Support
If you need help with your product, please call your local ELGA Veolia®representative.
For the address of the nearest ELGA Veolia® Sales and Service oce visit our website.
www.elgalabwater.com or contact ELGA Veolia at: Email: [e-mail]
NOT TO BE USED IN FUME EXTRACTION ENCLOSURES.
WARNING!
2. INTRODUCTION

PURELAB® Quest Operator Manual MANU41196 Version 02 2/20 Page 3
YOUR GUIDE TO THE CHORUS
3. GUIDE TO YOUR PURELAB QUEST
Reverse Osmosis Module LC217 (Service Part)
See section - 8.4 Maintenance Vent Filter LC291
Purication Pack
Release Handle
UV Lamp LC210
PQDIUVM1
AutoVolume
Dispense Button
Water Purity Display
Scrolling information bar -
Bar indicating the status.
Auto Volume or
Reservoir Volume Display
Up Button
Accept Button
Down Button
Dispenser Tip
Display Screen
Menu Buttons
Purication Pack
LC292
USB Port
Software Update /
Data Logging
Port 3: Drain
Port 2: Overow Outlet
Port 1: Feedwater Inlet
Port 4: Type 2 Water Outlet
(Application)
Port 5: Type 3 Water Outlet
(External Reservoir)
Port 6 and 7: Free-standing
Dispenser Connection
COMMS Port
Puried Water
Outlet Valve Type 2

* Consumable Life is an estimate only, and will depend on the application and feedwater quality.
4. PRODUCT CONSUMABLES AND ACCESSORIES
Purication Pack
LC292
Tablet
Sanitization Pack
LC209-M2
Sanitization Pack
LC209
Bypass Pack
(Transit Pack)
LA728
RO Module
LC217
(Replaced by
a Service
Engineer only)
Vent Filter
LC291
POU Filters
LC134
LC145
POU Filter
LC197
SKU40020:
EPA Approved
Sanitization
Tablets
(USA Only)
Pressure
Regulator LA512
UV Lamp
LC210
Accessories
PURELAB® Quest Operator Manual MANU41196 Version 02 2/20 Page 4
Part No. Description Typical Service Life* Max. Shelf Life
LC292 Purication Pack (DI) 6 Months 2 Years
LC209 Sanitization Pack 12 Months 2 Years
LC209-M2 Tablet Sanitization Pack 12 Months 2 Years
LA728 Bypass Pack (Removed during commisioning) N/A N/A
LC210 UltraViolet Lamp (UV) 12 Months 2 Years
LC291 Vent Filter (VF) 1 Year 2 Years
LC217 Reverse Osmosis Module (RO Service Module) Typical Life 2 Years 2 Years
LC134 Point-Of-Use 0.2µm Mirco Filter (POU) 3 Months 2 Years
LC145 Point-Of-Use 0.2µm Mirco Filter (POU) 3 Months 2 Years
LC197 Point-Of-Use Bio Filter (POU) 3 Months 2 Years
SKU:40020 Eersan Sanitization Tablet 1 every 6 months 8 Months
LA821 External Pre-treatment Filter Kit 6 Months 2 Years
LA735 Wall Mounting Kit N/A N/A
LA512 Feedwater Pressure Regulator N/A N/A
LA757 External 15L Reservoir N/A N/A
LA758 External 30L Reservoir N/A N/A
LA648 External Boost Pump (Feedwater less than <2 Bar) N/A N/A
Accessories
Consumables

YOUR GUIDE TO THE CHORUS
5. Registering a Product
Taking the time now to register will mean that we can provide a better service to you in the future.
We can contact you about product information and service updates.
Why Register your product?
•Validated your product warranty
•Proof of product registration
•Receive software and service updates
How can I quickly register?
The model number and serial number can be found on the ratings plate, see below:
*Model number
** Serial number
Enter the model and serial number into the online form at:
https://www.elgalabwater.com/support/register-a-product
ELGA Veolia is the global laboratory water brand of
Tel: [phone], Web: www.elgalabwater.com
Maximum Pressure
Inlet (bar/psi)
Working (bar/psi)
REFER TO OPERATING INSTRUCTIONS
SU REFERER AU MANUEL D'OPERATION
IN DER BEDIENUNGSANLEITUNG NACHSEHEN
Serial No.
MADE IN THE UK
MODEL *
**
5. REGISTER YOUR PRODUCT
Electrical supply
Veolia.
PURELAB® Quest Operator Manual MANU41196 Version 02 2/20 Page 5

The puried water outlet connections are located at the rear of PURELAB QUEST,
these are used for puried connections to other applications or products.
6.1 PURELAB Quest Port 4: Type 2 - Water Outlet Connection for an application
STEP 1 - Removing the transit plug and connecting the tube
1. Remove the transit plug from water outlet connection Port 4: Type 2 Outlet (Fig.1).
2. Insert an 8mm plastic tube into Port 4: Type 2 Outlet (Fig.2).
STEP 2 - Opening the Puried Water Outlet Valve
1. Undo the quarter turn fastner to the access panel (Fig.3).
2. Connect the 8mm tube to an applicaton or product that requires puried water.
3. Open the manual isolation valve (Turn 90° Anti-clockwise) (Fig.4).
6. ADDITIONAL PURIFIED WATER OUTLET CONNECTIONS
Port 4: Type 2 Outlet should not be connected to a pressurized application, this may cause back-ow into
PURELAB Quest.
Caution!
(Fig.1)
(Fig.3)
(Fig.2)
Manual isolation valve
(Fig.4)
Push in collet
Remove Transit Plug
5.5 x 125
Closed
Open
PURELAB® Quest Operator Manual MANU41196 Version 02 2/20 Page 6

6.2 PURELAB Quest Port 5: Type 3 - Water Outlet Connection for an external reservoir
STEP 1 - Removing the transit plug and connecting the tube
1. Remove the transit plug from water outlet connection Port 5: Type 3 Outlet (Fig.1).
2. Insert an 8mm plastic tube into Port 5: Type 3 Outlet (Fig.2).
STEP 2 - Connecting water and power to the reservoir
1. Remove the transit plug from reservoir Port 1: Inlet (Fig.3).
2. Insert the 8mm plastic tube from PURELAB Quest Port 5: Outlet into reservoir Port 1: Inlet (Fig.3).
3. Insert an 8mm plastic tube into the overow and connect to drain (Fig.4).
4. Connect the supplied comms lead from PURELAB Quest into J2 reservoir comms connection (Fig.5).
YOUR GUIDE TO THE CHORUS
6. ADDITIONAL PURIFIED WATER OUTLET CONNECTIONS
(Fig.1)
8mm tube from PURELAB Quest
Port 5: Type 3 Outlet
Transit Plug
Reservoir Connections
(Fig.2)
Push in collet
Remove Transit Plug
Push in collet
Remove Transit Plug
PURELAB® Quest Operator Manual MANU41196 Version 02 2/20 Page 7
Overow
(Fig.3)
(Fig.4)
(Fig.5)
Comms lead
from PURELAB Quest
J2

6.3 Port 6 and 7 - Water connections for Free-Standing Dispenser
STEP 1 - Disconnect the power
1. Disconnect the power supply before removing the metal loop (Fig.1).
STEP 2 - Removing the metal loop
1. Wait a couple of minutes before removing the metal loop.
2. Remove the metal loop from Port: 6 and Port: 7 using an 8mm tubing key (Fig.2).
3. Follow the Free-standing Dispenser - Quick Start Guide to complete this installation.
6. ADDITIONAL PURIFIED WATER OUTLET CONNECTIONS
MAKE SURE THAT THE POWER SUPPLY CANNOT COME INTO CONTACT WITH WATER.
WARNING!
3
2
1
(Fig.1)
(Fig.2)
Port 6: Return
Port 7: OUT
PURELAB® Quest Operator Manual MANU41196 Version 02 2/20 Page 8

7.1 Manual Dispense
7.2 Auto Volume Dispense
YOUR GUIDE TO THE CHORUS
7. QUICK REFERENCE GUIDE
Press dispense at anytime, release to stop.
Press Auto-Volume at anytime. Press to scroll up and down, press dispense to conrm.
PURELAB® Quest Operator Manual MANU41196 Version 02 2/20 Page 9
7.0L
100ml
+

7. QUICK REFERENCE GUIDE
7.3 Deactivating - Auto Volume Dispense
7.4 ON - OFF, Menu and Accept
Deactivate Auto-Volume dispense, press once. Press and Hold for 2 seconds to enter the Main Menu.
Scoll to select a feature in the Main Menu.
Press Auto-Volume dispense at anytime to exit.
0202
PURELAB® Quest Operator Manual MANU41196 Version 02 2/20 Page 10
7.0L
100ml
7.0L
100ml

YOUR GUIDE TO THE CHORUS
8. MAINTENANCE
Maintenance
Any maintenance work not included in this operator manual should be carried out by an approved
Service engineer or technician, please contact: https://www.elgalabwater.com/support/product-support
8.1 Replacing Ultraviolet Lamp LC210 - PQDIUVM1
The Ultraviolet (UV) Lamp should be replaced when;
• UV Lamp failure occurs.
• UV Lamp efficiency decreases affecting water quality.
If either situation occurs, a message will be displayed on screen asking you to replace the UV Lamp.
STEP 1 - Switching OFF the power supply
1. ISOLATING the power supply, follow the instructions below (Fig.1).
Disposing of used consumable items should be in accordance with local statutory regulations.
Note:
UV-C RADIATION IS HARMFUL TO EYES AND SKIN.
LC210 UV LAMP SHOULD ONLY BE OPERATED INSIDE LC210 CHAMBER.
IT'S STRONGLY RECOMMENDED THAT DURING THE HANDLING OF LC210 UV LAMP
CUT-RESISTANT GLOVES SHOULD BE WORN FOR PROTECTION.
WARNING!
LC210 UV LAMP CONTAINS MERCURY HAZARDOUS TO HEALTH,
FRAGILE GLASS DO NOT BREAK
IF BROKEN MAY CAUSE REDNESS OR IRRITATION AS A RESULT UPON CONTACT WITH
SKIN OR EYES, PLEASE SEEK MEDICAL ATTENTION.
WARNING!
EN388 & EN374
EN388 & EN374
Goggles
Goggles
3
2
1
(Fig.1)
PURELAB® Quest Operator Manual MANU41196 Version 02 2/20 Page 11

8. MAINTENANCE
STEP 2 - Removing LC210 UV Lamp
1. Open the left side door (Fig.2).
2. Disconnect the UV lamp wiring connector (Fig.3).
STEP 3 - Removing LC210 UV Lamp continued
1. Carefully remove the UV lamp from it's chamber (Fig.4).
2. Discard used UV lamp in accordance with local regulations (Fig.5).
STEP 4 - Replace LC210 UV Lamp
1. Unpack the new LC210 lamp from it's product packaging (Fig.6).
Used LC210
FRAGILE!
Use cut resistant gloves when handling the new UV Lamp LC210.
Caution!
FRAGILE!
(Fig.2)
(Fig.4)
(Fig.5)
(Fig.6)
(Fig.3)
PURELAB® Quest Operator Manual MANU41196 Version 02 2/20 Page 12
New LC210
