VMAX 2 Series
Section 1: Screen Design
1.1 What is it?
The VMAX 2 Series is an enhanced electric motorized projector screen for commercial and
home theater applications.
1.2 How does it work?
It has a silent and power-saving synchronous motor. With standard features such as the IR & RF
remotes, 12v Trigger and Electronic “Eye” Receiver, the VMAX 2 series also includes Elite’s
GREENGUARD Certified MaxWhite® 1.1 gain material that is ideal for large group presentations.
Section 2: Product Features .
2.1 Characteristics
Screen Material
•MaxWhite® 1.1 Gain black backed material
•MaxWhite® FiberGlass backed 1.1 Gain material, models 166" & below
•180° wide viewing angle
•4K Ultra HD, Active 3D, and HDR Ready
•Not compatible with Ultra/Short-throw Projectors
•Standard 4-side black masking borders
•Matte White material is durable and easy to clean
•Available in the following range of diagonal sizes:
•99" - 170" in 1:1 format
•84" - 165" in 4:3 format
•84" - 166" in 16:9 format
•106", 128" and 142" in 16:10 format
Design and Installation
•Durable metal casing for wall/ceiling installation
•Includes wood screws and drywall anchors
•Bubble leveler included
•Ships fully assembled with 3-prong power connection ready to plug & play
•Optional in-ceiling trim kit and 6" & 12" L brackets - sold separately
Control System
•Standard Infrared (IR) and Radio Frequency (RF) remote controls
•Detachable 3-way wall switch
•Radio Frequency (RF) remote capable of operating from up to 100 feet away without the necessity of
line of sight
•Built-in 5-12 volt trigger input enables Drop/Rise operation to synchronize with the projector's power
cycle
•Low-voltage internal IR/RF receivers
•CAT5 cable wit RJ-45 connector for easy extension of the 5-12 volt trigger/IR "eye" receiver/3-way wall
switch

TYPE THE DOCUMENT TITLE
http://www.elitescreens.com
2
Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India
Elite Screens China Ltd. | Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia
•Optional ZR800D IR Universal Remote Control, wireless 5-12 volt trigger, Universal 5-12 volt
trigger (for projectors that don't have a trigger output port) and In-wall switch - sold separately
Quality and Reliability
•Synchronous motor allows silent operation with extended operational longevity and low power
consumption
•Certified by AMX and CRESTRON
•MaxWhite® FiberGlass: Flame Retardant- Complies with NFPA 701 Standards
•GREENGUARD® and GREENGUARD® Gold Certified
•Conforms to ANSI/UL STD. 60950-1
•Certified to CAN/CSA STD. C22.2
•2-year Parts & Labor manufacturer's warranty
•3-year warranty offered through ENR-G program (Education, Non-Profit, Religious and Government)
2.2 Certifications
2.3 Model Numbers
Model
Number
Diag.
Size
Aspect
Ratio
Viewing
Height
(in)
Viewing
Width
(in)
Screen Material Gain Case
Color
N.W.
(lbs)
G.W.
(lbs)
Packing Dims.
(LxWxH)
VMAX84XWH2
84"
16:9
41.2
73.2
MaxWhite® FG
1.1
White
18.8
23.1
87.8"x6.1"x5.5"
VMAX84UWH2-E30
84"
16:9
41.2
73.2
MaxWhite® FG
1.1
Black
20.0
24.6
87.8"x5.5"x5.5"
VMAX92UWH2
92"
16:9
45.1
80.2
MaxWhite® FG
1.1
Black
22.1
25.4
95.8"x5.5"x5.5"
VMAX92XWH2
92"
16:9
45.1
80.2
MaxWhite® FG
1.1
White
20.9
25.1
98.0"x5.5"x5.3"
VMAX92UWH2-E30
92"
16:9
45.1
80.2
MaxWhite® FG
1.1
Black
20.1
26.0
97.6"x5.5"x5.9"
VMAX100UWH2
100"
16:9
49.0
87.2
MaxWhite® FG
1.1
Black
21.9
28.6
105.4"x5.9"x6.3"
VMAX100XWH2
100"
16:9
49.0
87.2
MaxWhite® FG
1.1
White
22.0
29.1
105.4"x5.7"x6.5"
VMAX106UWH2
106"
16:9
52.0
92.4
MaxWhite® FG
1.1
Black
24.3
34.5
111.6"x5.9"x6.7"
VMAX106UWH2-E24
106"
16:9
52.0
92.4
MaxWhite® FG
1.1
Black
25.3
32.4
110.7"x5.7"x6.3"
VMAX106XWH2-E24
106"
16:9
52.0
92.4
MaxWhite® FG
1.1
White
25.3
32.4
110.7"x5.7"x6.3"
VMAX110UWH2
110"
16:9
53.9
95.9
MaxWhite® FG
1.1
Black
24.6
31.7
114.2"x5.7"x6.3"
VMAX110UWH2-E24
110"
16:9
53.9
95.9
MaxWhite® FG
1.1
Black
27.2
34.2
114.2"x5.7"x6.3"
VMAX120UWH2
120"
16:9
58.8
104.6
MaxWhite® FG
1.1
Black
27.6
34.0
123.0"x5.9"x6.3"
VMAX120XWH2
120"
16:9
58.8
104.6
MaxWhite® FG
1.1
White
27.5
35.2
123.0"x5.5"x6.3"
VMAX120UWH2-E24
120"
16:9
58.8
104.6
MaxWhite® FG
1.1
Black
29.4
36.7
123.0"x5.7"x6.5"
VMAX120XWH2-E24
120"
16:9
58.8
104.6
MaxWhite® FG
1.1
White
30.0
40.6
123.0"x6.1"x6.7"
VMAX135UWH2
135"
16:9
66.2
117.7
MaxWhite® FG
1.1
Black
39.0
47.3
134.6"x6.3"x6.7"
VMAX135XWH2
135"
16:9
66.2
117.7
MaxWhite® FG
1.1
White
39.4
47.5
134.6"x6.3"x6.5"
VMAX135UWH2-E24
135"
16:9
66.2
117.7
MaxWhite® FG
1.1
Black
39.9
48.1
134.6"x6.1"x6.5"
VMAX135XWH2-E24
135"
16:9
66.2
117.7
MaxWhite® FG
1.1
White
40.8
49.8
135.0"x6.1"x6.5"
VMAX150UWH2
150"
16:9
73.5
130.7
MaxWhite® FG
1.1
Black
44.6
56.9
149.6"x6.7"x7.1"
VMAX150XWH2
150"
16:9
73.5
130.7
MaxWhite® FG
1.1
White
43.5
55.6
148.4"x6.5"x6.9"
VMAX150UWH2-E24
150"
16:9
73.5
130.7
MaxWhite® FG
1.1
Black
43.9
56.2
148.8"x6.5"x6.9"
VMAX166XWH2
166"
16:9
81.4
144.7
MaxWhite® FG
1.1
White
46.7
59.6
162.6"x6.5"x6.9"
VMAX84XWV2
84"
4:3
50.4
67.2
MaxWhite® FG
1.1
White
18.1
22.0
81.9""x5.5"x5.5"
VMAX84XWV2-E30
84"
4:3
50.4
67.2
MaxWhite® FG
1.1
White
19.4
24.3
81.9"x5.5"x5.5"

TYPE THE DOCUMENT TITLE
http://www.elitescreens.com
3
Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India
Elite Screens China Ltd. | Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia
Model
Number
Diag.
Size
Aspect
Ratio
Viewing
Height
(in)
Viewing
Width
(in)
Screen Material Gain Case
Color
N.W.
(lbs)
G.W.
(lbs)
Packing Dims.
(LxWxH)
VMAX92UWV2
92"
4:3
55.2
73.6
MaxWhite® FG
1.1
Black
21.2
26.0
88.2"x5.5"x5.5"
VMAX92XWV2
92"
4:3
55.2
73.6
MaxWhite® FG
1.1
White
21.2
26.0
88.2"x5.5"x5.5"
VMAX100UWV2
100"
4:3
60.0
80.0
MaxWhite® FG
1.1
Black
21.5
27.7
98.4"x5.5"x6.3"
VMAX100XWV2
100"
4:3
60.0
80.0
MaxWhite® FG
1.1
White
21.5
28.0
98.3"x5.7"x6.5"
VMAX100XWV2-E24
100"
4:3
60.0
80.0
MaxWhite® FG
1.1
White
22.1
27.3
95.8"x5.5"x5.5"
VMAX120XWV2
120"
4:3
72.0
96.0
MaxWhite® FG
1.1
White
26.9
33.9
114.2"x6.3"x6.3"
VMAX120XWV2-E24
120"
4:3
72.0
96.0
MaxWhite® FG
1.1
White
28.5
35.9
114.2"x5.7"x6.3"
VMAX135XWV2
135"
4:3
81.0
108.0
MaxWhite® FG
1.1
White
37.7
45.7
125.2"x6.3"x6.7"
VMAX135XWV2-E24
135"
4:3
81.0
108.0
MaxWhite® FG
1.1
White
30.9
36.4
123.6"x5.5"x5.5"
VMAX150XWV2
150"
4:3
90.0
120.0
MaxWhite® FG
1.1
White
42.1
54.9
138.2"x6.5"x6.9"
VMAX150XWV2-E24
150"
4:3
90.0
120.0
MaxWhite® FG
1.1
White
35.3
41.5
135.4"x5.9"x6.3"
VMAX165XWV2
165"
4:3
99.0
132.0
MaxWhite® FG
1.1
White
46.9
57.9
146.5"x6.3"x6.5"
VMAX99UWS2
99"
1:1
70.0
70.0
MaxWhite® FG
1.1
Black
19.6
24.2
84.7"x5.5"x5.5"
VMAX99XWS2
99"
1:1
70.0
70.0
MaxWhite® FG
1.1
White
19.6
24.3
84.6."x5.5"x5.5"
VMAX113UWS2
113"
1:1
79.9
79.9
MaxWhite® FG
1.1
Black
22.6
27.7
96.1"x5.5"x5.5"
VMAX113XWS2
113"
1:1
79.9
79.9
MaxWhite® FG
1.1
White
22.6
27.7
96.1"x5.5"x5.5"
VMAX119XWS2
119"
1:1
84.1
84.1
MaxWhite® FG
1.1
White
23.7
30.6
102.6"x5.5"x6.3"
VMAX136XWS2
136"
1:1
96.2
96.2
MaxWhite® FG
1.1
White
29.1
36.0
114.2"x5.7"x6.3"
VMAX153XWS2
153"
1:1
108.2
108.2
MaxWhite® FG
1.1
White
40.3
50.3
126.0"x6.7"x6.9"
VMAX170XWS2
170"
1:1
120.2
120.2
MaxWhite®
1.1
White
44.7
60.1
136.2"x6.5"x6.9"
VMAX106UWX2
106"
16:10
56.2
89.9
MaxWhite® FG
1.1
Black
21.1
27.3
106.0"x5.5"x5.9"
VMAX106UWX2-E24
106"
16:10
56.2
89.9
MaxWhite® FG
1.1
Black
23.2
28.1
106.0"x5.5"x5.9"
VMAX128UWX2
128"
16:10
67.8
108.5
MaxWhite® FG
1.1
Black
28.5
36.6
126.8"x5.7"x6.5"
VMAX128UWX2-E20
128"
16:10
67.8
108.5
MaxWhite® FG
1.1
Black
27.7
33.3
124.0"x5.5"x5.9"
Section 3: Screen Material Specifications.
3.1 Characteristics

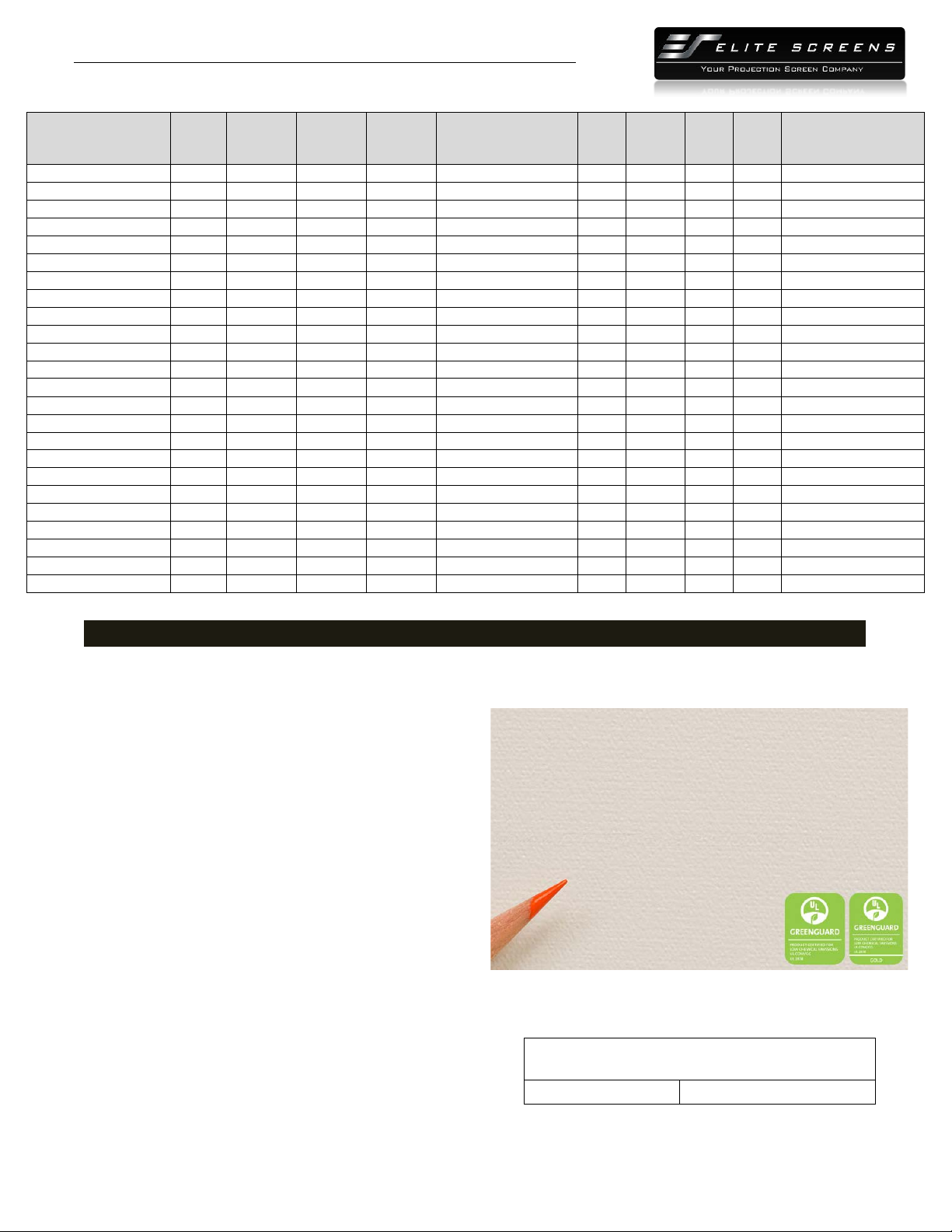

3.1.1 MaxWhite® Fiberglass (FG)
MaxWhite® Fiberglass (FG) is fiberglass backed for
added stiffness which provides the flattest possible
non-tensioned screen surface with universal
applications. This material provides wide viewing
uniform diffusion while giving precise definition, color
reproduction and black & white contrast. The screen
surface has a black-backing to eliminate light
penetration, is mildew resistant and washable with mild
soap and water.
* Manufacturer tip: This is an enhanced matte white
product for higher end DLP/LCD projectors suitable for
commercial and residential presentations.
Specifications
Thickness
0.36 mm (0.014")

TYPE THE DOCUMENT TITLE
http://www.elitescreens.com
4
Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India
Elite Screens China Ltd. | Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia
Features & Benefits
•Multi-layer weave with textured surface
•Fiberglass backing with black backing
•Gain: 1.1
•View Angle: 180° (90° ± LR)
•Not compatible with Ultra/Short-throw Projectors
•Mildew Resistant
•Active 3D, 4K Ultra HD, and HDR ready
•Surface can be cleaned with mild soap and water
•Flame Retardant: Complies with NFPA 701 Standards
•GREENGUARD® and GREENGUARD® Gold Certified | UL 2818

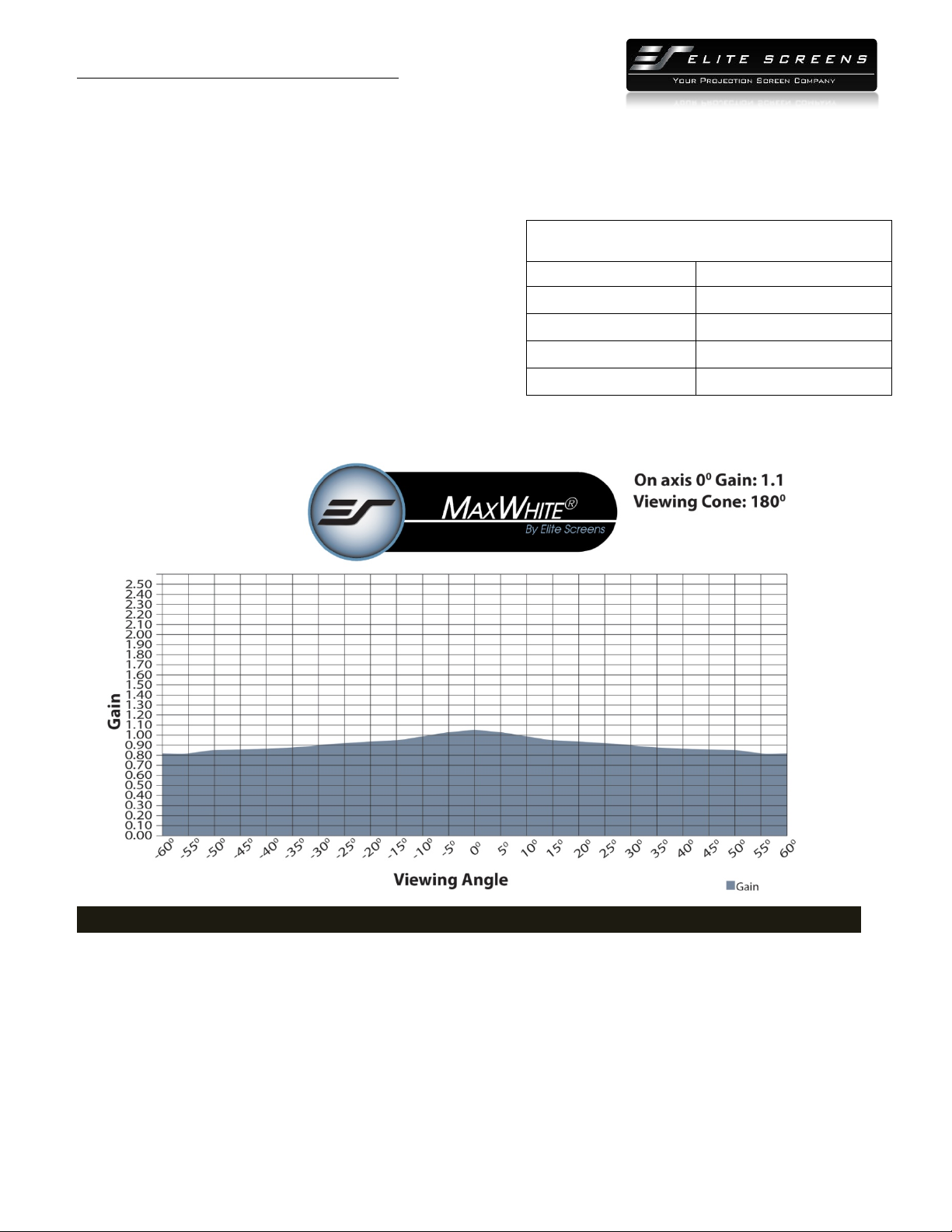

3.1.2 Gain and Viewing Angle
3.2.1 MaxWhite®
MaxWhite® screen material is the most versatile
screen surface for front projection
presentations. This material provides the widest
possible viewer angles with perfect diffusion
uniformity while giving precise definition, image
color reproduction and black & white
contrast. Screen surface has black-backing to avoid
Weight 350 g/m²
Maximum Height
3.2 M (10 ft)
On-axis Gain 1.0
Half-Gain Angle
Does not reach half gain

PRODUCT WHITE PAPER P
www.elitescreens.com
Elite Screens Inc. | Elite Screens Europe GmbH | Elite Screens France S.A.S | Elite Screens India | Elite Screens China Ltd. | EliteScreens Taiwan Corp.
EliteScreensJapan| EliteScreensAustralia
5
light penetration and can be cleaned safely with mild soap and water. Woven screen material is a multi-layer,
cross-array coated with a matte white reflective compound.
Features & Benefits
•Multi-layer weave and textured surface coating
•Gain: 1.1
•View Angle: 180° (90° ± LR)
•Not compatible with Ultra/Short-throw Projectors
•Mildew Resistant
•Black backing
•Active 3D, 4K Ultra HD, and HDR ready
•Surface can be easily cleaned with mild soap and
water
•GREENGUARD® and GREENGUARD® Gold Certified | UL 2818
3.1.2 Gain and Viewing Angle
Section 4: Execution .
4.1 Important Safety & Warning Precautions
Caution: The screen’s Black Top Drop is already set to its maximum drop distance. There is NO extra Black
Top Drop in the roller. Please be aware of this as it will void your warranty with Elite Screens. Unapproved
changes or modifications (except for cutting the power cord for hardwire installations) to this unit are
prohibited and will void your warranty. For more information, please contact our Technical Support
Department at [phone] Ext. 604.
•Please retain this user’s guide for future reference.
Specifications
Thickness
0.41 mm (0.016")
Weight 530 g/m²
Maximum Height 3.2 M (10 ft)
On-axis Gain 1.1
Half-Gain Angle Does not reach half gain

PRODUCT WHITE PAPER P
www.elitescreens.com
Elite Screens Inc. | Elite Screens Europe GmbH | Elite Screens France S.A.S | Elite Screens India | Elite Screens China Ltd. | EliteScreens Taiwan Corp.
EliteScreensJapan| EliteScreensAustralia
6
•To avoid damaging the unit, do not use with any unauthorized accessories not recommended by
the manufacturer.
•Handle the unit carefully during transportation to avoid any damages.
•To ensure safe and reliable operation, direct connection to a properly grounded power source is
advised.
•The power outlet supplying power to the unit should be close to the unit and easily accessible.
•Do not install the unit on uneven or inclined surfaces.
•Do not put heavy objects on the power cord and position it properly to avoid creating a trip
obstacle.
•Never overload the power cord to prevent an electric shock or fire due to a loose contact or a
short circuit.
•There are not user serviceable parts in this unit. Do not attempt to disassemble this unit by
yourself. No one except authorized technicians can open and make repairs to this unit.
•Make sure the power source this unit is connected to has a continuous power flow.
•If there is need to use an extension cord, make sure the cord has an equal rating as the appliance
to avoid overheat.
•Do not handle the power plug when your hands are wet or your feet are in contact with water.
Do not use this unit under the following circumstances.
•Disconnect the power cord under the conditions of heavy rain, wind, thunder or lightning.
•Avoid direct Sunshine, rain shower and moisture.
•Keep away from fire sources and high temperature to prevent this device from overheating.
•Cut off the power supply first before transportation or maintenance.
•Fully disconnect from the power supply when the unit is not in use for a long period of time, as
should be done with any other electric household appliance.
•To avoid possible injury and/or an electric shock, do not attempt to use the screen if there is
obvious damage or if there are any evident broken parts.
4.2 Installation Warning
Due to various installation environments, the instructions provided in this user’s guide are for
reference only. Please consult a professional installation company for further installation and safety
advice. The installer must insure that proper mounting hardware is used to provide adequate strength
suitable for the installation. Elite Screens is not liable for any faulty installations.
The Screen’s Top Black Drop is already set to its maximum drop distance. There is NO extra top black drop in the
roller. Please be aware of this as it will void the limitation of your warranty.
Individual modifications to this product are prohibited and will void the warranty with the manufacturer.
Please contact Elite Screens Customer Service for any questions.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.

PRODUCT WHITE PAPER P
www.elitescreens.com
Elite Screens Inc. | Elite Screens Europe GmbH | Elite Screens France S.A.S | Elite Screens India | Elite Screens China Ltd. | EliteScreens Taiwan Corp.
EliteScreensJapan| EliteScreensAustralia
7
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that the interference will not occur on a particular installation. If this equipment
causes harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
Reorient or relocate the receiving antenna of the device which may be casing the interference.
Increase the separation between the screen and the device’s receiver.
Connect the equipment into a different power outlet other than the device.
4.3 Pre-Installation
1. Carefully unpack the screen.
2. Always handle the screen in a leveled position on a clean surface.
3. In order to protect the screen from exposure to stains, keep the screen out of contact with foreign
particles such as dust, sawdust, and/or liquids.
NOTE: Regardless of the mounting method, the screen should be securely supported so that the vibration or
pulling on the viewing surface will not cause the casing to become loose or fall. The installer must insure that the
fasteners used are of adequate strength and suitable for the installation location.
4.4 Accessories
A. Infrared Remote
B. Radio Frequency Remote
C. 12 volt Trigger
Red+ Green-
D. 3 Way Wall Switch
E. AAA Batteries
D. Infrared Eye Receiver
F. Bubble leveler

PRODUCT WHITE PAPER P
www.elitescreens.com
Elite Screens Inc. | Elite Screens Europe GmbH | Elite Screens France S.A.S | Elite Screens India | Elite Screens China Ltd. | EliteScreens Taiwan Corp.
EliteScreensJapan| EliteScreensAustralia
8
Up
Stop
D
own

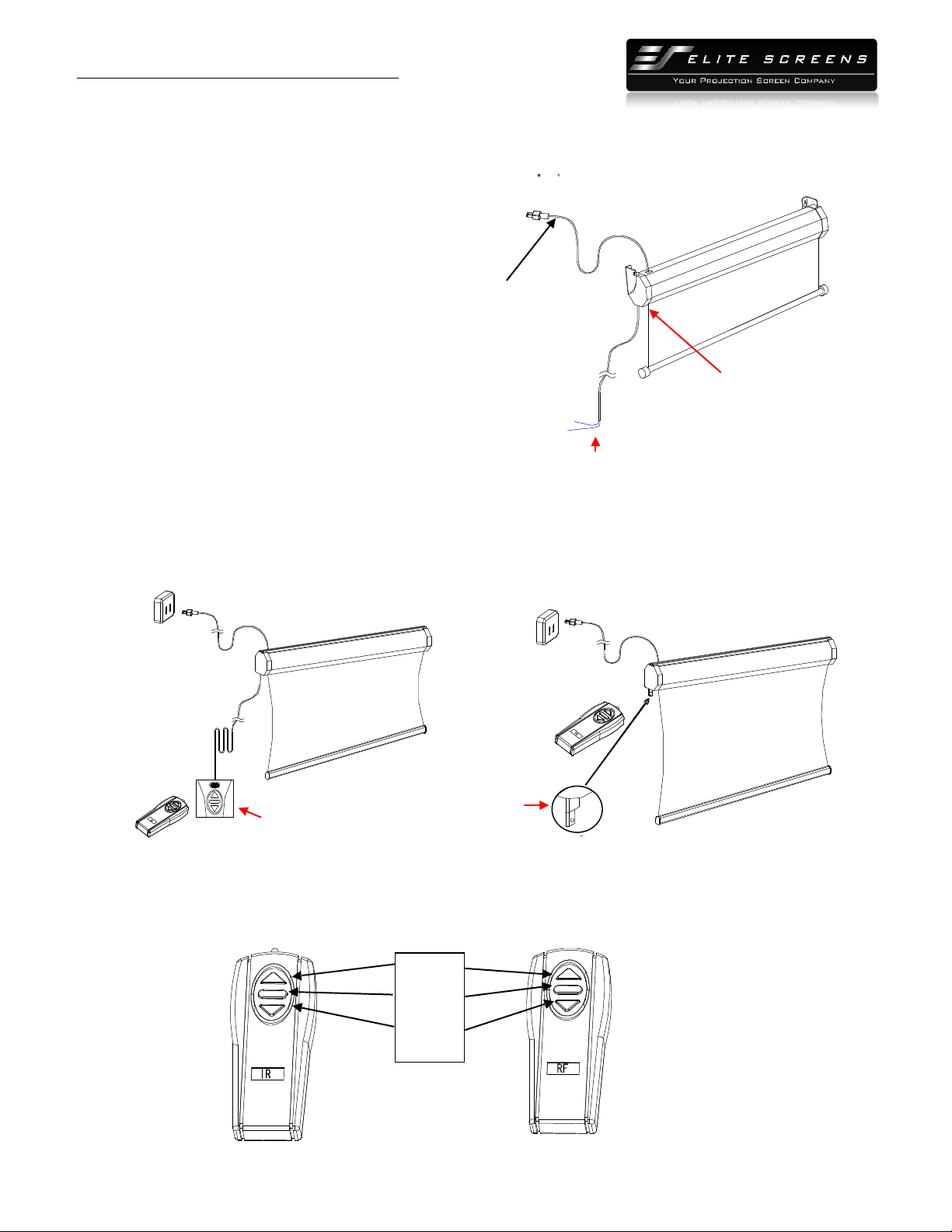

4.5 Control System
1. 5-12V Trigger: The built-in 5-12V trigger input
allows your screen to synchronize its drop & rise
with the projector’s power cycle. The screen
deploys when the projector powers up and will
retract when the projector powers down. The 5-12
volt adaptor connects to your projector’s trigger
output via a separate cable that may or may not
be provided by the manufacturer of the projector.
The trigger feature will not work without an
output cable from the projector, but it can be
tested by connecting the Red (+) and Green (-)
cable to a 9-volt battery.
2. 3 -Way Wall Switch: The 3-way wall
switch is a wall mount control box with
an up/stop/down button and plugs
directly into the screen’s RJ-45 input.
3. IR “Eye” Receiver: The IR “Eye” Receiver plugs directly
into the screen’s RJ-45 input to present a low profile line-
of-sight control option for your IR remote control even in
a recessed ceiling installation.
3-prong power cable
Red: DC 12 +
Green: 0 V -
RJ-45 input for 5-12V Trigger
5-12 Volt Trigger Cable
3-way Wall switch
IR “Eye” Receiver
4. IR Remote Control: The Infrared
functions by direct line of sight contact
with a beam range of 30 feet.
5. RF Remote Control: The radio waves
eliminate the need for a direct line of sight
with a range of 150 feet.
Up
Stop
Down

PRODUCT WHITE PAPER P
www.elitescreens.com
Elite Screens Inc. | Elite Screens Europe GmbH | Elite Screens France S.A.S | Elite Screens India | Elite Screens China Ltd. | EliteScreens Taiwan Corp.
EliteScreensJapan| EliteScreensAustralia
9
Optional installation method using a chain to hang the screen from the ceiling
4.6 Installation Instructions
Please consult a professional installer. Elite Screens is not liable for any faulty installations.
1. Select the installation location for your screen. Ensure that it is within reasonable proximity from your power source.
2. For best support of your screen, it is ideal to secure your screen into the studs of your house’s internal framework. If
studs are not available, use hollow anchors for mounting your wall screws into drywall. If you’re installing in a
concrete structure, use concrete bolts to secure your screen.
Always consult a professional installer or hardware professional to ensure that the proper screws and/or hardware
are being used.
3. Ensure that both brackets are in perfect level alignment with one another. Use wall/ceiling wood screws to secure to
the wood studs. Use hollow anchors if mounting in drywall.
4. The screen casing is designed to accept the wall screws directly. If not using the Optional L-Brackets
http://shop.elitescreens.com/accessories.aspx, be sure to position the washer between the head of the wall-screw
and the anchor slots on the screen’s casing.
5. Using a tape measure, mark the keyholes that are located at the back of the screen’s casing end cap.
6. After marking the area and predrilled hole, insert the screw and have at least 1/8” from the wall to mount the
screen. (See example in Figure 1.)
7. Figure 2 will show you an optional installation using chains (not included).

PRODUCT WHITE PAPER P
www.elitescreens.com
Elite Screens Inc. | Elite Screens Europe GmbH | Elite Screens France S.A.S | Elite Screens India | Elite Screens China Ltd. | EliteScreens Taiwan Corp.
EliteScreensJapan| EliteScreensAustralia
10

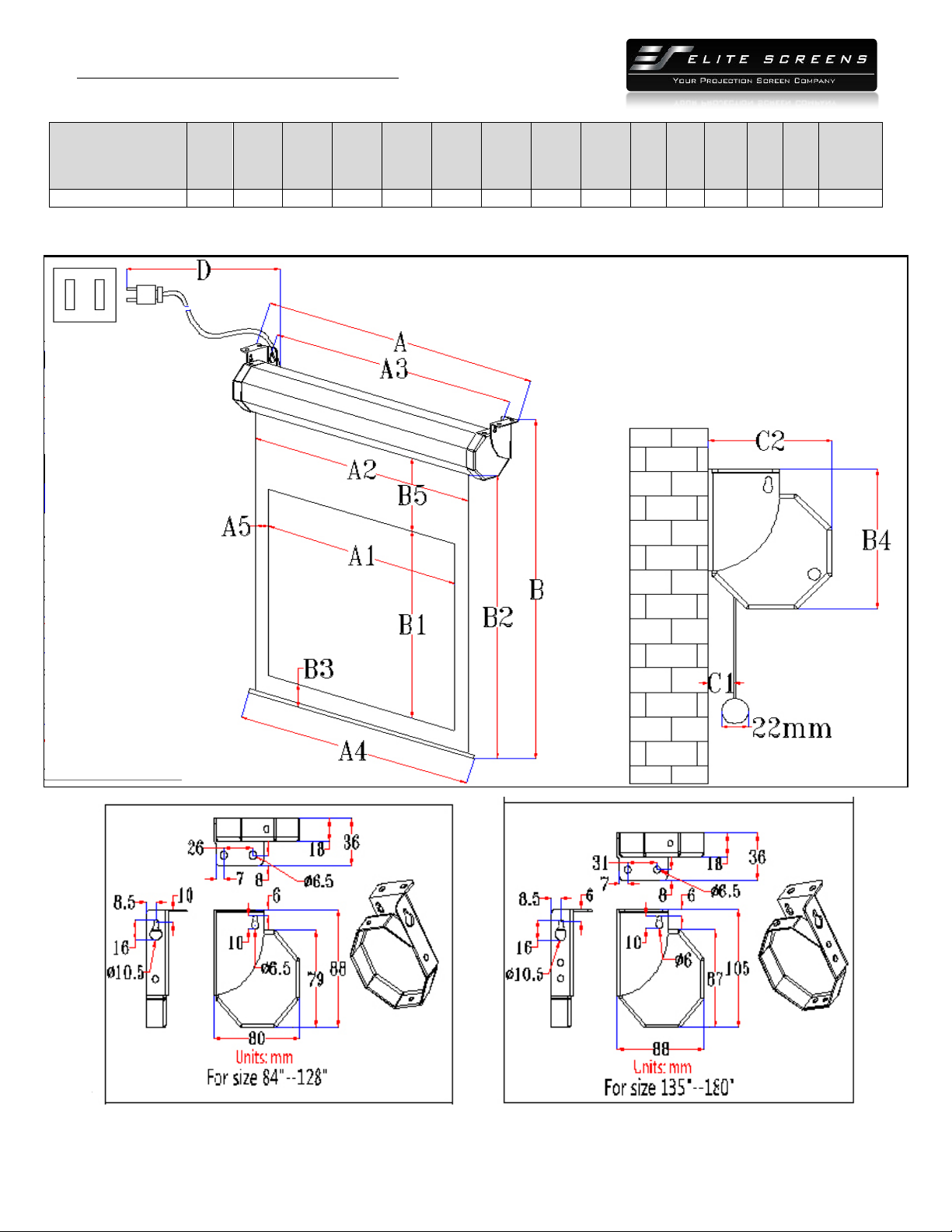

Section 5: Product Specifications
5.1 Dimensions
Model Number Diag.
Size A A1 A2 A3 A4 B B1 B2 B3 B4 B5 C1 C2 Power Cord L.
Unit: Inches
VMAX99XWS2
99"
82.2
70.0
73.0
80.0
76.1
79.0
70.0
75.4
2.4
3.7
3.0
0.7
3.1
70.9
VMAX99UWS2
99"
82.2
70.0
73.0
80.0
76.1
79.0
70.0
75.4
2.4
3.7
3.0
0.7
3.1
70.9
VMAX113XWS2
113"
93.1
79.9
83.8
91.0
87.0
88.9
79.9
85.3
2.4
3.7
3.0
0.7
3.1
70.9
VMAX113UWS2
113"
93.1
79.9
83.8
91.0
87.0
88.9
79.9
85.3
2.4
3.7
3.0
0.7
3.1
70.9
VMAX119XWS2
119"
97.3
84.1
88.1
95.2
91.2
93.2
84.1
89.5
2.4
3.7
3.0
0.7
3.1
70.9
VMAX136XWS2
136"
109.2
96.2
100.1
107.0
103.3
105.2
96.2
101.5
2.4
3.7
3.0
0.7
3.1
70.9
VMAX153XWS2
153"
119.8
108.2
112.1
117.7
115.3
117.7
108.2
113.6
2.4
4.1
3.0
0.7
3.5
98.4
VMAX170XWS2
170"
131.4
120.2
124.1
129.3
127.3
129.7
120.2
125.6
2.4
4.1
3.0
0.7
3.5
98.4
VMAX84XWV2
84"
79.4
67.2
70.2
77.2
73.3
64.4
50.4
60.8
2.4
3.7
8.0
0.7
3.1
70.9
VMAX84XWV2-E30
84"
79.4
67.2
70.2
77.2
73.3
86.4
50.4
82.8
2.4
3.7
30.0
0.7
3.1
70.9
VMAX92XWV2
92"
85.7
73.6
76.6
83.6
79.7
66.2
55.2
62.6
2.4
3.7
5.0
0.7
3.1
70.9
VMAX92UWV2
92"
85.7
73.6
76.6
83.6
79.7
66.2
55.2
62.6
2.4
3.7
5.0
0.7
3.1
70.9
VMAX100XWV2
100"
93.1
80.0
83.9
91.0
87.1
71.0
60.0
67.4
2.4
3.7
5.0
0.7
3.1
70.9
VMAX100UWV2
100"
93.1
80.0
83.9
91.0
87.1
71.0
60.0
67.4
2.4
3.7
5.0
0.7
3.1
70.9
VMAX100XWV2-E24
100"
93.1
80.0
83.9
91.0
87.1
90.0
60.0
86.4
2.4
3.7
24.0
0.7
3.1
70.9
VMAX120XWV2
120"
109.2
96.0
99.9
107.0
103.1
82.0
72.0
78.4
2.4
3.7
4.0
0.7
3.1
70.9
VMAX120UWV2
120"
109.2
96.0
99.9
107.0
103.1
82.0
72.0
78.4
2.4
3.7
4.0
0.7
3.1
70.9
VMAX120XWV2-E24
120"
109.2
96.0
99.9
107.0
103.1
102.0
72.0
98.4
2.4
3.7
24.0
0.7
3.1
70.9
VMAX135XWV2
135"
119.8
108.0
111.9
117.7
115.1
91.5
81.0
87.4
2.4
4.1
4.0
0.7
3.5
98.4
VMAX135UWV2
135"
119.8
108.0
111.9
117.7
115.1
91.5
81.0
87.4
2.4
4.1
4.0
0.7
3.5
98.4
VMAX135XWV2-E24
135"
119.8
108.0
111.9
117.7
115.1
111.5
81.0
107.4
2.4
4.1
24.0
0.7
3.5
98.4
VMAX150XWV2
150"
131.9
120.0
123.9
129.7
127.1
100.5
90.0
96.4
2.4
4.1
4.0
0.7
3.5
98.4
VMAX150XWV2-E24
150"
131.9
120.0
123.9
129.7
127.1
120.5
90.0
116.4
2.4
4.1
24.0
0.7
3.5
98.4
VMAX165XWV2
165"
143.9
132.0
135.9
141.7
139.1
109.5
99.0
105.4
2.4
4.1
4.0
0.7
3.5
98.4
VMAX84XWH2
84"
85.4
73.2
76.2
83.2
79.4
55.2
41.2
51.5
2.4
3.7
8.0
0.7
3.1
70.9
VMAX84UWH2-E30
84"
85.4
73.2
76.2
83.2
79.4
77.2
41.2
73.5
2.4
3.7
30.0
0.7
3.1
70.9
VMAX92XWH2
92"
93.1
80.2
84.1
91.0
87.1
57.1
45.1
53.5
2.4
3.7
6.0
0.7
3.1
70.9
VMAX92UWH2
92"
93.1
80.2
84.1
91.0
87.1
57.1
45.1
53.5
2.4
3.7
6.0
0.7
3.1
70.9
VMAX92UWH2-E30
92"
93.1
80.2
84.1
91.0
87.1
81.1
45.1
77.5
2.4
3.7
30.0
0.7
3.1
70.9
VMAX100XWH2
100"
100.2
87.2
91.1
98.0
94.2
61.1
49.0
57.4
2.4
3.7
6.0
0.7
3.1
70.9
VMAX100UWH2
100"
100.2
87.2
91.1
98.0
94.2
61.1
49.0
57.4
2.4
3.7
6.0
0.7
3.1
70.9
VMAX106UWH2
106"
105.6
92.4
96.3
103.4
99.5
66.0
52.0
62.3
2.4
3.7
8.0
0.7
3.1
70.9
VMAX106XWH2-E24
106"
105.6
92.4
96.3
103.4
99.5
82.0
52.0
78.3
2.4
3.7
24.0
0.7
3.1
70.9
VMAX106UWH2-E24
106"
105.6
92.4
96.3
103.4
99.5
82.0
52.0
78.3
2.4
3.7
24.0
0.7
3.1
70.9
VMAX110UWH2
110"
109.2
95.9
99.8
107.0
103.0
68.0
53.9
64.3
2.4
3.7
8.0
0.7
3.1
70.9
VMAX110UWH2-E24
110"
109.2
95.9
99.8
107.0
103.0
84.0
53.9
80.3
2.4
3.7
24.0
0.7
3.1
70.9
VMAX120XWH2
120"
117.8
104.6
108.5
115.6
111.7
70.9
58.8
67.2
2.4
3.7
6.0
0.7
3.1
70.9
VMAX120XWH2-E24
120"
117.8
104.6
108.5
115.6
111.7
88.9
58.8
85.2
2.4
3.7
24.0
0.7
3.1
70.9
VMAX120UWH2-E24
120"
117.8
104.6
108.5
115.6
111.7
88.9
58.8
85.2
2.4
3.7
24.0
0.7
3.1
70.9
VMAX135XWH2
135"
129.5
117.7
121.6
127.3
124.8
80.7
66.2
76.6
2.4
4.1
8.0
0.7
3.5
98.4
VMAX135XWH2-E24
135"
129.5
117.7
121.6
127.3
124.8
96.7
66.2
92.6
2.4
4.1
24.0
0.7
3.5
98.4
VMAX135UWH2-E24
135"
129.5
117.7
121.6
127.3
124.8
96.7
66.2
92.6
2.4
4.1
24.0
0.7
3.5
98.4
VMAX150XWH2
150"
142.6
130.7
134.7
140.4
137.8
84.0
73.5
79.9
2.4
4.1
4.0
0.7
3.5
98.4
VMAX150UWH2
150"
142.6
130.7
134.7
140.4
137.8
84.0
73.5
79.9
2.4
4.1
4.0
0.7
3.5
98.4
VMAX150UWH2-E24
150"
142.6
130.7
134.7
140.4
137.8
104.0
73.5
99.9
2.4
4.1
24.0
0.7
3.5
98.4
VMAX166XWH2
166"
156.5
144.7
148.6
154.3
151.8
91.9
81.4
87.8
2.4
4.1
4.0
0.7
3.5
98.4
VMAX106UWX2
106"
103.1
89.9
93.8
100.9
97.0
66.2
56.2
62.5
2.4
3.7
4.0
0.7
3.1
70.9
VMAX106UWX2-E24
106"
103.1
89.9
93.8
100.9
97.0
86.2
56.2
82.5
2.4
3.7
24.0
0.7
3.1
70.9

PRODUCT WHITE PAPER P
www.elitescreens.com
Elite Screens Inc. | Elite Screens Europe GmbH | Elite Screens France S.A.S | Elite Screens India | Elite Screens China Ltd. | EliteScreens Taiwan Corp.
EliteScreensJapan| EliteScreensAustralia
11
Model Number Diag.
Size A A1 A2 A3 A4 B B1 B2 B3 B4 B5 C1 C2 Power Cord L.
VMAX128UWX2
128"
121.7
108.5
112.5
119.5
115.6
77.9
67.8
74.2
2.4
3.7
4.0
0.7
3.1
70.9
VMAX128UWX2-E20
128"
121.7
108.5
112.5
119.5
115.6
93.9
67.8
90.2
2.4
3.7
20.0
0.7
3.1
70.9
Unit: mm
VMAX99XWS2
99"
2087
1778
1854
2032
1934
2007
1778
1914
60
93
76
17
80
1800
VMAX99UWS2
99"
2087
1778
1854
2032
1934
2007
1778
1914
60
93
76
17
80
1800
VMAX113XWS2
113"
2366
2030
2130
2311
2210
2259
2030
2166
60
93
76
17
80
1800
VMAX113UWS2
113"
2366
2030
2130
2311
2210
2259
2030
2166
60
93
76
17
80
1800
VMAX119XWS2
119"
2472
2137
2237
2417
2317
2367
2137
2274
60
93
76
17
80
1800
VMAX136XWS2
136"
2773
2443
2543
2718
2623
2672
2443
2579
60
93
76
17
80
1800
VMAX153XWS2
153"
3044
2748
2848
2989
2928
2989
2748
2884
60
105
76
17
88
2500
VMAX170XWS2
170"
3338
3053
3153
3283
3233
3295
3053
3190
60
105
76
17
88
2500
VMAX84XWV2
84"
2016
1707
1783
1961
1863
1636
1280
1543
60
93
203
17
80
1800
VMAX84XWV2-E30
84"
2017
1707
1783
1961
1862
2195
1280
2103
61
94
762
18
79
1801
VMAX92XWV2
92"
2178
1869
1945
2123
2025
1682
1402
1589
60
93
127
17
80
1800
VMAX92UWV2
92"
2178
1869
1945
2123
2025
1682
1402
1589
60
93
127
17
80
1800
VMAX100XWV2
100"
2366
2032
2132
2311
2212
1804
1524
1711
60
93
127
17
80
1800
VMAX100UWV2
100"
2366
2032
2132
2311
2212
1804
1524
1711
60
93
127
17
80
1800
VMAX100XWV2-E24
100"
2366
2032
2132
2311
2212
2287
1524
2194
60
93
610
17
80
1800
VMAX120XWV2
120"
2773
2438
2538
2718
2618
2083
1829
1990
60
93
102
17
80
1800
VMAX120UWV2
120"
2773
2438
2538
2718
2618
2083
1829
1990
60
93
102
17
80
1800
VMAX120XWV2-E24
120"
2773
2438
2538
2718
2618
2591
1829
2498
60
93
610
17
80
1800
VMAX135XWV2
135"
3044
2743
2843
2989
2923
2324
2057
2219
60
105
102
17
88
2500
VMAX135UWV2
135"
3043
2743
2842
2990
2924
2324
2057
2220
61
104
102
18
89
2499
VMAX135XWV2-E24
135"
3044
2743
2843
2989
2923
2832
2057
2727
60
105
610
17
88
2500
VMAX150XWV2
150"
3349
3048
3148
3294
3228
2553
2286
2448
60
105
102
17
88
2500
VMAX150XWV2-E24
150"
3349
3048
3148
3294
3228
3061
2286
2956
60
105
610
17
88
2500
VMAX165XWV2
165"
3654
3353
3453
3599
3533
2781
2515
2676
60
105
102
17
88
2500
VMAX84XWH2
84"
2168
1860
1936
2113
2016
1402
1046
1309
60
93
203
17
80
1800
VMAX84UWH2-E30
84"
2168
1860
1936
2113
2016
1961
1046
1868
60
93
762
17
80
1800
VMAX92XWH2
92"
2366
2037
2137
2311
2212
1451
1146
1358
60
93
152
17
80
1800
VMAX92UWH2
92"
2366
2037
2137
2311
2212
1451
1146
1358
60
93
152
17
80
1800
VMAX92UWH2-E30
92"
2366
2037
2137
2311
2212
2061
1146
1968
60
93
762
17
80
1800
VMAX100XWH2
100"
2544
2214
2314
2489
2394
1551
1245
1458
60
93
152
17
80
1800
VMAX100UWH2
100"
2544
2214
2314
2489
2394
1551
1245
1458
60
93
152
17
80
1800
VMAX106UWH2
106"
2681
2347
2447
2626
2527
1676
1320
1583
60
93
203
17
80
1800
VMAX106XWH2-E24
106"
2681
2347
2447
2626
2527
2083
1320
1990
60
93
610
17
80
1800
VMAX106UWH2-E24
106"
2681
2347
2447
2626
2527
2083
1320
1990
60
93
610
17
80
1800
VMAX110UWH2
110"
2773
2435
2535
2718
2615
1726
1370
1633
60
93
203
17
80
1800
VMAX110UWH2-E24
110"
2773
2435
2535
2718
2615
2132
1370
2039
60
93
610
17
80
1800
VMAX120XWH2
120"
2991
2657
2757
2936
2837
1800
1494
1707
60
93
152
17
80
1800
VMAX120XWH2-E24
120"
2991
2657
2757
2936
2837
2257
1494
2164
60
93
610
17
80
1800
VMAX120UWH2-E24
120"
2991
2657
2757
2936
2837
2257
1494
2164
60
93
610
17
80
1800
VMAX135XWH2
135"
3289
2989
3089
3234
3169
2049
1681
1944
60
105
203
17
88
2500
VMAX135XWH2-E24
135"
3289
2989
3089
3234
3169
2456
1681
2351
60
105
610
17
88
2500
VMAX135UWH2-E24
135"
3289
2989
3089
3234
3169
2456
1681
2351
60
105
610
17
88
2500
VMAX150XWH2
150"
3622
3321
3421
3567
3501
2135
1868
2030
60
105
102
17
88
2500
VMAX150UWH2
150"
3622
3321
3421
3567
3501
2135
1868
2030
60
105
102
17
88
2500
VMAX150UWH2-E24
150"
3622
3321
3421
3567
3501
2643
1868
2538
60
105
610
17
88
2500
VMAX166XWH2
166"
3975
3675
3775
3920
3855
2334
2067
2229
60
105
102
17
88
2500
VMAX106UWX2
106"
2618
2283
2383
2563
2463
1682
1427
1589
60
93
102
17
80
1800
VMAX106UWX2-E24
106"
2618
2283
2383
2563
2463
2190
1427
2097
60
93
610
17
80
1800
VMAX128UWX2
128"
3091
2757
2857
3036
2937
1978
1723
1885
60
93
102
17
80
1800

PRODUCT WHITE PAPER P
www.elitescreens.com
Elite Screens Inc. | Elite Screens Europe GmbH | Elite Screens France S.A.S | Elite Screens India | Elite Screens China Ltd. | EliteScreens Taiwan Corp.
EliteScreensJapan| EliteScreensAustralia
12
Model Number Diag.
Size A A1 A2 A3 A4 B B1 B2 B3 B4 B5 C1 C2 Power Cord L.
VMAX128UWX2-E20
128"
3091
2757
2857
3036
2937
2384
1723
2291
60
93
508
17
80
1800
5.2 Drawings
5.3 Pictures

PRODUCT WHITE PAPER P
www.elitescreens.com
Elite Screens Inc. | Elite Screens Europe GmbH | Elite Screens France S.A.S | Elite Screens India | Elite Screens China Ltd. | EliteScreens Taiwan Corp.
EliteScreensJapan| EliteScreensAustralia
13
VMAX2 Series Front View in White (1:1 Ratio) and Black Housing (16:10 Ratio)
Left End Housing Detail
Right End Housing Detail

PRODUCT WHITE PAPER P
www.elitescreens.com
Elite Screens Inc. | Elite Screens Europe GmbH | Elite Screens France S.A.S | Elite Screens India | Elite Screens China Ltd. | EliteScreens Taiwan Corp.
EliteScreensJapan| EliteScreensAustralia
14
Full Housing - Closed
VMAX2 Series Black and White Housing
Black and White Remote Kits

PRODUCT WHITE PAPER P
www.elitescreens.com
Elite Screens Inc. | Elite Screens Europe GmbH | Elite Screens France S.A.S | Elite Screens India | Elite Screens China Ltd. | EliteScreens Taiwan Corp.
EliteScreensJapan| EliteScreensAustralia
15
Life Style
Section 6: About Elite Screens .
6.2 Company Description
Elite Screens Inc. is a California based company that specializes in making quality commercial and home-theater
projection screens for the retail and custom install sales channels. Our company began as an innovative venture
into the projection market by manufacturing veterans from the AV/IT industry. Elite Screens quickly established
itself as an entry level commercial and home theater screen manufacturer. This was accomplished by making a
quality product cost effective with a focus on mass-producing screen material, sizes and aspect ratios that were
most commonly preferred by AV customers in general. We focused on uniformity with what would match the
mainstream demographic while including extra features that are not usually included by other manufacturers. In
time, we progressed from just retail sales into the realm of custom installer/integrator manufacture as our
numerous reviews and awards will attest. We stand behind our product and are so certain of customer satisfaction
with the quality of our product that we offer a 2-year manufacturer's warranty which is twice the industry
standard. In our continued devotion to excellence in products and service, we are committed to implementing
green practices with our production. We have adopted manufacturing methods that promote conservative
regulation of our energy needs. Our simple product designs combined with the expertise of our permanent staff
ensures that our entire line of products are made by experienced hands devoted to the high standards of today’s
audio-video consumer.
###
