Elite Screens Osprey Tension Dual Series User manual

1
Rev.010612-AS
www.elitescreens.com [email protected]
Tab-tensioned Dual Format Electric Projection Screen
Osprey Tension Dual Series
User’s Guide

2
Rev.010612-AS
www.elitescreens.com [email protected]
Make sure to read this user’s guide and follow the procedure below.
Caution: The Screen’s Black Top Drop is already set to its maximum drop distance. There is NO extra Black
Top Drop in the roller. Please be a are of this as it ill void your arranty ith Elite Screens. Unapproved
changes or modifications (except for cutting the po er cord for hard ire installations) to this unit are
prohibited and ill void your arranty. For more information, please contact our Technical Support
Department at [phone] Ext. 604.
•Please retain this user’s guide for future reference.
•To avoid damaging the unit, do not use with any unauthorized accessories not
recommended by the manufacturer.
•Handle the unit carefully during transportation to avoid any damages.
•To ensure safe and reliable operation, direct connection to a properly grounded power
source is advised.
•The power outlet supplying power to the unit should be close to the unit and easily
accessible.
•Do not install the unit on uneven or inclined surfaces.
•Do not place any heavy objects over the power cord.
•Position the power cord properly to avoid creating a trip obstacle.
•To avoid an electrical shoc or fire, due to a loose contact or short circuit, do not
overload the power cord.
•The internal & external parts of this unit are not end user serviceable. Do not attempt to
disassemble this unit by yourself. No one except authorized technicians can open and
ma e repairs to this unit.
•Ma e sure the power source that this unit is connected to has a continuous power flow.
•If there is need to use an extension cord, ma e sure the cord has an equal rating as the
appliance to avoid over heat.
•Do not handle the power plug when your hands are wet or your feet are in contact with
water.
Do not use this unit under the following circumstances.
•Disconnect the power cord under the conditions of heavy rain, wind thunder or
lightning.
•Avoid direct sun light, rain shower and moisture.
•Keep away from fire sources and high temperature to prevent this device from
overheating.
•Cut off the power supply first before transportation or maintenance.
•To avoid possible injury and/or an electric shoc , do not attempt to use this screen if
there is obvious damage or if there are any evident bro en parts.
Important Safety & Warning Precautions

3
Rev.010612-AS
www.elitescreens.com [email protected]
Due to various installation environments, the instructions provided in this user’s guide are for
reference only. Please consult a professional installation company for further installation and
safety advice. The installer must insure that proper mounting hardware is used to provide
adequate strength suitable for the installation. lite Screens is not liable for any faulty
installations. For limit adjustment instructions, please contact our Technical Support
Department at [phone] xt. 604.
The Screen’s Top Black Drop is already set to its maximum drop distance. There is NO extra top black
drop in the roller. Please be aware of this as it will void the limitation of your warranty.
Individual modifications to this product are prohibited and will void the warranty with the
manufacturer. Please contact Elite Screens Customer Service for any questions.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
owever, there is no guarantee that the interference will not occur on a particular installation. If this
equipment causes harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures.
Reorient or relocate the receiving antenna of the device which may be casing the interference.
Increase the separation between the screen and the device’s receiver.
onnect the equipment into a different power outlet other than the device.
1. Carefully unpack the screen.
2. Always handle the screen in a leveled position on a clean surface.
3. In order to protect the screen from exposure to stains, keep the screen out of contact with
foreign particles such as dust, sawdust, and/or liquids.
Regardless of the mounting method, the screen should be securely supported so that the vibration or
pulling on the viewing surface will not cause the casing to become loose or fall. The installer must insure
that the fasteners used are of adequate strength and suitable for the installation location.
Installation Warning
Pre-Installation
NOTE

4
Rev.010612-AS
www.elitescreens.com [email protected]
Please make sure all accessories listed below are included before proceeding.
A. B. C.
IR Remote RF Remote 3 Way Wall Switch
Red+ Green-
D. E. F.
IR Eye Receiver AAA Batteries Bubble Level
Accessories for Osprey Tension Dual Series

5
Rev.010612-AS
www.elitescreens.com [email protected]

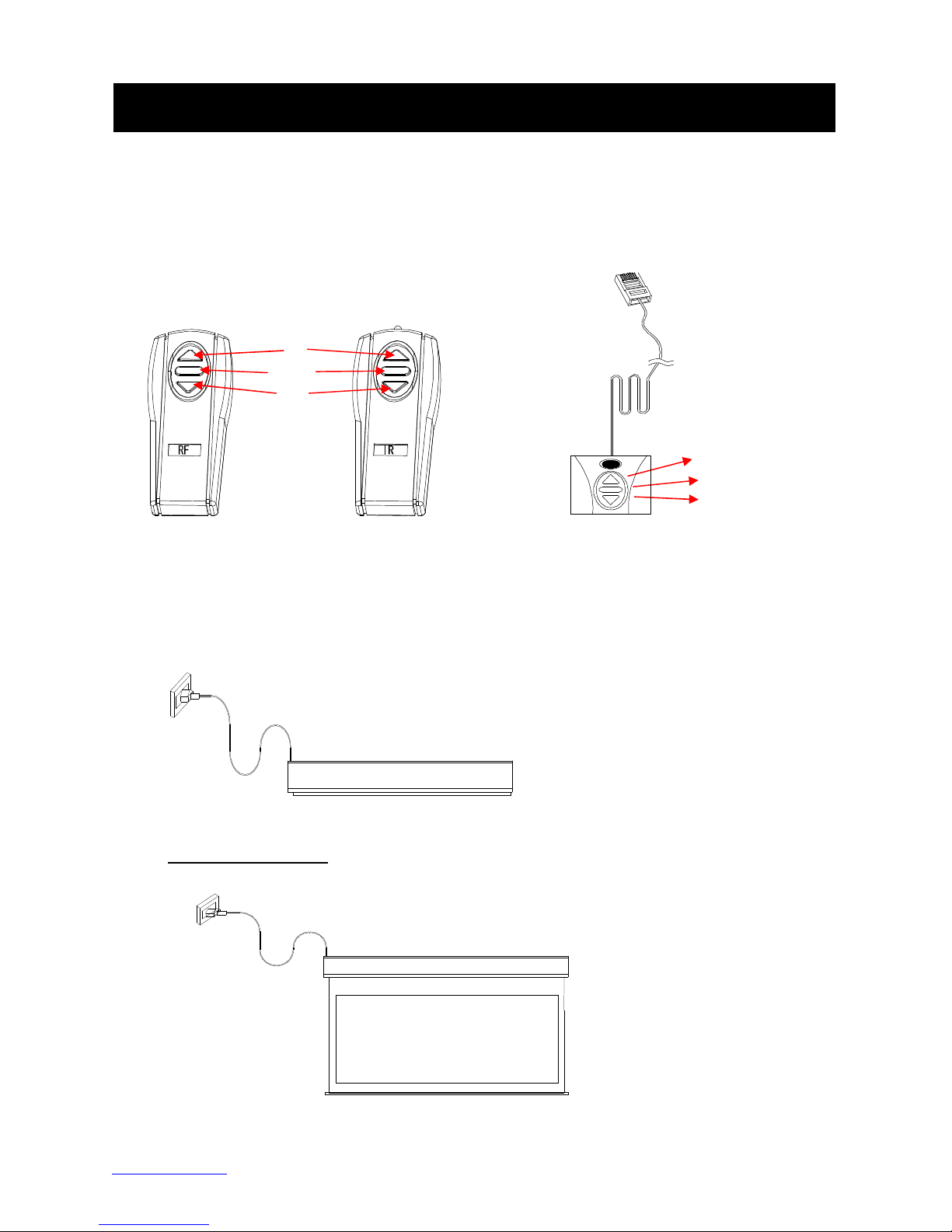

The Osprey Tension Dual Series features the capability of alternating 16:9 DTV and 2.35:1 Cinemascope
projection screen formats, which are operated with the included Radio Frequency & Infrared Remote
Controls or the 3 Way Wall Switch. The dual motors and screen materials allow you to utilize both
formats. An Infrared sensor is not built into the case. The IR “Eye” Receiver must be connected to the RJ-
45 input to operate the screen with the Infrared Remote Control.
UP
2.35:1
16:9
UP
2.35:1
16:9
Radio Frequency Infrared 3 Way Wall Switch
1. Make sure the Osprey is plugged into a secure power source as shown below.
2. 2.35:1 Cinemascope: Press the 2.35:1 button on the Radio Frequency remote, Infrared remote
or the 3 Way Wall Switch to lower and display the 2.35:1 Cinemascope format.
Control System for Osprey Tension Dual Series

6
Rev.010612-AS
www.elitescreens.com [email protected]
3. 16:9 HDTV: Press the 16:9 button on either of the optional controls and the 2.35:1 format
screen will retract into the housing while the 16:9 format deploys.
4. Press the “UP” button on either of the control options and the screen will completely retract.
Please make sure all items listed below are included before proceeding with the installation.
A B C
Hardware Parts List
QTY
A
.
Wood Screw & Hollow Anchor
8
B
.
Mounting Bracket
4
.
M4
Screw
4
Hardware Parts List for Osprey Tension Dual Series

7
Rev.010612-AS
www.elitescreens.com [email protected]
Please consult a professional installer. Elite Screens is not liable for any faulty installations. The
Osprey Tension Dual screen is designed for a wall or optional in-ceiling installation. Hardware for a
wall installation is provided, please contact Elite Screens for information about the optional in-ceiling
trim kit, [phone].
1. Make sure the current rating is equal to that of the appliance rating when an extension cord is
used.
2. Do not use any accessories not provided by the manufacturer of this screen. We will not be
responsible for any risks of fire, electric shock, or injuries resulting from the misuse of this
product.
3. Make sure the screen is mounted in a horizontal level position. We suggest consulting with a
professional if you are unsure on how to perform a proper installation.

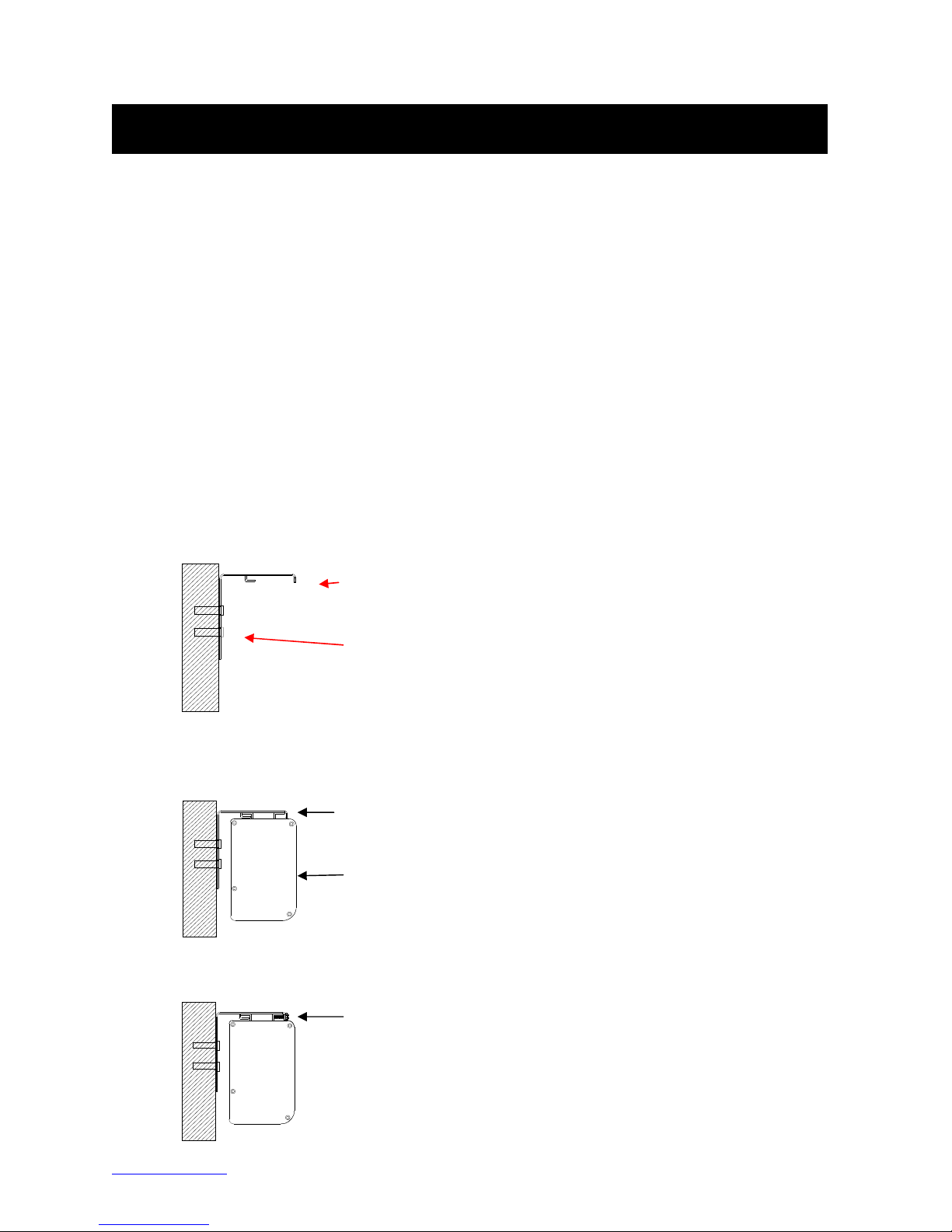

4. Mark the location of where the screen is to be installed and drill your holes. Align the Mounting
Bracket (B) with the drilled hole, insert the Screw (A) and secure.
(B) Mounting Bracket
(A) Screw
5. Insert the top of the screen into the Mounting Bracket’s (B) slide channel and move to the
desired position.
Slide Channel
Screen Case
6. Secure the screen case to the bracket with the M4 Screw ( ).
( ) M4 Screw
Installation Instructions

8
Rev.010612-AS
www.elitescreens.com [email protected]
For additional information, please contact Elite Screens at [e-mail]
1. If your screen does not move, please check the power supply. The screen will understandably
not move without power.
2. Make sure the power cord is firmly plugged to the power outlet.
3. Make sure that all cable connections are secure.
4. If the screen works well with the line switch but not with the remote control, please make sure
the remote controls have fresh batteries. Change the batteries every 6 months to ensure proper
operation of the remotes.
1. Q: Why does my screen no longer function?
A: Make sure your wall plug has power and that the screen is properly plugged. The fuse on the
screen will also need to be checked. Please contact techsu[email protected] for the
location. The tubular motor in this screen is equipped with a thermal relay. This feature will
automatically shut off the screen in the event of the motor becoming too hot. This will prevent
the motor from overheating. If you should experience this, please let the screen’s temperature
decrease for 10-15 min. before usage.
2. Q: ow is the screen material cleaned?
A: The screen material can be cleaned with mild soap and water.
3. Q: What type of batteries do the remote controls require?
A: The IR and RF remote controls use AAA alkaline batteries.
4. Q: Can you manually pull down the screen?
A: No, manually pulling down the screen will damage the electronic motor rolling system and
void your warranty.
5. Q: ow could I setup my Screens IR receiver to work with my learning remote control system
Do you have any IR codes I can use to achieve this?
A: Our IR remote controls have been evaluated and entered in to the databases of some
Universal remote control manufacturers. Please contact the manufacturer of your remote to
inquire about your remotes ability to function with ours. If they have not evaluated our remote
control then the following list of Binary codes will be used for most remote setups.
For Osprey Tension Dual Series:
Up: 1111 0000 0001
2.35:1: 1111 0000 0010
16:9: 1111 0000 0100
6. Q: What is the gain on the matte white screen material?
A: The matte white material has a gain of 1.1. For detailed information, please visit
www.elitescreens.com/cinetension2
Troubleshooting & FAQ’S

9
Rev.010612-AS
www.elitescreens.com [email protected]

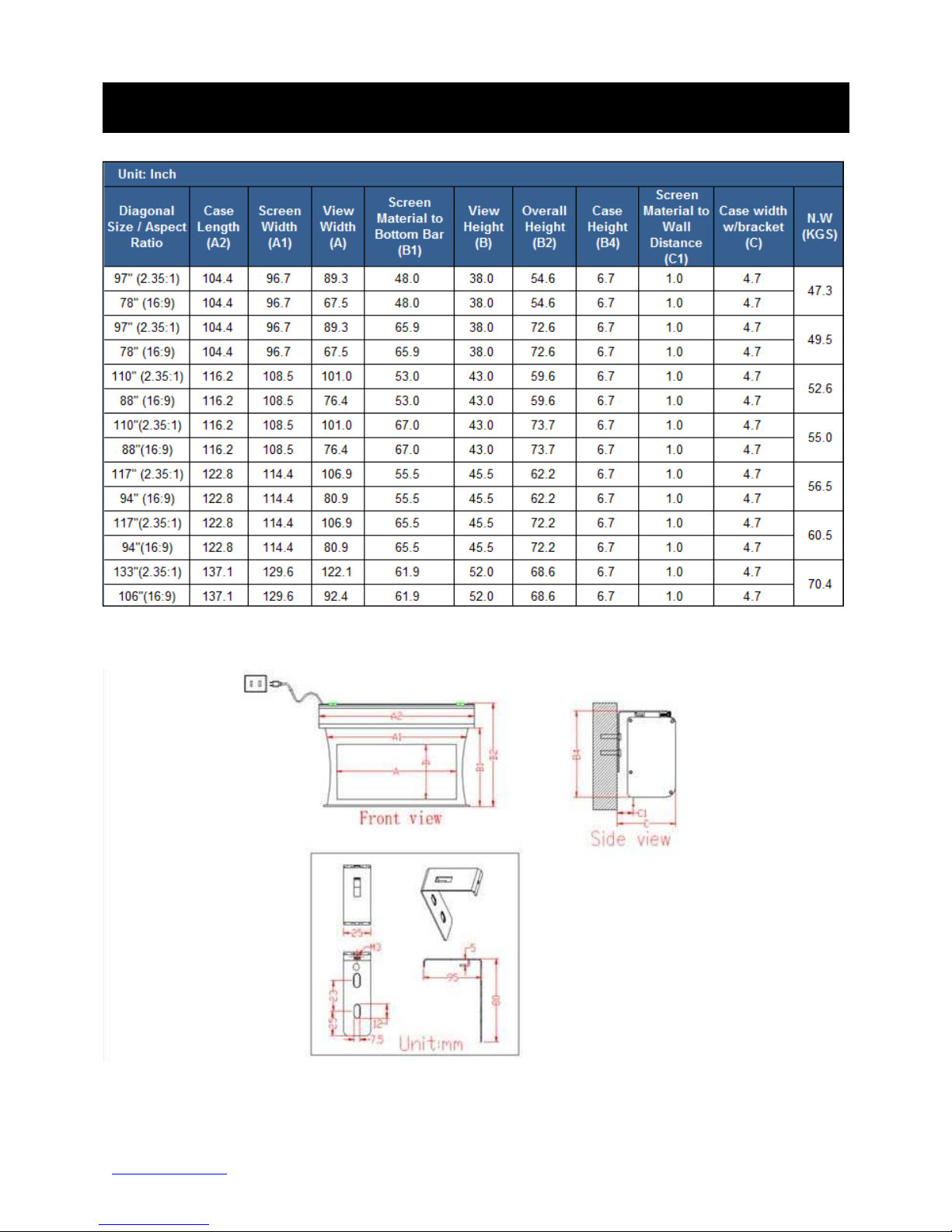

* Measurement dimensions are intended as a reference only and subject to change without notice. Note: Data Error may be ±1"
Osprey Tension Dual Dimension Table

10
Rev.010612-AS
www.elitescreens.com [email protected]
•Two (2) Year parts and labor warranty from defects in workmanship from purchase date as
follows (except for refurbished units as specified below).
•Three (3) Year parts and labor warranty from defects in workmanship for GEMR (Government,
Educational, Military, & Religious) purchases of new product only.
•Refurbished Units carry a 90-DAY parts and labor warranty.
•Each party will be responsible for one way shipping during the warranty period.
•A RMA (Return Merchandise Authorization) number must be issued in order to process a
replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option
replace or repair the defective unit with a replacement *(see exceptions below) after the
defective unit or parts have been received. Once the product is received, Elite Screens will send
out a replacement *unit to the customer by ground service (subject to inventory availability).
•Do Not Return Any Unauthorized Items to Elite Screens, as they will be refused and returned
at your expense. The RMA Number must be included on the outside label of your shipping
box. Our warehouse is not authorized to accept returns without an RMA number on the
shipping label.
•RMA Numbers are valid for 45 days from the date issued.
•Missing Parts must be reported within 7 days of receipt. If reported after 7 days, the customer
will be responsible for shipping and handling fees. If reported after 30 days of receipt, the
customer will be responsible for cost of parts and shipping & handling fees.
*A New or refurbished replacement will be send out to the customer depending on the type of
purchase (new or refurbished) and based on stock availability.
North America only U.S. and anada
For Warranty and Service requests, please submit an RMA/Service Form at:
www.elitescreens.com/warrantysupportform
Please visit this link for full Warranty information:
www.elitescreens.com/warranty
For Customer Service and Technical questions, please contact Elite Screens at:
Telephone: [phone] [e-mail]
Fax: [phone] [e-mail]
REMEMBER TO REGISTER YOUR PRODUCT AT:
WWW.ELITESCREENS.COM
Warranty Policy

11
Rev.010612-AS
www.elitescreens.com [email protected]
US & Canada Tech Support & Warranty Claim
Please contact us at ser[email protected]om or call [phone] #3 or fax [phone]
Europe Tech Support & Warranty Claim
Please contact us at ser[email protected] or call [phone]
Asia Tech Support & Warranty Claim
Please contact us at ser[email protected]om.cn or call [phone]
Taiwan Tech Support & Warranty Claim
Please contact us at ser[email protected]om.tw or call +866+2+8990-1999
America: Europe:
Elite Screens Inc Elite Screens Europe
16410 Manning Way Lübecker Straße 1
Cerritos, CA 90703 USA 22087 amburg, Germany
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
[email protected] [email protected]
www.elitescreens.com www.elitescreens.eu
Asia: Elite Screens France S.A.S
Elite Screens China Corp. 11, Allée William Penn
Longxi Duimianling Industry Zone 92150 Surenes, rance
Longcheng Longgang District, Tel: [phone]
ShenZhen GuangDong, China ax: [phone]
Tel: [phone] [e-mail]
ax: [phone] www.elitescreens.com/fr
[e-mail]
www.elitescreens.com.cn
Japan:
Taiwan: Elite Screens Japan Corp.
Elite Screens Taiwan Corp. 467-2-606 Tsuruma, Machida-shi,
4 ., No. 42-1 Wuguan Rd. Wugu Township Taipei Tokyo, 194-0004 Japan
County 248, Taiwan (Wugu Industrial Park) Tel: [phone]
Taiwan (R.O.C) ax: + 81(0)42-706-9130
Tel: +886+2+8990-1999 [e-mail]
ax: +886+2+8990+1366 www.elitescreens.jp
[e-mail]
www.elitscreens.com.tw
Latin America ontact:
[email protected]
East Asia ontact:
[email protected]
India ontact:
[e-mail]
Contact Information
