Elived EV018 User manual

If you have any questions , please contact us.
EV018
V2.0
75x75
100x100
8kg/17.6lbs
13"-32"
Single Monitor Desk Stand
Instruction Manual
Für die Installationsanweisungen auf Deutsch, siehe Seite 9.
Pour l'instruction en Français, veuillez vous reporter à la page 10.
Para las instrucciones de la instalación en Español, favor vea la página 12.
Per le Istruzioni in Italiano,vedi pagina 11.

01
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of
this product, please contact us.
Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or
serious injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do not exceed
weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
This product contains small items that could be a choking hazard if swallowed. NOT FOR CHILDREN UNDER 3 YEARS.
ADULT SUPERVISION IS REQUIRED.
NOTE: Not all hardware included will be used.
DO NOT EXCEED WEIGHT CAPACITY.
WARNING!
PACKAGE CONTENTS
17.6lbs
(8kg)
B (x1)
Bracket
C (x1)
Base
D (x1)
Pole
G (x3)
Screw
F (x1)
security bolt
H(x1)
4mm Allen Key
I(x1)
6mm Allen Key
E(x1)
Cable Clip
A (x1)
VESA Plate
M-E(x4)
D6 Washer
M-A (x4)
M4x12
M-B (x4)
M4x16
M-C (x4)
M6x12
M-D (x4)
M6x16
M-F (x4)
Spacer

02

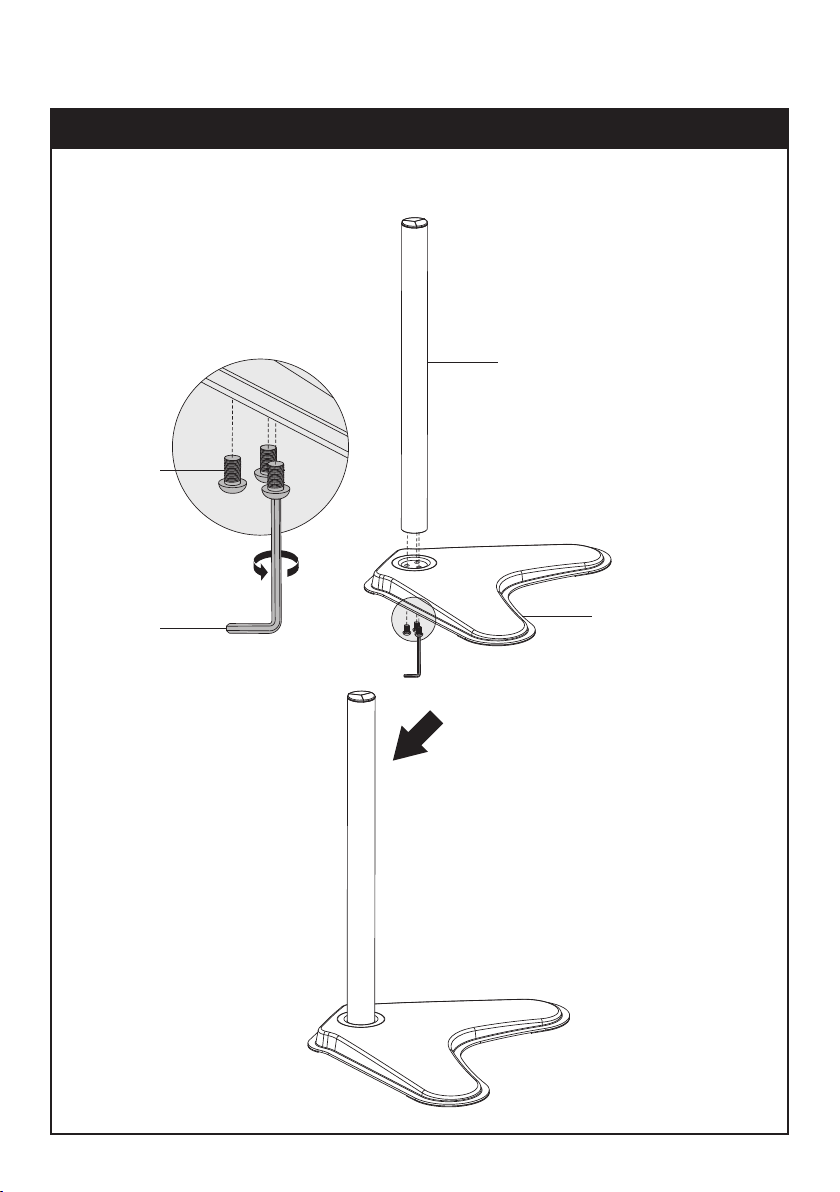

Use the 4mm Allen Key (H) to tighten the screws (G) into the pole (D) from the bottom of the base (C).
ASSEMBLY STEPS
STEP 1 Pole Installation
D
C
G
H

03
Slide the cable clip (E) onto the pole(D). Slide the mounting bracket (B) onto the pole(D).
Tighten the mounting bracket (B) on the pole(D) using a 6mm Allen Key (I).
STEP 2 Bracket Installation
I
B
D
E

04
CAUTION: To select the correct bolts (M-A or M-C)
for your monitor, you can try to screw it on your
monitor by hand. The one can screw inside is the
correct bolt for your monitor.

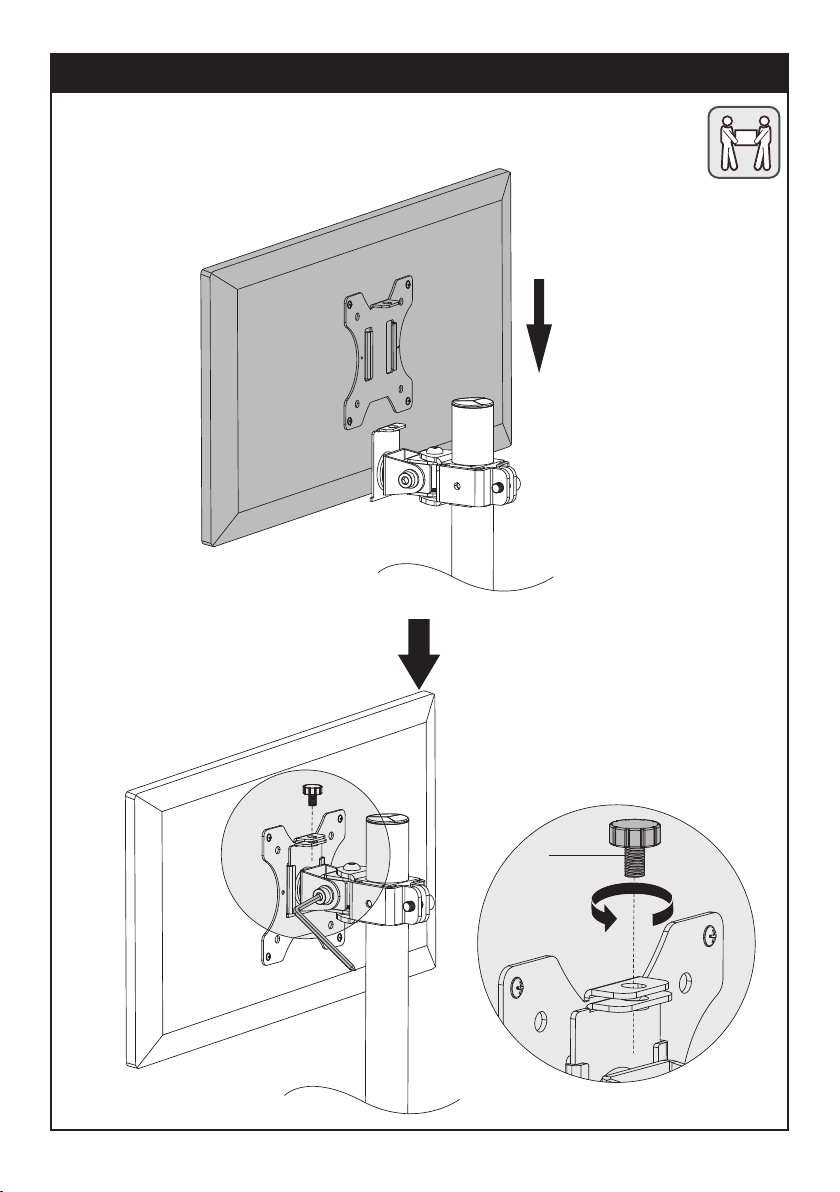

STEP 3 Attach Monitor
A
A
M-A
M-C
M-E
I
M-B
M-D
M-E
M-F
I
OPTION A: Flat Back Monitor

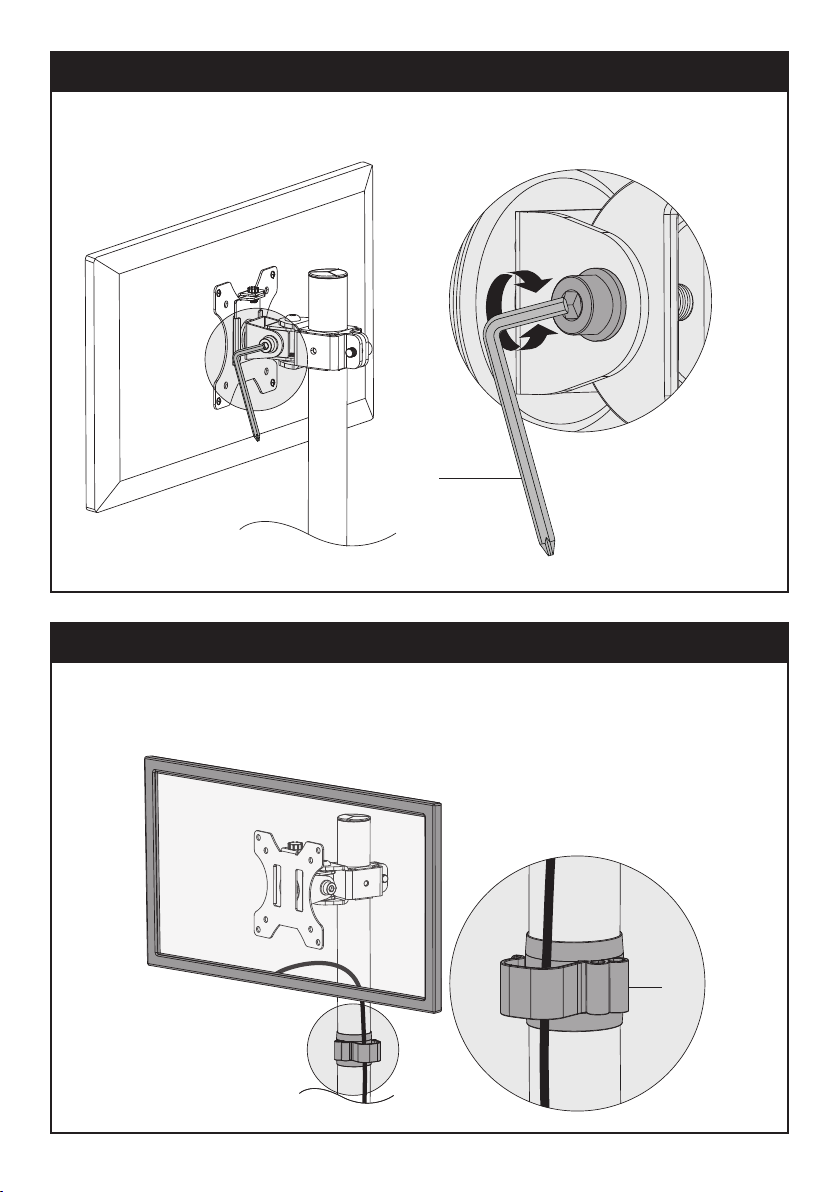

For flat back monitor, secure VESA plate (A) to monitor
using screws (M-A or M-C) and washers (M-E).
OPTION B: Curved Back Monitor
For monitor with curved or recessed back, align spacers (M-F)
with mounting holes in monitor, and secure VESA plate (A) to
monitor using screws (M-B or M-D) and washers (M-E).
