Elkay ECH8*1F Installation manual

97456C (Rev. H - 3/04)

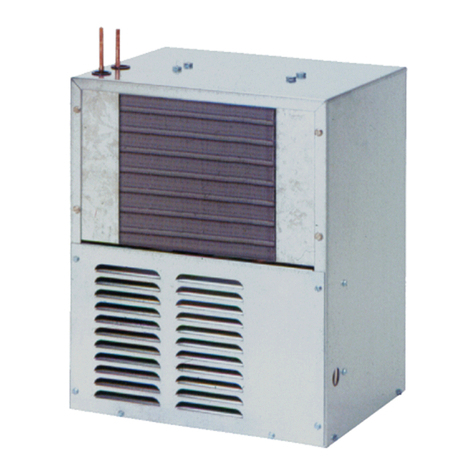

ECH8*1F ECH8*3F
Refrigeration Package
Installation / Care / Use Manual
INSTALLATION
1. When mounting unit in an open area, to insure proper ventilation,
maintain a 4" (102mm) clearance from cabinet louvers on each side
of cooler . When mounting unit in a cavity or behind a wall maintain
minimum space of 4" (102mm) on each side, 4" (102mm) on the top
and a depth of 12" (305mm).
2. Water inlet is 1/4" (6 mm) O.D. tube. Contractor to supply the
connections as required.
3. Connecting lines to be of unplated copper, thoroughly flushed to
remove all foreign matter before being connected to cooler. If
flushing does not remove all particles, a water strainer should be
installed in supply line. This cooler is manufactured in such a manner
that it does not in any way cause taste, odor, color or sediment
problems. If a taste, odor or sediment problem is prevalent, try
installing our water filter module, Part No. 731524251550, on the
supply line.
4. Connect cooler to building supply line with a shut-off valve and
install the in-line strainer between the valve and cooler.
5. Electrical: Make sure power supply is identical in voltage, cycle,
and phase to that specified on cooler serial plate. Never wire
compressor directly to the power supply.
6. This chiller has been designed for use with potable water ONLY.
START-UP
1. Open supply line valve.
2. Purge air from all water lines by operating bubbler valve of
fountain to which cooler is connected. Steady stream assures all
air is removed.
3. Rotate fan to insure proper clearance and free fan action.
4. Connect to electrical power.
TROUBLE SHOOTING & MAINTENANCE
Temperature Control: Factory set at 50°F (± 5°) under normal
conditions. For colder water, adjust screw on item no. 12 in
clockwise direction.
Ventilation: Cabinet louvers and condenser fins should be
periodically cleaned with brush, air hose or vacuum cleaner.
Excess dirt or poor ventilation can cause no cold water and
compressor cycling on the compressor overload protector.
Lubrication: Motors are lifetime lubricated.
Actuation of Quick Connect Water Fittings: Cooler is provided
with lead-free connectors which utilize an o-ring seal. To remove
tubing from the fittings, relieve water pressure, push in on gray
collar while pulling on the tubing. To insert tubing, push tube
straight into fitting until it reaches a positive stop, approximately
3/4.
TUBE IS SECURED
IN POSITION
SIMPLY PUSH IN
TUBE TO ATTACH
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
NOTE: WATER FLOW
DIRECTION
BUILDING WATER INLET
SERVICE STOP
(NOT FURNISHED)
1/4" O.D. TUBE
WATER INLET
TO CHILLER
3/8" O.D. UNPLATED
COPPER TUBE CONNECT
COLD WATER SUPPLY
LEGEND
A = 1/4" O.D. TUBE WATER OUTLET
B = 1/4" O.D. TUBE WATER INLET
C = TEMPERATURE ADJUSTMENT
D = ELECTRICAL

97456C (Rev. H - 3/04)
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620
ECH8*1F ECH8*3F
PRINTED IN U.S.A.
ITEM
NO. PART NO.
1
2
3
4
5
6
7
8
9
10
*11
12
13
14
15
16
17
18
19
20
21
22
23
NS
66505C
22301C
61942C
31491C
20437C
30699C
70018C
22309C
66530C
66202C
36086C
31513C
22299C
35768C
36083C
36084C
100806740570
101516143550
19037000
50930C
27303C
22300C
55996C
70745C
ITEMIZED PARTS LIST
DESCRIPTION
*INCLUDES RELAY & OVERLOAD. IF UNDER WARRANTY,
REPLACE WITH SAME COMPRESSOR USED IN ORIGINAL
ASSEMBLY.
NOTE: All correspondence pertaining to any of the above water
cooler or orders for repair parts MUST include model number and
serial number of cooler, name and part number of replacement
part.
EVAPORATOR TANK ASSY
CABINET
CONDENSER
MOTOR - FAN 115V
BRACKET - FAN MOUNTING
BLADE - FAN
NUT - FAN BLADE
SHROUD - FAN
HEAT EXCHANGER
DRIER
COMPRESSOR SERVICE PAK
COLD CONTROL
PANEL - FRONT
COVER - RELAY
OVERLOAD
RELAY
GROMMET
STUD - COMP. MOUNTING
CLIP
BUMPER
BASEPLATE
PANEL - REAR
IN-LINE STRAINER
UNION 1/4 X 3/8
WIRING DIAGRAM
ELKAY MANUFACTURING COMPANY  2222 CAMDEN COURT  OAK BROOK, IL 60523  630.574.8484
ITEM
NO. PART NO.
220V - 60 HZ
DESCRIPTION
4
9
*11
15
16
31431C
66530C
36092C
36174C
36050C
MOTOR - FAN 220V
HEAT EXCHANGER
COMPRESSOR SERVICE PAK
OVERLOAD
RELAY
22
23
4, 5, 6,
7, 8
21
10
9
12
11, 14, 15, 16,
20
3
2
1
13
