ELSA Ecomo 750 User manual

ELSA ECOMO 750
I
English
왎
ELSA ECOMOTM 750

ELSA ECOMO 750
II
English
© 1999 ELSA AG, Aachen (Germany)
While the information in this manual has been compiled with great care, it may not be deemed an ass-
urance of product characteristics. ELSA shall be liable only to the degree specified in the terms of sale
and delivery.
The reproduction and distribution of the documentation and software supplied with this product and the
use of its contents is subject to written authorization from ELSA.
ELSA AG is a DIN EN ISO 9001 certified company. With the certificate of June 15, 1998, the authorized
certification institute TÜV-CERT has confirmed the conformity of ELSA AG with the worldwide quality
standard DIN EN ISO 9001. The certificate number of ELSA AG is 09 100 5069.
Trademarks
Windows®, Windows NT®and Microsoft®are registered trademarks of Microsoft, Corp.
Apple®and Macintosh®are registered trademarks of Apple Computer, Inc.
Diamontron™is a trademark of Mitsubishi Electric Corp.
All other names mentioned may be trademarks or registered trademarks of their respective owners. The
ELSA logo is a registered trademark of ELSA AG.
Subject to change without notice. No liability for technical errors or omissions.
Aachen, November 1999
ELSA AG
Sonnenweg 11
52070 Aachen
Germany
www.elsa.com
ELSA, Inc.
1630 Zanker Road
San Jose, CA 95112
USA
www.elsa.com
21639/1199

Preface
ELSA ECOMO 750
III
English
Preface
Thank you for placing your trust in this product.
Thank you for placing your trust in this product. With the
ELSA ECOMO 750 you have sel-
ected one of ELSA's high-end monitors. ELSA products are subject to the highest of stan-
dards in production and quality control which are the foundation for consistently high
product quality. This monitor was especially designed for the demands of professional
users, and distinguishes itself with an extraordinary degree of reliability.
Our online services (www.elsa.com) are available to you around the clock should you
have any queries regarding the topics discussed in this manual or require any further sup-
port. In the 'Support' file section under 'Know-How', you can find answers to frequently
asked questions (FAQs). The KnowledgeBase also contains a large pool of information.
Current drivers, firmware, tools and manuals can be downloaded at any time.

Preface
ELSA ECOMO 750
IV
English

Contents
ELSA ECOMO 750
V
English
Contents
Introduction ....................................................................................................................1
Monitor features..................................................................................................... 1
Package contents.................................................................................................... 2
CE conformity and FCC radiation standard............................................................. 3
Installation .....................................................................................................................5
Connecting to the computer ................................................................................... 6
Connecting to the mains......................................................................................... 6
Switch on ................................................................................................................ 6
Connecting the monitor to a Macintosh computer................................................. 7
What next?.............................................................................................................. 8
Aspects of your monitor ...............................................................................................9
The front control panel ........................................................................................... 9
Rear connectors panel .......................................................................................... 10
Monitor setup ...............................................................................................................11
The USB function under Windows ....................................................................... 11
What does USB stand for? .............................................................................. 11
Who can use USB? .......................................................................................... 11
Checking for USB support................................................................................ 12
The USB connection.............................................................................................. 13
All under control ................................................................................................... 14
USB monitor installation.................................................................................. 14
Configuring the display with a USB monitor ................................................... 14
Operating the monitor ................................................................................................17
The on-screen display........................................................................................... 17
How to navigate the OSD ..................................................................................... 17
Monitor settings ..........................................................................................................19
After switching on ................................................................................................ 19
Plug&play......................................................................................................... 19
Language.......................................................................................................... 19
Reset functions ..................................................................................................... 20
An overview of all functions................................................................................. 22
An optimized working environment ........................................................................25
Monitor picture quality .................................................................................... 25
Tips for an ergonomic working environment........................................................ 25

Contents
ELSA ECOMO 750
VI
English
Lighting in your working environment ............................................................. 25
The work desk.................................................................................................. 25
The seating position ........................................................................................ 26
The monitor position....................................................................................... 26
Cleaning your monitor........................................................................................... 26
Technical data .............................................................................................................27
Power management function................................................................................ 28
Factory settings..................................................................................................... 28
Video input connection to an Apple Macintosh computer ............................. 29
Troubleshooting ..........................................................................................................31
Problem solving..................................................................................................... 31
Restraining wires.................................................................................................. 32
Appendix .......................................................................................................................33
TCO ’99
.................................................................................................................. 33
Advice and help .................................................................................................... 36
Software updates ............................................................................................ 36
Who to contact?............................................................................................... 36
ELSA-ServiceDirect for
ELSA ECOMO monitors................................................... 38
Warranty conditions ............................................................................................. 39

Introduction
ELSA ECOMO 750
1
English
Introduction
This manual tells you how to connect, adjust and care for your monitor. This manual also
provides technical specifications and instructions for troubleshooting problems you may
experience with your monitor.
Monitor features
The Diamond monitor is an intelligent, microprocessor-based monitor compatible with
most analog RGB (red, green, blue) display standards, including PS/V, PS/2, Apple Macin-
tosh, Centris, Quadra, Macintosh II and Power Macintosh products. It provides crisp text
and vivid color graphics with VGA, SVGA, XGA (non-interlaced), and most Macintosh
compatible color graphics boards.
쮿The monitor’s wide auto-scanning compatibility range makes it possible to upgrade
graphics boards or software without needing to purchase a new monitor.
쮿Digitally controlled auto-scanning is done using an internal microprocessor, for hor-
izontal scan frequencies between 30kHz and 121kHz, and vertical scan frequencies
between 50Hz and 160Hz. The microprocessor-based intelligence allows the mon-
itor to operate in each frequency mode with the precision of a fixed frequency mon-
itor.
쮿The monitor contains resident memory for pre-programmed screen display stan-
dards and is also capable of storing additional user adjustment parameters.
쮿The monitor is capable of producing a non-interlaced maximum addressable resolu-
tion format of 2048 dots x 1536 lines with systems based on IBM. This display is
well suited for windowing environments.
쮿Because of the analog signal inputs, the monitor can display an unlimited palette of
colors that can be manually adjusted to suit your specific needs.
쮿The monitor has a power management function according to the standard of VESA-
DPMS, NUTEK and Energy Star. To save energy, the monitor must be connected to
a system compliant with this standard. (Refer to your computer and/or graphics
board instructions for proper operation.)
쮿To ensure the easy installation and operation of this monitor, a moiréclear function
and an on-screen display (OSD) present all of the functions for setup and adjust-
ment.
쮿The monitor complies with the safety standards UL 1950, CSA C22.2 No. 950 and
EN60950, FCC Class-B, VCCI Class-B and EN55022 Class-B for EMI, MPR II, and with

Introduction
ELSA ECOMO 750
2
English
the ergonomics standards ISO 9241-3, ISO9241-7 and ISO9241-8. The monitor also
complies with
TCO ’99 guideline for environmentally friendly use.
쮿Digital chassis design for lighter, more compact housing and improved display per-
formance.
쮿The DIAMONDTRON tube features a 0.24 mm slot mask, improved focus through the
P-NX-DBF (Dynamic Beam Forming) and a screen coating with excellent picture con-
trast.
쮿The monitor complies with Video Electronics Standards Association (VESA) DDC1/
2B(EDID) specification. If your computer provides DDC1/2B(EDID) function, the
setup takes place automatically.
쮿The innovative tube technology makes a naturally flat and completely planar picture
possible, free of any curvature.
쮿The planar screen allows for an optically perfect picture over the entire diplay sur-
face.
쮿The flat surface and antireflective coating reduce the reflection of environmental
light.
쮿USB self-powered hub with 2 upstream ports and 3 downstream ports.
Package contents
Please ensure that the delivery is complete. When opening the package, please check
that the following components are included:
쮿Documentation
쮿Monitor
쮿Power cord and monitor cord
쮿CD including additional software and electronical documentation
Please contact your dealer if any part is missing or damaged.
ELSA reserves the right to make changes to the package contents without prior notice.

Introduction
ELSA ECOMO 750
3
English
CE conformity and FCC radiation standard
CE
This equipment has been tested and found to comply with the limits of the European
Council Directive on the approximation of the laws of the member states relating to elec-
tromagnetic compatibility (89/336/EEC) according to EN 55022 class B.
FCC
This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the Federal Communications Commission (FCC) Rules.
CE and FCC
These limits are designed to provide reasonable protection against radio frequency inter-
ference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy. It may interfere with to radio communications if not installed and
used in accordance with the instructions. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause interference
to radio or television reception (this can be determined by turning this equipment off and
on), the user is encouraged to try to correct the interference by one or more of the follow-
ing measures:
쮿Reorient or relocate the receiving antenna.
쮿Increase the distance between this equipment and the receiver.
쮿Connect the equipment to an outlet on a circuit other than that to which the receiver
is connected.
쮿Consult your dealer or an experienced radio/TV technician.
쮿Caution: To comply with the limits for an FCC Class B computing device, always use
a shielded signal cable.
Caution to the user: The Federal Communications Commission warns the user that
changes or modifications to the unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

Introduction
ELSA ECOMO 750
4
English

Installation
ELSA ECOMO 750
5
English
Installation
This chapter will assist you to get your monitor working as quickly as possible. It takes
just a few straightforward maneuvers to connect the monitor to your computer. Before
you start please carefully read the safety and operating hints below.
Use the power cord supplied to connect the monitor. In order to avoid electric shock, the
power cord must be connected to a properly grounded plug.
Do not on any account open up the appliance to carry out your own repairs.
Very high voltages exist within the appliance, even when disconnected from the mains.
Repairs should only be made by trained technicians. Please contact ELSA Services for
any repairs.
Do not locate the monitor close to sources of electromagnetism. These can include halo-
gen desk lamps or electric motors, but can also include high voltage cables or steel pil-
lars. Magnetic or electromagnetic radiation causes picture distortion and can eventually
cause your monitor to fail.
Ensure that your monitor has sufficient ventilation. The air vents on your monitor must
not be obstructed. Heat produced from the picture tube must be allowed to escape
freely.
Protect the monitor from damp and dust. Damp can cause short circuits, and a build-up
of dust can mean that the monitor is not properly ventilated.
The power cord must be unobstructed. Avoid allowing heavy objects to stand on it.
Please note that the guarantee is invalidated if the guarantee seal is damaged!

Installation
ELSA ECOMO 750
6
English

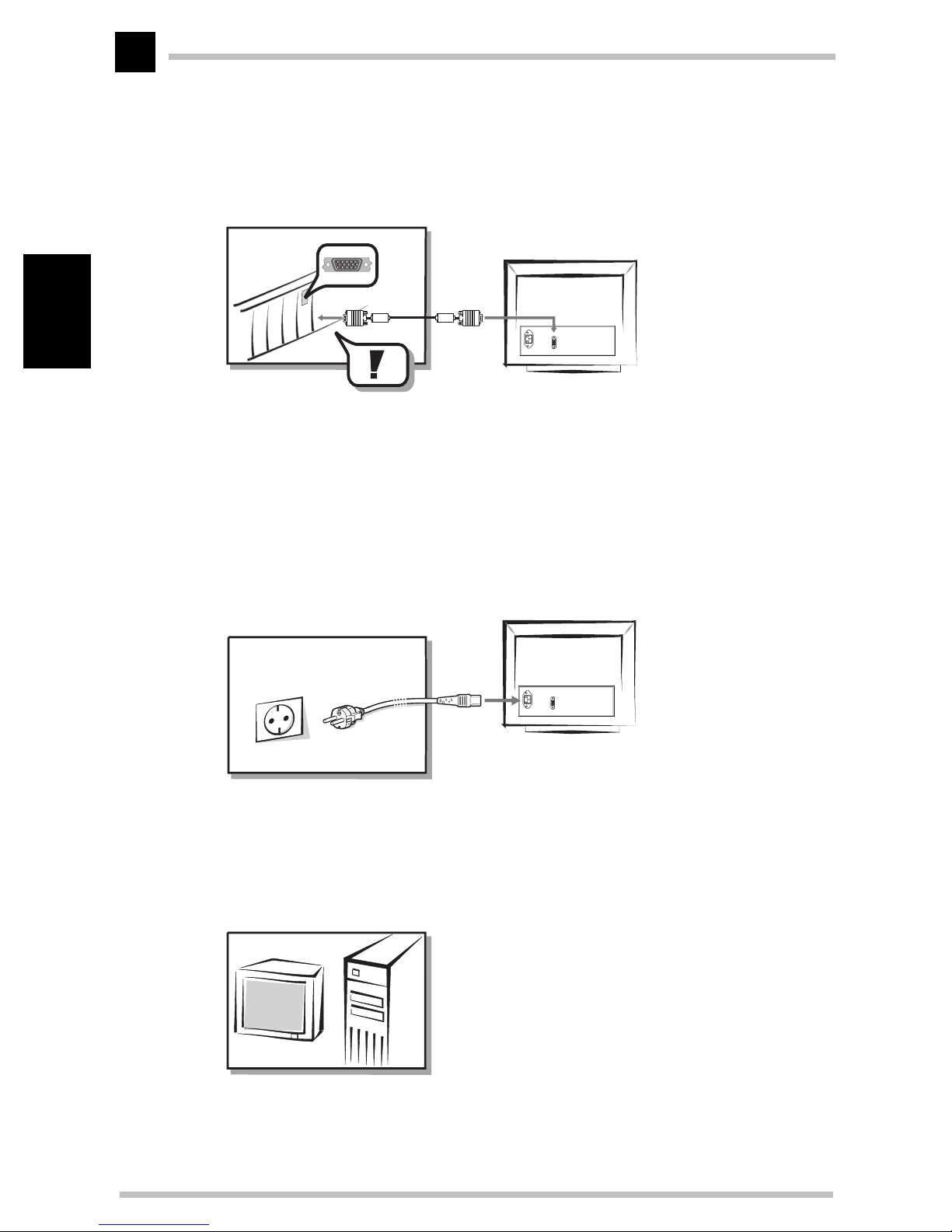

Connecting to the computer
Use the monitor cable to connect your computer with the signal graphics input on the
monitor.
For connecting your monitor to a Macintosh computer, make use of the special adapter
available from your dealer. See the chapter ('Connecting the monitor to a Macintosh com-
puter') for information on the connection of this adapter and the dip switch settings.
Connecting to the mains
With the monitor switched off connect the power cord supplied to the monitor and to the
mains. The monitor automatically adjusts itself to the rated voltage (110V–230 V).
Switch on
The monitor is now connected to your computer and the mains. First switch on your mon-
itor, then the computer.
1.
2.

Installation
ELSA ECOMO 750
7
English
Connecting the monitor to a Macintosh computer
Your dealer can supply you with a special adapter for connecting your ELSA monitor to
Macintosh computers. The adapter is to be located between the computer's graphics
output and the VGA connector cable. The DIP switches on the upper side of the adapter
should be set according to the resolution with which your monitor will be operating.
The optional adapter is for connecting your ELSA monitor to Macintosh computers. Set
the DIP switches according to the table below.
DIP switch settings connections with Macintosh computers:
ELSA monitors DIP switch setting
17" multi-mode start resolution 1024 x 786
19" multi-mode start resolution 1152 x 870
20" multi-mode start resolution 1152 x 870
21" multi-mode start resolution 1152 x 870
22" multi-mode start resolution 1152 x 870
24" multi-mode start resolution 1152 x 870

Installation
ELSA ECOMO 750
8
English
What next?
Because there are so many types of graphics boards you may need to fine tune the mon-
itor picture settings.
In the following chapters you can read how to fine tune for picture and color. The manual
also contains technical information and additional assistance for the operation of your
ELSA monitor.
The manual is supplied in printed form in the English and German languages.
The versions in French and Italian are available in PDF-format on the CD.
The Spanish/Dutch translation describes the installation only. If you require more infor-
mation, please refer to the documentation in the other languages.

Aspects of your monitor
ELSA ECOMO 750
9
English
Aspects of your monitor
The front control panel
The lower front of the monitor features a row of switches and buttons which allow you
to tune the picture settings precisely.
Function
 On/Off switch, Power-On indicator
This indicator lights up green when the monitor power is on. It shows amber when the mon-
itor is in the power management modes.
Signal A/B, OSD OFF
Fading out OSD, press this key to select the input signal of the monitor.
If only one monitor is connected, the input signal will be automatically selected.
Fading in OSD, press this key to turn it off.
Scroll key
Press this key to select the group icon in the main menu.
Enter key
Press this key to fix or to unfix the item icon.
Setting keys
The keys are used to move the cursor in the submenu and adjust the desired menu setting.

Aspects of your monitor
ELSA ECOMO 750
10
English
Rear connectors panel
Function
Power connector
Plug the power cord in here.
Signal input 1 connector (HD15, D-SUB)
Plug the cable carrying the signal from the graphics board to the monitor into
this socket (first computer).
Signal input 2 connector 2 (HD15, D-SUB)
Plug the cable carrying the signal from the graphics board to the monitor into
this socket (second computer).
Upstream ports
To connect to USB equipped computers, please use the enclosed USB cable.
Downstream ports
To connect to USB equipped peripherals, e.g. USB camera, keyboard, printer,
etc.

Monitor setup
ELSA ECOMO 750
11
English
Monitor setup
The ELSA ECOMO 750 supports USB and is provided with special software. In this chap-
ter you will learn more about USB and how to set up the monitor under your operating
system.
The USB function under Windows
What does USB stand for?
USB stands for “Universal Serial Bus“and defines a new interface standard which is
clearly more convenient for the PC user. This increased convenience concerns the con-
nection and configuration of peripheral devices. Up to 127 peripherals such as keyboard,
mouse, modem removable drives and digital cameras for videoconferencing can be con-
nected to a USB system. With USB, each peripheral device is configured automatically.
The USB standard defines an uniform connector type, making special cables, proprietary
connectors and interfaces and special installation software unnecessary. This elimi-
nates the all-too-familiar cable spaghetti that can result and the risk of hardware damage
due to an incorrect connection. The fact that all the devices can be connected to each
other—similar to a network—is also a great advantage. It means a high degree of flex-
ibility when planning the layout of the devices: Not all peripheral devices have to be con-
nected centrally to the computer.
Who can use USB?
The USB function is available to you if your hardware and operating system support USB.
In this case, it is the Windows system that checks the hardware, sets up the USB and
controls the attached devices.
USB support is already integrated in Windows 98. This may be different with older ver-
sions of Windows 95, as not all versions support USB.

Monitor setup
ELSA ECOMO 750
12
English
Checking for USB support
Open up the Control Panel by selecting Start 왘Settings 왘System. In the Device
Manager, view the list of devices available in the system.
For further information on USB please refer to www.usb.org.
The Windows system Device Man-
ager shows you whether the USB
controller is installed or not.

Monitor setup
ELSA ECOMO 750
13
English
The USB connection
A USB cable for connecting your monitor to your computer is supplied. The following dia-
gram shows the various options possible within a USB system:
If you use the supplied USB cable to connect your computer and ELSA monitor, it is rec-
ommended that you place the accompanying ferrous core around the cable. This core
reduces the electromagnetic interference from the monitor which would otherwise det-
rimentally effect the signal transmission.
Keyboard
Scanner
Digital camera
Computer
Downstream ports
Upstream ports

Monitor setup
ELSA ECOMO 750
14
English
All under control
Among other things it is possible to configure the monitor conveniently via software. A
program with which you can configure the main display settings directly is included with
your ELSA monitor.
USB monitor installation
When you insert the supplied CD, the ELSA setup program usually starts up automati-
cally. After you have specified the monitor type, you can select the component to be
installed in the list and click on Install.
If the program does not automatically start after the CD is inserted, you should run it man-
ually. Select the CD drive in Explorer and start the CDSETUP.EXE program in the root
directory of the CD.
Configuring the display with a USB monitor
After the installation you will find the USB monitor in the Control Panel under Display
Properties. Select Start 왘Settings 왘Control Panel and start the Display program.
Configuration using sliders is easy and intuitive. The resulting effects are displayed
immediately.
If you want to make display corrections in small increments you can use the arrow keys
instead of the mouse to change the values gradually.
Feel free to experiment and try out the different possibilities. The settings are only saved
when you confirm them by pressing Apply or OK.
Increased clarity with tabs for each
individual display setting
Various test patterns and colors facilitate
monitor setup
Values are easy to set with sliders
