elsner elektronik KNX TH-UP basic Guide

Installation and Adjustment

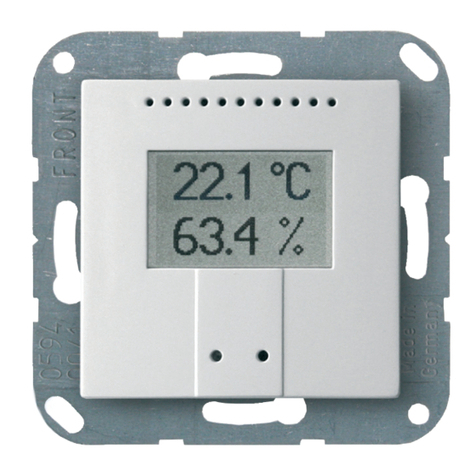

KNX TH-UP basic
Thermal hygrometer
Article numbers 70362 (white), 70363 (aluminium), 70364 (anthracite)
EN
Elsner Elektronik GmbH Control and AutomationTechnology
Sohlengrund 16
75395 Ostelsheim Phone [phone] / 30 945-0 [e-mail]
Germany Fax [phone] www.elsner-elektronik.de

1 Contents
Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany
KNX TH-UP basic • from software version 3.1, ETS version 3.1
Version: 06.03.2017 • Technical changes and errors excepted.
1. Description ........................................................................................... 5
1.0.1. Deliverables ................................................................................................... 6
1.1. Technical specifications ........................................................................................... 6
1.1.1. Measuring accuracy ...................................................................................... 7
2. Installation and start-up ....................................................................... 7
2.1. Installation notes ...................................................................................................... 7
2.2. Installation position .................................................................................................. 8
2.3. Construction of the sensor ...................................................................................... 8
2.3.1. Housing .......................................................................................................... 8
2.3.2. Rear view sensor plate with connection ..................................................... 9
2.4. Assembly of the sensor ........................................................................................... 9
2.5. Notes on mounting and commissioning ................................................................ 9
3. Transfer protocol ............................................................................... 11
3.1. List of all communications objects ....................................................................... 11
4. Parameter setting .............................................................................. 18
4.1. Behaviour on power failure/ restoration of power .............................................. 18
4.2. General settings ..................................................................................................... 18
4.3. Measured values: Temperature, humidity ........................................................... 18
4.4. Threshold values: Temperature, humidity ........................................................... 19
4.4.1. Threshold value 1, 2, 3: Temperature, humidity ...................................... 19
Threshold value .......................................................................................... 19
Switching output ......................................................................................... 20
Block ............................................................................................................. 21
4.5. Temperature PI control .......................................................................................... 21
4.5.1. General set point values ............................................................................. 23
Set point Comfort ....................................................................................... 24
Set point for standby .................................................................................. 24
Eco set point ................................................................................................ 25
Set point values for frost/heat protection (building protection) ............. 25
General variables ........................................................................................ 25
4.5.2. Heating control level 1/2 ............................................................................. 26
4.5.3. Cooling control level 1/2 ............................................................................. 28
4.6. Humidity PI control ................................................................................................ 30
General control ........................................................................................... 30
Controller target value ................................................................................ 31
Dehumidification and/or humidification ................................................... 32
4.7. Dewpoint temperature ........................................................................................... 33
4.7.1. Coolant temperature monitoring ............................................................... 33
Minimum coolant temperature threshold value ...................................... 33
Switching output ......................................................................................... 34
Block ............................................................................................................. 34
4.8. Absolute humidity .................................................................................................. 35
4.9. Comfort field ........................................................................................................... 35
4.10.Variable comparator .............................................................................................. 36

2 Contents
Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany
KNX TH-UP basic • from software version 3.1, ETS version 3.1
Version: 06.03.2017 • Technical changes and errors excepted.
4.10.1. Control variable comparator 1/2 ................................................................ 36
4.11.Logic ........................................................................................................................ 37
AND logic ..................................................................................................... 37
OR logic ....................................................................................................... 37
4.11.1. AND and/or OR logic 1/2/3/4/5/6/7/8 .......................................................... 37
Block ............................................................................................................. 38
4.11.2. AND logic connection inputs ..................................................................... 39
4.11.3. Connection inputs of the OR logic ............................................................. 40

3 Clarification of signs
This manual is amended periodically and will be brought into line with new software
releases. The change status (software version and date) can be found in the contents footer.
If you have a device with a later software version, please check
www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to-
date version of the manual is available.
Clarification of signs used in this manual
Installation, inspection, commissioning and troubleshooting of the device
must only be carried out by a competent electrician.
Safety advice.
Safety advice for working on electrical connections, components,
etc.
DANGER! ... indicates an immediately hazardous situation which will lead to
death or severe injuries if it is not avoided.
WARNING! ... indicates a potentially hazardous situation which may lead to
death or severe injuries if it is not avoided.
CAUTION! ... indicates a potentially hazardous situation which may lead to
trivial or minor injuries if it is not avoided.
ATTENTION! ... indicates a situation which may lead to damage to property if it is
not avoided.
ETS In the ETS tables, the parameter default settings are marked by
underlining.

4 Clarification of signs

5 Description
Indoor sensor KNX TH-UP basic • Software version 3.0 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
1. Description
The Indoor sensor KNX TH-UP basic measures the temperature and air humidity
and calculates the dew point. Via the bus, the sensor receives external measuring
values and processes them to an overall temperature and air humidity value
(composite results) together with its own data.
The KNX TH-UP basic provides six switched outputs whose threshold values can be
adjusted. Switched outputs and other communication objects may be linked via AND
and OR logic gates. In addition, an integrated control variable comparator compares
and outputs variables that were received via communication objects.
Integrated PI-controllers control ventilation (according to humidity) and heating/
cooling (according to temperature). The KNX TH-UP basic outputs a warning to the
bus as soon as the comfort field (as per DIN 1946) is exited.
The housing is supplemented with a frame of the switch series used in buildings, and
thus fits seamlessly into the interior fittings.
Functions:
• Measuring the temperature and air humidity (relative and absolute),
calculation of the dew point
•Composite values from own measured values and external values
(proportions are adjusted as a percentage)
•PI-controller for heating (one or two-stage) and cooling (one or two-stage)
according to temperature. Regulation according to separate setpoints or basic
setpoint temperature
•PI controller for humidity according to humidity: Dehumidifying/
humidifying (single level) or dehumidifying (single or double level)
•6 threshold values can be adjusted per parameter or via communication
objects
•8 AND and 8 OR logic gates, each with 4 inputs. All switching events as well
as 16 logic inputs (in the form of communications objects) are used as inputs
for the logic gates. The output from each gate can be configured optionally as
1-bit or 2 x 8-bit
•2 control variable comparators to output minimum, maximum or average
values. 5 inputs each for values received via communication objects
Configuration is made using the KNX software ETS. The product file can be
downloaded from the Elsner Elektronik website on www.elsner-elektronik.de in the
“Service” menu.

6 Description
Indoor sensor KNX TH-UP basic • Software version 3.0 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
1.0.1. Deliverables
• Housing with sensor PCB
• Baseplate
Additionally required (not included in the deliverables):
• Junction box Ø 60 mm, 42 mm depth
• Frame (for insert 55 x 55 mm), compatible with the switch scheme used in the
building
1.1. Technical specifications
Housing Plastic (partially painted)
Colours • White, glossy (similar to RAL 9016 Traffic White)
• Aluminium, matt
• Anthracite, matt
• Special colours on request
Assembly Flush mounting
(Wall mounting in junction box Ø 60 mm, 42 mm
depth)
Protection category IP 20
Dimensions Housing approx. 55 x 55 (W x H, mm),
Mounting depth approx. 15 mm
Baseplate approx. 71 x 71 (W x H, mm),
Total weight approx. 45 g
Ambient temperature Operation -25…+80°C, storage -40…+85°C
Ambient humidity max. 95% RH, avoid condensation
Operating voltage KNX bus voltage
Bus current max. 6 mA,
max. 10 mA when programming LED active
Data output KNX +/- bus plug-in terminals
BCU type Integrated microcontroller
PEI type 0
Group addresses max. 254
Assignments max. 254
Communication objects 190
Temperature measuring
range
-25…+80°C
Temperature resolution 0.1°C
Temperature accuracy* ±0,8°C at -25…-10°C
±0,5°C at -10...+65°C
±0,6°C at +65...+80°C
Humidity measuring range 0…100% RH
Humidity resolution 0.1%

7 Installation and start-up
Indoor sensor KNX TH-UP basic • Software version 3.0 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
* Please note the information on Measuring accuracy, Page 7
The product is compliant with the provisions of EU guidelines.
1.1.1. Measuring accuracy
Measurement variations from sources of interference (see chapter Installation
position) must be corrected in the ETS in order to ensure the specified accuracy of the
sensor (offset).
When measuring temperature, the self-heating of the device is considered by the
electronics. The heating is compensated by reducing the measured temperture by the
self-heating of 1.8°C. The indicated indoor temperature measured value approches the
actual room temperature during a 2 hours heating period.
2. Installation and start-up
2.1. Installation notes
Installation, testing, operational start-up and troubleshooting should
only be performed by an electrician.
CAUTION!
Live voltage!
There are unprotected live components inside the device.
• National legal regulations are to be followed.
• Ensure that all lines to be assembled are free of voltage and take
precautions against accidental switching on.
• Do not use the device if it is damaged.
• Take the device or system out of service and secure it against
unintentional use, if it can be assumed, that risk-free operation is no
longer guaranteed.
The device is only to be used for its intended purpose. Any improper modification or
failure to follow the operating instructions voids any and all warranty and guarantee
claims.
After unpacking the device, check it immediately for possible mechanical damage. If it
has been damaged in transport, inform the supplier immediately.
Humidity accuracy ±7,5% RH at 0...10% RH
±4,5% RH at 10...90% RH
±7,5% RH at 90...100% RH
Humidity drift ± 0.5% RH per year in normal atmosphere

8 Installation and start-up
Indoor sensor KNX TH-UP basic • Software version 3.0 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
The device may only be used as a fixed-site installation; that means only when
assembled and after conclusion of all installation and operational start-up tasks and
only in the surroundings designated for it.
Elsner Elektronik is not liable for any changes in norms and standards which may occur
after publication of these operating instructions.
2.2. Installation position
The sensor will be installed concealed within a socket (Ø 60 mm, 42 mm deep).
The sensor may be installed and operated in dry interior rooms
only. Avoid condensation.
When selecting an installation location, please ensure that the measurement results
are affected as little as possible by external influences. Possible sources of interference
include:
• Direct sunlight
• Drafts from windows and doors
• When mounted in-wall: Draft from ducts which lead from other rooms to the
junction box in which the sensor is mounted
• Warming or cooling of the building structure on which the sensor is mounted,
e.g. due to sunlight, heating or cold water pipes
• Connection lines which lead from warmer or colder areas to the sensor
Temperature variations from such sources of interference must be corrected in the ETS
in order to ensure the specified accuracy of the sensor (temperature offset).
2.3. Construction of the sensor
2.3.1. Housing
Fig. 1
1 Baseplate
2Catches
3 Openings for air circulation
4 Programming LED (recessed)
5 Programming button
(recessed) for teaching the
device
6 Openings for air circulation
(LOWER)
3
2
5
4
6
1

9 Installation and start-up
Indoor sensor KNX TH-UP basic • Software version 3.0 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
2.3.2. Rear view sensor plate with connection
2.4. Assembly of the sensor
First of all fit the socket with connection. Seal inlet pipes to avoid infiltration.
Then screw the base plate onto the socket and position the frame of the switching
programme. Connect the bus line +/- (black-red plug) to the terminals provided on the
sensor board of the sensor. Pin the sensor with the notches on to the metal frame, so
that sensor and frame are fixed.
2.5. Notes on mounting and commissioning
Never expose the device to water (e.g. rain) or dust. This can damage the electronics.
You must not exceed a relative humidity of 95%. Avoid condensation.
After the bus voltage has been applied, the device will enter an initialisation phase
lasting a few seconds. During this phase no information can be received or sent via the
bus.
Fig. 2
1 KNX terminal BUS +/-
2 Catches
2
1

10 Installation and start-up
Indoor sensor KNX TH-UP basic • Software version 3.0 and higher
Version: 06.03.2017 • Technical changes and errors excepted.

11 Transfer protocol
Sensor KNX TH-UP basic • Software version 3.1 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
3. Transfer protocol
Units:
Temperatures in degrees Celsius
Air humidity in %
Absolute air humidity in g/kg and/or g/m3
Variables in %
3.1. List of all communications objects
Abbreviation flags:
C Communication
R Read
WWrite
T Transfer
UUpdate
No. Name Function DPT Flags
0 Software version readable 217,001 C R T
1 Temperature/humidity malfunction
sensor
Output 1,001 C R T
3 Outside temperature reading Input 9,001 C W
4 Inside temperature reading Output 9,001 C R T
5 Overall temperature reading Output 9,001 C R T
6 Min./max. temperature value request Input 1,017 C W
7 Minimum temperature reading Output 9,001 C R T
8 Maximum temperature reading Output 9,001 C R T
9 Reset min./max. temperature value Input 1,017 C W
10 Temp. threshold value 1: Absolute
value
Input/Output 9,001 C R W T
U
11 Temp. threshold value 1: (1:+ | 0:-) Input 1,002 C W
12 Temp. threshold value 1:
Switching delay from 0 to 1
Input 7,005 C W
13 Temp. threshold value 1:
Switching delay from 1 to 0
Input 7,005 C W
14 Temp. threshold value 1: Switching
output
Output 1,001 C R T
15 Temp. threshold value 1:
Switching output block
Input 1,002 C W
16 Temp. threshold value 2: Absolute
value
Input/Output 9,001 C R W T
U
17 Temp. threshold value 2: (1:+ | 0:-) Input 1,002 C W

12 Transfer protocol
Sensor KNX TH-UP basic • Software version 3.1 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
18 Temp. threshold value 2:
Switching delay from 0 to 1
Input 7,005 C W
19 Temp. threshold value 2:
Switching delay from 1 to 0
Input 7,005 C W
20 Temp. threshold value 2: Switching
output
Output 1,001 C R T
21 Temp. threshold value 2:
Switching output block
Input 1,002 C W
22 Temp. threshold value 3: Absolute
value
Input/Output 9,001 C R W T
U
23 Temp. threshold value 3: (1:+ | 0:-) Input 1,002 C W
24 Temp. threshold value 3:
Switching delay from 0 to 1
Input 7,005 C W
25 Temp. threshold value 3:
Switching delay from 1 to 0
Input 7,005 C W
26 Temp. threshold value 3: Switching
output
Output 1,001 C R T
27 Temp. threshold value 3:
Switching output block
Input 1,002 C W
28 Reserve
29 TR_1_ Eco-Standby HVAC 1 Input 1,003 C W
30 TR_1_ Comfort Activation HVAC 2 Input 1,003 C W
31 TR_1_ Frost/Heat activation Input 1,003 C R W T
32 TR_1_ Blocking object Input 1,003 C W
33 TR_1_ Target value, current Output 9,001 C R T
34 TR_1_ Switching object (0:Heat |
1:Cool)
Input 1,002 C W
35 TR_1_ Target value, comfort heating Input/Output 9,001 C R W T
36 TR_1_ Target value, comfort heating
(1:+ | 0:-)
Input 1,002 C W
37 TR_1_ Target value, comfort cooling Input/Output 9,001 C R W T
38 TR_1_ Target value, comfort cooling
(1:+ | 0:-)
Input 1,002 C W
39 TR_1_ Target value_Basic offset Input/Output 9,001 C R W T
40 TR_1_ Target value, Standby heating Input/Output 9,001 C R W T
41 TR_1_ Target value, Standby heating
(1:+ | 0:-)
Input 1,002 C W
42 TR_1_ Target value, Standby cooling Input/Output 9,001 C R W T
43 TR_1_ Target value, Standby cooling
(1:+ | 0:-)
Input 1,002 C W
44 TR_1_ Target value, Eco heating Input/Output 9,001 C R W T
No. Name Function DPT Flags

13 Transfer protocol
Sensor KNX TH-UP basic • Software version 3.1 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
45 TR_1_ Target value, Eco heating (1:+ |
0:-)
Input 1,002 C W
46 TR_1_ Target value, Eco cooling Input/Output 9,001 C R W T
47 TR_1_ Target value, Eco cooling (1:+ |
0:-)
Input 1,002 C W
48 TR_1_ Control variable heating (stage
1)
Output 5,001 C R T
49 TR_1_ Control variable heating stage
2
Output 5,001 C R T
50 TR_1_ Control variable cooling (stage
1)
Output 5,001 C R T
51 TR_1_ Control variable cooling stage
2
Output 5,001 C R T
52 TR_1_ Status heating 1 (1=ON |
0=OFF)
Output 1,002 C R T
53 TR_1_ Status heating 2 (1=ON |
0=OFF)
Output 1,002 C R T
54 TR_1_ Cooling status 1 (1=ON |
0=OFF)
Output 1,002 C R T
55 TR_1_ Cooling status 2 (1=ON |
0=OFF)
Output 1,002 C R T
56 TR_1_ Comfort Delay Status Input/Output 1,002 C R W T
57 TR_1_Comfort extension time (in sec) Input/Output 7,005 C R W T
58 TR_1_Belimo_Control variable Output 5,001 C R T
59 Outside humidity reading Input 9,007 C W
60 Inside humidity reading Output 9,007 C R T
61 Overall humidity reading Output 9,007 C R T
62 Min./max. humidity value request Input 1,017 C W
63 Minimum humidity reading Output 9,007 C R T
64 Maximum humidity reading Output 9,007 C R T
65 Reset min./max. humidity value Input 1,017 C W
66 Humidity threshold value 1: Absolute
value
Input/Output 9,007 C R W T
U
67 Humidity threshold value 1: (1:+ | 0:-) Input 1,002 C W
68 Humidity threshold value 1: Switch-
ing delay from 0 to 1
Input 7,005 C W
69 Humidity threshold value 1: Switch-
ing delay from 1 to 0
Input 7,005 C W
70 Humidity threshold value 1: Switch-
ing output
Output 1,001 C R T
No. Name Function DPT Flags

14 Transfer protocol
Sensor KNX TH-UP basic • Software version 3.1 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
71 Humidity threshold value 1: Switch-
ing output block
Input 1,002 C W
72 Humidity threshold value 2: Absolute
value
Input/Output 9,007 C R W T
U
73 Humidity threshold value 2: (1:+ | 0:-) Input 1,002 C W
74 Humidity threshold value 2: Switch-
ing delay from 0 to 1
Input 7,005 C W
75 Humidity threshold value 2: Switch-
ing delay from 1 to 0
Input 7,005 C W
76 Humidity threshold value 2: Switch-
ing output
Output 1,001 C R T
77 Humidity threshold value 2: Switch-
ing output block
Input 1,002 C W
78 Humidity controller: Blocking object Input 1,002 C W
79 Humidity controller: Target value Input/Output 9,007 C R W T
80 Humidity controller: Target value (1:+
| 0:-)
Input 1,002 C W
81 Humidity controller: Control variable
dehumidification (stage 1)
Output 5,001 C R T
82 Humidity controller: Control variable
dehumidification stage 2
Output 5,001 C R T
83 Humidity controller: Control variable
humidification
Output 5,001 C R T
84 Humidity controller: Dehumidification
1 status (1=ON | 0=OFF)
Output 1,001 C R T
85 Humidity controller: Dehumidification
2 status (1=ON | 0=OFF)
Output 1,001 C R T
86 Humidity controller: Humidification
status (1=ON | 0=OFF)
Output 1,001 C R T
87 Dewpoint temperature Output 9,001 C R T
88 Coolant temp.: Threshold value Output 9,001 C R T
89 Coolant temp.: Actual value Input 9,001 C W
90 Coolant temp.: Offset change
(1:+ | 0:-)
Input 1,002 C W
91 Coolant temp.: Switching delay from
0 to 1
Input 7,005 C W
92 Coolant temp.: Switching delay from
1 to 0
Input 7,005 C W
93 Coolant temp.: Switching output Output 1,001 C R T
94 Coolant temp.: Switching output
block
Input 1,002 C W
No. Name Function DPT Flags

15 Transfer protocol
Sensor KNX TH-UP basic • Software version 3.1 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
95 Absolute humidity [g/kg] Output 14,005 C R T
96 Absolute humidity [g/m³] Output 14,017 C R T
97 Ambient climate status: 1 = comforta-
ble | 0 = uncomfortable
Output 1,002 C R T
135 Comparator 1 actuating variable:
Input 1
Input 5,010 C W
136 Comparator 1 actuating variable:
Input 2
Input 5,010 C W
137 Comparator 1 actuating variable:
Input 3
Input 5,010 C W
138 Comparator 1 actuating variable:
Input 4
Input 5,010 C W
139 Comparator 1 actuating variable:
Input 5
Input 5,010 C W
140 Comparator 1 actuating variable: Out-
put
Output 1,001 C R T
141 Comparator 1 actuating variable:
Block
Input 1,002 C W
142 Comparator 2 actuating variable:
Input 1
Input 5,010 C W
143 Comparator 2 actuating variable:
Input 2
Input 5,010 C W
144 Comparator 2 actuating variable:
Input 3
Input 5,010 C W
145 Comparator 2 actuating variable:
Input 4
Input 5,010 C W
146 Comparator 2 actuating variable:
Input 5
Input 5,010 C W
147 Comparator 2 actuating variable: Out-
put
Output 1,001 C R T
148 Comparator 2 actuating variable:
Block
Input 1,002 C W
149 AND logic 1: 1-bit switching output Output 1,002 C R T
150 AND logic 1: 8-bit output A Output 5,010 C R T
151 AND logic 1: 8-bit output B Output 5,010 C R T
152 AND logic 1: Block Input 1,002 C W
153 AND logic 2: 1-bit switching output Output 1,002 C R T
154 AND logic 2: 8-bit output A Output 5,010 C R T
155 AND logic 2: 8-bit output B Output 5,010 C R T
156 AND logic 2: Block Input 1,002 C W
157 AND logic 3: 1-bit switching output Output 1,002 C R T
No. Name Function DPT Flags

16 Transfer protocol
Sensor KNX TH-UP basic • Software version 3.1 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
158 AND logic 3: 8-bit output A Output 5,010 C R T
159 AND logic 3: 8-bit output B Output 5,010 C R T
160 AND logic 3: Block Input 1,002 C W
161 AND logic 4: 1-bit switching output Output 1,002 C R T
162 AND logic 4: 8-bit output A Output 5,010 C R T
163 AND logic 4: 8-bit output B Output 5,010 C R T
164 AND logic 4: Block Input 1,002 C W
165 AND logic 5: 1-bit switching output Output 1,002 C R T
166 AND logic 5: 8-bit output A Output 5,010 C R T
167 AND logic 5: 8-bit output B Output 5,010 C R T
168 AND logic 5: Block Input 1,002 C W
169 AND logic 6: 1-bit switching output Output 1,002 C R T
170 AND logic 6: 8-bit output A Output 5,010 C R T
171 AND logic 6: 8-bit output B Output 5,010 C R T
172 AND logic 6: Block Input 1,002 C W
173 AND logic 7: 1-bit switching output Output 1,002 C R T
174 AND logic 7: 8-bit output A Output 5,010 C R T
175 AND logic 7: 8-bit output B Output 5,010 C R T
176 AND logic 7: Block Input 1,002 C W
177 AND logic 8: 1-bit switching output Output 1,002 C R T
178 AND logic 8: 8-bit output A Output 5,010 C R T
179 AND logic 8: 8-bit output B Output 5,010 C R T
180 AND logic 8: Block Input 1,002 C W
181 OR logic 1: 1-bit switching output Output 1,002 C R T
182 OR logic 1: 8-bit output A Output 5,010 C R T
183 OR logic 1: 8-bit output B Output 5,010 C R T
184 OR logic 1: Block Input 1,002 C W
185 OR logic 2: 1-bit switching output Output 1,002 C R T
186 OR logic 2: 8-bit output A Output 5,010 C R T
187 OR logic 2: 8-bit output B Output 5,010 C R T
188 OR logic 2: Block Input 1,002 C W
189 OR logic 3: 1-bit switching output Output 1,002 C R T
190 OR logic 3: 8-bit output A Output 5,010 C R T
191 OR logic 3: 8-bit output B Output 5,010 C R T
192 OR logic 3: Block Input 1,002 C W
193 OR logic 4: 1-bit switching output Output 1,002 C R T
194 OR logic 4: 8-bit output A Output 5,010 C R T
195 OR logic 4: 8-bit output B Output 5,010 C R T
196 OR logic 4: Block Input 1,002 C W
197 OR logic 5: 1-bit switching output Output 1,002 C R T
No. Name Function DPT Flags

17 Transfer protocol
Sensor KNX TH-UP basic • Software version 3.1 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
198 OR logic 5: 8-bit output A Output 5,010 C R T
199 OR logic 5: 8-bit output B Output 5,010 C R T
200 OR logic 5: Block Input 1,002 C W
201 OR logic 6: 1-bit switching output Output 1,002 C R T
202 OR logic 6: 8-bit output A Output 5,010 C R T
203 OR logic 6: 8-bit output B Output 5,010 C R T
204 OR logic 6: Block Input 1,002 C W
205 OR logic 7: 1-bit switching output Output 1,002 C R T
206 OR logic 7: 8-bit output A Output 5,010 C R T
207 OR logic 7: 8-bit output B Output 5,010 C R T
208 OR logic 7: Block Input 1,002 C W
209 OR logic 8: 1-bit switching output Output 1,002 C R T
210 OR logic 8: 8-bit output A Output 5,010 C R T
211 OR logic 8: 8-bit output B Output 5,010 C R T
212 OR logic 8: Block Input 1,002 C W
213 Logic input 1 Input 1,002 C W
214 Logic input 2 Input 1,002 C W
215 Logic input 3 Input 1,002 C W
216 Logic input 4 Input 1,002 C W
217 Logic input 5 Input 1,002 C W
218 Logic input 6 Input 1,002 C W
219 Logic input 7 Input 1,002 C W
220 Logic input 8 Input 1,002 C W
221 Logic input 9 Input 1,002 C W
222 Logic input 10 Input 1,002 C W
223 Logic input 11 Input 1,002 C W
224 Logic input 12 Input 1,002 C W
225 Logic input 13 Input 1,002 C W
226 Logic input 14 Input 1,002 C W
227 Logic input 15 Input 1,002 C W
228 Logic input 16 Input 1,002 C W
No. Name Function DPT Flags

18 Parameter setting
Sensor KNX TH-UP basic • Software version 3.1 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
4. Parameter setting
4.1. Behaviour on power failure/ restoration of
power
Behaviour following a failure of the bus power supply:
The device sends nothing.
Behaviour on bus restoration of power and following programming or reset:
The device sends all outputs according to their send behaviour set in the parameters
with the delays established in the "General settings" parameter block. The "Software
version" communications object is sent once after 5 seconds.
4.2. General settings
Set the basic data transfer characteristics and select whether or not malfunction ob-
jects should be sent.
4.3. Measured values: Temperature, humidity
The setting options for temperature and humidity readings are the same.
Use Offsets to adjust the readings to be sent.
The unit can calculate a mixed value from its own reading and an external value. Set
the mixed value calculation if desired.
Send delay after power-up and programming for:
Measured values 5 s • ... • 2 h
Threshold values and switching outputs 5 s • ... • 2 h
Controller objects 5 s • 10 s • ... • 2 h
Logic outputs 5 s • 10 s • ... • 2 h
Maximum telegram quota • 1 message per second
• ...
• 5 messages per second
• ...
• 20 messages per second
Use temp./humidity malfunction object Yes • No
Use CO2 malfunction object Yes • No
Temperature: Offset in 0.1°C
Humidity: Offset in % rH
-50…50; 0
-10...10; 0
Use external reading Yes • No
Ext. Reading proportion of the total reading 5% • 10% • ... • 50% • ... • 100%

19 Parameter setting
Sensor KNX TH-UP basic • Software version 3.1 and higher
Version: 06.03.2017 • Technical changes and errors excepted.
Note: if an external portion is used, all of the following settings (threshold values, etc.)
are related to the overall reading!
The minimum and maximum readings can be saved and sent to the bus. Use the
"Reset temperature (and/or humidity) min/max. value" objects to reset the values to the
current readings.
Note: The values are not retained after a reset.
4.4. Threshold values: Temperature, humidity
Activate the threshold values that you want to use here. The Sensor KNX TH-UP ba-
sic provides three threshold values for temperature and two threshold values for air
humidity.
4.4.1. Threshold value 1, 2, 3: Temperature, humidity
The settings options for temperature and humidity threshold values are the same.
Threshold value
Set the threshold values directly in the application program using parameters, or de-
fine them via the bus using a communications object.
Threshold value setpoint using parameter:
Set the threshold values and hysteresis directly.
Threshold value setpoint using a communications object:
Beforehand, enter how the threshold value will be received from the bus. Basically, a
new value can be received, or simply a command to increase or decrease.
Send internal and total reading • never
• periodically
• On change
• on change and periodically
From change of
(if sent on change)
Temperature: 0.1°C • 0.2°C • ... • 5.0°C
Humidity: 0.10% • ... • 1.00% • ... • 25.00%
Send cycle
(if sent periodically)
5s• ... • 2 h
Use minimum/maximum value Yes • No
Use threshold value 1/2/3 Yes • No
Threshold value setpoint using Parameter • Communications object
Temperature: Threshold value in 0.1°C
Humidity: Threshold value in % rH
-300 … 800; 200
0...100; 70
Hysteresis of the threshold value in % 0 … 50; 20
