ELTEX VP-12 Instruction manual

IP PHONE
VP-12(P)
Quick user guide
eltex-co.ru
Made in Russia

SUPPLY PACKAGE
CONNECTING
Power supply through the adapter Power supply via
PoE technology (only for VP-12P).
IP phone VP-12(P) Handset
Handset cable
Headphones HP-12*
(*upon a request)
Cable for connection
to a local network
Quick user guide
and warranty certificate
Please, use the adapter included in the supply package of Eltex IP phone. Do not use another
adapter, you might damage your phone.
The loading of the phone system starts after connecting to the power supply.
Perform the basic configuration after system loading.
LOADING
BASIC CONFIGURATION
Obtaining an IP address:
Press the «menu» soft key. The IP address that your phone has obtained is displayed in «Status»
submenu. If IP address is displayed as 0.0.0.0, you need to configure networks parameters
manually using menu on the phone screen.
Basic configuration using screen menu
You can manage your phone using soft keys below the
screen. The features of the keys is displayed at the
bottom of the screen.
3. Configure the parameters
1. Press «menu» soft key
2. Move to «Network parameters settings» submenu:
Menu Settings System Network Ext. network
→ → → →
Note: You can ask a network administrator for a list of network parameters and their meanings.
4. Move to «Account settings» submenu:
Menu Settings System Accounts Account 1І2
→ → → →
5. Configure the parameters of the accounts.
Note: You may ask a network administrator or service provider for the list of account parameters
and their meanings.
Basic configuration via web interface
5. Configure VoIP parameters on the tab: VoIP SIP accounts.
→
3. Fill the fields and press «Log in». By default, login – admin, password – password.
1. Open a web browser, i.e. Firefox, Opera, Chrome.
2. Type IP address of the phone in the URL bar of the browser.
In case of successful connection, a window for login and password filling is displayed.
4. If necessary, change network parameters on the tab: Network Internet.
→
Note: Make sure that a PC which you use for entering phone web interface is in the same local
network as the phone you need to configure or there is a route between the networks. Please,
consult an administrator of your network on the issue of phone connection.
Adapter 5V 2А
Internet
i
i
i
ГАРАНТИЙНЫЙ ТАЛОН
М.П.
IP PHONE
VP-12(P)
Краткое руководство пользователя
VP-12 and VP-12P IP phones are designed to be connected to a telephone network through
the broadband access networks (Ethernet) via SIP.
INTENDED USE
Note: Before using, it is recommended to update the software. Different ways of software updating
is given in the User manual for VP-12 and VP-12P.
i

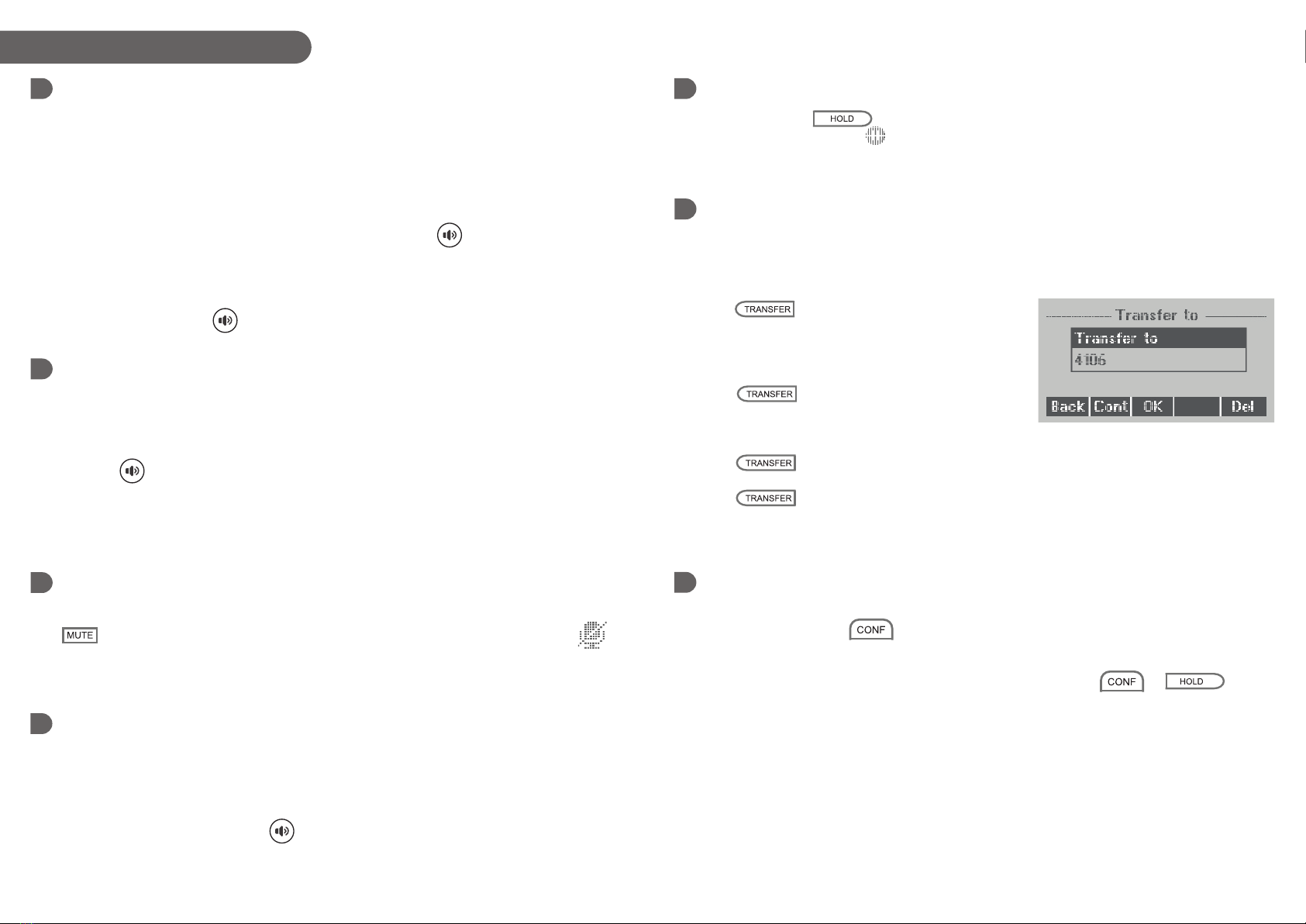

Pick up the handset and dial a number.
Wait for a ring back tone or press <Call> soft key.
Place a call
Basic
Using the speakerphone
Answer a call
Do one of the followings to answer a call:
џPick up the handset
џPress <Ans>
џPress
You can ignor the call by pressing <Low>, or reject the call by pressing <Hang>.
Mute
Ending a call
Hold a call
Transfer a call
Way 1
Way 2
1. Press or <Tran> soft key.
2. Dial the number you want to transfer the call to.
3. Press or put the handset to its cradle.
Conference call
4. Press <Conf> soft key.
You can organize a conference call having one active call and one call on hold.
џPress <Conf> soft key or button.
If you have one active call and want another subscriber to join:
1. Press one of the following buttons: <Conf> soft key, <Hold> soft key, or .
Thus, you put the active call on hold.
2. Dial the number of the subscriber you want to join.
3. Wait for the answer.
The conference has been organized. The phone numbers of the subscriber are displayed on the screen.
Pick up the handset and dial a number. Press <Call> soft key, then press button.
Using the speakerphone, you can return the handset to its cradle.
Switch to the handset:
Pick up the handset if it is on the cradle. The speakerphone will be automatically switched off.
If the handset is off-hook, press .
With Mute enabled, you can hear other parties on a call but they can not hear you.
Press to enable the mode. If the mode is on, the MUTE indicator glows green and the icon is
displayed on the screen.
Do one of the followings to end a call:
џReturn the handset to its cradle (if you use the handset for the call)
џPress <Hang> soft key
џWhile using speakerphone press (if the handset is on the cradle)
Press <Hold> soft key or button to put an active call on hold.
When the call is on hold, the icon is displayed on the screen.
1. Press or <Tran> soft key.
2. Dial the number to which you want to transfer the call.
3. Press <Call> soft key.
4. When the recipient of the transferring call answers, notify
him or her that you are transferring the call.
5. Press or <Tran> soft key.
OPERATING THE PHONE
Do one of the followings to transfer a connected call:

VoIP protocols
Protocols support
SIP
Audio codecs support
Codecs
G.711a, G.711u, G.723.1, G.726, G.729
LAN interface (Ethernet) parameters
Number of ports
1
Interface
RJ-45
Data rate, Mbps
10/100, autonegotiation
Standards support
BASE-T
PC interface (Ethernet) parameters
Number of interfaces
1
Interface
RJ-45
Data rate, Mbps
10/100, autonegotiation
Standards support
BASE-T
Management
Remote management
web interface, Telnet, SNMP, TR-069
Access rights limitations
by password
Common parameters
Power supply
џadapter 5 V DC, 2 А
џPoE IEEE 802.3af (for VP-12P only)
Power consumption
no more than 3.5 W (maximum current consumption 0.7 А)
Operating temperature
from +5 to +40°С
Operating humidity
up to 80% at 25°С
Dimensions
223x178x89.5 mm
Weight
no more than 0,52 kg
SUPPORT
For technical assistance on the issues related to operation of Eltex Ltd. equipment, please
contact the Service Center:
Russian Federation, 630020, Novosibirsk, Okruzhnaya st., 29V.
џDo not install the phone near sources of heat.
џThe phone should be kept away from direct sunlight. Do not expose the device to moisture
or dust.
џDo not open the phone case.
џEquipment shipping and storage should be conducted in accordance with GOST 15150
Conditions 5 and Conditions 1 respectively.
Duration of warranty: 1 year. Warranty terms is presented in the warranty certificate.
Date of issue is on the package.
Eltex Ltd. guaranties the compliance of VP-12_ IP phone with technical requirements
RPLT.465600.134TU (РПЛТ.465600.134ТУ) in case the user follows operating rules specified in this
operating manual.
TECHNICAL FEATURES SAFE OPERATION RULES
Technical support phone numbers:
[phone] [phone]
E-mail: [e-mail]
џ eltex-co.ru/forumForum:
Visit the Eltex Ltd. website to find technical documentation and firmware for our products, and
consult Service Center engineers on the technical forum:
џ eltex-co.ruOfficial website:
џ eltex-co.ru/support/downloadsFiles storage:
