Emerson White-Rodgers 36H Series User manual

FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
The 36H series combination gas valve has redundant
and main solenoid valves that control gas ow to the
main burners, a pressure regulator to maintain a con-
stant outlet pressure, and a two position on/o switch
for electrical shuto. The valves are shipped from the
factory set for natural gas non-piloted applications.
See instructions in this document for modications
required if the valve is to be installed on an LP gas
and/or piloted gas application.
36H SERIES
Combination Gas Valve
INSTALLATION INSTRUCTIONS
CONTENTS
Description ..................................................... 1
Specications ................................................. 1
Precautions ..................................................... 3
Installation ...................................................... 4
System Wiring
Adjustment ..................................................... 7

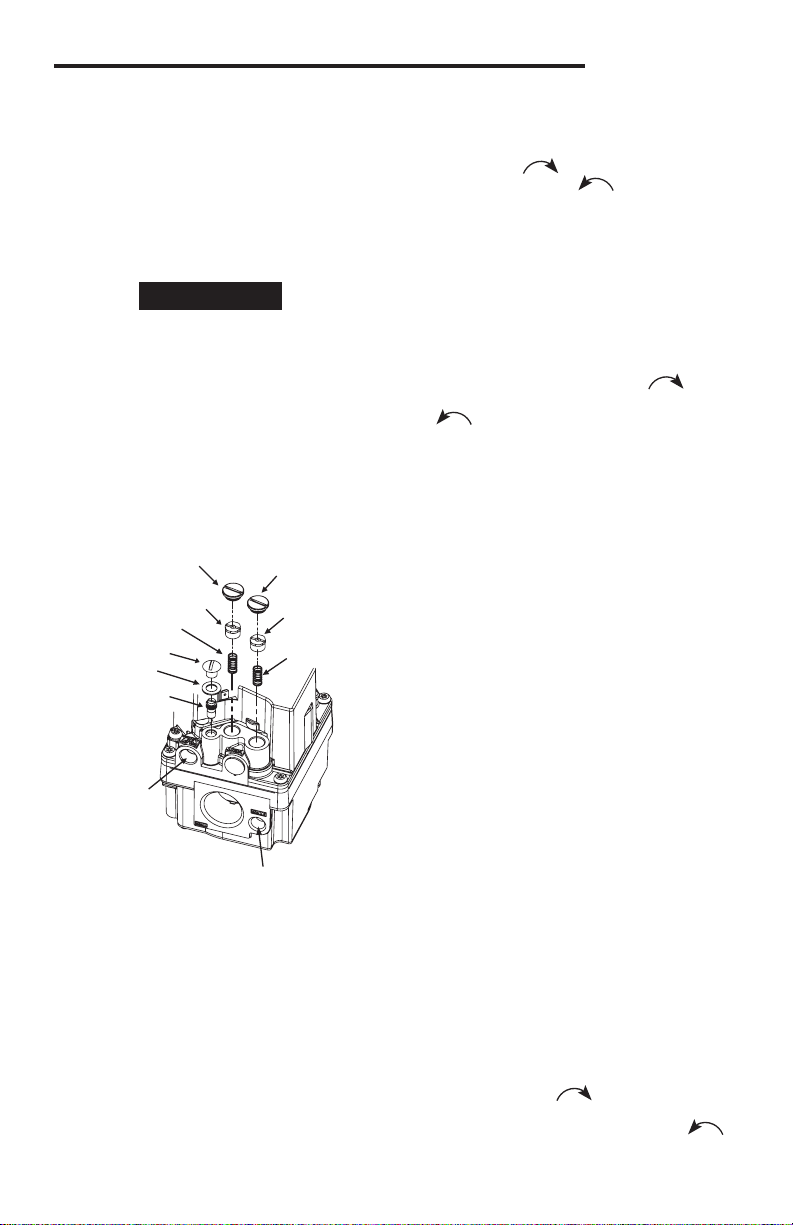

Pressure Regulator Adjustment
Lighting Instructions ........................................ 8
Type of Gas: ...................... Natural Gas
Ambient Temperature: .... -40° to 175°F
Pressure Rating: ............... 14” W.C. (1⁄2 PSI) max.
Voltage: ............................ 24 VAC
Frequency: ....................... 50/60 Hz
Current: ............................ Single Stage - .410A
Two-Stage - .540A
Model
No. No. of Stages Open Characteristics Proven/ Intermittent
Pilot
HSI DSI
36H32 1Fast Yes Yes Yes
36H33 1 Slow Yes Yes Yes
36H64 2Fast Yes Yes Yes
36H65 2Slow Yes Yes Yes
Pressure Regulator Adjustment Range ( in W.C.)
Single
Stage
Two Stage
Low High Min Di. Low to High
Natural Gas 2.5 - 5.0 1.0 - 3.5 2.5 - 5.0 1.5
LP Gas 5.0 - 12.0 4.0 - 9.5 8.0 - 12.0 2.5
PIPE SIZES/CAPACITIES
Pipe Sizes
Available (inches)
Capacity (BTU/hr) at 1” W.C.
pressure drop across valve
AGA Std. Nat. Gas
(1,000 btu/ cu. ft.)
LP. Gas
(2,500 btu/cu. ft.)
3/4” x 3/4” NPT 300,000 486,000
1/2” x 3/4” NPT 260,000 421,000
SPECIFICATIONS
DESCRIPTION
PART NO. 37-7336B
Replaces 37-7336A
1429

avrora-arm.ru
[phone]

2
360˚
MOUNTING POSITIONS:
Upright, or 0° to 90° from upright
UPRIGHT
LEFT or RIGHT INLET BOSS
VERTICAL
Figure 1. Gas Valve Mounting Positions
REGULATOR COVER SCREWS
(REG. ADJ. BENEATH THESE
SCREWS)
TERMINAL – M(MAIN)
TERMINAL –
P(PILOT/REDUNDANT)
TERMINAL – C (COMMON) TERMINAL – HI (2ND STAGE COIL)
PILOT GAS OUTLET
PLUG OR FITTING
CENTERLINE OF
INLET & OUTLET
Note: All dimensions indicated in inches
INLET PRESSURE TAP
1/8”-27 NPT OUTLET PRESSURE TAP
1/8”-27 NPT
OUTLET 3/4”- 14 NPT
1.63 .32
.19
1.45
.88
3.77
1.375
1.20
1.63
3.26
1.375
1.13
.03
VENT PLUG
1/8”-27 NPT
INLET 3/4”- 14 NPT
or 1/2”- 14 NPT
4.20 R
SWING RADIUS
3.98 INLET TO
OUTLET
3/16”GROUND
TERMINAL
ON/OFF SWITCH PILOT ADJUSTMENT
COVER SCREW
(PILOT ADJ. BENEATH
THIS SCREW)
Parts and Accessories:
Natural to Regulated LP Gas Conversion Kits, regulation range 5” to 12” W.C.:
• 92-0659 included with single stage models or F92-0659 available separately
• 92-1008 included with two-stage models or F92-1008 available separately
• Two 92-0659 kits may be used for two-stage valve
• Pilot tting 0092-080800 included or F69-0727 available separately
Figure 2. Valve Dimensions and Features
SPECIFICATIONS PRECAUTIONS

3
1. Failuretoturnoelectricormaingassup-
ply to heating system could cause personal
injuryand/orpropertydamagebyshock,gas
suocation,re,and/orexplosion.
2. Donotusethiscontroloncircuitsexceeding
speciedvoltage.Highervoltagewilldam-
agethecontrolandmaycauseshockorre
hazard.
3. NEVERUSEFLAMEORANYKINDOFSPARK
TOCHECKFORGASLEAKS–COULDCAUSE
FIRE AND/OR EXPLOSION.
4. DO NOT USE WIRE JUMPER on any pilot
systems, such as standing pilot, proven/in-
termittentpilot, orspark-to-pilotignition–a
reand/orexplosionmayresult.
Ifyoudonotfollowtheseinstructionsexactly,areorexplosion
may result, causing property damage, personal injury or loss of life.
5. Donotuseacontrolsetfornaturalgaswith
LPgas,oracontrolsetforLPgaswithnatural
gas.Personalinjuryand/orpropertydamage,
gassuocation,re,and/orexplosionmay
result.
6. Do not use a gas valve which appears to
be damaged. A damaged valve may cause
personal injury and/or property damage
due to shock, gas suocation, re and/or
explosion.Contactsuppliertoreplaceany
valve that appears to have been damaged.
7. Donotuseagasvalvethat hasbeen indirect
contactwithwater.Waterenteringgasvalve
may result in concealed internal damage to
gas valve. Personal injury and/or property
damage,gassuocation,reand/orexplo-
sion may result.
WARNING
!
DONOTBEGININSTALLATIONUNTILYOUREADTHEFOLLOWING
PRECAUTIONS.
WARNING
!
Properly install gas piping to control.
• Donotremoveprotectiveinletoroutletcapsuntilreadytoconnectsupplypipetogasvalve.
• Usenewsupplypipe,properlythreaded,reamed,de-burred,andcleaned.
• Usebackupwrench,appliedonlytoprovidedwrenchatsoninletboss,whentighteningthe
supply pipe. Do not grip bracket, solenoid or any other part of control.
• Donotover-tightenpipetocontrol(50 ft-lbsmax.)
• Alwaysinstallsedimenttrapinthegassupplylinetopreventcontaminationofgasvalve.
Failuretoinstallproperlycancausegasleakageresultingininjuryduetoreorexplosion.
CAUTION
!
1. Donotshortoutterminalsongasvalveorprimarycontroltotest.Shortorincorrectwiring
can cause equipment damage, property damage, and/or personal injury.
2. Thiscontrolisnotintendedforuseinlocationswhereitmaycomeindirectcontactwithwater.
Suitableprotectionmustbeprovidedtoshieldthecontrolfromexposuretowater(dripping,
spraying, rain, etc.).
3.  Cleangaspipingofcontaminants,cuttinguid,orotherchemicalswhichmightreactharm-
fullywiththegasvalvecomponentsbeforeinstall.
PRECAUTIONS

4
INSTALLATION
MAIN PIPING CONNECTIONS
NOTE
Refer to warnings and cautions on page 3 before
attempting installation. All piping must comply
with local codes, ordinances, and/or national fuel
gas codes.
1. Turn o electrical power to the system at the fuse
box or circuit breaker. Also turn o the main gas
supply.
2. If replacing an existing valve, disconnect all
plumbing and electrical connections from the
old control.
3. Thisvalvemaybeinstalledupright,+or–90˚from
upright, or vertical (refer to g. 1). The arrows on
the valve identication label and on the bottom
plate indicate direction of gas ow through the
valve.
4. You should use new pipe that is properly cham-
fered, reamed, and free of burrs and chips. If
you are using old pipe, be sure it is clean and
free of rust, scale, burrs, chips, and old pipe joint
compound.
5. Apply pipe joint compound (pipe dope) or teon
tape that is approved for all gases, only to the
male threads of the pipe joints. DO NOTapply
compound or teon tape to the rst two threads
(see g. 3 for typical piping connections).
6. Do not tighten piping excessively, as this may
damage the valve (50 ft lbs max).
7. See SYSTEM WIRING when making electrical
connections. After all gas and electrical connec-
tions are completed, turn gas on and check for
gas leaks with leak detection solution or soap
suds. Bubbles forming indicate a leak. SHUT
OFF GAS AND FIX ALL LEAKS IMMEDIATELY.
LP GAS CONVERSION
For LP gas conversion, use the LP conversion kit
supplied with this control. Refer to the instruc-
tions packed with LP conversion kit.
PILOT GAS CONNECTION
These gas valves are shipped with the pilot outlet
plugged. For installations requiring pilot gas
(Proven/Intermittent Pilot Systems), remove the
plug from the pilot gas outlet (see g. 2) and use
the tting packed separately with the valve.
Install the tting into the pilot gas outlet, turning
until nger tight. Insert clean, de-burred 1/4" O.D.
tubing all the way through the tting. While hold-
ing the tubing securely, slowly tighten the tting
until you feel a slight “give”. Tighten the tting an
additional 1-1/2 turns.
The plug should not be removed for a Direct
Burner Ignition system such as Direct Spark or Hot
Surface Ignition.
Refer to page 7 for pilot ame adjustment infor-
mation.
Allpipingmustcomplywithlocalcodes,ordinances,
and/or national fuel gas codes.
Piped Gas
Supply
Piped Gas
Supply
Tubing Gas
Supply
NOTE: ALWAYS INCLUDE A
DRIP LEG IN PIPING
Figure 2. Typical gas valve piping
NOTE: A MANUAL SHUTOFF VALVE
MUST BE INSTALLED WITHIN
6 FEET OF THE EQUIPMENT
Horizontal
Drop
Gas Valve
3 in.
minimum
Gas Valve
Riser
3 in.
minimum
Drop
Horizontal
Riser
Gas Valve
3 in.
minimum
Figure 3. Typical Gas Valve Piping
NOTE
INSTALLATION

5
SYSTEM WIRING
REFERTOAND FOLLOWTHEAPPLIANCEMAN-
UFACTURER’S WIRING DIAGRAM. REFER TO
FIG. 4 AND 5 FOR TERMINAL IDENTIFICATION.
These valves are shipped with an external jumper
installed for non-piloted gas applications.
• For non-piloted gas applications HSI and DSI,
connect common wire to (C) terminal and hot
wire to external jumper (MP) terminal
(see g. 4and 5).
NOTE
All wiring should be installed in accordance with local and national electrical codes and ordinances.
Always check that the electrical power supply used agrees with the voltage and frequency shown on
the gas control.
INSTALLATION
Figure 4.FeaturesandTerminalIdentication
REGULATOR COVER SCREWS
(REG. ADJ. BENEATH THESE
SCREWS)
TERMINAL – M(MAIN)
TERMINAL –
P(PILOT/REDUNDANT)
TERMINAL – C (COMMON) TERMINAL – HI (2ND STAGE COIL)
PILOT GAS OUTLET
PLUG OR FITTING
CENTERLINE OF
INLET & OUTLET
Note: All dimensions indicated in inches
INLET PRESSURE TAP
1/8”-27 NPT OUTLET PRESSURE TAP
1/8”-27 NPT
OUTLET 3/4”- 14 NPT
1.63 .32
.19
1.45
.88
3.77
1.375
1.20
1.63
3.26
1.375
1.13
.03
VENT PLUG
1/8”-27 NPT
INLET 3/4”- 14 NPT
or 1/2”- 14 NPT
4.20 R
SWING RADIUS
3.98 INLET TO
OUTLET
3/16”GROUND
TERMINAL
ON/OFF SWITCH PILOT ADJUSTMENT
COVER SCREW
(PILOT ADJ. BENEATH
THIS SCREW)
COMMON
C
PILOT
P
EXTERNAL
JUMPER
MAIN
M
MP
PILOT
REDUNDANT
VALVE
TWO STAGE
MODELS ONLY 2ND
STAGE
VALVE
MAIN
VALVE
HI
ON/OFF
SWITCH
Figure 5.SimpliedGasValveInternalWiringandTerminalIdentication
• For proven/intermittent pilot gas applications
such as intermittent pilot or spark-to-pilot sys-
tems, remove the external wire jumper from the
main (M) and pilot (P) valve terminals and con-
nect wires accordingly (see g. 4 and 5).

6
INSTALLATION
M
V
2
T
R
G
N
D
T
H
M
V
1
L
2
F
P
L
1
H
S
1
THERMOSTAT OR
CONTROLLER
ALTERNATE
LIMIT
L1
(HOT)
L2
LIMIT
CONTROLLER
FLAME
PROBE
RED
ADAPTER
BLUE
HOT
SURFACE
IGNITER
MV2
MV1
BURNER
GROUND
H
S
2
TRANSFORMER
GAS
VALVE
M
P
C
External
Jumper
Figure 7. Typical Wiring for Hot Surface Ignition System
Figure 6. Typical Wiring for Proven/Intermittent Pilot System
THERMOSTAT
LIMIT
HOTLINE VOLTAGE
120 VAC
NEUTRAL
COMMON (“C”)WR
25 VAC
H.V. LEAD
IGNITION
ELECTRODE
(PILOT)
SENSE
ELECTRODE
T
HP VM V
C
P
M
M
VP VT R
G
N
DF P
LINE VOLTAGE
LOW VOLTAGE
ALTERNATE
LIMIT
TRANSFORMER
THERMOSTAT OR
CONTROLLER
L1(HOT)
L2
SPARK
PROBE
MV
(GND)
LIMIT
CONTROLLER
FLAME
GAS
VALVE
MV
VAL
TR TH
GND
FLY
LEAD
SPARK
Burner Ground
FLAME
PROBE
(GND)
MPC
External
Jumper
Figure 8. Typical Wiring for Direct Spark Ignition System

7
Low regulator cover screw
(two stage only)
Regulator adjust screw
Regulator spring
Pilot cover screw
Pilot gasket
Pilot adjust screw
Pilot outlet
Regulator spring
Regulator adjust screw
Single stage and two stage
high regulator cover screw
Outlet pressure tap
Figure 9. Pressure Adjustment
OUTLET PRESSURE ADJUSTMENT
1. Turn o all electrical power to the system.
2. Remove plug and install hose barb tting and
manometer to pressure tap on outlet end of
valve. See g. 9.
3. Turn on system power. Set thermostat to call
for heat (low stage for two-stage systems).
Main burner should light. Proceed to step 6 for
single stage systems.
4. (2-stage only) Remove regulator cover screw
from the low outlet pressure regulator adjust
tower (g. 9) and turn screw clockwise ( )
to increase pressure, or counterclockwise
( ) to decrease pressure. Always adjust
regulator according to original equipment
manufacture’s specications listed on the ap-
pliance rating plate. Replace regulator cover
screw.
5. (2-stage only) Set thermostat to call for high
stage.
6. Remove regulator cover screw from the single
stage or high outlet pressure regulator adjust
tower (g. 9) and turn screw clockwise ( )
to increase pressure, or counterclockwise
( ) to decrease pressure. Always adjust
regulator according to original equipment
manufacturer’s specications listed on the
appliance rating plate. Replace regulator cover
screw.
7. Turn o all electrical power to the system.
8. Remove manometer hose and tting from
outlet pressure tap.
9. Replace outlet pressure tap plug and tighten
(clockwise 40-60 in-lb.)
10. Turn on system power and set thermostat to
call for heat.
11. Using a leak detection solution or soap suds,
check for leaks at pressure tap plug. Bubbles
forming indicate a leak. SHUT OFF GAS AND
FIX ALL LEAKS IMMEDIATELY.
PILOT FLAME ADJUSTMENT
If the pilot ame is low and does not engulf the
ame sensor, the system will not energize the
main valve. If pilot gas pressure is too high, gas
will sputter past the ignition electrode, and may
not ignite. High pilot gas pressure may also cause
the ame to lift o the burner, causing the ame
sensor to sense “low” heat.
To adjust the pilot gas pressure, remove the cover
screw (See g. 9). To REDUCE pilot pressure,
turn the pilot adjust screw (beneath the cover
screw) clockwise ( ) . To INCREASE pilot
pressure, turn the pilot adjust screw counterclock-
wise ( ). Replace and tighten cover screw.
ADJUSTMENT
PRESSURE REGULATOR
ADJUSTMENT
These controls are shipped from the factory with
the regulator set as specied on the control label.
Consult the appliance rating plate to ensure burner
manifold pressure is as specied. If another outlet
pressure is required, follow these steps.
NOTE
NaturalGas:Two-StageModels- Low outlet pres-
sure can be adjusted in the 1to 3.5” W.C. range and
high outlet pressure can be adjusted in the 2.5 to 5”
range. The valve cannot be adjusted outside this
range and the high outlet pressure setting must
always be set at least 1.5” above the low outlet
pressure setting.
Single Stage Models - Outlet pressure can be ad-
justed in the 2.5” to 5” range. The valve cannot be
adjusted outside this range.

White-Rodgers is a business
of Emerson Electric Co.
The Emerson logo is a
trademark and service mark
of Emerson Electric Co.
www.white-rodgers.com
www.emersonclimate.com
A. HSI MODELS:This appliance does not have a
pilot. It is equipped with an ignition device which
automatically lights the burner. Do not try to
light the burner by hand.
PROVEN/INTERMITTENT PILOT MODELS:
This appliance is equipped with an intermittent
ignition device which automatically lights the
appliance. Do not try to light the pilot by hand.
B. BEFORE OPERATING smell all around the ap-
pliance area for gas. Be sure to smell next to the
oor because some gas is heavier than air and
will settle on the oor.
FORYOUR SAFETY
“WHAT TO DO IFYOU SMELL GAS”
 • Donottrytolightanyappliance.
 • Donottouchanyelectricalswitch;donotuse
any phone in your building.
 • Immediatelycallyourgassupplierfroma
neighbor’sphone.Followthegassupplier’s
instructions.
 • Ifyoucannotreachyourgassupplier,callthe
redepartment.
C. Use only your hand to move the gas control
switch. Never use tools. If the switch will not
move by hand, don’t try to repair it, call a quali-
ed service technician. Force or attempted repair
may result in a re or explosion.
D. Do not use this appliance if any part has been
under water. Immediately call a qualied service
technician
to inspect the appliance and to replace any part
of the control system and any gas control which
has been
under water.
Ifyoudonotfollowtheseinstructionsexactly,areorexplosion
may result, causing property damage, personal injury or loss of life.
WARNING
!
FORYOUR SAFETY READ BEFORE OPERATING
1. Set the thermostat to lowest setting.
2. Turn o all electric power to the appliance if service
is to be performed.
3. Remove control access panel.
4. Push gas control switch to “OFF.” Do not force.
5. Replace control access panel.
TO TURN OFF GAS TO APPLIANCE
1. STOP! Read the safety information above on this
label.
2. Set the thermostat to lowest setting.
3. Turn o all electric power to the appliance.
4. HSI MODELS: This appliance is equipped with
an ignition device which automatically lights the
burner. Do not try to light the burner by hand.
5. PROVEN/INTERMITTENT PILOT MODELS:
This appliance is equipped with an ignition device
which automatically lights the pilot. Do not try to
light the burner by hand.
6. Remove control access panel.
7. Wait ve (5) minutes to clear out any gas. If you
then smell gas, STOP! Follow “B” in the safety
information above on this label. If you don’t smell
gas, go to the next step.
8. Push gas control switch to “ON.”
NOTE: Do not force.
9. Replace control access panel.
10. Turn on all electric power to the appliance.
11. Set thermostat to desired setting.
12. If the appliance will not operate, follow the
instructions “To Turn O Gas To Appliance” and
call your service technician or gas supplier.
OPERATING INSTRUCTIONS
LIGHTING INSTRUCTIONS

LE FAIT DE NE PAS LIRE ET DE NE PAS RESPECTER SOIGNEUSEMENT
TOUTESLESINSTRUCTIONSAVANT L’INSTALLATIONOUL’UTILISATION
DE CET APPAREIL PEUT CAUSER DES BLESSURES OU DES DOMMAGES
MATÉRIELS.
Le robinet de gaz de la série 36H comporte des
vannes électromagnétiques redondantes et
principales qui contrôlent le débit de gaz vers les
brûleurs principaux, un régulateur de pression
qui garde la pression de sortie constante et un
commutateur de marche/arrêt à deux positions pour
couper électriquement le système. Les robinets sont
congurés pour les applications au gaz naturel sans
pilote au moment de leur expédition par l’usine.
Voir les instructions contenues dans ce document pour
connaître les modications requises si le robinet doit
être installé sur une application au GPL ou avec pilote.
SÉRIE 36H
Robinet de gaz universel de rechange pour allumage électronique
INSTRUCTIONS D’INSTALLATION
CONTENU
Contenu en anglais ......................................... 1
Description ..................................................... 9
Spécications ................................................. 9
Précautions ................................................... 11
Installation .................................................... 12
Ajustement du câblage du système ............... 15
Ajustement du régulateur de pression
Instructions d’allumage.................................. 16
Contenu en espagnol..................................... 17
Type de gaz : ..................... Gaz naturel
Température ambiante : ... de -40° à 175 °F
Pression limite :................ 14 poCE (1/2 lb/po2) max.
Tension :........................... 24 V c.a.
Fréquence :....................... 50/60 Hz
Courant :........................... Mono-étage – 0,410 A
Bi-étage – 0,540 A
Modèle
noNombre d’étages Caractéristiques ouvertes Pilote contrôlé/
intermittent
HSI DSI
36H32 1 Rapide Oui Oui Oui
36H33 1 Lent Oui Oui Oui
36H64 2 Rapide Oui Oui Oui
36H65 2 Lent Oui Oui Oui
Plage de réglage du régulateur de pression (en CE)
Mono-étage
Bi-étage
Inférieure Supérieure Di. min. d’inférieure à supérieure
Gaz naturel 2,5 - 5,0 1,0 - 3,5 2,5 - 5,0 1,5
Gaz de pétrole liquéés 5,0 - 12,0 4,0 - 9,5 8,0 - 12,0 2,5
TAILLE/CAPACITÉ DES TUYAUX
Tailles de tuyaux
disponibles (pouces)
Capacité (BTU/h) à chute de pression
de 1po CE à travers le robinet
Gaz nat. AGA std
(1 000 BTU/pi3)GPL (2 500 BTU/pi3)
¾ po x ¾ po NPT 300 000 486 000
½ po x ¾ po NPT 260 000 421 000
SPÉCIFICATIONS
DESCRIPTION
www.white-rodgers.com
www.emersonclimate.com
PIÈCE No37-7336B
Remplace 37-7336A
1429

10
POSITIONS DE MONTAGE :
Verticale, ou de 0° à 90° de la verticale
VERTICALE
GAUCHE ou DROITE ENTRÉE BOSS
VERTICALE
Figure 1. Positions de montage du robinet de gaz
VIS DU COUVERCLE
DU RÉGULATEUR
(AJ. RÉG. SOUS CES VIS)
BORNE – M(PRINCIPALE)
BORNE – P
(PILOTE/REDONDANTE)
BORNE – C(COMMUNE) BORNE – HI (SERPENTIN 2eÉTAGE)
BOUCHON OU
RACCORD DE SORTIE
DE GAZ DU PILOTE
LIGNE MÉDIANE
D’ENTRÉE ET SORTIE
Remarque : Toutes les dimensions sont indiquées en pouces
PRISE DE PRESSION
D’ENTRÉE 1/8po – 27 NPTPRISE DE PRESSION DE
SORTIE 1/8po – 27 NPT
SORTIE ¾po – 14 NPT
1,63 0,32
0,19
1,45
0,88
3,77
1,375
1,20
1,63
3,26
1,375
1,13
0,03
BOUCHONÀ ÉVENTS
1/8 po – 27 NPT
ENTRÉE ¾po – 14 NPT
ou ½ po – 14 NPT
RAYON DE GIRATION
4,20 R
3,98 ENTR
É
E
À SORTIE
BORNE DE MISE À LA
TERRE DE 3/16 po
COMMUTATEUR DE
MARCHE/ARRÊT VIS DUCOUVERCLE
D’AJUSTEMENT
DU PILOTE (AJ. PILOTE
SOUS CETTE VIS)
Pièces et accessoires :
Trousses de conversion du gaz naturel au GPL réglementé, plage réglementaire de 5po à 12 po CE :
• 92-0659 inclus avec les modèles mono-étage ou F92-0659 disponible séparément
• 92-1008 inclus avec les modèles bi-étage ou F92-1008 disponible séparément
• Deux trousses 92-0659 peuvent être utilisées pour un robinet bi-étage
• Raccord de pilote 0092-080800 inclus ou F69-0727 disponible séparément
Figure 2. Dimensions et caractéristiques du robinet
SPÉCIFICATIONS PRÉCAUTIONS
