Emerson MS7616R User manual

OWNER'SMANUAL
MICROAUDIO SYSTEM
withCD,CD-R/RWPLAYER,
AM/FMSTEREOTUNER
and REMOTECONTROL
Visitourweb siteatwww.emersonradio.com
MS7616R
MS7616R_061404.p65 14/6/2004, 10:3822

1
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
ORSHOCKHAZARD,DONOTEXPOSETHISAPPLIANCETORAINORMOISTURE.
IMPORTANTSAFETYINSTRUCTIONS
1.) Read these instructions.
2.) Keep these instructions.
3.) Heed all warnings.
4.) Follow all instructions.
5.) Do not use this apparatus near water.
6.) Clean only with dry cloth.
7.) Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8.) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10.) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11.) Only use attachments / accessories specified by the manufacturer.
12.) Unplug this apparatus during lightning storms or when unused for long periods of time.
13.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
14.) This appliance shall not be exposed to dripping or splashing water and no object filled with
liquids such as vases shall be placed on the apparatus.
15.) Do not overload wall outlet. Use only power source as indicated.
16.) Use replacement parts as specified by the manufacturer.
17.) The product may be mounted to a wall only if recommended by the manufacturer.
18.) Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks.
!
CAUTION
RISK OFELECTRICSHOCK
DONOTOPEN
The lightning flashwitharrow-
head symbol,withinan equi-
lateraltriangleisintended to
alertthe usertothe presence
ofuninsulated‘dangerousvoltage’
withinthe product’s enclosure
thatmaybe ofsufficient
magnitude toconstitutearisk
ofelectricshock topersons.
The exclamation pointwithin
an equilateraltriangleisin-
tended toalertthe userto
the presenceofimportant
operating and maintenance
(servicing)instructionsin
the literatureaccompany-
ing the appliance.
WARNING:TOREDUCETHE
RISK OFELECTRICSHOCK
DONOTREMOVE COVER
(ORBACK),NOUSER
SERVICEABLEPARTSINSIDE
REFERSERVICINGTO
QUALIFIEDSERVICE
PERSONNEL.
CAUTION
MS7616R_061404.p65 14/6/2004, 10:381

2
Thank you.........
for purchasing this Emerson audio product. The Emerson brand is your
assurance of quality, performance and value.
Our engineers have included many useful and convenient features in this
product. Please be sure to read this Owner’s Manual completely to make
sure you are getting the maximum benefit from each feature.
This product was manufactured using the highest quality components and
standards of workmanship. It was tested by Emerson inspectors and found
to be in perfect working order before it left our factory. However, there is
alwaysthe chancethat someproblem mayoccur becauseof roughhandling
during shipment to the retail store or to the final consumer.
If,after readingthis manual,you experienceany problemswith theoperation
of this product, please refer to the instructions for obtaining service at the
end of this manual. Emerson and Emerson retailers are committed to your
satisfaction.
Once again, thanks for purchasing this Emerson audio product.
For future reference, record the serial number in the space provided.
Model No: MS7616R
Serial No:
MS7616R_061404.p65 14/6/2004, 10:382

3
•Operatecontrolsand switchesas
described inthe manual.
•Beforeturning ‘On’the power,make
certainthatpowercordisproperly
installed.
•StoreyourCDsinacoolarea toavoid
damage fromheat.
•When moving the set, be suretofirst
disconnectthe powercord.
•Avoidinstalling thisunitinplaces
exposed todirectsunlightorcloseto
heatradiating appliancessuchas
electricheaters,on top ofotherstereo
equipmentthatradiatestoo muchheat,
placeslackingventilationordustyareas,
placessubjecttoconstantvibrationand/
orhumidormoistareas.
•Donotattempttoclean thisunitwith
chemicalsolventsasthismightdamage
the finish.Useaclean drycloth.
CLASS 1LASERPRODUCT
CLASS 1LASERPRODUCT
APPAREILÁLASERDECLASSE 1
PRODUCTOLASERDECLASE 1
CAUTION
INVISIBLELASERRADIATION
WHENOPENAND INTERLOCKS
DEFEATED.
AVOIDEXPOSURETOBEAM
ThisproductcontainsalowpowerLaserDevice.
FCC INFORMATION
Thisequipmenthasbeen tested and found tocomplywiththe limitsforaClass Bdigital
device,pursuanttoPart15 ofthe FCC Rules.Theselimitsaredesigned toprovide
reasonableprotection againstharmfulinterferenceinaresidentialinstallation.This
equipmentgenerates,uses,and can radiateradiofrequency energyand,ifnotinstalled
and used inaccordancewiththe instructions,maycauseharmfulinterferencetoradio
communications.However,thereisno guarantee thatinterferencewill notoccurina
particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision
reception,whichcan be determined byturning the equipmentoff and on,the useris
encouraged totrytocorrectthe interferencebyone ormoreofthe following measures:
•Reorientorrelocatethe receiving antenna.
•Increasethe separation between the equipmentand receiver.
•Connectthe equipmentintoan outleton acircuitdifferentfromthattowhichthe receiver
isconnected.
•Consultthe dealeroran experienced radio/TVtechnician forhelp.
ThisdevicecomplieswithPart15 ofthe FCC Rules.Operation issubjecttothe following
twoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,and
(2)Thisdevicemustacceptanyinterferencereceived,including interferencethat
maycauseundesired operation.
IMPORTANTNOTES
MS7616R_061404.p65 14/6/2004, 10:383

4
PREPARATIONFORUSE
PROTECTYOUR FURNITURE
Thismodelisequipped withnon-skidrubber'feet'topreventthe productfrom
moving when you operatethe controls.These'feet'aremade fromnon-migrating
rubbermaterialspeciallyformulated toavoidleaving anymarks orstainson your
furniture.Howevercertaintypesofoil based furniturepolishes,wood preservatives,
orcleaning sprays maycausethe rubber'feet'tosoften,and leavemarks ora
rubberresidue on the furniture.Topreventanydamage toyourfurniturewestrongly
recommend thatyou purchasesmall self-adhesivefeltpads,availableathardware
storesand homeimprovementcenterseverywhere,and applythesepadstothe
bottomofthe rubber'feet'beforeyou placethe producton fine wooden furniture.
UNPACKINGAND SETUP
•Carefullyremovethe unitfromthe carton and removeall packing materials
fromthe unit.
•Carefullyremoveanysmall stripsoftape whichmayhavebeen used tokeep
the CDdoorclosed during shipment.
•Open the CD compartmentbylifting the “OPEN/CLOSE”tab on rightside of
CDdoor.Inside the CDcompartmentyou will see awhitetransitcardwhichis
used topreventthe laserpick-up frommoving during shipment. Carefully
removethiscardand closethe CD compartmentdoor.
•Pleasesavethe carton and packing materialsinthe eventthatyourunitever
needstobe returned forservice.The originalcarton and packing materialsare
the onlywaytoprotectthe unitfromdamage during shipment.
•Unwind the FMlead wireantenna and extend ittoitsfull length.
•Removethe twist-tiefromtheACpowercordand extend ittoitsfull length.
MS7616R_061404.p65 14/6/2004, 10:384

5
+
R
L
+
Red Wire
Black Wire
SPEAKERCONNECTION
Connecteachspeakertothe corresponding speakerterminalson the back panel
ofthe mainunit. Makesurethat:
•The left speakerisconnected tothe (L)left pairofspeakerterminals,and the
rightspeakertothe (R)rightpairofspeakerterminals.
Alsomakesurethatthe speakerwiresarecorrectlyconnected:
•Thatthe red wiresareconnected tothe red (+)terminals,and the black wiresto
the black (–)terminals.
Depress the plasticlevertoopen the terminal,insertthe bareend ofthe speaker
wireintothe opening and release.
MS7616R_061404.p65 14/6/2004, 10:385

6
AC Plug
AC Outlet
POWER SOURCE
This system is designed to operate on normal 120V 60Hz AC house current only.
Attempting to operate this system from any other power source may cause damage
to the system, and such damage is not covered by your warranty.
Unwind theAC power cord and connect the AC plug to yourAC outlet.
NOTE:
This unit has a polarizedAC plug with one wide blade and one narrow blade. This
plug will only fit into a matching polarized AC outlet. This is a safety feature to
reduce the possibility of electric shock.
If this plug will not fit in your AC outlet, you probably have an outdated non-polarized
outlet. You should have your outdated outlet changed by a qualified, licensed
electrician.
Do not file the wide blade on the plug, or use an adapter to make the plug fit into
your outlet. This defeats the safety feature and could expose you to electric shock.
MS7616R_061404.p65 14/6/2004, 10:386

7

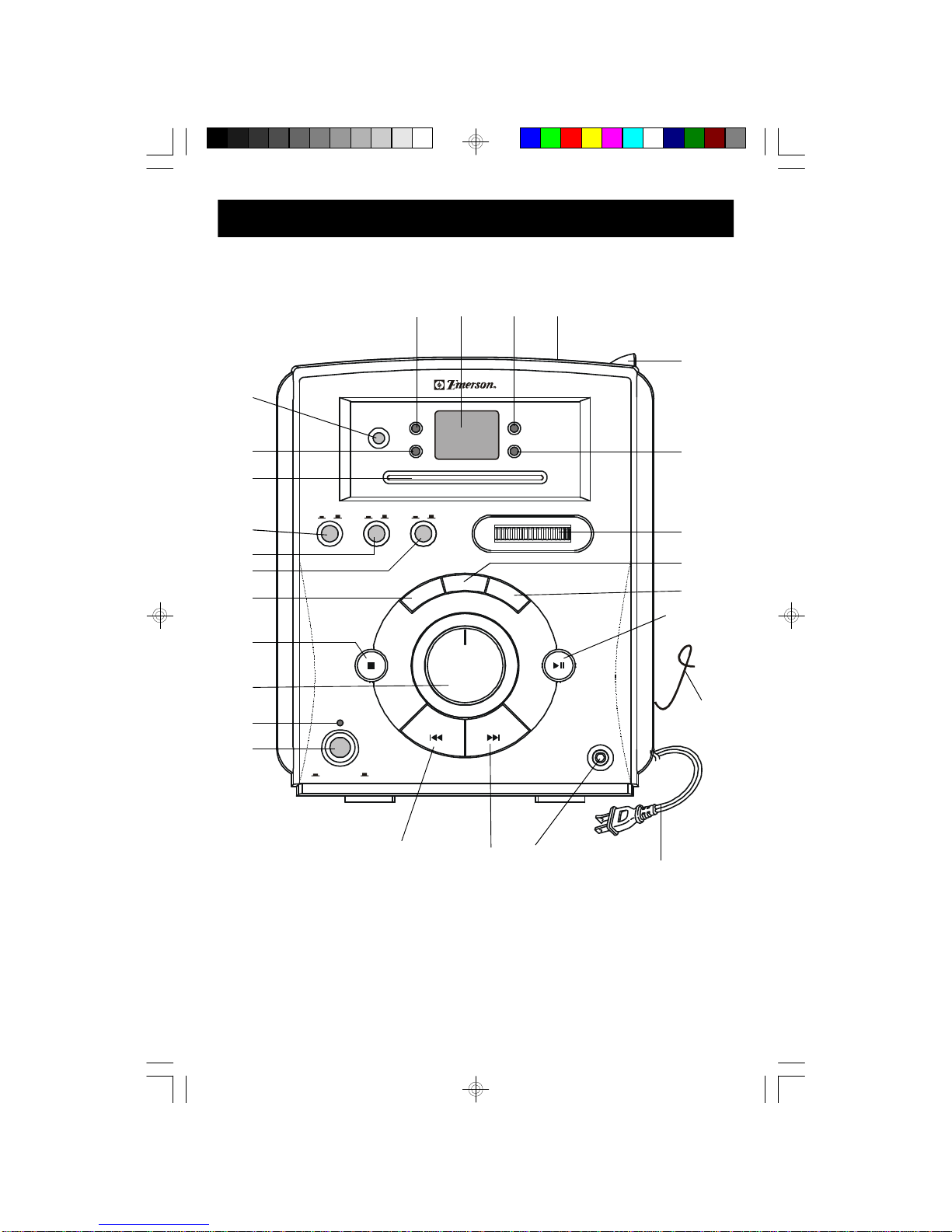

LOCATION OFCONTROLS AND INDICATORS
FM 88 92 98 102 106 107 108 MHz
AM530 600 800 1000 1200 1400 KHz1700
CD TUNER AM FM MONO STEREO
TUNING
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
V
O
L
U
M
E
R
E
PE A
T
R
A
N
D
O
M
M
I
N
M
A
X
POWER
SKIP/SEARCH
PHONES
STOP PLAY/
PAUSE
PROGRAM
REV. FWD.
ON
OFF
REMOTE
SENSOR
1
2
3
4
5
6
7
8
9
10
12 13
18
19
20
21
22
23
24
25
11
26
14
16
17
15
MS7616R_061404.p65 14/6/2004, 10:387

8
1.)POWERON/OFF Button.
2.)POWER‘On’Indicator.
3.)VOLUMEControl.
4.)STOPButton.
5.)PROGRAMButton.
6.)MONO/STEREOSelectorButton.
7.)Band AM/FMSelectorButton.
8.)Function CD /TUNERSelectorButton.
9.)Tuning Dial.
10.)PLAY/PAUSE Indicator.
11.)REMOTESENSOR.
12.)FMSTEREOIndicator.
13.)CDTrack NumberDisplay.
14.)PROGRAMIndicator.
15.)CDDoor.
16.)CDDoorOPEN/CLOSE tab.
17.)REPEATIndicator.
18.)TUNINGControl.
19.)REPEATButton.
20.)RANDOMButton.
21.)PLAY/PAUSE Button.
22.)ExternalFMWireAntenna.
23.)ACPowerCord.
24.)PHONES Jack.
25.)FWDSKIP/SEARCH Button.
26.)REV SKIP/SEARCH Button.
MS7616R_061404.p65 14/6/2004, 10:388

9

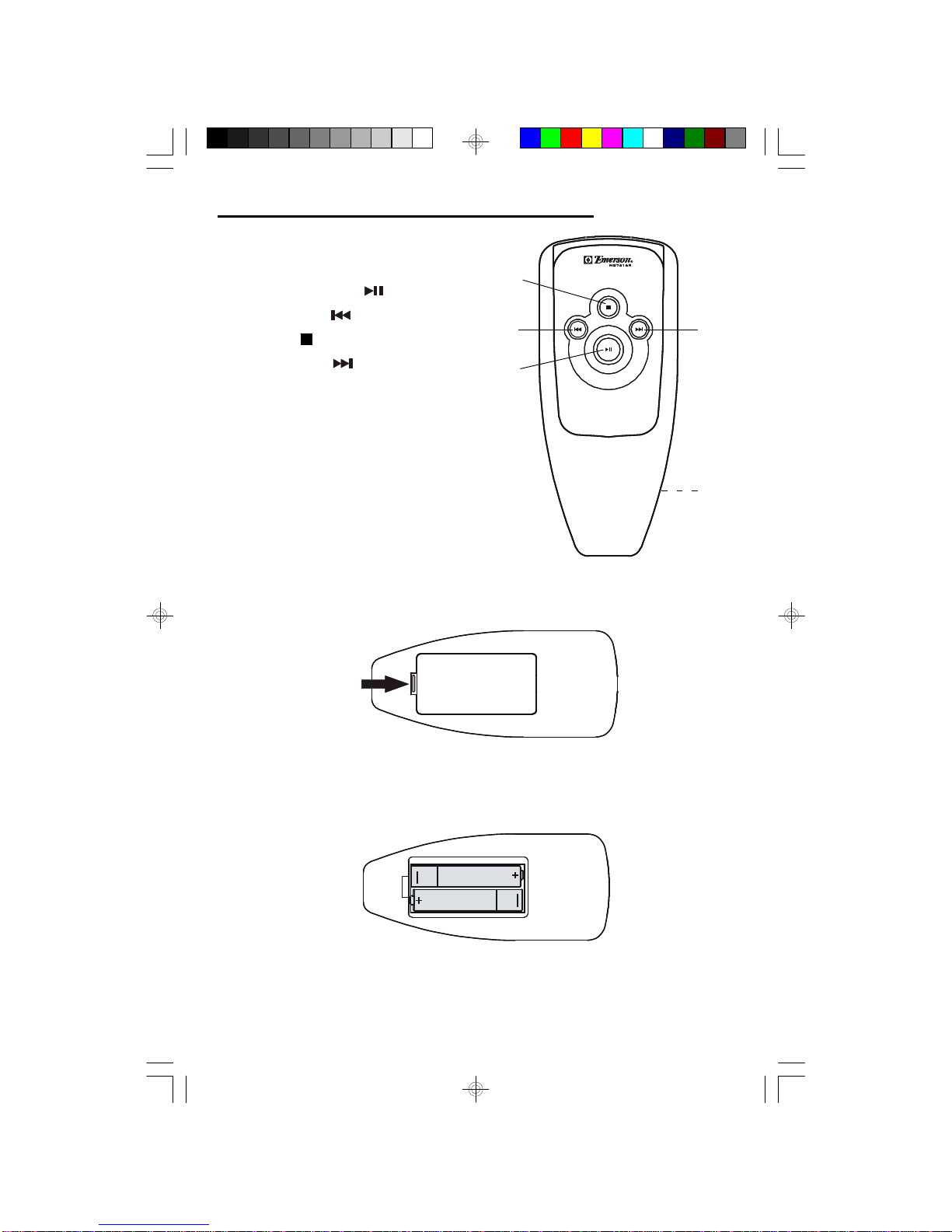

REMOTE CONTROL (CD Operations Only)
1.)PLAY/PAUSE Button.
2.)SKIPREV Button.
3.)STOPButton.
4.)SKIPFWDButton.
5.)BatteryCompartment.
(Back Cabinet)
BATTERYINSTALLATION
1.) Open the battery door on the back of the remote control by pressing on the
battery door tab in the direction of the arrow and lift it up.
2.) Insert two “AAA” alkaline batteries (not included) into the battery compartment.
Be sure the batteries are inserted according to the polarity markings inside
the battery compartment.
3.) Replace the battery door.
1
2
3
4
5
P
L
A
Y
/
P
A
U
S
E
STOP
SKIP
REV. SKIP
FWD.
MS7616R_061404.p65 14/6/2004, 10:389

10
BATTERYREPLACEMENT
When the batteriesbecometoo weak,the operating distanceofthe remotecontrol
isgreatlyreduced and you will need toreplacethe batteries.
USINGTHEREMOTECONTROLCORRECTLY
• Point the remote control at the REMOTE SENSOR.
• The functions of the buttons on the remote control are the same as the
corresponding controls on the main unit.
• When there is a strong ambient light source, the performance of the infrared
Remote Sensor may be degraded, causing unreliable operation.
• The maximum effective distance for remote control operation is about 15 feet.
BATTERYPRECAUTIONS
Followtheseprecautionswhen using batteriesinthisdevice:
1.)Useonlythe sizeand type ofbatteriesspecified.
2.)Besuretofollowthe correctpolaritywhen installing the batteriesasindicated inthe battery
compartment. Reversed batteriesmaycausedamage tothe device.
3.)Donotmixdifferenttypesofbatteriestogether(e.g.Alkaline and Carbon-Zinc)orold
batterieswithfreshones.
4.)If the deviceisnottobe used foralong period oftime,removethe batteriestoprevent
damage orinjuryfrompossiblebatteryleakage.
5.)Donottrytorecharge batteriesnotintended tobe recharged;theycan overheatand
rupture.(Followbatterymanufacturer’s directions.)
MS7616R_061404.p65 14/6/2004, 10:3810

11
LISTENING TO THE RADIO
• Make sure that the FM Lead Wire antenna is extended to its full length.
1.) Press the POWER button to turn the unit “ON ”. The POWER indicator
comes ‘On’.
2.) Press the CD /TUNER button to TUNER position.
3.) Press the AM / FM button to select the radio band as desired.
4.) Turn the TUNING control to tune to the desired radio station.
Note:
If you tune to an FM Stereo station and the MONO / STEREO button is set
to STEREO position, the FM STEREO indicator
will light.
If the FM reception is noisy or weak you may be able to improve it by
pressing the button to the MONO position, however the sound will no
longer be in stereo.
5.) Adjust the VOLUME control as desired.
6.) When you are finished listening press the POWER button to the “OFF ”
position. All indicators go ‘off’.
OPERATING INSTRUCTIONS
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
MS7616R_061404.p65 14/6/2004, 10:4411

12
HINTS FOR BETTER RECEPTION
FM:The FM lead wire antenna on the back panel should be extended to its full
length. You may also have to vary the direction of this antenna until you find
the position that provides the best reception.
AM:The AM bar antenna is inside the cabinet of the main unit. You may need to
change the position of the main unit until you find the position that provides
the best reception for your favorite AM stations.
FM 88 92 98 102 106107 108 MHz
AM530 600 800 1000 1200 1400 KHz1700
CD TUNER AM FM MONO STEREO
TUNING
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
V
O
L
U
M
E
R
E PE A T
R
A
N
D
O
M
M
I
N
M
A
X
POWER
SKIP/SEARCH
PHONES
STOP PLAY/
PAUSE
PROGRAM
REV. FWD.
ON OFF
REMOTE
SENSOR
MS7616R_061404.p65 14/6/2004, 10:3812

13
PLAYINGCOMPACTDISCS
NOTE:Although thisCD playercan read CD-Rand CD-RWdiscs,inaddition to
normalCDs,the playabilityofCD-R/RWdiscs maybe effected bythe type of
softwarethatwasused tocreatethe discs,aswell asthe qualityand condition of
the blankmediayou areusing.100%playabilitycannotbe guaranteed.
Thisisnotan indication ofaproblemwiththe player.
NORMALPlayback
1.) Press the POWER button to turn the unit “ON ”. The POWER indicator
comes ‘On’.
2.) Press the CD /TUNER button to CD position.
The two dashes “ – – ” light up on LED display.
3.)Open the CD doorbylifting the OPEN/CLOSE tab on rightside ofCDdoor.If
you havenotalreadyremoved the whitetransitcardfromthe CDplayer,please
removeitnow.
4.)PlaceyourCD on the centerspindlewith
the printed labelside facing up.Makesure
the CD isseated properly.
Closethe CD door.
The playerwill read the TableofContentsand the
displaywill showthe totalnumberoftracks on the
disc.
If the disc isdamaged orup side down,displaywill show“ – – ”.
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
MS7616R_061404.p65 14/6/2004, 10:3813

14
5.)Press the PLAY/PAUSE button tobeginplayback on Track 1.
The PLAY/PAUSE indicatorlightsup.
6.) Adjust the VOLUME control as desired.
7.) Playback will continue until the end of the disc. When the disc ends the display
again shows the total number of tracks on the disc.
You may also stop playback at any time by pressing the STOP button.
PAUSE Control
To pause momentarily during playback press the PLAY/PAUSE button again.
Playback stops but the disc continues to spin and the
PLAY/PAUSE indicator flashes.
Press the PLAY/PAUSE button once more to cancel Pause and resume
playback. The PLAY/PAUSE indicator stops flashing.
Skipping Tracks and High Speed Music Search
During CD Playback, repeatedly press theSKIP FWD orSKIP REV buttons
to skip to higher or lower number tracks. When the desired track number appears
on the display release the buttons and playback will begin on the desired track.
To rapidly search forward or back within a track to locate a specific musical passage,
depress and hold either the / buttons on main unit, or / buttons on
remote control.
The player will move forward or backward at high speed as long as the buttons are
depressed. When you hear the desired passage release the buttons. Normal
playback will resume at that point.
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
MS7616R_061404.p65 14/6/2004, 10:3814

15
REPEAT Playback
This feature allows you to continuously repeat a single track or the entire disc.
To Repeat A Single Track
Press the REPEAT button once. The REPEAT indicator
flashes.
Press the or buttons to select the desired track. Press the PLAY/PAUSE
button to begin Repeat Playback of the selected track.
To Repeat The Entire Disc
Press the REPEAT button twice. The REPEAT indicator
remains ‘on’.
Press the PLAY/PAUSE button to begin Repeat Playback of the entire disc.
To cancel Repeat Playback press the REPEAT button until the REPEAT Indicator
goes ‘off’.
Repeat Playback is also canceled by pressing the STOP button, or setting to
the TUNER position.
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
MS7616R_061404.p65 14/6/2004, 10:3815

16

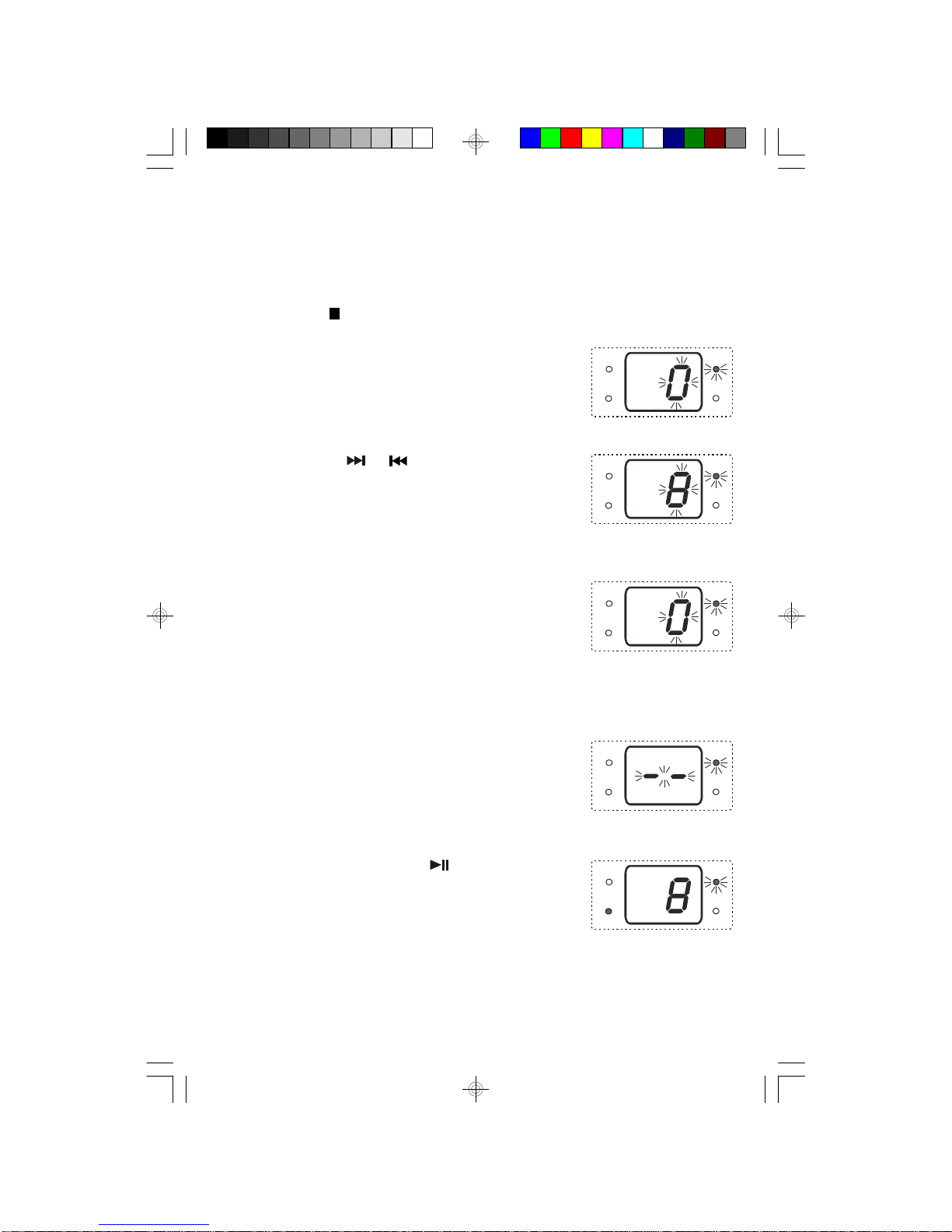

PROGRAMMED Playback
This feature allows you to program up to 20 tracks on a disc for playback in any
desired order.
Note: You cannot program tracks while a disc is playing. If the disc is playing
press the STOP button first before beginning the programming steps below:
1.) Press the PROGRAM button to enter the Program
Mode. The PROGRAM indicator and Program
Number ‘0’ flash.
2.) Press the SKIP or buttons to select the first
track number you wish to enter in the program
memory.
Example: Track Number 8.
3.) When the desired track number appears on the
display, press the PROGRAM button again to enter
that track in memory.
The Program Number display returns to flashing “0”.
4.) Repeat Steps 2-3, selecting a different track number each time until you have
entered up to 20 tracks in the program memory.
Note: You may program the same track number to
play multiple times in the program sequence if
desired. When programmed track is full, “ – – ”
flashes in the display.
5.) Press the PLAY/PAUSE button to begin
Programmed Playback. The PROGRAM indicator
flashes. Playback will begin with the first track you
programmed and will continue until the last
programmed track has played.
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
MS7616R_061404.p65 14/6/2004, 10:3816

17
6.) After the last track has played the player stops and the display shows the total
number of tracks on the disc. However the program sequence remains in the
memory.
Press the PROGRAM button, then the PLAY/PAUSE button to play the
programmed sequence again.
7.) To cancel the programmed sequence from the memory press the STOP
button while in programming mode.
The programmed sequence may also be canceled by removing the disc,
changing function to TUNER , or shutting the system ‘off’.
ProgramRepeatPlayback
You can usethe Programand Repeatfeaturestogethertocontinuouslyrepeata
programmed sequenceoftracks.
First, programthe desired tracks according toSteps1through 5on page 16.
When Programmed Playback beginspress the REPEATbutton twicetoactivate
theAll Tracks Repeatfeature.
The REPEATIndicatorlightsand all the tracks inyour
programmed sequencewill be repeated continuously.
TocancelProgrammed RepeatPlayback press the STOPbutton until boththe
PROGRAMand REPEATIndicatorsgo ‘Off’.
RANDOM Playback
This feature allows you to play all the tracks on a disc in random order.
Load the disc as usual and wait until the display shows the total playing time and
number of tracks.
Press the RANDOM button on front panel. The tracks will be played in random
order. After all tracks have played the player stops and the display again shows
the total playing time and number of tracks.
To cancel Random playback, press the STOP button.
FM STEREO
PLAY/PAUSE
PROGRAM
REPEAT
MS7616R_061404.p65 14/6/2004, 10:3817

18
PHONES Jack
Connectasetofstereo headphones(notincluded)witha3.5mm miniplug tothe
PHONES jack on frontpanel,forprivatelistening withoutdisturbing others.
Beforeputting on the headphonesreducethe VOLUMEcontroltoalowlevel,then
puttheheadphonesonandgraduallyincreasetheVOLUMEcontroltoacomfortable
listening level.
The speakersareautomaticallydisconnected when headphonesareconnected to
the PHONES jack.
MS7616R_061404.p65 14/6/2004, 10:3818

19

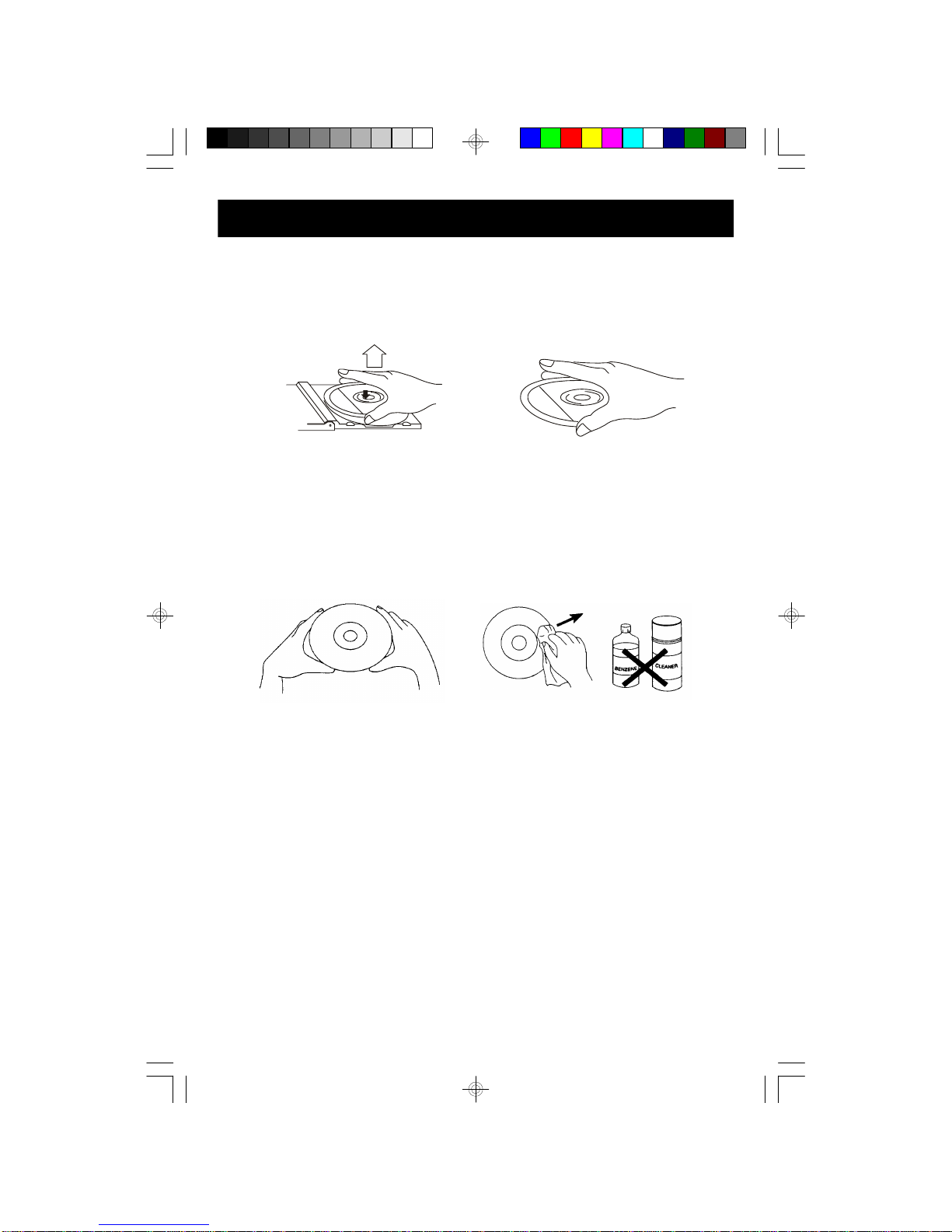

COMPACTDISCCARE
•Toremoveadisc fromitsstorage case,press downon the centerofthe case
and lift the disc out, holding itcarefullybythe edges.
•Fingerprintsand dustshouldbe carefullywiped off the disc’s recorded surface
withasoft cloth.Unlikeconventionalrecords,compactdiscs haveno grooves
tocollectdustand microscopicdebris,sogentlywiping withasoft clothshould
removemostparticles.Wipe inastraightline fromthe inside tothe outside of
the disc.Small dustparticlesand lightstainswill haveabsolutelyno effecton
reproduction quality.
•Clean the disc periodicallywithasoft, lint-free,drycloth.Neverusedetergents
orabrasivecleanerstoclean the disc.If necessary,useaCD cleaning kit.
•Neverwriteon oraffixlabelstothe surfaceofcompactdiscs.
CAREOFTHECABINET
If the cabinetbecomesdustywipe itwithasoft drydustcloth.Donotuseanywax,
polishsprays,orabrasivecleanerson the cabinet.
CAUTION
Neverallowanywaterorotherliquidstogetinside the unitwhilecleaning.
CAREAND MAINTENANCE
MS7616R_061404.p65 14/6/2004, 10:3819
