Emerson Rosemount 705 User manual

Quick Start Guide

00825-0200-4705, Rev DA

April 2019

Rosemount™705 Wireless Totalizing

Transmitter

An installation-ready solution that provides simple connection to a turbine

meter.

Measures average flow and totalized volume.

Flow and volume are continuously measured between wireless updates.

Self-organizing network delivers information rich data with >99 percent data

reliability totalized volume.

00825-0200-4705_RevDA.fm Page 1 Tuesday, April 2, 2019 11:08 AM

April 2019

Quick Start Guide

NOTICE

This guide provides basic guidelines for the Rosemount 705 Transmitter. It does not provide instructions for

detailed configuration, diagnostics, maintenance, service, troubleshooting, or installations. Refer to the

Rosemount 705 Reference Manual for more instruction. This guide and the manual are available electronically

on Emerson.com/Rosemount.

Explosions could result in death or serious injury.

Installation of device in an explosive environment must be in accordance with appropriate local, national and

international standards, codes, and practices.

Ensure device is installed in accordance with intrinsically safe or non-incendive field practices.

Electrical shock can result in death or serious injury.

Ground device to prevent electrostatic charge build-up. Care must be taken during transportation of power

module to prevent electrostatic charge build-up.

Device must be installed to ensure a minimum antenna separation distance of 8-in. (20 cm) from all persons.

Process leaks could result in death or serious injury.

Handle the transmitter carefully.

Failure to follow safe installation guidelines could result in death or serious injury.

Only qualified personnel should install the equipment.

NOTICE

Shipping considerations for wireless products:

The unit was shipped without the power module installed. Remove the power module prior to shipping the

unit.

Each power module contains two “C” size primary lithium batteries. Primary lithium batteries are regulated in

transportation by the U.S. Department of Transportation, and are also covered by IATA (International Air

Transport Association), ICAO (International Civil Aviation Organization), and ARD (European Ground

Transportation of Dangerous Goods). It is the responsibility of the shipper to ensure compliance with these or

any other local requirements. Consult current regulations and requirements before shipping.

Contents

Seal and protect threads . . . . . . . . . . . . . . . . . . . 3

Mount transmitter on a turbine meter or pulse

output device . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connect to device . . . . . . . . . . . . . . . . . . . . . . . . 9

Configure k-factor (calibration factor) for pulse

output device or turbine meter . . . . . . . . . . . 10

Product Certifications . . . . . . . . . . . . . . . . . . . 11

00825-0200-4705_RevDA.fm Page 2 Tuesday, April 2, 2019 11:08 AM

Quick Start Guide

April 2019

1.0 Seal and protect threads

Use anti-seize paste or PTFE tape according to your site procedures.

1.1 Required equipment

Standard tools (e.g. screwdriver, wrench, pliers)

Anti-seize paste or PTFE tape (for threaded connection)

AMS Device Manager version 12.0 or later, or Field Communicator

1.2 Conduit entries

Upon installation, ensure each conduit entry is either sealed with a conduit plug

with appropriate thread sealant, or has an installed conduit fitting or cable gland

with appropriate thread sealant. Note the conduit entries on the Rosemount

705 Transmitter are threaded 1/2–14 NPT.

Figure 1. Conduit Entry

A. Conduit entry

2.0 Mount transmitter on a turbine meter or pulse

output device

2.1 General considerations

The Rosemount 705 Transmitter and all other wireless devices should not be set

up until after the Smart Wireless Gateway (Gateway) has been installed and is

functioning properly.

The transmitter can be installed in one of two configurations:

Direct mount (D1), where the turbine meter is connected directly to the

transmitter housing’s conduit entry

Remote mount (R1), where the turbine meter is mounted separate from the

transmitter housing, then connected to the transmitter via conduit

Select the installation sequence that corresponds to the mounting

configuration.

00825-0200-4705_RevDA.fm Page 3 Tuesday, April 2, 2019 11:08 AM

April 2019

Quick Start Guide

Direct mount

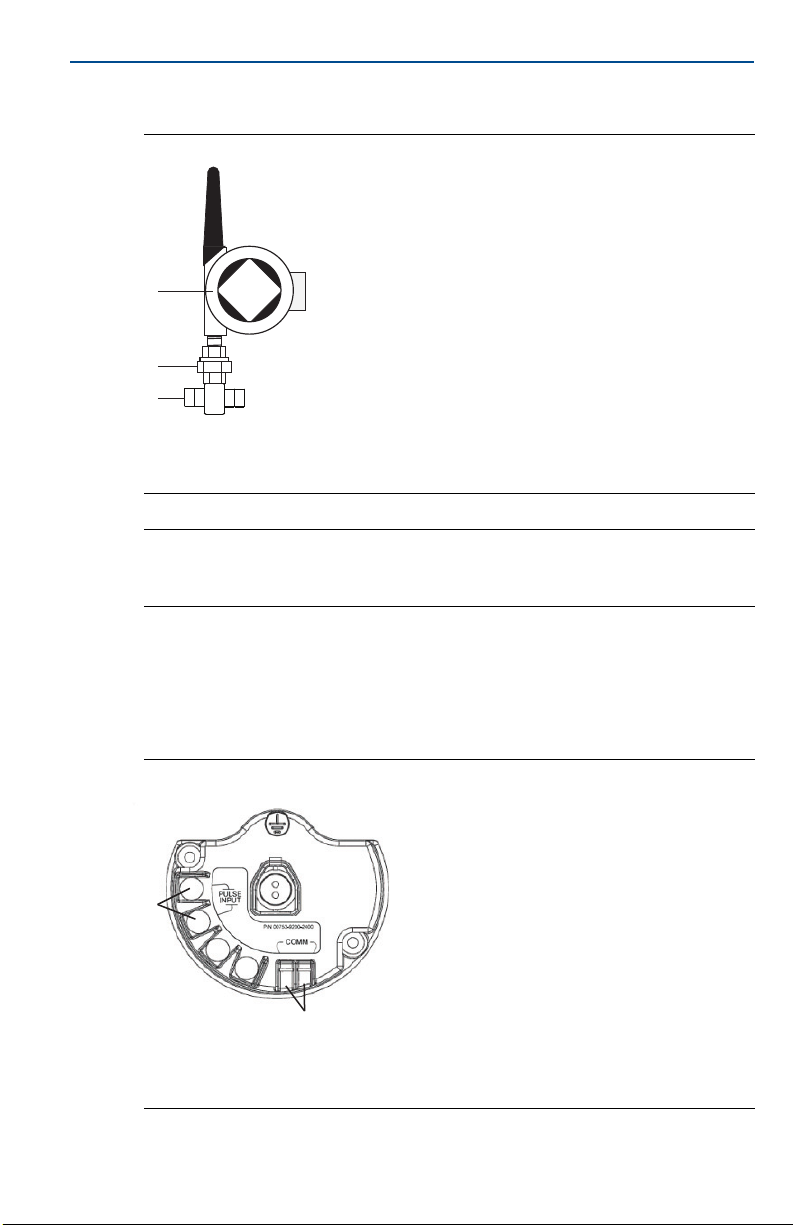

Figure 2. Direct Mount

A. Rosemount 705 Transmitter

B. 1-in. NPT connection to flow meter and two-piece pipe union

C. Turbine meter

Note

Direct mount installation should not be employed when using tubing and connectors such

as Swagelok®fittings.

1. Install the turbine meter according to standard installation practices making

sure to use thread sealant on all connections.

2. Attach the turbine meter wiring to the terminals as indicated on the wiring

diagram (Figure 3). This procedure is already included for the D1 (direct

mount) option.

Figure 3. Terminal Block

A. Pulse input connection

B. HART®terminal connection

C. Terminal block ground connection

00825-0200-4705_RevDA.fm Page 4 Tuesday, April 2, 2019 11:08 AM

Quick Start Guide

April 2019

3. Attach the transmitter housing to the turbine meter using the threaded

conduit entry.

4. Seal threads on 1-in. NPT turbine meter connection. Take union apart and

turn on bottom fitting to turbine meter.

5. Attach mill spec connector to turbine meter pickup.

6. Screw on the remaining union part.

Note

Sealant should already be applied to threads on the D1 (direct mount) option.

Note

Wireless devices should be powered up with the proper join key and network ID in order of

proximity from the Gateway. Beginning with the closest device to the Gateway will result

in a faster network installation.

7. Connect the black power module.

8. Close the housing cover and tighten to safety specification. Always ensure a

proper seal so that metal touches metal, but do not over tighten.

9. Position antenna vertically, either straight up or straight down.

The antenna should be approximately 3 ft. (0.91 m) from any large structures

or buildings, to allow clear communication to other devices.

Possible antenna rotation shown.

Antenna rotation allows for best

installation practices in any

configuration.

00825-0200-4705_RevDA.fm Page 5 Tuesday, April 2, 2019 11:08 AM

April 2019

Quick Start Guide

Remote mount(1)

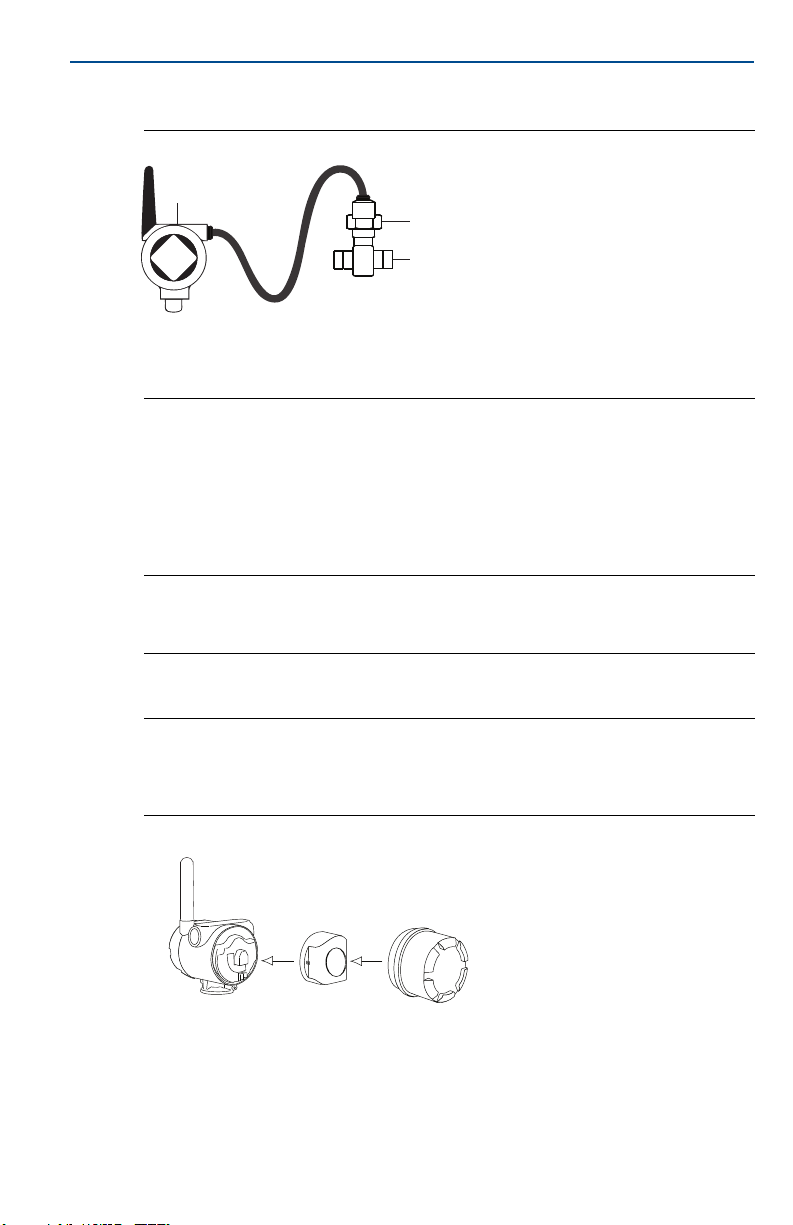

Figure 4. Remote Mount

A. Rosemount 705 Transmitter

B. 1-in. supplied cable gland adaptor for turbine meter

C. Turbine meter

1. Install the turbine meter according to standard installation practices making

sure to use thread sealant on all connections.

2. Pull the cable connection wiring through the supplied cable gland adaptor

for the turbine meter. Then pull the cable wiring through the transmitter

cable gland.

Note

Pay attention to the orientation of the cable gland to ensure proper connection to

transmitter.

3. Attach the wiring to the terminals as indicated in Figure 3 on page 4.

Note

Wireless devices should be powered up with the proper join key and network ID in order of

proximity from the Gateway. Beginning with the closest device to the Gateway will result

in a faster network installation.

4. Connect the black power module.

5. Close the housing cover and tighten to safety specification. Always ensure a

proper seal so that metal touches metal, but do not over tighten.

1. Included:

(1) Cable gland

(1) Cable gland adaptor for turbine meter

10 ft. of cable connection wiring

00825-0200-4705_RevDA.fm Page 6 Tuesday, April 2, 2019 11:08 AM

Quick Start Guide

April 2019

6. Position the antenna vertically and straight up.

The antenna should be approximately 3 ft. (0.91 m) from any large structures

or buildings, to allow clear communication to other devices.

2.2 Remote antenna (optional)

The remote antenna option provides flexibility for mounting the Rosemount

705 Transmitter based on wireless connectivity, lightning protection, and

current work practices.

The remote mount antenna kit includes coaxial sealant that is for the cable

connections, lightning arrestor, and antenna.

Find a location where the remote antenna has optimal wireless performance.

Ideally this will be 15–25 ft. (4.6–7.6 m) above the ground or 6 ft. (2 m) above

obstructions or major infrastructure. To install the remote antenna, use one of

the following procedures. The WN option includes 25 ft. (7.6 m) of cable and the

WJ option includes 10 ft. (3 m) of cable.

WN/WJ remote antenna option

1. Mount the antenna on a 1.5- to 2-in. pipe mast using the supplied mounting

equipment.

2. Connect the lightning arrestor directly to the top of the Rosemount 705

Transmritter.

3. Install the grounding lug, lock washer, and nut on top of lightning arrestor.

When installing remote mount antennas for the transmitter, always use established safety procedures to avoid

falling or contact with high-power electrical lines.

Install remote antenna components for the transmitter in compliance with local and national electrical codes

and use best practices for lightning protection.

Before installing, consult with the local area electrical inspector, electrical officer, and work area supervisor.

The transmitter remote antenna option is specifically engineered to provide installation flexibility while

optimizing wireless performance and local spectrum approvals. To maintain wireless performance and avoid

non-compliance with spectrum regulations, do not change the length of cable or the antenna type.

If the supplied remote mount antenna kit is not installed per these instructions, Emerson™is not responsible for

wireless performance or non-compliance with spectrum regulations.

00825-0200-4705_RevDA.fm Page 7 Tuesday, April 2, 2019 11:08 AM

April 2019

Quick Start Guide

4. Connect the antenna to the lightning arrestor using the supplied LMR-400

coaxial cable ensuring the drip loop is not closer than 1 ft. (0.3 m) from the

lightning arrestor.

5. Use the coaxial sealant to seal each connection between the wireless field

device, lightning arrestor, cable, and antenna.

6. Ensure the mounting mast and lightning arrestor are grounded according to

local/national electrical code.

Note

Any spare lengths of coaxial cable should be placed in 12-in. (0.3 m) coils.

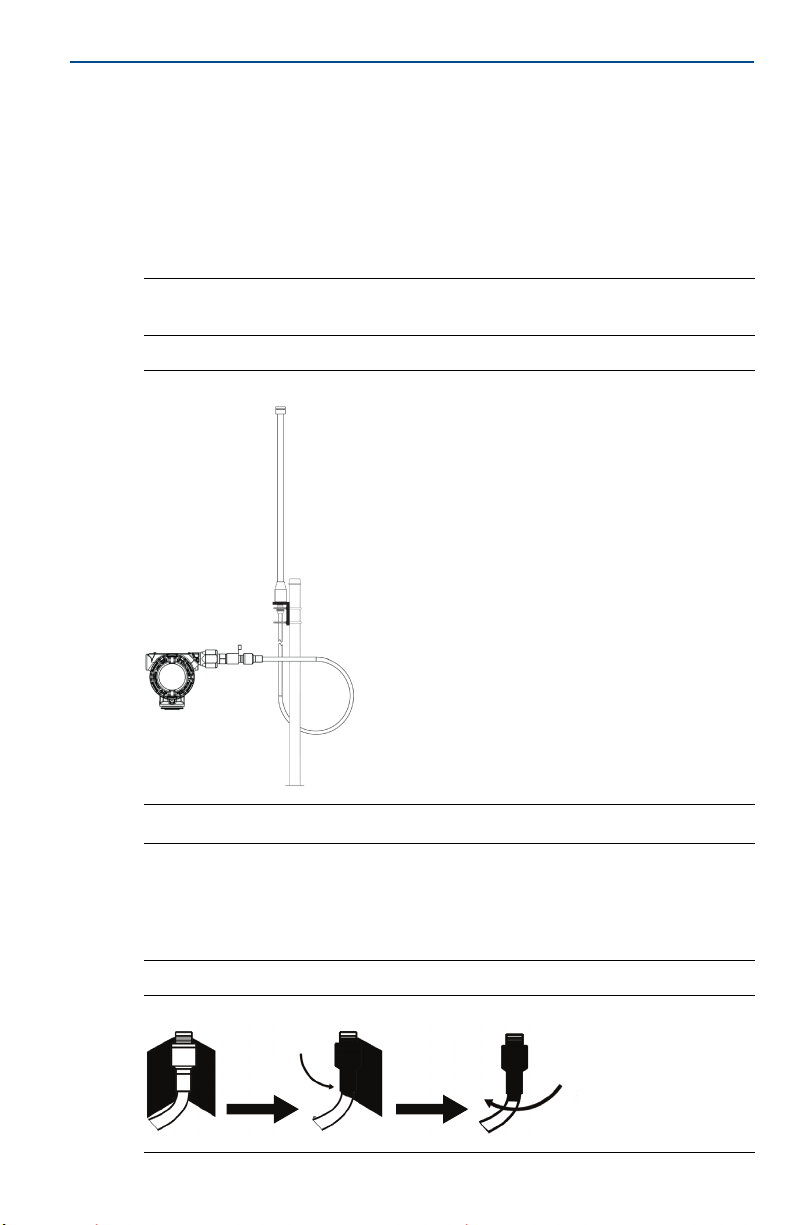

Figure 5. Rosemount 705 Totalizer with Remote Antenna

Note: Weatherproofing

The remote mount antenna kit includes coaxial sealant for weatherproofing the cable

connections for the lightning arrestor, antenna, and Rosemount 705 Transmitter. Coaxial

sealant must be applied to ensure performance of the wireless field network. See Figure 6

for details on how to apply coaxial sealant.

Figure 6. Applying Coaxial Sealant to Cable Connections

00825-0200-4705_RevDA.fm Page 8 Tuesday, April 2, 2019 11:08 AM

Quick Start Guide

April 2019

3.0 Connect to device

Figure 7. Device Connection

A. Communication terminals

B. Field Communicator

C. HART Modem

D. AMS Device Manager

3.1 Field Communicator connections

The power module needs to be installed before the Field Communicator can

interface with the transmitter. This transmitter uses the black power module;

order model number 701PBKKF.

3.2 AMS Wireless Configurator

1. Start AMS Wireless Configurator.

2. In the View menu, select Device Connection View.

3. Double click on the device under the HART modem.

3.3 Field Communicator

1. Turn on the Field Communicator.

2. Tap the HART symbol on the main menu.

The Field Communicator now connects to the device.

4.0 Configure device using guided setup in AMS

Device Manager

1. Go to Configure>Guided Setup>Initial Setup.

2. Select Basic Setup and follow the prompts for configuration.

3. Consider optional setup, such as Update Rate and Device Display.

123

456

00825-0200-4705_RevDA.fm Page 9 Tuesday, April 2, 2019 11:08 AM

April 2019

Quick Start Guide

4.1 Join device to network

1. Go to Overview>Shortcuts.

2. Select Configure Update Rate and follow the instructions.

3. Obtain Network ID and Join Key for the wireless network (available in wireless

Gateway).

4. Select Join Device to Network and follow the instructions.

4.2 Wait for device to join network

1. Go to Overview.

2. Wait for communication status to become Connected.

Note

This takes several minutes. Enable Active Advertising on the Gateway to ensure new

devices are able to join the network faster. For more information see the Emerson Wireless

Gateway Reference Manual.

5.0 Configure k-factor (calibration factor) for pulse

output device or turbine meter

Note

The steps below apply if the k-factor is not preconfigured to the transmitter.

5.1 Primary method

1. Go to Configure>Guided Setup>Basic setup. This will walk you through setting

the device up for first time use.

5.2 Other methods

1. Go to Configure>Manual Setup>Totalizing Options. This is the main interface

for establishing the k-factor as well as other features including low flow cutoff

and manual rollover adjustments.

2. On a HART Handheld, you can configure the k-factor by going to Configure>

Manual Setup>Totalizing Options>Turbine Configuration>k factor.

For more information on these features, see the Rosemount 705 Reference

Manual.

00825-0200-4705_RevDA.fm Page 10 Tuesday, April 2, 2019 11:08 AM

Quick Start Guide

April 2019

6.0 Product Certifications

Rev 1.1

6.1 European Directive Information

A copy of the EC Declaration of Conformity can be found at the end of the Quick

Start Guide. The most recent revision of the EC Declaration of Conformity can be

found at Emerson.com/Rosemount.

6.2 Telecommunication Compliance

All wireless devices require certification to ensure that they adhere to

regulations regarding the use of the RF spectrum. Nearly every country requires

this type of product certification. Emerson is working with governmental

agencies around the world to supply fully compliant products and remove the

risk of violating country directives or laws governing wireless device usage.

6.3 FCC and IC

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following conditions: This device may not cause harmful interference. This

device must accept any interference received, including interference that may

cause undesired operation. This device must be installed to ensure a minimum

antenna separation distance of 20 cm from all persons.

6.4 Ordinary Location Certification from CSA

The transmitter has been examined and tested to determine that the design

meets the basic electrical, mechanical, and fire protection requirements by CSA,

a nationally recognized test laboratory (NRTL) as accredited by the Federal

Occupational Safety and Health Administration (OSHA).

6.5 Installing in North America

The US National Electrical Code®(NEC) and the Canadian Electrical Code (CEC)

permit the use of Division marked equipment in Zones and Zone marked

equipment in Divisions. The markings must be suitable for the area

classification, gas, and temperature class. This information is clearly defined in

the respective codes.

USA

I5 USA Intrinsically Safe (IS)

Certificate: CSA 70011131

Standards: FM 3600 – 2011, FM 3610 – 2010, UL Standard 50 – Eleventh Edition, UL

61010-1 – 3rd Edition, ANSI/ISA-60079-0 (12.00.01) – 2013,

ANSI/ISA-60079-11 (12.02.01) – 2013, ANSI/IEC 60529 – 2004

Markings: IS CL I, DIV 1, GP A, B, C, D T4; Class 1, Zone 0, AEx ia IIC T4 Ga; T4 (–50 °C ≤Ta≤

+70 °C) when installed per Rosemount drawing 00705-1020; Type 4X; IP66

See the table at the end of this section for entity parameters.

00825-0200-4705_RevDA.fm Page 11 Tuesday, April 2, 2019 11:08 AM

April 2019

Quick Start Guide

N5 USA Division 2, Nonincendive

Certificate: CSA 70011131

Standards: FM 3600 – 2011, FM 3611 – 2004, UL Standard 50 – Eleventh Edition,

UL 61010-1 (3rd Edition), ANSI/IEC 60529 – 2004

Markings: NI CL I, DIV 2, GP A, B, C, D T4; T4 (–50 °C ≤Ta≤+70 °C); Type 4X; IP66

Special Conditions for Safe Use (X):

1. For use only with the Model 701P or Rosemount P/N 753-9220-XXXX Smart Power

Battery Module.

2. The surface resistivity of the antenna is greater than 1 GΩ. To avoid electrostatic

charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth.

Canada

I6 Canada Intrinsically Safe (IS)

Certificate: CSA 70011131

Standards: CAN/CSA C22.2 No. 0-10, CAN/CSA C22.2 No. 94-M91, CSA Std C22.2

No.142-M1987, CAN/CSA-60079-0 - 2011, CAN/CSA-60079-11 - 2014, CSA

Std C22.2 No. 60529 - 2005, CAN/CSA-C22.2 No. 61010-1 - 2012

Markings: IS CL I, DIV 1, GP A, B, C, D T4; Ex ia IIC T4 Ga, T4; T4 (–50 °C ≤Ta≤+70 °C)

when installed per Rosemount drawing 00705-1020; Type 4X; IP66

See the table at the end of this section for entity parameters.

N6 Canada Division 2, Nonincendive

Certificate: CSA 70011131

Standards: CAN/CSA C22.2 No. 0-10, CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No.

213-M1987 (R2013), CAN/CSA-60079-0 - 2011, CAN/CSA Std C22.2 No.

60529 - 2005, CAN/CSA-C22.2 No. 61010-1 - 2012

Markings: Suitable for Class 1, Division 2, Groups A, B, C, D T4; T4 (–50 °C ≤Ta ≤+70 °C);

Type 4X; IP66

Special Conditions for Safe Use (X):

1. For use only with the Model 701P or Rosemount P/N 753-9220-XXXX Smart Power

Battery Module.

2. The surface resistivity of the antenna is greater than 1 GΩ. To avoid electrostatic

charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth.

Europe

I1 ATEX Intrinsic Safety

Certificate: Baseefa14ATEX0375X

Standards: EN 60079-0: 2012, EN 60079-11: 2012

Markings: II 1 G Ex ia IIC T4 Ga, T4(–50 °C ≤Ta≤+70 °C)

For use with Rosemount SmartPower™power module part number 753-9220-0001, or for

use with Emerson SmartPower option 701PBKKF.

See the table at the end of this section for entity parameters.

Special Conditions for Safe Use (X):

1. The surface resistivity of the antenna is greater than 1 GΩ. To avoid electrostatic

charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth.

2. 2.The Model 701PBKKF Power Module may be replaced in a hazardous area. The Power

Modules have a surface resistivity greater than 1G? and must be properly installed I the

wireless device enclosure. Care must be taken during transportation to and from the

point of installation to prevent electrostatic charge build-up.

00825-0200-4705_RevDA.fm Page 12 Tuesday, April 2, 2019 11:08 AM

Quick Start Guide

April 2019

3. The 705 enclosure may be made of aluminum alloy and given a protective

polyurethane paint finish; however, care should be taken to protect it from impact or

abrasion if located in a Zone 0 area.

IU ATEX Intrinsic Safety for Zone 2

Certificate: Baseefa15ATEX0059X

Standards: EN 60079-0: 2012, EN 60079-11: 2012

Markings: II 3 G Ex ic IIC T4 Gc, T4(–50 °C ≤Ta≤+70 °C)

For use with Rosemount SmartPower power module part number 753-9220-0001, or for

use with Emerson SmartPower option 701PBKKF.

See the table at the end of this section for entity parameters.

Special Conditions for Safe Use (X):

1. The surface resistivity of the antenna is greater than 1 GΩ. To avoid electrostatic

charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth.

2. The Model 701PBKKF Power Module may be replaced in a hazardous area. The Power

Modules have a surface resistivity greater than 1G? and must be properly installed I the

wireless device enclosure. Care must be taken during transportation to and from the

point of installation to prevent electrostatic charge build-up.

3. The 705 enclosure may be made of aluminum alloy and given a protective

polyurethane paint finish; however, care should be taken to protect it from impact or

abrasion if located in a Zone 0 area.

International

I7 IECEx Intrinsic Safety

Certificate: IECEx BAS 14.0173X

Standards: IEC 60079-0: 2011, IEC 60079-11: 2011

Markings: Ex ia IIC T4 Ga, T4 (–50 °C ≤Ta ≤+70 °C)
