emmeti XEVO-0917-M3E User manual

Air Conditioner
Serie: XEVO - XX17X3E
R32
Outdoor Unit
INSTALLATION MANUAL AND USING INSTRUCTIONSINSTALLATION MANUAL AND USING INSTRUCTIONS
GBGB

GBGB
Thanks you for the trust you have shown by purchasing this produtc.Carefully
read this manual which contains the specifications and all the information
useful for the correct functioning.
The information contained in this publication may be subject to changes at
any time and without any notice whatsoever for technical and/or commercial
reasons as they arise.
Warning!
Keep these manuals in a dry place avoiding in this way to spoil them.

3
GBGB
INDICE
1. PRODUCT INTRODUCTION .............. 4
1.1 Air conditioner composition
1.2 Indoor unit
1.3 Accessories supplied with the outdoor unit
1.4 Product identification table
2. WARNINGS ................................. 5
2.1 Care and dangers
3. IMPORTANT INFORMATION ............. 7
3.1 Compliance with regulations
3.2 Degree of protection provided by enclosures (Code IP)
3.3 Important information of the refrigerant used R 32
3.4 Operating limits
3.4 Part of refrigerant safety table R 32
4. HANDLING AND TRANSPORT .........10
5. UNITS POSITIONING ....................10
5.1 Positioning of the outdoor unit
5.2 Minimum operational distances of outdoor unit
5.3 Distance between the units
5.6 Dimensions of the indoor unit
6. EXTERNAL UNIT INSTALLATION............ 13
6.1 External unit installation
6.2 Outdoor unit condensation drain pipe
6.3 Refrigerating circuit piping
6.4 Electrical supply
7. CHARGE AND TEST OF THE SYSTEM......18
7.1 Operating test (the first ignition must be done in Cooling mode)
7.2 Draining and filling the refrigeration circuit with R 32
7.3 Final test
7.4 Recovery
8. DISPOSAL................................. 20
8.1 Environmental safeguard information!
8.2 Disposal rules for the old air conditioner
8.3 Disposal rules of the new air conditioner packaging
8.4 Battery disposal
9. FUNCTIONAL ANOMALIES............ 56
9.1 Messages displayed on the indoor unit display
9.2 Checking the operating status of Dual and Trial Drives
10. WIRING DIAGRAMS ...................... 26
11. REFRIGERATION CIRCUIT ............... 29
12. PRODUCT FICHE ............................ 32
GUARANTEE ........................................ 35

4
GBGB
1. PRESENTAZIONE DEL PRODOTTO
1.1 Composition of the air conditioner
The air conditioners are of the “Split System” type, with air-air heat-
exchange.
They consist of two separate units:
- “Indoor unit”, to be placed inside the house.
- “Outdoor unit”, to be placed outside the house.
ll the functions of the air conditioner are controlled by an “infrared remote
control”.
Description Quantity
Installation manual of
the outdoor unit 1
Draining joint 1
Gasket 1
Ferrite core * 1
1.2 Indoor unit
 Air outlet grille
2 Air inlet grille
3 Door electric connection
4 Refrigerating pipe connection
1.4 Product identification table
Through the following table you may identify the make-up of the air conditioner.
Type
Power
in kBtu/h
Set
UI+UE
Unit
Outdoor
Unit
Indoor
Single
Hi-Wall 9XEVO-0917 R32 XEVO-0917-M3E XEVO-0917W43
Single
Hi-Wall 12 XEVO-1217 R32 XEVO-1217-M3E XEVO-1217W43
Dual
Hi-Wall 18 XEVO-1817 DR32 XEVO-1817-D3E XEVO-0917W43 / XEVO-1217W43
Trial
Hi-Wall 27 XEVO-2717 TR32 XEVO-2717-T3E
XEVO-0917W43 /
XEVO-1217W43 /
XEVO-1217W43
34
90 B2
61.5 A2
12 A1
R6
90 B2
61.5 A2
12 A1
R6
2
1.3 Accessories supplied with the outdoor unit
* For Dual (2) for Trial (3)
Apply the ferrite nylon close to the terminal block of the outdoor unit.
A core for each indoor unit power cord as shown in the electrical diagrams.

5
GBGB
2. WARNINGS
Spe-
gnere
HIGHLY
FLAMMABLE GAS
ONLY FOR
EXTERNAL UNIT
R32
MEANING OF SYMBOLS
indicates a prohibited action.
Indicates that important instructions must be followed.
Indicates a part which must be grounded.
2.1 Attention and dangers
Before using the air conditioner please read carefully the instructions
manual. Producer decline every responsibility for any damage caused by
the non-observing of the following warnings.
When this manual has been read, please make sure that further unit users
will read it as well.
User has to keep this manual close to hand and has to give it to those who
repair and move the unit. Furthermore when there is an owner change,
please let the manual at disposal of the new user. Please make sure that
the following important safe information are strictly observed.
Unit is not intended to be used by persons with reduced physical, sensory or mental abilities, or with lack of
experience or acknowledge (children included) unless they had the possibility to benefit of some monitoring or
using instructions through a person responsible for their safety. Children have to be monitored to be sure they do not
play with the unit. This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved. children shall not
play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. caution:
do not expose the electronics of your charging and drying stand or the battery charger. There are no user serviceable
parts inside. Tefer servicing to qualified service personnel. please ensure voltage rating for enclosed battery charger
matches standard outlet voltage.
Do not install the air conditioner in rooms where gas leakages or
other flammable substances could occur near the units.
Maintenance operations must be carried out exclusively by quali-
fied technicians.
Do not use the emergency button with wet hands. Do not place flower vases or water containers on the unit.
Verify the air conditioner’s wall attachments firmness.
Do not place objects or stand on the unit.
Do not direct the air flow directly on individuals, plants or animals.
Don’t blow the human body with the cooling air too long, and don’t
let the room temperature decrease too low either. Otherwise the
one will feel unpleasant or harm ones’ health.
Do not disassemble the louver of the external unit. Fan exposure is
very dangerous, it could hurt people .

6
GBGB
2. WARNINGS
Before any maintenance remove the power supply from the air
conditioner.
Use the air conditioner only to condition the room.
Do not use the air conditioner for other purposes, for example:
drying laundry, preserving food, breeding animals or cultivating
vegetables.
Avoid blocking the air entry and outlet grids.
This could reduce performance or cause damage to the air condi-
tioner.
Do not put your fingers or other objects into the sockets / outlets
and deflector swinging while the conditioner is in operation. The
high speed of the fan is very dangerous and can cause injury.
Do not pour or spray water on the air conditioner. Do not install the air conditioner near sources emitting excessive
vapours (moisture, oils, etc.).
Please use fuses with the right amperage only.
(Never use pieces of cable to make temporary replacements. This
might cause fires too, not just a damage.
If you experience abnormal phenomena (eg a burning smell),
disconnect the power immediately and contact your dealer for
instructions on what to do. In this case, continue to use the air
conditioner may cause damage and create the risk of electric
shock and fire.
Avoid the use of heating equipments near the air conditioner. Select the most suitable room temperature.
Be careful in rooms where there are children, sick and/or elderly
people.

7
GBGB
3. IMPORTANT INFORMATION
3.3 Important information of
the refrigerant used R32
This product contains fluorinated greenhouse gases covered
include in the Kyoto Protocol. Do not vent into the atmosphere.
Type of refrigerant: R32
GWP* value 675
GWP* = global warming potential
Fill out with permanent ink
the factory charge of refrigerant of the product
the amount of additional refrigerant for the pipes
the total charge of refrigerant
Label must be attached in a visible place outside the unit structure.
A contains fluoride gases that contribute to the greenhouse effect and
which are covered by the Kyoto Protocol.
B factory charge of refrigerant of the product: see tag with name of unit.
C amount of additional refrigerant for the pipes.
Dtotal refrigerant charge.
E
outdoor unit.
F refrigerant cylinder and charge collector.
Kg
Kg
Kg
R 410 A
11 =
22 =
2211 =+
11
22
B
C
F
E
A
D
ITIT Questo prodotto contiene gas fluorurati ad effetto serra inclusi
nel Protocollo di Kyoto. Non liberare tali gas nell’atmosfera.
GBGB This product contains fluorinated greenhouse gases covered
by the Kyoto Protocol. Do not vent into the atmosphere.
ESES
Este producto contiene gas fluorado con efecto invernadero incluidos
en el protocolo di Kyoto. No vierta este tipo de gas a la atmosfera.
DEDE Dieses Produkt enthält fluorierte Treibhausgase,
die durch das Kyoto-Protokoll abgedeckt werden.
Lassen Sie Gase nicht in die Atmosphäre ab.
FRFR Ce produit contient des gaz fluorés à effet de serre, prévus
par le protocole de Kyoto.
Ne pas laisser les gaz s’échapper dans l’atmosphére.
Kg
Kg
Kg
R 410 A
11 =
22 =
2211 =+
11
22
B
C
F
E
A
D
ITIT Questo prodotto contiene gas fluorurati ad effetto serra inclusi
nel Protocollo di Kyoto. Non liberare tali gas nell’atmosfera.
GBGB This product contains fluorinated greenhouse gases covered
by the Kyoto Protocol. Do not vent into the atmosphere.
ESES
Este producto contiene gas fluorado con efecto invernadero incluidos
en el protocolo di Kyoto. No vierta este tipo de gas a la atmosfera.
DEDE Dieses Produkt enthält fluorierte Treibhausgase,
die durch das Kyoto-Protokoll abgedeckt werden.
Lassen Sie Gase nicht in die Atmosphäre ab.
FRFR Ce produit contient des gaz fluorés à effet de serre, prévus
par le protocole de Kyoto.
Ne pas laisser les gaz s’échapper dans l’atmosphére.
Kg
Kg
Kg
R 410 A
11 =
22 =
2211 =+
11
22
B
C
F
E
A
D
ITIT Questo prodotto contiene gas fluorurati ad effetto serra inclusi
nel Protocollo di Kyoto. Non liberare tali gas nell’atmosfera.
GBGB This product contains fluorinated greenhouse gases covered
by the Kyoto Protocol. Do not vent into the atmosphere.
ESES
Este producto contiene gas fluorado con efecto invernadero incluidos
en el protocolo di Kyoto. No vierta este tipo de gas a la atmosfera.
DEDE Dieses Produkt enthält fluorierte Treibhausgase,
die durch das Kyoto-Protokoll abgedeckt werden.
Lassen Sie Gase nicht in die Atmosphäre ab.
FRFR Ce produit contient des gaz fluorés à effet de serre, prévus
par le protocole de Kyoto.
Ne pas laisser les gaz s’échapper dans l’atmosphére.
Kg
Kg
Kg
R 32
11 =
22 =
2211 =+
11
22
B
C
F
E
A
D
ITIT Questo prodotto contiene gas fluorurati ad effetto serra.
Non liberare tali gas nell’atmosfera.
GBGB This product contains fluorinated greenhouse gases.
Do not vent into the atmosphere.
ESES
Este producto contiene gas fluorado con efecto invernadero.
No vierta este tipo de gas a la atmosfera.
DEDE Dieses Produkt enthält fluorierte Treibhausgase,
die durch. Lassen Sie Gase nicht in die Atmosphäre ab.
FRFR Ce produit contient des gaz fluorés à effet de serre.
Ne pas laisser les gaz s’échapper dans l’atmosphére.
External temperature
External unit Cooling °C Heating°C
XEVO-0917-M3E -15 ÷ 50 -15 ÷ 30
XEVO-1217-M3E -15 ÷ 50 -15 ÷ 30
XEVO-1817-D3E -15 ÷ 50 -15 ÷ 30
XEVO-2717-T3E -15 ÷ 50 -15 ÷ 30
3.4 Operating limits
EXTERNAL UNIT VALUES - Outdoor temperature (wet bulb)
Model Cooling °C Heating°C
Single 9k
17 (15) ÷ 32 (29) 0 ÷ 30
Single 12k
Single 18k
Single 27k
INTERNAL UNIT VALUES
Outdoor temperature (wet bulb)
Maximum operating pressure friction circuit: 4.6 MPa
3.1 Compliance with the regulations
Air conditioners are conform to the European stadanrd:
2014/30/EU regarding Electromagnetic Compatibility
2014/35/EU standards on Low Voltage.
In accordance with the directive 2012/19/EC WEE of the European par-
liament, herewith we inform the users about the disposal requirements
of the electrical and electronic products.
RoHS 2011/65/EU of the European parliament and of the council on the
Restriction of the use of Certain Hazardous
2009/125/EC COMMISSION REGULATION (EU) No 206/2012
on the specific ecodesign requirements for air conditioners and fans.
2010/30/EU COMMISSION DELEGATED REGULATION (EU)
No 626/2011 as regards the labeling of the energy consumption of air
conditioners air.
3.2 Degree of protection provided by enclosures
(Code IP)
Indoor Unit IPXO
X= Degree of protection against drilling of external solid bodies is
omitted.
0= Not protected against water
Outdoor unit IP24
2= Protected against solid foreign objects of perforation: ≥12.5 mm
(against access to hazardous parts with a finger)
4= Protected against the ingress of water with harmful effects: water
spray

8
GBGB
3. IMPORTANT INFORMATION
3.5 Part of refrigerant safety table R 32
COOLANT GAS TYPE R 32
GWP 675
Name Difluoromethane 3.0
Indications of dangers H220: Highly flammable gas.
H280: Contains gas under pressure; may explode if heated.
DESCRIPTION OF FIRST AID MEASURES
Inhalation
In a high concentration it can cause suffocation. The symptoms may include loss of mobility and/or
consciousness. The victims may not realise they are suffocating. Wearing the breathing apparatus,
move the victims to a ventilated area, make them lie down and keep them warm. Call a doctor. Provide
artificial respiration only if the victim is not breathing.
Contact with the eyes:
Rinse the eyes immediately with water. Remove any contact lenses if it is easy to do so. Continue to
rinse. Rinse with plenty of water for at least 15 minutes. Get medical attention immediately. If medical
care is not available immediately, rinse for another 15 minutes.
Contact with the skin: Contact with the evaporating liquid may cause the skin to freeze.
FIRE SAFETY
General fire hazards: Heat may cause the container to explode.
Extinguishing means Sprays or splashes water. Dry powder. Foam.
Inappropriate extinguishing means: Carbon dioxide.
Special hazards arising from the
substance or mixture: No data available.
Dangerous combustion products:
I
n the event of a fire, the following products may be produced by thermal decomposition: hydrofluoric acid
; carbon monoxide; carbon oxide
; carbonyl difluoride
RECOMMENDATIONS FOR FIRE-FIGHTERS
Special fire fighting procedures:
In the event of a fire: stop the leak if it is not dangerous. Do not extinguish the flames on the leak
because there is the possibility of an uncontrolled explosive re-ignition. Spray continuously with water
from a safe position until the container has cooled down. Use extinguishers to extinguish the fire.
Isolate the source of the fire or let it burn.
MEASURES IN CASE OF ACCIDENTAL ESCAPE
Personal precautions, protective equipment and
procedures in case of an emergency:
Evacuate the area. Ensure suitable ventilation. Assess the risk of potential explosive atmospheres.
Eliminate all sources of ignition if it is not dangerous. Monitor the concentration of the product that has
been released.
Prevent it from seeping into sewers, basements, excavations or areas where accumulation may be
dangerous. Use a breathing apparatus to enter the affected area unless it has been proven that the
atmosphere is breathable. EN 137 Respiratory protective devices - Open-circuit breathing apparatus with
full mask - Requirements, testing, marking.
HANDLING AND STORAGE:
Only suitably trained and experienced people can handle gas under pressure. Use only specific
equipment, suitable for the product, the pressure and the temperature of use.
INDIVIDUAL EXPOSURE/PROTECTION CHECKS
Control parameters Limit values for professional exposure
No exposure limit has been defined for any component
DNEL values
Critical component Type Value Remarks
difluoromethane Workers - inhalation 7035 Repeated dose toxicity
Systemic, long-term mg/m3
PNEC values Critical component Type VAlue Remarks
difluoromethane Aquatic (fresh water) 0,142 mg/l -
Aquatic (intermittent releases) 1,42 mg/l -
Sitting (fresh water) 0,534
mg/kg -

9
GBGB
3. IMPORTANT INFORMATION
INFORMATION ON THE MAIN PHYSICAL AND CHEMICAL PROPERTIES
Shape Gas
Shape Liquefied gas
Colour Colourless
Odour Like ether
Boiling point -51.6 °C (101.325 kPa)
Relative density 1.1 (Reference material: Water)
Solubility in water 280 g/l
STABILITY AND REACTIVITY
Chemical stability Stable in normal conditions.
Incompatible materials Air and oxidants. For compatibility with materials, see the latest version of ISO-1114.
Dangerous decomposition products
pericolosi
In normal conditions of storage and use, no dangerous decomposition products should be
formed.
TOXICOLOGICAL INFORMATION
Acute toxicity
Ingestion
Product:
Based on the data available, the classification criteria are not met.
Acute toxicity
Contact with the skin
Product:
Based on the data available, the classification criteria are not met.
Acute toxicity
Inhalation
Product:
difluoromethane - LC 0 (Rat, 4 h): > 520000 ppm Remarks: Gas
ECOLOGICAL INFORMATION
Bioaccumulation potential
Product:
The product is expected to be biodegradable and it is not expected to remain for
long periods of time in a water environment.
Mobility in soil
Product: Due to high volatility, it is unlikely that the product will cause soil and water pollution.
CONSIDERATIONS ON DISPOSAL
Waste treatment methods
General information:
Do not discharge where its accumulation may be dangerous. Ask the supplier for
specific recommendations. Do not discharge in areas where there is a risk of formation of
explosive atmospheres with air. The gas should be disposed of in a suitable torch
with a flame retardant device.
Disposal methods:
Refer to the EIGA Practice Code (Doc. 30 “Gas Disposal”, downloadable from http://www.eiga.
org) for better guidance on the disposal methods available.
Contact the supplier for the correct disposal of the container. Discharging, treatment or
disposal may by subject to national, state or local regulations.

10
GBGB
4. HANDLING AND TRANSPORT
5. UNITS POSITIONING

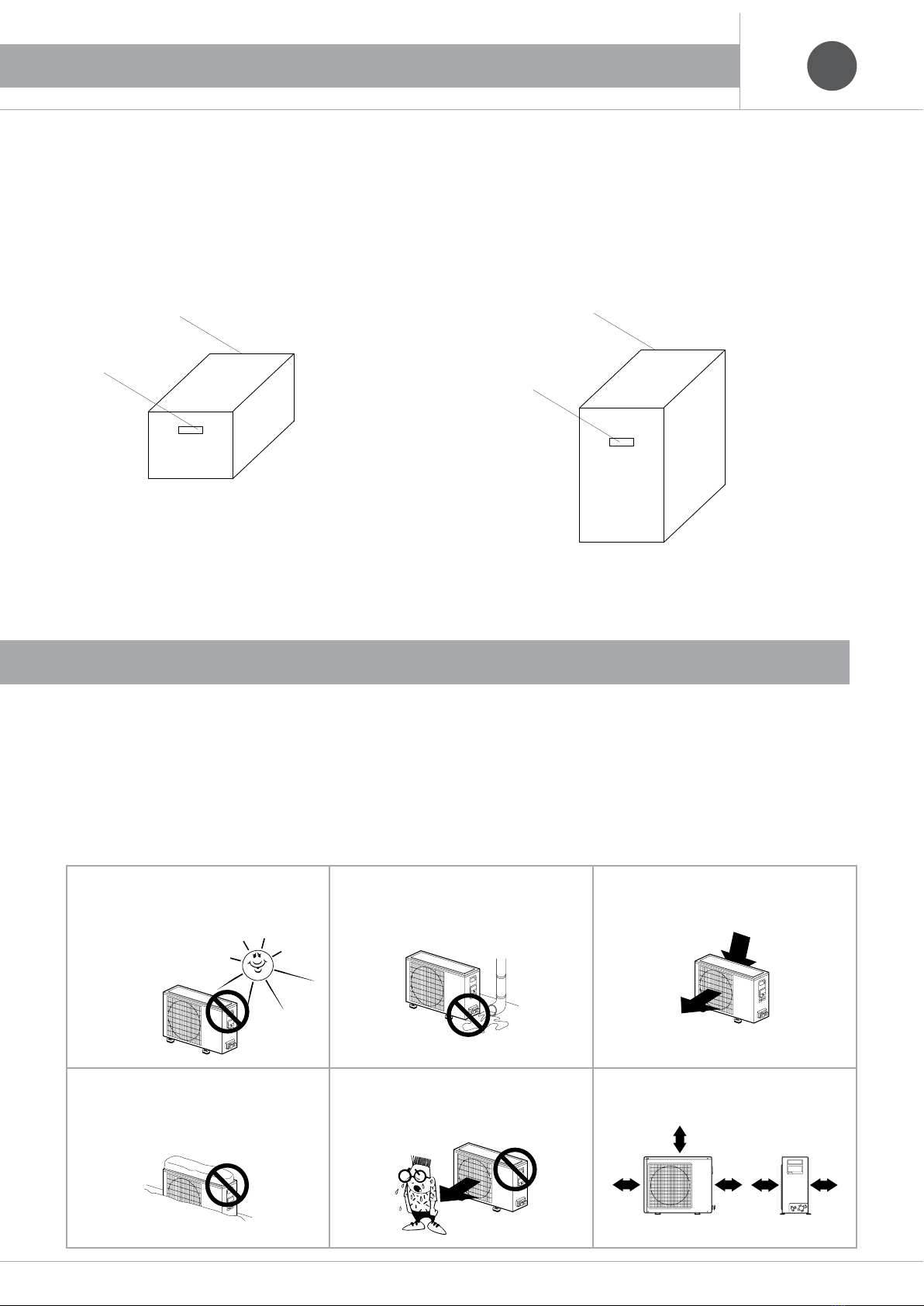

To move the units please use the relevant pre-cut handles placed on the
short sides of the packaging and comply with the current laws concerning
safety on the working place of the installation.
The external unit and the internal units of big size have to be moved by
two persons.
Pre-cut handles
Pre-cut handles
Package of the internal unit External unit package
Pre-cut handles
Pre-cut handles
Unpacking operations have to be done carefully because the external
part of the units has not to be damaged when knifes or cutters are used
to open the carton package.
After unpacking make sure of the unit integrity.
If in doubt, do not use the unit and refer to the authorized technical
personnel
Attention!
Please verify that the two units of the air conditioner do not have been damaged during the transport
When a complaint is necessary, please get in touch with the carrier to make immediately sure about the damage and relevant responsibilities
Before throwing away the packages, make sure that all accessories supplied have been removed from them.
f) In kitchens with a lot of oil fumes and with high humidity percentage
g) Near machines issuing electromagnetic waves
h) Places with acid or alkaline fumes
TV, radio, acoustic equipment have to remain at a minimum distance of
1 m from the internal unit, the external unit, the power supply cables,
pipes; otherwise images could result not clear and some noise could be
detected.
Air conditioner has to be placed in a well-ventilated and easy to reach place.
Air conditioner has not to be placed in the following places:
a) Places where there are machines oils or other oils fumes.
b) Along the coast with high salt concentration in the air
c) Near resurgences with high content of sulphuric gases
d) In areas with high tension fluctuation, e.g. factories etc.
e) In vehicles or boats
5.1 Positioning the outdoor unit
If possible, avoid exposing the unit to direct
sunlight, particularly in early afternoon.
On the contrary, provide for a suitable protection
that does not obstruct the free circulation of air.
Avoid positioning in correspondence with areas
that can worsen the negative effects of atmo-
spheric agents such as eaves drains or downpipe
drains.
Select the position that is favourable for air
circulation and facilitates the drain of the con-
densation water.
In the models pay particular attention to snowfall,
including snow falling from roof pitches which
could obstruct air circulation.
Select a position in which noise and the air jet do
not damage or bother people, animals or plants.
Make sure the “minimum operational distances”
are observed.

11
GBGB
The two air conditioner units are connected to each other by means of copper
piping. A maximum of 10 curves is allowed and beyond this number the correct
operation and the declared yield of the air conditioner are not guaranteed.
The two units can be positioned with a maximum gradient of 5 metres.
In cases where the indoor unit is installed higher than the outdoor unit with:
Between 3 and 5 meters must be provided an intermediate siphon to lock oil.
Warning!
Both pipe-lines must be provided with siphon.
A
D
E
C
B
1/2
1/2
Outdoor Unit
Indoor Unit
A (mm) B (mm) C (mm) D (mm) E (mm)
> 300 > 600 > 300 > 2000 > 600
5.3 Distance between the units
5.2 Minimum operational distances
OUTDOOR UNIT
A
Indoor Unit
B
B
Maximum difference in height
Outdoor Unit
Indoor Unit
Indoor Unit
Model
Difference
maximum
between
Internal Units
(A)
Difference
maximum
between
Internal Unit
and external unit
(B)
Distance
maxim
between
Internal Unit
and external unit
Length
maxim
total
of tubes
Length
total
Standard (m)
Additional gas charge
beyond the standard
total length (g / m)
mmmmm g/m
XEVO-0917-M3E -10 25 25 512
XEVO-1217-M3E -10 25 25 512
XEVO-1817-D3E 10 15 25 40 15 15
XEVO-2717-T3E 10 15 30 60 22,5 15
5. UNITS POSITIONING

12
GBGB
5. UNITS POSITIONING

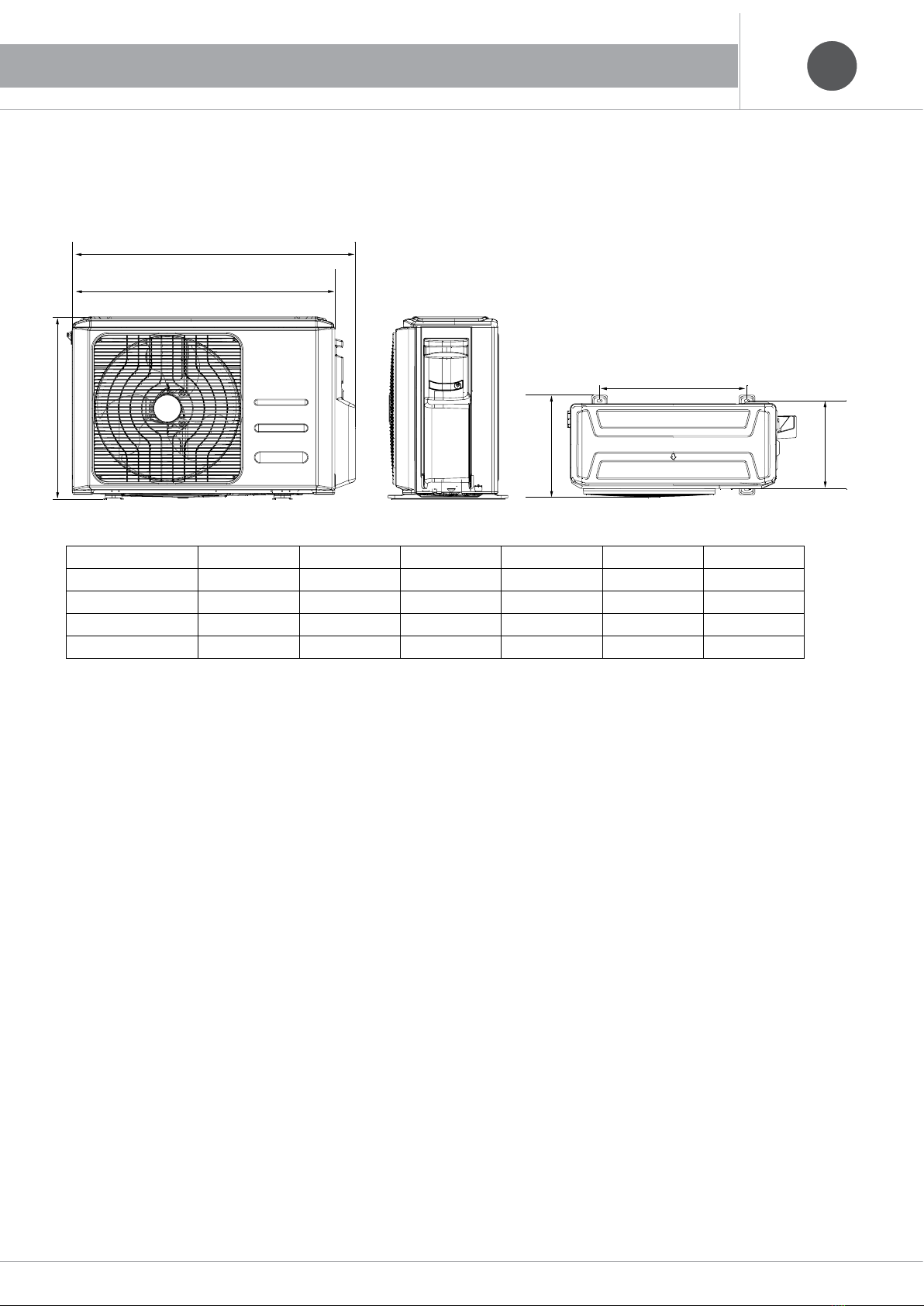

5.4 Dimensions of the indoor unit
.!
C
E
H
B
D
A
Model E (mm) D(mm) H(mm) C(mm) A(mm) B(mm)
XEVO 0917-M3E (R32) 770 322 555 840 487 298
XEVO 1217-M3E (R32) 770 322 555 840 487 298
XEVO-1817-D3E (dual) 800 365 554 860 514 340
XEVO-2717-T3E (trial) 845 375 702 923 540 350

13
GBGB
6. EXTERNAL UNIT INSTALLATION
6.1 External unit installation
- Install the anti –vibration rubber pads under the external unit (acces-
sory provided separately) and place the unit on a raised part of at
least 10 cm as shown in Fig. A.
- Make sure about the stability and the levelling of the surface where
unit is placed.
- When several external units have to be installed, it is essential to
assure distances between the units which do not restrict air circu-
lation to the single units and to make maintenance operations easier
(Fig. B)
- In case of under roof installation or similar, please follow the indica-
tions shown in fig. C.
Fig. C
minimo 400 mm
minimo 400 mm
AA
Fig. B
A = minimum 60 cm
A
A = 10 cm
Fig. A
A = 10 cm
Nota:
Fixing brackets are accessories supplied separately
Attention!
Place the condensation water outlet so that no damage may be caused
to people or things.
It is advisable to be able to visually check the outlet drain at the end of
the piping, or alternatively insert a transparent section in the tubing
itself when it flows into an outlet which cannot be inspected.
Installation and maintenance activities on the air conditioners can
be done by personnel and companies holding appropriate certifi-
cate according to the Regulation (EC) Nr. 303/2008 which provides
the minimum requirements of the companies and of the personnel
about fixed units of refrigeration, air condition and heating pumps
which contain some fluorinated greenhouse gases, according to
the Regulation (EC) nr. 842/2006 of the European Parliament and
of the Council.
- Installation must be performed by qualified and authorized personnel.
- Do not attempt to install the unit by yourself.
- For any repairs, contact the service centre.
- Repairs of an electrical nature must be performed by qualified
electricians.
- Improper operations may cause serious harm to the user.
- You can find a list of service centres at the website www.emmeti.com
The right installation of the air conditioner assure its efficiency
Therefore we invite you to follow the instructions carefully about positio-
ning, installation, connexions and test listed in these manuals.
CAUTION
Danger cut: use of gloves.
If the conditions are met Arrange for work at height.
6.2 Outdoor unit condensation drain pipe
The outdoor unit is provided with a hole in the lower part of the frame,
which through a conical connection (supplied), drains the condensation
water.
- Insert the gasket on the supplied fitting
- Insert the fitting at the bottom of the outdoor unit
- Rotate the fitting 90 ° until you hear the click
- The hose clamp is clamped.
- The condensate discharge pipe must be slightly sloping to permit
natural outflow.
- It is advisable to use a sufficiently rigid plastic tube to prevent any
crushing of the same.
seal
Hole on the bottom of
the ' Outdoor unit
Drainage joint
seal

14
GBGB

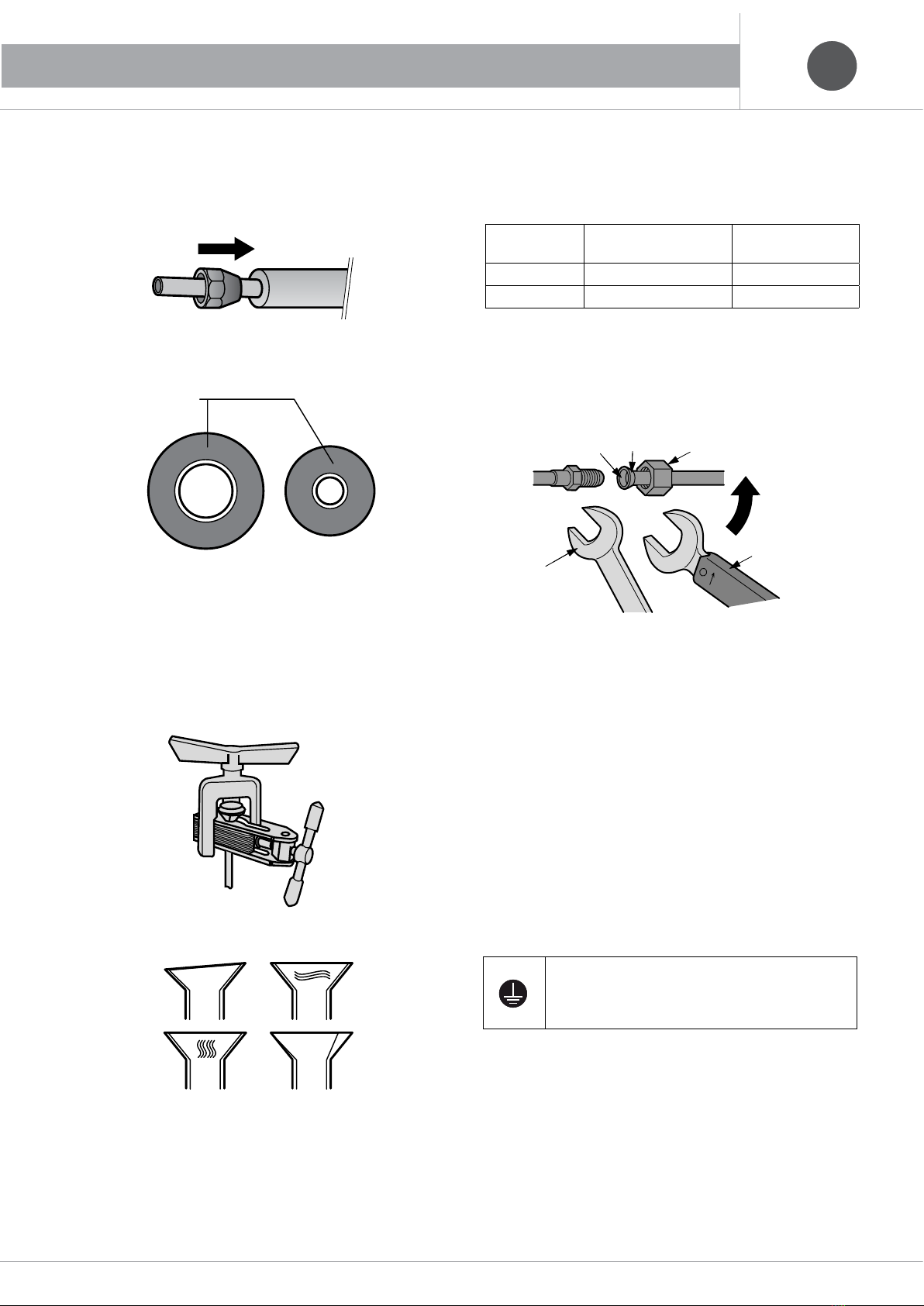

Cutting and flaring of the pipe
- Cut the copper pipe at the set length, using a pipe cutter; there is to be
a suitable straight section near the outdoor unit in order to enable the
flare to be remade if necessary.
- Remove any burrs from the end of the pipe, using a countersink. This ope-
ration is very important in order to obtain good quality flaring (Fig. A).
6. EXTERNAL UNIT INSTALLATION
6.3 Refrigerating circuit piping
The connections for the refrigerating piping are sealed with a flared end and flare-nut.
The outdoor unit contains the whole charge of the refrigerating system and is equipped with valves with flare-nut connections and service fitting connection.
Fig. A
countersink
Attention!
Use only new, annealed, degreased and deoxidated copper pipe of the
CU DHP for UNI EN 12735-1 type.
The copper pipe for plumbing services is not suitable.
Refrigerating lines
Path and bending of pipelines
- Define the pipeline path with the fewest possible bends.
- Bend the pipe with a suitable pipe-bending machine to avoid dangerous
flattening.
- For wide bends, use cylindrical surfaces for support, working very
delicately.
Attention!
Do not bend the copper pipe more than three times in the same place, to
avoid the danger of splitting it.
Warning!
When you remove the burrs, keep the end of the pipe towards the bottom,
avoiding scraps from dropping inside it. The unions placed on the pipe
fittings of the units are to be immediately
removed before use, working in such a way that the cocks remain open
for the minimum time possible.
Model Liquid line Gas line
Size kBtu/h Model Ø inch Ø mm Ø inch Ø mm
09 XEVO-0917-M3E 1/4" 6,35 3/8" 9,52
12 XEVO-1217-M3E 1/4" 6,35 3/8" 9,52
18 XEVO-1817-D3E 1/4" 6,35 3/8" 9,52
27 XEVO-2717-T3E 1/4" 6,35 3/8" 9,52

15
GBGB
6. EXTERNAL UNIT INSTALLATION
Connecting the pipes to the fittings
- Connect the pipes to the fittings on the unit.
-Secure by tightening the nuts to a torque of:
diameter Surface thickness
(mm)
Tightening torque
(N·m)
1/4’’ ≥0.5 15-30 (N·m)
3/8’’ ≥0.71 30-40 (N·m)
6.3.2 Insulating the pipelines
- Before carrying out the flaring of the pipe, it is essential to insulate the
pipe and then fit the nuts on the pipe (Fig. B).
Fig. B
Fig. C
Insulating
Fig. D
Flaring tool
Fig. E
Example of incorrect flarings
Use an insulating tube in vapour-proof closed-cell polyurethane foam at
least 9 mm in thickness. (Fig. C).
Wrap any uncovered areas with adhesive tape which has similar cha-
racteristics to the insulating material used for the pipeline.
6.3.3 Esecution Flaring
Carrying out the flaring properly is essential for the union to seal, it must
therefore be carried out with particular care and the appropriate flaring
tool. (Fig. D/E).
It is important to apply refrigerating oil to the mating surfaces of the
flared end and the fitting before they are joined.
This precaution prevents possible gas leakage.
Attention!
Use only synthetic oil in air conditioners which are charged with R 32
refrigerant.
Inclined profile
Cracking
Damaged
surface
Uneven
thickness
Connect earthing wire.
Earthing wire should not be con- nected to the gas pipe,
water pipe, lightning rod or phone line, incorrect earthing
may cause shock.
6.4 Electrical supply
Electrical connections have to be done by qualified personnel, by observing
the current rules in the place where the air conditioner unit has to be
installed.
Electrical connection has to be preceded by a careful control about com-
patibility between the electrical supply line and the features of the unit
you want to connect.
In the electrical supply line of the unit it is mandatory to foresee a bipolar
switch (a differential one) with a contact separation of at least 3mm in
every pole.
Attention!
Before doing any work on the units, make sure that the main electrical
supply has been disconnected.
Before interrupting the power supply by means of the switch, turn the air
conditioner off with the remote control.
Refrigerant oil Flare-nut
Open-ended
spanner
Torque wrench

16
GBGB
6. EXTERNAL UNIT INSTALLATION
- Loosen the screws and insert the ends of the cable completely into the
terminal block, after this tighten the screws.
70 mm
10 mm
10 mm
50 mm
- Pull the cable lightly to make sure that the cables have been insert and
fixed rightly.
- After cables connection never forget to tight them to the cable gland.





Aluminised tape
2Refrigeration piping
3Indoor unit condensation drain
4Electrical connection cable betwe-
en the units
- Provide to use a protection sheet for the cables exposed to the outside.
- It is recommended to set the cables with a drip-proof run in order to
avoid possible infiltrations of water in the outdoor unit.
- Combine the electrical connection cable of the two units to the refrige
ra-
tion piping and wrap with reinforced tape, possibly alluminized (Fig. C).
- If the cable cannot be solid with the piping, make a suitable wall ancho-
rage by means of a cable fastener or hose clips.
1(L)
L
SN
W2(N)
Indoor Unit
1(L)
S
W2(N)
Signal
N
L
Stand By
outdoor Unit
Ferrite core
Power supply
Power supply of the units
For al models, power supply is moved to external unit.
Power supply
Magnetothermic
switch
Please use an exclusive source of electrical power for the air conditioner
only, with a dedicated magnetothermic switch /differential

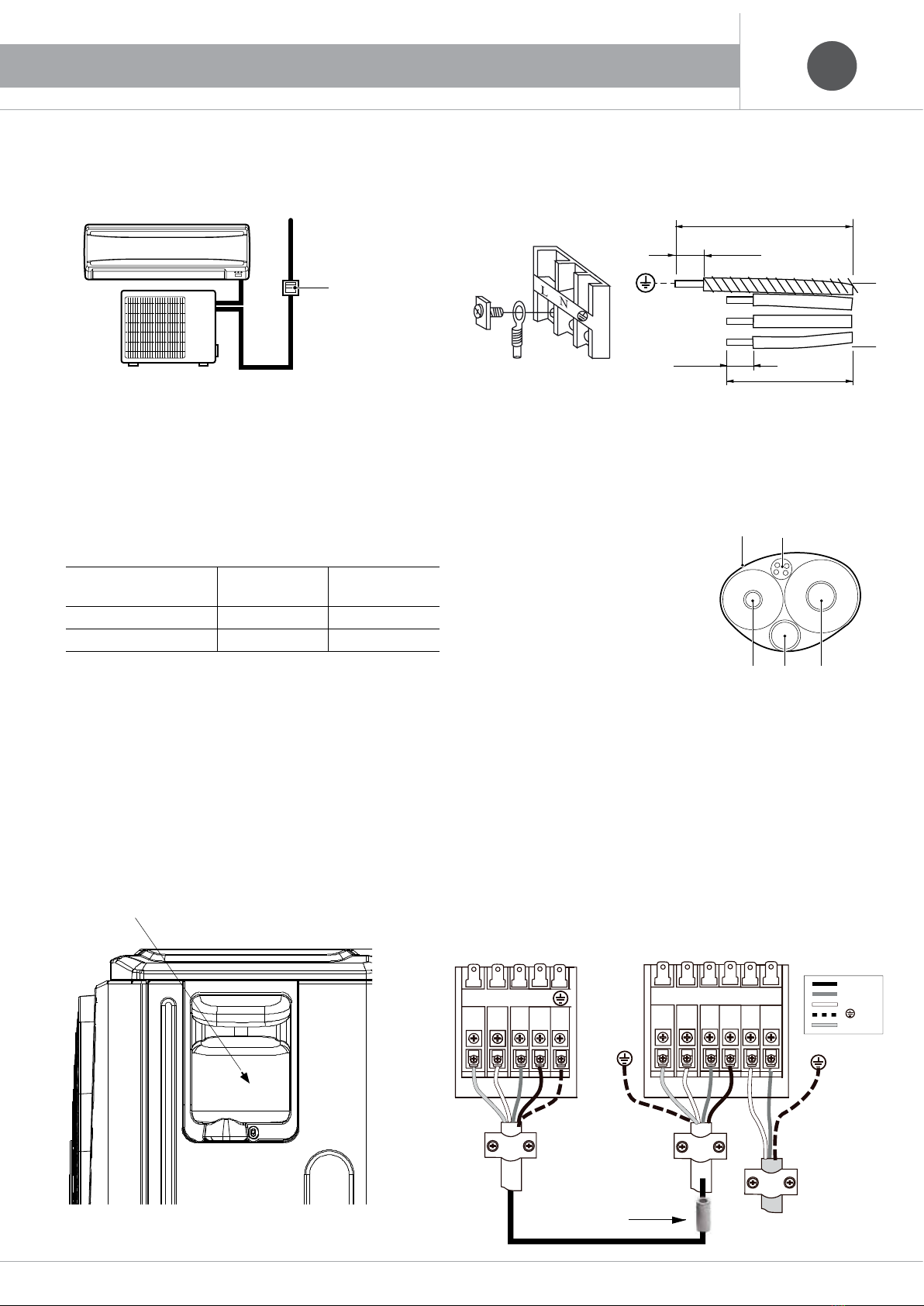

6.6.3 Connection and alimentation cables
- All the feed and connection cables must be approved in conformance
with IEC standards, and for lengths up to 15m., must have a section
not less than:
Model Cable
Power supply
Cable
connection
Single Hi Wall 3x2.5 mm25x1,5 mm2
Dual e Trial 3x2.5 mm24x1,5 mm2
- Use a multi-pole cable of type N07RN-F
- For lengths over 15m., use the next higher standard section, always
checking that in every case the voltage drop during operation is lower
than 3% of the supply voltage.
- If a cable is damaged it must be replaced by service personnel or by
qualified personnel.
- All cables must have the certificate of conformity.
6.6.4 Connection to the terminal board
Connection to the terminal board.
800
5 14
5 54
60
85 .5
3 40
12 .0
311
815
365
333
70
62
106
20
R20
R6
61.6
terminal block
6.6.6 Single Drive Connections
Apply the ferrite core to the connecting cable between the indoor and
outdoor unit (near the terminal block of the outdoor unit)
6.6.5 Positioning of cable ducts

17
1. DESCRIZIONE DEI COMPONENTI ITIT 6. EXTERNAL UNIT INSTALLATION
Unit A
Power
supply
1(L)
S
W2(N)
1(L)
S
W2(N)
Unit A Unit B
Unit B
Unit A
Unit B
Unit C
LN
L(A) N(A) S(A)
L(C) N(C) S(C)
L(B) N(B) S(B)
A. Elettric
Unit C
Unit B
DUAL
TRIAL
Unit A
Unit C
Unit A
Unit B
S(2) S(A) N(A) L(A) N
S(1) S(B) N(B) L(B) L
1(L)
S
W2(N) 1(L)
S
W2(N) 1(L)
S
W2(N)
Signal
N
L
Signal
N
L
Not
used
Ferrite core
Power supply
Ferrite core
Ferrite core
Ferrite core
Ferrite core
Unit A
Power
supply
1(L)
S
W2(N)
1(L)
S
W2(N)
Unit A Unit B
Unit B
Unit A
Unit B
Unit C
LN
L(A) N(A) S(A)
L(C) N(C) S(C)
L(B) N(B) S(B)
A. Elettric
Unit C
Unit B
DUAL
TRIAL
Unit A
Unit C
Unit A
Unit B
S(2) S(A) N(A) L(A) N
S(1) S(B) N(B) L(B) L
1(L)
S
W2(N) 1(L)
S
W2(N) 1(L)
S
W2(N)
Signal
N
L
Signal
N
L
Not
used
Ferrite core
Power supply
Ferrite core
Ferrite core
Ferrite core
Ferrite core
DUAL Unit Connections
TRIAL Unit Connections

18
GBGB
Note:
after the unit has been switched off, or after the operating mode has
been changed, the compressor will not start before 3 minutes.
During operation in Cooling mode, frost may form on the indoor unit or
on the pipes.
Run the unit as indicated in the instruction manual. Explain the operation
of the air conditioning unit to the end user using the instruction manual.
Points to confirm during the operating test:
Are there gas leaks from the pipe couplings?
 Have the pipe couplings been thermally insulated?
 Are the electrical connections of the indoor units and of the outdoor
unit correct?
 Is the cable connecting the indoor units and the outdoor unit firmly
attached?
 Is the condensate drained correctly?
 If the earth wire firmly connected?
 Does the supply voltage comply with the regulations in force?
 Can you hear strange noises?
 Is operation in Cooling mode normal?
 Does the room temperature sensor work correctly?
7.2 Coolant recovery
The coolant must always be collected in special cylinders using the
recovery unit and following the operating instructions of the same.
Note:
the coolant must not be released into the atmosphere as specified in
the regulation (CE) no. 2037/2000 of the European Parliament and of
the Council.
6. EXTERNAL UNIT INSTALLATION7. CHARGE AND TEST OF THE SYSTEM
7.1 Operating test (the first ignition must be done
in Cooling mode)
Before starting the test, make sure that the following tasks have been
completed correctly:
- Piping;
- Connection of power cables;
- Correct correspondence of the indoor and outdoor unit;
- Top up coolant (if necessary);
- Make sure that all the shut-off valves are completely open;
- Check that the voltage supplied to the outdoor unit and to the indoor
units is 230V.
- To perform the test in Cooling mode, set the minimum temperature to
16°C.
- To perform the test in Heating mode, set the maximum temperature
to 30°C.
- First test each indoor unit one at a time both in Cooling mode and in
Heating mode, then test the simultaneous operation of all the indoor
units.
- After running the unit for 20 minutes, measure the delta T of the indoor
unit.
Note:
If the room temperature is below 16°C it is not possible to perform the
operating test in Cooling model using the remote control; in the same
way, if the room temperature is higher than 30°C, it is not possible to
perform the operating test in Heating mode.

19
GBGB
7. CHARGE AND TEST OF THE SYSTEM
7.2 Draining and filling
the refrigerating circuit with R 32
- The operations indicated below must be carried out only after discon-
necting the air conditioner from the power supply.
- The outdoor unit holds a refrigerant R 32 charge suitable for pipelines up
to 5 meters in length.
- Do not mix any substance other than the specified refrigerant R 32 into
the refrigeration cycle.
- When refrigerant gas leaks occur, ventilate the room as soon and as
much as possible.
- R 32 , as well as other refrigerants, should always be recovered and
never be released directly into the environment.
- Use a vacuum pump for R 32 exclusively. Using the same vacuum
pump
for different refrigerents may damage the vacuun pump or the unit.
- To use tools (manometric group, flexible and it pumps empty) exclusively
devoted to working fittings with refrigerant
R 32
- Do not substitute or mix one gas with another, as they are not compat-
ible.
- For and R 32 charge, it is imperative to introduce the refrigerant in
liquid phase.
7.1.1 Vacuum and charge procedure
- Tighten the unions (Fig. A) as indicated at page 6.3.
- Connect a vacuum pump to the service connection 3(fig. A), via a set
of portable pressure gauges.
- Keep it running until a vacuum of 1 mBar or below has been reached, if
the pump is fitted with a vacuum gauge, or for at least 25 minutes if a
vacuum gauge is not available..
- Close the valve on the set of gauges connected to the pump, and turn
the pump off.
- If the pressure gauge set is fitted with a vacuum gauge, wait at
least 5 minutes, then check that the vacuum in the system has been
maintained. If not, look for the cause of the leak.
- For pipelines longer than 5meters, it is necessary to fill the circuit, using a
measuring cylinder or an electronic balance, with a quantity of R 32 liquid
phase proportional to the size and length of the pipes used, as shown in
the following table page 11.
Flexible hose
connector Union 
3-way valve
Valve cap 2
Service connection 3
Service connection cap
Note:
To determine the charge additional Considering the length of a single
line.
Liquid
Flexible line
Gas
Vacuum pump
Gauge group
MIC55
After the addition of any refrigerant gas charge which may be necessary:
- Remove caps B(Fig. A) and with the appropriate key open the valves (it
is good practice to open them all the way, then close them by a half of a
turn).
- Put caps B(Fig. A) back on and tighten them.
- Check for possible leaks at the unions with a refrigerant gas leak
detector.
- Disconnect the equipment used from the union 3(fig A) and close the
service connectors, refitting their caps tightly.
7.1.2 Precautions when adding refrigerant
- Fill from the liquid pipe in liquid form.
- Precautions when adding R32. It is a mixed refrigerant, so adding it in
gas form may cause the refrigerant composition to change, preventing
normal operation.
- Before filling, check whether the cylinder has a siphon attached or not.
(lt should have something like “liquid filling siphon attached” displayed on
it.)
Fig. A
Filling a cylinder with an attached siphon
Stand the cylinder upright when filling.
There is a siphon pipe inside, so the cylinder need not
be upside-down to fill with liquid.
Filling other cylinders
Turn the cylinder upside-down when filing .
Check the type of refrigerant to be used on the machine namiplate.

20
1. DESCRIZIONE DEI COMPONENTI GBGB 8. DISPOSAL
8.1 Enviromental safeguard information!
This equipment contains fluorinated greehouse gases covered
by Kyoto Protocol. It should only be serviced or dismantled by
professional trained personnel.
Directive 2012/19/EC (WEEE): Information for users
This product complies with EU Directive 2012/19/EC.
The barred bin symbol on the appliance indicates that the product,
requiring separate treatment to household waste after its normal
working life, must be taken to a waste-sorting centre for electrical and
electronic appliances or returned to the retailer at the time of purchasing
a new equivalent appliance.
The user is responsible for taking the appliance to the appropriate waste
collection centre at the end of its working life.
Correct waste sorting, with the discarded appliance being sent for recy-
cling, treatment and compatible environmental disposal helps prevent
any negative effects on the environment and health, and encourages the
recycling of product materials.
For further detailed information regarding available collection systems,
please contact your local waste disposal service or the shop where you
made your purchase.
8.2 Disposal rules for the old air conditioner
Before disposing of your old air conditioner, make sure that it is off and
unplug it. The refrigerant it contains requires a special procedure for dis-
posal. Materials of value in the air conditioner can be recycled. Contact
local authorities or the waste disposal facility for more information.
Make sure you do not damage the pipes of the air conditioner before you
take it to the waste disposal facility. Help protect the environment by
following a correct, non-polluting method of disposal.
8.3 Disposal rules for the new air conditioner
packaging
All of the air conditioner packing materials can be disposed of without
harming the environment. The cardboard box must be cut into pieces and
delivered to a paper collection container. The plastic and polystyrene
packaging does not contain fluorine or hydrocarbons.
All of these materials can be deposited in a waste dump and recycled
after proper treatment. Contact your local authorities for information on
waste disposal.
8.4 Battery disposal
The batteries have been designed and produced with
high quality materials and the components can be
recycled and/or re-used.
The symbol of the crossed-out rubbish bin indicates that
the product (batteries) at the end of its useful life must
be handled separately from domestic waste and must be
sent to a separate waste collection center, as provided by the European
Community 2006/66EC, art. 20 and annex II.
If under the bin there is a chemical symbol, this indicates that the batter-
ies have a certain concentration of heavy metal.and it will be indicated
as follows:
Hg: mercury (0,0005%), Cd: cadmium (0,002%), Pb: lead (0,004%)
