Special Documentation
Proline Prosonic Flow P 500
Heartbeat Verification + Monitoring application package
HART
SD02593D/06/EN/01.21
71509604
2021-05-10
Valid as of version
01.01.zz (Device firmware)

Proline Prosonic Flow P 500 HART Table of contents
Endress+Hauser 3
Table of contents
1 Manufacturer's Declaration ......... 4
2 Certificate .......................... 5
3 About this document ................ 6
3.1 Document function ..................... 6
3.2 Content and scope ...................... 6
3.3 Symbols .............................. 6
3.4 Documentation ........................ 7
3.5 Registered trademarks ................... 7
4 Product features and availability ..... 8
4.1 Product features ....................... 8
4.2 Availability ........................... 8
5 System integration ................ 10
5.1 Automated data exchange ............... 11
5.2 Data exchange performed by the user (asset
management system) .................. 12
5.3 Data management ..................... 12
6 Heartbeat Verification ............. 19
6.1 Performance characteristics .............. 19
6.2 Commissioning ....................... 19
6.3 Operation ........................... 20
7 Heartbeat Monitoring ............. 46
7.1 Commissioning ....................... 46
7.2 Operation ........................... 47

Manufacturer's Declaration Proline Prosonic Flow P 500 HART
4 Endress+Hauser

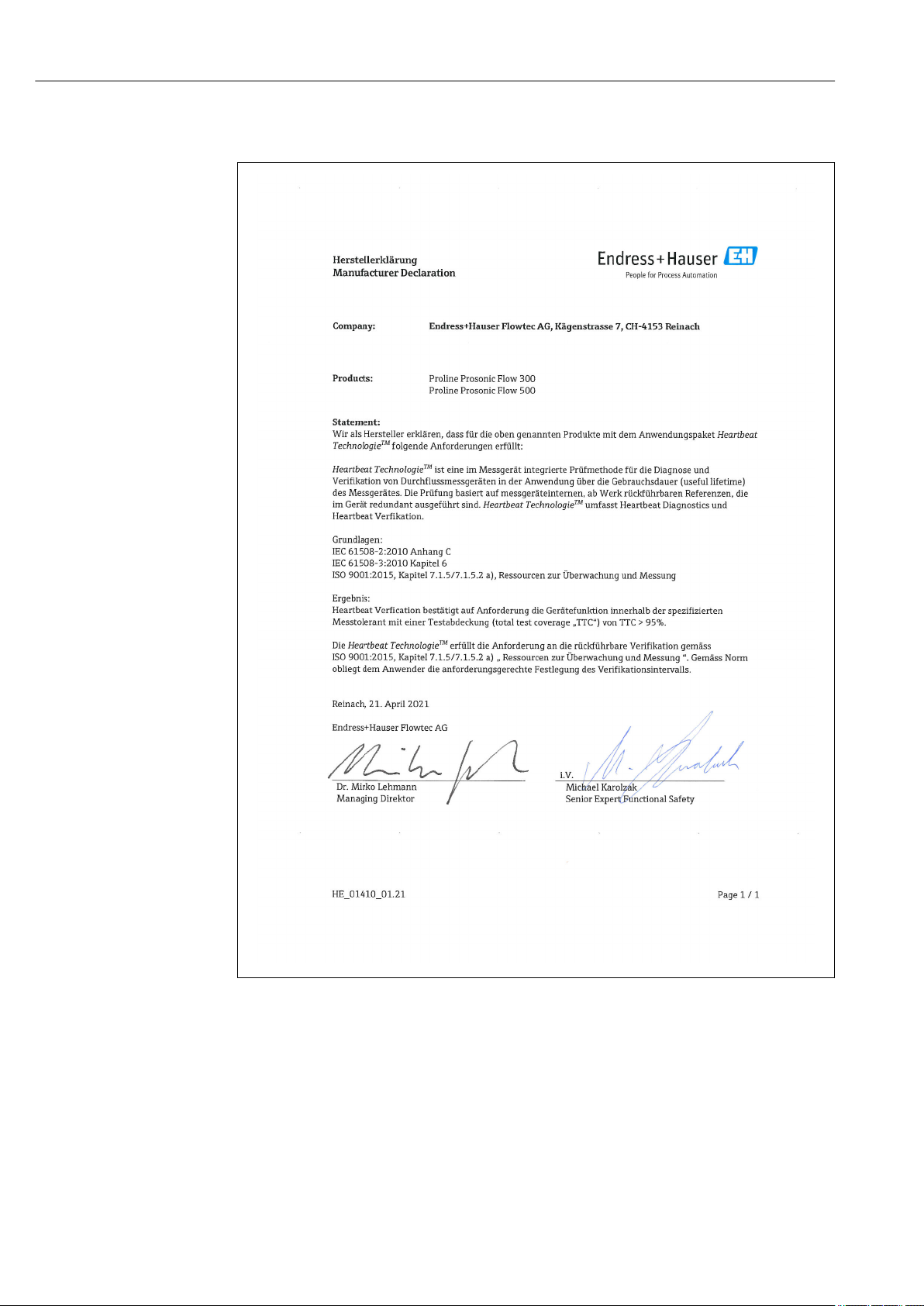

1 Manufacturer's Declaration
A0040349-EN

Proline Prosonic Flow P 500 HART Certificate
Endress+Hauser 5

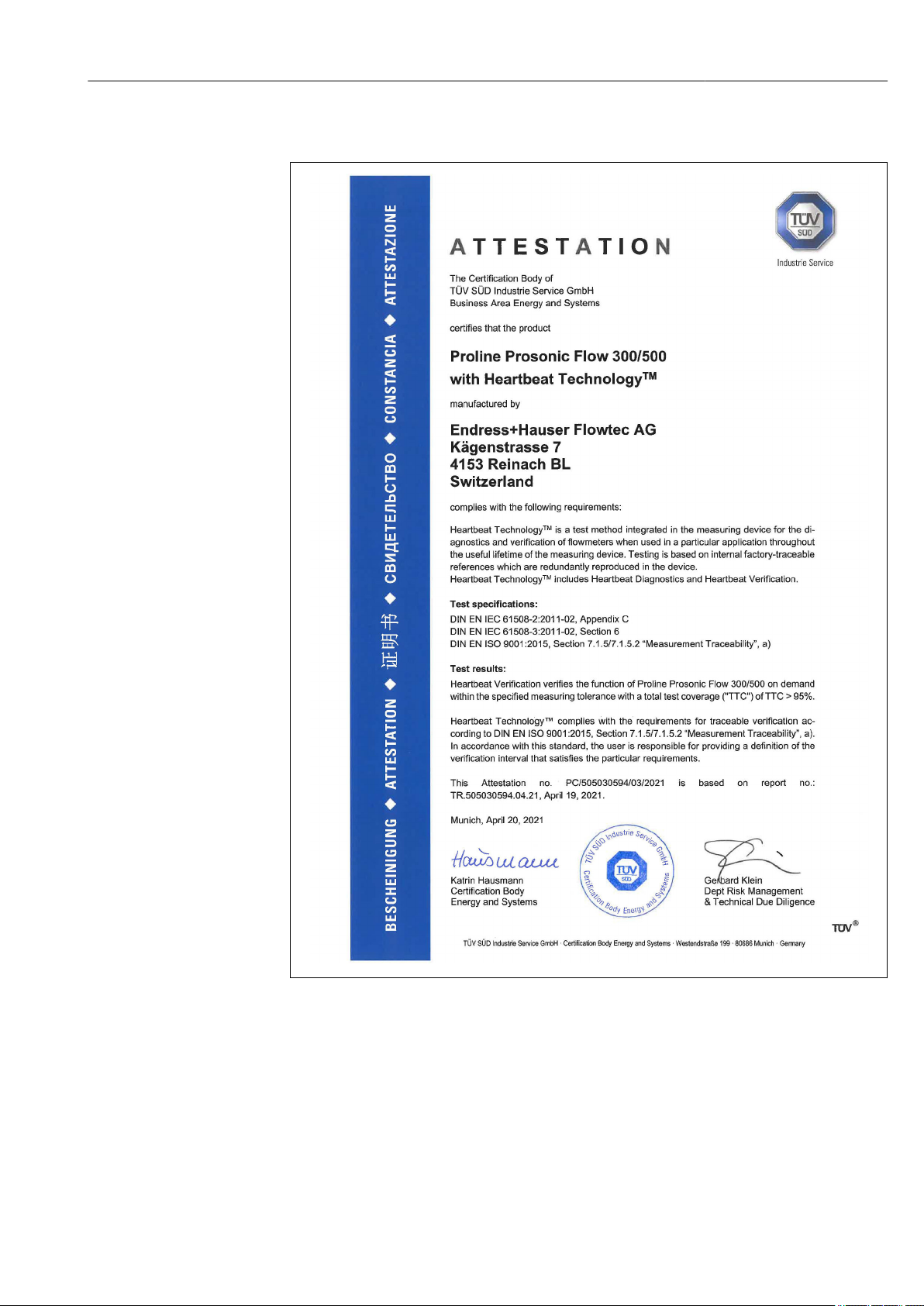

2 Certificate
A0045948-EN

About this document Proline Prosonic Flow P 500 HART
6 Endress+Hauser
3 About this document
3.1 Document function
This manual is a Special Documentation and does not replace the Operating Instructions
included in the scope of supply. It is a part of the Operating Instructions and serves as a
reference for using the Heartbeat Technology function integrated in the measuring device.
3.2 Content and scope
This document contains descriptions of the additional parameters and technical data of
the application package and detailed explanations regarding:
• Application-specific parameters
• Advanced technical specifications
3.3 Symbols
3.3.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
3.3.2 Symbols for certain types of information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation
A
Reference to page
Reference to graphic
Notice or individual step to be observed
1.
,
2.
,
3.
… Series of steps
Result of a step

Proline Prosonic Flow P 500 HART About this document
Endress+Hauser 7
Symbol Meaning
A0028662
Operation via local display
A0028663
Operation via operating tool
A0028665
Write-protected parameter
3.3.3 Symbols in graphics
Symbol Meaning
1, 2, 3 ... Item numbers
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
3.4 Documentation
For an overview of the scope of the associated Technical Documentation, refer to the
following:
•W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number
from nameplate
•Endress+Hauser Operations App: Enter the serial number from the nameplate or
scan the 2D matrix code (QR code) on the nameplate
This Special Documentation is available:
In the Download Area of the Endress+Hauser Internet site: www.endress.com →
Downloads
This documentation is an integral part of the following Operating Instructions:
Measuring device Documentation code
Prosonic Flow P 500 BA02025D
3.5 Registered trademarks
HART®
Registered trademark of the FieldComm Group, Austin, Texas, USA

Product features and availability Proline Prosonic Flow P 500 HART
8 Endress+Hauser
4 Product features and availability
4.1 Product features
Heartbeat Technology offers diagnostic functionality through continuous self-monitoring,
the transmission of additional measured variables to an external Condition Monitoring
system and the in-situ verification of flowmeters in the application.
The test scope achieved using these diagnostic and verification tests is referred to as the
Total Test Coverage (TTC). The TTC is calculated using the following formula for random
errors (calculation based on FMEDA as per IEC 61508):
TTC = (λTOT – λdu) / λTOT
λTOT: Rate of all theoretically possible failures
λdu: Rate of undetected dangerous failures
Only the dangerous undetected failures are not diagnosed by the device diagnostics. If
these failures occur, they can distort the measured value that is displayed or interrupt the
output of measured values.
Heartbeat Technology checks the device function within the specified measuring tolerance
with a defined TTC.
The current value for the TTC depends on the configuration and integration of the
measuring device. The values indicated above were determined under the following
conditions:
• Integration of the measuring device for measured value output via 4 to 20mA HART
output
• Simulation operation not active
• Error behavior, current output set to Minimum alarm or Maximum alarm and
evaluation unit recognizes both alarms
• Settings for diagnostic behavior correspond to factory settings
4.2 Availability
The application package can be ordered together with the device or can be activated
subsequently with an activation code. Detailed information on the order code is available
via the Endress+Hauser website www.endress.com or from your local Endress+Hauser
Sales Center.
4.2.1 Order code
If ordering directly with the device or subsequently as a retrofit kit:
Order code for "Application package", option EB "Heartbeat Verification + Monitoring"
The availability of the application package can be checked as follows:
• Order code with breakdown of the device features on the delivery note
• Call up the Device Viewer via the website www.endress.com/deviceviewer: enter the
serial number from the nameplate and check whether the feature is displayed
• In the operating menu Expert → System → Administration : The Software option
overview parameter indicates whether the application package is enabled

Proline Prosonic Flow P 500 HART Product features and availability
Endress+Hauser 9
4.2.2 Activation
A retrofit kit is supplied if the application package is ordered subsequently. This kit
includes a tag plate with device data and an activation code.
For detailed information on "Activating application packages via the software license
code", see Installation Instructions EA01164D
4.2.3 Access
Heartbeat Technology is compatible with all the system integration options. Interfaces
with digital communication are required to access the data saved in the device. The speed
of data transmission depends on the type of communication interface used.

System integration Proline Prosonic Flow P 500 HART
10 Endress+Hauser
5 System integration
The Heartbeat Technology features are available via the local display module and the
digital interfaces. The features can be used via an asset management system and the
automation infrastructure (e.g. PLC).
1 2
3
A0020248
1 PLC
2 Asset Management System
3 Measuring device
1
2
E+-
ESC
3 54
Verification
Verification
Verification
6
A0031421
1 Local display
2 Web browser
3 FieldCare
4 Data archive in the device
5 W@M Portal
6 Verification report

Proline Prosonic Flow P 500 HART System integration
Endress+Hauser 11
Run the Heartbeat Verification via one of the following interfaces:
• System integration interface of a higher-level system
• Local display
• WLAN interface
• Common Data Interface (CDI)
To start a verification and signal the result (Passed or Failed) the device must be accessed
externally from a higher-level system via the system integration interface. It is not possible
to start the verification via an external status signal and relay the results to a higher-level
system via the status output.
The detailed results of the verification (8 data records) are saved in the device and
provided in the form of a verification report.
Verification reports can be created using the device DTM and the Web server integrated in
the measuring device or the FieldCare plant asset management software from
Endress+Hauser.
With the Flow Verification DTM, FieldCare also offers the possibility of data management
and of archiving the verification results to create traceable documentation.
The Flow Verification DTM also enables trend analysis – i.e. the ability to monitor,
compare and track the verification results of all the verifications performed on the device.
This can be used for assessment purposes, e.g. to be able to extend recalibration intervals.
Data exchange can take place automatically or be triggered by a user.
5.1 Automated data exchange
• Instrument check via self-monitoring
• Start verification and verification status
The verification function integrated in the measuring device can be activated by a control
system and the results can be checked.
For more information on "System integration", see the Operating Instructions →  7
(documentation code)
The following procedure must be implemented for this purpose:
Performing verification
Start
Check Status
Performing verification
Status is Done
Check Result
Verification results
Status is Not done
Application specific
standard operating procedure
Device behavior as expected
Result is Passed Result is Failed
A0020258-EN
Verification result: The overall result of the verification is indicated in the Overall result
parameter. Different, application-specific measures must be performed by system routines
depending on the result, e.g. a "Maintenance Required" alert is triggered if Failed is
displayed as the result.

System integration Proline Prosonic Flow P 500 HART
12 Endress+Hauser
5.2 Data exchange performed by the user (asset
management system)
Heartbeat Monitoring
Configuration of the monitoring function: specify which diagnostic parameters are output
continuously via the system integration interface.
Heartbeat Verification
• Start of verification
• Upload, archive and document the verification results including detailed results
5.3 Data management
The results of a Heartbeat Verification are saved as a non-volatile parameter set in the
measuring device memory:
• 8 storage locations available for parameter data sets
• New verification results overwrite old data following the FIFO 1) principle
The results can be documented in the form of a verification report using the Web server
integrated in the measuring device or the Endress+Hauser asset management software,
FieldCare.

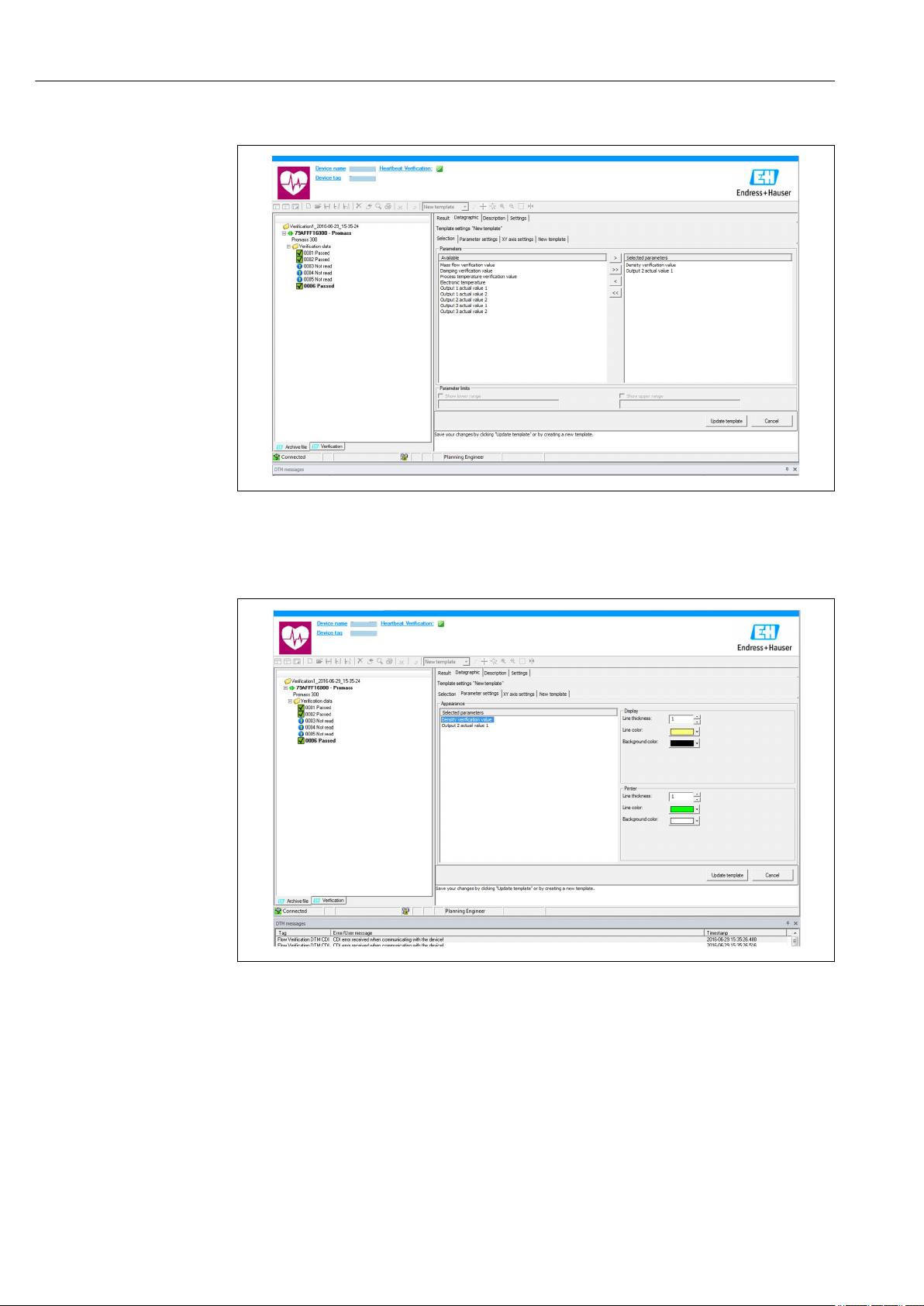

FieldCare also offers additional capabilities with the Flow Verification DTM:
• Archiving of verification results
• Export of data from these archives

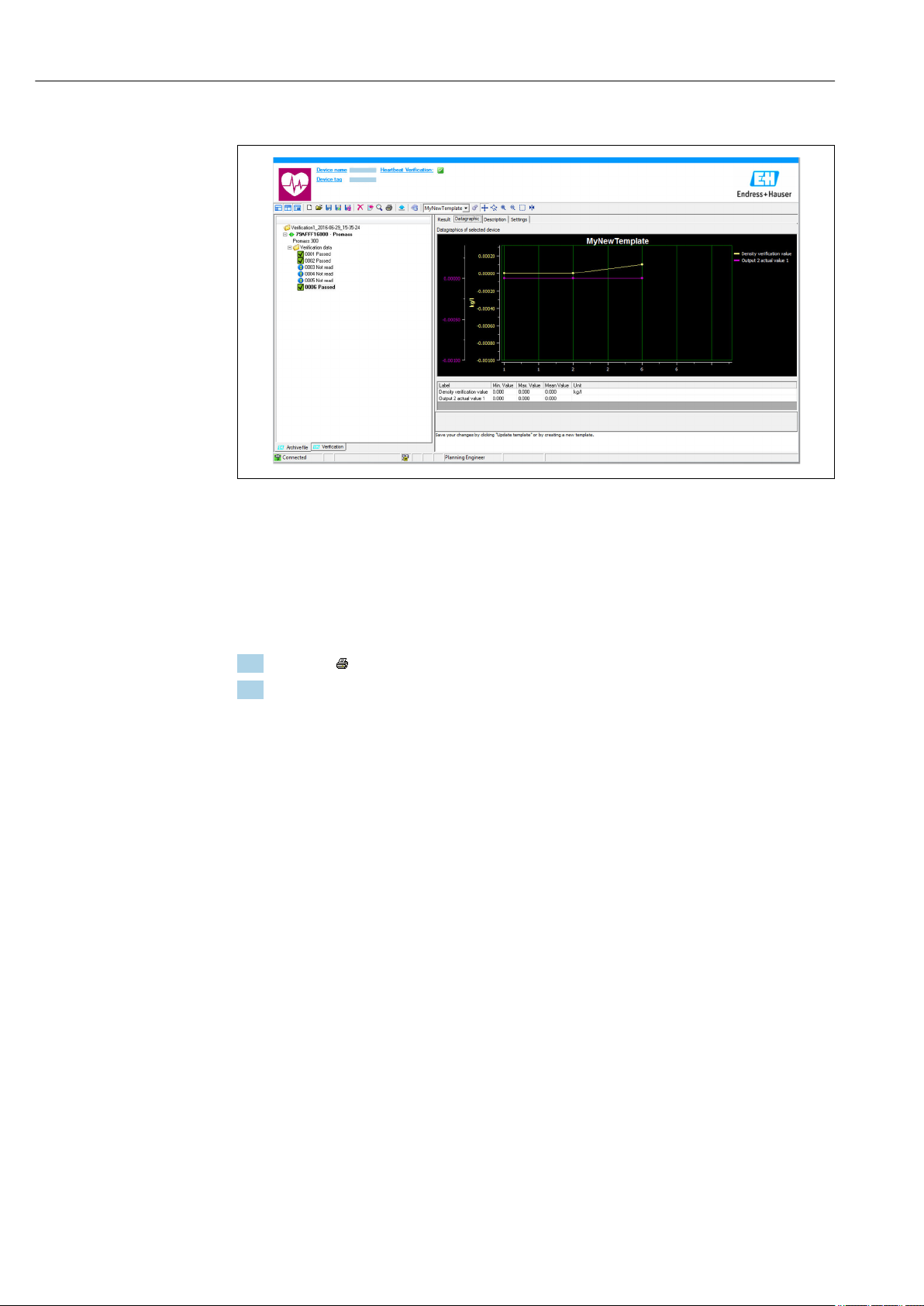

• Trend analysis of verification results (line recorder function)
5.3.1 Data management via Web browser
Thanks to the integrated Web server the device can be operated and configured via a Web
browser. In addition, it is possible to query the results of the verification and create a
verification report.
Printing a verification report
A verification report is created in PDF format.
Prerequisite: A verification has already been performed.
User interface in the Web browser following login:
A0031439
1. Click the navigation buttons Data management → Documents → Verification
report.
 The input area for downloading verification reports is displayed.
2. Enter the necessary information in the Plant operator and Location fields.
 The information entered here appears in the verification report.
1) First In – First Out

Proline Prosonic Flow P 500 HART System integration
Endress+Hauser 13
3. Select the result data set.
 A result data set is indicated as a time stamp in the drop-down list.
If no verification has been performed, the message "No result data set" is
displayed here.
4. Click Upload.
 The Web server generates a verification report in PDF format.
5.3.2 Data management via Flow Verification DTM
A special DTM (Flow Verification DTM) is available for Heartbeat Verification. The Flow
Verification DTM offers advanced capabilities for managing and visualizing the results.
Basic functions
The following basic functions are available:
Read data records from the device
Create a new archive
Open saved archive files
Save data sets to an existing archive file or initial saving of data sets to a new archive file
Save the data sets under a new file name; a new archive file is created in this case
Create a verification report in PDF format
Header
Xxxxxxxx
Xxxxxxxx
A0031425
• Top display area of the DTM
• Contains the following information:
• Measuring device
• Device tag
• Indicates whether verification is active: 
Reading out data
Start uploading the data from the measuring device to the asset management software.

System integration Proline Prosonic Flow P 500 HART
14 Endress+Hauser
A0031426
 1 Sample graphic
‣Click an individual data set.
 Selected data sets, which are saved in the measuring device, are transmitted to the
asset management software and visualized.
Verification results
Details for the verification results are displayed in the data area.
The data area is split into 3 tabs:
• Result – status, test group and detailed results including limit values
• Data graphic – visualization of results as a trend curve
• Description – additional descriptions and information entered by the user
Saving to an archive file
Save the data to an archive after upload.

Proline Prosonic Flow P 500 HART System integration
Endress+Hauser 15
A0031427

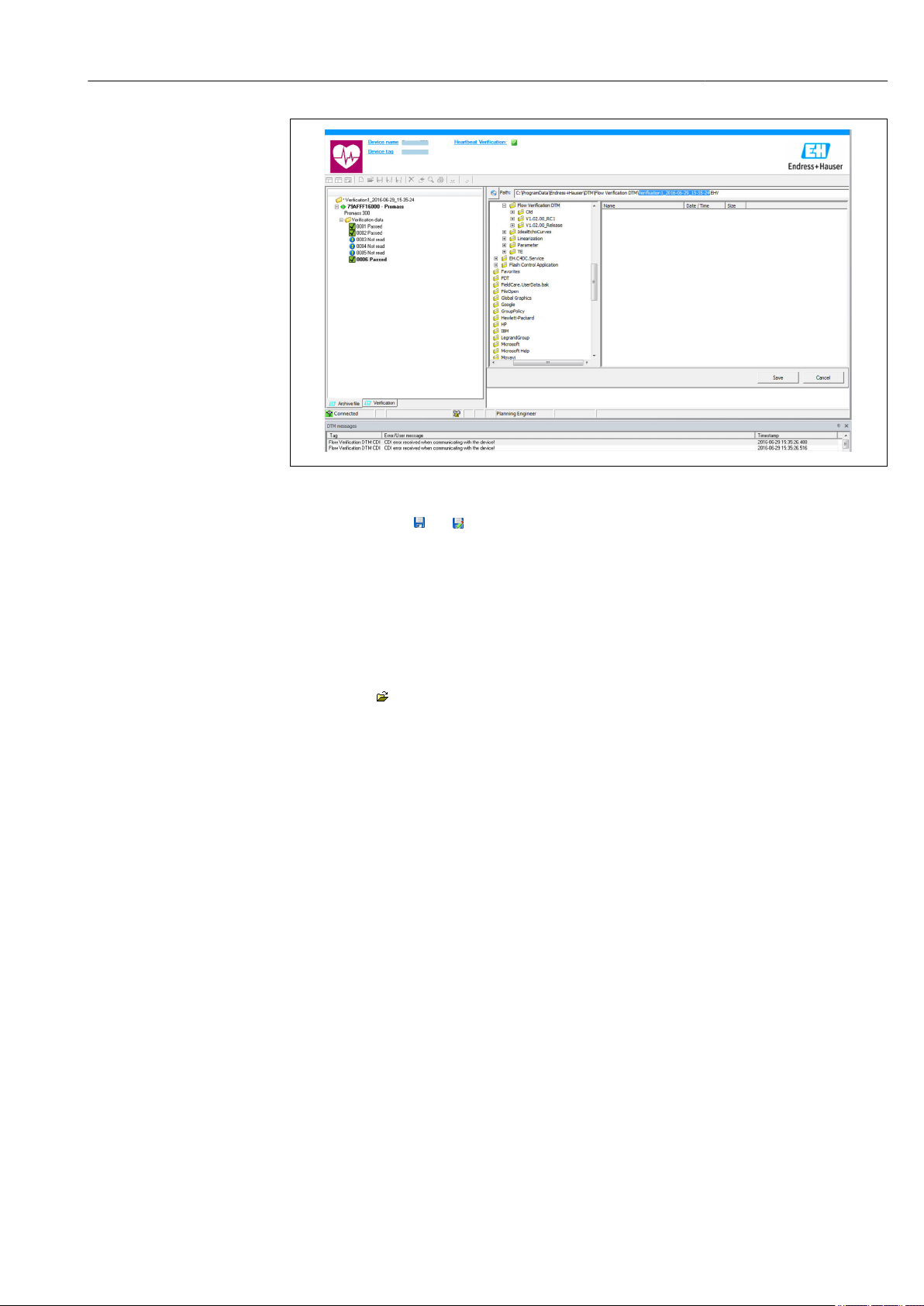

 2 Sample graphic
‣Click the icons or .
 A file with the extension ".EHV" is generated.
This file is used to archive the data. It can be read and interpreted by every asset
management system with an installed Flow Verification DTM and is therefore also
suitable for analysis by a third party (e.g. Endress+Hauser service organization).
Opening the archive file
Open archive files already available.
‣Click the icon.
 The archive data are uploaded to the Flow Verification DTM.
Configuring visualization and trending
The verification data can be visualized in the Graphic tab in the data area. The data saved
in the archive are visualized as a graph over time. For this purpose, any of the data
available can be selected.

System integration Proline Prosonic Flow P 500 HART
16 Endress+Hauser
Selecting the measured variables
A0031430
 3 Sample graphic
‣Select the measured variables using the list displayed.
Visualizing a graph
A0031433
 4 Sample graphic
‣Assign properties for visualization of the graph.

Proline Prosonic Flow P 500 HART System integration
Endress+Hauser 17

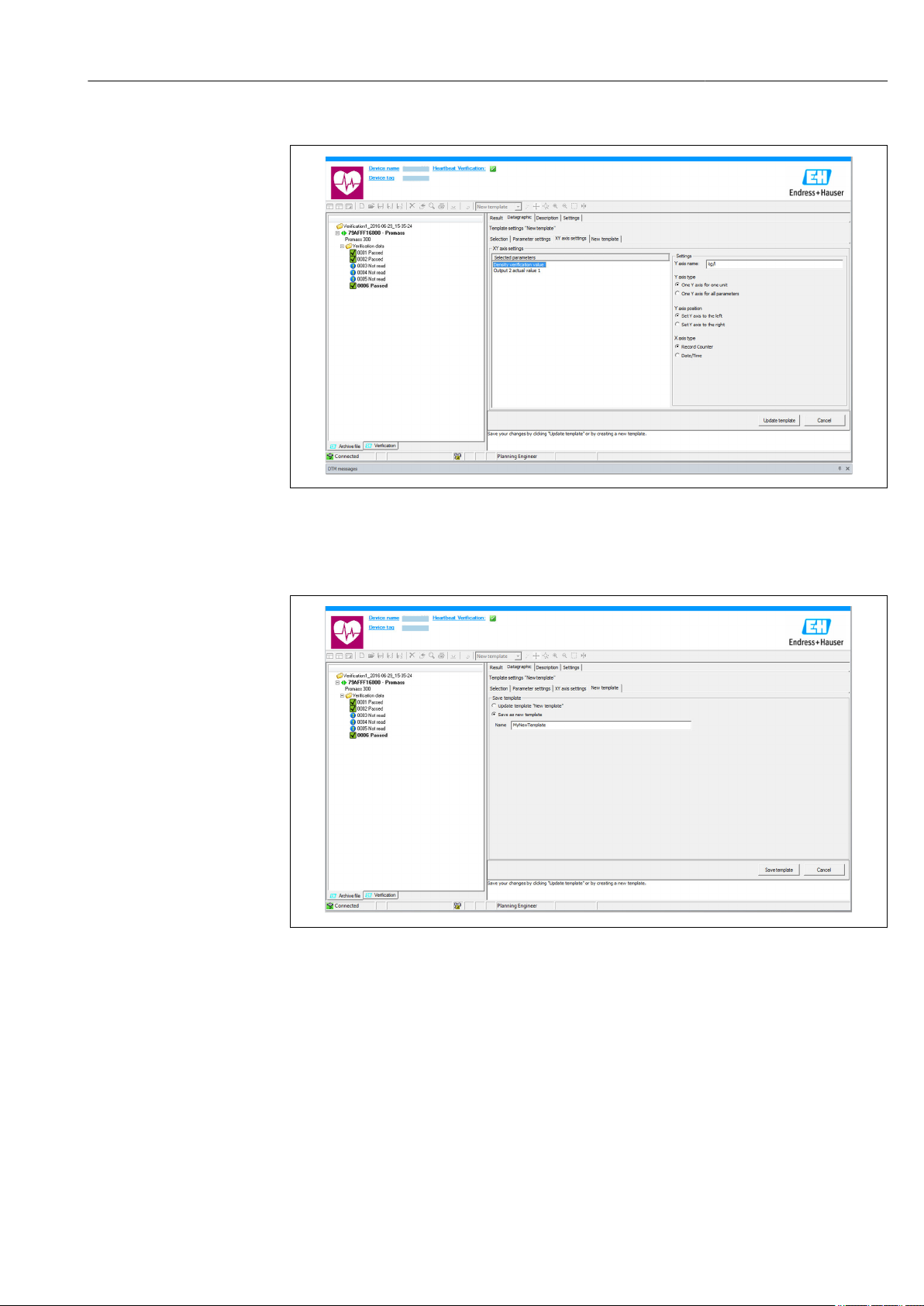

Configuring the Y-axis
A0031434
 5 Sample graphic
‣Assign the measured variables of the Y-axis.
Updating template or creating new template
A0031437
 6 Sample graphic
‣Add a selected parameter configuration to the template or save under a new template
name.

System integration Proline Prosonic Flow P 500 HART
18 Endress+Hauser
Showing the visualization trend
A0031438
 7 Sample graphic
‣Display the template.
 The template shows the data in chronological order. The data points are referenced
by the verification ID (X-axis), the Y-axis displays the parameters defined in the
configuration.
Creating a verification report
1. Click the icon.
2. Select the data set.
 A verification report is generated.

Proline Prosonic Flow P 500 HART Heartbeat Verification
Endress+Hauser 19
6 Heartbeat Verification
Heartbeat Verification checks the device function within the specified measuring tolerance
on demand. The result of the verification is "Passed" or "Failed".
The verification data are saved in the device and, optionally, are archived on a PC with the
FieldCare asset management software. A verification report is generated automatically on
the basis of these data to ensure the traceable documentation of the verification results.
Heartbeat Technology offers two ways to perform Heartbeat Verification:
• Standard verification →  21
Verification is performed by the device without manual checking of external measured
variables.
• Extended verification →  24
Verification includes the entry of external measured variables.
6.1 Performance characteristics
Heartbeat Verification is performed on demand and complements the self-monitoring
function, which is performed constantly, with other tests.
Standard verification additionally checks the following inputs and outputs:
• 4 to 20 mA current output, active and passive
• Pulse/frequency output, active and passive
• 4 to 20 mA current input, active and passive
• Double pulse output, active and passive
• Relay output
Extended verification supports a check of the sensors using a test kit and the following
output modules:
• 4 to 20 mA current output, active and passive
• Pulse/frequency output, active and passive
The verification is based on references that are incorporated in the measuring device,
traceable from the factory and redundant in the device. Heartbeat Verification confirms
on demand the device function with the total test coverage (TTC).
Assessed by an independent body: Heartbeat Technology meets the requirement for
traceable verification according to DIN EN ISO 9001: 2015 Chapter 7.1.5.2 a) Control of
monitoring and measuring equipment.
6.2 Commissioning
Recommendation: Perform initial verification when commissioning the device (and all
other verifications in the life cycle) under process or reference conditions. →  12.
The results are saved as an initial situation in the measuring device life cycle up until
the 8th verification; from the 9th verification onwards an upload using the
verification DTM is recommended.
6.2.1 Recording reference data
It is possible to manually record reference data relating to the operator and the location.
These reference data appear on the verification report.
Operation continues while the reference data are being recorded.
Navigation
"Setup" menu → Advanced setup → Heartbeat setup → Heartbeat base settings

Heartbeat Verification Proline Prosonic Flow P 500 HART
20 Endress+Hauser
Navigation
"Expert" menu → Diagnostics → Heartbeat Technology → Heartbeat base settings
‣Heartbeat base settings
Plant operator →  20
Location →  20
Parameter overview with brief description
Parameter Description User entry
Plant operator Enter the plant operator. Max. 32 characters such as letters, numbers
or special characters (e.g. @, %, /)
Location Enter the location. Max. 32 characters such as letters, numbers
or special characters (e.g. @, %, /)
6.3 Operation
6.3.1 General notes
In the case of measuring devices that are used in safety-related applications according
to IEC 61508, the SIL mode must be disabled in order to use the Heartbeat
Verification feature.
Initial verification
‣When commissioning the measuring device:
Perform an initial verification to save the results as an initial situation in the measuring
device life cycle. From the 9th verification onwards an upload using the verification
DTM is recommended.
Initial verification can be performed in 2 ways:
• Standard verification →  21
• Extended verification →  24
Device behavior and interpretation
Result "Passed"
All test results are within the specifications.
Verification generally delivers the result "Passed" in most applications.
Result "Failed"
One or more test results are outside the specifications.
If the verification delivers a "Failed" result, take the following measures:
1. Establish defined and stable process conditions.
2. Repeat the verification.
 Repeated verification "Passed"
If the result of the second verification is "Passed", the result of the first verification
can be ignored. In order to identify possible deviations, compare the current
process conditions with the process conditions of a previous verification.
