Endress+Hauser Tankvision Multi Scan NXA83 User manual

Products Solutions Services
BA01287G/00/EN/01.14
71244015
Valid as of software version:
3.0.10
Operating Instructions
Tankvision
Multi Scan NXA83
Installation and Maintenance manual
Weights and Measures Additions

Tankvision
2Endress+Hauser
Table of Contents
1 Document information . . . . . . . . . . . . . . 3
1.1 Target audience for this manual . . . . . . . . . . . . . . . 3
1.2 Version history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Document function . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Basic safety instructions . . . . . . . . . . . . 5
2.1 Requirements for the personnel . . . . . . . . . . . . . . . 5
2.2 IT security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.4 Workplace safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.5 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.6 Product safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 W&M Functionality. . . . . . . . . . . . . . . . . 9
4.1 Name Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2 Unlocking the system . . . . . . . . . . . . . . . . . . . . . . . . 9
4.3 Locking the system . . . . . . . . . . . . . . . . . . . . . . . . 11
4.4 Rear access panel . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.5 W&M display features . . . . . . . . . . . . . . . . . . . . . 13
4.6 Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Tankvision Document information
Endress+Hauser 3
1 Document information
1.1 Target audience for this manual
This manual is giving detailed information on the system capabilities and architecture. It
supports project and sales engineers in designing the system architecture during acquisition
and execution phase. Furthermore during operation time of the system all servicing
personnel in need of detailed knowledge about the system capabilites.
1.2 Version history
1.3 Document function
1.3.1 Used symbols
Safety symbols
Symbols for certain types of information
Document version Valid for SW version Changes to the previous version
BA01287/00/EN/01.14 3.0.10 Initial version
Symbol Meaning
A0011189-EN
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will
result in serious or fatal injury.
A0011190-EN
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in serious or fatal injury.
A0011191-EN
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in minor or medium injury.
A0011192-EN
NOTICE!
This symbol contains information on procedures and other facts which do not result
in personal injury.
Symbol Meaning
A0011193
Tip
Indicates additional information.
A0011195
Reference to page
Refers to the corresponding page number.
, , ... Series of steps
A0018373
Result of a sequence of actions
DANGER
WARNING
CAUTION
NOTICE
1.
2.

Document information Tankvision
4Endress+Hauser
Symbols in graphics
1.4 Documentation
1.4.1 Operating instructions
Symbol Meaning
1, 2, 3 ... Item numbers
, , ... Series of steps
A, B, C... Views
A0011187
Hazardous area
Indicates a hazardous area.
A0011188
Indicates a non-hazardous location
Safe area (non-hazardous area)
Document number Instrument Type of Document
BA01288G/00
•MultiScanNXA83
Operation manual
BA01290G/00 Installation and Maintenance manual
BA01291G/00 Configuration manual
BA01292G/00 DCC Configuration manual
BA01289G/00 OPC Tank Data Server manual
BA01297G/00 Web Client System Operation manual
BA01287G/00 Weights and Measures Additions
BA01296G/00 Redundancy manual
1.
2.
-
.

Tankvision Basic safety instructions
Endress+Hauser 5
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill the
following requirements:
• Trained, qualified specialists: must have a relevant qualification for this specific function
and task
• Are authorized by the plant owner/operator
• Are familiar with federal/national regulations
• Before beginning work, the specialist staff must have read and understood the instructions
in the Operating Instructions and supplementary documentation as well as in the
certificates
(depending on the application)
• Following instructions and basic conditions
The operating personnel must fulfill the following requirements:
• Being instructed and authorized according to the requirements of the task by the facility's
owner operator
• Following the instructions in these Operating Instructions
2.2 IT security
We only provide a warranty if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the device settings.
IT security measures in line with operators' security standards and designed to provide
additional protection for the device and device data transfer must be implemented by the
operators themselves.
Endress+Hauser can be contacted to provide support in performing this task.
2.3 Designated use
2.3.1 Applications
Inventory control
By using Tankvision Multi Scan to monitor the tank level and stored volume of valuable
liquids remotely, owners or operators of tank farms or terminals for petroleum products and
chemicals (liquids) can visualize the volume of the stored medium in real time. The data can
be used to plan the inventory and distribution. The data can also be used to manage tank
farm operations like pumping or transferring products. Tankvision has its unique concept
using network technology. Without using proprietary software, the users can visualize and
manage their valuable liquids stored in the tanks by a web browser. Tankvision Multi Scan
is a flexible and cost effective solution due to its scalable architecture. The application
coverage goes from small depots with only a few tanks up to refineries.
Inventory Calculations
Tankvision Multi Scan calculates based on measured variables and tank capacity tables:
• Observed/Gross volumes,
•Netvolumesand
•Mass

Basic safety instructions Tankvision
6Endress+Hauser
of products like
• Hydrocarbons,
• Liquefied gases,
• Asphalt.
They are corrected according to international standards, including API/ASTM tables 5A, 5B/
6, 53A, 53B/54, 23/24, LPG.
This includes temperature corrections at 15 °C, 60 °F and alternative temperatures.
Additionally, available pumpable volumes and water volume are calculated.
Remote configuration of measuring equipment
Some on-site operations can be avoided using remote configuration of measuring equipment
during commissioning or maintenance (the availability of this feature may depend on the
system configuration).
Application areas
• Tank farms in refineries
• Ship loading terminals
• Marketing and distribution terminals
• Pipeline terminals
• Logistic terminals for tanks storing products like crude oils, refined white and black
products, chemicals, LPG
2.4 Workplace safety
For work on and with the device:
• Wear the required personal protective equipment according to federal/national
regulations.
• Switch off the supply voltage before connecting the device.
2.5 Operational safety
Risk of injury!
• Operate the device in proper technical condition and fail-safe condition only.
• The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers
• If, despite this, modifications are required, consult with Endress+Hauser.
Repair
To ensure continued operational safety and reliability,
• Carry out repairs on the device only if they are expressly permitted.
• Observe federal/national regulations pertaining to repair of an electrical device.
• Use original spare parts and accessories from Endress+Hauser only.
2.6 Product safety
The device is designed to meet state-of-the-art safety requirements, has been tested and left
thefactory in a condition in which it is safe to operate. The device complies with the
applicable standards and regulations as listed in the EC declaration of conformity and thus
complies with the statutory requirements of the EG directives. Endress+Hauser confirms the
successful testing of the device by affixing to it the CE mark.

Tankvision Overview
Endress+Hauser 7
3Overview
This manual describes the additional features of the Weights and Measures version of the
Multi Scan NXA83, designated as Tankvision Multi Scan NXA83 W&M. The standard
features of the Multi Scan NXA83 are described in the Tankvision Multi Scan NXA83 I&M
manual.
The Multi Scan NXA83 is a configurable system designed for tank gauging and tank
inventory management systems.
It has been designed to fulfil a number of requirements some of which are listed below:
• Act as a foreign device gateway allowing old legacy equipment and devices with
proprietary interfaces to interface with modern devices using OPC and Ethernet
Technology
• To provide a complete tank gauging and tank inventory management system for small
sites. It can interface directly with a wide variety of tank gauging devices and provide a
number of communication links to host devices. The Multi Scan NXA83 polls the field
instruments maintaining an in-memory database of live and calculated data whilst also
being able to service host computers for data.
• It can provide up to 8 serial interfaces, capable of supporting a range of different electrical
interfaces such as RS232, RS485, BPM, Current Loop etc.
• An Ethernet port and two USB ports are also provided.
• There is a 7 in LCD touch screen built into the front of the device, with navigation via the
screen.
• The Weights and Measures version of the Multi Scan NXA83 supports extra functionality
so that the database and operating system can be physically locked and sealed by W&M
personnel. A system that has been sealed cannot have any changes carried out to the
operating system, tankgauging firmware, tankgauging database or any access to the flash
drive.
NXA83_WallMount_Title
Wall Mount

Overview Tankvision
8Endress+Hauser

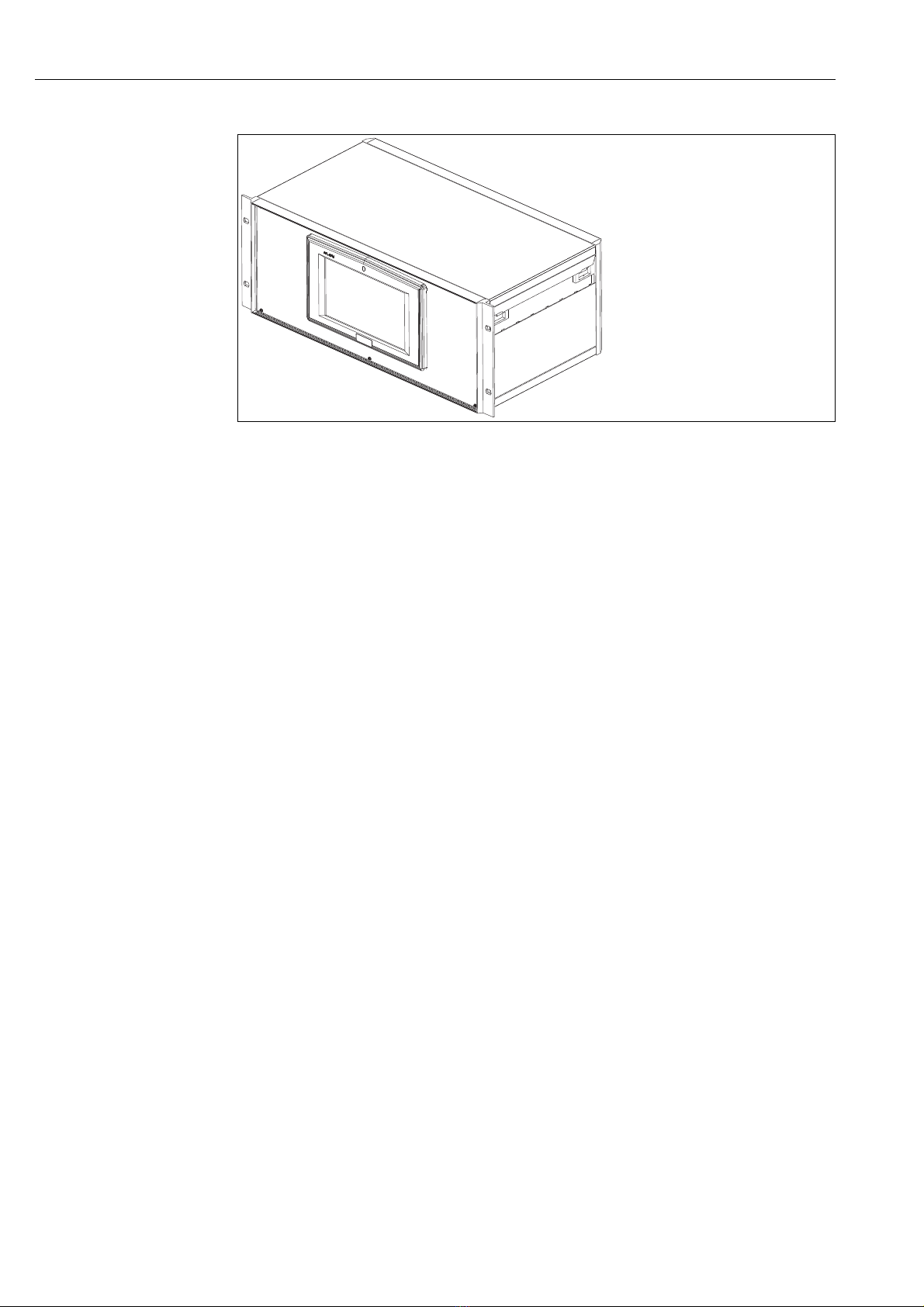

NXA83_RackMount_Title
19 in Rack Mount

Tankvision W&M Functionality
Endress+Hauser 9
4W&MFunctionality
4.1 Name Plate
nameplate
1 Address of manufacturer
2 Device name
3Ordercode
4 Extended order code (Ext. ord. cd.)
5 Serial number (Ser. no.)
6 Degree of protection
7Barcode
8CEmark
9 Admissible ambient temperature
10 Supply voltage
On the Wall Mount version of the Multi Scan NXA83, the name plate is attached on the right
hand side of the cover.
On the Rack Mount version of the Multi Scan NXA83, the name plate is attached on the left
side of the front.
The name plate is attached with seals to the Multi Scan NXA83.
4.2 Unlocking the system
The system must be unlocked before any modifications to the database/firmware can be
carried out, e.g. during commissioning.
There is a physical lock device inserted into the LX2 motherboard. This must be removed to
unlock the system. To gain access to the lock device, the front panel must be removed,
including the lead seals.
To unlock a Multi Scan NXA83:

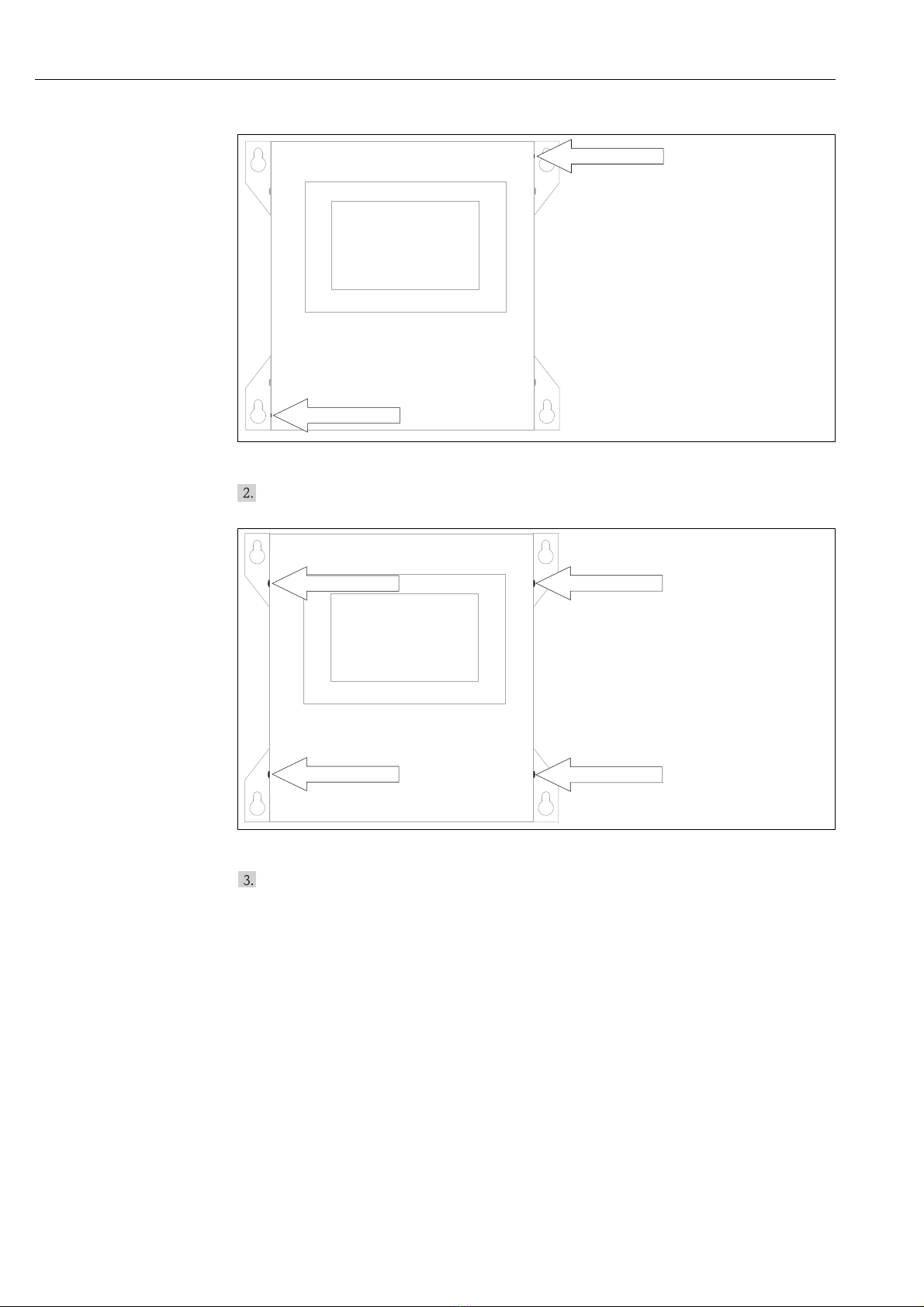

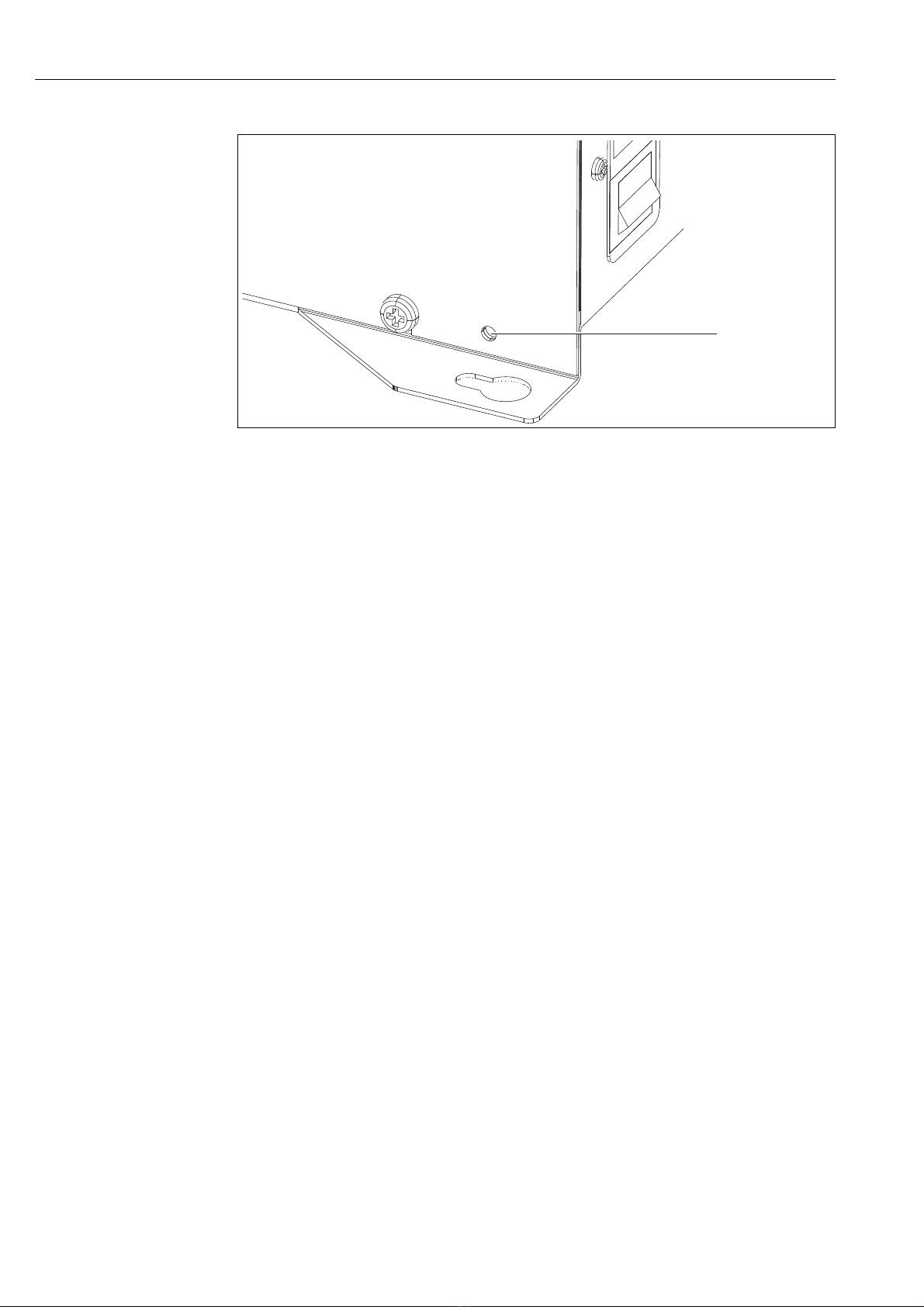

Break the seals on the top right and bottom left of the cover. These seals will consist of
lockwire through a hole in the cover and chassis (see diagram of hole location in Locking
section).
250002972--
Order code:
Ext. Order code:
Ser.-No.:
Tankvision
12345
7
8
9
10
6

W&M Functionality Tankvision
10 Endress+Hauser
NXA83_WallMount_Removing-Cover_Seals

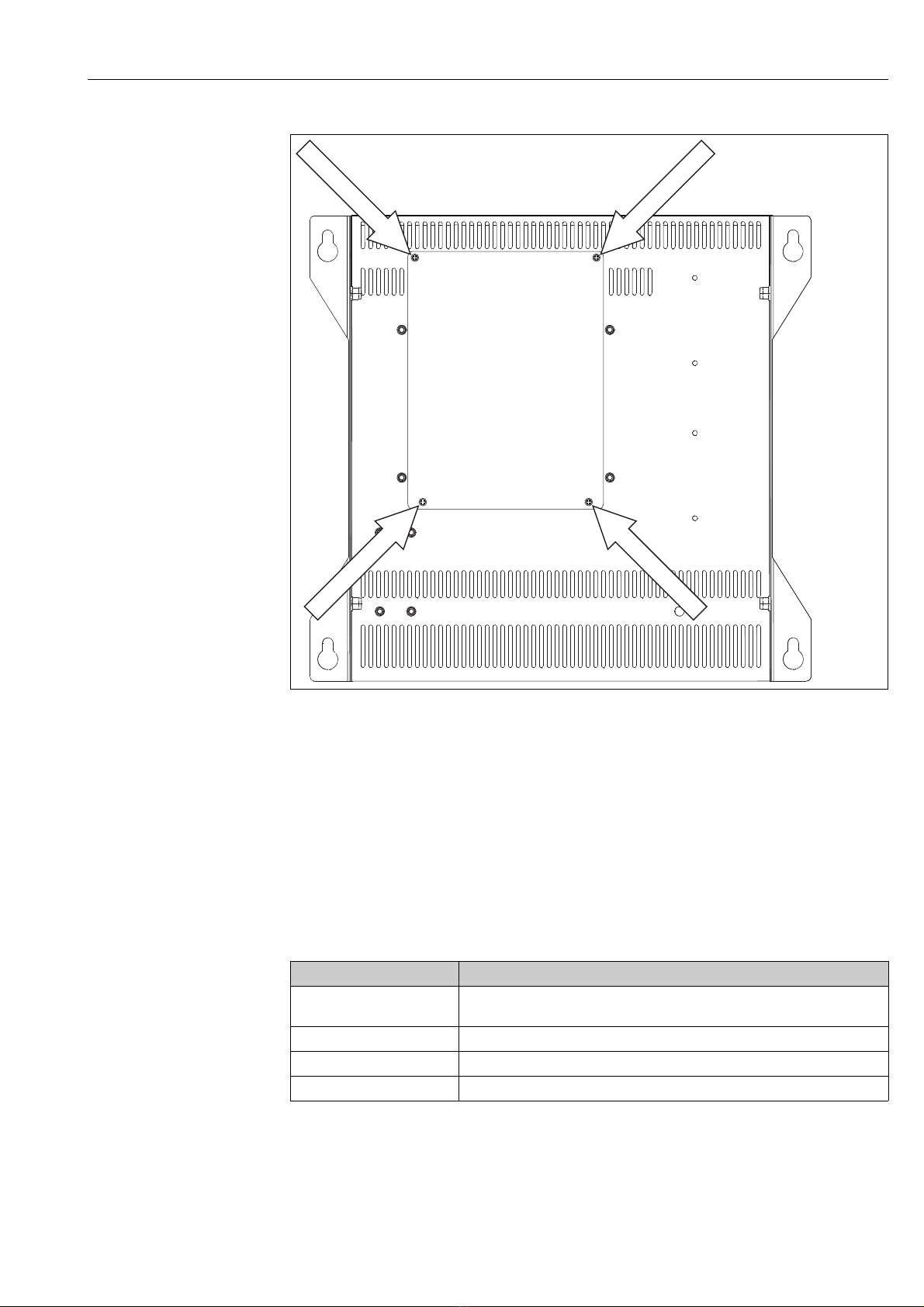

Loosen the four screws indicated below and remove the cover.
NXA83_WallMount_Removing-Cover_Screws
Remove the lock device (a 10 way IDC connector) plugged into connector CN14 on the
LX2 mother board.

Tankvision W&M Functionality
Endress+Hauser 11
NXA83_Wall-Mount_CN14
1W&MLock,CN14
Reboot the system.
The system will remain locked for approximately 1 minute following the reboot. After this
time all of the standard configuration activities may be carried out, such as downloading a
modified database from a configurator PC.

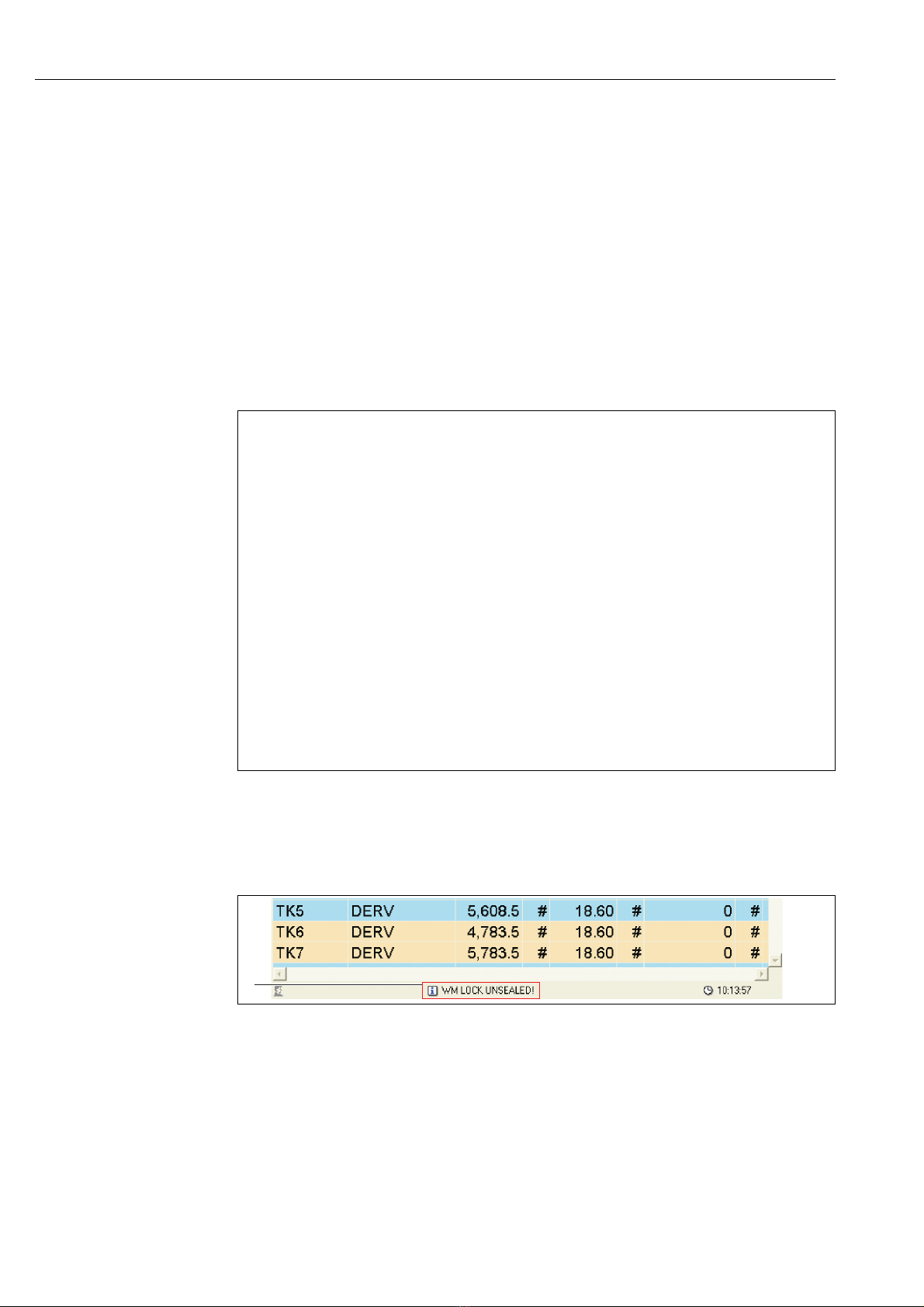

The tankgauging display on the NXA83 will show a message at the bottom of the screen, to
indicate the lock has been removed and the system is no longer W&M approved.
NXA83_Grid-View_WM-Lock-Unsealed
1Indicator:W&MLockunsealed
4.3 Locking the system
The procedure for locking the system is the reverse of unlocking:
Remove the cover.
Insert the Lock device into connector CN14 on the LX2 mother board.
Replace the cover and tighten the four screws.
Insert the lockwires in the top right and bottom left of the cover and seal. The wires
should be inserted through the cover and the base plate, thereby making it impossible
to remove the cover without breaking the seal.
1
4.
1
4.

W&M Functionality Tankvision
12 Endress+Hauser
NXA83_WallMount_Removing-Cover_Lockwire-Holes
1W&MLockwireHole
When the system is locked the following will apply:
• USB ports will not recognize and mouse or keyboard
• USB ports will not recognize any flash sticks
• The internal flash drive cannot be accessed via the network
• Remote control of the Multi Scan NXA83 is disabled
• The Tankgauging display screens cannot be closed, therefore no access is available to the
Windows operating system
This will prohibit any changes to the Windows operating system, the tankgauging firmware
and the tankgauging database.
4.4 Rear access panel
There is a removable panel on the underside of the Multi Scan NXA83, which is used to gain
access to the underside of the LX2 motherboard so that the internal flash memory drive may
be replaced.
This is not an operation that should normally be required, therefore this panel should be
locked at the time of commissioning. It does not need to be unlocked to carry out any
database modifications etc.
The rear panel will be fixed with four screws capable of being lockwired.
To lock the panel, insert a lockwire through the four screws and apply a seal to the lockwire.
1

Tankvision W&M Functionality
Endress+Hauser 13
NXA83_WallMount_Rear-Access-Cover
If access is required to the rear of the LX2 motherboard remove the seal and remove the
panel, but once finished the seal should be re-applied.
4.5 W&M display features
4.5.1 Data Status tags
The status of all data fields shown in the tankgauging screens will be indicated by a set of
characters displayed after the value (or replacing the value in the case of data failure). These
will include:
All values calculated from primary inputs (such as volumes, mass etc.) will inherit any status
values from the primary data used in the calculation.
Character Description
DN = Diagnostic Number: Indicates data failure and is followed by a two digit
number indicating the error code. This will replace the value displayed.
&Data is Manual input
SData is stored, i.e. Level when servo gauge is not following level etc.
#Data is not calibrated (not W & M approved)

W&M Functionality Tankvision
14 Endress+Hauser
Calibrate means that the tank has been accepted by W&M authorities for custody transfer.
The calibration status is configured using the offline configurator tools and stored in the
database. It may then be downloaded to the Multi Scan NXA83 when the device is unlocked.
It is configured for the following parameters:
• Tank Data (straps etc.)
•ProductLevel
•ProductTemperature
•Density
•WaterLevel
• Vapour Pressure
•VapourTemperature
The diagram below is an example of a Single Tank display configured to show the W&M
status fields.
NXA83_Tank-View_WM-Lock-Unsealed
4.5.2 Lock Status display
If the system is unlocked a message will be displayed on the status bar at the bottom of the
screen.
NXA83_Grid-View_WM-Lock-Unsealed
1Indicator:W&MLockunsealed
The system should not be considered W&M approved if this message is displayed.
When W&M locked the status message will read "WM APPROVED".
4.6 Printing
A printer may be connected as normal to the USB ports or via the network.
1

Tankvision W&M Functionality
Endress+Hauser 15
The same set of status tags will be printed against each data item as shown on the 7 in
display (→ä13 ).
NXA83_Weights&Measures_Inventory-Report

Tankvision
16 Endress+Hauser
Index
D
Data Status tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Designated use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
I
Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
L
Lock Status display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Locking the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
N
Name Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
O
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
P
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
R
Rack Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Rear access panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
S
Safety icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
U
Unlocking the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
W
W&M display features . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Data Status tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Lock Status display . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
W&M Functionality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Tankvision
Endress+Hauser 17

www.addresses.endress.com
71244015
