Safety instructions Stamoclean CAT430-*1
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The CAT430 micro/ultra filtration system is designated to take samples for process measuring
devices in sewage treatment plants.
The system transports clear samples directly from the clarification basin to the measuring device.
Any other use than the one described here compromises the safety of persons and the entire
measuring system and is not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.
1.2 Installation, commissioning and operation
Please note the following items:
• Installation, commissioning, operation and maintenance of the measuring system must only be
carried out by trained technical personnel.
Trained personnel must be authorized for the specified activities by the system operator.
• Electrical connection must only be carried out by a certified electrician.
• Technical personnel must have read and understood these Operating Instructions and must
adhere to them.
• Before commissioning the entire measuring point, check all the connections. Ensure that
electrical cables and hose connections are not damaged.
• Do not operate damaged products and secure them against unintentional commissioning.
Mark the damaged product as being defective.
• Measuring point faults may only be rectified by authorized and specially trained personnel.
• If faults can not be rectified, the products must be taken out of service and secured against
unintentional commissioning.
• Repairs not described in these Operating Instructions may only be carried out at the
manufacturer’s or by the service organization.
1.3 Operational safety
The product is designed to meet state-of-the-art safety requirements, has been tested and left the
factory in a condition in which it is safe to operate. Relevant regulations and European standards
have been observed.
As the user, you are responsible for complying with the following safety conditions:
• Installation instructions
• Local prevailing standards and regulations.
1.4 Return
If the device requires repair, please send it cleaned to the sales centre responsible. Please use the
original packaging, if possible.
Please enclose the completed "Declaration of contamination" (copy the second last page of these
Operating Instructions) with the packaging and the transportation documents.
No repair without completed "Declaration of contamination"!

Stamoclean CAT430-*1 Safety instructions
Endress+Hauser 5
1.5 Notes on safety icons and symbols
1.5.1 At the device
1.5.2 In the manual
1.6 Cross reference symbols
This symbol is found in various places on the device (nameplate, connection box, cable duct cover).
The symbol indicates that it is essential that you read the Operating Instructions for the subject in
question.
#Warning!
This symbol alerts you to hazards that can cause serious damage to the instrument or to persons if
ignored.
"Caution!
This symbol alerts you to possible faults which could arise from incorrect operation. They could
cause damage to the instrument if ignored.
!Note!
This symbol indicates important items of information.
È ä 1 This symbol indicates a cross reference to a defined page (e.g. p. 1).
È å 2 This symbol indicates a cross reference to a defined figure (e.g. fig. 2).

Identification Stamoclean CAT430-*1
6Endress+Hauser
2 Identification
2.1 Nameplate
2.1.1 Product structure
!Note!
Please, order filter element holders separately. See "Accessories".

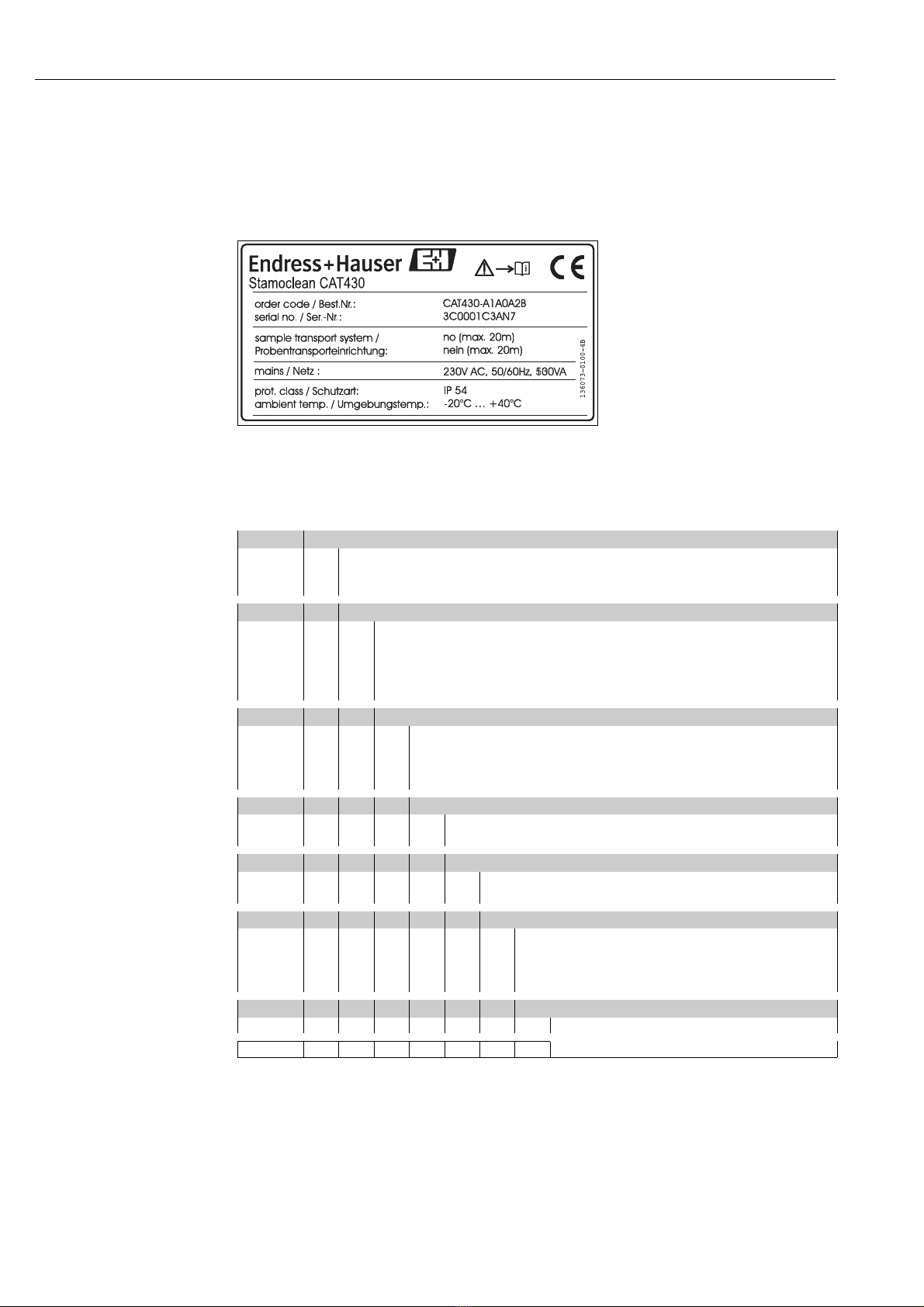

a0011044
Fig. 1: Example of a nameplate
Sample volume
A 250 ml/h (0.07 gal/hr); 1-2 CA71
B 500 ml/h (0.13 gal/hr); 3-4 CA71
Y Special version acc. to customers specification
Sample line (delivery rate, pump type and hose at the pressure side)
1 up to 20 m (65 ft), with diaphragm pump and 20 m (65 ft) hose
4 up to 100 m (330 ft) with diaphragm pump and 100 m (330 ft) hose
5 up to 100 m (330 ft) with diaphragm pump and 50 m (160 ft) hose
6 up to 100 m (330 ft) with diaphragm pump and 20 m (65 ft) hose
9 Special version acc. to customers specification
Heating at the pressure side
A Without sample hose heater
D With 8 m (26 ft) sample hose heater
F With 18 m (59 ft) sample hose heater
Y Special version acc. to customers specification
Power supply
0230VAC
1115VAC
Heating at the suction side
A with heating
B without heating
Additional equipment
2 Mounting bracket (for control box), wall mounting
3 Mounting bracket (for control box), rail mounting
4 Housing for additional CNS70 resp. CSS70
9 Special version acc. to customers specification
Assembly
A No assembly
CAT430 - complete order code

Stamoclean CAT430-*1 Identification
Endress+Hauser 7
2.2 Scope of delivery
The scope of delivery comprises:
• 1 control box, complete:
– with filtrate line connected (suction side), length 4.5 m (14.8 ft), hose heating 24 V
– 4 plastic brackets for wall mounting
– 2 pipe clamps 44 - 49 mm (1.73 - 1.93 inch), set screw M8, for rail mounting
– 1 rubber stop with screw, for rail mounting
•Setof:
– 1 collecting vessel with PE hose 10/8 mm (0.31/0.39 inch), length 2.5 m (8.2 ft)
– 1 PE hose roll 4/2 mm (0.16/0.08 inch), length 2.5 m (8.2 ft)
– 1 PVC hose roll 4/2 mm (0.16/0.08 inch), length 2.0 m (6.7 ft)
– 1 PVC vent hose 6/4 mm (0.24/0.16 inch), length 4 m (13.1 ft)
– 1 housing key
– 1 knurled nut
– 1 dummy plug
– 1 pressure-reducing valve
– 1 reducing fitting 4 --> 1/8 inch
– 1 fitting 4 mm (0.16 inch)
• 1 or 2 Filter plate(s) (depending on ordered version)
• 1 or no assembly (depending on ordered version)
• 1 filtrate line (pressure side) with PE filtrate hose 4/2 mm(0.16/0.08 inch), min. length 20 m
(66 ft) depending on ordered version
• 1 acceptance certificate
• 1 Operating Instructions BA338C/07/en
2.3 Certificates and approvals
Declaration of conformity
The product meets the requirements of the harmonized European standards. It thus complies with
the legal requirements of the EC directives.
The manufacturer confirms successful testing of the product by affixing the 4symbol.

Installation Stamoclean CAT430-*1
8Endress+Hauser
3 Installation
3.1 Incoming acceptance, transport, storage
• Make sure the packaging is undamaged!
Inform the supplier about any damage to the packaging.
Keep the damaged packaging until the matter has been settled.
• Make sure the contents are undamaged!
Inform the supplier about damage to the contents. Keep the damaged products until the matter
has been settled.
• Check that the order is complete and agrees with your shipping documents.
• The packaging material used to store or to transport the product must provide shock protection
and humidity protection. The original packaging offers the best protection. Also, keep to the
approved ambient conditions (see "Technical data").
• If you have any questions, please contact your supplier or your local sales center.
3.2 Quick installation guide
A complete measuring system comprises:
• a CAT430 filter system
• a collecting vessel
• a CA71xx analyzer
Optionally, a sensor with flow assembly can also be integrated into the measuring system (external
only, cannot be installed in the control box housing).
If an assembly with low dead volume and flow resistance is used (see "Accessories"), the sensor can
be installed in line with the analyzer’s inlet.
a0007145

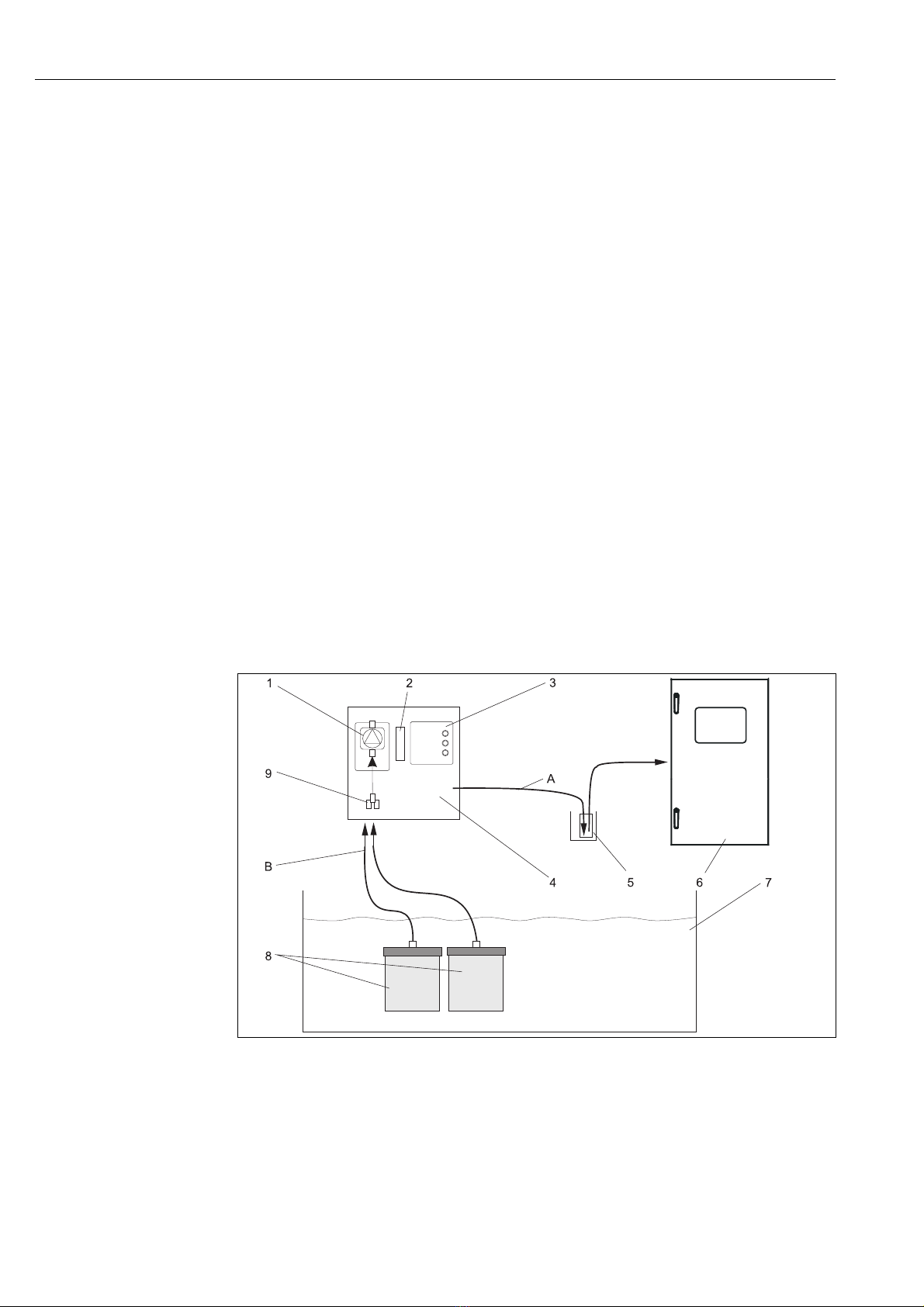

Fig. 2: Measuring system
1 Pump box 5 Collecting vessel
2 Timer 6 Analyzer
3 Control unit 7 Activated sludge basin
4 Diaphragm pump 8 Membrane filter
A Sample line to the analyzer (discharge side)1)
1) Two sample hoses are integrated in a protecting hose: 1 x 1.5/3 mm (0.06/0.12 inch) PTFE hose (standard) and
1 x 2/4 mm (0.08/0.16 inch) PE hose (spare).
9 Y-piece
B Filtrate line from the filter elements (suction side of the pump, PE, 4.5 m (15 ft), with hose heating)

Stamoclean CAT430-*1 Installation
Endress+Hauser 9
3.3 Installation instructions
To mount the individual modules, proceed as follows:
1. Mount the filter element holders.
2. Mount the guide tube, retaining slide and filtrate line.
3. Mount the filter elements.
4. Mount the control box.
5. Connect the sample lines to the measuring devices.
"Caution!
• Before beginning installation, make sure that there are no pipes, stirrers or other equipment up to
approx. 1 m (3.3 ft) below the surface of the water at the intended point of installation. This
equipment can damage the filter elements.
• Check that there is sufficient space between the filter unit and the rim of the basin. This applies
especially to filter units with numerous filter elements.
If there is not sufficient space, a special holder must be used.
• The flow rate at the point of installation must not be over 2 m/s (6.6 ft/s).
3.3.1 Mounting the filter element holders
!Note!
Please, order filter element holders separately. See "Accessories".
!Note!
You will need a hammer drill with a 12 mm (0.47 inch) drill bit.
a0007158

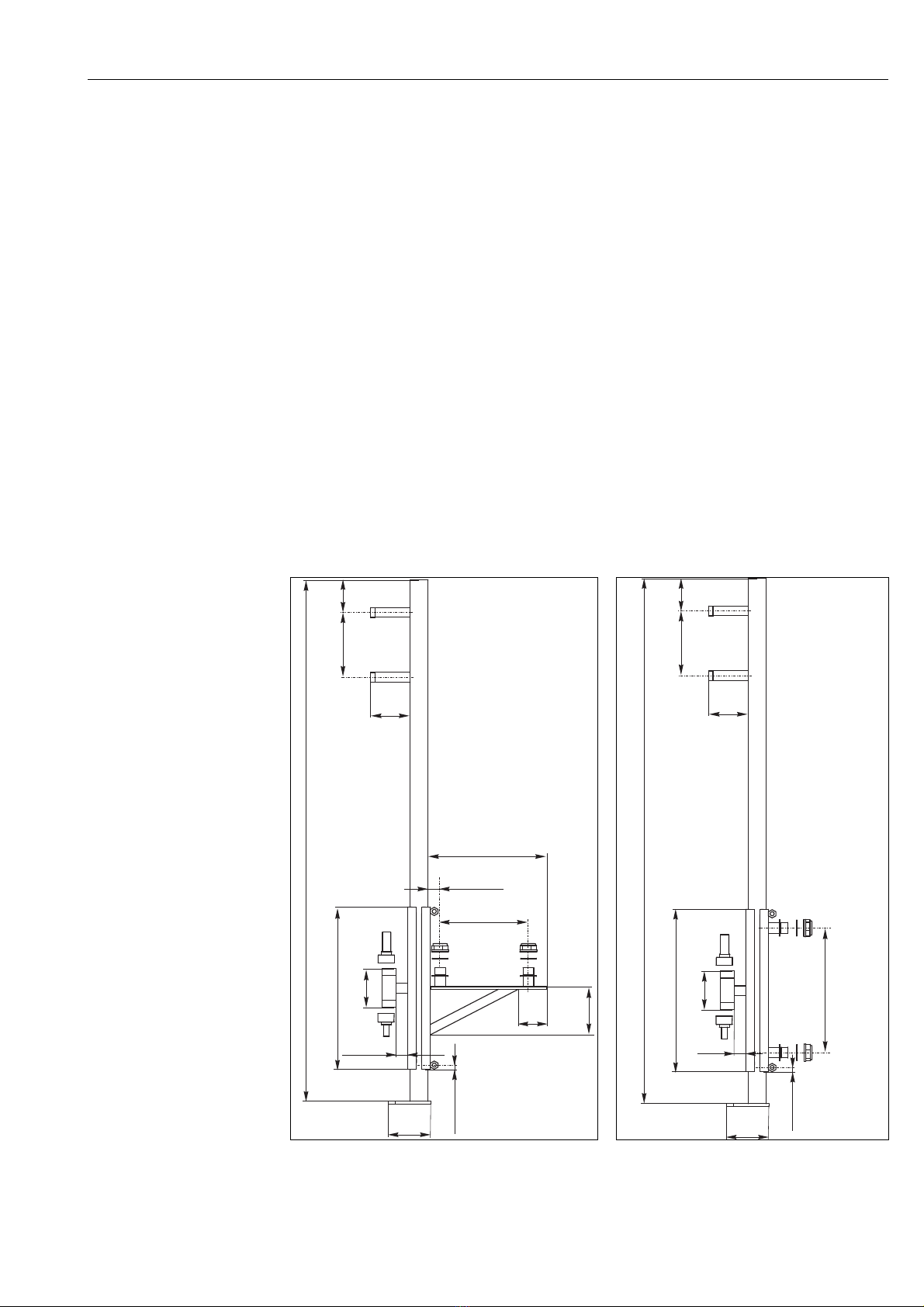

Fig. 3: Holder for open channel, side view
a0007157
Fig. 4: Holder for basin, side view
100
(3.94)
525 (20.7)
75 (2.95)
150
(5.91)
200
(7.87)
100
(3.94)
1500 / 1800 (59.1 / 70.9)
108
(4.25)
30 (1.18)
120 (4.72)
500 (19.7)
400 (15.8)
160
(6.30)
12 (0.47)
mm (inch)
30 (1.18)
120 (4.72)
500 (19.7)
400 (15.8)
200
(7.87)
100
(3.94)
1500 / 1800 (59.1 / 70.9)
108
(4.25)
160
(6.30)
12 (0.47)
mm (inch)

Installation Stamoclean CAT430-*1
10 Endress+Hauser
1. Drill four holes with a diameter of 12 mm (0.47 inch) into the side of the wall facing the basin.
The distance from the upper end of the wall should be approx. 10 cm (3.94 inch).
2. Screw the holders in.
Make sure, the basin holder is at least 60 cm (23.6 inch) below the water level (resp. the open
channel holder at least 35 cm (13.8 inch)).
3.3.2 Mounting the retaining slide and filtrate pipe
Perform the following steps outside the basin resp. the open channel:
1. Feed the filtrate hose (→å6, pos. 3) of the filtrate line (pos. 1) through the T-piece at the
PVC retaining slide (pos. 5).
2. Screw the filtrate line in tight with the PVC hose gland of the T-piece.
3. Fasten the stainless steel chain at the retaining slide by directing it through the heaxagon nut
(pos. 8).
4. Remove the PVC screw caps (pos. 4) and place them so that they can be reached.
"Caution!
• Secure the retaining slide, the stainless steel chain, the filtrate line and the PVC caps, in order to
prevent them falling into the basin.
• Do not push the retaining slide onto the mounting guide pipe before having mounted the filter
elements.
a0007156
Fig. 5: Wall mounting of the filter holder (accessories)
a0007150
Fig. 6: Filter element with retaining slide
1
2
3
4
5
6
7
8
Filtrate line
T-piece
Filtrate hose
PVC thread cap
Retaining slide
Filter element
Mounting guide pipe
Hexagon nut
150 (5.91)
180 (7.09)
Ø12 (0.47)
mm (inch)

Stamoclean CAT430-*1 Installation
Endress+Hauser 11
3.3.3 Mounting the filter elements
The filter elements are delivered ready for use. They are packed in a plastic bag with an additional
cover of corrugated cardboard to protect them against mechanical damage.
"Caution!
• The surface of the filter element membrane (bright surface) must not be touched or in any way
scratched with sharp objects or fingernails. Otherwise, the membrane is irreparably damaged.
Therefore, always handle the filter element at the free-standing PVC ends.
• Once it is used for the first time in the basin, always keep the membrane moist. Otherwise, it
becomes brittle and breaks.
!Note!
You will need an open-end wrench 14/15 a/f.
Installation:
1. Open the corrugated cardboard cover at the top by removing the tear-off strip.
2. Remove the corrugated cardboard spacer. There is a threaded elbow joint in the middle of it,
which you will require in the step after the next.
3. Take out the filter element and remove the plastic bag.
4. Screw the threaded elbow joint into the threaded hole on the reverse side of the filter element.
Carefully tighten the threaded elbow joint with the open-end wrench, so that the O-ring on
the threaded elbow joint seals cleanly to the PVC carrier plate. Avoid over-tightening the
thread.
5. Have the PVC screw caps (→å6, item 4) ready.
6. Put the filter plate onto both threaded adapters at the retaining slide (item 5) such that the
threaded elbow joint faces the retaining slide.
7. Screw the PVC cap on by hand.
8. Cut the filtrate hose (item 3) to the right length, so that it runs in the bend.
!Note!
When using numerous filter elements, ensure that the colored identification sleeves on the filtrate
hoses do not fall off and are not cut off. Used hoses should be shortened by approx. 10 mm (0.39
inch) because the lateral surface always gets scratched somewhat when pulled out. This leads to
leakages.
9. Slide the filtrate hose into the threaded elbow joint coupling and press it all the way in. There
is an O-ring in the coupling, so that the hose has to be pressed in until a pressure point has
been overcome.
10. Push the retaining slide with the filter element onto the mounting guide pipe.
11. Put the retaining slide with the filter element down by the chain until the limit stop. Secure
the chain end at the rail.
The complete filter unit has to be below the water level.
a0007155
Fig. 7: Filter element
350 (13.8)
450 (17.7)
mm (inch)

Installation Stamoclean CAT430-*1
12 Endress+Hauser
3.3.4 Mounting the control box
a0007160

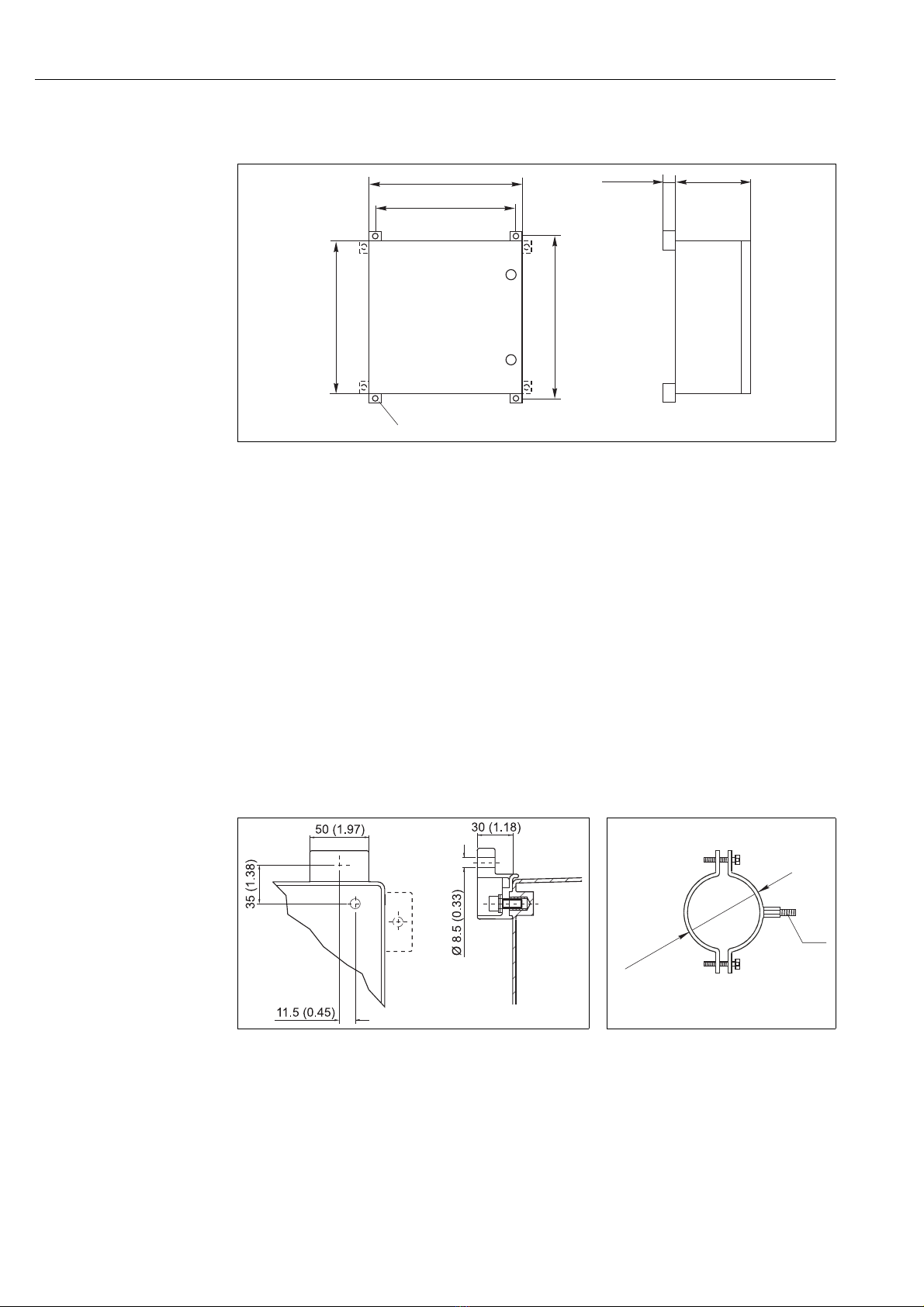

Fig. 8: Control box dimensions, left front view, right side view
Depending on the version, the control box is delivered with two clips for rail mounting or with four
plastic brackets for wall mounting.
1. Mount the clips or the brackets at the holes intended for that purpose on the reverse side of
the control box. For this, the clips must be fixed to the upper holes.
2. Rail mounting:
Screw the clips on the highest, horizontally-running rail pipe, right by the filter station. For the
box to hang straight, the supplied rubber buffer must be attached to the reverse side of the box.
For this, drill a hole with a 4 mm (0.16 inch) diameter in the middle of the box position, on
which a lower horizontal rail pipe is situated. To secure the rubber buffer, use the supplied
Phillips screw.
3. Wall mounting:
Hold the box with the brackets screwed onto it against the wall and mark the holes. Then drill
the holes and use 8 mm screws and fitting anchors or 8 mm anchor pins to secure the box to
the wall.
400 (15.8)
327 (12.9)
420 (16.5)
4 x Ø 8.5 (0.33)
400 (15.8)
30 (1.18) 200 (7.87)
mm (inch)
a0007375
Fig. 9: Wall brackets
a0007376
Fig. 10: Pipe clamp for rail mounting
Ø48 (1.89) ...
60 (2.36)
M8
mm (inch)

Stamoclean CAT430-*1 Installation
Endress+Hauser 13
3.3.5 Connecting the sample lines to the measuring devices
For the connection of the filtrate lines please refer to the following figure.
Filtrate line from the filter elements
If the filtrate line to the filter elements has not already been connected in the factory, proceed as
follows:
1. Slide the filtrate hoses protruding from the filtrate hose (one or two, depending on version) and
the feed line of the heater cable through the hose gland (→å11, pos. 11). Slide the spiral
hose far enough into the hose gland that it is flush inside and then tighten the hose gland.
2. Cut the filtrate hoses such that you can insert them comfortably into the Y fitting plug-in
connector (pos. 8).
a0011018

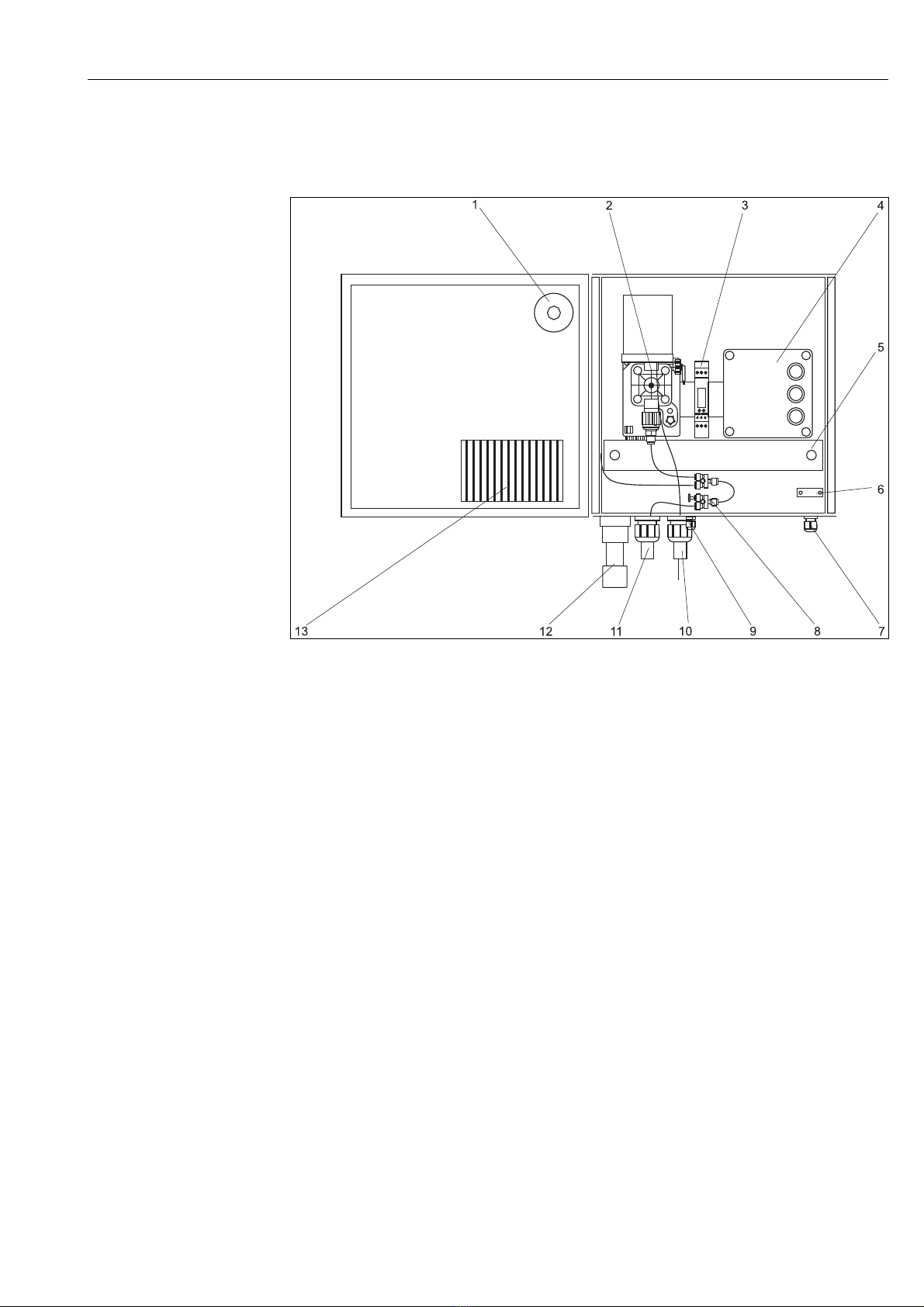

Fig. 11: Control box
1 Manometer 8 Y fitting
2 Diaphragm pump 9 Gland for vent hose
3 Timer 10 Hose gland for sample line to the analyzer
4 Control unit with connection box inside 11 Hose gland for filtrate line from filter
5 Cable duct 12 Pipe socket with micro thermostat
6 Strain relief for mains cable 13 Housing heater
7 Cable gland for mains connection

Installation Stamoclean CAT430-*1
14 Endress+Hauser
Sample line to the measuring devices
The sample line to the measuring devices consists of a spiral jacket hose, a thin filtrate hose and,
depending on scope of delivery, an electric band heater.
"Caution!
Lay hose lines such that they are protected against frost, where possible in underground cable ducts.
Make sure that you do not overstretch the hose.
Electric band heater up to 20 m (66 ft) and more (connection in the control box):
If the hoses and the electric band heater have not already been connected in the factory, proceed as
follows:
1. Remove the plug from the thermal switch's feeder cable with an edge-cutter.
2. Loosen the nut on the Pg hose gland from the end of the spiral hose.
3. Pull the thin filtrate hose first and then the thermal switch incl. its feeder cable through the nut.
4. Guide all hose ends and the thermal switch through the hole (→å11, pos. 10) into the
control box.
5. Insert the hose gland into the hole and screw the nut on tight.
6. Remove the foamed plastic pad from the pipe socket. Slide the thermal switch into the pipe
socket, such that the end of the electric band heater is at the top and the feeder cable is at the
bottom (→å12).
7. Push the foamed plastic pad over the thermal switch into the pipe socket.
"Caution!
There is a micro thermostat for the housing heater in the pipe socket. Be careful when inserting the
thermal switch because there is not much space to work in.

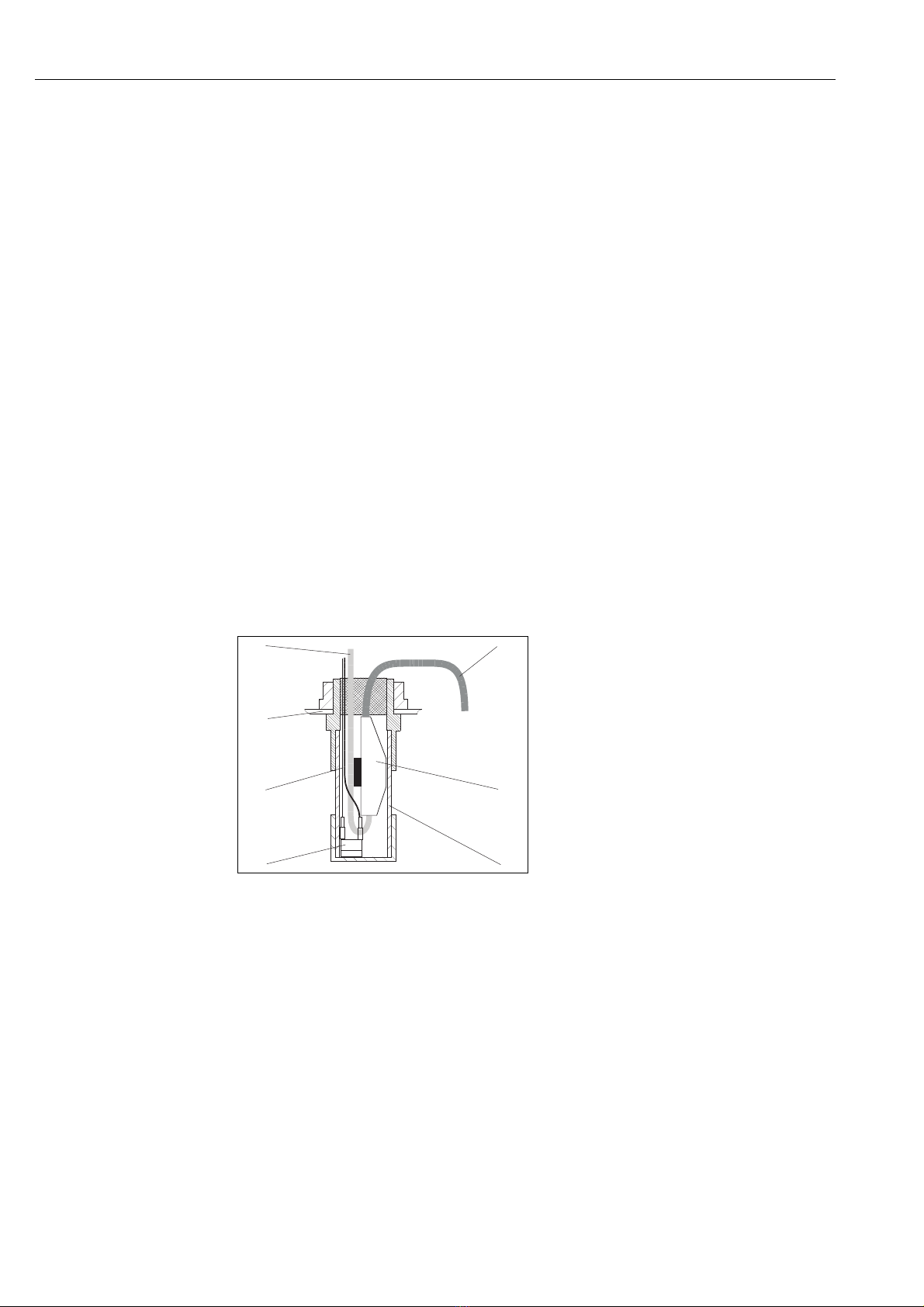

a0007283
Fig. 12: Pipe socket
1
2
3
4
5
6
7
Mains for band heater 230 V
Control box bottom
Two-core cable 24 V
Micro thermostat 24 V
Band heater 230 V
Thermal switch (orange)
Pipe socket housing
1
2
3
4
5
6
7

Stamoclean CAT430-*1 Installation
Endress+Hauser 15
3.4 Post-installation check
• After installation, check that all connections are fitted tightly and are leakage resistant.
• Ensure that the hoses cannot be removed without effort.
• Check all hoses for damage.
8. Guide the power cable for the thermal
switch from the left into the cable duct
(→å11, item 5) to the connection box
(item 4).
For electrical connection, please read the
Section “Wiring”.
9. Unscrew the splash protection cap
(→å13, item 1) from the diaphragm
pump.
10. Guide the filtrate hose (item 2) from below
through the right-hand bore in the splash
protection base (item 8).
11. Cut the filtrate hose such that you can insert
it comfortably into the plug-in connector of
the pressure connection (item 9).
Ensure that you push the hose all the way in
the plug-in connector. You must overcome a
pressure point in so doing.
12. Pull the filter hose back far enough so that it
runs in a relatively narrow bend at the top
(→å13).
Ensure, however, that you do not fold the
hose.
13. Screw the splash protection cap back on.
14. Now lay the sample line (spiral jacket hose
incl. filtrate line and electric band heater) to
the measuring devices.
Where possible, use available cable ducts or
empty underground pipes. With the
corresponding order, the filtrate hose is
protected by the electric band heater over
the entire area exposed to frost.
a0011022
Fig. 13: Diaphragm pump
1 Splash protection cap
2 Filtrate line to the measuring devices
3 Vent screw with hose nozzle
4 Rotary knob for stroke frequency
5 Filtrate hose of filter
6 Power connector
7 Pressure connection with plug-in connector
8 Splash protection base
9 Suction side with plug-in connector

Wiring Stamoclean CAT430-*1
16 Endress+Hauser
4 Wiring
#Warning!
• The electrical connection must only be carried out by a certified electrician.
• Technical personnel must have read and understood the instructions in this manual and must
adhere to them.
• Ensure that there is no voltage at the power cable before beginning the connection work.
4.1 Wiring diagram
a0011032
Fig. 14: Wiring diagram
a
b
c
Timer
Micro thermostat 24 V
Filtrate hose heater 24 V
(suction side of the pump)
d
e
f
Pump
Electric band heater
(pressure side of the pump)
Housing heater
g
h
Pump line filter
Transformer
T1)
1) T = terminal
Assignment T1Assignment T1Assignment
1 24 V to timer terminal 1 10 Phase L housing heater 19 not connected
2 24 V to timer terminal 3 11 Phase L from control terminal 6 20 Phase L mains supply
3 24 V to micro thermostat 12 Phase L pump line filter 21 not connected
4 24 V from micro thermostat 13 not connected 22 not connected
5 24 V to hose heater 14 Electric band heater zero cond. 23 PE electric band heater
6 24 V from hose heater 15 Mains supply zero conductor 24 PE mains supply
7 not connected 16 Housing heater zero conductor 25 PE housing heater
8 Phase L electric band heater 17 not connected 26 PE pump line filter
9 Phase L to control terminal 5 18 Pump line filter zero conductor

Stamoclean CAT430-*1 Wiring
Endress+Hauser 17
For power supply:
You have to connect terminals 15, 20 and 24.
All other connections have been made at the factory.
For electric band heater connection:
You have also to connect terminals 8, 14 and 23 if using an electric band heater for the sample line
to the analyzer (pressure side of the pump).
The heater for the hose to the suction side is included in versions CAT430-****A**. The
connections (terminals 5 and 6) have been made at the factory.
4.2 Power supply connection
"Caution!
• A suitable circuit breaker must be provided by the customer. It must be placed directly upstream
of the supply cable for the device.
• The device's power cable must be protected with a 30 mA error current protective switch
(Ground Fault Circuit Interrupter, GFCI).
a0011033
Fig. 15: Control box
4 Control unit with connection box inside
5 Cable duct
6 Strain relief for power cable
7 Cable gland for power cable
a0011031
Fig. 16: Connection box: left cover, right inside the box
8 Transformer 24 V / 2A
9 Terminal block
10 Safety fuse for 24 V circuit 2.5 A 5 x 20 mm (0.20 x 0.79")
11 Safety fuse for pump 0.5 A 5 x 20 mm (0.20 x 0.79")
12 4-pole connection
13 Safety fuse for entire device 2.5 A 5 x 20 mm (0.20 x 0.79")

Wiring Stamoclean CAT430-*1
18 Endress+Hauser
1. First of all, remove the cover on the cable duct (→å15, item 5) and screw the cover of the
connection box on (item 4).
2. Disconnect the 4-pole connection (→å16, item 12) between the cover and terminal block
and secure the cover.
3. Guide the power cable through the cable gland (→å15, item 7) into the pump box. Pull
the cable from below right through the cable duct and into the connection box.
4. Shorten the cable to the appropriate length and remove the sheathing to a length of 40 mm
(1.58").
5. Connect the wires to terminals 15, 20 and 24 (→å14).
6. Secure the cable with the strain relief (→å15, item 6).
4.3 Connection of an optional hose heater
If not connected at the factory:
1. Pull the cable of the 24 V hose heater from the left through the cable duct and into the
connection box.
2. Connect the wires to terminals 5 and 6 (→å14).
3. Pull the supply lead of the orange thermal switch on the electric band heater from the left
through the cable duct to the connection box.
4. Shorten the cable to the appropriate length and remove the sheathing to a length of 40 mm
(1.58").
5. Connect the wires to terminals 8, 14 and 23.
4.4 Post-connection check
Checks Remarks
Supply voltage matches the specifications on nameplate? 230 V AC / 115 V AC
The mounted cables slack and not twisted?
Is the strain relief for the power cable correctly installed?
All the cable entries installed, tightened and sealed?
All cable entries mounted downwards or sideways? cable loops downwards: water drains off
Are the covers of the cable duct and connection box correctly installed and
the securing screws tightened?
The connection box and cable duct must
not be accessible without the use of a
tool.

Stamoclean CAT430-*1 Operation
Endress+Hauser 19
5Operation
5.1 Operation and commissioning
The following chapters provide you with information on the sample preparation unit's operating
elements and explain how to make settings.
In Chap. 6, “Commissioning”, you will find the procedure for initial start-up and for daily operation.
5.2 Display and operating elements
Main switch
Timer
The timer is a time relay of "Trumeter 7955 X" type. When CAT430 is delivered, the timer is ready
to use installed and connected.
Please refer to the following figure for information only.
5.3 Local operation
5.3.1 Cycle times
For reliable operation and achievement of long rinsing intervals, sufficient pause times between the
pumping times are necessary.
The pause times depend on the number of filter elements and on the pumping parameters for supply
output and speed.
The factory-set values for pumping (On) and pause times (Off), as well as the fluid quantities per
pumping cycle are displayed in the following table.
a0007162
Fig. 17: Cover of connection box
1
2
3
Heating / Power on
Control
Suction hose evacuating (pump runs at continuous operation)
a0007161
Fig. 18: Trumeter 7955 X
1
3
5
6
2,4
terminal 1
terminal 2
terminal 9
terminal 11
not connected
Number of filter elements On / Off [s] Fluid quantity per cycle [ml]
110/50 5
123
456
PROG. RESET

Operation Stamoclean CAT430-*1
20 Endress+Hauser
!Note!
In principle, you can make other settings for the cycle times.
Extending the pump time with constant pause times tends to result in shorter rinse intervals. You
should check whether this is acceptable for your application.
5.3.2 Pump capacity
5.3.3 Timer setting
During operation of the CAT 430, the "Trumeter 7955 X" display shows the respective operating
status (relay symbol on = pumping, off = pause) and the remaining time until switching over to the
next operating status.
During programming, the current settings for pumping and pause are displayed.
1. Hold down the "PROG" key until the countdown (3-2-1-0) is completed and
"RC" (without any additional symbols, i.e. not "RC=" or something else) appears
in the display.
If "RC" does not appear after the countdown, keep pressing "PROG" until "RC"
appears.
2. Press "RESET".
3. "0 SEC" (SEC under the number) appears on the right of the display.
4. Press "RESET" again.
5. A three-digit value for seconds now appears in the display. The last figure flashes.
Here, you can configure the Operating time of the pump.
6. Pressing "PROG" increases the flashing figure one at a time, with "RESET" you
can switch to setting the next figure.
7. Set the desired value for the pumping time.
8. After setting the value for the third figure, press "RESET" again.
The setting for another three-digit value appears. Here, you can set the Pause time.
9. Proceed exactly as with the pumping time configuration.
10. Pressing "RESET" after setting the third figure, the "LEU" message appears in the display. The
time controller is activated as soon as voltage is supplied to the relay.
11. Keep pressing "RESET" until the relay icon appears in the display again.
The programming procedure is completed.
12. Now switch the middle switch (controller) on the connection box off and on
again.
The controller starts.
2 20 / 40 10
Number of filter elements On / Off [s] Fluid quantity per cycle [ml]
a0011034

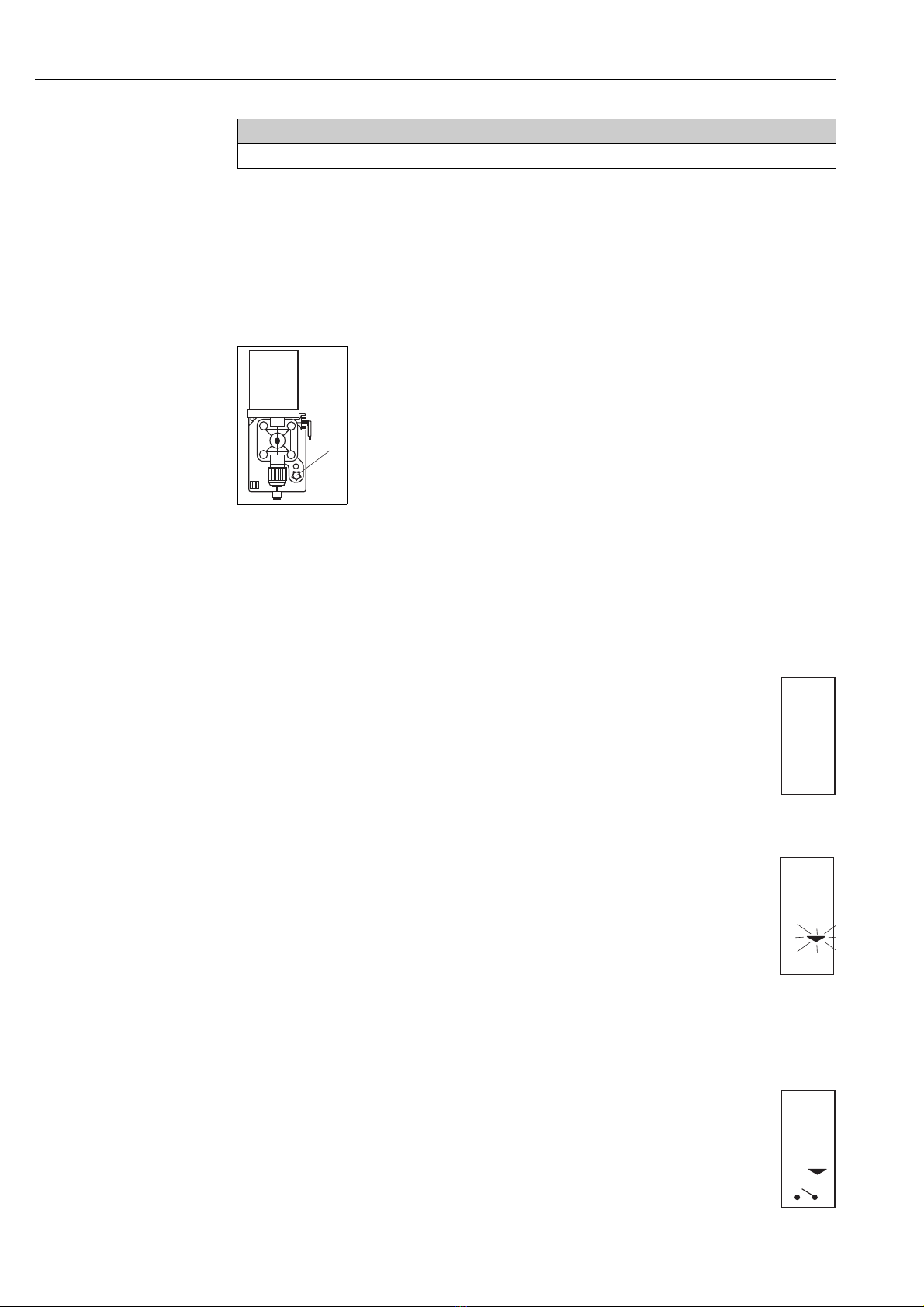

Fig. 19: Pump
You can change the pump's stroke frequency using the rotary knob at the
bottom right on the pump housing (→å19, item 1).
The pointer of the rotary knob is set to one o' clock with the factory setting.
Turn the knob clockwise to increase the fluid quantity.
1
RC
PROG
020
SEC
RC +
020
SEC
RC +
