Endress+Hauser Micropilot S FMR540 User manual

BA00326F/00/EN/13.10
71127749
Valid as of software version:
V 01.01.xx (amplifier)
V 01.01.xx (communication)
Operating Instructions
Micropilot S FMR540
Level-Radar
MadeinGermanyMaulburg
Madein Germany Maulburg
IP 65
Messbereich
Measuringrange
U16...36VDC
4...20mA
max.20m
T>
70°C:
At >85°C
Order Code:
Ser.-No.:
SS+HAUSER
OPILOT FMR
MadeinGermanyMaulburg
Madein Germany Maulburg
IP 65
Messbereich
Measuring range
U16...36 VDC
4...20 mA
max.20 m
T>
70°C :
At >85°C
Order Code:
Ser.-No.:
SS+HAUSER
OPILOTFMR

Micropilot S FMR540 4 to 20 mA HART
2Endress+Hauser
Brief operating instructions
L00-FMR54xxx-19-00-00-en-007
!Note!
This operating manual explains the installation and initial start-up for the level transmitter.
All functions that are required for a typical measuring task are taken into account here. In addition,
the Micropilot S provides many other functions that are not included in this operating manual, such
as optimising the measuring point and converting the measured values.
An overview of all device functions can be found on →ä72.
The operating manual BA00341F/00/EN "Description of Instrument Functions" provides an
extensive description of all device functions, which can be found on the enclosed CD-ROM.
The Operating Instructions can also be found on our homepage: www.endress.com
E
+
-
+
E
+
-
E
-
… …
…
KA255F/00/a2/09.06
52027735
…
F
L
D
E
52027735

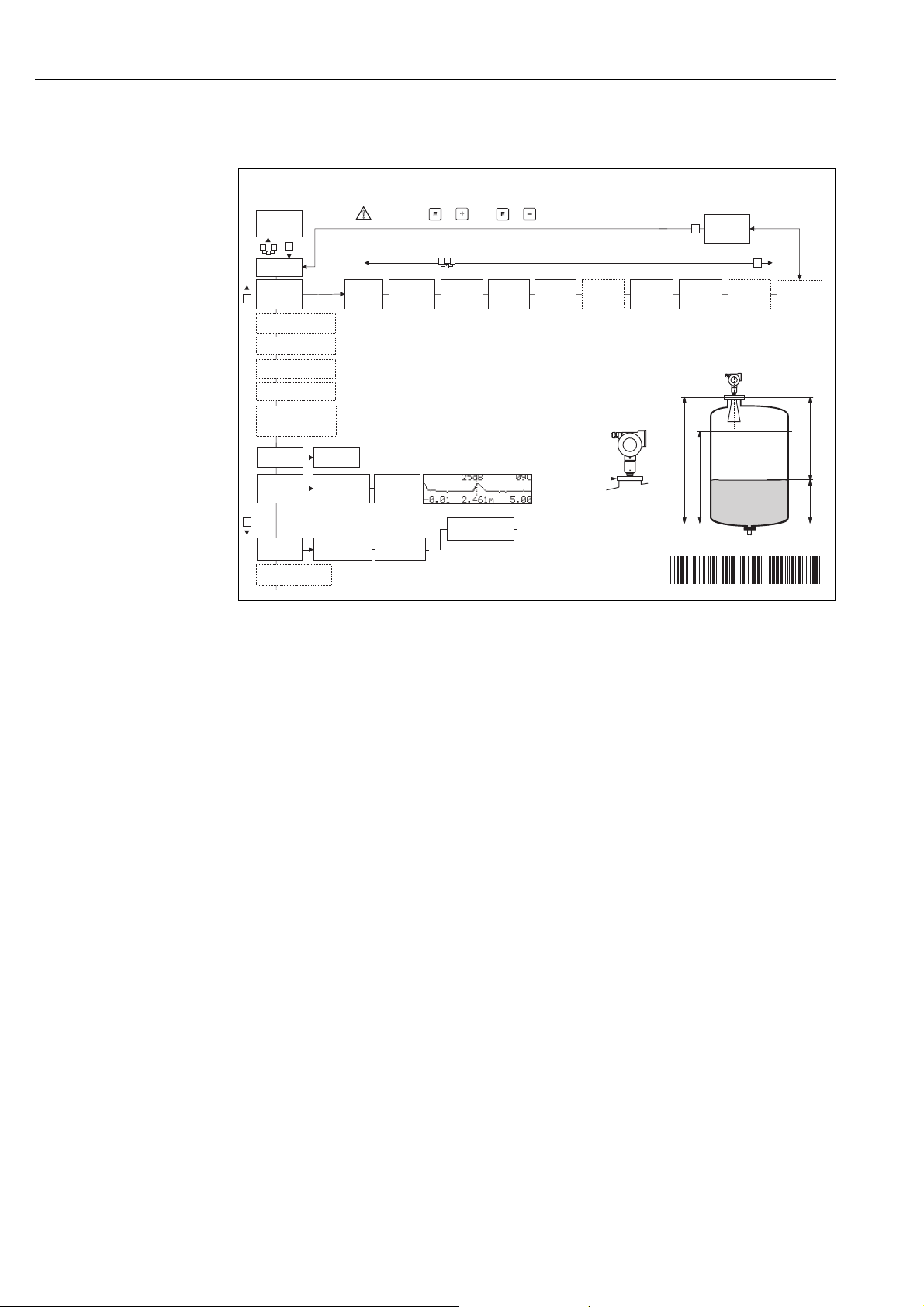

Micropilot S FMR540 - Brief operating instructions
- dome
ceiling
- horizontal
cyl.
- bypass
…
- unknown
- DC: <1.9
- DC: 1.9 … 4
-DC:4…10
- DC: >10
- standard
- calm
surface
- add.
agitator
…
input E
(see sketch)
input F
(see sketch)
only for
bypass +
stilling well
-ok
- too small
- too big
- unknown
- manual
displayed
(see sketch)
D and L are confirm
or specify
range
suggestion
000
measured
value
Group
selection
00
basic
setup
01
safety settings
0C
system parameter
09
display
0E
envelope
curve
04
linearisation
03
dip table
05
extended calibr.
06
output
092
language
0A
diagnostics
0A0
present error
002
tank
shape
002
tank
shape
004
process
cond.
005
empty
calibr.
006
full
calibr.
007
pipe
diameter
008
dist./
meas value
051
check
distance
003
medium
cond.
052
range of
mapping
009
set value
008
dist./
meas value
- envel. curve
- incl. FAC
- incl. cust. map
- single curve
- cyclic
= 100: unlocked
100: locked≠
0E1
plot settings
0E2
recording
curve
0A1
previous error
0A4
unlock parameter
HART
}
Contrast: +or +
flange:
reference point
of measurement

Micropilot S FMR540 4 to 20 mA HART Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety and process safety . . . . . . . . . . . . 4
1.4 Notes on safety conventions and symbols . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . . 9
2.4 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . 9
3 Installation . . . . . . . . . . . . . . . . . . . . . 10
3.1 Quick installation guide . . . . . . . . . . . . . . . . . . . . . 10
3.2 Incoming acceptance, transport, storage . . . . . . . . . 10
3.3 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 11
3.4 Installation instructions . . . . . . . . . . . . . . . . . . . . . 16
3.5 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 24
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 25
4.1 Quick wiring guide . . . . . . . . . . . . . . . . . . . . . . . . 25
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 27
4.3 Recommended connection . . . . . . . . . . . . . . . . . . 30
4.4 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 30
4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 30
5 Operation . . . . . . . . . . . . . . . . . . . . . . 31
5.1 Quick operation guide . . . . . . . . . . . . . . . . . . . . . . 31
5.2 Display and operating elements . . . . . . . . . . . . . . . 33
5.3 Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
5.4 Display and acknowledging error messages . . . . . . 39
5.5 HART communication . . . . . . . . . . . . . . . . . . . . . . 40
6 Commissioning. . . . . . . . . . . . . . . . . . 43
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.2 Switching on the measuring device . . . . . . . . . . . . 43
6.3 Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.4 Basic Setup with the VU331 . . . . . . . . . . . . . . . . . 46
6.5 Basic Setup with the Endress+Hauser
operating program . . . . . . . . . . . . . . . . . . . . . . . . . 56
7 Maintenance. . . . . . . . . . . . . . . . . . . . 59
8 Accessories. . . . . . . . . . . . . . . . . . . . . 60
8.1 Weather protection cover . . . . . . . . . . . . . . . . . . . 60
8.2 Sensor alignment tool for alignment device . . . . . . 60
8.3 Commubox FXA195 HART . . . . . . . . . . . . . . . . . . 61
8.4 Commubox FXA291 . . . . . . . . . . . . . . . . . . . . . . . 61
8.5 ToF Adapter FXA291 . . . . . . . . . . . . . . . . . . . . . . . 61
9 Trouble-shooting . . . . . . . . . . . . . . . . . 62
9.1 Trouble-shooting instructions . . . . . . . . . . . . . . . . . 62
9.2 System error messages . . . . . . . . . . . . . . . . . . . . . . 63
9.3 Application errors . . . . . . . . . . . . . . . . . . . . . . . . . 65
9.4 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
9.5 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
9.6 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
9.7 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
9.8 Contact addresses of Endress+Hauser . . . . . . . . . . . 68
10 Technical data . . . . . . . . . . . . . . . . . . . 69
10.1 Additional technical data . . . . . . . . . . . . . . . . . . . . 69
11 Appendix. . . . . . . . . . . . . . . . . . . . . . . 72
11.1 Operating menu HART (display modul) . . . . . . . . . 72
11.2 Patents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Safety instructions Micropilot S FMR540 4 to 20 mA HART
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The Micropilot S is a compact level radar for the continuous, contactless measurement of
predominantly solids. The device can also be freely mounted outside closed metal vessels because
of its operating frequency in the K-band and a maximum radiated pulsed energy of 1 mW (average
power output 1 μW). Operation is completely harmless to humans and animals.
1.2 Installation, commissioning and operation
The Micropilot S has been designed to operate safely in accordance with current technical, safety
and EU standards. If installed incorrectly or used for applications for which it is not intended,
however, it is possible that application-related dangers may arise, e.g. product overflow due to
incorrect installation or calibration. For this reason, the device must be installed, connected,
operated and maintained according to the instructions in this manual: personnel must be authorised
and suitably qualified. The manual must have been read and understood, and the instructions
followed. Modifications and repairs to the device are permissible only when they are expressly
approved in the manual.
1.3 Operational safety and process safety
Alternative monitoring measures must be taken to ensure operational safety and process safety
during configuration, testing and maintenance work on the device.
1.3.1 Hazardous areas
Measuring systems for use in hazardous environments are accompanied by separate "Ex
documentation", which is an integral part of this Operating Manual. Strict compliance with the
installation instructions and ratings as stated in this supplementary documentation is mandatory.
• Ensure that all personnel are suitably qualified.
• Observe the specifications in the certificate as well as national and local standards and regulations.
1.3.2 FCC approval
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause
undesired operation.
"Caution!
Changes or modifications not expressly approved by the part responsible for compliance could void
the user’s authority to operate the equipment.

Micropilot S FMR540 4 to 20 mA HART Safety instructions
Endress+Hauser 5
1.4 Notes on safety conventions and symbols
In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding symbol in the margin.
Safety conventions
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal
injury, a safety hazard or destruction of the device.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal injury
or incorrect functioning of the device.
!Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect
operation or may lead to an device response which is not planned.
Explosion protection
0Device certified for use in explosion hazardous area
If the device has this symbol embossed on its name plate it can be installed in an explosion hazardous
area.
-Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous areas. Devices located in and wiring entering
areas with the designation "explosion hazardous areas" must conform with the stated type of protection.
.Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas. Devices located in
safe areas still require a certificate if their outputs run into explosion hazardous areas.
Electrical symbols
%Direct voltage
A terminal to which or from which a direct current or voltage may be applied or supplied.
&Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or voltage may be applied or
supplied.
)Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already grounded by means of an
earth grounding system.
*Protective grounding (earth) terminal
A terminal which must be connected to earth ground prior to making any other connection to the
equipment.
+Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e.g. neutral star or
equipotential line according to national or company practice.
Temperature resistance of the connection cables
States, that the connection cables must be resistant to a temperature of at least 85 °C.
t >85°C

Identification Micropilot S FMR540 4 to 20 mA HART
6Endress+Hauser
2 Identification
2.1 Device designation
2.1.1 Nameplate

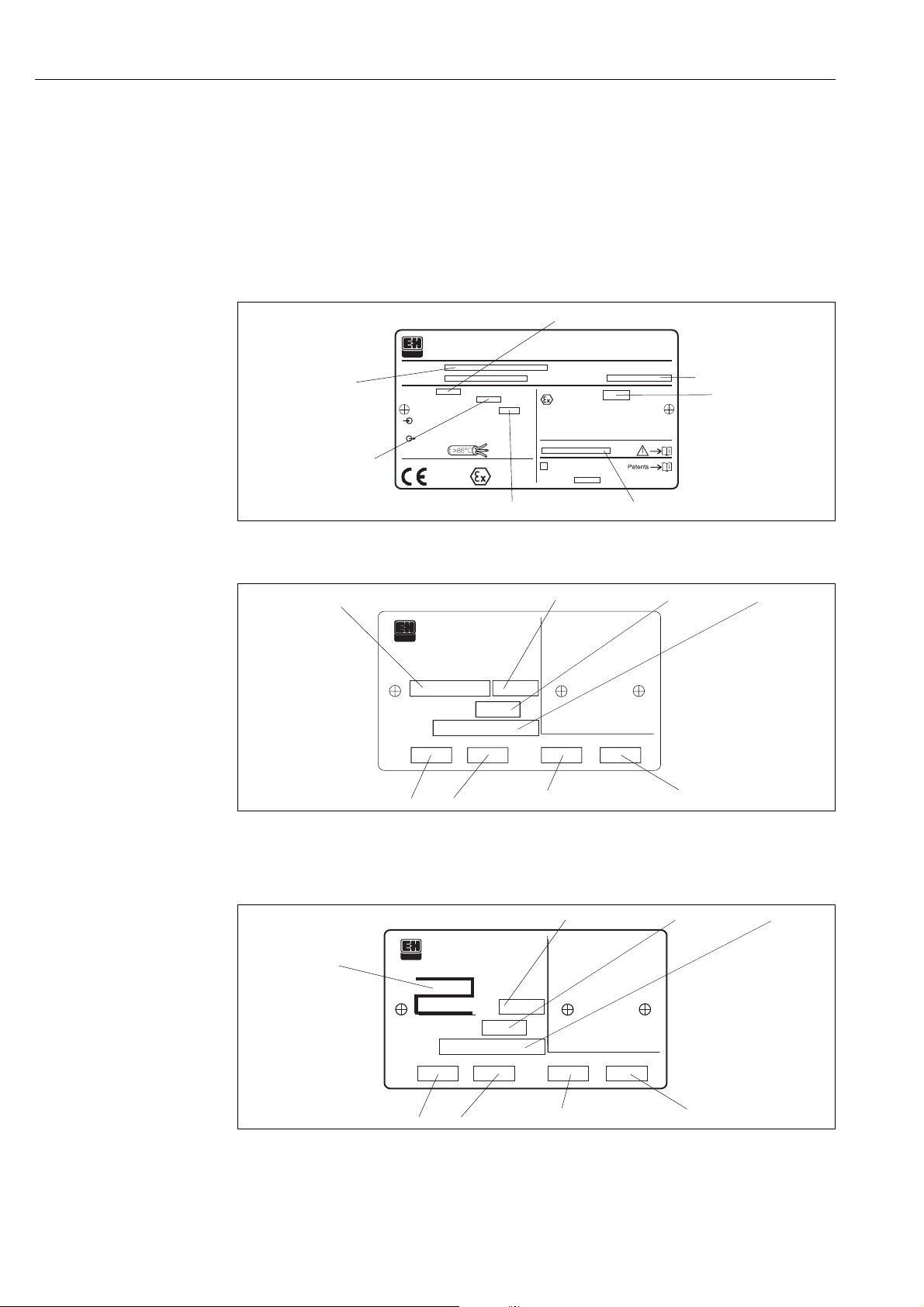

The following technical data are given on the device nameplate:
L00-FMR53xxx-18-00-00-en-003
Information on the nameplate of the Micropilot S FMR540
L00-FMR540xx-18-00-00-en-001
Information on the NMi type plate for custody transfer applications of the Micropilot S FMR540
Note!
The fields are only filled if in feature "70 - Weight + measures approval" the variant "F" is selected.
L00-FMR540xx-18-00-00-en-002
Information on the PTB type plate for custody transfer applications of the Micropilot S FMR540
Note!
The fields are only filled if in feature "70 - Weight + measures approval" the variant "G" is selected.
Dat./Insp.:
Order Code:
Ser.-No.:
ENDRESS+HAUSER Made in Germany
D-79689 Maulburg
if modification
see sep. label
X=
MICROPILOT S
PN
Tantenna max. °C
Messbereich
Measuring range max.
4 … 20 mA HART
16 ... 30 V DC
0700
PTB 00 ATEX 2067 X
II 1/2 G EEx ia IIC T6
Anschlusswerte u. Temp.-Klasse siehe/
Connection values and temp.-classific.
see
T > 60°C
amb
XXXXXXXXXXX
XXXXX
Order Code
(see Order Information) Registration No
ATEX
Safety information
max. pressure in tank
Degree of protection
measuring range
max permissible
temperature
on the antenna
ENDRESS+HAUSER
MICROPILOT S FMR
MICROPILOT S FMR
Hersteller / Producer :
Hersteller / Producer :
Zert.Messbereich/Cert.Measuring range
Zert.Messbereich/Cert.Measuring range
Umgeb./Environm.
bis
to
min
max
von
from
Baujahr
Y
ear of constr.
ear of constr.
Zertifikat-Nr.
Certification no.
T
m°C
Tank-Nr.
Tank-no.
Tankreferenzhöhe
Tank reference height m
250002069--
Certification no
Certificated
Measuring range from ... to ... min. environment temperature max. environment temperature
Year of construction Tank reference height Tank-no.
ENDRESS+HAUSER
MICROPILOTSFMR
Hersteller /Producer :
Zert.Messbereich/Cert.Measuring range Umgeb./Environm.
bis
to min max
von
from
Baujahr
Year of constr.
T
m°C
Tank-Nr.
Tank-no.
Tankreferenzhöhe
Tank reference height
m
250002069--
Certificated
Measuring range from ... to ... min. environment temperature max. environment temperature
Year of construction Tank reference height Tank-no.
Approval number

Micropilot S FMR540 4 to 20 mA HART Identification
Endress+Hauser 7
2.1.2 Ordering structure
This overview does not mark options which are mutually exclusive.
10 Approval:
A Non-hazardous area
D IEC Ex ia IIC T6 (in preparation)
G ATEX II 3G EEx nA II T6 (in preparation)
I NEPSI Ex ia IIC T6 (in preparation)
K TIIS Ex ia IIC T3 (in preparation)
L TIIS Ex ia IIC T6 (in preparation)
M TIIS Ex d (ia) T3 (in preparation)
N TIIS Ex d (ia) T6 (in preparation)
S FM IS Cl.I Div.1 Gr.A-D, zone 0,1,2
T FM XP Cl.I Div.1 Gr.A-D, zone 1,2 (in preparation)
U CSA IS Cl.I Div.1 Gr.A-D, zone 0,1,2
V CSA XP Cl.I Div.1 Gr. A-D, zone 1,2 (in preparation)
1 ATEX II 1/2G EEx ia IIC T6
4 ATEX II 1/2G EEx d (ia) IIC T6 (in preparation)
6 ATEX II 1/2G EEx ia IIC T6, WHG
Y Special version, TSP-No. to be spec.
20 Antenna; Seal:
E 100mm/4" horn, Align. device; FKM Viton GLT
G 200mm/8" Parabolic, Align. device; FKM Viton GLT
H 250mm/10" Parabolic, Align. device; FKM Viton GLT
9 Special version, TSP-No. to be spec.
30 Antenna Extension:
1w/o
2 150mm/6"
3 250mm/10"
4 450mm/18"
9 Special version, TSP-No. to be spec.
40 Process connection:
– EN-Flanges –
CQJ DN100 PN10/16 B1, 316L; flange EN1092-1 (DIN2527 C)
CWJ DN150 PN10/16 B1, 316L; flange EN1092-1 (DIN2527 C)
CKJ DN200 PN16 B1, 316L; flange EN1092-1 (DIN2527 C)
C6J DN250 PN16 B1, 316L; flange EN1092-1 (DIN2527 C)
– ASME-Flanges –
APJ 4" 150lbs RF, 316/316L, flange ANSI B16.5
AVJ 6" 150lbs RF, 316/316L, flange ANSI B16.5
AKJ 8" 150lbs RF, 316/316L, flange ANSI B16.5
A5J 10" 150lbs RF, 316/316L flange ANSI B16.5
– JIS-Flanges –
KHJ 10K 100A RF, 316L, flange JIS B2220
KVJ 10K 150A RF, 316L, flange JIS B2220
KDJ 10K 200A RF, 316L, flange JIS B2220
K5J 10K 250A RF, 316L, flange JIS B2220
– JPI-Flanges –
LHJ 100A 150lbs RF, 316/316L flange JPI 7S-15
LVJ 150A 150lbs RF, 316/316L flange JPI 7S-15
LKJ 200A 150lbs RF, 316/316L flange JPI 7S-15
LLJ 250A 150lbs RF, 316/316L flange JPI 7S-15
– Miscellaneous –
XVJ UNI flange DN150/6"/150, 316L
Max PN1/14.5lbs/1K, suitable for
DN150 PN10/16, 6" 150lbs, 10K 150
X3J UNI flange DN200/8"/200, 316L
Max PN1/14.5lbs/1K, suitable for
DN200 PN10/16, 8" 150lbs, 10K 200
X5J UNI flange DN250/10"/250, 316L
Max PN1/14.5lbs/1K, suitable for
DN250 PN10/16, 10" 150lbs, 10K 250
YY9 Special version, TSP-No. to be spec.
50 Output; Operation:
A 4-20mA HART; 4-line display VU331, envelope curve display on site
Y Special version, TSP-No. to be spec.

Identification Micropilot S FMR540 4 to 20 mA HART
8Endress+Hauser
60 Housing:
C T12 Alu, coated IP68 NEMA6P, separate connection compartment
Y Special version, TSP-No. to be spec.
70 Cable entry:
1 Thread M20
2GlandM20
3ThreadG1/2
4ThreadNPT1/2
9 Special version, TSP-No. to be spec.
80 Weight + Measure Approval:
A NMi (<1mm) Type approval
F NMi witnessed initial verificat. (<1mm) Type approval
G PTB witnessed initial verificat. (<1mm) Type approval
R Not selected; Inventory control Version (3 mm)
Y Special version, TSP-No. to be spec.
90 Additional Option:
A Basic version
G GL marine certificate (in preparation)
Y Special version, TSP-No. to be spec.
995 Marking:
1 Tagging(TAG), see additional spec.
FMR540- Complete product designation

Micropilot S FMR540 4 to 20 mA HART Identification
Endress+Hauser 9
2.2 Scope of delivery
"Caution!
It is essential to follow the instructions concerning the unpacking, transport and storage of
measuring devices given in the chapter "Incoming acceptance, transport, storage", →ä10!
The scope of delivery consists of:
• Assembled device
• Accessories (→ä60)
•2seals
• Endress+Hauser operating program on the enclosed CD-ROM
• Brief operating instructions KA01059F/00/EN for quick commissioning
•
Brief operating instructions KA00255F/00/A2 (basic setup/troubleshooting), housed in the device
• Approval documentation: if this is not included in the operating manual
• CD-ROM with further documentation, e.g.
– Technical Information
– Operating Instructions
– Description of Instrument Functions
2.3 Certificates and approvals
CE mark, declaration of conformity
The device is designed to meet state-of-the-art safety requirements, has been tested and left the
factory in a condition in which it is safe to operate. The device complies with the applicable
standards and regulations as listed in the EC declaration of conformity and thus complies with the
statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the
device by affixing to it the CE mark.
2.4 Registered trademarks
KALREZ®, VITON®, TEFLON®
Registered trademark of the company, E.I. Du Pont de Nemours & Co., Wilmington, USA
TRI-CLAMP®
Registered trademark of the company, Ladish & Co., Inc., Kenosha, USA
HART®
Registered trademark of HART Communication Foundation, Austin, USA
ToF®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PulseMaster®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PhaseMaster®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
FieldCare®
Registered trademark of the company Endress+Hauser Process Solutions AG, Rheinach, CH

Installation Micropilot S FMR540 4 to 20 mA HART
10 Endress+Hauser
3 Installation
3.1 Quick installation guide
L00-FMR54xxx-17-00-00-en-015
3.2 Incoming acceptance, transport, storage
3.2.1 Incoming acceptance
Check the packing and contents for any signs of damage. Check the shipment, make sure nothing
is missing and that the scope of supply matches your order.
3.2.2 Transport
"Caution!
Follow the safety instructions and transport conditions for devices of more than 18 kg.
Do not lift the measuring device by its housing in order to transport it.
3.2.3 Storage
Pack the measuring device so that is protected against impacts for storage and transport.
The original packing material provides the optimum protection for this.
The permissible storage temperature is -40 °C to +80 °C or -50 °C to +80 °C.

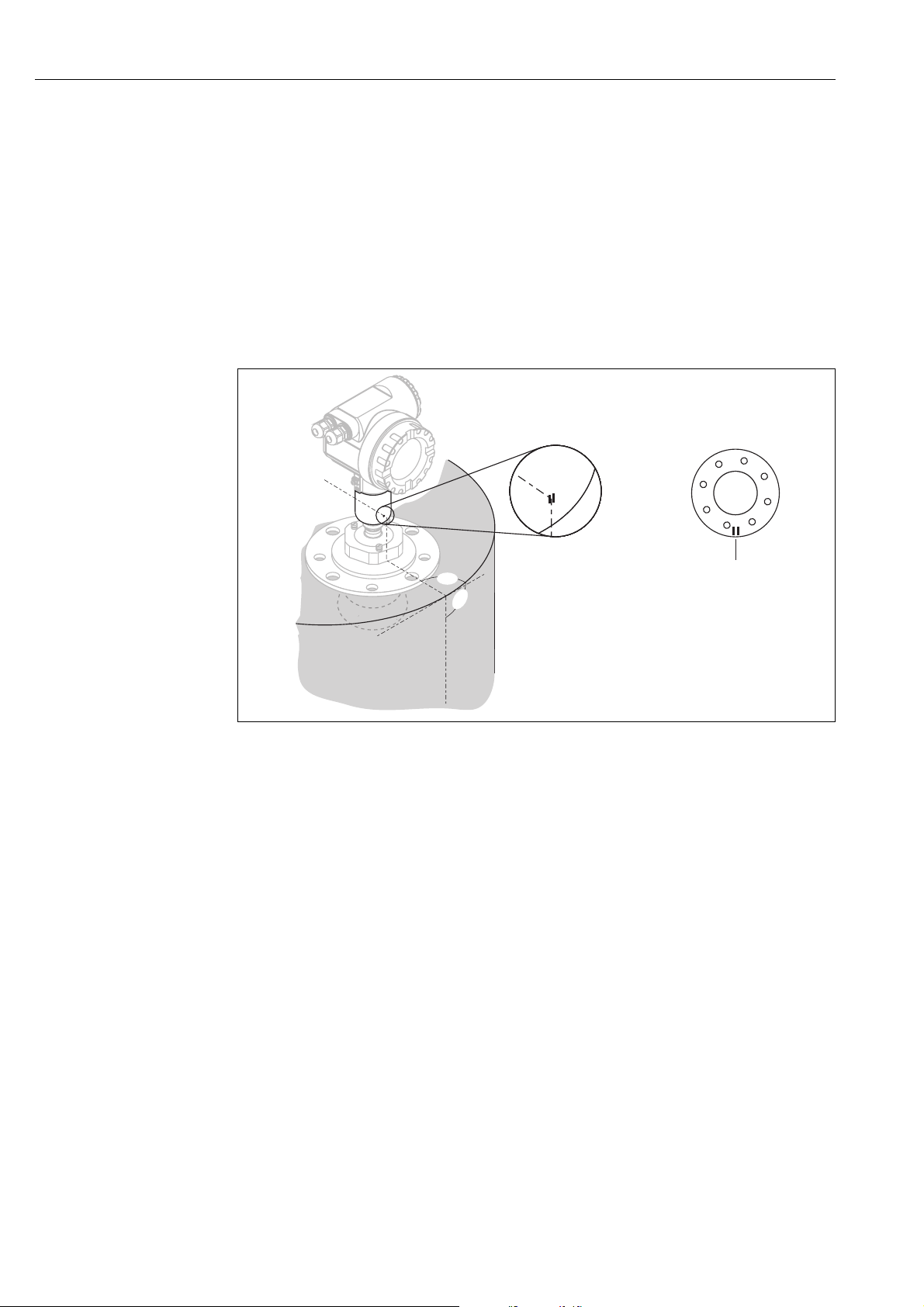

90°
90°
Maker on flange
(Example)
Marker on
sensor neck
(Example)

Micropilot S FMR540 4 to 20 mA HART Installation
Endress+Hauser 11
3.3 Installation conditions
3.3.1 Dimensions
L00-FMR540xx-06-00-00-en-009
85
(3.35)
65
(2.56)
129 (5.08)
161 (6.34)
68
(2.68)
94
(3.7)
ENDRESS+HAUSER
Micropilot II
Ø
standard
250 (10")
standard
200 (8")
standard
Flange
Horn antenna
Antenna size
Horn antenna
Antenna size
Parabolic antenna
Antenna size /
flange
Parabolic antenna
for 10K
Flange
Flange
for 150 lbs
Flange to JIS B2220
Flange to ASME B16.5
for PN10/16
Flange
Flange to EN 1092-1 (agreeable to DIN 2527)
Parabolic antenna
Horn antenna
* = Horn antenna only
Top Target Positioner
(Sensor Alignment) with
Endress+Hauser UNI flange DN150*/200/250
T12 housing
Top Target Positioner
(Sensor Alignment) with
Endress+Hauser standard flanges
Flange to JPI 7S - 15
Flange
for 150lbs
UNI
250 10")
UNI
(200 (8")
UNI
32.9
L2 [mm]
31.8
L2 [mm] 24.8 19.5 12.5
250mm (10")
236
88.4
26.9
200mm (8")
173
60.6
L1 [mm]
d [mm]
95
430
100 mm (4")
L1 [mm]
d [mm]
2222
DN200 DN250
280
24
400
b [mm]
D [mm] 210 330
18
DN100 DN150
10"
30.2
406.4
b [mm]
D [mm] 228.6 279.4
23.9 25.4
4" 6"
342.9
28.4
8"
DN250
26
405
b [mm]
D [mm] 220 285
20 22
DN100 DN150
340
24
DN200
L1 L2
L1 L2
150/250/450
Ød
L1
L1
Ød
L2
L2 150/250/450
131
64
Ø60
8
56.8
124
Ø60
Ø280 (DN150)
Ø340 (DN200)
Ø405 (DN250)
Ød
Ød
28.625.4
8" 10"
280
30.2
405
b [mm]
D [mm] 230 345
23.9
4" 6"

In s ta lla tio n Micropilot S FMR540 4 to 20 mA HART
12 Endress+Hauser
3.3.2 Engineering hints
Orientation

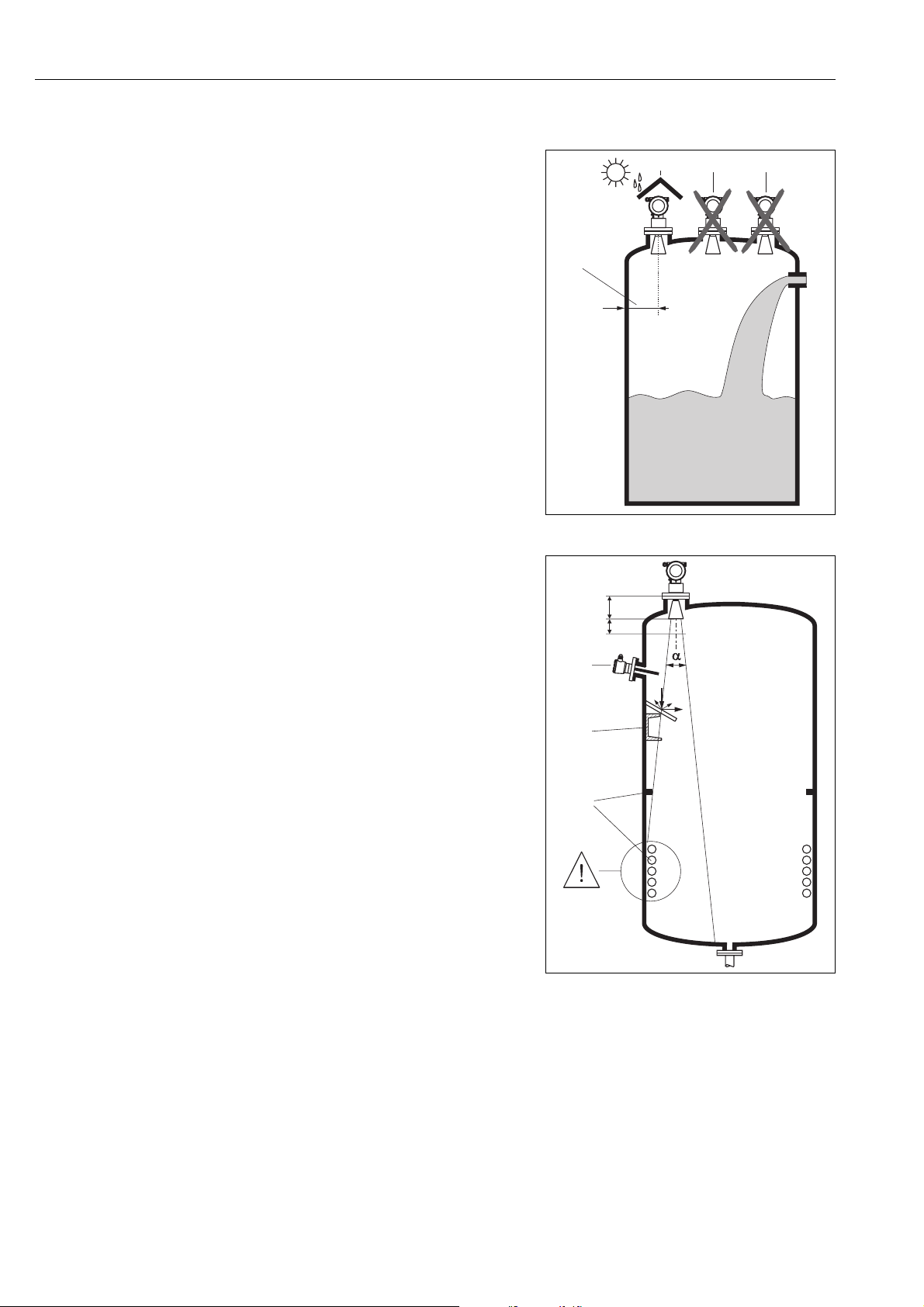

• Recommended distance (1) from tank wall to
the center of the nozzle:
minimum as specified in Table on ("Beam
angle", →ä13).
• Not in the centre (3), interference can cause
signal loss.
• Not above the fill stream (4).
• It is recommended to use a weather
protection cover (2) in order to protect the
transmitter from direct sun or rain. Assembly
and disassembly is simply done by means of a
tension clamp ("Accessories", →ä60).
L00-FMR54xxx-17-00-00-yy-012
1
234
Tank installations
• Avoid any installations (1), like limit
switches, temperature sensors, etc., inside the
signal beam ("Beam angle", →ä13).
• It is essential that HiHi alarm is below the
blocking distance (BD) and the safety distance
(SD).
• Symmetrical installations (2), e.g. vacuum
rings, heating coils, baffles, etc., can also
interfere with the measurement.
Optimization options
• Antenna size: the bigger the antenna, the
smaller the beam angle, the less interference
echoes.
• Mapping: the measurement can be optimized
by means of electronic suppression of
interference echoes.
• Antenna alignment:
"Optimum mounting position", →ä16.
• Stilling well: a stilling well can always be used
to avoid interference. The FMR532 with
planar antenna is recommended for stilling
wells with a diameter DN150 (6") and larger.
• Metallic screens (3) mounted at a slope spread
the radar signals and can, therefore, reduce
interference echoes.
Please contact Endress+Hauser for further
information.
L00-FMR54xxx-17-00-00-yy-013
1
3
2
BD
SD

Micropilot S FMR540 4 to 20 mA HART Installation
Endress+Hauser 13

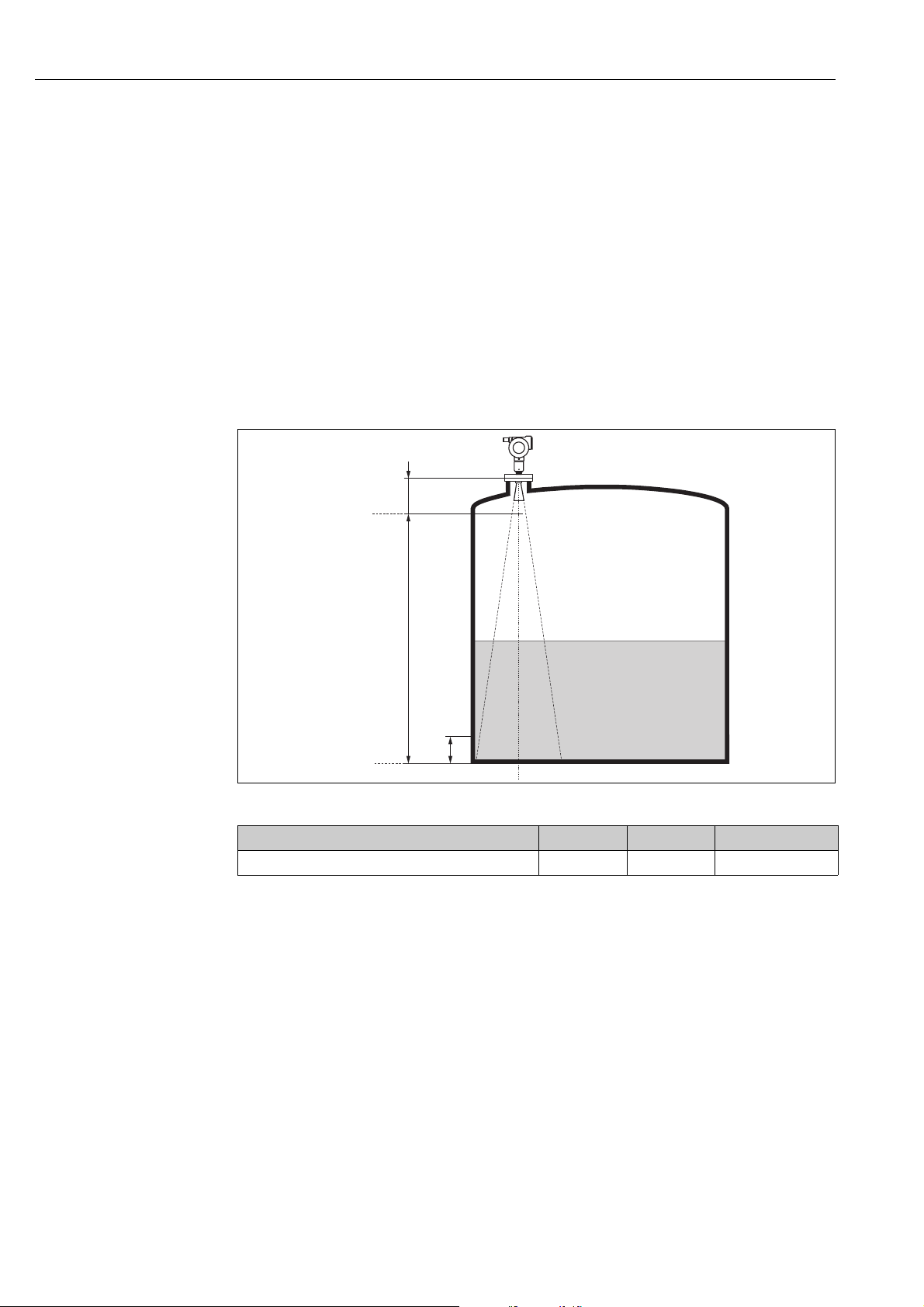

Beam angle
The beam angle is defined as the angle αwhere the energy density of the radar waves reaches half
the value of the maximum energy density (3dB-width). Microwaves are also emitted outside the
signal beam and can be reflected off interfering installations. Beam diameter Wia a function of
antenna type (beam angle α) and measuring distance D. The recommended distance to the tank
wall is indicated in the tables below. It is strongly recommended to avoid any mechanical obstacles
within the highlighted area.
Horn antenna
L00-FMR54xxx-14-00-00-xx-003
Antenna size 100 mm (4")
Beam angle (α)8°
Measuring
distance (D)
Beamwidth
diameter (W)
Recommended distance to wall
0° tilting 3° tilting
5 m (16 ft) 0.70 m (2.24 ft) 0.89 m (2.92 ft) 0.62 m (2.03 ft)
10 m (32 ft) 1.40 m (4.48 ft) 1.77 m (5.81 ft) 1.23 m (4.04 ft)
15 m (49 ft) 2.10 m (6.85 ft) 2.65 m (8.69 ft) 1.85 m (6.07 ft)
20 m (65 ft) 2.80 m (9.09 ft) 3.53 m (11.58 ft) 2.46 m (8.07 ft)
25 m (82ft) 3.50 m (11.48 ft) 4.41 m (14.47 ft) 3.07 m (10.07 ft)
30 m (98 ft) 4.20 m (13.71 ft) 5.29 m (17.36 ft) 3.69 m (12.11 ft)
Parabolic antenna
L00-FMR54xxx-14-00-00-xx-005
Antenna size 200 mm (8") 250 mm (10")
Beam angle (α)4.4° 3.3°
Measuring
distance (D)
Recommended distance to wall
5 m (16 ft) 0.35 m (1.15 ft) 0.2 m (0,66 ft)
10 m (32 ft) 0.70 m (2.30 ft) 0.5 m (1.64 ft)
15 m (49 ft) 1.05 m (3.44 ft) 0.75 m (2.46 ft)
20 m (65 ft) 1.40 m (4.59 ft) 1.05 m (3.44 ft)
25 m (82ft) 1.75 m (5.74 ft) 1.3 m (4.27 ft)
30 m (98 ft) 2.10 m (6.89 ft) 1.6 m (5.25 ft)
35 m (115 ft) 2.45 m (8.04 ft) 1.85 m (6.07 ft)
40 m (131 ft) 2.80 m (9.19 ft) 2.1 m (6.89 ft)
D
W
D
W

Installation Micropilot S FMR540 4 to 20 mA HART
14 Endress+Hauser
Measuring conditions
• The measuring range begins, where the beam hits the tank bottom. Particularly with dish bottoms
or conical outlets the level cannot be detected below this point.
• Depending on its consistence, foam can either absorb microwaves or reflect them off the foam
surface. Measurement is possible under certain conditions.
• The smallest possible measuring range Bdepends on the antenna version (see fig.).
• Tank diameter and height should be at least dimensioned such that a reflection of the radar signal
on both sides of the tank can be avoided.
• In case of media with a low dielectric constant (media groups A and B), the tank bottom can be
visible through the medium at low levels (low height C). Reduced accuracy has to be expected in
this range. If this is not acceptable, we recommend positioning the zero point at a distance C(see
Fig.) above the tank bottom in these applications.
• In principle it is possible to measure up to the tip of the antenna with FMR540. However, due to
considerations regarding corrosion and build-up, the end of the measuring range should not be
chosen any closer than A(see Fig.).
L00-FMR54xxx-17-00-00-yy-009
Behaviour if measuring range is exceeded
The behaviour in case of the measuring range being exceeded can be freely set:
The default setting is a current of 22 mA and the generation of a digital warning (E651).
1)
1) All values are based on reference conditions.
A [m (in)] B [m (in)] C [mm (in)]
FMR540 (without extension)2)
2) The length of a sensor extension shall be added to "A" when selecting the extension option.
0.6 (23.6) > 0.5 (> 20) > 300 (> 12)
100%
0%
B
A
C

Micropilot S FMR540 4 to 20 mA HART Installation
Endress+Hauser 15
Measuring range
The usable measuring range depends on the size of the antenna, the reflectivity of the medium, the
mounting location and possible interference reflections. To achieve an optimised signal strength it
is recommended to use an antenna with as large as possible diameter (DN200(8") or DN250 (10")
parabolic antenna). The following tables describe the groups of media as well as the achievable
measuring range as a function of application and media group. If the dielectric constant of a medium
is unknown, it is recommended to assume media group B to ensure a reliable measurement.
The following table describes the media groups and the dielectric constant εr.
Measuring range depending on sensor type and media group
!Note!
For stilling well applications Micropilot S FMR532 is recommended (see TI00344F/00/EN).
Media group DC (εr) Examples
A1 1.4 to 1.6 propane, butane
A2 1.6 to 1.9 non-conducting liquids, kerosene, jet fuels, gasoline, LPG
B1.9 to 4 non-conducting liquids, e.g. gasline, diesel fuel, heavy oil, motor oil, asphalt,
bitumen, BTEX, residual fuel
C4 to 10 e.g. concentrated acids, organic solvents, esters, aniline, alcohol, acetone, …
D> 10 conducting liquids, e.g. aqueous solutions, dilute acids and alkalis
Media group Horn antenna
without sensor extension
Parabolic antenna
without sensor extension
Measuring range1)
1) All values are based on reference conditions.
Measuring range1)
A1 DC (εr) = 1.4 to 1.6 Please contact your Endress+Hauser sales organization.
A2 DC (εr) = 1.6 to 1.9 0.6 to 20 m 0.6 to 40 m
BDC (εr) = 1.9 to 4 0.6 to 20 m 0.6 to 40 m
CDC (εr) = 4 to 10 0.6 to 30 m 0.6 to 40 m
DDC (εr) > 10 0.6 to 30 m 0.6 to 40 m
Max. measuring range with
cudstody transfer approval
NMi: 23 m (75 ft)
PTB: 23 m (75 ft)
NMi: 26 m (85 ft)
PTB: 30 m (98 ft)

Installation Micropilot S FMR540 4 to 20 mA HART
16 Endress+Hauser
3.4 Installation instructions
3.4.1 Mounting kit
For the mounting , you will require the following tool:
• The tool for flange mounting
• 90 mm wrench for adjustment of the alignment device (only for devices with alignment device)
• 4 mm (0.1") Allen wrench for turning the housing
3.4.2 Installation in vessel
Optimum mounting position
L00-FMR54xxx-17-00-00-en-016
90°
90°
Maker on flange
(Example)
Marker on
sensor neck
(Example)

Micropilot S FMR540 4 to 20 mA HART Installation
Endress+Hauser 17
Standard installation FMR540 with horn
antenna
• Observe installation instructions, →ä12.
• Marker must be aligned towards tank wall.
The marker is located clearly visible on the
sensor neck or the flange.
• After mounting, the housing can be turned
350° in order to simplify access to the display
and the terminal compartment.
• Adjust vertical sensor alignment in case the
flange is not parallel to the face is medium
surface.
• The horn antenna should protrude from the
nozzle. If necessary, choose version with
antenna extension (→ä11).
Note!
Please contact Endress+Hauser for application
with higher nozzle.
• The horn antenna should be installed with 3°
inclination towards the tank center.
To avoid interference reflections or for
optimum alignment within the tank, the
FMR540 with optional alignment device can
be swiveled by 15° in all directions. For more
informations please see Operating Instructions
KA00274F/00/A2.
Please contact Endress+Hauser Service
Organization for commissioning.
L00-FMR540xx-17-00-00-xx-001
H
ØD
Antenna size 100 mm (4")
D [mm (in)] 95 (3.7)
H [mm (in)]
(without antenna extension) < 430 (< 19.2)

Installation Micropilot S FMR540 4 to 20 mA HART
18 Endress+Hauser
Standard installation FMR540 with
parabolic antenna
• Observe installation instructions, →ä12.
• Marker is aligned towards tank wall.
The marker is located clearly visible on the
sensor neck or the flange.
• After mounting, the housing can be turned
350° in order to simplify access to the display
and the terminal compartment.
• Ideally the parabolic antenna should protrude
from the nozzle (1). Particularly when using
the alignment device, please ensure that the
parabolic reflector is protruding from the
nozzle/roof so as not to inhibit alignment.
Note!
For application with higher nozzle install
parabolic antenna completely in the
nozzle (2), including RF-wave guide (3).
• The parabolic antenna should be installed
vertically.
To avoid interference reflections or for
optimum alignment within the vessel, the
FMR540 with optional alignment device can
be swiveled by 15° in all directions.
For more informations please see Operating
Instructiosn KA00274F/00/A2.
Please, contact Endress+Hauser Service
organization for commissioning.
L00-FMR54xxx-17-00-00-en-017
1
2
D
H
clearance
vertical to the
liquid surface
clearance
Antenna size 200 mm (8") 250 mm (10")
D [mm (in)] 173 (6.8) 236 (9.4)
H [mm (in)]
(without antenna extension) < 200 (< 7.9) < 200 (< 7.9)

Micropilot S FMR540 4 to 20 mA HART Installation
Endress+Hauser 19
FMR540 with alignment device
Micropilot S should be installed vertically towards the Liquid surface for best measuring
performance of ±1 mm. Using the alignment device it is possible to tilt the antenna axis by up to
15° in all directions. The alignment device is used for the optimum alignment of the radar beam to
the liquid surface. The Sensor should be positioned vertical to the liquid surface in inclination of 0°
for Parabolic Antenna and up to 3° for Horn Antenna.
L00-FMR54xxx-17-00-00-en-018
To align the antenna as precisely as possible, it is recommended to use the sensor alignment tool,
which is available as an accessory.
For more informations please see instructions in KA00274F/00/A2.
In case of custody Application, the screws must be locked with wires.
±15°
±15°
90 ° 90 °
medium

Installation Micropilot S FMR540 4 to 20 mA HART
20 Endress+Hauser
Sensor alignment tool for alignment device
L00-FMR540xx-00-00-00-yy-008
A sensor alignment tool (a) is recommended to be used at
the time of installation for FMR540 with alignment device.
Alignmen procedure
Note!
This procedure is only applicable to the sensors purchased
with talignment device (b). To carry out this procedure
requires an accessory from Endress+Hauser, sensor align-
ment tool (a) for Micropilot S FMR540.
Before starting this procedure, please observe Micropilot S
FMR540 has been mounted on the tank in proper position
and all flange bolts are tightened.
Tools: 90 mm open wrench
Accessory Package contains:
Sensor alignment tool (part no. 52026756)
Description of procedure "Sensor Alignment using Sensor
alignment tool"
(KA00274F/00/A2 part no. 52027425)
1. Loosen the nut (b), so that the FMR540 can tilt
smoothly.
L00-FMR540xx-00-00-00-yy-009
2. Observe the sensor can smoothly tilt its position.
The nut should not be too loose.
Tilt the Micropilot S to approximately vertical to the
medium surface (d) or horizontal plane.
a
b
c
MadeinGermanyMaulburg
Madein Germany Maulburg
IP 65
Messbereich
Measuringrange
Messbereich
Measuring range
U16...36VDC
4...20mA
U 16...36V DC
4...20 mA
max.20m
max.20 m
T>
70°C:
At>85°C
T >70°C:
At >85°C
OrderCode:
Ser.-No.:
Order Code:
Ser.-No.:
SS+HAUSER
OPILOT FMR
SS+HAUSER
OPILOT FMR
d
90 ° 90 °
±15°
