Safety instructions Promag 53 PROFIBUS DP/PA
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The measuring device described in this Operating Manual is to be used only for measuring
the flow rate of conductive fluids in closed pipes.
A minimum conductivity of 20 μS/cm is required for measuring demineralized water. Most
liquids can be measured as of a minimum conductivity of 5 μS/cm.
Examples:
• Acids, alkalis
• Drinking water, wastewater, sewage sludge
• Milk, beer, wine, mineral water, etc.
Resulting from incorrect use or from use other than that designated the operational safety
of the measuring devices can be suspended. The manufacturer accepts no liability for
damages being produced from this.
1.2 Installation, commissioning and operation
Note the following points:
• Installation, connection to the electricity supply, commissioning and maintenance of the
device must be carried out by trained, qualified specialists authorized to perform such work
by the facility's owner-operator. The specialist must have read and understood this
Operating Manual and must follow the instructions it contains.
• The device must be operated by persons authorized and trained by the facility's owner-
operator. Strict compliance with the instructions in the Operating Manual is mandatory.
• Endress+Hauser is willing to assist in clarifying the chemical resistance properties of parts
wetted by special fluids, including fluids used for cleaning. However, small changes in
temperature, concentration or the degree of contamination in the process can result in
changes of the chemical resistance properties. Therefore, Endress+Hauser can not
guarantee or accept liability for the chemical resistance properties of the fluid wetted
materials in a specific application. The user is responsible for the choice of fluid wetted
materials in regards to their in-process resistance to corrosion.
• If carrying out welding work on the piping, the welding unit must not be grounded by
means of the measuring device.
• The installer must ensure that the measuring system is correctly wired in accordance with
the wiring diagrams. The transmitter must be grounded, except in cases where special
protective
measures have been taken (e.g. galvanically isolated power supply SELV or PELV).
• Always note the regulations applicable in your country to the operation, maintenance and
repair of electrical devices. Special instructions relating to the device can be found in the
relevant sections of this documentation.
1.3 Operational safety
Note the following points:
• Measuring systems for use in hazardous environments are accompanied by separate "Ex
documentation", which is an integral part of this Operating Manual. Strict compliance with
the installation instructions and ratings as stated in this supplementary documentation is
mandatory. The symbol on the front of this supplementary Ex documentation indicates
the approval and the certification body (e.g. 0Europe, 1USA, 1Canada)
• The measuring device complies with the general safety requirements in accordance with
EN 61010-1, the EMC requirements of IEC/EN 61326, and NAMUR recommendations
NE 21, NE 43 and NE 53.
• Depending on the application, the seals of the process connections of the Promag H sensor
require periodic replacement.

Promag 53 PROFIBUS DP/PA Safety instructions
Endress+Hauser 5
• When hot fluid passes through the measuring tube, the surface temperature of the
housing increases. In the case of the sensor, in particular, users should expect
temperatures that can be close to the fluid temperature. If the temperature of the fluid is
high, implement sufficient measures to prevent burning or scalding.
• The manufacturer reserves the right to modify technical data without prior notice. Your
Endress+Hauser distributor will supply you with current information and updates to this
Operating Manual.
1.4 Returns
The measuring device must be returned if repairs or a factory calibration are required, or if
the wrong measuring device has been ordered or delivered. According to legal regulations,
Endress+Hauser, as an ISO-certified company, is required to follow certain procedures when
handling returned products that are in contact with medium.
To ensure swift, safe and professional device returns, please read the return procedures and
conditions on the Endress+Hauser website at www.services.endress.com/return-material
1.5 Safety conventions and icons
The devices are designed to meet state-of-the-art safety requirements, have been tested,
and left the factory in a condition in which they are safe to operate. The devices comply with
the applicable standards and regulations in accordance with EN 61010-1 "Protection
Measures for Electrical Equipment for Measurement, Control, Regulation and Laboratory
Procedures". The devices can, however, be a source of danger if used incorrectly or for
anything other than the designated use.
Consequently, always pay particular attention to the safety instructions indicated in this
Operating Manual by the following icons:
#Warning!
"Warning" indicates an action or procedure which, if not performed correctly, can result in
injury or a safety hazard. Comply strictly with the instructions and proceed with care.
"Caution!
"Caution" indicates an action or procedure which, if not performed correctly, can result in
incorrect operation or destruction of the device. Comply strictly with the instructions.
!Note!
"Note" indicates an action or procedure which, if not performed correctly, can have an indirect
effect on operation or trigger an unexpected response on the part of the device.

Identification Promag 53 PROFIBUS DP/PA
6Endress+Hauser
2 Identification
2.1 Device designation
The flow measuring system consists of the following components:
• Promag 53 transmitter
• Promag E/H/L/P/W sensor
Two versions are available:
• Compact version: transmitter and sensor form a single mechanical unit.
• Remote version: transmitter and sensor are installed separately.
2.1.1 Nameplate of the transmitter
a0004554
Fig. 1: Nameplate specifications for the "Promag 53" transmitter (example)
1 Order code/serial number: Refer to the specifications on the order confirmation for the meanings of the individual letters and
digits.
2 Power supply/frequency/power consumption
3 Additional functions and software
4 Available inputs and outputs
5 Reserved for information on special products
6 Please refer to operating instructions / documentation
7 Reserved for certificates, approvals and for additional information on device version
8 Ambient temperature range
9 Degree of protection
1
9
8
2
4
5
3
Order Code:
Ser.No.:
TAG No.:
53P1H-XXXXXXXXXXXX
12345678901
ABCDEFGHJKLMNPQRST
20-55VAC/16-62VDC
IP67 / NEMA/Type 4X
-20°C (-4°F) < Tamb < +60°C (+140°F)
B
P
U S
R O IF
R
N12895
PROMAG 53
ii
PROFIBUS DP (Profile 3.0), STATUS-IN
f-OUT, I-OUT
EPD/MSU
ECC
Pat. US 5,323,156 5,479,007
Pat. US 4,382,387 4,704,908 5,351,554
Pat. UK 2 084 740 EP 219 725 EP 521 169
Pat. UK EP 541 878 EP 618 680
50-60Hz 15VA/W
6
7

Promag 53 PROFIBUS DP/PA Identification
Endress+Hauser 7
2.1.2 Nameplate of the sensor
a0004374
Fig. 2: Nameplate specifications for the "Promag" sensor (example)
1 Order code/serial number: See the specifications on the order confirmation for the meanings of the individual letters and
digits.
2 Calibration factor with zero point
3 Nominal diameter/nominal pressure
4 Medium temperature range
5 Materials: lining/measuring electrode
6 Reserved for information on special products
7 Permitted ambient temperature range
8 Please refer to operating instructions / documentation
9 Reserved for additional information on device version (approvals, certificates)
10 Calibration tolerance
11 Additional information
– EPD: with empty pipe detection electrode
– R/B: with reference electrode (only for Promag P)
12 Degree of protection
13 Flow direction
-20°C (-4°F)<Tamb<+60°C (+140°F) NEMA/Type4X
50PXX-XXXXXXXXXXXX
1.0000/0000
–10 ...150°C/+14 ...300°F°C °F
PFA
12345678901 RY
ABCDEFGHJKLMNPQRST
DN100 DINEN PN40/pnom =PS= 40bar
EPD/MSÜ,R/B
TM:
Order Code:
Materials:
K-factor:
Ser.No.:
TAG No.:
PROMAG P
1
2
3
7
13
12
1.4435/316L Electrodes:
0.2% CAL
4
5
6
10
11
i
9
8
IP67
2007
N12895

Identification Promag 53 PROFIBUS DP/PA
8Endress+Hauser
2.1.3 Nameplate for connections
a0004562
Fig. 3: Nameplate specifications for "Promag" transmitter connections (example)
1 Serial number
2 Possible configuration of current output
3 Possible configuration of relay contacts
4 Terminal assignment, cable for power supply: 85 to 260 V AC, 20 to 55 V AC, 16 to 62 V DC
Terminal No. 1: L1 for AC, L+ for DC
Terminal No. 2: N for AC, L- for DC
5 Pending signals at the inputs and outputs
possible configurations and terminal assignment
6 Version of device software currently installed (inclusive language group)
7 Installed communication type
8PROFIBUSIDNo.
9 Date of installation
10 Current updates to data specified in points 6 to 9
26(+) / 27(-)
NC:
Versorgung/
Tensiond'alimentation
Observer manuel d'instruction
See operatingmanual
Betriebsanleitung beachten
Communication:
Drivers:
Device SW:
ID XXXX (HEX)
XX.XX.XX
PROFIBUS DP
PROFIBUS DP Profile 3.0()
12345678912Ser.No.:
Supply /
24(+) / 25(-)
22(+) / 23(-)
20(+) / 21(-)
N/L-
PE
A:
NO:
P:
L1/L+
12
319475-00XX
X
active
passive
normally opencontact
normally closed contact
Date: DD. MMM. YYYY
Update 1
Ex-works/ ab-Werk / réglagesusineUpdate 2
(WEA)
1
4
5
6
7
8
9
2
3
P
NO
NC
max. 30 VAC / 0.5 A
max. 60 VDC / 0.1 A
max. 30 VAC / 0.5 A
3...30 VDC, Ri = 3 kOhm
max. 60 VDC / 0.1 A
STATUS–IN
RELAY
RELAY
27 = A (RxD/TxD-N)
26 = B (RxD/TxD-P)

Promag 53 PROFIBUS DP/PA Identification
Endress+Hauser 9
2.2 Certificates and approvals
The devices are designed in accordance with good engineering practice to meet state-of-
the-art safety requirements, have been tested, and left the factory in a condition in which
they are safe to operate. The devices comply with the applicable standards and regulations
in accordance with EN 61010-1 "Protection Measures for Electrical Equipment for
Measurement, Control, Regulation and Laboratory Procedures" and with the EMC
requirements of IEC/EN 61326.
The measuring system described in this Operating Manual is therefore in conformity with
the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing
of the device by affixing to it the CE mark.
The measuring system is in conformity with the EMC requirements of the "Australian
Communications and Media Authority (ACMA)".
The flowmeter has successfully passed all the test procedures carried out and is certified and
registered by the PNO (PROFIBUS User Organization).
The device thus meets all the requirements of the following specifications:
• Certified to PROFIBUS Specification Profile 3.0 version
(Device certification number: provided upon request)
• The measuring device can also be operated with certified devices of other manufacturers
(interoperability).
2.3 Registered trademarks
TRI-CLAMP®
Registered trademark of Ladish & Co., Inc., Kenosha, USA
KALREZ® and VITON®
Registered trademarks of E.I. Du Pont de Nemours & Co., Wilmington, USA
PROFIBUS®
Registered trademark of the PROFIBUS User Organization, Karlsruhe, D
HistoROM™, S-DAT®, T-DAT™, F-CHIP®, Field Xpert™, FieldCare®, Fieldcheck®,
Applicator®
Registered or registration-pending trademarks of Endress+Hauser Flowtec AG, Reinach, CH

Installation Promag 53 PROFIBUS DP/PA
10 Endress+Hauser
3Installation
3.1 Incoming acceptance, transport and storage
3.1.1 Incoming acceptance
On receipt of the goods, check the following points:
• Check the packaging and the contents for damage.
• Check the shipment, make sure nothing is missing and that the scope of supply matches
your order.
3.1.2 Transport
The following instructions apply to unpacking and to transporting the device to its final
location:
• Transport the devices in the containers in which they are delivered.
• Do not remove the protection plates or caps on the process connections until you are ready
to install the device. This is particularly important in the case of sensors with PTFE linings.
Special notes on flanged devices
"Caution!
• The wooden covers mounted on the flanges before the device leaves the factory protect the
linings on the flanges during storage and transportation. Do not remove these protection
plates until immediately before the device is installed in the pipe.
• Do not lift flanged devices by the transmitter housing or, in the case of the remote version,
by the connection housing.
Transporting flanged devices DN
 300 (12")
Use webbing slings slung round the two process connections. Do not use chains, as they
could damage the housing.
#Warning!
Risk of injury if the measuring device slips. The center of gravity of the assembled measuring
device might be higher than the points around which the slings are slung.
At all times, therefore, make sure that the device does not unexpectedly turn around its axis
or slip.
a0004294
Fig. 4: Transporting sensors with DN  300 (12")

Promag 53 PROFIBUS DP/PA Installation
Endress+Hauser 11
Transporting flanged devices DN 300 (12")
Use only the metal eyes on the flanges for transporting the device, lifting it and positioning
the sensor in the piping.
"Caution!
Do not attempt to lift the sensor with the tines of a fork-lift truck beneath the metal casing.
This would buckle the casing and damage the internal magnetic coils.
a0004295
Fig. 5: Transporting sensors with DN > 300 (12")
3.1.3 Storage
Note the following points:
• Pack the measuring device in such a way as to protect it reliably against impact for storage
(and transportation). The original packaging provides optimum protection.
• The storage temperature corresponds to the operating temperature range of the
measuring transmitter and the appropriate measuring sensors →160.
• The measuring device must be protected against direct sunlight during storage in order to
avoid unacceptably high surface temperatures.
• Choose a storage location where moisture does not collect in the measuring device. This
will help prevent fungus and bacteria infestation which can damage the lining.
• Do not remove the protection plates or caps on the process connections until you are ready
to install the device. This is particularly important in the case of sensors with PTFE linings.

Installation Promag 53 PROFIBUS DP/PA
12 Endress+Hauser
3.2 Installation conditions
3.2.1 Dimensions
The dimensions and installation lengths of the sensor and transmitter can be found in the
"Technical Information" for the device in question. This document can be downloaded as a
PDF file from www.endress.com. A list of the "Technical Information" documents available is
provided in the "Documentation" section on →184.
3.2.2 Mounting location
The accumulation of air or gas bubbles in the measuring tube could result in an increase in
measuring errors.
Avoid the following locations:
• At the highest point of a pipeline. Risk of air accumulating.
• Directly upstream from a free pipe outlet in a vertical pipeline.
A0011899
Fig. 6: Mounting location
Installing pumps
Do not install the sensor on the intake side of a pump. This precaution is to avoid low
pressure and the consequent risk of damage to the lining of the measuring tube. Information
on the lining's resistance to partial vacuum →165.
It might be necessary to install pulse dampers in systems incorporating reciprocating,
diaphragm or peristaltic pumps. Information on the measuring system's resistance to
vibration and shock →161.
A0011900
Fig. 7: Installing pumps
h 2 × DN

Promag 53 PROFIBUS DP/PA Installation
Endress+Hauser 13
Partially filled pipes
Partially filled pipes with gradients necessitate a drain-type configuration. The Empty Pipe
Detection function offers additional protection by detecting empty or partially filled pipes →
125.
"Caution!
Risk of solids accumulating. Do not install the sensor at the lowest point in the drain. It is
advisable to install a cleaning valve.
A0011901
Fig. 8: Installation in partially filled pipe

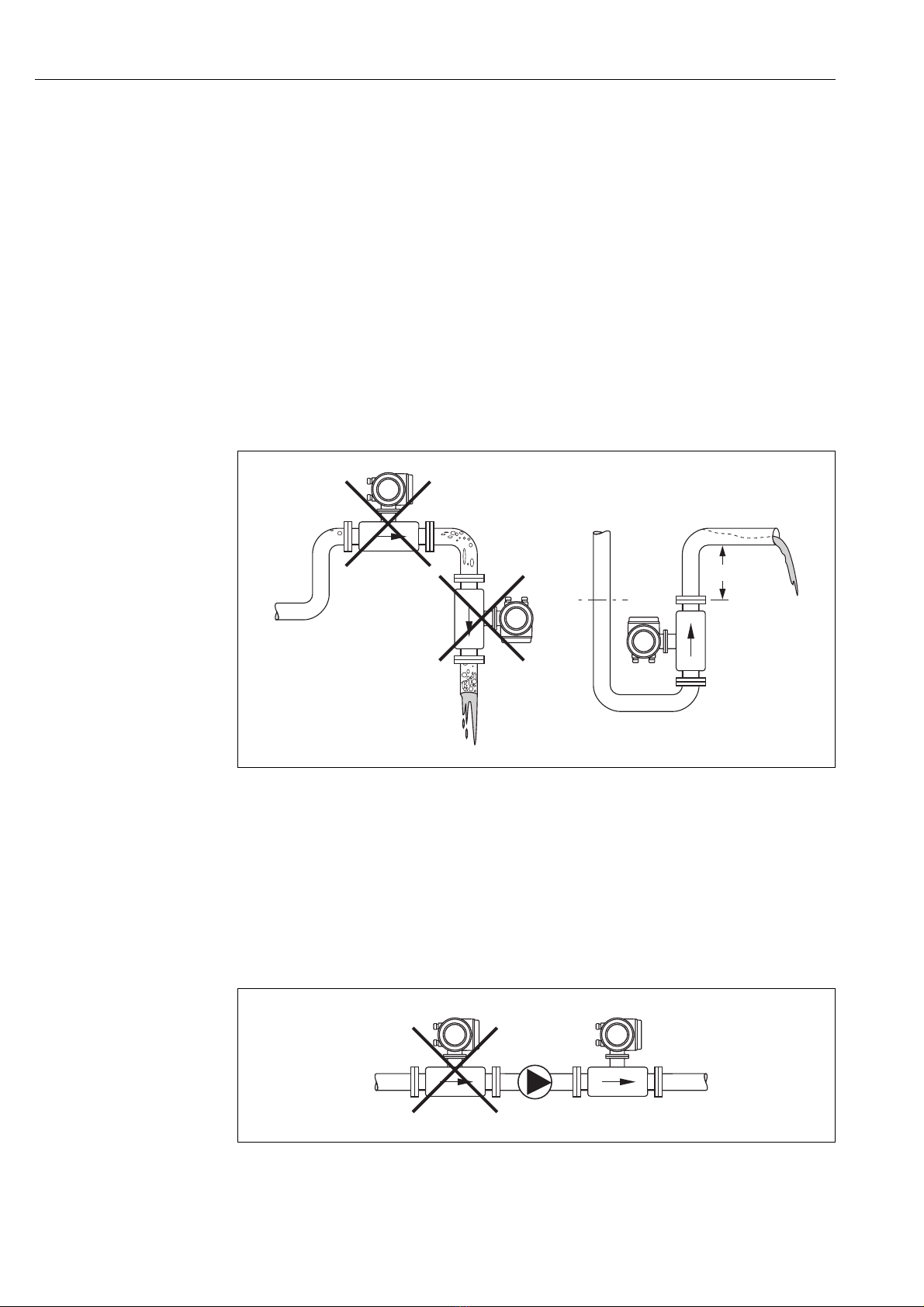

Down pipes
Install a siphon or a vent valve downstream of the sensor in down pipes longer than 5 meters
(16,3 ft). This precaution is to avoid low pressure and the consequent risk of damage to the
lining of the measuring tube. This measure also prevents the system losing prime, which
could cause air inclusions.
Information on the lining's resistance to partial vacuum →165
A0011902
Fig. 9: Measures for installation in a down pipe
1Ventvalve
2Siphon
h Length of down pipe (h
 5 m (16,3 ft))
5 × DN
2 × DN
h
2
1

Installation Promag 53 PROFIBUS DP/PA
14 Endress+Hauser
3.2.3 Orientation
An optimum orientation position helps avoid gas and air accumulations and deposits in the
measuring tube. Promag, nevertheless, supplies a range of functions and accessories for
correct measuring of problematic fluids:
• Electrode Cleaning Circuitry (ECC) to prevent electrically conductive deposits in the
measuring tube, e.g. for fluids causing buildup (see "Description of Device Functions"
manual).
• Empty Pipe Detection (EPD) ensures the detection of partially filled measuring tubes or in
the case of degassing fluids →125.
Vertical orientation
A vertical orientation is ideal in the following cases:
• For self-emptying piping systems and when using empty pipe detection.
• For sludge containing sand or stones and where the solids cause sedimentation.
A0011903
Fig. 10: Vertical orientation
Horizontal orientation

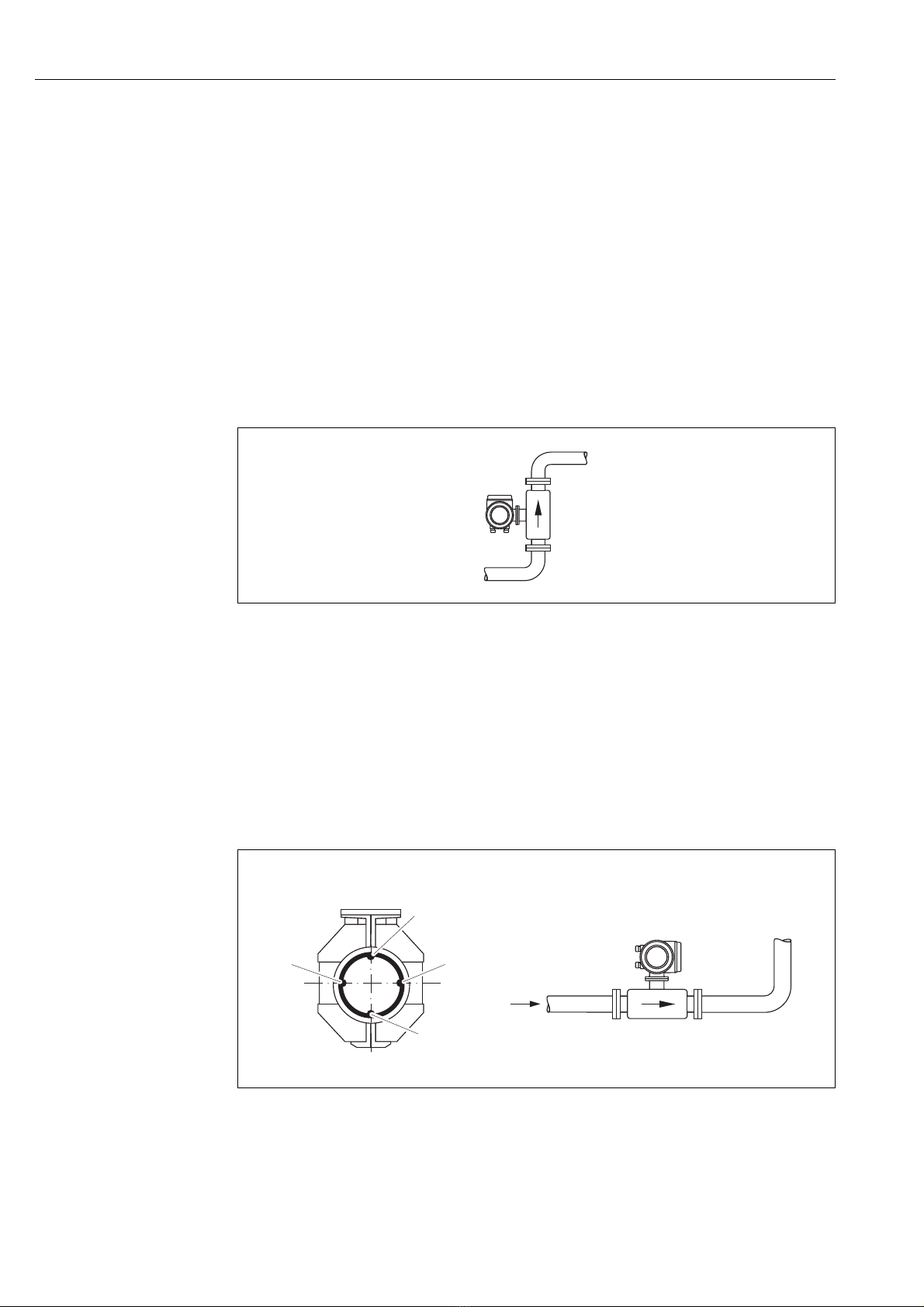

The measuring electrode plane should be horizontal. This prevents brief insulation of the
two electrodes by entrained air bubbles.
"Caution!
Empty Pipe Detection functions correctly with the measuring device installed horizontally
only when the transmitter housing is facing upward (see diagram). Otherwise there is no
guarantee that Empty Pipe Detection will respond if the measuring tube is only partially
filled.
A0011904
Fig. 11: Horizontal orientation
1 EPD electrode for empty pipe detection
(not available for "measuring electrode only" option, not in Promag H, DN 2 to 15 (1/12 to ½"))
2 Measuring electrodes for signal detection
3 Reference electrode for potential equalization
(not available for "measuring electrode only" option, not in Promag H)
A
1
22
A
3

Promag 53 PROFIBUS DP/PA Installation
Endress+Hauser 15
3.2.4 Inlet and outlet runs
If possible, install the sensor in a location upstream of fittings such as valves, T-pieces,
elbows, etc.
Compliance with the following requirements for the inlet and outlet runs is necessary in
order to ensure measuring accuracy.
• Inlet run 5 × DN
•Outletrun2 × DN
A0011905

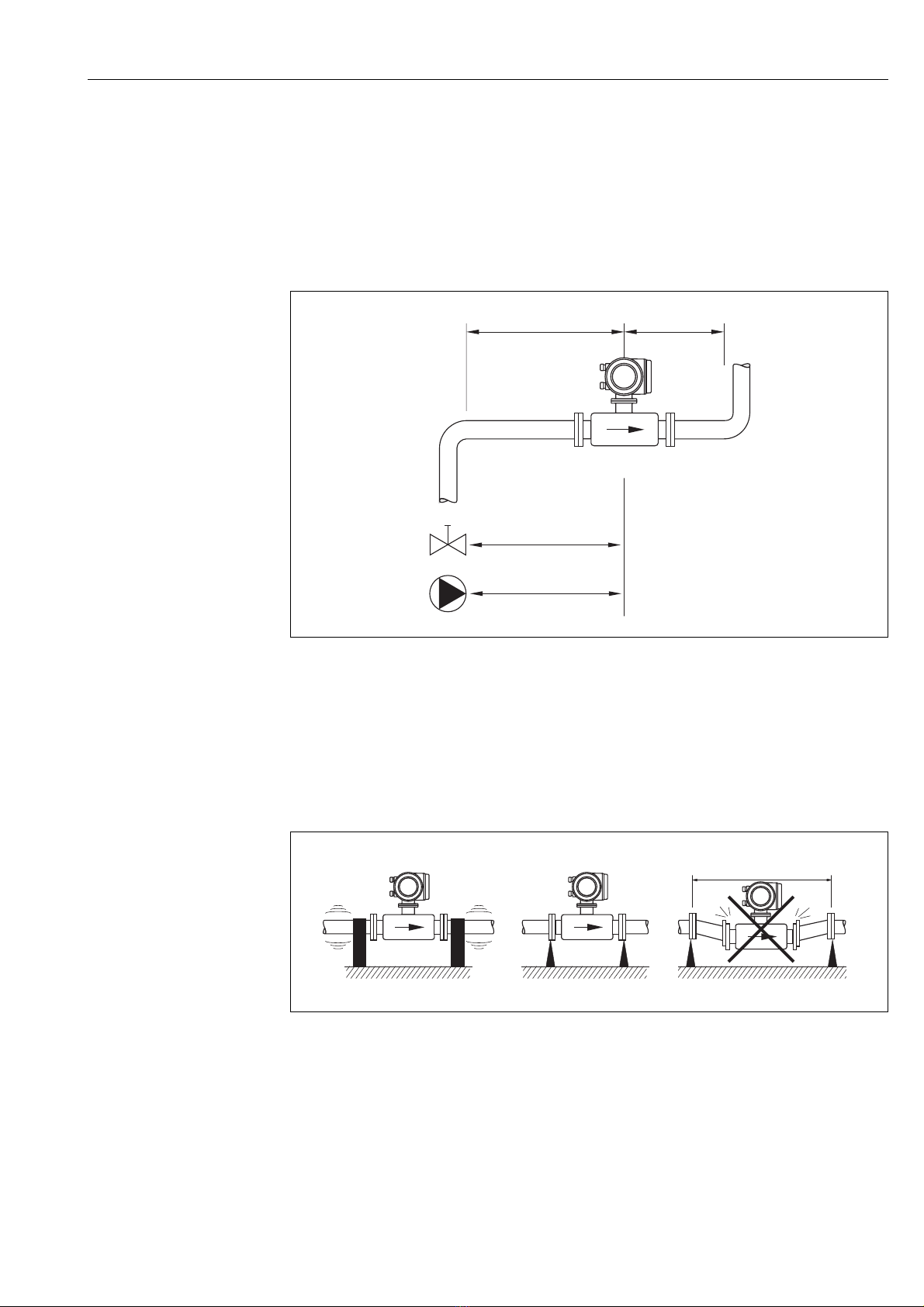

Fig. 12: Inlet and outlet runs
3.2.5 Vibrations
Secure and fix both the piping and the sensor if the vibrations are severe.
"Caution!
It is advisable to install sensor and transmitter separately if vibration is excessively severe.
Information on the permitted resistance to vibration and shock →161.
A0011906
Fig. 13: Measures to prevent vibration of the measuring device (L > 10 m / 33 ft)
5 × DN 2 × DN
L

Installation Promag 53 PROFIBUS DP/PA
16 Endress+Hauser
3.2.6 Foundations, supports
If the nominal diameter is DN 350 (14"), mount the sensor on a foundation of adequate
load-bearing strength.
"Caution!
Risk of damage.
Do not support the weight of the sensor on the metal casing: the casing would buckle and
damage the internal magnetic coils.
a0003209
Fig. 14: Correct support for large nominal diameters (DN  350 / 14")
3.2.7 Adapters
Suitable adapters to DIN EN 545 (double-flange reducers) can be used to install the sensor
in larger-diameter pipes. The resultant increase in the rate of flow improves measuring
accuracy with very slow-moving fluids.

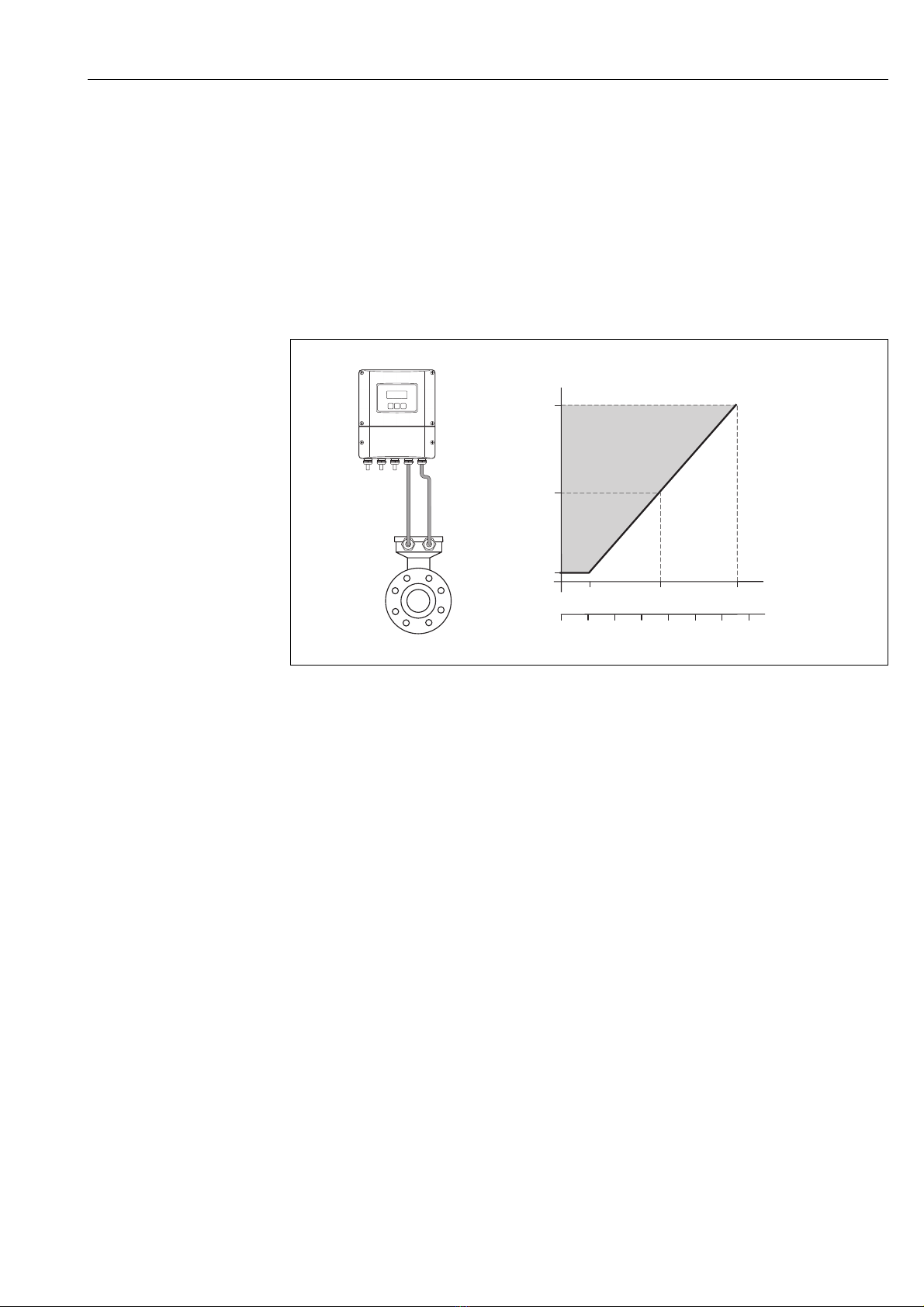

The nomogram shown here can be used to calculate the pressure loss caused by cross-section
reduction.
!Note!
The nomogram only applies to liquids of viscosity similar to water.
1. Calculate the ratio of the diameters d/D.
2. From the nomogram, read off the pressure loss as a function of fluid velocity
(downstream from the reduction) and the d/D ratio.
A0011907
Fig. 15: Pressure loss due to adapters
100
10
0.5
d / D
[mbar]
0.6 0.7 0.8 0.9
1 m/s
2 m/s
3 m/s
4 m/s
5 m/s
6 m/s
7 m/s
8 m/s
1
D
d
max. 8°

Promag 53 PROFIBUS DP/PA Installation
Endress+Hauser 17
3.2.8 Nominal diameter and flow rate
The diameter of the pipe and the flow rate determine the nominal diameter of the sensor.
The optimum velocity of flow is between 2 and 3 m/s (6.5 to 9.8 ft/s)
The velocity of flow (v), moreover, has to be matched to the physical properties of the fluid:
• v < 2 m/s (v < 6.5 ft/s): for abrasive fluids
• v > 2 m/s (v > 6.5 ft/s): for fluids producing buildup
!Note!
Flow velocity can be increased, if necessary, by reducing the nominal diameter of the sensor
(→16).
Recommended flow (SI units)
Nominal diameter Promag E/P Promag H Promag L Promag W
[mm] Min./max. full scale value (v ≈0.3 or 10 m/s) in [dm³/min]
2 – 0.06 to 1.8 – –
4 – 0.25 to 7 – –
8–1to30––
15 4 to 100 4 to 100 – –
25 9 to 300 9 to 300 9 to 300 9 to 300
32 15 to 500 – 15 to 500 15 to 500
40 25 to 700 25 to 700 25 to 700 25 to 700
50 35 to 1100 35 to 1100 35 to 1100 35 to 1100
65 60 to 2000 60 to 2000 60 to 2000 60 to 2000
80 90 to 3000 90 to 3000 90 to 3000 90 to 3000
100 145 to 4700 145 to 4700 145 to 4700 145 to 4700
125 220 to 7500 220 to 7500 220 to 7500 220 to 7500
[mm] Min./max. full scale value (v ≈0.3 or 10 m/s) in [m³/h]
150 20 to 600 20 to 600 20 to 600 20 to 600
200 35 to 1100 – 35 to 1100 35 to 1100
250 55 to 1700 – 55 to 1700 55 to 1700
300 80 to 2400 – 80 to 2400 80 to 2400
350 110 to 3300 – 110 to 3300 110 to 3300
375 – – 140 to 4200 140 to 4200
400 140 to 4200 – 140 to 4200 140 to 4200
450 180 to 5400 – 180 to 5400 180 to 5400
500 220 to 6600 – 220 to 6600 220 to 6600
600 310 to 9600 – 310 to 9600 310 to 9600
700 – – 420 to 13500 420 to 13500
800 – – 550 to 18000 550 to 18000
900 – – 690 to 22500 690 to 22500
1000 – – 850 to 28000 850 to 28000
1200 – – 1250 to 40000 1250 to 40000
1400 – – – 1700 to 55000
1600 – – – 2200 to 70000
1800 – – – 2800 to 90000
2000 – – – 3400 to 110000

Installation Promag 53 PROFIBUS DP/PA
18 Endress+Hauser
Recommended flow (US units)
Nominal diameter Promag E/P Promag H Promag L Promag W
[inch] Min./max. full scale value (v ≈0.3 or 10 m/s) in [gal/min]
1/12" – 0.015 to 0.5 – –
1/8" – 0.07 to 2 – –
3/8" – 0.25 to 8 – –
½" 1.0 to 27 1.0 to 27 – –
1" 2.5 to 80 2.5 to 80 2,5 to 80 2.5 to 80
1 ¼" 4 to 130 – – 4 to 130
1 ½" 7 to 190 7 to 190 7 to 190 7 to 190
2" 10 to 300 10 to 300 10 to 300 10 to 300
2 ½" 16 to 500 16 to 500 16 to 500 16 to 500
3" 24 to 800 24 to 800 24 to 800 24 to 800
4" 40 to 1250 40 to 1250 40 to 1250 40 to 1250
5" 60 to 1950 60 to 1950 60 to 1950 60 to 1950
6" 90 to 2650 90 to 2650 90 to 2650 90 to 2650
8" 155 to 4850 – 155 to 4850 155 to 4850
10" 250 to 7500 – 250 to 7500 250 to 7500
12" 350 to 10600 – 350 to 10600 350 to 10600
14" 500 to 15000 – 500 to 15000 500 to 15000
15" – – 600 to 19000 600 to 19000
16" 600 to 19000 – 600 to 19000 600 to 19000
18" 800 to 24000 – 800 to 24000 800 to 24000
20" 1000 to 30000 – 1000 to 30000 1000 to 30000
24" 1400 to 44000 – 1400 to 44000 1400 to 44000
28" – – 1900 to 60000 1900 to 60000
30" – – 2150 to 67000 2150 to 67000
32" – – 2450 to 80000 2450 to 80000
36" – – 3100 to 100000 3100 to 100000
40" – – 3800 to 125000 3800 to 125000
42" – – 4200 to 135000 4200 to 135000
48" – – 5500 to 175000 5500 to 175000
[inch] Min./max. full scale value (v ≈0.3 or 10 m/s) in [Mgal/d]
54" – – – 9 to 300
60" – – – 12 to 380
66" – – – 14 to 500
72" – – – 16 to 570
78" – – – 18 to 650

Promag 53 PROFIBUS DP/PA Installation
Endress+Hauser 19
3.2.9 Length of connecting cable
In order to ensure measuring accuracy, please comply with the following instructions when
installing the remote version:
• Secure the cable run or route the cable in an armored conduit. Movement of the cable can
falsify the measuring signal, particularly if the fluid conductivity is low.
• Route the cable well clear of electrical machines and switching elements.
• Ensure potential equalization between sensor and transmitter, if necessary.
• The permissible cable length Lmax depends on the fluid conductivity (→16).
• The maximum connecting cable length is 10 m (32.8 ft) when empty pipe detection
(EPD →125) is switched on.
a0010734
Fig. 16: Permitted lengths for connecting cable in remote version, as a function of the conductivity of the fluid
Gray shaded area = permissible range
Lmax = length of connecting cable
200
100
5
10 100 200
Lmax
[m][m]
[µS/cm]
Lmax
[ft]
200 6000 400

Installation Promag 53 PROFIBUS DP/PA
20 Endress+Hauser
3.3 Installation
3.3.1 Installing the Promag E sensor
"Caution!
• The protective covers mounted on the two sensor flanges guard the PTFE lining, which is
turned over the flanges. Consequently, do not remove these protection plates until
immediately before the sensor is installed in the pipe.
• Protection plates must remain in place while the device is in storage.
• Make sure that the lining is not damaged or removed from the flanges.
!Note!
Bolts, nuts, seals, etc. are not included in the scope of supply and must be supplied by the
customer.
The sensor is designed for installation between the two piping flanges:
• It is essential that you observe the necessary screw tightening torques on →20.
• If grounding disks are used, follow the mounting instructions which will be enclosed with
the shipment.
A0011908
Fig. 17: Installing the Promag E sensor
Seals
Comply with the following instructions when installing seals:
• PFA or PTFE lining seals are not required.
• Only use seals that comply with DIN EN 1514-1 for DIN flanges.
• Make sure that the seals do not protrude into the piping cross-section.
"Caution!
Risk of short circuit! Do not use electrically conductive sealing compound such as graphite.
An electrically conductive layer could form on the inside of the measuring tube and short-
circuit the measuring signal.
Ground cable
• If necessary, special ground cables can be ordered as accessories for potential equalization,
→128.
• For information on potential equalization and detailed installation instructions for using
ground cables, please refer to →62.
Screw tightening torques (Promag E)
Note the following points:
• The tightening torques listed below are for lubricated threads only.
• Always tighten the screws uniformly and in diagonally opposite sequence.
• Overtightening the screws will deform the sealing faces or damage the seals.
• The tightening torques listed below apply only to pipes not subjected to tensile stress.
