Operating Instructions
Cerabar PMP11, PMP21, PMP23
Process pressure measurement
Pressure switch for safe measurement and monitoring of
absolute and gauge pressure
BA01271P/00/EN/01.14
71244883

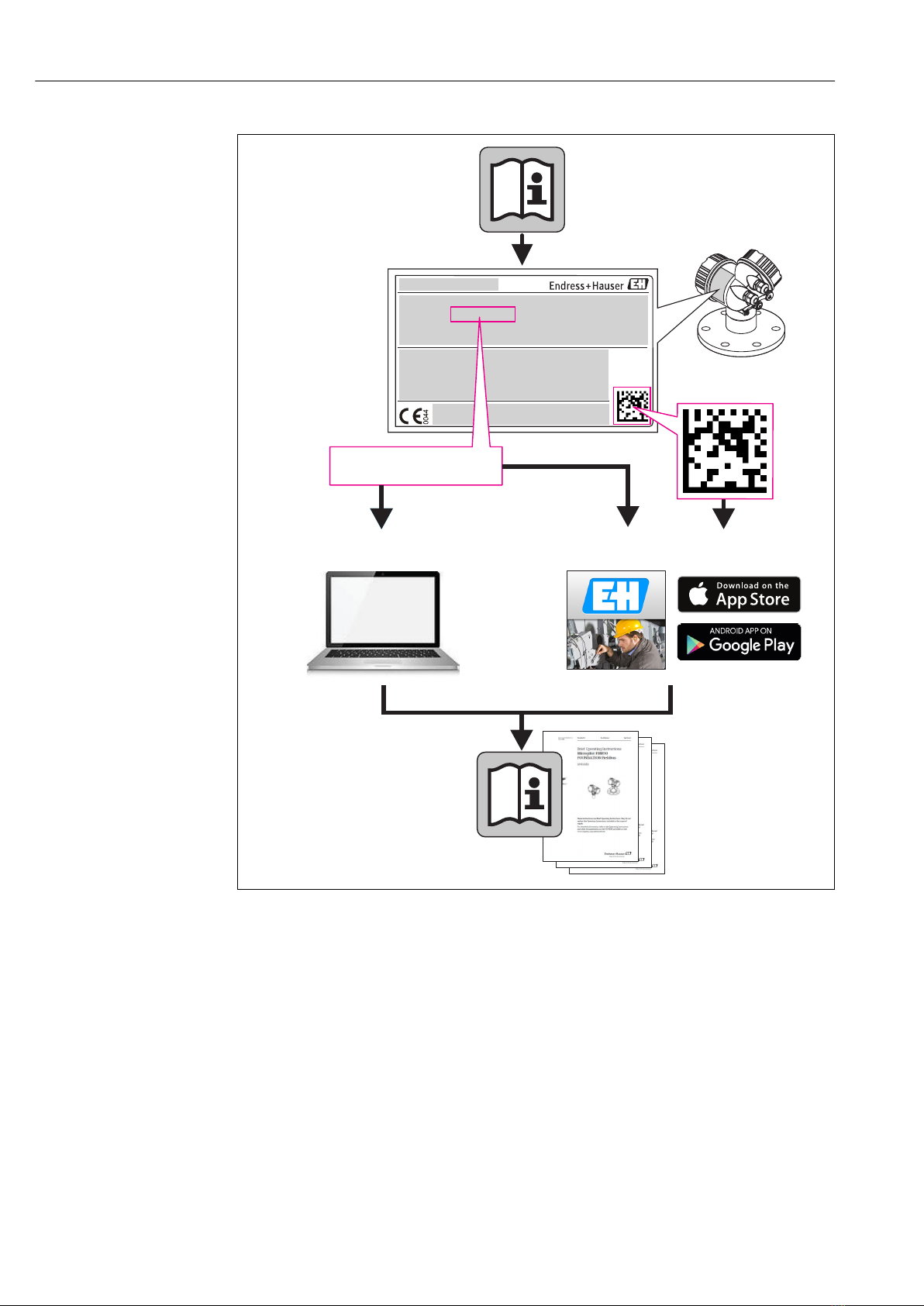

2 Endress+Hauser
TAG No.: XXX000
Ser. No.: X000X000000
Order code 00X00-XXXX0XX0XXX
www.endress.com/deviceviewer Endress+Hauser Operations App
Serial number
A0023555

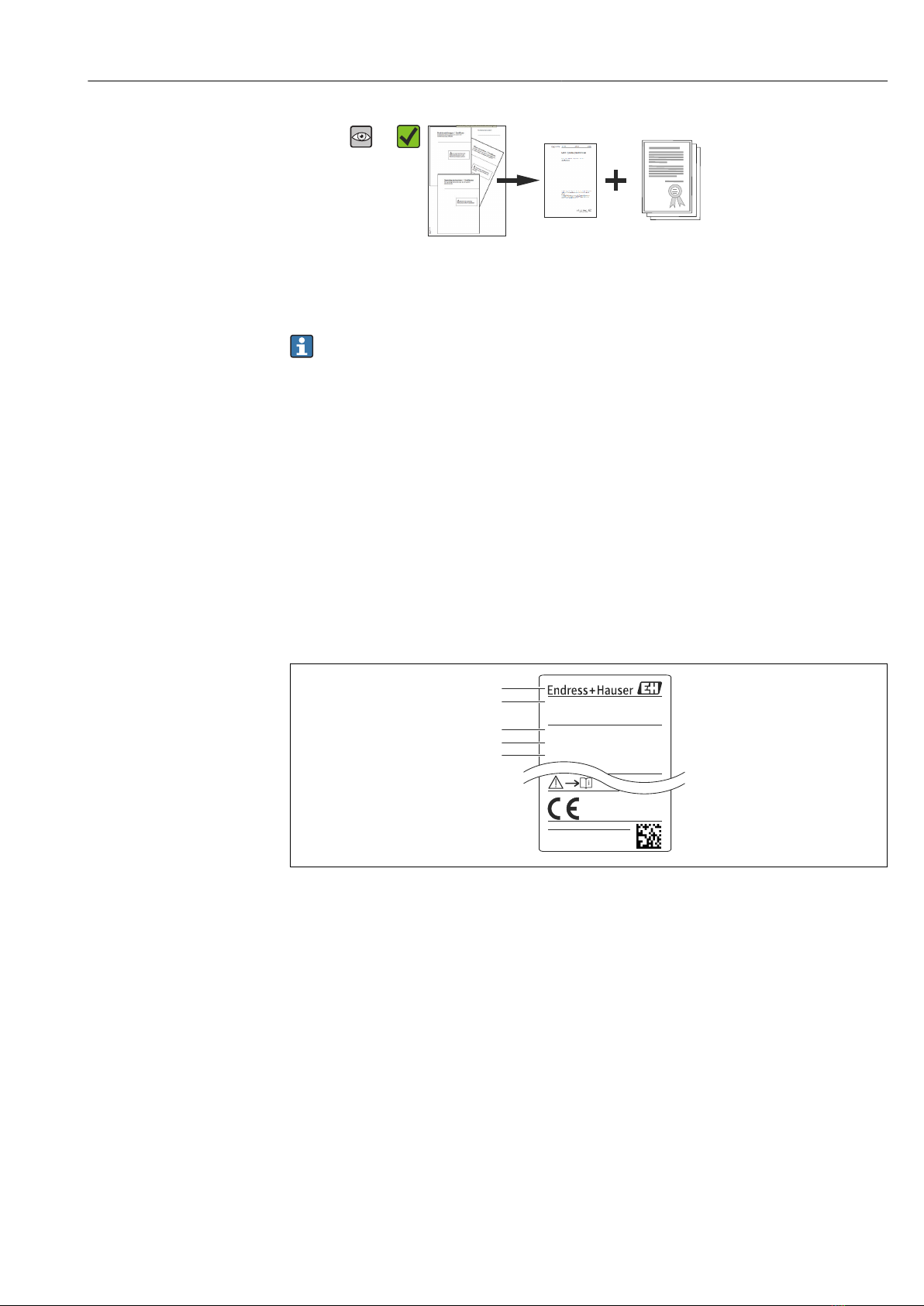

• Make sure the document is stored in a safe place such that it is always available when
working on or with the device.
• To avoid danger to individuals or the facility, read the "Basic safety instructions" section
carefully, as well as all other safety instructions in the document that are specific to
working procedures.
• The manufacturer reserves the right to modify technical data without prior notice. Your
Endress+Hauser distributor will supply you with current information and updates to
these Instructions.

Table of contents
Endress+Hauser 3
Table of contents
1 Document information .............. 4
1.1 Document function ..................... 4
1.2 Symbols used .......................... 4
1.3 Documentation ........................ 5
1.4 Terms and abbreviations ................. 7
1.5 Turn down calculation ................... 8
2 Basic safety instructions ............ 9
2.1 Requirements concerning the staff .......... 9
2.2 Designated use ........................ 9
2.3 Workplace safety ...................... 10
2.4 Operational safety ..................... 10
2.5 Product safety ........................ 10
3 Product description ................ 11
3.1 Product design ........................ 11
3.2 Function ............................ 11
4 Incoming acceptance and product
identification ..................... 12
4.1 Incoming acceptance ................... 12
4.2 Product identification ................... 13
4.3 Storage and transport .................. 13
5 Installation ....................... 15
5.1 Mounting dimensions .................. 15
5.2 Installation conditions .................. 15
5.3 Influence of the installation position ........ 15
5.4 Mounting location ..................... 16
5.5 Mounting the profiled seal for the universal
process adapter ....................... 17
5.6 Post-installation check .................. 17
6 Electrical connection .............. 18
6.1 Connecting the measuring unit ............ 18
6.2 Connection conditions .................. 19
6.3 Connection data ....................... 19
6.4 Post-connection check .................. 20
7 Operation options ................. 21
7.1 Plug-on display PHX20 (optional) .......... 21
8 Diagnostics and troubleshooting ... 25
8.1 Troubleshooting ...................... 25
8.2 Response of output to errors .............. 25
8.3 Disposal ............................ 25
9 Maintenance ...................... 26
9.1 Exterior cleaning ...................... 26
10 Repair ............................ 27
10.1 General notes ........................ 27
10.2 Return .............................. 27
11 Accessories ....................... 28
11.1 Weld-in adapter ...................... 28
11.2 Process adapter M24 ................... 28
11.3 Plug-on display PHX20 ................. 28
11.4 M12 plug connectors ................... 29
12 Technical data .................... 30
12.1 Input ............................... 30
12.2 Output ............................. 32
12.3 Performance characteristics of metallic
process isolating diaphragm .............. 34
12.4 Environment ......................... 36
12.5 Process ............................. 38
Index .................................. 39

Document information Cerabar PMP11, PMP21, PMP23
4 Endress+Hauser
1 Document information
1.1 Document function
These Operating Instructions contain all the information that is required in various phases
of the life cycle of the device: from product identification, incoming acceptance and
storage, to mounting, connection, operation and commissioning through to
troubleshooting, maintenance and disposal.
1.2 Symbols used
1.2.1 Safety symbols
Symbol Meaning
DANGER
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
NOTE!
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.2.2 Electrical symbols
Symbol Meaning Symbol Meaning
Direct current Alternating current
Direct current and alternating current Ground connection
A grounded terminal which, as far as
the operator is concerned, is
grounded via a grounding system.
Protective ground connection
A terminal which must be connected
to ground prior to establishing any
other connections.
Equipotential connection
A connection that has to be connected
to the plant grounding system: This
may be a potential equalization line
or a star grounding system depending
on national or company codes of
practice.
1.2.3 Tool symbols
Symbol Meaning
A0011222
Open-ended wrench

Cerabar PMP11, PMP21, PMP23 Document information
Endress+Hauser 5

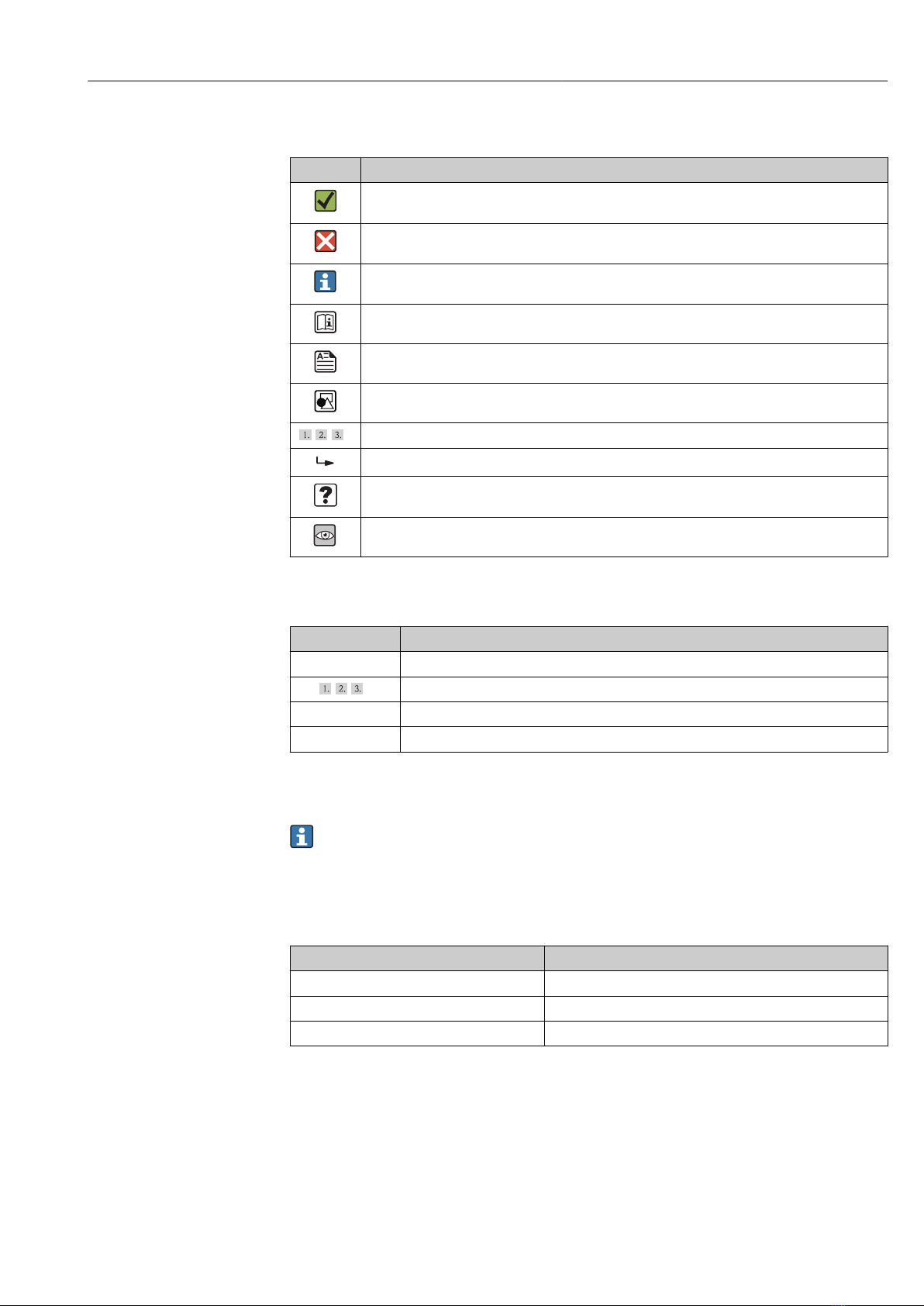

1.2.4 Symbols for certain types of information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation
Reference to page
Reference to graphic
,… ,
Series of steps
Result of a step
Help in the event of a problem
Visual inspection
1.2.5 Symbols in graphics
Symbol Meaning
1, 2, 3 ... Item numbers
,… ,
Series of steps
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
1.3 Documentation
The document types listed are available:
In the Downloads area of the Endress+Hauser website: www.endress.com →
Downloads
1.3.1 Technical Information (TI): planning aid for your device
Device Document
PMP11 TI01133P
PMP21 TI01133P
PMP23 TI01203P
The document contains all the technical data on the device and provides an overview of
the accessories and other products that can be ordered for the device.
1.3.2 Brief Operating Instructions (KA): getting the 1st measured
value quickly
KA01164P:

Document information Cerabar PMP11, PMP21, PMP23
6 Endress+Hauser
The Brief Operating Instructions contain all the essential information from incoming
acceptance to initial commissioning.
1.3.3 Safety Instructions (XA)
Safety Instructions (XA) are supplied with the device depending on the approval. These
instructions are an integral part of the Operating Instructions.
Device Directive Documentation Option 1)
PMP21
PMP23
ATEX II 1/2G Ex ia IIC T4 XA01271P BA
PMP21
PMP23
ATEX II 3G Ex eC IIC T4 In preparation BC
PMP21
PMP23
FM IS Cl. I, Div.1 Gr. A-D XA01321P FA
PMP21
PMP23
CSA C/US IS Cl. I Div. 1 Gr. A-D XA01322P CB
PMP21
PMP23
CSA General Purpose In preparation CA
PMP21
PMP23
GOST Ex ia IIC T4 Under development GA
PMP21
PMP23
IEC Ex ia IIC T4 Ga/Gb XA01271P IA
PMP21
PMP23
NEPSI Ex ia IIC T4 XA01363P NA
PMP21
PMP23
TIIS Ex ia IIC T4 In preparation TA
1) Product Configurator, order code for "Approval"
The nameplate provides information on the Safety Instructions (XA) that are relevant
for the device.

Cerabar PMP11, PMP21, PMP23 Document information
Endress+Hauser 7

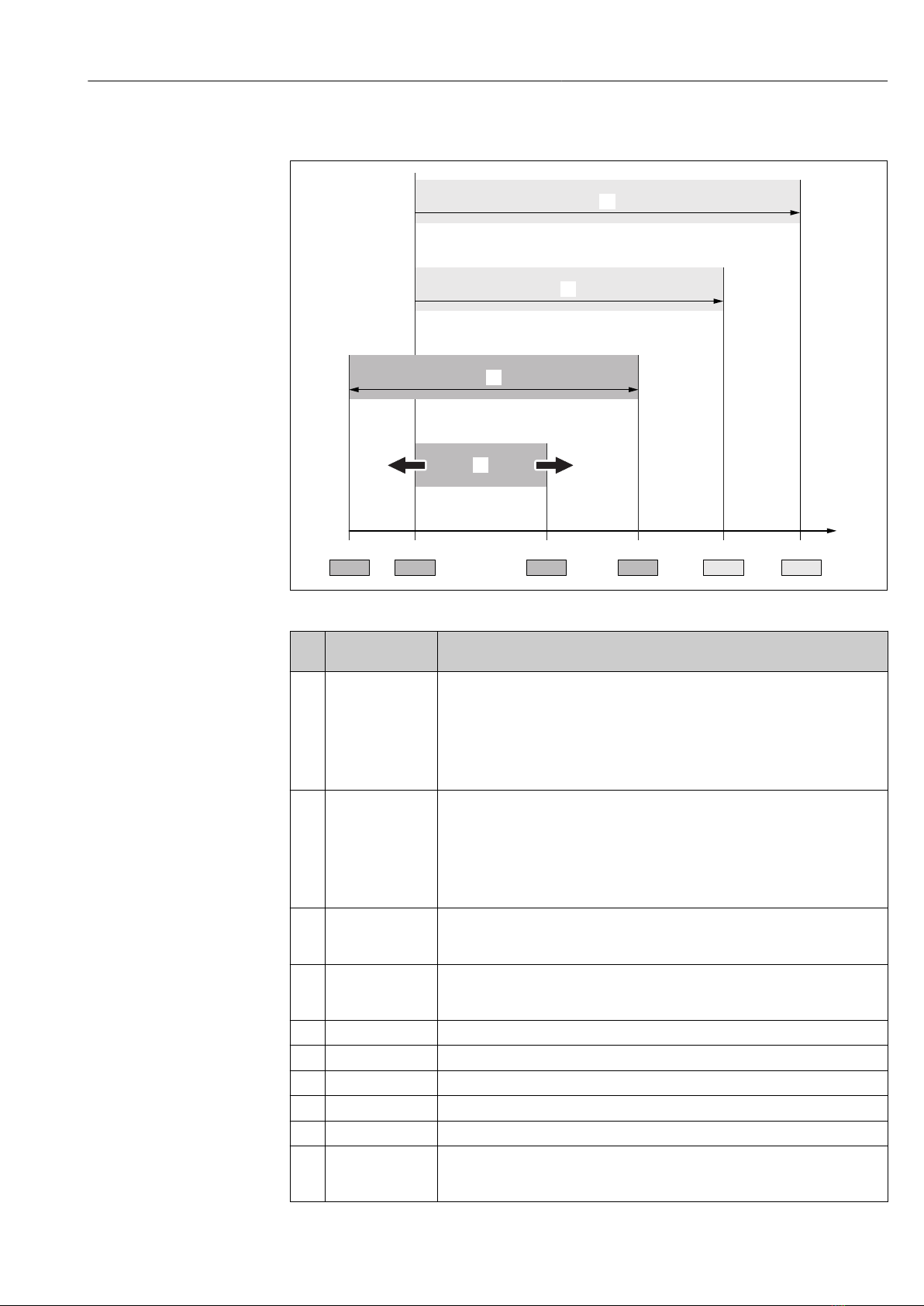

1.4 Terms and abbreviations
URL OPLMWP
LRL
0
p
LRV URV
1
2
3
4
A0029505
Item Term/
abbreviation
Explanation
1 OPL The OPL (over pressure limit = sensor overload limit) for the measuring device
depends on the lowest-rated element, with regard to pressure, of the selected
components, i.e. the process connection has to be taken into consideration in
addition to the measuring cell. Also observe pressure-temperature dependency. For
the relevant standards and additional notes, see the "Pressure specifications" section
→  38.
The OPL may only be applied for a limited period of time.
2 MWP The MWP (maximum working pressure) for the sensors depends on the lowest-
rated element, with regard to pressure, of the selected components, i.e. the process
connection has to be taken into consideration in addition to the measuring cell.
Also observe pressure-temperature dependency. For the relevant standards and
additional notes, see the "Pressure specifications" section →  38.
The MWP may be applied at the device for an unlimited period.
The MWP can also be found on the nameplate.
3 Maximum sensor
measuring range
Span between LRL and URL
This sensor measuring range is equivalent to the maximum calibratable/adjustable
span.
4 Calibrated/
adjusted span
Span between LRV and URV
Factory setting: 0 to URL
Other calibrated spans can be ordered as customized spans.
p - Pressure
- LRL Lower range limit
- URL Upper range limit
- LRV Lower range value
- URV Upper range value
- TD (turn down) Turn down
The turn down is preset at the factory and cannot be changed.
Example - see the following section.

Document information Cerabar PMP11, PMP21, PMP23
8 Endress+Hauser
1.5 Turn down calculation
LRV URLURV LRL
1 = 2 3
A0029545
1 Calibrated/adjusted span
2 Zero-based span
3 URL sensor
Example
• Sensor:10 bar (150 psi)
• Upper range value (URL) = 10 bar (150 psi)
Turn down (TD):
• Calibrated/adjusted span:
0 to 5 bar (0 to 75 psi)
• Lower range value (LRV) = 0 bar (0 psi)
• Upper range value (URV) = 5 bar (75 psi)
TD = URL
|URV - LRV|
TD = 10 bar (150 psi) = 2
|5 bar (75 psi) - 0 bar (0 psi)|
In this example, the TD is 2:1.
This span is based on the zero point.

Cerabar PMP11, PMP21, PMP23 Basic safety instructions
Endress+Hauser 9
2 Basic safety instructions
2.1 Requirements concerning the staff
The personnel for installation, commissioning, diagnostics and maintenance must fulfill
the following requirements:
‣Trained, qualified specialists: must have a relevant qualification for this specific
function and task
‣Are authorized by the plant owner/operator
‣Are familiar with federal/national regulations
‣Before beginning work, the specialist staff must have read and understood the
instructions in the Operating Instructions and supplementary documentation as well as
in the certificates (depending on the application)
‣Following instructions and basic conditions
The operating personnel must fulfill the following requirements:
‣Being instructed and authorized according to the requirements of the task by the
facility's owner-operator
‣Following the instructions in these Operating Instructions
2.2 Designated use
2.2.1 Application and media
The Cerabar is used to measure absolute and gauge pressure in gases, vapors and liquids.
The measuring device may be used for the following measurements (process variables)
• in compliance with the limit values specified under "Technical data"
• in compliance with the conditions that are listed in additional documentation such as the
XA and this manual.
Measured process variable
• PMP11: gauge pressure
• PMP21: gauge pressure or absolute pressure
• PMP23: gauge pressure or absolute pressure
Calculated process variable
Pressure
2.2.2 Incorrect use
The manufacturer is not liable for damage caused by improper or non-designated use.
Verification for borderline cases:
‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance
in verifying the corrosion resistance of process-wetted materials, but does not accept
any warranty or liability.
2.2.3 Residual risks
When in operation, the housing may reach a temperature close to the process
temperature.
Danger of burns from contact with surfaces!
‣For elevated process temperatures, ensure protection against contact to prevent burns.

Basic safety instructions Cerabar PMP11, PMP21, PMP23
10 Endress+Hauser
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
‣Switch off the supply voltage before connecting the device.
2.4 Operational safety
Risk of injury!
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers.
‣If, despite this, modifications are required, consult with Endress+Hauser.
Hazardous area
To eliminate the risk of danger to persons or the facility when the device is used in the
approval-related area (e.g. explosion protection, pressure equipment safety):
‣Check the nameplate to verify if the device ordered can be put to its intended use in the
approval-related area.
‣Observe the specifications in the separate supplementary documentation, such as the
XA or SD, which is an integral part of these Instructions.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet
state-of-the-art safety requirements, has been tested, and left the factory in a condition in
which it is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser
confirms this by affixing the CE mark to the device.

Cerabar PMP11, PMP21, PMP23 Product description
Endress+Hauser 11
3 Product description
3.1 Product design
Overview Item Description
A
A0027231
B
A0027232
C - 1
A0021987
C - 2
A0027289
A Valve plug
B Cable
C- 1 M12 plug
Housing cap made of plastic
C- 2 M12 plug
For Ex eC: metal housing cap
Metal housing cap can also be ordered as an option.
D
E
A0027215
D
E
A0027227
D
E
Housing
Process connection (sample illustration)
3.2 Function
3.2.1 Calculating the pressure
Devices with metallic process isolating diaphragm
The process pressure deflects the metal process isolating diaphragm of the sensor and a fill
fluid transfers the pressure to a Wheatstone bridge (semiconductor technology). The
pressure-dependent change in the bridge output voltage is measured and evaluated.

Incoming acceptance and product identification Cerabar PMP11, PMP21, PMP23
12 Endress+Hauser
4 Incoming acceptance and product
identification

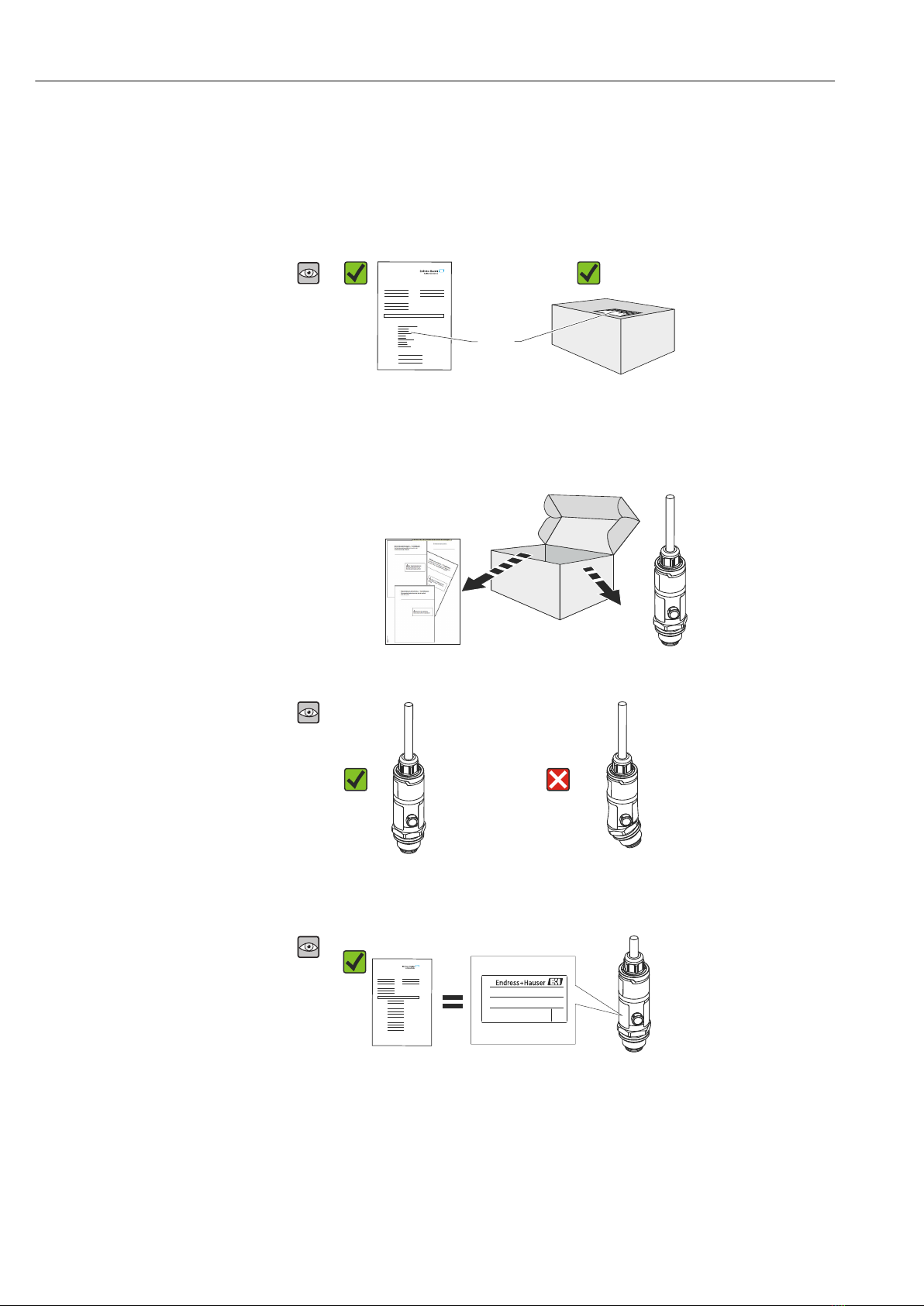

4.1 Incoming acceptance
A0015502
DELIVERY NOTE
1 = 2
A0016870
Is the order code on the delivery note (1) identical to the order code on
the product sticker (2)?
A0022100
A0015502
A0022103
Are the goods undamaged?
A0015502
DELIVERY NOTE
A0022105
Do the data on the nameplate correspond to the order specifications and
the delivery note?

Cerabar PMP11, PMP21, PMP23 Incoming acceptance and product identification
Endress+Hauser 13
A0015502
A0022106
Is the documentation available?
If required (see nameplate): Are the safety instructions (XA) present?
If one of these conditions does not apply, please contact your
Endress+Hauser sales office.
4.2 Product identification
The following options are available for identification of the measuring device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in W@M Device Viewer
(www.endress.com/deviceviewer): All information about the measuring device is
displayed.
For an overview of the technical documentation provided, enter the serial number from
the nameplates in the W@M Device Viewer (www.endress.com/deviceviewer)
4.2.1 Nameplate
Ser. no.:
Ord. cd.:
Ext. ord. cd.:
D-79689 Maulburg
Made in Germany,
Cerabar
5
1
2
3
4
Date:
TAG:
A0024456
1 Manufacturer's address
2 Device name
3 Order number
4 Serial number
5 Extended order number
4.3 Storage and transport
4.3.1 Storage conditions
Use original packaging.
Store the measuring device in clean and dry conditions and protect from damage caused by
shocks (EN 837-2).
Storage temperature range
–40 to +85 °C (–40 to +185 °F)

Incoming acceptance and product identification Cerabar PMP11, PMP21, PMP23
14 Endress+Hauser
4.3.2 Transporting the product to the measuring point
LWARNING
Incorrect transport!
Housing and diaphragm may become damaged, and there is a risk of injury!
‣Transport the measuring device to the measuring point in its original packaging or by
the process connection.

Cerabar PMP11, PMP21, PMP23 Installation
Endress+Hauser 15
5 Installation
5.1 Mounting dimensions
For dimensions, see the "Mechanical construction" section in the Technical Information.
5.2 Installation conditions
• No moisture may enter the housing when installing or operating the device, or when
establishing the electrical connection.
• Do not remove the protection cap of the M12 plug terminal until shortly before the
electrical connection.
• Do not clean or touch process isolating diaphragms with hard and/or pointed objects.
• Do not remove the protector on the process isolating diaphragm until just before
installation.
• Always firmly tighten the cable entry.
• Point the cable and connector downwards where possible to prevent moisture from
entering (e.g. rain or condensation water).

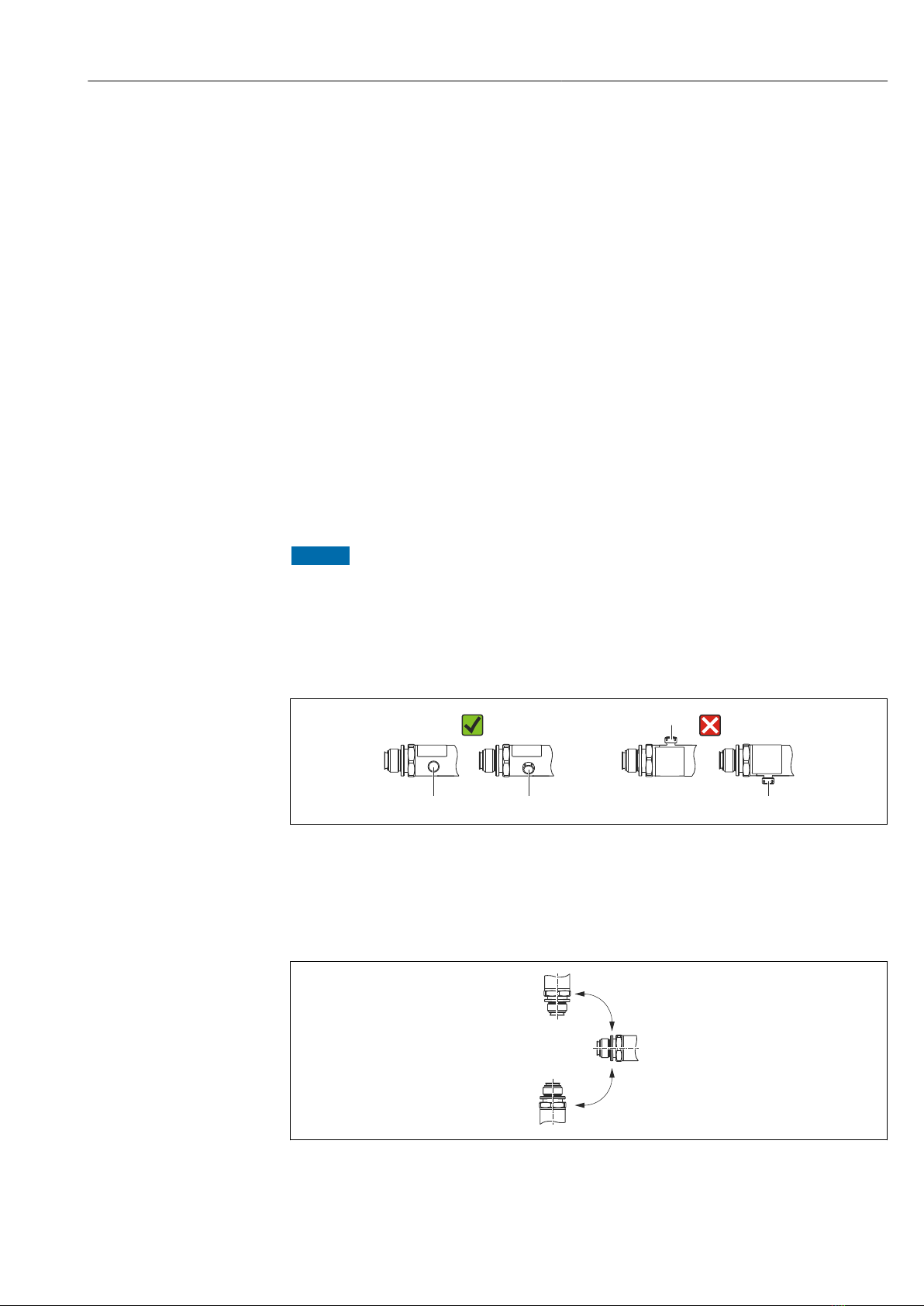

• The following instruction applies for devices with a gauge pressure sensor and M12 plug
or valve plug:
NOTICE
If a heated device is cooled during the cleaning process (e.g. by cold water), a vacuum
develops for a short time, whereby moisture can penetrate the sensor through the
pressure compensation element (1).
Device could be destroyed!
‣In this case, mount the device with the pressure compensation element (1) pointing
diagonally downwards where possible or to the side.
1
1
1
1
A0022252
5.3 Influence of the installation position
Any orientation is possible. However, the orientation may cause a zero point shift i.e. the
measured value does not show zero when the vessel is empty or partially full.
90°
90°
C
A
B
A0024708

Installation Cerabar PMP11, PMP21, PMP23
16 Endress+Hauser
Process isolating diaphragm axis is
horizontal (A)
Process isolating diaphragm
pointing upwards (B)
Process isolating diaphragm
pointing downwards (C)
Calibration position, no effect Under development Under development
5.4 Mounting location
5.4.1 Pressure measurement
The pressure measurement specifications only apply for PMP11 and PMP21 devices.

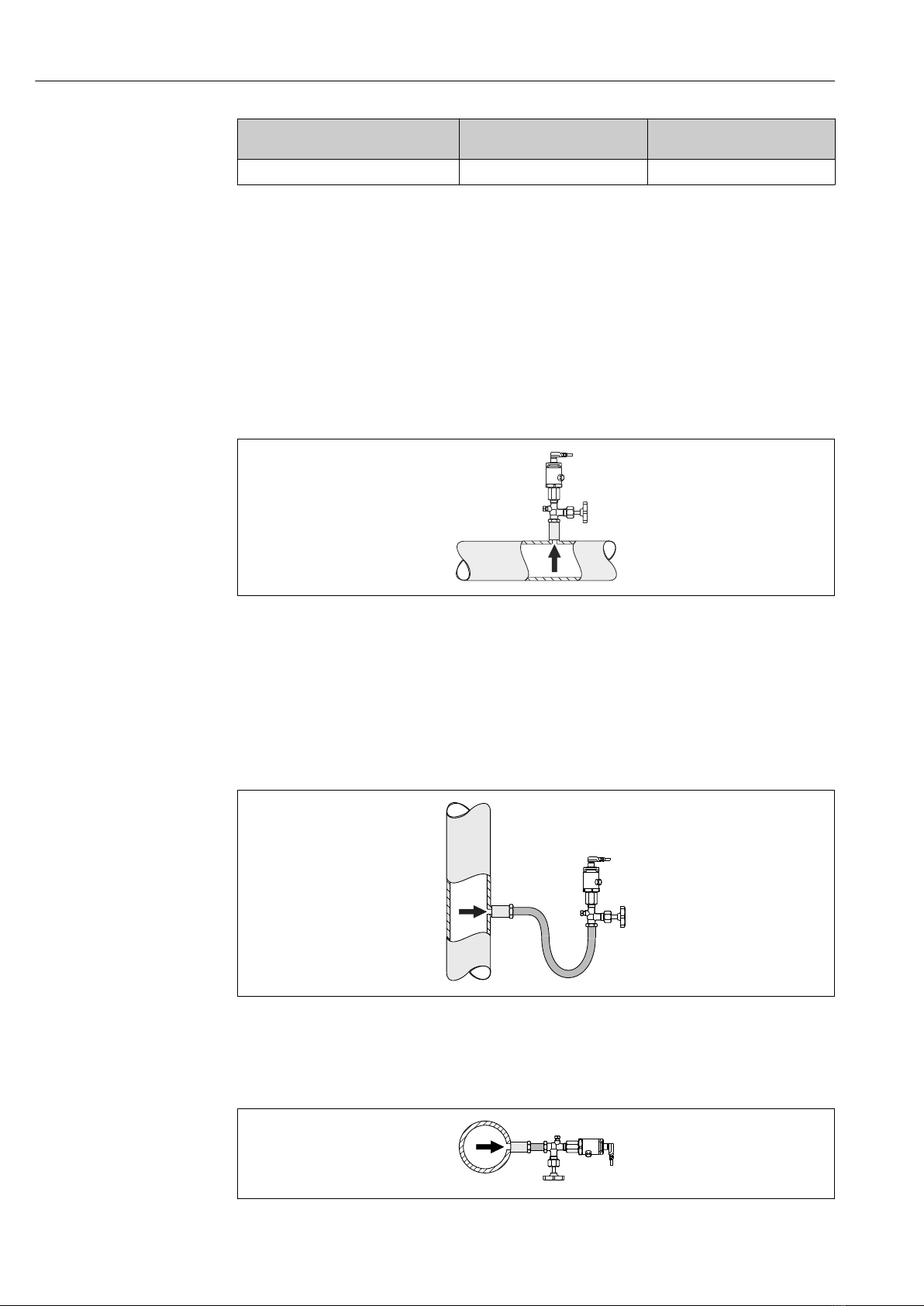

Pressure measurement in gases
Mount the device (1) with the shutoff device (2) above the tapping point to ensure that
any condensate can drain off into the process.
1
2
A0021904
Pressure measurement in vapors
For pressure measurement in vapors, use a siphon (3). The siphon reduces the
temperature to almost ambient temperature.
Advantage:
only minor/negligible heat effects on the device.
Note the max. permitted ambient temperature of the transmitter!
1
2
3
A0024395
Pressure measurement in liquids
Mount the device (1) with a shutoff device (2) at the same height as the tapping point.
1
2
A0024399

Cerabar PMP11, PMP21, PMP23 Installation
Endress+Hauser 17

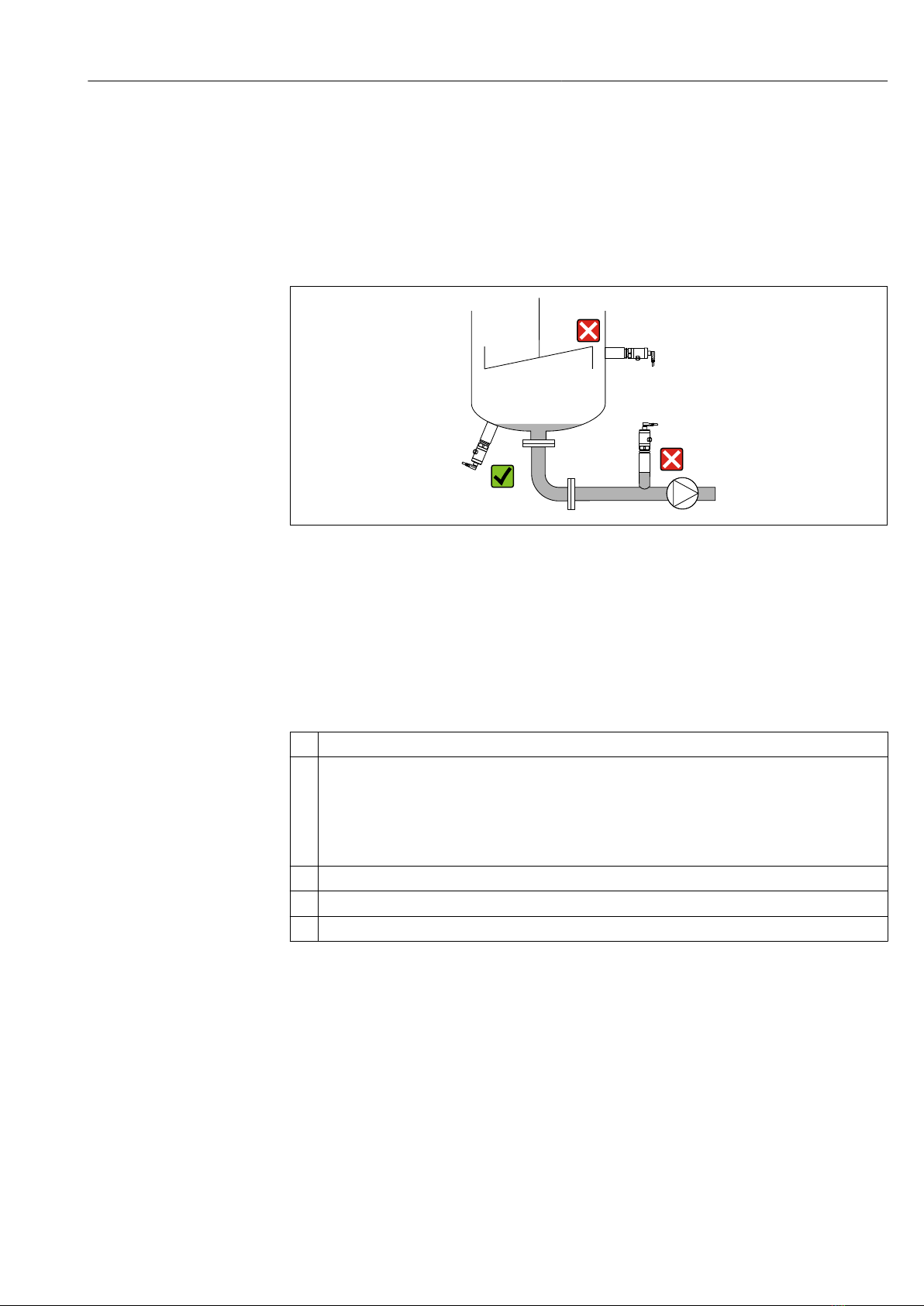

5.4.2 Level measurement
• Always install the device below the lowest measuring point.
• Do not install the device at the following positions:
– In the filling curtain
– In the tank outlet
– In the suction area of a pump
– Or at a point in the tank which could be affected by pressure pulses from the agitator.
A0024405
5.5 Mounting the profiled seal for the universal process
adapter
For details on mounting, see KA00096F/00/A3.
5.6 Post-installation check
 Is the device undamaged (visual inspection)?

Does the device conform to the measuring point specifications?
For example:
• Process temperature
• Process pressure
• Ambient temperature range
• Measuring range
 Are the measuring point identification and labeling correct (visual inspection)?
 Is the device adequately protected from precipitation and direct sunlight?
 Are the securing screws tightened securely?

Electrical connection Cerabar PMP11, PMP21, PMP23
18 Endress+Hauser

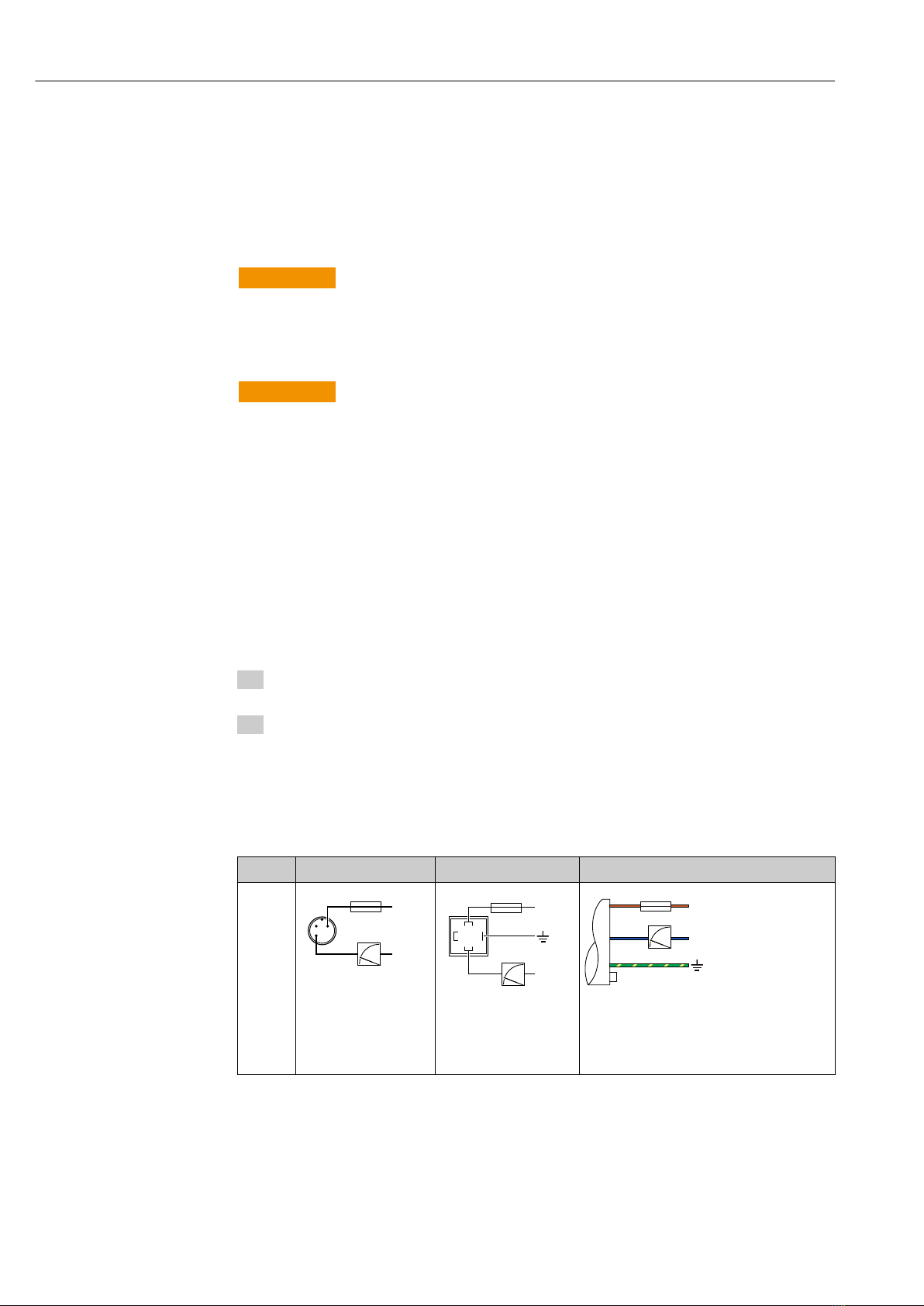

6 Electrical connection
6.1 Connecting the measuring unit
6.1.1 Terminal assignment
LWARNING
Supply voltage might be connected!
Risk of electric shock and/or explosion!
‣Ensure that no uncontrolled processes are activated in the system.
‣Switch off the supply voltage before connecting the device.
LWARNING
Limitation of electrical safety due to incorrect connection!
‣In accordance with IEC/EN61010 a separate circuit breaker must be provided for the
device .
‣The device must be operated with a 500 mA fine-wire fuse (slow-blow).
‣When using the measuring device in hazardous areas, installation must comply with
the corresponding national standards and regulations and the Safety Instructions or
Installation or Control Drawings.
‣All explosion protection data are given in separate documentation which is available
upon request. The Ex documentation is supplied as standard with all devices approved
for use in explosion hazardous areas.
‣Protective circuits against reverse polarity, HF influences and overvoltage peaks are
integrated.
Connect the device in the following order:
1. Check whether the supply voltage matches the supply voltage indicated on the
nameplate.
2. Connect device in accordance with the following diagram.
Switch on supply voltage.
For devices with a cable connection: do not close reference air hose (see (a) in the
following drawings)! Protect reference air hose against penetration by water/condensate.
4 to 20 mA output
Device M12 plug Valve plug Cable
PMP11
PMP21
PMP23
L–
L+
21
3
0.5A
A0023487
L–
L+
1
2
3
4
0.5A
A0022823
L–
L+
1
2
3
(a)
0.5A
A0023783
1 brown = L+
2 blue = L-
3 green/yellow = ground connection
(a) reference air hose

Cerabar PMP11, PMP21, PMP23 Electrical connection
Endress+Hauser 19

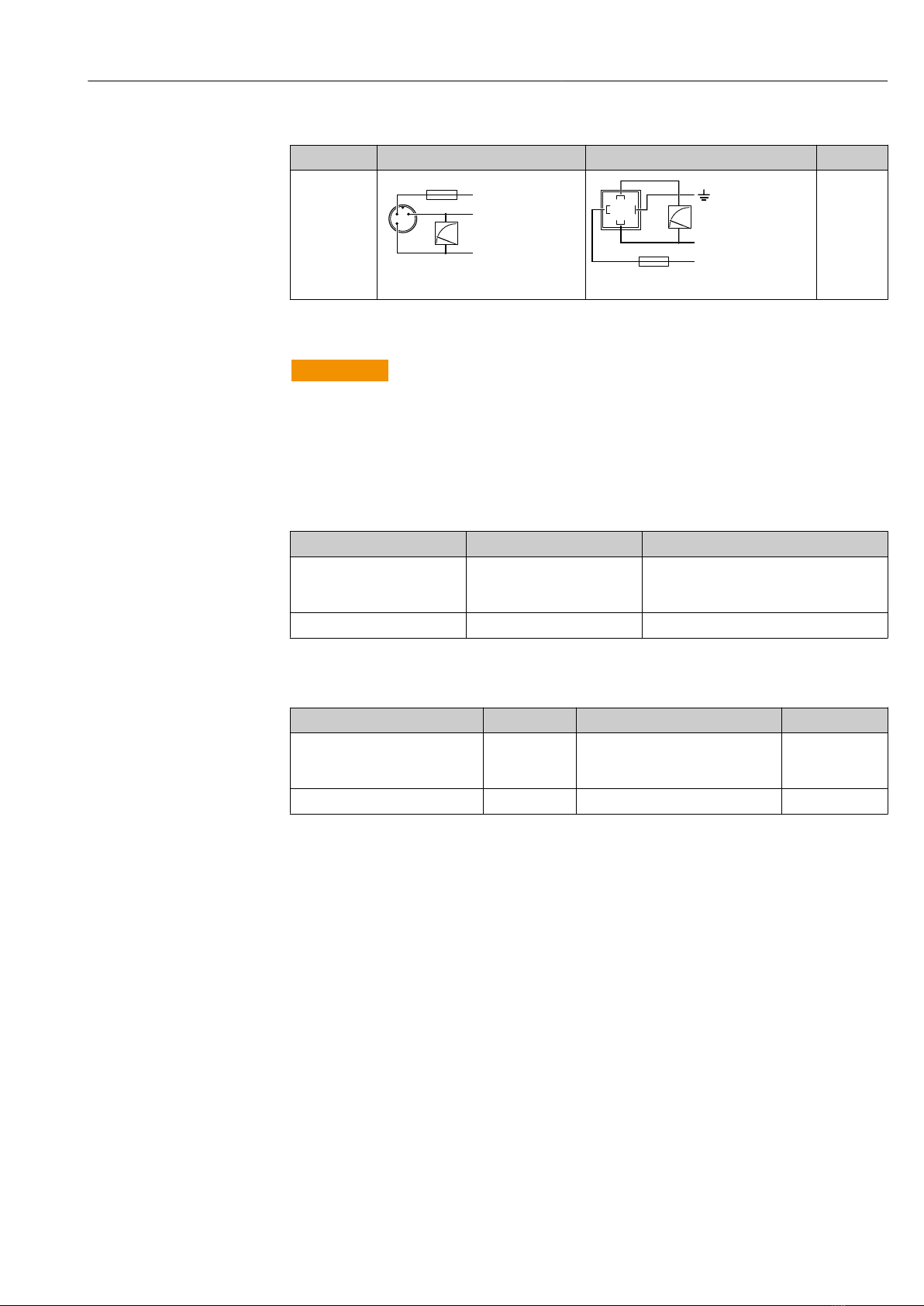

0 to 10 V output
Device M12 plug Valve plug Cable
PMP11
L–
L+
21
3
0.5A
A0017576
L–
L+
1
2
3
4
0.5A
A0022822
-
6.1.2 Supply voltage
LWARNING
Supply voltage might be connected!
Risk of electric shock and/or explosion!
‣When using the measuring device in hazardous areas, installation must comply with
the corresponding national standards and regulations as well as the Safety Instructions.
‣All explosion protection data are given in separate documentation which is available
upon request. The Ex documentation is supplied as standard with all devices approved
for use in explosion hazardous areas.
Electronic version Device Supply voltage
4 to 20 mA output PMP11
PMP21
PMP23
10 to 30 V DC
0 to 10 V output PMP11 12 to 30 V DC
6.1.3 Current consumption
Number of wires Device Normal operation Alarm 1)
2 PMP11
PMP21
PMP23
≤ 26 mA > 21 mA
3 PMP11 In preparation 11 V
1) For MAX alarm (factory setting)
6.2 Connection conditions
6.2.1 Cable specification
For valve plug: < 1.5 mm2 (16 AWG) and Ø3.5 to 6.5 mm (0.14 to 0.26 in)
6.2.2 Overvoltage protection
The device does not contain any special elements to protect against overvoltage ("wire to
ground"). Nevertheless the requirements of the applicable EMC standard EN 61000-4-5
(testing voltage 1kV EMC wire/ground) are met.
6.3 Connection data

Electrical connection Cerabar PMP11, PMP21, PMP23
20 Endress+Hauser

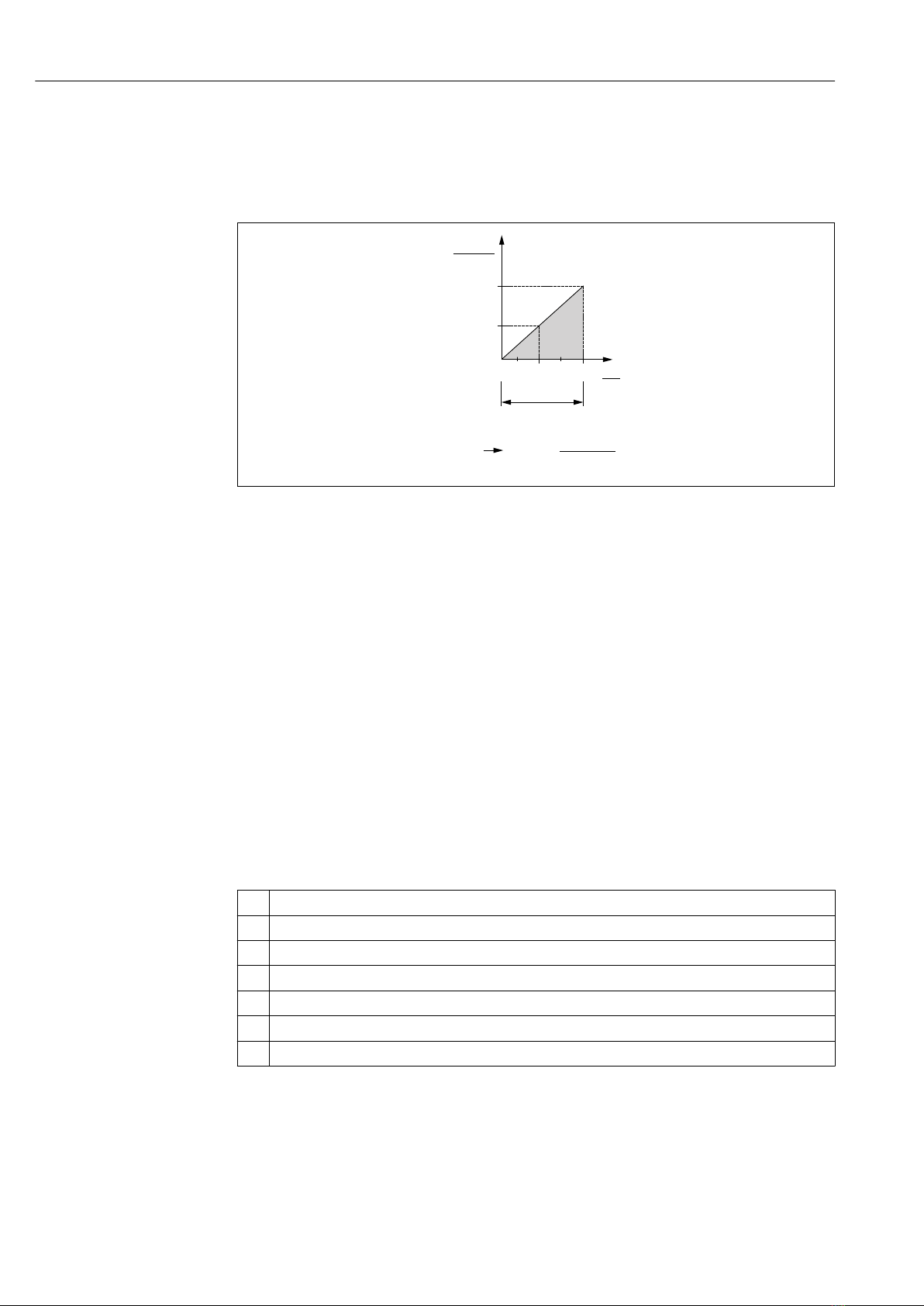

6.3.1 Load (for 4 to 20 mA devices )
In order to guarantee sufficient terminal voltage in two-wire devices, a maximum load
resistance R (including line resistance) must not be exceeded depending on the supply
voltage UB of the supply unit.
[ ]W
30
20
10
870
435
U
[V]
1
2
RLmax
R max U 10V
23mA
L
B
£-
B
A0029452
1 Power supply 10 to 30 V DC for intrinsically safe device versions
2 RLmax maximum load resistance
UBSupply voltage
6.3.2 Load resistance (for 0 to 10 V devices)
The load resistance must be ≥ 5 [kΩ].
6.3.3 Shielding
You achieve optimum shielding against disturbances if the shielding is connected on both
sides (in the cabinet and on the device). If potential equalization currents are expected in
the plant, only ground shielding on one side, preferably at the transmitter.
When using in hazardous areas, you must observe the applicable regulations. Separate Ex
documentation with additional technical data and instructions is included with all
Ex systems as standard.
6.4 Post-connection check
 Is the device or cable undamaged (visual check)?
 Do the cables comply with the requirements ?
 Do the cables have adequate strain relief?
 Are all the cable glands installed, firmly tightened and leak-tight?
 Does the supply voltage match the specifications on the nameplate?
 Is the terminal assignment correct ?
 If required: Has protective ground connection been established ?
