Endress+Hauser Liquisys M CUM 223 User manual

BA 200C/07/en/12.01
51500274
Valid from software version:
2.20
Liquisys M
CUM 223 / 253
Transmitter for Turbidity and
Solids Content
ENDRESS+HAUSER
LIQUISYS S
ENDRESS+HAUSER
LIQUISYS S
Hauser+Endress
The Power of Know How
Operating Instructions

Need information on the instrument?
Please read the following chapters:
Safety
General information
You wish to install the instrument.
The required steps are described in this chapter:
Installation
You wish to operate or reconfigure the instrument.
The operating concept is explained in these chapters:
Operation
Instrument configuration
Interfaces
Need help with problems or maintenance? Please refer
to these chapters:
Maintenance and troubleshooting
Diagnostics and corrective maintenance
Accessories Technical data
Appendix Index
%
Ω
°C

Table of contents
1 General information
1.1 Symbols used ............................................................. 2
1.2 Storage and transport ....................................................... 2
1.3 Unpacking................................................................ 2
1.4 Dismantling, packaging and disposal ........................................... 2
1.5 Product structure .......................................................... 3
2 Safety instructions
2.1 Intended application ........................................................ 4
2.2 General safety notes ........................................................ 4
2.3 Installation, start-up, operation ................................................ 4
2.4 Monitoring and safety features ................................................ 5
2.5 Immunity to interference ..................................................... 5
2.6 Declaration of conformity ..................................................... 5
3 Installation
3.1 Measuring system .......................................................... 6
3.2 Dimensions ............................................................... 7
3.3 Mounting ................................................................. 8
3.4 Electrical connection ....................................................... 12
3.5 Sensor installation and measuring cable connection .............................. 14
4 Operation
4.1 Operator interface ......................................................... 16
4.2 Display .................................................................. 16
4.3 Function of the operating keys................................................ 17
4.4 Auto / manual mode of operation.............................................. 18
4.5 Operating concept......................................................... 19
5 Instrument configuration
5.1 Start-up ................................................................. 24
5.2 System configuration ....................................................... 24
5.3 Current outputs ........................................................... 26
5.4 Monitoring functions........................................................ 28
5.5 Relay contact configuration .................................................. 31
5.6 Concentration measurement ................................................. 41
5.7 Service .................................................................. 42
5.8 E+H Service .............................................................. 44
5.9 Interfaces ................................................................ 45
5.10 Calibration ............................................................... 46
5.11 Offset ................................................................... 54
6 Interfaces
7 Maintenance and troubleshooting
7.1 Troubleshooting common problems ........................................... 56
7.2 Troubleshooting using the error messages ...................................... 59
8 Diagnosis and corrective maintenance
8.1 Diagnosis ................................................................ 61
8.2 Corrective maintenance of Liquisys M CUM 223 ................................. 63
8.3 Corrective maintenance of Liquisys M CUM 253 ................................. 66
8.4 Spare parts orders ......................................................... 69
8.5 Service aids “Optoscope” with “Scopeware” .................................... 69
8.6 Corrective maintenance of measuring system ................................... 70
9 Accessories ......................................................... 72
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
11 Appendix........................................................... 76
12 Index............................................................... 80
UM253E00.CHP
Liquisys M CUM 223 / 253 Table of contents
Endress+Hauser 1

1 General information
1.1 Symbols used
Warning:
This symbol alerts to hazards which
could cause serious injuries as well
as damage to the equipment if
ignored.
Caution:
This symbol alerts to possible faults
which could arise from incorrect
operation. They could cause
damage to the equiment if ignored.
Note:
This symbol indicates important
items of information.
Double insulation
Equipment protected by double
insulation.
Alarm relay
Input
Output
1.2 Storage and transport
The packaging material used to store or
transport the transmitter must provide shock
protection. Optimal protection is provided by
the original packaging materials.
Conformance with the ambient conditions
(see Technical data) must be assured.
1.3 Unpacking
Verify that the packaging and the contents
are undamaged! Inform the post office or
freight carrier of any damage. Damaged
merchandise must be retained until the matter
has been settled.
Check that the delivery is complete and
agrees with the shipping documents and your
order (refer to nameplate for type and
version).
Keep the original packaging materials for
future storage or shipping of the instrument.
If you have any questions, consult your
supplier or the Endress+Hauser sales agency
in your area (see back cover of these
operating instructions for addresses).
The delivery includes:
•Transmitter CUM 223 (panel-mounted
instrument) or CUM 253 (field device)
•Operating instructions BA 200C/07/en
•Panel-mounted instrument:
–1 set of plug-in screw terminals
–2 clamping screws for panel mounting
•Field instrument:
–1 plug-in screw terminal
–1×cable gland Pg 7
–1×cable gland Pg 16, reduced
–2×cable glands Pg 13.5
–1 x NPT adapter set
(optional for CSA versions)
1.4 Dismantling, packaging and disposal
Package the assembly properly for reuse at a
later point in time. Optimal protection is
provided by the original packaging materials.
Observe local regulations for disposal.
General information Liquisys M CUM 223 / 253
2Endress+Hauser

1.5 Product structure
You can identify the instrument variant by the
order code on the nameplate. Under “Codes”,
you can find the release code for Software
upgrade for Chemoclean (left of diagonal line)
or Plus package (right of diagonal line).
Additional functions of the Plus package (TB and TS versions).
• Current output table, fields O23x
• Monitoring for sensor and process,
function group P
• Cleaning (Chemoclean), fields R25x
• Automatic start of cleaning function,
Field F8
• Concentration measurement, function
group K
131085-4B
ENDRESS+HAUSER
LIQUISYS-M
order code / Best.Nr.
serial no. / Ser.-Nr. Codes:
:
:
:
:
:
:
:
:
:
prot. class / Schutzart
ambient temp. / Umgebungstemperatur
output 1 / Ausgang 1
output 2 / Ausgang 2
mains / Netz
measuring range / Messbereich
temperature / Temperatur
turbidity / Trübung
FNU, ppm g/l, %
–5 ... 70 °C
–10 ... +55 °C
0/4 ... 20 mA
230 VAC
123456
7,5 VA
IP 65
50/60 Hz
0/4 ... 20 mA
CUM 253-TS0115
1234 / 5678
253-TYP.CDR
Fig. 1.1 Nameplate CUM 253
(left)
131085-4B
ENDRESS+HAUSER
LIQUISYS-M
order code / Best.Nr.
serial no. / Ser.-Nr. Codes:
:
:
:
:
:
:
:
:
:
prot. class / Schutzart
ambient temp. / Umgebungstemperatur
output 1 / Ausgang 1
output 2 / Ausgang 2
mains / Netz
measuring range / Messbereich
temperature / Temperatur
turbidity / Trübung
FNU, ppm g/l, %
–5 ... 70 °C
–10 ... +55 °C
0/4 ... 20 mA
230 VAC
123456
7,5 VA
IP 54 / IP 30
50/60 Hz
0/4 ... 20 mA
CUM 223-TU0110
1234 / 5678
223-TYP.CDR
Fig. 1.2 Nameplate CUM 223
(right)
Liquisys M CUM 223 / 253
Version
TB Solids concentration measurement with initial setting for residual concrete water
TU Turbidity and solids concentration measurement
TS Turbidity and solids concentration measurement, with additional functions
(Plus package)
Power supply
0 Power supply 230 V AC
1 Power supply 115 V AC
2 Power supply 230 V AC, CSA Gen. Purp.
3 Power supply 115 V AC, CSA Gen. Purp.
5 Power supply 100 AC
7 Power supply 24 AC, CSA Gen. Purp.
8 Power supply 24 V AC/DC
Measurement output
0 Turbidity / DM
1 Turbidity / DM and temperature
3 PROFIBUS-PA
4 PROFIBUS-DP
5 Turbidity / DM with HART®
6 Turbidity / DM and temperature with HART®
Contacts
05 No additional contacts
10 2 contacts (limits / PID / timer)
15 4 contacts (limits / PID / timer / Chemoclean)
16 4 contacts (limits / PID / timer)
Additional equipment
RM1 Initial setting for residual concrete water
CUM253- complete order code
CUM223-
UM253E01.CHP
Liquisys M CUM 223 / 253 General information
Endress+Hauser 3

2 Safety instructions
2.1 Intended application
Liquisys M CUM 223 / 253 is a field-tested
and reliable transmitter to determine the
turbidity and the solids concentration of fluid
media.
The Liquisys M CUM 223 / 253 is particularly
suitable for use in the following areas:
•Chemicals
•Pharmaceuticals
•Drinking water treatment
•Condensate treatment
•Municipal sewage treatment plants
•Water conditioning
2.2 General safety notes
This device has been manufactured for safe
operation according to the state of the art in
engineering and conforms to the applicable
regulations and European standards (see
Technical data). It has been designed
according to EN 61010-1 and has left the
manufacturer’s works in perfect condition.
However, if used improperly or for purposes
other than the intended purpose, it may be
dangerous, e.g. due to incorrect connection.
Warning:
•Operating this instrument in any
way other than as described in
these instructions may
compromise the safety and
function of the measuring system
and is therefore impermissible.
•The notes and warnings in these
installation and operating
instructions must be strictly
adhered to!
2.3 Installation, start-up, operation
Warning:
•This device may only be installed,
connected electrically,
commissioned, operated and
serviced by properly trained
personnel authorized by the
system operator.
•The personnel must be familiar
with these operating instructions
and must adhere to the
instructions described therein.
•Make sure that the power supply
ratings match the data specified
on the nameplate before you
connect the instrument to a powre
source.
•A clearly identified mains
disconnecting device must be
installed closed to the instrument.
•Live components can be touched
through the vent slots in the
housing and the openings on the
rear of the housing. Do not insert
any tools, wires, etc., in these slots
(CUM 223 only).
•Check that all connections have
been properly made before
powering up the system!
•Damaged equipment that may be
dangerous must not be operated
and should be clearly identified as
being defective.
•Any troubleshooting of the
measuring system is to be
performed exclusively by
authorized, trained personnel.
•If faults cannot be remedied, the
instrument must be removed from
service and secured to prevent
accidental start-up.
•Repairs not described in these
operating instructions may only be
performed at the manufacturer’s
works or by the Endress+Hauser
Service Organization.
Safety instructions Liquisys M CUM 223 / 253
4Endress+Hauser

2.4 Monitoring and safety features
Safety features
The transmitter is protected against external
influences and damage by the following
design measures:
•Rugged housing
•Degree of protection provided by
enclosure: IP 65 (CUM 253)
•UV resistance
Monitoring features
In the event of a system error or power failure,
an alarm condition is signalled via a fail-safe
fault signalling contact.
2.5 Immunity to interference
This instrument has been tested according to
the applicable European standards for
industrial applications with regard to
electromagnetic compatibility. It is carefully
protected against electromagnetic
interference by constructive design measures.
Warning:
The specified immunity to
interference only applies for devices
connected as outlined in these
operating instructions.
2.6 Declaration of conformity
The transmitter CUM 223/253 has been
developed and manufactured in accordance
with currently valid European standards and
directives..
E+H certifies the compliance with the
standards by using the 4sign.
UM253E02.CHP
Liquisys M CUM 223 / 253 Safety instructions
Endress+Hauser 5

3 Installation
The following procedure should be followed
for a complete measuring system installation:
•Installation or attachment transmitter
(see chap. 3.3)
•Selection and connection of cable and
sensor (see chap. 3.4, 3.5 and 9)
•Installation is followed by start-up
(see chap. 5).
3.1 Measuring system
The complete measuring system comprises:
•The Liquisys M CUM 223 or CUM 253
transmitter
•A sensor with integrated temperature
sensor and a permanently attachedcable
•An installation assembly
Optional:
•Extension cable CYK 8
•Junction box VBM or RM
ENDRESS+HAUSER
LIQUISYS S
CAL REL
REL 1
REL 1
ALARM
REL 2
REL 2
E
ENDRESS+HAUSER
LIQUISYS S
CAL REL
REL 1
REL 1
ALARM
REL 2
REL 2
E
Sensor cable
Liquisys M CUM 253
Flow assembly CUA 250
Retractable
assembly
CUA 461
UM2X3SYS.CDR
Liquisys M CUM 223
Immersion assembly
CYA611
Fig. 3.1
Complete measuring
system consisting of
Liquisys M CUM 223 /
253 with measuring cable,
assembly and turbidity
sensor
Installation Liquisys M CUM 223 / 253
6Endress+Hauser

3.2 Dimensions
ENDRESS+HAUSER
LIQUISYS S
CAL REL
REL 1
REL 1
ALARM
REL 2
REL 2
E
FELD1.CDR
11
170
247
115
∅6
157
154
70
70
Pg 13.5
Pg 7
Pg 16
Fig. 3.2
Dimensions of Liquisys M
CUM 253
FELD2.CDR
1
2
3
4
Fig. 3.3
Inside of housing of
Liquisys M CUM 253
1 Removable
electronics box
2 Partition plate
3 Terminal blocks
4 Fuse
UM253E03.CHP
Liquisys M CUM 223 / 253 Installation
Endress+Hauser 7

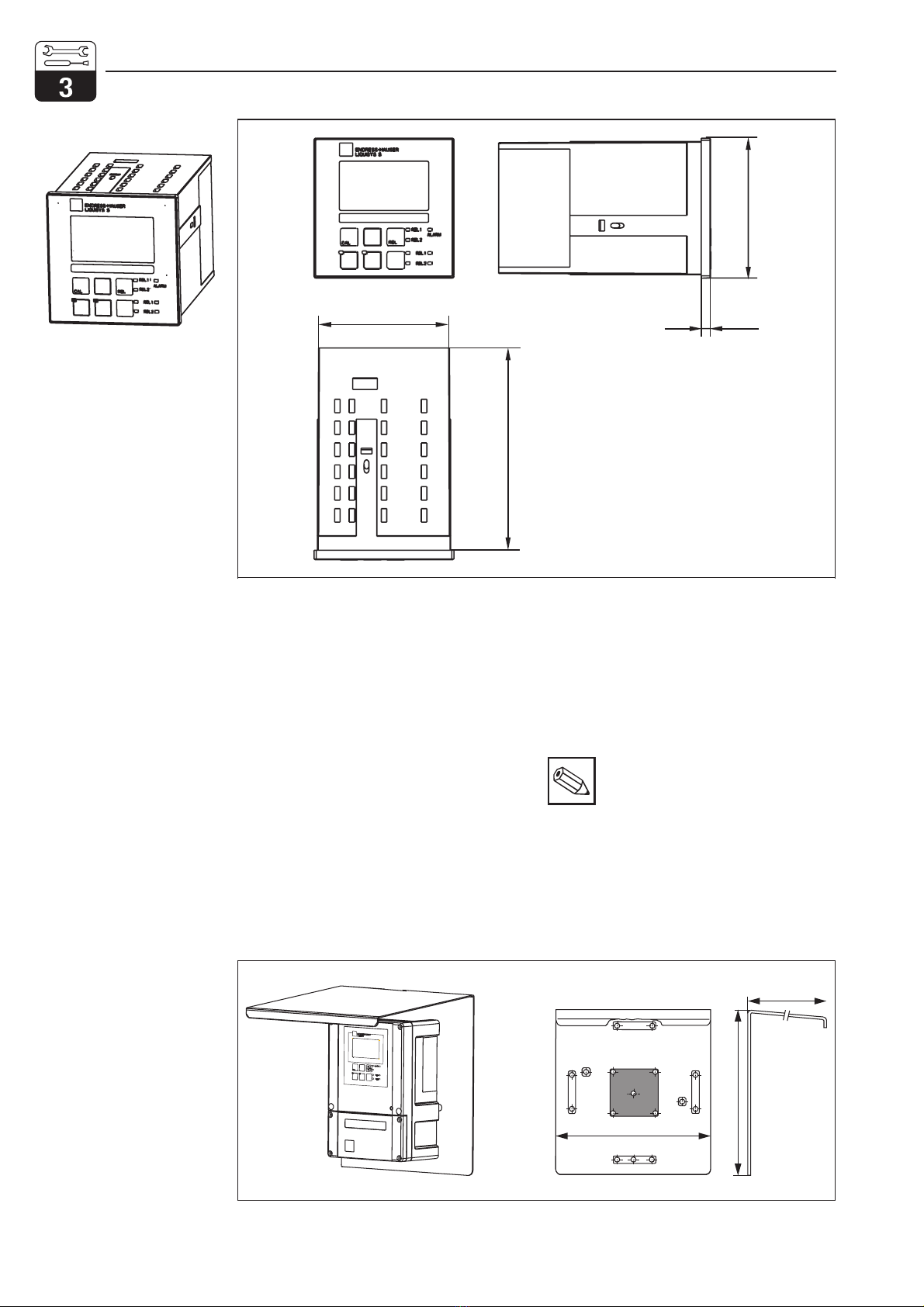

3.3 Mounting
3.3.1 Field instrument
Several mounting options are available for the
Liquisys M in the fieldinstrument version:
•Post mounting on cylindrical pipes
•Post mounting on a square post
•Wall mounting with fastening screws
Weather protection cover CYY 101 can be
used for outdoor installation in conjunction
with all mounting variants.
Note:
If installed outdoors, weather
protection cover required.
Weather protection cover CYY 101
Weather protection cover for outdoors
installation, to be mounted on field instrument;
material: stainless steel SS 304
Order no: CYY 101-A
For post or pipe installation, the post
mounting kit is additionally required.
EINBAU2.CDR
96
6
139
90
Fig. 3.4
Liquisys M CUM 223,
panel-mounted version
DACH.CDR
300
270
320
Fig. 3.5
Weather protection cover
for field instruments
Installation Liquisys M CUM 223 / 253
8Endress+Hauser

Post mounting kit
Mounting kit for installation of field housing on
horizontal and vertical pipes (max. ∅60 mm);
also aids fixing of weather protection cover.
Material: stainless steel SS 304
Order no.: 50086842
Universal mounting post CYY 102
Square tube for mounting of measuring
transmitters;
material: stainless steel SS 304
Order no: CYY 102-A
MONT5.CDR
60
90
70
∅6
70
90
M6
90
60 x 60
1495
150
120
∅max. 60
Fig. 3.6
left:
Mounting kit
for post mounting on
cylindrical pipes
right:
Square mounting post
UM253E03.CHP
Liquisys M CUM 223 / 253 Installation
Endress+Hauser 9

3.3.2 Mounting examples
MONT10.CDR
Fig. 3.7
Pipe mounting of Liquisys
M field instrument
MONT2.CDR
Fig. 3.8
Liquisys M field instrument
left:
Wall mounting
right:
Mounting with
universal post and
weather protection cover
Installation Liquisys M CUM 223 / 253
10 Endress+Hauser

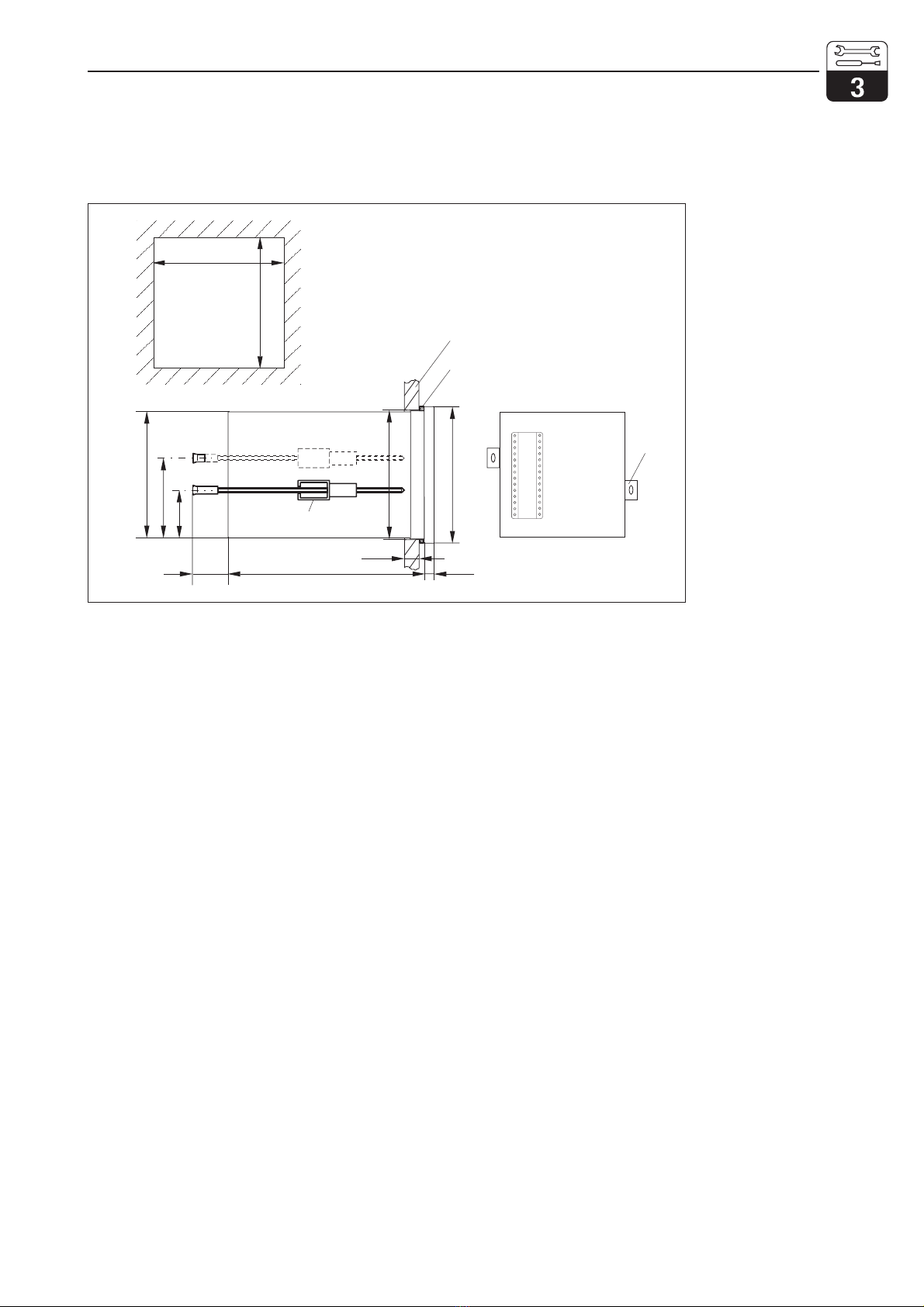

3.3.3 Panel-mounted instrument
The instrument is attached using the supplied tensioning screws (see Fig. 3.9).
The required overall installation depth is approx. 165 mm.
MONT9.CDR
92+0.5
92+0.5
90
57
ap-
prox.
25
max. 45
96
92
1
2
3
139 6
3
Fig. 3.9
Attachment of
panel-mounted device
1 Wall of control
cabinet
2 Gasket
3 Tensioning screws
UM253E03.CHP
Liquisys M CUM 223 / 253 Installation
Endress+Hauser 11

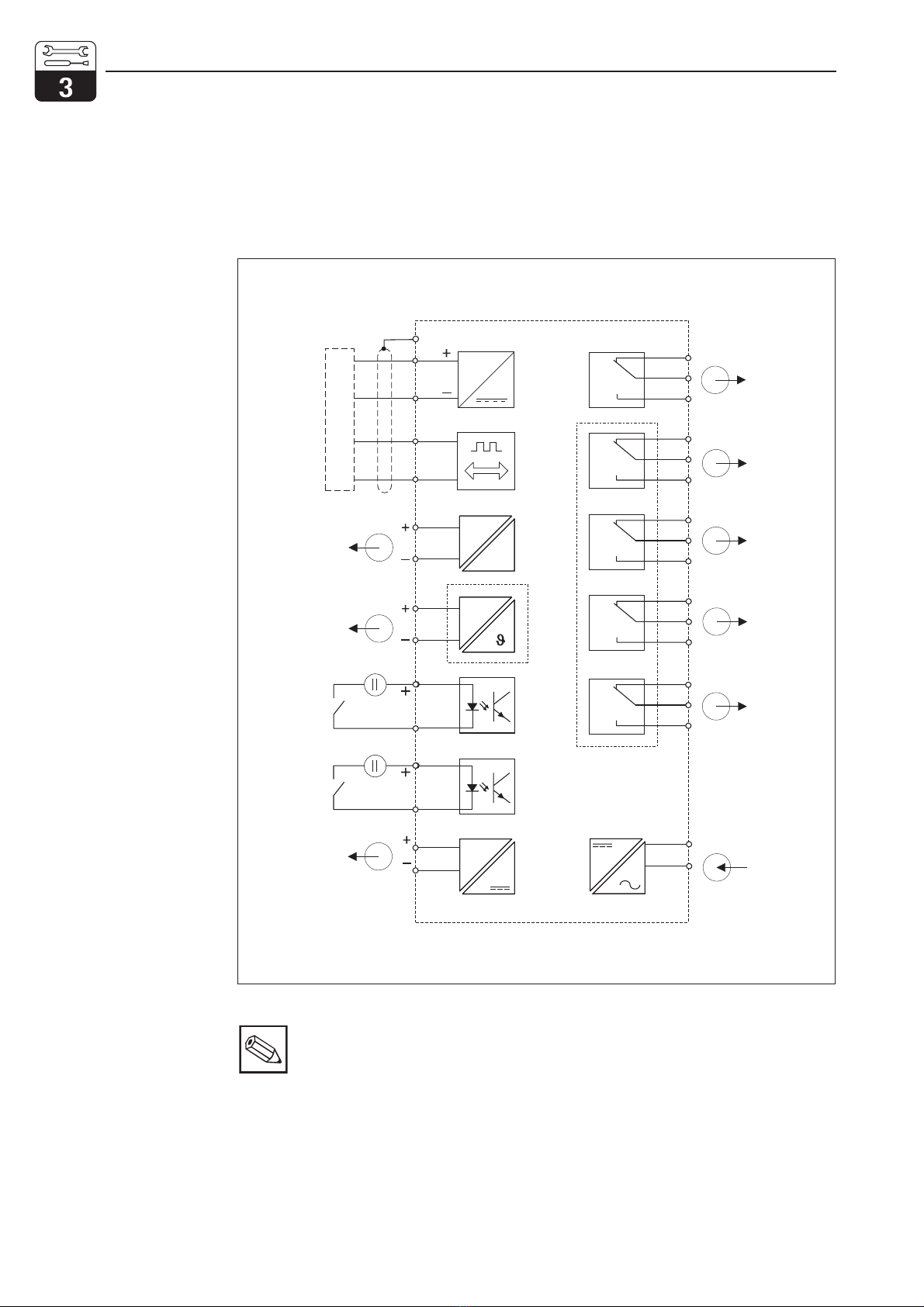

3.4 Electrical connection
Connection diagram
The connection diagram depicted in Fig. 3.10 shows the instrument connections for turbidity
sensors CUS 31 or CUS 41. The connection of the varrious sensors is shown in more detail in
Figs. 3.13 and 3.14.
Note:
•The instrument has protection
class II and is generally operated
without protective earth connection.
•Mains supply voltage fluctuations
should not exceed ten percent of
the nominal supply voltage.
•24V AC/DC models must be
supplied from an energy limiting
SELV source in accordance with
dir. IEC 1010.1 Annex H.
47
48
49
57
58
59
L+
L-
L
N
∼=
41
42
43
15 V
85
86
10-50 V
81
93
82
94
10-50 V
TU
mA
31
32
mA
33
34
51
52
53
54
55
56
97
88
87
96
S
GN
WH
BN
YE
ANU01.CDR
Auxiliary voltage
output
Digital
input 2
(Chemoclean)
Digital
input 1
(Hold)
Signal output 2
temperature
Signal output 1
turbidity
Sensor
Mains
Alarm
(current-free
contact postion)
Relay 1
(current-free
contact postion)
Relay 2
(current-free
contact postion)
Relay 3
(current-free
contact postion)
for Chemoclean:
Water
Relay 4
(current-free
contact postion)
for Chemoclean:
Cleaner
Fig. 3.10
Electrical connection of
Liquisys M CUM 223/253
with full wiring
Installation Liquisys M CUM 223 / 253
12 Endress+Hauser

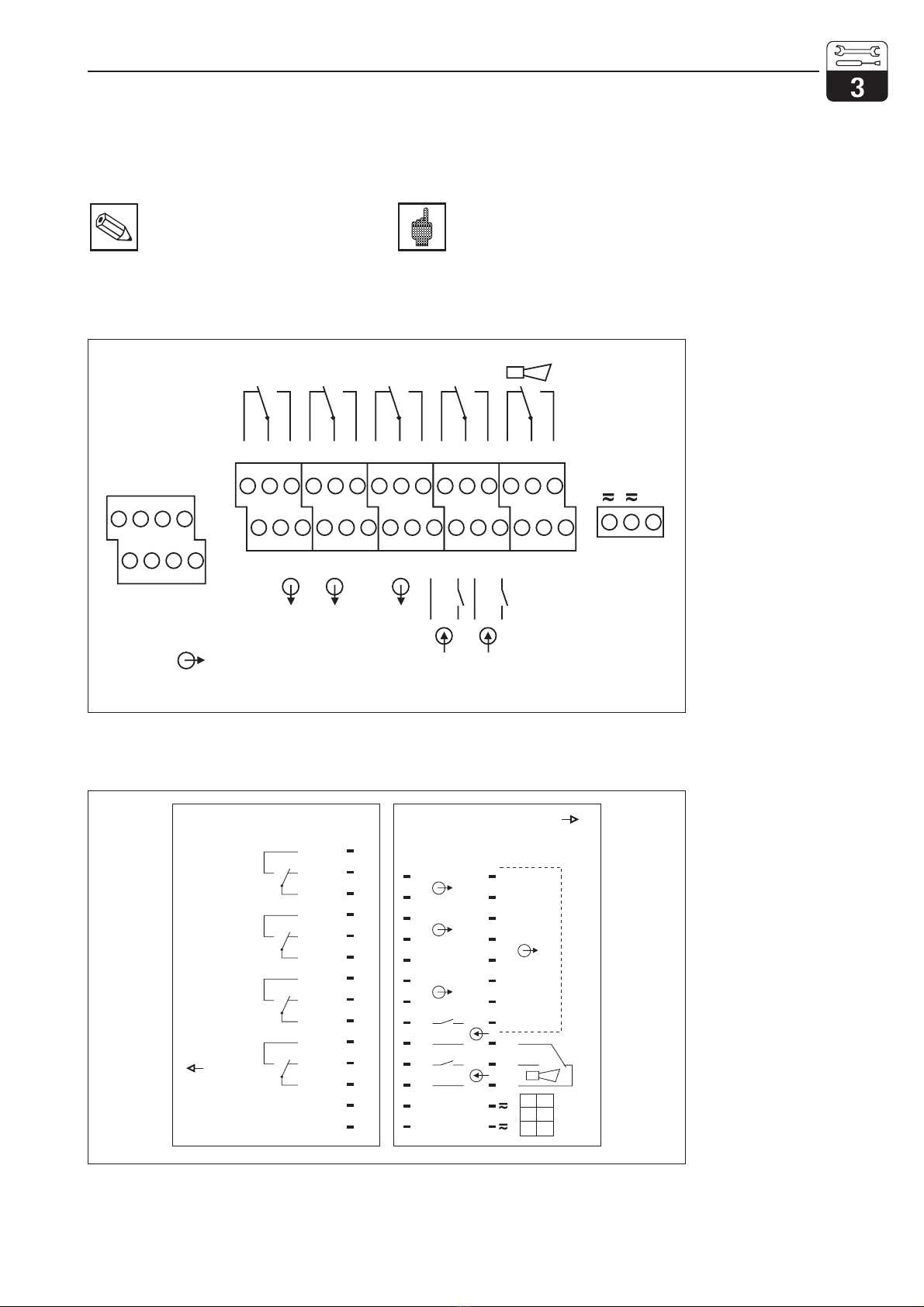

Connections of field instrument
For connection, the measuring cables are introduced through the cable glands on the field
instrument and connected according to the diagrams infigures 3.10 and 3.11.
Note:
Please label the sensor terminal
block with the enclosed sticker.
Caution!
•Terminal designated as NC
may not be switched.
•Undesignated terminals
may not be switched.
Connections of panel-mounted instrument
42
+++++-----
434154 55 56
NC
96
88
87
31
NC 97 NC
32
NC
3433
S
B
NC 938685 94 81 82 NC NC NC
51 52 53 57 58 59 47 48 49
TU
Temp.
(opt.)
+15V
10mA
GNBN
YEWH
A
REL 4SENSOR REL 3 REL 2 REL 1
131096-4E
CUM 253
Digital 2 Digital 1
87, 88
NC
Mains
Hilfsenergie
L1
+
N
-
(AC)
(DC)
Contacts:
max. 2A
AC: 250V/500VA
DC: 30V/60W
131096E.CDR Fig. 3.11
Connection compartment
sticker for field
instruments CUM 253;
Instrument status:
de-energised
REL1
REL2
REL3
REL4
NC
NC
49
COM
COM
COM
COM
59
54
55
56
52
51
53
58
57
48
47
131084-4B
31 +
32 -
33 +
97
NC
Sensor
NC
NC
NC
NC
NC
B
A
YE
GN
WH
BN
34 -
85 +
86 -
93 + S
94 - 42
81 + 43
82 - 41
TU
Temp.
(opt.)
+15V
10mA
Digital 2
Digital 1
96
88 -
87 +
131083-4C
Mains Contacts: max. 2A,AC:250V/500VA,DC:30V/60W
L1 +
AC DC
N -
131083C.CDR Fig. 3.12
Connection compartment
sticker for panel-mounted
instruments CUM 223
UM253E03.CHP
Liquisys M CUM 223 / 253 Installation
Endress+Hauser 13

3.5 Sensor installation and measuring cable connection
Measuring cable connection
The terminal block is located in a separate
connection compartment which is accessible
by opening the plastic cover. Remove the
pre-pressed knock-outs for cable entry.
The sensor is connected via a multiple-core,
special screened cable which is completely
terminated and permanently connected. Use
a junction box, e.g. VBM to extend the
measuring cable. Termination instructions are
supplied with the measuring cables.
Note:
•Protect cable ends and terminals
against moisture to prevent
inaccurate measurement!
•For further information on cables
and junction boxes refer to chap.
9 Accessories.
Structure and termination of the measuring cable
Measuring cable requirements
Sensor type Cable Extension
Turbidity sensor CUS 31, CUS 41 Non-detachable cable
on sensor VBM box + CYK 8
Maximum cable length
CUS 31 / CUS 41 max. 200 m using CYK 8
GN
YE
WH
BN
Screen
Com A
Com B
–UB
+UB
S
ensor Pin
C
UM 2x3
S
96
97
88
87 U_AN03E.CDR
+UB
CYK 8
Fig. 3.13
Structure of the special
measuring cable CYK 8
Installation Liquisys M CUM 223 / 253
14 Endress+Hauser

Connection examples
S87889697
U2X3AN.CDR
BN WH GN YE
Sensor
Cable CYK 8
Fig. 3.14
Connection of turbidity
sensors CUS 31 and
CUS 41
UM253E03.CHP
Liquisys M CUM 223 / 253 Installation
Endress+Hauser 15

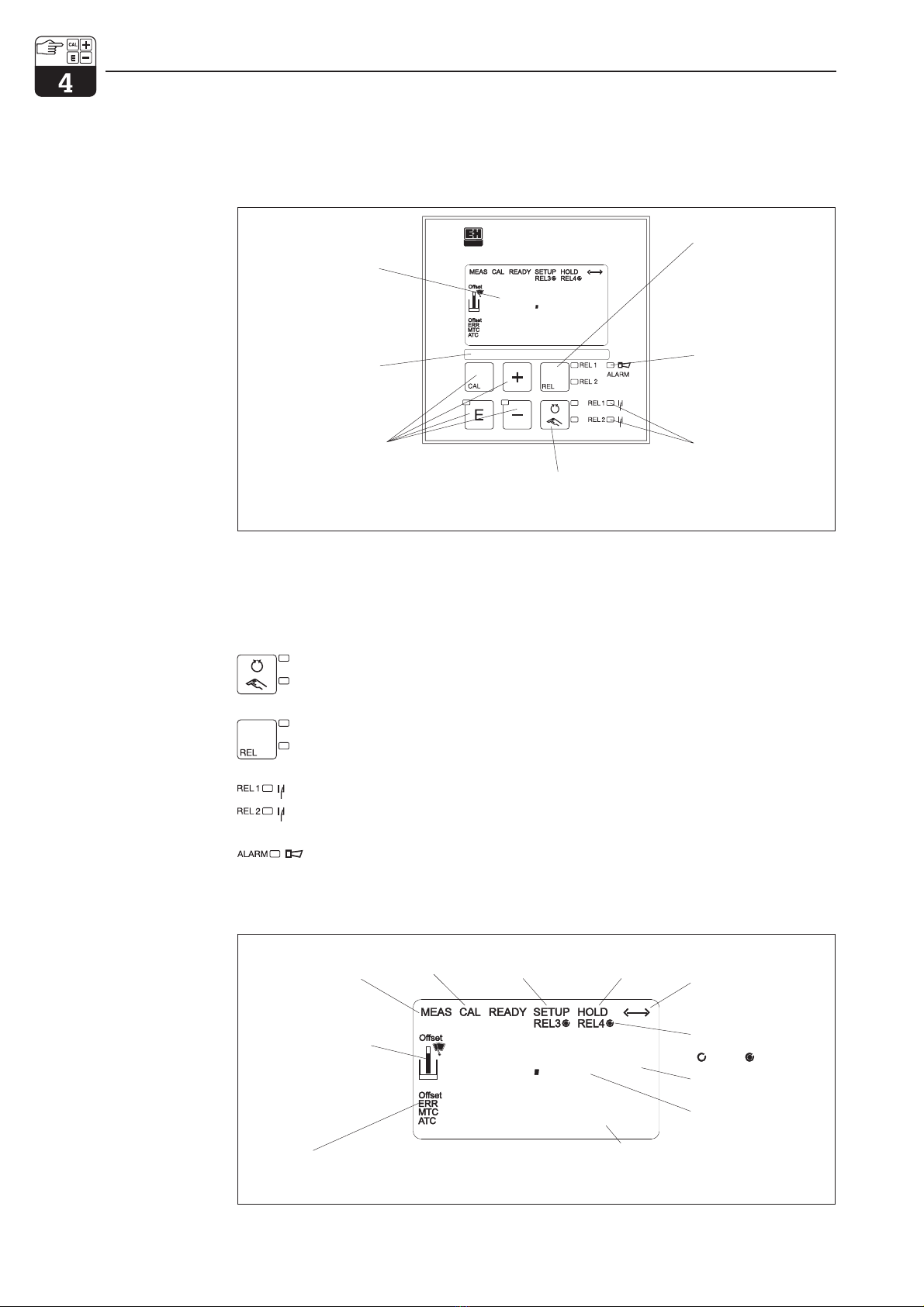

4 Operation
4.1 Operator interface
4.2 Display
LED Display
Liquid crystal display
185 NTU
R262
Setpoint
ENDRESS+HAUSER
LIQUISYS M
DISPLAY1E.CDR
Liquid crystal display
for display measured
values and
configurations data
4 main operating keys
for calibration and
instrument configuration
Key for switching
between automatic /
manual operation
LEDs indicators for
limit contactor relay
(switching state)
LED indicator for
alarm function
Display of active
contact and key for
relay switchover
in manual mode
Field for user labelling
Fig. 4.1
Operating elements of
Liquisys M
Indication of current operating mode “Auto”(green LED) or “Manual”(yellow LED)
Indication of controlled relay in “Manual”mode (red LED)
Indicates the state of relays 1 and 2
LED green: measured value within permissible limits, relay inactive
LED red: measured value outside permissible limits, relay active
Alarm indication e.g. for continuous limit violation, temperature sensor failure or system error
(see error list chap. 7)
185
NTU
R262
Setpoint
DISPLAY3.CDR
Measuring mode
indicator (normal
operation)
Calibration
mode indicator
Setup mode
indicator
(configuration)
Error:
error display
In measuring mode:
Secondary measured value.
In setup / calibr. mode
e.g. setting value
In measuring mode:
Main measured value.
In setup / calibr. mode
e.g. parameter
Function coding display
Rel 3/4:
state indicators
inactive active
“Hold”mode indicator
(outputs reflect last
current state)
For instruments with
communication:
Display to receive
messages.
Constantly visible in
Burst mode (with HART)
Sensor symbol
flashes during
calibration
Fig. 4.2 Liquid crystal display
Operation Liquisys M CUM 223 / 253
16 Endress+Hauser

4.3 Function of the operating keys
CAL key
When the CAL key is pressed, the instrument prompts for the calibration
access code (fixed setting: 22 for calibration; any setting for calibration
data checking). Acknowledge with the CAL key to proceed. Calibration
uses the calibration data set in Function Group C.
ENTER key
The ENTER key has the following functions:
Opens the Setup menu in Measurement mode
Stores (acknowledges) entered data in Setup mode.
Moving on within the function groups.
PLUS key and MINUS key
The PLUS and MINUS keys have the following functions:
Selection of function groups
Setting of parameters and numeric values
Relay operation in manual mode (see chap. 4.4).
Pressing the PLUS key allows you to switch between the current
output in % and mA.
Repeatedly pressing the PLUS key displays the following settings in
sequence as secondary measured values:
1. Temperature display in °F
2. Hiding the temperature display
3. Measured value display in FNU
4. Back to basic setting
Repeatedly pressing the MINUS key displays the errors:
1. The current errors are displayed one after the other (max. 10)
2. After all the errors are displayed, the standard display is unhidden.
In function group F, you can define an alarm for each error code
separately.
REL key
The REL key is used in manual mode to switch between the relays and
the manual start cleaning function.
AUTO key
The AUTO key is used to toggle between the automatic and manual
modes of operation.
Escape function
Press the PLUS and MINUS keys simultaneously to return to the main
menu. Press the PLUS and MINUS keys again to return to measuring
mode.
Locking the keypad
Press the PLUS and ENTER keys simultaneously to lock the keypad.
The code prompt displays the code 9999.
Unlocking the keypad
Press the CAL and MINUS keys simultaneously to unlock the keypad.
The code prompt displays the code 0:
UM253ED4.CHP
Liquisys M CUM 223 / 253 Operation
Endress+Hauser 17

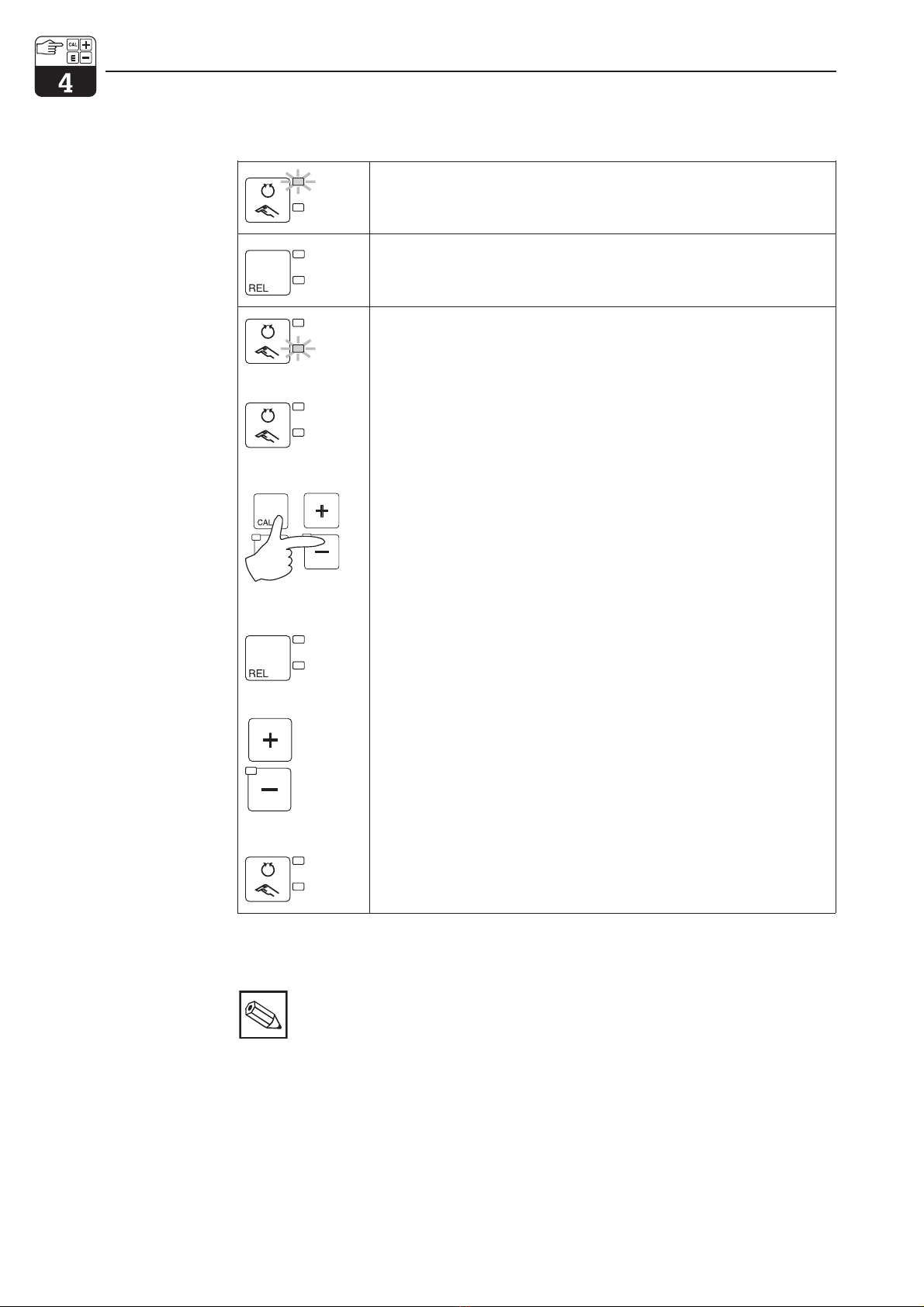

4.4 Auto / manual mode of operation
Note:
•Enable the manual mode by
entering setup code “22”.
•The operating mode is retained
even after a power failure.
•The manual mode takes
precedence over any other
automatic function (hold).
•Hardware locking in the manual
mode is not possible.
•The manual settings remain in
effect until they are actively reset.
•Error code E102 is signalled in the
manual mode.
Auto mode
In this mode of operation, the relays are controlled by the transmitter.
REL key
The REL key is used to select one of the relays present in the instrument.
Switch to manual mode
The instrument is switched to manual mode by pressing the following
keys:
Press AUTO key.
Enter code 22.
Select relay or function. Press the REL key to toggle between the relays.
The display shows the selected relay in the second line.
Set the relays. Switch on with PLUS, switch off with MINUS. The relay
state remains in effects until it is actively reset.
Press AUTO key for returning to the measuring mode.
Operation Liquisys M CUM 223 / 253
18 Endress+Hauser
