Brief Operating Instructions
Proline 400
Transmitter with ultrasonic transit time sensor
HART
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Brief Operating Instructions part 2 of 2: Transmitter
Contain information about the transmitter.
Brief Operating Instructions part 1 of 2: Sensor →  3
KA01510D/06/EN/01.21
71542316
2022-01-11

Proline 400 HART
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

Proline 400 HART Brief Operating Instructions for flowmeter
Endress+Hauser 3
Brief Operating Instructions for flowmeter
The device consists of a transmitter and a sensor.
The process of commissioning these two components is described in two separate manuals
that together form the Brief Operating Instructions for the flowmeter:
• Brief Operating Instructions Part 1: Sensor
• Brief Operating Instructions Part 2: Transmitter
Please refer to both parts of the Brief Operating Instructions when commissioning the device,
as the contents of the manuals complement one another:
Brief Operating Instructions Part 1: Sensor
The Sensor Brief Operating Instructions are aimed at specialists with responsibility for
installing the measuring device.
• Incoming acceptance and product identification
• Storage and transport
• Installation
Brief Operating Instructions Part 2: Transmitter
The Transmitter Brief Operating Instructions are aimed at specialists with responsibility for
commissioning, configuring and parameterizing the measuring device (until the first
measured value).
• Product description
• Installation
• Electrical connection
• Operation options
• System integration
• Commissioning
• Diagnostic information
Additional device documentation
These Brief Operating Instructions are Brief Operating Instructions Part 2:
Transmitter.
The "Brief Operating Instructions Part 1: Sensor" are available via:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Detailed information about the device can be found in the Operating Instructions and the
other documentation:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App

Table of contents Proline 400 HART
4 Endress+Hauser
Table of contents
1 About this document .............................................................. 5
1.1 Symbols used ......................................................................... 5
2 Safety instructions ................................................................ 7
2.1 Requirements for the personnel ............................................................ 7
2.2 Intended use .......................................................................... 7
2.3 Workplace safety ...................................................................... 8
2.4 Operational safety ......................................................................8
2.5 Product safety ......................................................................... 8
2.6 IT security ............................................................................ 8
2.7 Device-specific IT security ................................................................ 9
3 Product description ............................................................... 9
4 Mounting ......................................................................... 9
4.1 Turning the display module .............................................................. 10
4.2 Special mounting instructions ............................................................ 10
4.3 Transmitter post-installation check ........................................................ 11
5 Electrical connection ............................................................ 12
5.1 Electrical safety .......................................................................12
5.2 Connection conditions .................................................................. 12
5.3 Connecting the measuring device ......................................................... 15
5.4 Special connection instructions ........................................................... 19
5.5 Ensuring the degree of protection ......................................................... 21
5.6 Post-connection check ..................................................................22
6 Operation options ............................................................... 23
6.1 Overview of operation methods ........................................................... 23
6.2 Structure and function of the operating menu ................................................ 24
6.3 Access to the operating menu via the Web browser ............................................ 25
6.4 Access to the operating menu via the operating tool ............................................ 30
7 System integration .............................................................. 30
8 Commissioning .................................................................. 31
8.1 Function check ....................................................................... 31
8.2 Switching on the measuring device ........................................................ 31
8.3 Setting the operating language ........................................................... 31
8.4 Configuring the measuring device ......................................................... 32
9 Diagnostic information .......................................................... 33

Proline 400 HART About this document
Endress+Hauser 5
1 About this document

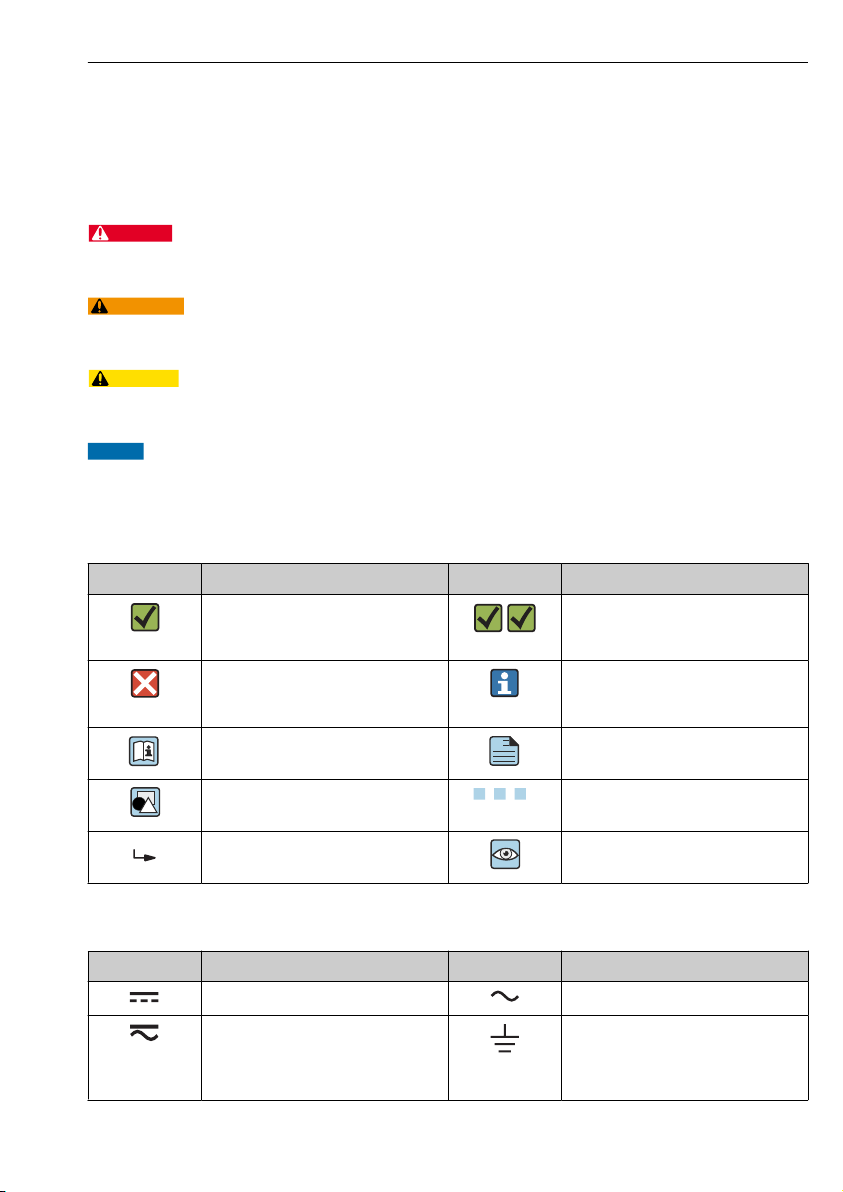

1.1 Symbols used
1.1.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.1.2 Symbols for certain types of information
Symbol Meaning Symbol Meaning
Permitted
Procedures, processes or actions that
are permitted.
Preferred
Procedures, processes or actions that
are preferred.
Forbidden
Procedures, processes or actions that
are forbidden.
Tip
Indicates additional information.
Reference to documentation
A
Reference to page
Reference to graphic
1.
,
2.
,
3.
… Series of steps
Result of a step Visual inspection
1.1.3 Electrical symbols
Symbol Meaning Symbol Meaning
Direct current Alternating current
Direct current and alternating current Ground connection
A grounded terminal which, as far as
the operator is concerned, is grounded
via a grounding system.

About this document Proline 400 HART
6 Endress+Hauser
Symbol Meaning
Protective Earth (PE)
A terminal which must be connected to ground prior to establishing any other connections.
The ground terminals are situated inside and outside the device:
• Inner ground terminal: Connects the protectiv earth to the mains supply.
• Outer ground terminal: Connects the device to the plant grounding system.
1.1.4 Communication-specific symbols
Symbol Meaning Symbol Meaning
Wireless Local Area Network
(WLAN)
Communication via a wireless, local
network.
Prosonic Flow 400
Bluetooth
Wireless data transmission between
devices over a short distance.
Promag 800
Cellular radio
Bidirectional data exchange via cellular
network.
LED
Light emitting diode is off.
LED
Light emitting diode is on.
LED
Light emitting diode is flashing.
1.1.5 Tool symbols
Symbol Meaning Symbol Meaning
Torx screwdriver Flat blade screwdriver
Cross-head screwdriver Allen key
Open-ended wrench
1.1.6 Symbols in graphics
Symbol Meaning Symbol Meaning
1, 2, 3,... Item numbers
1.
,
2.
,
3.
… Series of steps
A, B, C, ... Views A-A, B-B, C-C, ... Sections
-
Hazardous area
.
Safe area (non-hazardous area)
Flow direction

Proline 400 HART Safety instructions
Endress+Hauser 7
2 Safety instructions
2.1 Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application).
‣Follow instructions and comply with basic conditions.
2.2 Intended use
Application and media
The measuring device described in this manual is intended only for the flow measurement of
liquids.
Depending on the version ordered, the measuring device can also measure potentially
explosive, flammable, poisonous and oxidizing media.
Measuring devices for use in hazardous areas, in hygienic applications or in applications
where there is an increased risk due to process pressure, are marked accordingly on the
nameplate.
To ensure that the measuring device remains in proper condition for the operation time:
‣Keep within the specified temperature range.
‣Only use the measuring device in full compliance with the data on the nameplate and the
general conditions listed in the Operating Instructions and supplementary documentation.
‣Based on the nameplate, check whether the ordered device is permitted for the intended
use in the hazardous area (e.g. explosion protection, pressure vessel safety).
‣If the ambient temperature of the measuring device is outside the atmospheric
temperature, it is absolutely essential to comply with the relevant basic conditions as
specified in the device documentation.
‣Protect the measuring device permanently against corrosion from environmental
influences.
Incorrect use
Non-designated use can compromise safety. The manufacturer is not liable for damage caused
by improper or non-designated use.
Residual risks
LWARNING
If the temperature of the media or electronics unit is high or low, this may cause the
surfaces of the device to become hot or cold. This poses a risk of burns or frostbite!
‣In the case of hot or cold medium temperatures, install appropriate protection against
contact.

Safety instructions Proline 400 HART
8 Endress+Hauser
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to national regulations.
If mounting the sensors and tensioning bands:
‣Due to the increased risk of cuts, wear suitable gloves and protective goggles.
For welding work on the piping:
‣Do not ground the welding unit via the measuring device.
If working on and with the device with wet hands:
‣Due to the increased risk of electric shock, wear suitable gloves.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EU
directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.
Furthermore, the device meets the legal requirements of the applicable UK regulations
(Statutory Instruments). These are listed in the UKCA Declaration of Conformity along with
the designated standards.
By selecting the order option for UKCA marking, Endress+Hauser confirms a successful
evaluation and testing of the device by affixing the UKCA mark.
Contact address Endress+Hauser UK:
Endress+Hauser Ltd.
Floats Road
Manchester M23 9NF
United Kingdom
www.uk.endress.com
2.6 IT security
Our warranty is valid only if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the settings.
IT security measures, which provide additional protection for the device and associated data
transfer, must be implemented by the operators themselves in line with their security
standards.

Proline 400 HART Product description
Endress+Hauser 9
2.7 Device-specific IT security
The device offers a range of specific functions to support protective measures on the operator's
side. These functions can be configured by the user and guarantee greater in-operation safety
if used correctly.
For detailed information on device-specific IT security, see the Operating Instructions for
the device.
3 Product description
The measuring system consists of a transmitter and two or one sensor sets. The transmitter
and sensor sets are mounted in physically separate locations. They are interconnected by
sensor cables.
• Prosonic Flow I 400: The sensors work as sound generators and sound receivers. The
sensors in a sensor pair are always arranged opposite one another and send/receive the
ultrasonic signals directly (1-traverse positioning).
• Prosonic Flow W 400: The measuring system uses a method based on the time-of-flight
difference. Here, the sensors work as sound generators and sound receivers. Depending on
the application and version, the sensors can be arranged for a measurement via 1, 2, 3 or 4
traverses.
The transmitter serves to control the sensor sets, to prepare, process and evaluate the
measuring signals, and to convert the signals to the desired output variable.
For detailed information on the product description, see the Operating Instructions for
the device →  3
4 Mounting
For detailed information about mounting the sensor, see the Sensor Brief Operating
Instructions →  3

Mounting Proline 400 HART
10 Endress+Hauser
4.1 Turning the display module
4.1.1 Opening the transmitter housing and turning the display module
TX 20
4 x
1.
2.
PUSH TO
REMOVE
PUSH TO
REMOVE
3. 4.
A0046804
1. Loosen the fixing screws of the housing cover.
2. Open the housing cover.
3. Unlock the display module.
4. Pull out the display module and turn it to the desired position in increments of 90°.
4.1.2 Mounting the transmitter housing
LWARNING
Excessive tightening torque applied to the fixing screws!
Damage to the transmitter.
‣Tighten the fixing screws with the specified torques.
1. Insert the display module and lock it when doing so.
2. Close the housing cover.
3. Tighten the fixing screws of the housing cover: tightening torque for aluminum housing
2.5 Nm (1.8 lbf ft) – plastic housing 1 Nm (0.7 lbf ft).
4.2 Special mounting instructions
4.2.1 Display guard
‣To ensure that the display guard can be easily opened, maintain the following minimum
head clearance: 350 mm (13.8 in)

Proline 400 HART Mounting
Endress+Hauser 11
4.3 Transmitter post-installation check
The post-installation check must always be performed after the following tasks:
• Turning the transmitter housing
• Turning the display module
Is the device undamaged (visual inspection)? 
Turning the transmitter housing:
• Is the fixing screw firmly tightened?
• Is the connection compartment cover screwed on tightly?
• Is the securing clamp firmly tightened?

Turning the display module:
• Is the connection compartment cover screwed on tightly?
• Is the securing clamp firmly tightened?


Electrical connection Proline 400 HART
12 Endress+Hauser
5 Electrical connection
NOTICE
The measuring device does not have an internal circuit breaker.
‣For this reason, assign the measuring device a switch or power-circuit breaker so that the
power supply line can be easily disconnected from the mains.
‣Although the measuring device is equipped with a fuse, additional overcurrent protection
(maximum 16 A) should be integrated into the system installation.
5.1 Electrical safety
In accordance with applicable national regulations.
5.2 Connection conditions
5.2.1 Required tools
• Torque wrench
• For cable entries: Use corresponding tools
• Wire stripper
• When using stranded cables: Crimper for wire end ferrule
5.2.2 Requirements for connecting cable
The connecting cables provided by the customer must fulfill the following requirements.
Permitted temperature range
• The installation guidelines that apply in the country of installation must be observed.
• The cables must be suitable for the minimum and maximum temperatures to be expected.
Power supply cable (incl. conductor for the inner ground terminal)
Standard installation cable is sufficient.
Signal cable
Current output 0/4 to 20 mA
Standard installation cable is sufficient.
Current output 4 to 20 mA HART
A shielded cable is recommended. Observe grounding concept of the plant.
Pulse/frequency/switch output
Standard installation cable is sufficient.
Status input
Standard installation cable is sufficient.

Proline 400 HART Electrical connection
Endress+Hauser 13
Sensor cable for sensor - transmitter
Standard cable • TPE: -40 to +80 °C (-40 to +176 °F)
• TPE halogen-free: -40 to +80 °C (-40 to +176 °F)
• PTFE: -40 to +130 °C (-40 to +266 °F)
Cable length (max.) 30 m (90 ft)
Cable lengths (available for order) 5 m (15 ft), 10 m (30 ft), 15 m (45 ft), 30 m (90 ft)
Operating temperature Depends on the device version and how the cable is installed:
Standard version:
• Cable, fixed installation 1): minimum –40 °C (–40 °F)
• Cable, movable: minimum –25 °C (–13 °F)
1) Compare details under the "Standard cable" row
Cable diameter
• Cable glands supplied:
• For standard cable: M20 × 1.5 with cable  6 to 12 mm (0.24 to 0.47 in)
• For reinforced cable: M20 × 1.5 with cable  9.5 to 16 mm (0.37 to 0.63 in)
• (Plug-in) spring terminals for wire cross-sections 0.5 to 2.5 mm2 (20 to 14 AWG)
5.2.3 Terminal assignment
Transmitter
The sensor can be ordered with terminals.
Connection methods available Possible options for order code
"Electrical connection"
Outputs Power
supply
Terminals Terminals • Option A: coupling M20x1 M20x1.5
• Option B: thread M20x1 M20x1.5
• Option C: thread G ½"
• Option D: thread NPT ½"
Supply voltage
Order code
"Power supply"
Terminal numbers terminal voltage Frequency range
Option L
(wide range power unit) 1 (L+/L), 2 (L-/N)
DC 24 V ±25% –
AC 24 V ±25% 50/60 Hz, ±4 Hz
AC 100 to 240 V –15 to +10% 50/60 Hz, ±4 Hz

Electrical connection Proline 400 HART
14 Endress+Hauser
Signal transmission for current output 0 to 20 mA/4 to 20 mA HART and other outputs and
inputs
Order code for
"Output" and "Input"
Terminal numbers
Output 1 Output 2 Output 3 Input
26 (+) 27 (-) 24 (+) 25 (-) 22 (+) 23 (-) 20 (+) 21 (-)
Option HCurrent output
• 4 to 20 mA HART
(active)
• 0 to 20 mA
(active)
Pulse/frequency
output
(passive)
Switch output
(passive)
-
Option ICurrent output
• 4 to 20 mA HART
(active)
• 0 to 20 mA
(active)
Pulse/frequency/
switch output
(passive)
Pulse/frequency/
switch output
(passive)
Status input
5.2.4 Preparing the measuring device
Carry out the steps in the following order:
1. Mount the sensor and transmitter.
2. Sensor connection housing: Connect sensor cable.
3. Transmitter: Connect sensor cable.
4. Transmitter: Connect signal cable and cable for supply voltage.
NOTICE
Insufficient sealing of the housing!
Operational reliability of the measuring device could be compromised.
‣Use suitable cable glands corresponding to the degree of protection.
1. Remove dummy plug if present.
2. If the measuring device is supplied without cable glands:
Provide suitable cable gland for corresponding connecting cable.
3. If the measuring device is supplied with cable glands:
Observe requirements for connecting cables →  12.

Proline 400 HART Electrical connection
Endress+Hauser 15
5.3 Connecting the measuring device
LWARNING
Risk of electric shock! Components carry dangerous voltages!
‣Have electrical connection work carried out by correspondingly trained specialists only.
‣Observe applicable federal/national installation codes and regulations.
‣Comply with local workplace safety regulations.
‣Observe grounding concept of the plant.
‣Never mount or wire the measuring device while it is connected to the supply voltage.
‣Before the supply voltage is applied, connect the protective ground to the measuring
device.
5.3.1 Connecting the sensor and transmitter
LWARNING
Risk of damaging electronic components!
‣Connect the sensor and transmitter to the same potential equalization.
‣Only connect the sensor to a transmitter with the same serial number.
The following sequence of steps is recommended when connecting:
1. Mount the sensor and transmitter.
2. Connect the sensor cable.
3. Connect the transmitter.

Electrical connection Proline 400 HART
16 Endress+Hauser

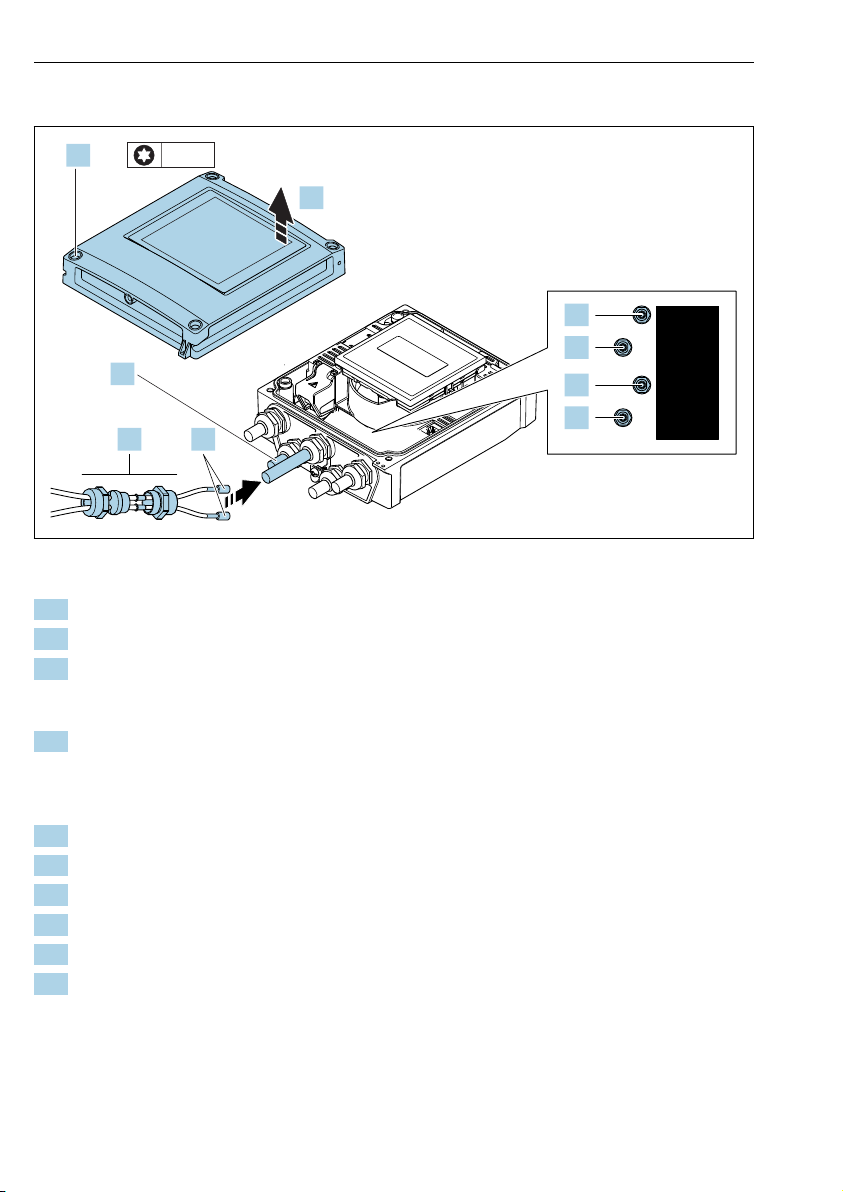

Connecting the sensor cable to the transmitter
1.
2.
4 x T 20
UP
CH1
CH2
UP
Down
Down
5.
7.
3. 4.
6.
8.
9.
A0046768
 1 Transmitter: main electronics module with terminals
1. Loosen the 4 fixing screws on the housing cover.
2. Open the housing cover.
3. Route the two sensor cables of channel 1 through the slackened top union nut of the
cable entry. To ensure tight sealing, mount a sealing insert on the sensor cables (push
the cables through the slotted sealing insert).
4. Mount the screw part in the center cable entry at the top and then guide both sensor
cables through the entry. Then fit the coupling nut with the sealing insert on the screw
part and tighten. Ensure that the sensor cables are positioned in the cut-outs provided
in the screw part.
5. Connect sensor cable to channel 1 upstream.
6. Connect sensor cable to channel 1 downstream.
7. For a two-path measurement: proceed as per steps 3+4
8. Connect sensor cable to channel 2 upstream.
9. Connect sensor cable to channel 2 downstream.
10. Tighten the cable gland(s).
 This concludes the process for connecting the sensor cable(s).

Proline 400 HART Electrical connection
Endress+Hauser 17
11. LWARNING
Housing degree of protection may be voided due to insufficient sealing of the
housing.
‣Screw in the screw without using any lubricant.
Reverse the removal procedure to reassemble the transmitter.

Electrical connection Proline 400 HART
18 Endress+Hauser
5.3.2 Connecting the transmitter
LWARNING
Housing degree of protection may be voided due to insufficient sealing of the housing.
‣Screw in the screw without using any lubricant. The threads on the cover are coated with a
dry lubricant.
Tightening torques for plastic housing
Housing cover fixing screw 1 Nm (0.7 lbf ft)
Cable entry 5 Nm (3.7 lbf ft)
Ground terminal 2.5 Nm (1.8 lbf ft)
When connecting the cable shield to the ground terminal, observe the grounding concept
of the facility.
2.
1. 4 x T 20
12
L+/L
L-/N
5.
4.
10 (0.4)
3.
A0046769
 2 Connecting the supply voltage and 0-20 mA/4-20 mA HART with additional outputs and inputs
1. Loosen the 4 fixing screws on the housing cover.
2. Open the housing cover.
3. Push the cable through the cable entry. To ensure tight sealing, do not remove the
sealing ring from the cable entry.

Proline 400 HART Electrical connection
Endress+Hauser 19
4. Strip the cable and cable ends. In the case of stranded cables, also fit ferrules.
5. Connect the cables according to the connection nameplate on the main electronics
module, for supply voltage: open the shock protection cover.
6. Firmly tighten the cable glands.
Reassembling the transmitter
1. Close the shock protection cover.
2. Close the housing cover.
3. LWARNING
Housing degree of protection may be voided due to insufficient sealing of the
housing.
‣Screw in the screw without using any lubricant.
Tighten the 4 fixing screws on the housing cover.
5.4 Special connection instructions
5.4.1 Connection examples
Current output 4 to 20 mA HART
4
4...20 mA
5
2
13
6
A0029055
 3 Connection example for 4 to 20 mA HART current output (active)
1 Automation system with current input (e.g. PLC)
2 Ground the cable shield at one end. The cable shield must be grounded at both ends to comply with
EMC requirements; observe cable specifications
3 Connection for HART operating devices
4 Resistor for HART communication (≥ 250 Ω): observe maximum load
5 Analog display unit: observe maximum load
6 Transmitter

Electrical connection Proline 400 HART
20 Endress+Hauser
Pulse/frequency output
12
3
12345
A0028761
 4 Connection example for pulse/frequency output (passive)
1 Automation system with pulse/frequency input (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values
Switch output
12
3
A0028760
 5 Connection example for switch output (passive)
1 Automation system with switch input (e.g. PLC)
2 Power supply
3 Transmitter: Observe input values
