Eneo VMC-17LCD-OPC3 User manual

All contents of this document may change without prior notice, and actual product appearance may differ from that
depicted herein
Installation and User’s Guide
Installation and Operating Instructions
17, 19” TFT LCD MONITOR
VMC-17LCD-OPC3, VMC-19LCD-OPC3

Installation and User’s Guide
pg2
* Follow this safety instruction to use the monitor properly and prevent the damages.
* Keep this user’s guide book for later use.

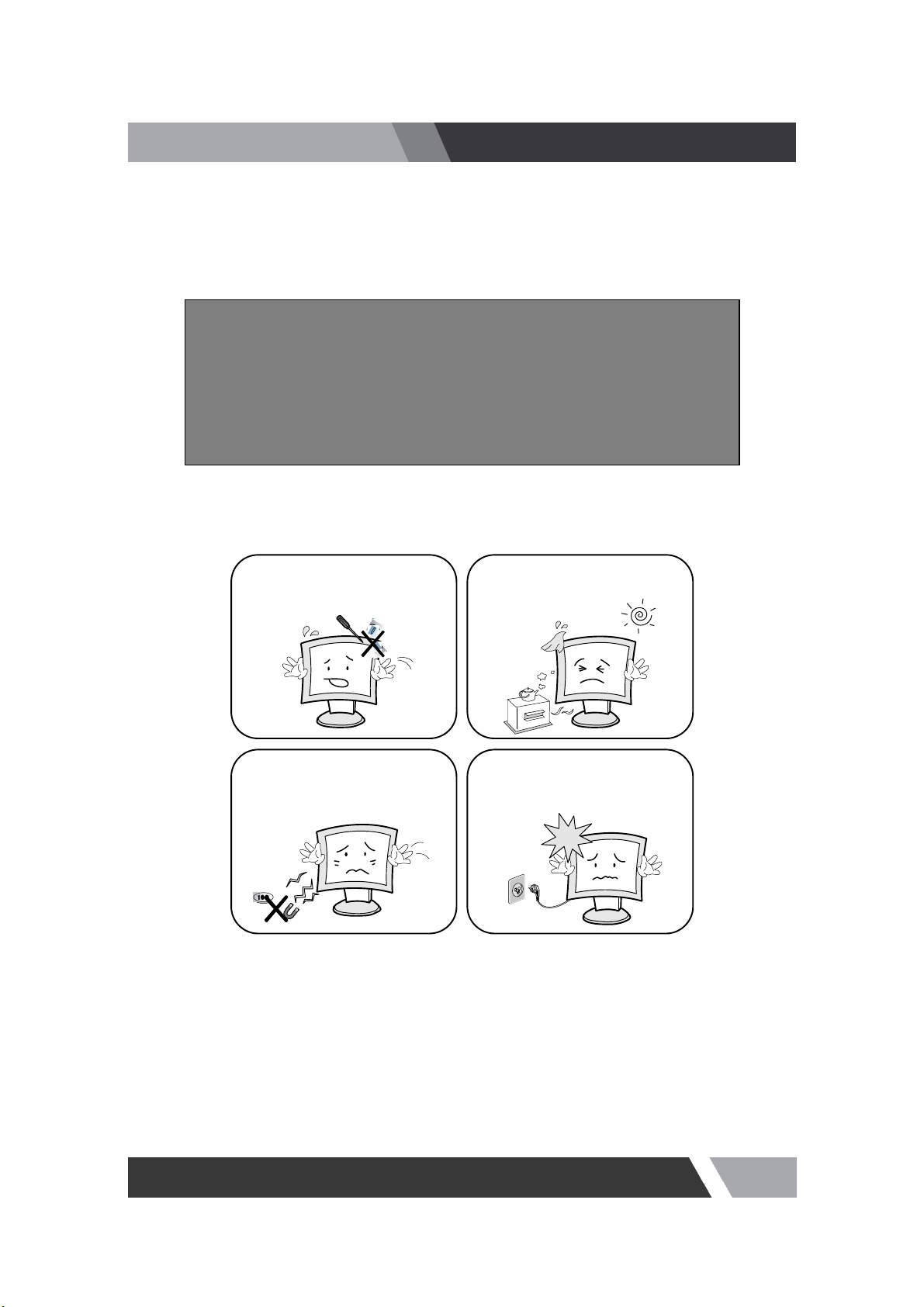

Warning Statements
* This safety instruction has “ Warning” and “ Caution” as below.
WARNING: If the user does not follow this instruction,
it may cause the serious damage to the user.
CAUTION: If the user does not follow this instruction, it may cause the slight
damage to the user or cause some damages to the monitor.
Never remove the back over and touch
the inside of the monitor. If you need a
service, please contact the service center.
Keep away the monitor from the
direct sunlight and a heating appliance.
Never push objects of any kind into this
product as they may result in a risk of fire
or electric shock.
Connect the power code to the wall
outlet tightly. If the power code or plug are
defective and the wall outlet is not tight,
please do not use them.

Installation and User’s Guide
pg3
Warning Statements
Do not install this monitor on the outside
and near water. If may cause damage to
the product, electric shock and fire.
For cleaning do not use liquid cleaners.
Never touch the power plug with wet-
hands.
When lightning and thundering, unplug
the monitor from the wall outlet and never
touch it.
Unplug this product from the wall outlet,
when It does not operate for a long time.
When smoking and noising from the
monitor, unplug the product from the wall
outlet and contact a service center.
How to fix
1.
Do not open this product as it c
ontains high voltage inside.
2. It may create an electric shock.
3. It the user disassembles and remove the back cover, it does not make sure
4. To make up for the damages and do a service and exchange the monitor..

Installation and User’s Guide
pg4
Cautions
`
Install this monitor some distance
From the wall and do not install unless
Proper ventilation is provided.
Place this product on a stable place.
If not, it may fall, causing serious
Damages to the monitor and people.
The openings must not be blocked by
curtain, rug or other similar surface.
When carrying this monitor, be careful
not to damage the panel and drop it
It may cause some trouble.
Before carrying the monitor, tum it off
and Unplug the signal cables and the
power code From the wall outlet.
Take the power plug out from the wall
outlet. Do not pull the cable. It may
snap the inner wires and cause
overheating and fire.
Install this monitor about 50cm far from
the eyes and an angle of 0~15 degrees
below eyes. Too close installation may
cause having weak sight.
Do not press the LCD panel with hands
or the sharpened material hardly.
For cleaning, unplug the monitor from
the Wall outlet. Do net use the liquid
cloth. Use the soft cloth.
Do not use the chemical liquid for
cleaning. It may cause fading and
breakage.

Installation and User’s Guide
pg5
TABLE OF CONTENTS
1. INSTALLATION
1
.1
Unpacking
……
.....
....
.
.......................................................
.................
............................
2
.
OSD SETTING
…
...
....
.
.......................................................
.................
.......................
...
3. FEATURES
6. TROUBLESHOOTING
..
....
.
.................................................
......
.................
....................
7. LIMITED WARRANTY
..
....
.
.......................................................
.................
......................
1
.3
Main Functional Button
……
.....
....
.
.......................................................
.................
........
5. INFORMATION TO THE USER
..
....
.
.......................................................
................
.........
4. APPENDIX
..
....
.
.......................................................
.....
...........
.........................
1
.2
Part List
……
.....
....
.
.......................................................
.................
........................
....
1
.4
Connection
……
.....
....
.
.......................................................
.................
.........
.................
3.1 Specifications
……
.
……
.....
....
.
.......................................................
.................
............
1
.5
Remote Controller
…
.
.
.......................................................
.................
..........................
6
10
-
12
16
16
7
15
6
8
13
14
9

Installation and User’s Guide
pg6
INSTALLATION
1.1 Unpacking
Remove the package cover and place the product on a flat and secure surface or in the installation
location. This equipment should be unpacked and handled with care. If an item appears to have been
damaged in shipment, notify the shipper immediately. Check whether all the following device and
accessories are included with the main system. If any items are missing, notify your Sales or
Customer Service Representative.
1.2 Part List
The following table lists the parts included:
SECURITY MONITOR
USER
’
S GUIDE
EXTERNAL POWER CABLE
POWER ADAPTO
R
VGA CABLE
REMOTE CONTROL
BATTERY

Installation and User’s Guide
pg7
INSTALLATION
MENU
Activates and exits the OSD.
SOURCE / ▽
Select input source, and move the OSD menu.
AUTO / △
Move the OSD menu and auto adjustment of RGB source.
IR RECEIVER & POWER INDICATOR WINDOW
◁ / VOLUME
Decrease the level of volume and move the previous menu.
VOLUME / ▷
Increase the level of volume and select the OSD menu.
/
Turn the power ON or OFF. There will be a few seconds delay before the display appears.
The power LED(in the power indicator window) lights with green when the power is turned ON.
The power is turned off by pressing the power switch again and the power LED goes Red.
1.3 Main Functional Button
1
2
3
4
5
6
7

Installation and User’s Guide
pg8
INSTALLATION
HDMI IN
RGB IN
DC12V IN
VIDEO-1 IN
VIDEO-1 OUT
VIDEO-2 OUT
VIDEO-2 IN
S-VIDEO IN
VIDEO AUDIO IN
PC AUDIO IN
10
9
8
7
6
5
4
3
2
1
1.4 Connection
1
2
3
4
5
6
7
8
9
10

Installation and User’s Guide
pg9
INSTALLATION
A. SOURCE SELECT
Press the button to select the desired input source.
(VIDEO1, S-VIDEO, RGB… etc)
B. CONTROL MENU
□ POWER ( )
Turn the monitor ON or OFF.
□ MUTE
Temporarily silences the sound.
□ COLOR TEMP.
Adjust the color temperature of the screen.
□ SCAN MODE
Change the scan mode of the screen. (FULL / UNDER / OVER)
□ MENU/EXIT
Activates and exits the OSD menu.
□ KEY LOCK
Prevent unauthorized operation of the equipment by locking the buttons.
□ STILL
Freeze the current picture.
C. PIP MENU
□ PIP : Activates/deactivates PIP/PBP mode.
□ P. INPUT : Selects an input source for the sub picture.
□ P. LOC : Selects a location for the sub picture.
□ P. SIZE : Selects the size of the sub picture.
□ P. SWAP : Swaps the main and sub picture.
□ S. SET : Alternates between main and sub audio input.
1.5 Remote Controller

Installation and User’s Guide
pg10

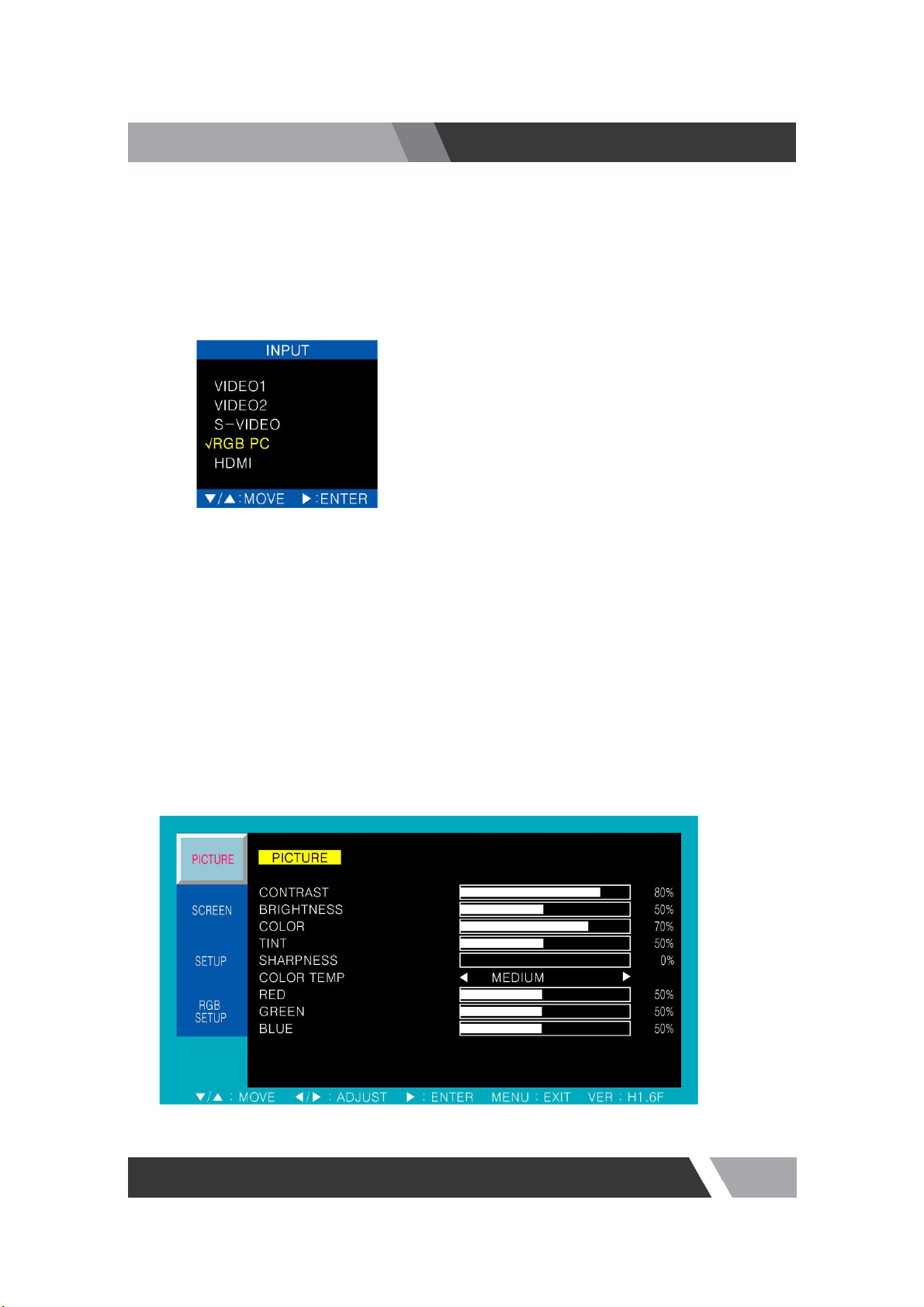

OSD (On Screen Display) SETTING
■ A. INPUT Select
Inputs can be set to VIDEO1, VIDEO2, S-VIDEO, RGB PC and HDMI mode.
Press the ► key then you can change the input source.
■ B. MENU SELECTION
1. Press the MENU/EXIT key to access the main menu.
2. Use the  and  arrow key to highlight a selection.
3. Press the ►/SELECT key to select an item.
4. Use the  and  arrow key to highlight a selection.
5. Use the ◀ and  arrow key to adjust the setting on a selected item.
NOTE : If you don’t connect RGB port, RGB SETUP menu is not select.
