User manual
Gigabit Switch, Unmanaged,
60W, 4x PoE, PoE watchdog
IAM-5SE1004MUC

PoE Wa tch dog
1000B ASE -T PSE
1000B ASE -X
PoE Wa tch dog 1000B ASE -T PD
56
1000Base-X SFP 10/100/1000Base-T POE out
Power indicator
SFP indicator
Mode indicator
Wall-hanger
Grounding terminal
DIN rail hanger
Wall-hanger
DC power input
Mode toggle
switch
Feature
4 Ports PoE Ethernet Switch
12
Provide 1*10/100/1000Base-T PoE In Port(60W PoE input);
Provide 4*10/100/1000Base-T PoE out Ports(30W PoE output, support IEEE802.3af/at);
Provide 1* 1000Base-X SFP port;
Support PoE watchdog(Detect POE device when it is frozen, reboot automatically);
Redundant power design, support power hot backup;
Support -40 to +75°C working temperature;
Support 6KV surge protection,8KV/15KV ESD protection.
Din-rail and wall-mount installation.
It is an industrial full-gigabit PoE switch, the switch provides 1*10/100/1000Base-T PoE in
port(60W PoE input), 4*10/100/1000Base-T PoE out ports (30W PoE output, support
IEEE802.3af/at) and 1*1000Base-X SFP port. It supports PoE watchdog (Detect POE device
when it is frozen, reboot automatically). It supports -40 to +75°C working temperature, 6KV
surge protection,8KV/15KV ESD protection. It could be widely used in security network video
surveillance, network engineering and other occasions.

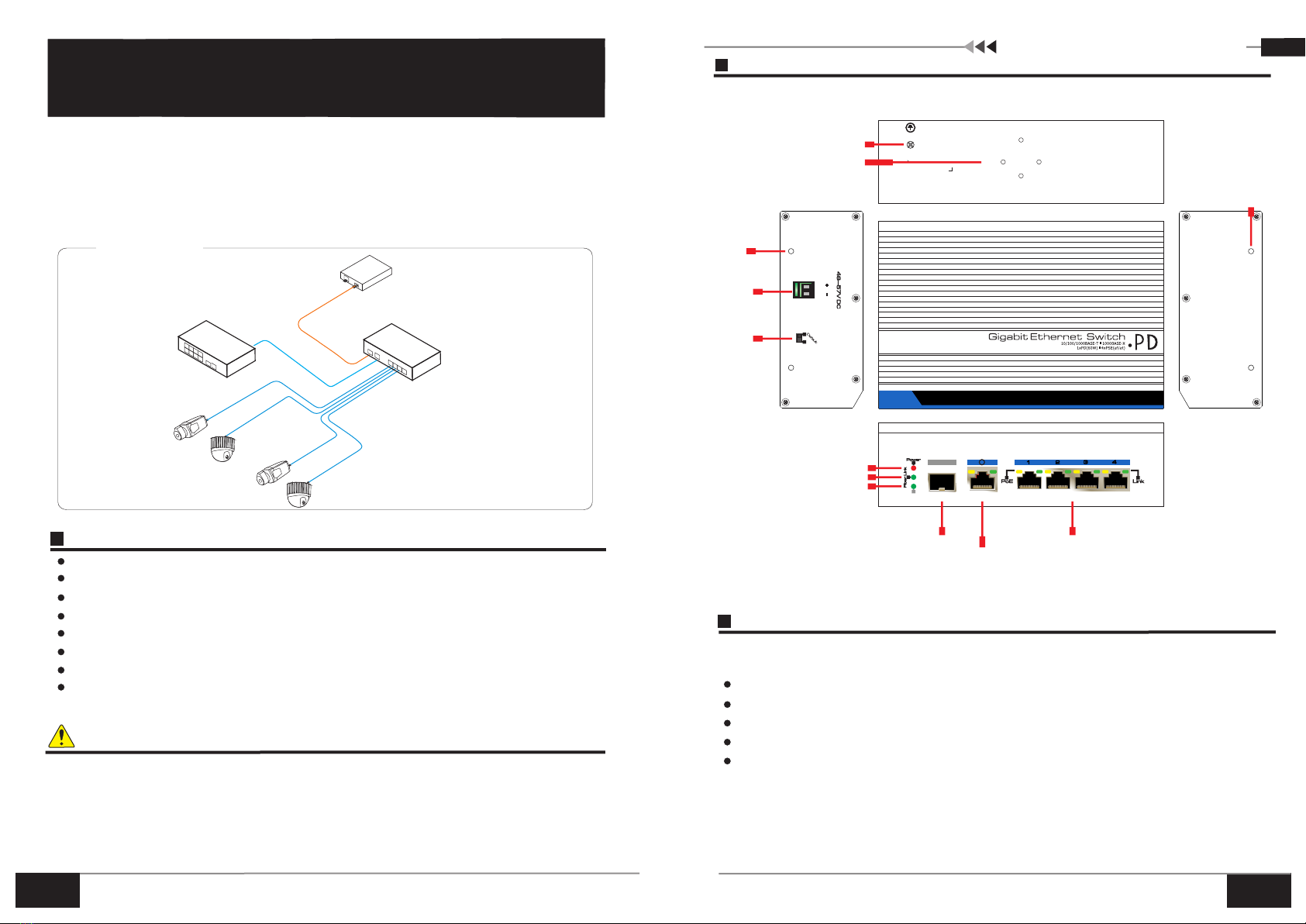

Board Diagram
Caution
1) Transmission distance is related to the connecting cable. We suggest to use standard
Cat5e/6 network cable to get the best transmission effect.
2)If use optical uplink port, customer needs to purchase additional SFP module.
3)The equipment must be connected to anti-thunder grounding ,otherwise the protection
level will be greatly reduced ; please use NO. 20th or above wire to connect grounding
terminal to the earth.
User Manual
4 ports industrial full-gigabit PoE switch
(60W HPoE powered)
Please check the following items before installation. If any missing, please contact the
dealer.
POE Ethernet switch 1 pc
Power adapter 1 pc
Wall hangers 2 pcs
Din rail hanger 1 pc
User manual 1 pc
Installation steps
Ver 1.0
Application
Gigabit Media
Converter
Cat5/5e/6 Network Cable
PoE IP camera
PoE Dome camera
PoE Dome Camera
Optical Fiber
. . . . . .
PoE IP camera
60W HPoE
Switch
The switch
(no need power adaptor)
10/100/1000Base-T 60W PoE in

连接接口
Specification
连接接口
4 Ports PoE Ethernet Switch
34
Item
4 ports PoE Ethernet Switch
Power
Power Supply
Power adapter
Voltage range
DC48V~57V
Consumption
Self consumption＜5W
Ethernet
Port
Parameter
Ethernet Port
1～4 ports: 10/100BASE-TX 30W PoE out;
Port 6:10/100/1000BASE-T 60W PoE in;
Port 5: 1000BASE-X SFP
One key PoE Watchdog
PoE watchdog(Detect POE device when it is frozen, reboot
automatically);
Transmission Medium
Cat5e/6 network cable
PoE out standard
IEEE802.3af/at
PoE out Power Supply
End-span
PoE Power output
If PD power input, PoE output ≦50W;
If Power adaptor DC input, PoE output:120W max.
Port 6 PoE in
Compatible with af(15W), at(30W), 60W(maxim and
microsemi solution)
Ethernet
Exchange
Specification
Ethernet Standard
IEEE802.3 10BASE-T; IEEE802.3u 100BASE-TX;
IEEE802.3ab 1000BASE-TX;
IEEE802.3z 1000-SX/LX
Switch Fabric
12Gbps
Throughput
8.9Mpps
Packet Buffer
1Mbit
MAC Address
8K
Indicator
Status
Power LED
1*red
CCTV LED
1*green, the green light on indicates PoE Watchdog Mode
start
Optical Port LED
1*green LED indicate network
Uplink Ethernet Port LED
Green and yellow LED on RJ 45 indicate network
Downlink Ethernet Port
LED
1~4 ports : green LED indicates network status, yellow LED
indicates PoE status
Protection
Port Lighting Protection
6KV , Per: IEC61000-4-5
ESD
6KV/ 8KV , Per: IEC61000-4-2
Operation
Environment
Working Temperature
-40℃~75℃
Storage Temperature
-40℃~85℃
Humidity
(Non-condensing)
0~95%
Mechanical
Dimension(L×W×H)
163mm×110mm×44mm
Material
Metal
Color
Black
Weight
540g
4 Ports PoE Ethernet Switch
Din-rail installation
Please follow the following installation steps
1)Please turn off the signal source and the device's power, installation with power on may
damage the device;
2)Use 4pcs network cables to connect 4pcs IP cameras with the product's1~4 RJ45 Ethernet
ports;
3)Use another network cable or (optical fiber) to connect switch’s UPLINK port with NVR or
computer;
4) Use another PoE swtich connect the port 6 to power the switch;
5)Check if the installation is correct and device is good, make sure all the connection is
reliable and power up the system;
6)Make sure every network device power supply works normally.
Wall-mount installation
