1 Product Introduction
1.1 Overview
The switch series contain 24 ports switch(PoE and no PoE) and 16 ports switch(PoE and no
PoE).
The 24 ports PoE Gigabit managed Ethernet switch(abbreviated to 24P switch), which
provide 24* PoE Gigabit downlink Ethernet ports , 4* 10Gigabit uplink SFP ports . The
Products support IEEE 802.3 af/at ,support Web layer-3 network management and PoE
management. Products are widely used in security surveillance, network engineering
projects and so on.
The 16 ports PoE Gigabit managed Ethernet switch(abbreviated to 16P switch),is similar to
24P switch;only the downlink ports quantity is 16,and the power watts is 320W but the 24P
switch’s is 450W.The 24P switch as an example to introduce below.
1.2 Product Feature
provide 24* PoE Gigabit downlink Ethernet ports , 4* 10Gigabit uplink SFP ports ;
Provide web-based layer 3 network management and PoE management by simple
operation;
Support high-speed data forwarding, very suitable for large flow of video data
forwarding in security surveillance；
Support recovery of IP address & user password by one key recovery button；
Quick Installation, simple operation, convenient for wall/desk/rack installation.

5

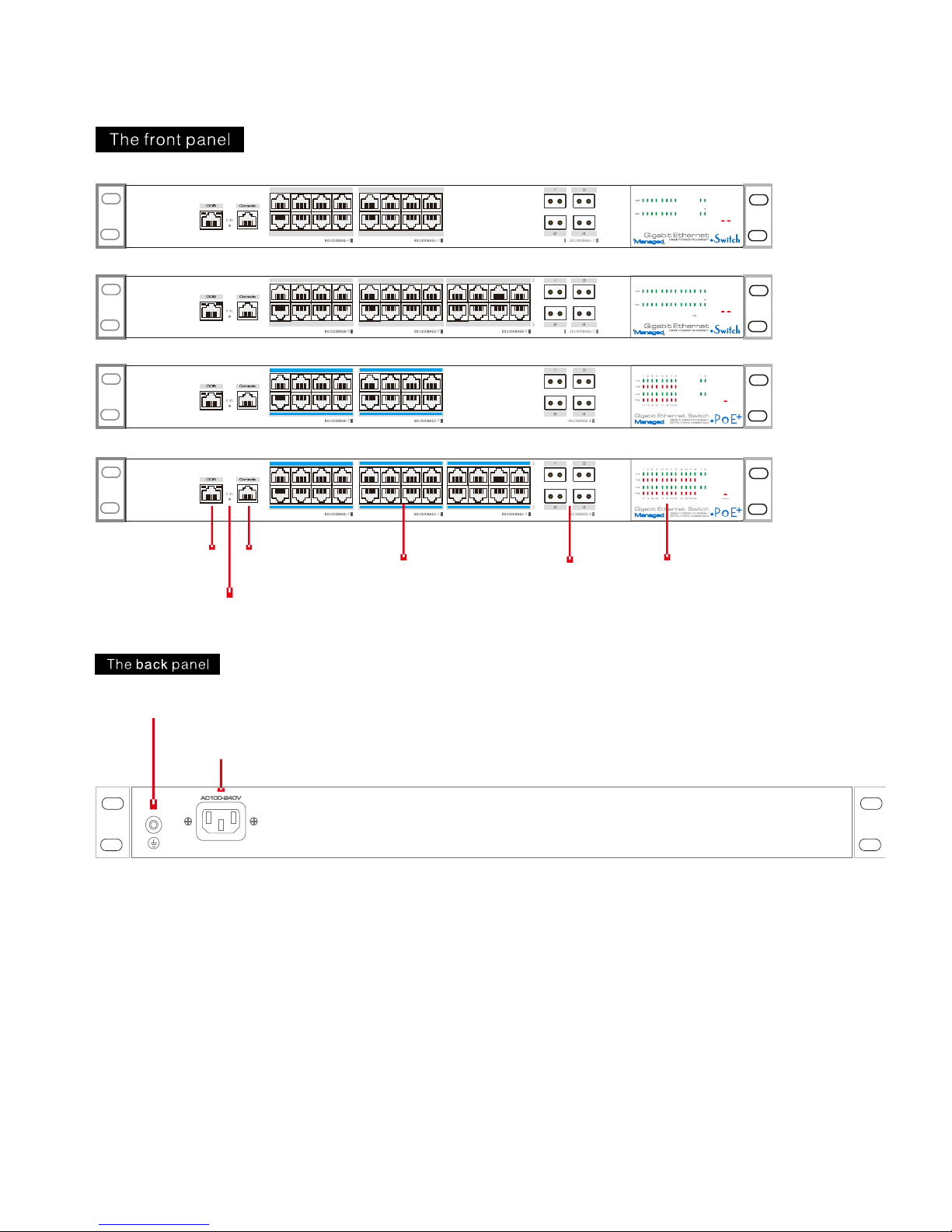

1.3 Board Diagram
1 3 5 7
2 4 6 8
9 11 13 15
1 0 12 14 16
17 19 2 1 23
18 20 2 2 24
1 3 5 7 9 1 1 1 3 1 5 1 7 1 9 21 23 1
2 4 6 8 10 1 2 1 4 1 6 1 8 2 0 2 2
3
2
2 10 G B A SE X×-
2 10G BASE X×-
P o w e r 1 2
1 3 5 7
2 4 6 8
9 11 13 15
1 0 12 14 16
17 19 2 1 23
18 20 2 2 24
1 3 5 7
2 4 6 8
9 11 13 15
1 0 12 14 16
1 3 5 7
2 4 6 8
9 11 13 15
1 0 12 14 16
1 3 5 7 9 1 1 1 3 1 5 1
2 4 6 8 10 1 2 1 4 1 6
3
2
2 10 G B A SE X×-
2 10G BASE X×-
P o w e r 1 2
16 P orts sw itch(16S ) ↓
24 P orts sw itch(24S ) ↓
OOB port s
We b co ntr o l
Re covery butt om
Re set to de fau lts
16 P orts PoE sw itch(16P ) ↓
24 P orts PoE sw itch(24P ) ↓
co nsole po rt s
C LS cont rol Giga bit PoE po rt s 10Gig abit
SF P+ por ts
indica tor L ED
Ground te rm in al
AC p ow er in put

6

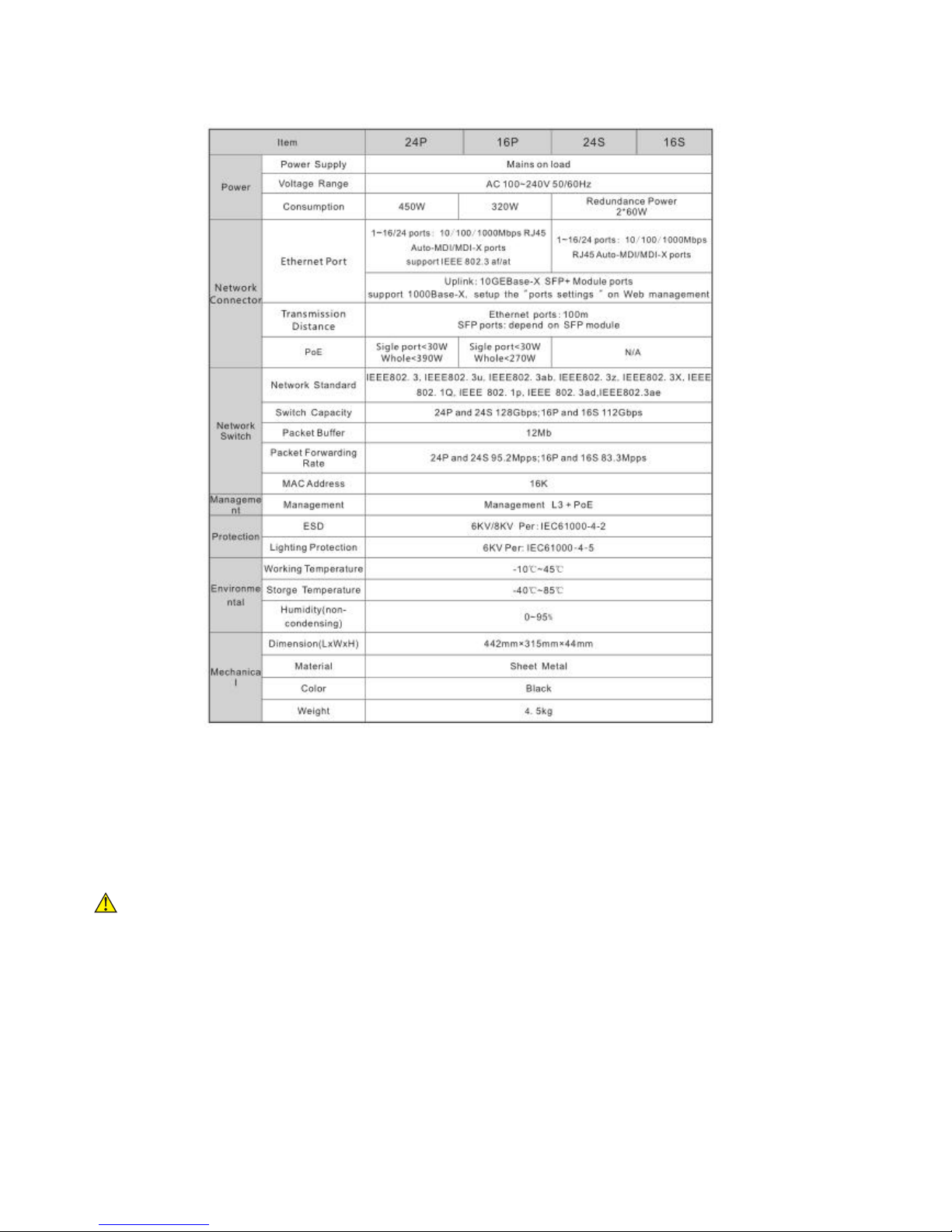

1.4 Specification
Products are subject to change without prior notice.
2 Installation
Caution
Anti-counterfeiting label is attached to switch's cover. Product damage caused by
unauthorized disassembly is not covered under warranty.

7
2.1 Shipping List
Please check the following items before installation, if any missing, please contact your local
dealer.
the 24S and 16S switch have redundance power module, including 2 AC power lines.
2.2 Installation Precautions
To avoid device damage or personal injury by improper use, please observe the following
precautions.
2.2.1 Safety Precautions
Instruction
This is level A product, which may cause radio disturbance in living environment. Users
may need to take corresponding and effective measures to solve the problem.
Pull out the power plug before cleaning the switch. Do not use wet cloth nor liquid to
wipe or wash the switch;
Do not leave the switch close to water or wet place so as to prevent water or
dampness from entering into the switch;
Make sure the switch work in a clean environment. Excessive dust may cause
electrostatic adsorption, which will affect the equipment life and cause communication
failure;

8
The switch will work normally under the correct voltage. Please ensure the voltage
indicated on the switch corresponds to the power voltage;
To avoid the danger of electric shock, please do not open the switch case. Do not open
the switch case even if the switch is powered off;
The accessories (including but not limited to power cables, etc.), which can be used
for the switch only, is prohibited for other applications.
2.2.2 Installation Requirements
The device should work in indoor environment to avoid thunder stroke. It is important to
obey the following requirements no matter you install it in the cabinet or on the
workbench directly:
Enough space (larger than 10cm) for air outlet so as to facilitate the heating dissipation;
Good ventilation system for cabinets and workbench is preferred;
Ensure the Cabinet and workbench is sturdy enough to support the switch and it’s
accessories’s weight;
Cabinet and workbench with good grounding is preferred.
2.2.3 The Requirements of Electromagnetic Environment
When it is working, the switch may be affected by external interference outside the system
through the ways of radiation and conduction. Please pay attention to the followings:
AC power supply is TN system, so it is necessary to use single phase power socket (PE)
which can protect ground wire so that the filter circuit can effectively filter out the
power grid disturbances;
The switch should work far away from high-power radio transmitters, radar transmitters,
high-frequency devices;

9
Use electromagnetic shielding if necessary, such as shielded cable;
Interface cables should be arranged indoor rather than outdoor to prevent over-voltage
or over-current damage to the signal port.
2.3 Installation Way
There are 3 installation ways: rack, workbench and wall-hung installation.
Caution
Please pull out the power plug before installing or moving the switch. Grounding and
anti-lightening can greatly increase the protection level of the switch. please connect
the grounding terminal to the earth area by using at least wire 20.
Instruction
The diagram is for reference only, the products are subject to actual product.
2.3.1 Rack Installation
Installation process:
(1) Check rack with good grounding and stability;
(2) Use screws to fit hangers at the device board side;

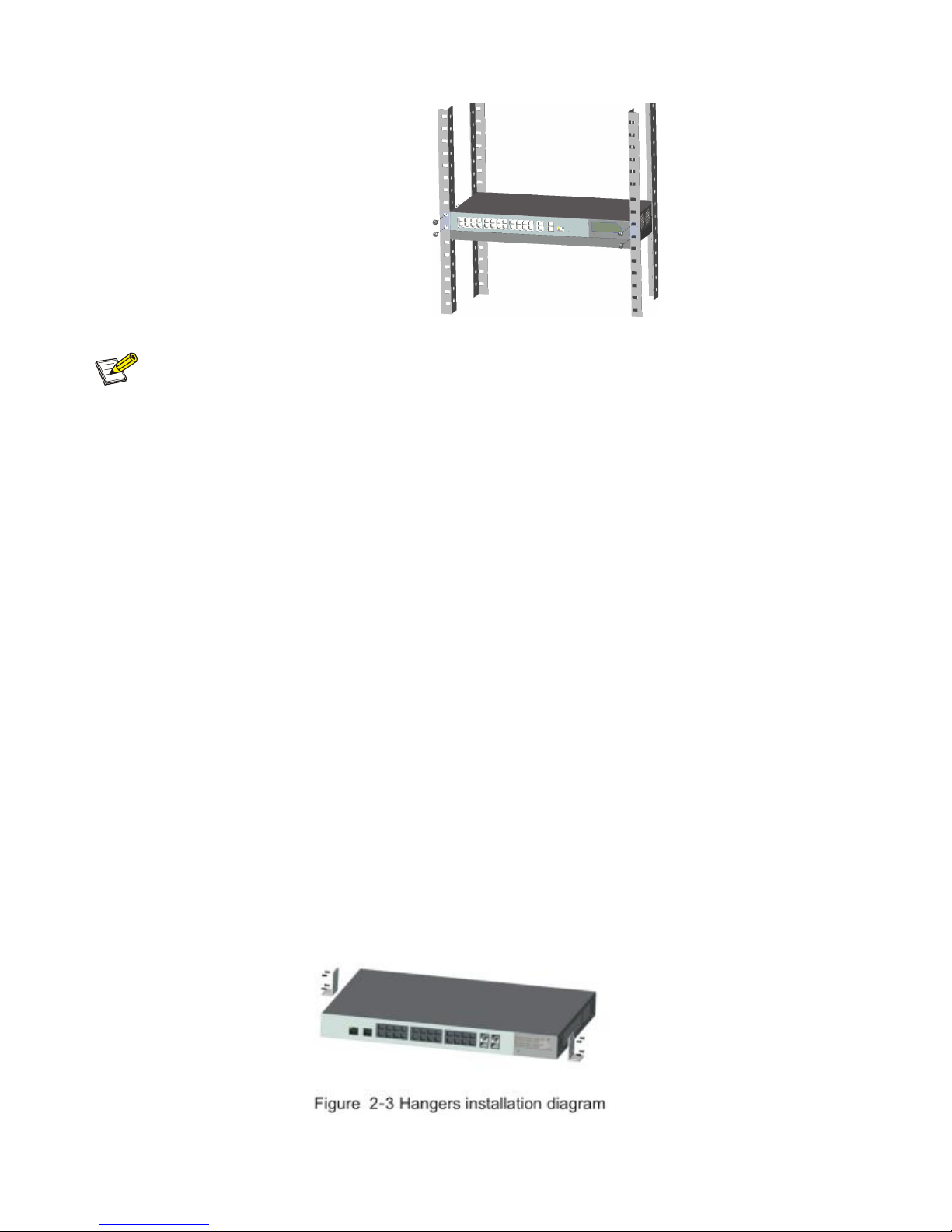

Figure 2-1 Install hangers diagram
(3) Put the device on the rack’s bracket and move the rack along the slot to proper position ;
(4) Use screws to fit the installation hanger at rack’s fixed slot, make sure the device is

10
installed at rack’s bracket steadily.
Figure 2 2 Install switch to the rack-
Instruction
This product’s fixing hangers are just to fix the switch rather than support it. Use brackets
under the device (fixed to the rack) to support switch when install the switch to the rack.
2.3.2 Workbench Installation
You can put this product on clean, stable, grounded workbench. The installation procedure
as below:
(1)Carefully put the device upside down, clean the grooves on the chassis backplane with
soft cloth to make sure there is no oil or dust in it;
(2)Remove the stickers on the foot pad, paste the foot pad in backplane groove;
(3)Carefully put the device upright on the workbench.

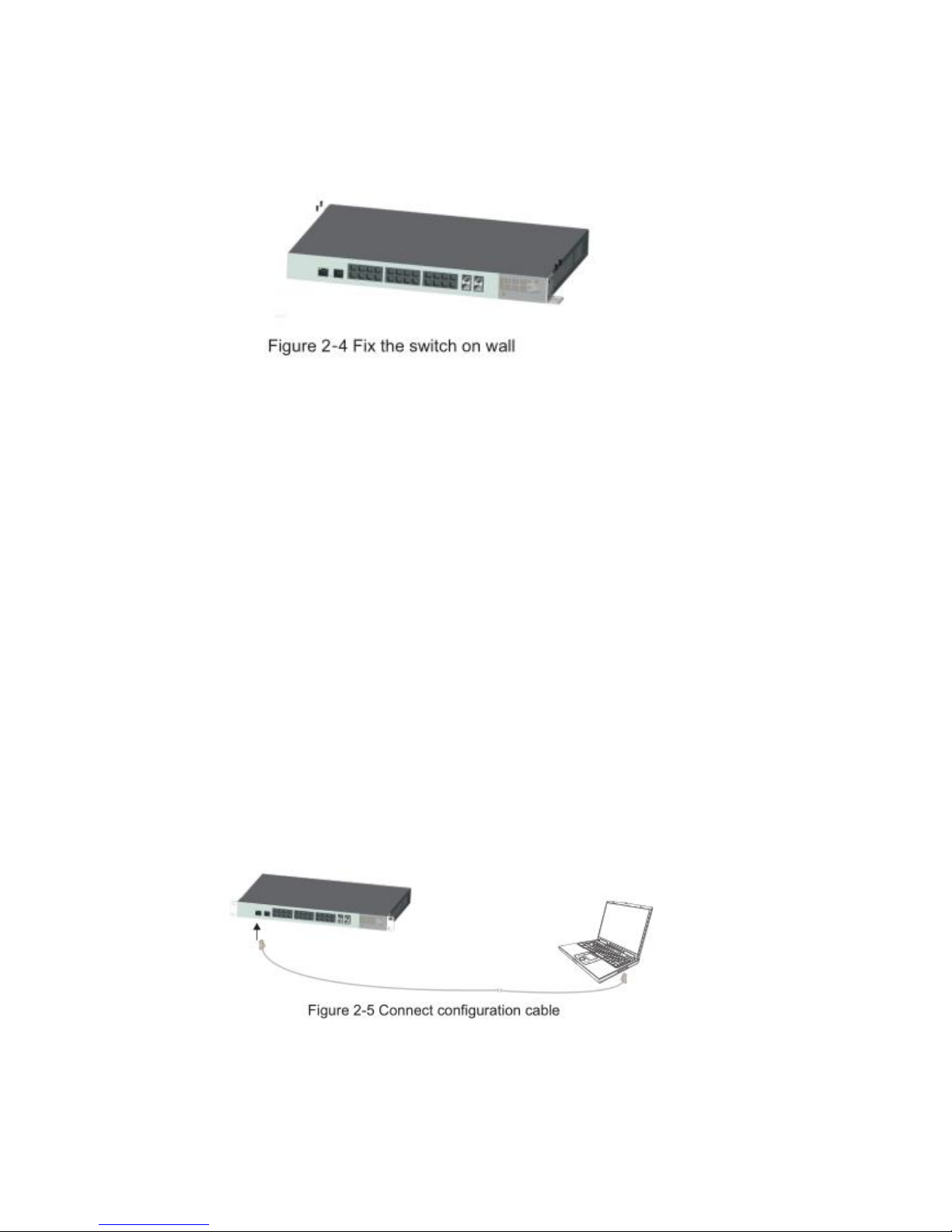

2.3.3 Wall-hung Installation
You also can put the product on clean, steady vertical wall. Installation procedure is below:
(1) Use the screws to fix the hangers;
