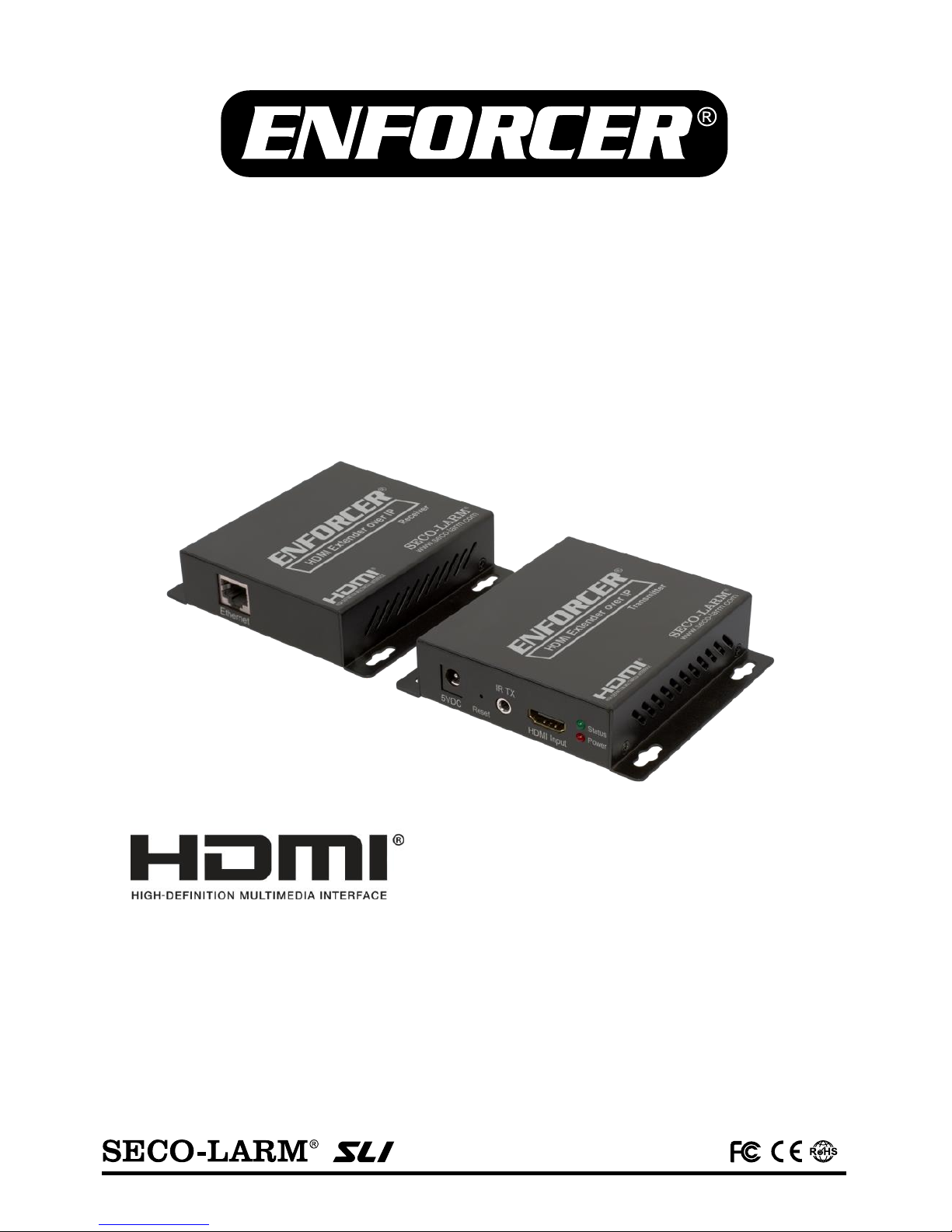

ENFORCER MVE-AHMPM-01NQ User manual

Extends HDMI over one Cat5e/6 cable or
IP network
Supports One-to-One, One-to-Many, and
Many-to-Many applications
Supports cascaded installations
IR Support (38kHz~56kHz)
HDCP Compliant
Transmitter (MVE-AHMPM-01NTQ) and
receiver (MVE-AHMPM-01NRQ) also
available separately
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
MVE-AHMPM-01NQ
HDMI® Extender over IP
Manual

ENFORCER HDMI Extender over IP
2 SECO-LARM U.S.A., Inc.
Table of Contents:
Specifications ............................................................................................................................2
Parts List....................................................................................................................................2
Dimensions................................................................................................................................3
Overview....................................................................................................................................3
Installation .................................................................................................................................4
Sample Application—One-to-One .............................................................................................4
Sample Application—One-to-Many, Switch/Router...................................................................5
Sample Application—Many-to-Many, VLAN Switch ..................................................................6
VLAN Setup........................................................................................................................... 6-7
Changing the IP and MAC Address....................................................................................... 7-8
Introduction:
The MVE-AHMPM-01NQ HDMI Extender over IP extends the range of HDMI signals by using an
active transmitter and receiver to send video and audio over a single Cat5e/6 cable. The HDMI
Extender over IP supports IR signals using the included IR transmitter and receiver, allowing
remote control use from one end of an installation to control a device such as a media player or
DVD player at the opposite end of the installation. The MVE-AHMPM-01NQ supports One-to-One,
One-to-Many, and Many-to-Many installation via VLAN, as well as a cascading installation, allowing
the connection of multiple units for extended range.
Parts List:
1x Transmitter
1x IR Transmitter
2x Power adapters
1x Manual
1x Receiver
1x IR Receiver
Specifications:
Model
Transmitter
MVE-AHMPM-01NTQ
Receiver
MVE-AHMPM-01NRQ
Maximum video resolution
1080p
Deep color
24-bit
Video formats supported
DTV/HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Range –1080p
Cat6
390ft (120m)
Cat5e
360ft (110m)
IP addressing
Static
Default IP address (static)
192.168.168.55
192.168.168.56
Default MAC address
00:0b:78:00:60:01
00:0b:78:00:60:02
IR frequency
38kHz~56kHz
Operating voltage
5VDC
Power supply
1A@5VDC (2 adapters)
Power consumption
3W
Operating temperature
23°~95° F (-5°~35° C)
Dimensions
41/16"x311/16"x1" (104x94x25mm)
Weight
7.8-oz (221g) (each)

ENFORCER HDMI Extender over IP
SECO-LARM U.S.A., Inc. 3
Dimensions:
*Input/output depends on whether the unit is a transmitter or receiver. A transmitter is shown above.
Note: The transmitter and receiver have the same dimensions.
5VDC
Input
Reset
IR Input/
output*
HDMI
Input/
output*
Power
LED
Status
LED
Cat5e/6
Input/
output*
Mounting
holes
Mounting
holes
Overview:
41/16"
(104mm)
31/16"
(78mm)
311/16"
(94mm)
29/16"
(65mm)
1"
(25mm)

ENFORCER HDMI Extender over IP
4 SECO-LARM U.S.A., Inc.
Sample Application —One-to-One:
Installation:
Cable Legend:
HDMI
Power
IR
Cat5e/6
NOTE: For One-to-Many and Many-to-Many installations, each receiver/transmitter's IP and MAC
addresses must be unique. See "Changing the IP and MAC Address" on pgs. 7-8 before
installation.
1. Determine the location where the HDMI Extender over IP units will be installed as well as how
much Cat5e/6 cable will be necessary.
2. Connect the transmitter to the HDMI output of the source device.
3. Connect the transmitter and receiver:
a. If connecting One-to-One, connect one end of the Cat5e/6 cable to the transmitter and
the other end directly to the receiver.
b. If installing with a switch or router, connect one end of the Cat5e/6 cable to the transmitter
and the other end to a switch or router. Then, with a second Cat5e/6 cable connect the
receiver to the other end of the switch or router.
4. Connect the receiver to the HDMI input of the display or other device.
5. Connect one 5VDC adapter to the transmitter and the other to the receiver.
6. Determine which device, if any, will be controlled by remote control.
a. Install the IR transmitter to the IR port near the device to be controlled, pointing the IR
transmitter at its IR sensor.
b. Install the IR receiver to the IR port of the other transmitter/receiver, pointing the IR
receiver in a direct line of sight to where the remote control will be.
c. Point the remote control at the IR receiver when in use.
7. Switch on the HDMI source and display to verify that the system is functioning properly. It
may take up to a minute to sync up the video stream.
Power
Adapter
HDMI Display
Transmitter
IR RX
Remote
Receiver
For maximum cable length,
see "Specifications"
IR TX
HDMI
Source
Power
Adapter

ENFORCER HDMI Extender over IP
SECO-LARM U.S.A., Inc. 5
Sample Application —One-to-Many, Switch/Router:
For maximum cable length,
see "Specifications"
Cable Legend:
HDMI
Power
IR
Cat5e/6
HDMI
Display
IR RX and Remote
HDMI
Display
Receiver 3
Power
Adapter
IR RX and Remote
Power
Adapter
Receiver 2
LAN
Switch
Power
Adapter
Transmitter 1
HDMI
Source
IR TX
Receiver 1
IR RX and Remote
Power
Adapter
HDMI
Display

ENFORCER HDMI Extender over IP
6 SECO-LARM U.S.A., Inc.

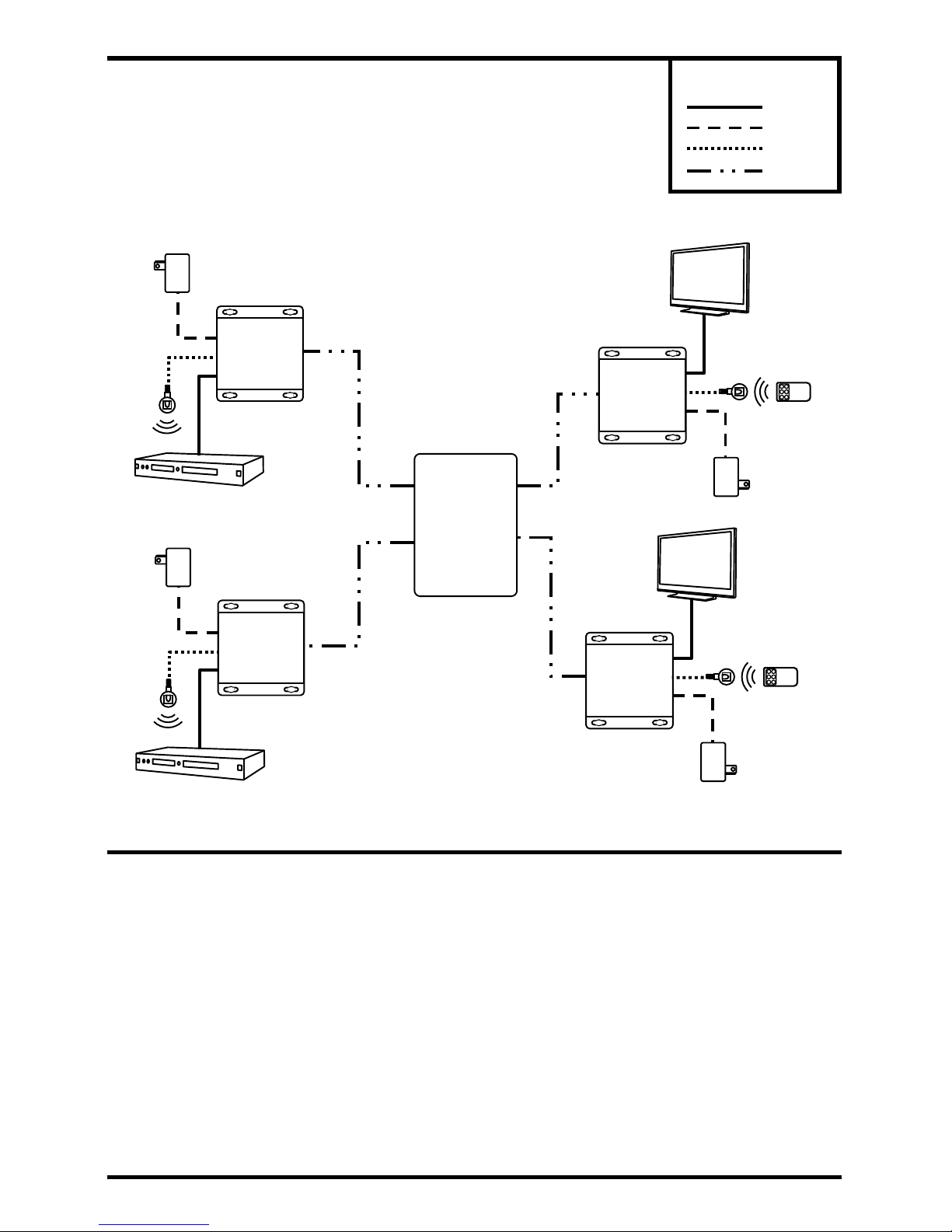

Sample Application —Many-to-Many, VLAN Switch:
Cable Legend:
HDMI
Power
IR
Cat5e/6
For maximum cable length,
see "Specifications"
HDMI
Display
IR RX and Remote
Receiver 2
VLAN
Capable
Switch
VLAN1
VLAN1
Power
Adapter
HDMI
Source
VLAN2
VLAN2
HDMI
Display
IR RX and Remote
Receiver 1
Transmitter 2
Power
Adapter
Power
Adapter
IR TX
VLAN Setup:
NOTE: When setting up a Many-to-Many configuration, it will be necessary to use a managed
switch that supports VLANs. The following is a generic example as configuration varies by
manufacturer.
VLAN Setup Example
1. Login to the managed switch through its web interface.
2. In this example, an 8-port managed switch (P1-P8) is used to connect 2 transmitters as shown
in "Sample Application —Many-to-Many, VLAN Switch".
3. Look for a menu option or tab labeled "VLAN" or "VLAN Management".
4. Check or click on the option to enable/create VLANs.
Power
Adapter
Transmitter 1
1
HDMI
Source
IR TX

ENFORCER HDMI Extender over IP
SECO-LARM U.S.A., Inc. 7
5. By default VLAN1 will be configured and all ports on the switch will be assigned to it.
a. Example default VLAN configuration:
VLAN1
Interface
P1
P2
P3
P4
P5
P6
P7
P8
Member
x
x
x
x
x
x
x
x
Tagged
Untagged
x
x
x
x
x
x
x
x
PVID
x
x
x
x
x
x
x
x
b. Make note of which ports the transmitters and receivers will be connected to.
c. Update the ports that will be connected to Transmitter 1 and its associated receivers.
d. For this example, the first 4 ports (P1-P4) will be connected to Transmitter 1 and its
associated receivers by setting the "Member" values for P1-P4.
VLAN1
Interface
P1
P2
P3
P4
P5
P6
P7
P8
Member
x
x
x
x
Tagged
Untagged
x
x
x
x
x
x
x
x
PVID
e. Click "Apply" or "Save" to enable the changes.
6. Create a second VLAN for Transmitter 2 and name it VLAN2.
a. Set the last 4 ports to be on VLAN2 by setting the "Member" values for P5-P8.
VLAN2
Interface
P1
P2
P3
P4
P5
P6
P7
P8
Member
x
x
x
x
Tagged
Untagged
x
x
x
x
x
x
x
x
PVID
b. Click "Apply" or "Save" to enable the changes.
c. Connect Transmitter 2 and its associated receivers to the last 4 ports (P5-P8).
d. Confirm the source from Transmitter 1 is displaying on the receivers connected to P1-P4
and the source from Transmitter 2 is displaying on the receivers connected to P5-P8.
e. If not, recheck the settings on VLAN1 and VLAN2 to make sure they are set correctly and
that the configuration has been saved.
Changing the IP and MAC Address:
1. When there is more than one pair of transmitters/receivers connected to a switch/router, the IP
address and MAC addresses must be changed for the additional units.
2. Connect a powered transmitter/receiver (TX/RX) to a computer using an Ethernet cable (Note
the computer may not have the same IP address as the transmitter/receiver). The power LED
on the TX/RX should be red and the status LED should be green.
3. Open your web browser to the default link (TX: 192.168.168.55, RX: 192.168.168.56).
