PRODUCT DESCRIPTION

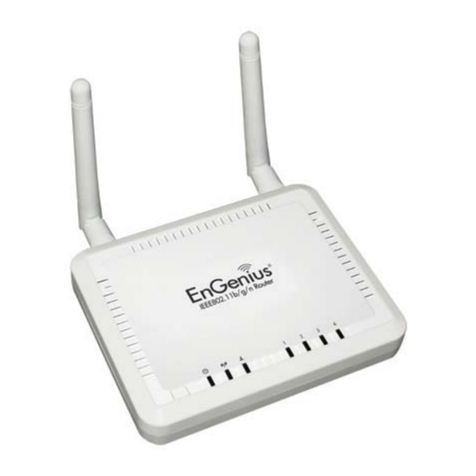

ESR9752 is a 2T2R Wireless Single chip 11N Broadband Router that delivers up to 6x
faster speeds and 3x extended coverage than 802.11g devices. ESR9752 supports
home network with superior throughput and performance and unparalleled wireless
range. With easy to use on the WPS function, it helps users to connect to wireless
device with just one push button.
There's also a built-in 4-port full-duplex 10/100 Fast Switch to connect your
wired-Ethernet devices together. The Router function ties it all together and lets your
whole network shares a high-speed cable or DSL Internet connection.
PACKAGE CONTENT
• 1* 802.11n SOHO Router (ESR-9752)
• 1* 12V/1A Power Adapter
• 1*QIG
• 1*CD (User’s Manual)
ESR9752 • 2.4 GHz
• 300Mbps
• 11N AP/Router
802.11b/g/n SOHO Router
* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual throughput may vary.
Network conditions and environmental factors lower actual throughput rate.
** All specifications are subject to change without notice
SOHO WIRELESS ROUTER
ESR9752
Learn more about EnGenius Solutions at www.engeniustech.com.sg
ES
R-
9
7
5
2 Datasheet Version 1722
009
C
M
Y
CM
MY
CY
CMY
K
ESR-9752.ai 10/8/2009 5:46:45 PMESR-9752.ai 10/8/2009 5:46:45 PM

TECHNICAL SPECIFICATIONS
> HARDWARE SPECIFICATIONS
PBB/CAM/FR deddebme zHM483 ,2503TR UCM
Memory 3 2MB SDRAM
BM4 hsalF
PCB dimension 100mm * 90mm
WAN: One 10/100 Fast Ethernet RJ-45
LAN: Four 10/100 Fast Ethernet RJ-45
Rest button
Power Jack
Physical Interface
WPS (WiFi Protected Setup)
Power Status
WAN (Internet connection)
10/100Mbps LAN1~LAN4
LEDs Status
WLAN(Wireless connection)
Power Supply: 200 to 240 VDC ± 10％ (ETSI) 100 to 120 VDC ± 10％ (F CC)
Power Requirements
Device: 12V/1A
* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual throughput may vary.
Network conditions and environmental factors lower actual throughput rate.
** All specifications are subject to change without notice
ESR-9752 Datasheet Version 1082009
Learn more about EnGenius Solutions at www.engeniustech.com.sg
ESR9752
Datasheet
SOHO WIRELESS ROUTER
ESR9752
C
M
Y
CM
MY
CY
CMY
K
ESR-9752.ai 10/8/2009 5:46:56 PMESR-9752.ai 10/8/2009 5:46:56 PM

RF SPECIFICATION
Frequency Band 2.400～2.484 GHz
Modulation Technology
 OFDM: BPSK, QPSK, 16-QAM, 64-QAM
 DB PSK, DQPSK, CCK
Operating Channels 11 for North America, 14 for Japan, 13 for Europe
Wireless Setting  Wireless Mode – 11b/ 11g /11n
 Channel Selection (Setting varies by Country)
 Channel Bandwidth (Auto, 20Mhz, 40Mhz)
 Transmission Rate: -11g: Best. 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps
sn004 lavretnI drauG sn008 lavretnI drauG
MCS index
20MHz(Mbps) 4 0MHz(Mbps) 20MHz(Mbps) 40MHz(Mbps)
51 2.7 5.31 5.6 0
03 4.41 72 31 1
54 7.12 5.04 5.91 2
06 9.82 45 62 3
09 3.34 18 93 4
021 8.75 801 25 5
531 56 5.121 5.85 6
5.751 2.27 531 56 7
03 4.41 72 31 8
06 9.82 45 62 9
09 3.34 18 93 01
021 8.75 801 25 11
081 7.68 261 87 21
042 6.511 612 401 31
072 031 342 711 41
003 4.441 072 031 51
Receive Sensitivity
(Typical)
 IEE E802.11n(2RX)
MCS0/8 @ -91dBm
MCS7/15@ -74dBm
 IEEE802.1 1g (2RX)
6Mbps@ -92dBm
54Mbps@ -75dBm
 IEEE802.1 1b (1RX)
1Mbps@ -93dBm
11Mbps@ -91dBm
* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual throughput may vary.
Network conditions and environmental factors lower actual throughput rate.
** All specifications are subject to change without notice
ESR-9752 Datasheet Version 1082009
Learn more about EnGenius Solutions at www.engeniustech.com.sg
ESR9752
Datasheet
SOHO WIRELESS ROUTER
ESR9752
C
M
Y
CM
MY
CY
CMY
K
ESR-9752.ai 10/8/2009 5:47:11 PMESR-9752.ai 10/8/2009 5:47:11 PM

Available transmit power
 IEEE802 .11N
MCS 0~15@ >16dBm
 IEEE802 .11g
6~54 Mbps@ 16dBm
 IEEE802 .11b
1, 11Mbps@ 19dBm
Antenna *2 Peak Gain = 2 dBi
SOFTWARE FEATURES
> Router and Gateway
Topology I nfrastructure
Operation Mode AP/Router
LAN
 DHCP Server
 Static Routing Table
 UPNP
WAN
 PPTP
 PPPoE
 Static IP
 DHCP Client
 Clone MAC
Router
 NAT/ NAPT
 Static Routing
 Dynamic Route
 Virtual server mapping
 IP address mapping
 Port Forwarding
 Port Triggering
 Special application
 ALG(Application Layer Gateway) support (RTP/RTSP, AOL, FTP, ICMP, WMP/MMS, NetMeeting, SIP)
 DNS Relay
 DDNS
 Time Zone(NTP client)
Firewall
 Blocking Ping
 DoS(Blocking Ping, Port scan, Sync Flood)
 MAC / IP Filtering
 ICMP Blocking
* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual throughput may vary.
Network conditions and environmental factors lower actual throughput rate.
** All specifications are subject to change without notice
ESR-9752 Datasheet Version 1082009
Learn more about EnGenius Solutions at www.engeniustech.com.sg
ESR9752
Datasheet
SOHO WIRELESS ROUTER
ESR9752
C
M
Y
CM
MY
CY
CMY
K
ESR-9752.ai 10/8/2009 5:47:27 PMESR-9752.ai 10/8/2009 5:47:27 PM

 SPI (Stateful Packet Inspection)
 DMZ (Demilitarized Zone) Host
 Policy Based Parental Controls
 Port Range / Service Filtering
 Internet Domain Restriction
 Dynamic URL Filtering (OEM subscription service)
VPN VPN pass-through (PPTP, L2TP, IPSEC)
Wireless
Power saving(Green technology)
 64/128 bit WEP Encryption
 WPA Personal (WPA-PSK using TKIP or AES)
 WPA Enterprise (WPA-EAP using TKIP)
 802.1x Authenticator
 Hide SSID in beacons
 Wi-Fi Protection Setup (WPS)
 WDS
 ACL control
 Best channel selection
 Speed/Bandwidth monitor
QoS
 WMM
 Application base
 P riority Queue
 B andwidth Allocation
> Management
Configuration Web-based configuration (HTTP)
Firmware Upgrade - Via webpage upgrade
- Auto recovery once firmware upgrade fail
Administr ator Setting
- Administrator password change
- Idle time out
Reset Setting - Reboot
- Reset to Factory Default
System monitoring Speed and Bandwidth monitoring
Scheduling
- Enable Firewall
- Enable power saving
Eas
y
access User can type model name and access the main page.
Install wizard Guide user to set-up Router smoothly
* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual throughput may vary.
Network conditions and environmental factors lower actual throughput rate.
** All specifications are subject to change without notice
ES
R-
9
7
5
2 Datasheet Version 1
08
2
009
Learn more about EnGenius Solutions at www.engeniustech.com.sg
ESR9752
Datasheet
SOHO WIRELESS ROUTER
ESR9752
C
M
Y
CM
MY
CY
CMY
K
ESR-9752.ai 10/8/2009 5:47:40 PMESR-9752.ai 10/8/2009 5:47:40 PM

ENVIRONMENT & PHYSICAL
Temperature Range 0 to 45° C - Operating, -10 to 70 ° C - Storage
Humidity (non-condensing) 15%～95% typical
Dimensions 125mm (L) x 98mm (W) x 25mm (H)
> Top Panel (LED status)
)knilb>-ciffart ,no eulb >-kniL ( 1 NAW
)knilb>-ciffart ,no eulb >-kniL ( 4 NAL
)knilb>-ciffart ,no eulb >-kniL ( 1 NALW
Power/Status 1 ( On-> red Test/reset default->blink)
> Rear Panel (Interface)
LAN 10/100 WAN DC Jack
ANT ANT
Reset
1NAL rewoP 4NAL 3NAL 2NAL NALW NAW SPW
WPS
