Epson S5U12517P00C100 User manual

SEIKO EPSON CORPORATION Rev. 1.0
S1D13517 Display Controller
S5U13517P00C100
Evaluation Board User
Manual

NOTICE
No part of this material may be reproduced or duplicated in any form or by any means without the written permission of Seiko
Epson. Seiko Epson reserves the right to make changes to this material without notice. Seiko Epson does not assume any lia-
bility of any kind arising out of any inaccuracies contained in this material or due to its application or use in any product or cir-
cuit and, further, there is no representation that this material is applicable to products requiring high level reliability, such as,
medical products. Moreover, no license to any intellectual property rights is granted by implication or otherwise, and there is
no representation or warranty that anything made in accordance with this material will be free from any patent or copyright
infringement of a third party. This material or portions thereof may contain technology or the subject relating to strategic
products under the control of the Foreign Exchange and Foreign Trade Law of Japan and may require an export license from
the Ministry of International Trade and Industry or other approval from another government agency.
All other product names mentioned herein are trademarks and/or registered trademarks of their respective companies.
©SEIKO EPSON CORPORATION 2009, All rights reserved.

S1D13517 Display Controller
S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0) EPSON 3
Table of Contents
Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter 3 Installation and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Configuration DIP Switch . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3.2 Configuration Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Chapter 4 Technical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1.1 Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1.2 Voltage Regulators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1.3 S1D13517 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.2 Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.4 Host Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.4.1 Direct Host Bus Interface Support . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.4.2 Connecting to the Epson S5U13U00P00C100 USB Adapter Board . . . . . . . . . 14
4.5 LCD Panel Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.6 GPO and PWM Connections . . . . . . . . . . . . . . . . . . . . . . . . 16
Chapter 5 Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

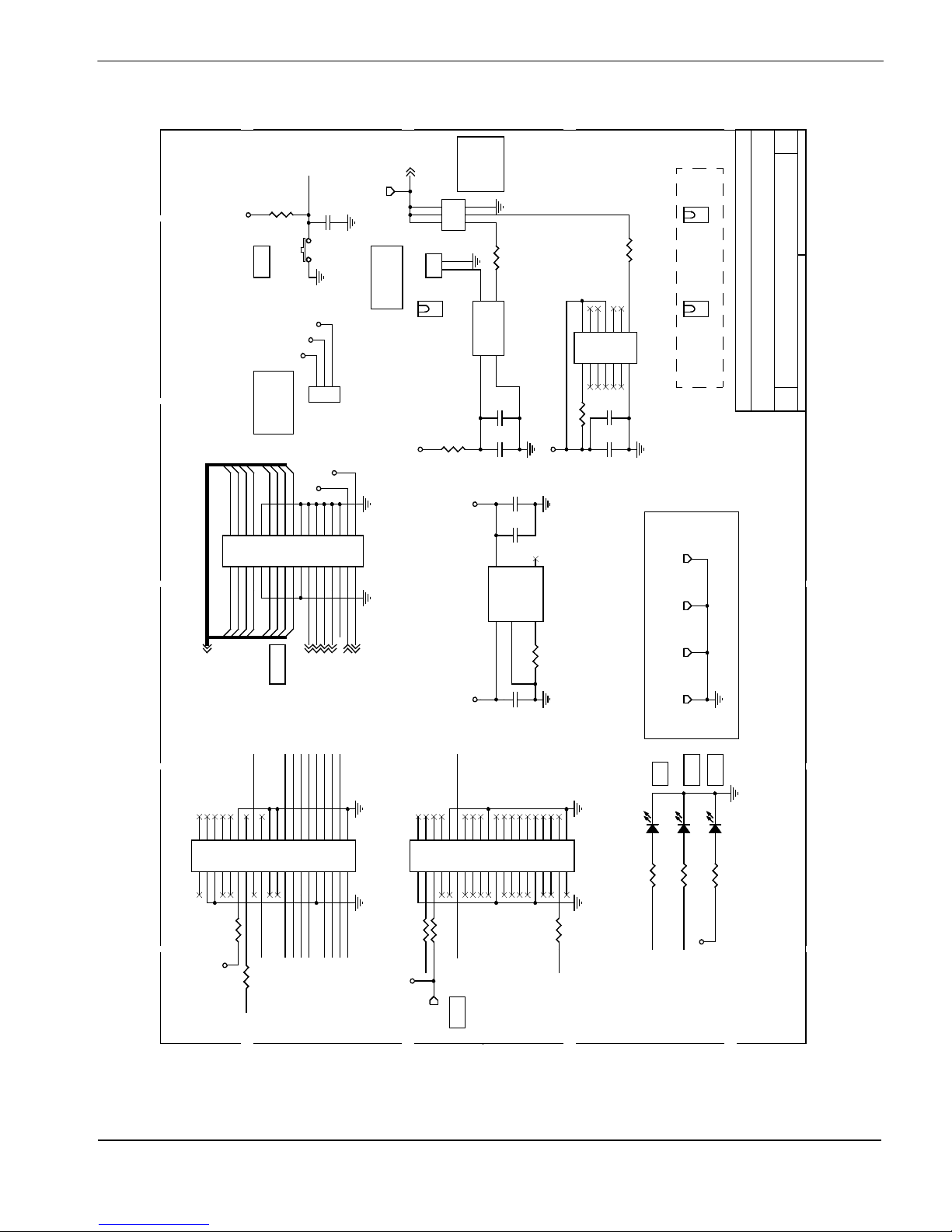

Chapter 6 Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Chapter 7 Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Chapter 8 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
8.1 Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
8.2 Document Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

S1D13517 Display Controller
4 EPSON S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0)

S1D13517 Display Controller
S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0) EPSON 5
Chapter 1 Introduction
This manual describes the setup and operation of the S5U13517P00C100 Evaluation Board. The evaluation board
is designed as an evaluation platform for the S1D13517
Display Controller.
The S5U13517P00C100 evaluation board can be used with many native platforms via the host connector which
provides the appropriate signals to support a variety of CPUs. The S5U13517P00C100 evaluation board can also
connect to the S5U13U00P00C100 USB Adapter board so that it can be used with a laptop or desktop computer, via
USB 2.0.
This user manual is updated as appropriate. Please check the Epson Research and Development Website at
www.erd.epson.com for the latest revision of this document before beginning any development.
We appreciate your comments on ourdocumentation. Please contact us via email at [e-mail].

S1D13517 Display Controller
6 EPSON S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0)
Chapter 2 Features
The S5U13517P00C100 Evaluation Board includes the following features:
• S1D13517 Display Controller (128-pin QFP)
• Integrated Silicon Solution, Inc. IS42S16800E-7TLI 128M-bit SDRAM (54-pin TSOP)
• Header with all S1D13517 Host Bus Interface signals
• Headers for connection to the S5U13U00P00C100 USB Adapter board
• Headers for connecting to LCD panels
• Header for S1D13517 GPO pins and PWM pin
• On-board 24MHz oscillator
• 14-pin DIP socket (if a clock other than 24MHz must be used)
• 3.3V input power
• On-board voltage regulator with 2.5V output
• On-board voltage regulator with adjustable 6~24V output, 40mA max., to provide power for LED backlight of
LCD panels.

S1D13517 Display Controller
S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0) EPSON 7
Chapter 3 Installation and Configuration
The S5U13517P00C100 evaluation board incorporates aDIP switch, jumpers, and 0 ohm resistors which allow it to
be used with a variety of different configurations.
3.1 Configuration DIP Switch
The S1D13517 has 2 configuration inputs (CNF[1:0]). A DIP switch (SW1) is used to configure CNF[1:0] as
described below.
The following figure shows the location of DIP switch SW1 on the S5U13517P00C100 board.
Figure 3-1: Configuration DIP Switch (SW1) Location
Table 3-1: Summary of Power-On/Reset Options
SDU13517P00C100
SW1-[2:1] Config S1D13517 CNF[1:0] Config Power-On/Reset State
1 (ON) 0 (OFF)
SW1-[1] CNF0 Host data bus is 8-bit Host data bus is 16-bit
SW1-[2] CNF1 Host interface is ALE bus Host interface is i80 bus
= Required settings when using S5U13U00P00C100 USB Adapter board
DIP Switch
SW1

S1D13517 Display Controller
8 EPSON S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0)
3.2 Configuration Jumpers
The S5U13517P00C100 has 6 jumpers which configure various board settings. The jumper positions for each
function are shown below.
J1, J2, J3 - Power Supplies for the S1D13517
J1, J2, J3 can be used to measure the current consumption of each S1D13517 power supply.
When the jumper is at position 1-2, normal operation is selected.
When no jumper is installed, the current consumption for each power supply can be measured by connecting an
ammeter between pins 1 and 2 of the jumper.
The jumper associated with each power supply is as follows:
J1 for COREVDD
J2 for IOVDD
J3 for PLLVDD
Figure 3-2: Configuration Jumper Locations (J1, J2, J3)
Jumper Function Position 1-2 Position 2-3 No Jumper
J1 COREVDD Normal —COREVDD current
measurement
J2 IOVDD Normal —IOVDD current
measurement
J3 PLLVDD Normal —PLLVDD current
measurement
J4 IOVDD source 3.3V CN1 connector, pin 32 —
J5 24MHz control 24MHz stop —Normal
= Required settings when using S5U13U00P00C100 USB Adapter board
Jumper Function Position 1-2 Position 3-4 Position 5-6
J6 Clock source On board 24MHz
Second oscillator
CLKI pin to GND
J3
J2, J1

S1D13517 Display Controller
S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0) EPSON 9
J4 - IOVDD Source
J4 is used to select the source for the IOVDD supply voltage.
When the jumper is at position 1-2, the IOVDD voltage is provided by the 3.3V power supply of the board.
When the jumper is at position 2-3, the IOVDD voltage must be provided to the CN1 connector, pin 32.
J5 - 24MHz Control
J5 is used to control the 24MHz oscillator.
When no jumper is installed, the 24MHz oscillator is running.
When the jumper is at position 1-2, the 24MHz oscillator is stopped.
J6 - Clock Source
J6 is used to select the source for the clock input.
When the jumper is at position 1-2, the on board 24MHz oscillator is selected.
When the jumper is at position 3-4, the second oscillator is selected.
When the jumper is at position 5-6, the CLKI pin is forced to GND.
Figure 3-3: Configuration Jumper Location (J4, J5, J6)
J4 J5
J6

S1D13517 Display Controller
10 EPSON S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0)
Chapter 4 Technical Description
4.1 Power
4.1.1 Power Requirements
The S5U13517P00C100 evaluation board requires an external regulated power supply (3.3V / 0.5A). The power is
supplied to the evaluation board through pin 34 of the CN1 header, or pin 5 of the P2 header.
The green LED ‘3.3V Power’ is turned on when 3.3V power is applied to the board.
4.1.2 Voltage Regulators
The S5U13517P00C100 evaluation board has an on-board linear regulator to provide the 2.5V power required by
the S1D13517 Display Controller. It also has a step-up switching voltage regulator to generate adjustable 6~24V,
which can be used to power the LED backlight on some LCD panels.
4.1.3 S1D13517 Power
The S1D13517 Display Controller requires 2.5V and 3.0~3.6V power supplies.
2.5V power for COREVDD and PLLVDD is provided by an on-board linear voltage regulator.
IOVDD can be in the range of 3.0~3.6V. When J4 is set to the 1-2 position, IOVDD is connected to 3.3V. If a
different voltage is required for IOVDD, set JP4 to the 2-3 position and connect the external power supply to pin 32
of connector CN1.

S1D13517 Display Controller
S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0) EPSON 11
4.2 Clocks
The clock for the S1D13517 Display Controller is provided by a 24MHz oscillator.
The S5U13517P00C100 evaluation board has a DIP14 footprint for an optional second oscillator, Y2. This is
provided for cases requiring a different clock frequency for the S1D13517 Display Controller. To use Y2, an oscil-
lator must be populated in the Y2 footprint and the J6 jumper placed at position 3-4.
4.3 Reset
The S1D13517 Display Controller on the S5U13517P00C100 evaluation board can be reset using a push-button
(SW2), or via an active low reset signal from the host development platform (pin 33 on the CN1 connector).
Figure 4-1: Second oscillator and Reset switch Location (Y2, SW2)
Y2
SW2

S1D13517 Display Controller
12 EPSON S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0)
4.4 Host Interface
4.4.1 Direct Host Bus Interface Support
All S1D13517 host interface pins are available on connector CN1 which allows the S5U13517P00C100 evaluation
board to be connected to a variety of development platforms.

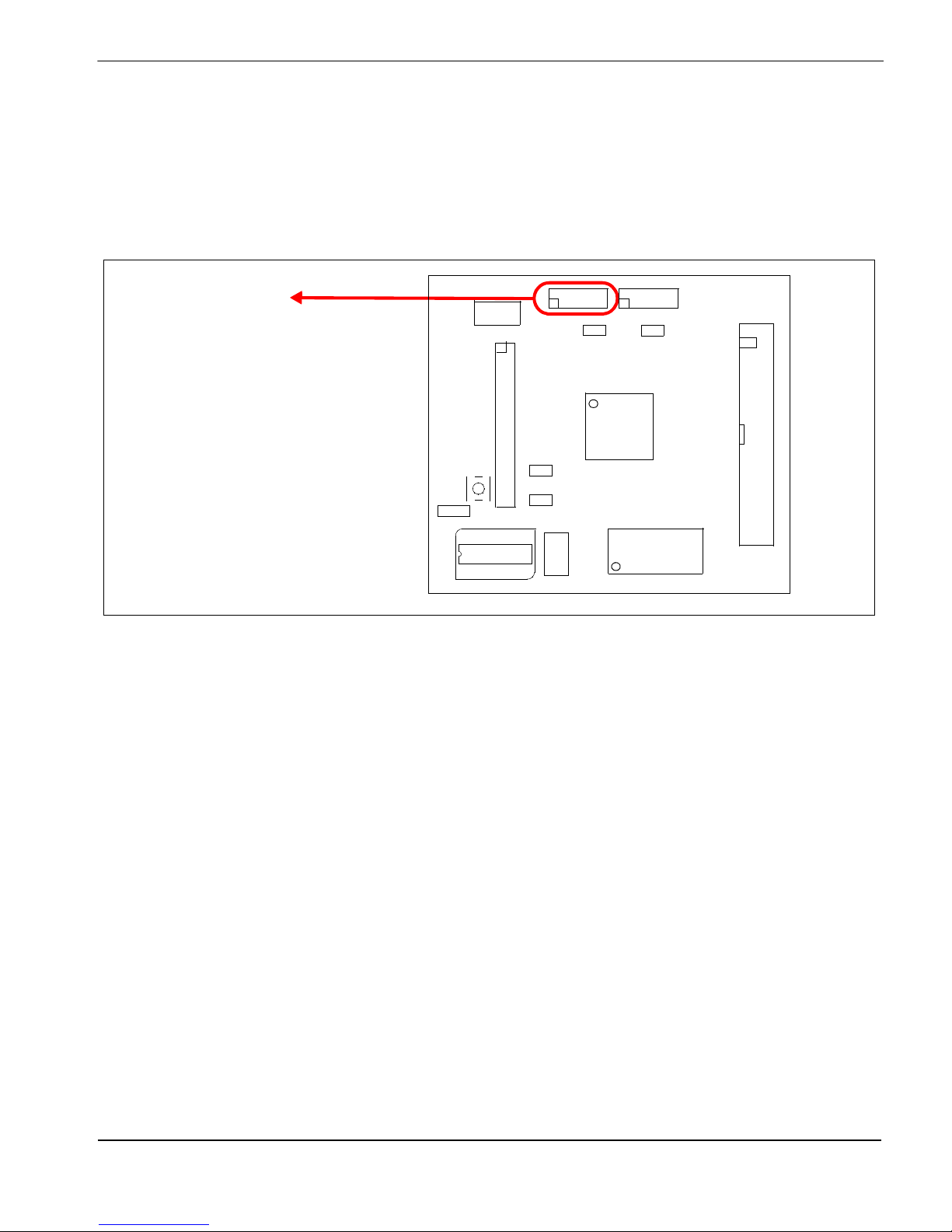

The following figure shows the location of host bus connector CN1. CN1 is a 0.1x0.1 inch 34-pin header (17x2).
Figure 4-2: Host Bus Connector Location (CN1)
For the pinout of connector CN1, see Chapter 6, “Schematic Diagrams” on page 18.
CN1

S1D13517 Display Controller
S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0) EPSON 13
4.4.2 Connecting to the Epson S5U13U00P00C100 USB Adapter Board
The S5U13517P00C100 evaluation board is designed toconnect to a S5U13U00P00C100 USB Adapter Board. The
USB adapter board provides a simple connection to any computer via a USB 2.0 connection. The
S5U13517P00C100 directly connects to the USB adapter board through connectors P1 and P2.
The USB adapter board also supplies the 3.3V power required by the S5U13517P00C100. IOVDD should be
selected for 3.3V and J4 should be set to the 1-2 position.
When the S5U13517P00C100 is connected to the S5U13U00P00C100 USB Adapter board, there are 2 LEDs on
S5U13517P00C100 which provide a quick visual status of the USB adapter. LED1 blinks to indicate that the USB
adapter board is active. LED2 turns on to indicate that the USB has been enumerated by the PC.

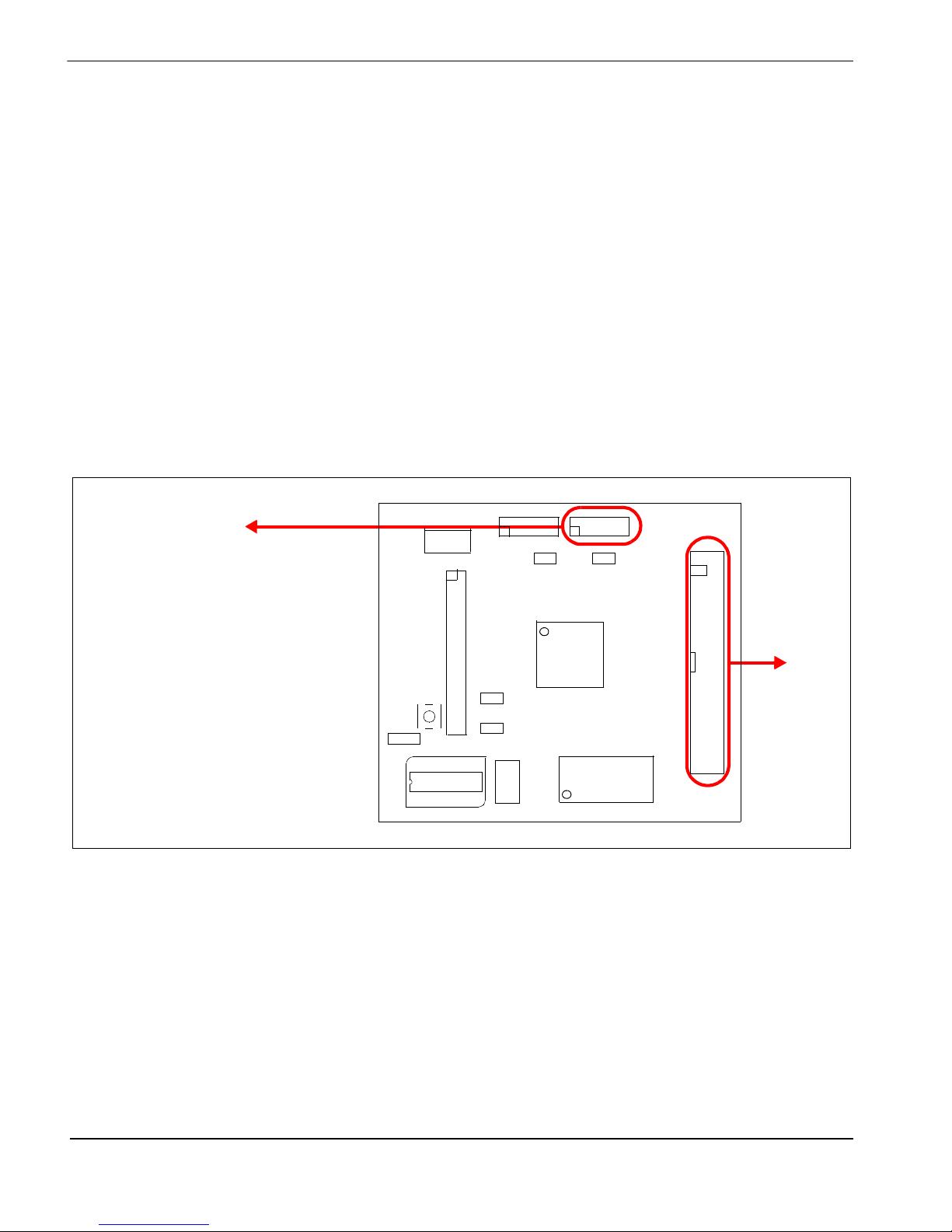

The following diagram shows the location of connectors P1 and P2. P1 and P2 are 40-pin headers (20x2).
Figure 4-3: USB Adapter Connector Locations (P1 and P2)
For the pinout of connectors P1 and P2, see Chapter 6, “Schematic Diagrams” on page 18.
Note
A windows driver must be installed on the PC when the S5U13517P00C100 is used with the S5U13U00P00C100
USB Adapter Board. The S1D13xxxUSB driver is available at www.erd.epson.com.
P1
P2

S1D13517 Display Controller
14 EPSON S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0)
4.5 LCD Panel Interface
The LCD interface signals are available on connectors CN3 and CN5.
Connector CN3 is 0.1x0.1 inch 40-pin header (20x2) and connector CN5 is 0.1x0.1 inch 10-pin header (5x2). For
the pinout of connectors CN3 and CN5, see Chapter 6, “Schematic Diagrams” on page 18.
On the evaluation board there is an adjustable 6~24V, 40mA max. power supply. This voltage is provided only on
connector CN3 (it is not used elsewhere on the board). It is intended for use to power the LED backlight on some
LCD panels. The voltage is adjusted by the VR1 pot.
Note
For LCD panels that use a CCFL backlight, an external power supply must be used to provide power to the inverter
for the CCFL backlight. Usually, the inverter current consumption is higher than the maximum 40mA current
available from the on-board voltage regulator.
The following diagram shows the location of the LCD panel connectors CN3 and CN5.
Figure 4-4: LCD Panel Connectors Location (CN3, CN5)
CN5
CN3

S1D13517 Display Controller
S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0) EPSON 15
4.6 GPO and PWM Connections
The S1D13517 Display Controller has 4 GPO pins and PWM pin. All the GPO pins and PWM pin are routed to the
CN4 connector. Connector CN4 is 0.1x0.1 inch 10-pin header (5x2).
The following figure shows the location of the GPO and PWM connector, CN4.
Figure 4-5: GPIO and PWM Connector Location (CN4)
For the pinout of connector CN4, see Chapter 6, “Schematic Diagrams” on page 18.
CN4

S1D13517 Display Controller
16 EPSON S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0)
Chapter 5 Parts Lists
Table 5-1: Parts List
Item Quantity Reference Part
1 1 CN1 A1-34PA-2.54DSA(71)
2 1 CN3 HIF3FC-40PA-2.54DSA
3 2 CN4,CN5 A1-10PA-2.54DSA(71)
427
C1,C3,C5,C7,C9,C11,
C13,C15,C17,C19,C21,
C23,C25,C27,C28,C31,
C32,C34,C35,C37,C43,
C45,C47,C49,C51,C53,
C55
0.1u
523
C2,C4,C6,C8,C10,C12,
C14,C16,C18,C20,C22,
C24,C26,C29,C33,C38,
C44,C46,C48,C50,C52,
C54,C56
0.01u
6 1 C30 2000p
7 1 C36 100u
8 1 C40 47u 10v
9 1 C41 10p
10 1C42 1u 50V
11 1D1 SML-310VT
12 1D2 SML-310DT
13 1D3 SML-310PT
14 1D4 MBR0530
15 2F1,F2 ACF451832-222
16 4J1,J2,J3,J5 WL-1-2P
17 1J4 WL-1-3P
18 1J6 WLW-3
19 2L1,L2 BLM21P
20 1L3 LQH32CN100K23L
21 3PAD1,PAD2,PAD3 2mm diameter
22 2P1,P2 PRPN202PAEN-RC
23 1R1 3k 1%
24 3R2,R3,R4 10k

S1D13517 Display Controller
S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0) EPSON 17
25 49
R5,R6,R7,R8,R10,R11,
R12,R14,R15,R21,R22,
R23,R24,R25,R26,R27,
R28,R29,R30,R31,R32,
R33,R34,R35,R36,R37,
R38,R39,R40,R41,R42,
R43,R44,R45,R46,R47,
R48,R49,R50,R51,R52,
R53,R54,R55,R56,R57,
R58,R59,R60
0
26 1R9 150k
27 2R13,R17 33 1%
28 1R16 NM
29 3R18,R19,R20 270
30 1R61 887k
31 1R62 22k
32 1R63 47k
33 6SH1,SH2,SH3,SH4,SH5,
SH6 .100 in. Jumper Shunt
34 1SW1 CFS-0400MB
35 1SW2 SKRKAEE010
36 10 TP1,TP2,TP3,TP4,TP5,
TP6,TP7,TP8,TP9,TP10 HK-2-S
37 1U1 S1D13517
38 1U2 TPS76915DBVT
39 1U3 IS42S16800E (128Mbit SDRAM)
40 1U4 TPS61040
41 1VR1 200k
42 1Y1 SG-210 24MHz
43 1Y2 XR2A-1405
Table 5-1: Parts List
Item Quantity Reference Part

S1D13517 Display Controller
18 EPSON S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0)
Chapter 6 Schematic Diagrams
Figure 6-1: S5U13517P00C100 Schematic Diagram (1 of 3)
5 5
4 4
3 3
2 2
1 1
D D C C B B A A
PDG4
PDG5
PDG6
PDG7
P DB0
PDB2
PDB3
PDB1
P DB4
PDB6
P DB7
PDB5
MD15
MD12
MD10
MD11
MD1
MD2
MD3
MD0
MD4
MD14
MD13
MD5
CNF2
TEST1
CNF0
TEST0
PLLCHGO
SCANEN
CNF1
HALE GPO1 GPO0 PDR7 PDR6 PDR3 PDR5 GPO3 PDG3 PDR1 PDG0 PDR4 PDG1 PDG2 PDR0 PDR2
MD6 MD7 MD8 MCLKO MD9
CNF2
CNF0 CNF1
GPO2
HD15
HD7
HD11
HD1
HD5
HD14
HD6
HD3
HD10
HD12
HD2
HD8
HD13
HD4
HD9
HD0
MCLKI MA7 MA5 MA0 MA9 MA1 MA11 MA8 MA10 MA6 MA4 MA3 MA2
HALE TEST0 MCLKI MCLKO TEST1 SCANEN PLLCHGO
CORE IO
PLL
2.5VDD
IOIOVDD
2.5VDD
CORE
PLL
IOVDD
PVS
PHS
RESET#
CLKI
PDE
MCS# MCKE MRAS# MCLKO MCAS# MDQM1 MWE# MDQM0
PCLK TE PWM
PDB[7:0] PDG[7:0]
PDG[7:0] PDR[7:0] GPO[3:0] HD[15:0]
MD[15:0]
MD[15:0]
HD[15:0]
MBA0 MBA1
HD/C# HWE# HRE# HCS#
MA[11:0]
Title Size Document Number Rev Date: Sheet of
<Doc> 1.2 S1D13517
A4
13Wednesday, April 22, 2009
Title Size Document Number Rev Date: Sheet of
<Doc> 1.2 S1D13517
A4
13Wednesday, April 22, 2009
Title Size Document Number Rev Date: Sheet of
<Doc> 1.2 S1D13517
A4
13Wednesday, April 22, 2009
CORE
IO
PLL
CNF[2:0] ON High
OFF Low
TEST0 SCANEN TEST1
Wire shortest.
J2 WL-1-2P J2 WL-1-2P
1 2
U1
S1D13517
U1
S1D13517
VSS
1HD3
2HD4
3HD5
4HD6
5HD7
6HD8
7HD9
8HD10
9HD11
10HD12
11HD13
12HD14
13HD15
14COREVDD
15IOVDD
16VSS
17CLKI
18TEST0
19TEST1
20CNF2
21CNF1
22CNF0
23VSS
24COREVDD
25PLLCHGO
26PLLVDD
27PLLVSS
28RESET#
29SCANEN
30IOVDD
31VSS
32
MA3 33
MA4 34 MA2 35 MA5 36 MA1 37 MA6 38 MA0 39 MA7 40
MA10 41
MA8 42
MBA1 43
MA9 44
MBA0 45
MA11 46
IOVDD 47
VSS 48
MCS# 49
MCKE 50
MRAS# 51
COREVDD 52
MCLKI 53
VSS 54
MCLKO 55
MCAS# 56
MDQM1 57
MWE# 58
MDQM0 59
MD7 60 MD8 61 MD6 62 MD9 63
IOVDD 64
VSS 65
MD5 66
MD10 67
MD4 68
MD11 69
MD3 70
MD12 71
MD2 72
MD13 73
MD1 74
MD14 75
MD0 76
MD15 77
COREVDD 78
IOVDD 79
VSS 80
PDE 81
PVS 82
PHS 83
PDB7 84
PDB6 85
PDB5 86
PDB4 87
PDB3 88
PDB2 89
PDB1 90
PDB0 91
PDG7 92
PDG6 93
PDG5 94
PDG4 95
IOVDD 96
VSS
97 PDG3 98 PDG2 99 PDG1
100 PDG0 101 PDR7 102 PDR6 103
PDR5
104 PDR4 105 PDR3 106 PDR2 107 PDR1 108 PDR0 109 PCLK 110
GPO3
111 COREVDD 112 IOVDD 113 VSS 114 GPO2 115
GPO1
116 GPO0 117 PWM 118 TE 119 HD/C# 120 HALE 121 HWE# 122 HCS# 123 HRE# 124 HD0 125 HD1 126 HD2 127 IOVDD 128
C24 0.01u C24 0.01u
R3
10k R3 10k
C19 0.1u C19 0.1u
C27
0.1u C27 0.1u
C8
0.01u C8 0.01u
R1
3k 1% R1 3k 1%
C2
0.01u C2 0.01u
C16
0.01u C16 0.01u
C11
0.1u C11 0.1u
C26
0.01u C26 0.01u
SH3
.100 in. Jumper Shunt
SH3
.100 in. Jumper Shunt
R6
0 R6 0
C20
0.01u C20 0.01u
J3
WL-1-2P J3 WL-1-2P
1 2
TP3 HK-2-S TP3 HK-2-S
C30
2000p C30 2000p
J1
WL-1-2P J1 WL-1-2P
1 2
C9 0.1u C9 0.1u
C18
0.01u C18 0.01u
C12
0.01u C12 0.01u
SH1
.100 in. Jumper Shunt
SH1
.100 in. Jumper Shunt
C3
0.1u C3 0.1u
C22
0.01u C22 0.01u
PAD1 2mm diaPAD1 2mm dia
C23
0.1u C23 0.1u
L1 BLM21PL1 BLM21P
C28
0.1u C28 0.1u
C6
0.01u C6 0.01u
SH2
.100 in. Jumper Shunt
SH2
.100 in. Jumper Shunt
TP1
HK-2-S TP1 HK-2-S
C7
0.1u C7 0.1u C14 0.01u C14 0.01u
C15
0.1u C15 0.1u
R5
0 R5 0
PAD2 2mm diaPAD2 2mm dia
C4
0.01u C4 0.01u C25 0.1u C25 0.1u
TP2
HK-2-S TP2 HK-2-S
R2
10k
R2
10k
C21
0.1u C21 0.1u
L2 BLM21PL2 BLM21P
C5
0.1u C5 0.1u
C29
0.01u C29 0.01u
C10
0.01u C10 0.01u
SW1
CFS-0400MB SW1 CFS-0400MB
C17
0.1u C17 0.1u
C1
0.1u C1 0.1u C13 0.1u C13 0.1u
PAD3 2mm diaPAD3 2mm dia
R4
10k R4 10k

S1D13517 Display Controller
S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0) EPSON 19
Figure 6-2: S5U13517P00C100 Schematic Diagram (2 of 3)
5 5
4 4
3 3
2 2
1 1
D D C C B B A A
INT HRD# HD15 HD13 HD11 HD9 HD2 HD4 HD0 HD6
HD10 HD12 HD14 HWE#
HCS# HD/C#
ENUMARETEDHEARTBEAT
HD8 HD1 HD5 HD7 HD3
HWE# HRD# HD/C# RESET#
HD2 HD6 HD0 HD4 HD8 HD10 HD12 HD14
HD9 HD1 HD11 HD3 HD5 HD13 HD15 HD7
HEARTBEAT ENUMARETED
HCS# TE INT
TE
RESET#
IOVDD
3.3VDD
3.3VDD
IOVDD_IN
3.3VDD
3.3VDD IOVDD
3.3VDD 2.5VDD
IOVDD
IOVDD
IOVDD_IN
3.3VDD
HD[15:0]
HCS#
HWE#
HRE#
HD/C#
RESET#
TE
CLKI
Title Size Document Number Rev Date: Sheet of
<Doc> 1.2 HOST, CLK
A4
23Wednesday, April 22, 2009
Title Size Document Number Rev Date: Sheet of
<Doc> 1.2 HOST, CLK
A4
23Wednesday, April 22, 2009
Title Size Document Number Rev Date: Sheet of
<Doc> 1.2 HOST, CLK
A4
23Wednesday, April 22, 2009
GND
Red Orange Green
2mm Pin Header
2.54mm Pin Header
POWER
ENUM
HB
CLKI sel 1-2 OnBoard 3-4 Socket
5-6 GND
3.3V
HOST I/F
Y1 Ctrl
Short Disable
RESET
IOVDD Sel 1-2 3.3V 2-3 IOVDD_IN
Installs in position 1-2 of JP4, 6.
TP8 HK-2-S TP8 HK-2-S
P1
PRPN202PAEN-RC
P1
PRPN202PAEN-RC
1
2
3
4
5
6
7
8
910
11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
U2
TPS76915DBVT
U2
TPS76915DBVT
IN
1
GND
2
EN#
3NC/FB 4
VOUT 5
SH4
.100 in. Jumper Shunt
SH4
.100 in. Jumper Shunt
C35
0.1u
C35
0.1u
C34
0.1u
C34
0.1u
D1
SML-310VT D1 SML-310VT
R7 0R7 0
R15 0R15 0
C38
0.01u C38 0.01u
R9
150k R9 150k
SH6
.100 in. Jumper Shunt
SH6
.100 in. Jumper Shunt R13 33 1%R13 33 1%
SW2
SKRKAEE010
SW2
SKRKAEE010
R16
NM R16 NM
C36
100u
C36
100u
R18
270 R18 270
R10 0R10 0
J6
WLW-3 J6 WLW-3
1 2
3 4
5 6
C31 0.1u C31 0.1u
R8
0 R8 0
Y1
SG-210 24MHz Y1 SG-210 24MHz
OE 1
OUT 3
GND
2
VDD
4
CN1
A1-34PA-2.54DSA(71)
CN1
A1-34PA-2.54DSA(71)
1 2 3 4 5 6 7 8 910
11 12 13 14 15 16 17 19 21 23 25 26 27 28 29 30 31 32 33 34
18 20 22 24
Y2 XR2A-1405 Y2 XR2A-1405
1 2 3 4 5 6 7 8
9 10 11 12 13 14
R12 0 R12 0
D2
SML-310DT D2 SML-310DT
C37
0.1u C37 0.1u
C33
0.01u C33 0.01u
R11 0R11 0
TP9
HK-2-S TP9 HK-2-S
J4
WL-1-3P J4 WL-1-3P
1 2 3
SH5
.100 in. Jumper Shunt
SH5
.100 in. Jumper Shunt
R14
0 R14 0
TP4
HK-2-S TP4 HK-2-S
P2
PRPN202PAEN-RC
P2
PRPN202PAEN-RC
1
2
3
4
5
6
7 8 9
10
11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
J5 WL-1-2P J5 WL-1-2P
1
2
D3 SML-310PT D3 SML-310PT
TP7
HK-2-S TP7 HK-2-SR19
270 R19 270
TP5
HK-2-S TP5 HK-2-S
C32
0.1u C32 0.1u
R20
270 R20 270
TP6
HK-2-S TP6 HK-2-S
R17 33 1%R17 33 1%

S1D13517 Display Controller
20 EPSON S5U13517P00C100 Evaluation Board User Manual (Rev. 1.0)
Figure 6-3: S5U13517P00C100 Schematic Diagram (3 of 3)
5 5
4 4
3 3
2 2
1 1
D D C C B B A A
PCLK PDE PHS PVS PDG7 PDG6 PDG5 PDB6 PDB5 PDB7 PDR4 PDR3 PDG4 PDG3 PDR2 PDG2
PDB3
PDB4
PDB2PDR5
PDR6 PDR7
PDR7 PDR6 PDR5 PDR4 PDR1 PDR3 PDR2 PDR0
PDG2 PDG5 PDG7 PDG0 PDG6 PDG1 PDG3 PDG4
PDB2 PDB5 PDB7 PDB0 PDB6 PDB1 PDB3 PDB4
GPO2 GPO3 GPO1 GPO0
GPO0 GPO2 GPO1
GPO3
PDG1 PDR1 PDB1
PDG0 PDR0 PDB0
MD8
MD4 MA0
MA9 MD9 MD12
MD6 MD1
MD11 MA7
MD3
MD13
MA2
MD15
MA1
MD14
MD5 MA10
MA4
MD7
MA5
MA3
MA6
MD2
MA11 MA8 MD10
MD0
3.3VDD 12VDD
IOVDD
12VDD
3.3VDD
3.3VDD IOVDD
IOVDD3.3VDD
3.3VDD
3.3VDD
PCLK
PDR[7:0] PDG[7:0] PDB[7:0] PDE PHS
PVS
MDQM1 MCLKO MCKE
GPO[3:0]
PWM
MD[15:0]
MBA0
MCAS#
MBA1
MA[11:0]
MRAS#
MCS#
MDQM0
MWE#
Title Size Document Number Rev Date: Sheet of
<Doc> 1.2 LCD, DRAM
A4
33Wednesday, April 22, 2009
Title Size Document Number Rev Date: Sheet of
<Doc> 1.2 LCD, DRAM
A4
33Wednesday, April 22, 2009
Title Size Document Number Rev Date: Sheet of
<Doc> 1.2 LCD, DRAM
A4
33Wednesday, April 22, 2009
12VDD
LCD
12VDD Ctrl
GPO
Ext LCD
R62 22k R62 22k
R55 0R55 0
C40
47u 10v
C40
47u 10v
R27 0R27 0
R44 0R44 0 R53 0R53 0
C54
0.01u C54 0.01u
CN3
HIF3FC-40PA-2.54DSA
CN3
HIF3FC-40PA-2.54DSA
1 2 3 4 5 6 7 8 910
11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
R37 0R37 0
R36 0R36 0
C44
0.01u C44 0.01u
R39 0R39 0
C48
0.01u C48 0.01u
R46 0R46 0
R60
0 R60 0
R28 0R28 0
R63
47k R63 47k
R56 0R56 0
C42
1u 50V C42 1u 50V
U4
TPS61040 U4 TPS61040
SW 1
GND 2
FB 3
EN
4
VIN
5
R29 0R29 0
R57 0R57 0 R45 0R45 0 R38 0R38 0 C51
0.1u C51 0.1u
C43
0.1u C43 0.1u
R41 0R41 0
C53
0.1u C53 0.1u U3
IS42S16800E(128Mbit SDRAM)
U3
IS42S16800E(128Mbit SDRAM)
VDD
1DQ0 2VDDQ 3DQ1 4DQ2 5VSSQ 6DQ3 7DQ4 8VDDQ 9DQ5
10 DQ6 11 VSSQ 12 DQ7 13 VDD 14 DQML 15 WE# 16 CAS# 17 RAS# 18 CS# 19 BA0 20 BA1 21 A10 22 A0 23 A1 24 A2 25 A3 26 VDD 27 VSS 28
A4 29 A5 30 A6 31 A7 32 A8 33 A9 34
A11 35
NC 36
CKE 37
CLK
38
DQMH 39
NC 40
VSS 41
DQ8 42
VDDQ 43
DQ9 44
DQ10 45
VSSQ
46
DQ11 47 DQ12 48
VDDQ 49
DQ13 50 DQ14 51
VSSQ 52
DQ15 53
VSS 54
F1 ACF451832-222 F1 ACF451832-222
1 2
3
C50 0.01u C50 0.01u
C46
0.01u C46 0.01u
R30 0R30 0
R52 0R52 0
R31 0R31 0
R58 0R58 0
R21 0R21 0
L3
LQH32CN100K23L
L3
LQH32CN100K23L
R47 0R47 0
C41
10p
C41
10p
R40 0R40 0
D4
MBR0530 D4 MBR0530
R24 0R24 0R23 0R23 0
C49
0.1u C49 0.1u
R59
0 R59 0
R33 0R33 0
R48 0R48 0
TP10
HK-2-S TP10 HK-2-S
R54 0R54 0
VR1
200k VR1 200k
13
2
F2 ACF451832-222 F2 ACF451832-222
1 2
3
R32 0R32 0
C55
0.1u C55 0.1u
C52
0.01u C52 0.01u
C45
0.1u C45 0.1u
R22 0R22 0
R42 0R42 0
R51 0R51 0
CN5
A1-10PA-2.54DSA(71)
CN5
A1-10PA-2.54DSA(71)
1 2 3 4 5 6 7 8 910
R49 0R49 0
R25 0R25 0
R43 0R43 0
R35 0R35 0
R26 0R26 0
C56
0.01u C56 0.01u
CN4
A1-10PA-2.54DSA(71)
CN4
A1-10PA-2.54DSA(71)
1 2 3 4 5 6 7 8 910
R50 0R50 0
R61
887k
R61
887k
C47 0.1u C47 0.1u
R34 0R34 0
