Erone SEL2641R433-S2 User manual

ERONE - SLOT-IN CARD RECEIVER
1A - Introduction
The slot-in card receiver ERONE type SEL2641R433-S2 is a
superheterodyne receiver operating at 433.92 Mhz.
It is a component of the radiocontrol ERONE 433.
It can be used with the transmitters ERONE, Series ERONE 024A Rolling
code and ERONE MINI . The outputs are carried out by means of a 10
ways MOLEX connector on which are available 2 pure contacts of the
SEL2641R433-S2
1B - Technical specifications
Receiver type: Superheterodyne.
Demodulation: AM/ASK.
Operating frequency: 433.92 MHz.
Local oscillator frequency: 6,6128 MHz.
Intermediate frequency: 10,7 MHz.
Sensitivity ( for good signal ): -117 dBm.
Input impedance: 50 Ohm.
Power supply : 12 or 2ac/dc.
Current consuption: 8 mA
Relays number: 2 ( contacts NO).
Commutable max power: 24W or 24VA .
Max codes number: 85.
Operating temperature: -20 ÷ + 70 °C.
Codes memory type: EEPROM
Dimensions: 52 x 46 x 19 mm.
Weight: 24 gr.
J1 = CLOSED
Power. 12 Vac/dc
J1=OPEN
Power. 24 Vac/dc
1C - Power selection
two relays and the three power connections, so it can be connected only
to a perfectly compatible device.
The receiver makes it possible a multiple code management ( up to 85
different transmitter codes, thank to the internal EEPROM.
The transmitter code memorization can be performed with 2 push-
buttons. A separated antenna input connector is available on the card.
USABLE TRANSMITTERS
!Erone 024A Type. S2TR2641E2: 2 keys transmitter;
!Erone 024A Type. S2TR2641E4: 4 keys transmitter;
!Erone 433MINI Type. SETR2641AM2 :2 keys mini transmitter;
CONTENTS
1A - Introduction
1B - Technical specifications
1C - Power selection
1D - Layout and connections
1 - PRODUCT INTRODUCTION
2 - TRANSMITTER CODES MEMORIZATION
3 - MEMORY FULL
4 - MEMORY ERASURE
Thank you for choosing a product Erone.You are recommended to
read carefully this manual before installing the product.
MANUAL
INSTALLATION
THE SMART LIVING

ERONE is a trademark by ELPRO INNOTEK S.p.A.
Via Piave, 23 - I-31020 S.Pietro di Feletto (TV) - ITALY
Tel.: [phone] - Fax.: [phone]
Toll-free number: 800.53.46.46
E-Mail: [email protected] - Web: www.erone.com
IS-RSC2ERUK Rev. 1 del 11.11.2003
4 - MEMORY ERASURE
2 - TRANSMITTER CODES MEMORIZATION
2A - Output “Red relay”
Keep “PR” pressed down until the Red led “LR” lights up; release “PR”;
the led “LR” remains lit.
Push then the transmitter key which has to be memorized, the led “LR” of
the receiver makes a flash and the relay “RR” activates for a while giving
the confirm of the successfully procedure.
Attention: If the led “LR” turns off before to activate the transmitter key it
is necessary to repeat the procedure.
2B - Output “Green relay”
Keep “PV” pressed down until the Green led “LV” lights up; release
“PV”; the led “LV” remains lit.
Push then the transmitter key which has to be memorized, the led “LV” of
the receiver makes a flash and the relay “RV” activates for a while
Keep “PR” pressed down until the Red led “LR” lights up; release “PR”;
the led “LR” remains lit.
Within 2 seconds push at the same time both the buttons PR” and
“PV”and keep them pressed down until 3 flashes of both the leds occur.
At this pont the memory is completed erased.
In case of memory full, if you try to memorize another transmitter
code, both the led red “LR” and green led “LV” will flash
simultaneously three times.
The first led activated remains lit for further 4 seconds.
The memory capacity is of 85 codes.
3 - MEMORY FULL
PR
PVLV LR
J1J1
RVRV
RRRR
RR C
RR NO
RV C
RV NO
Alim. 0
ANT.
GND Ant.
n.c.
n.c.
12/24V ac/dc
ANT.
GND ANT.

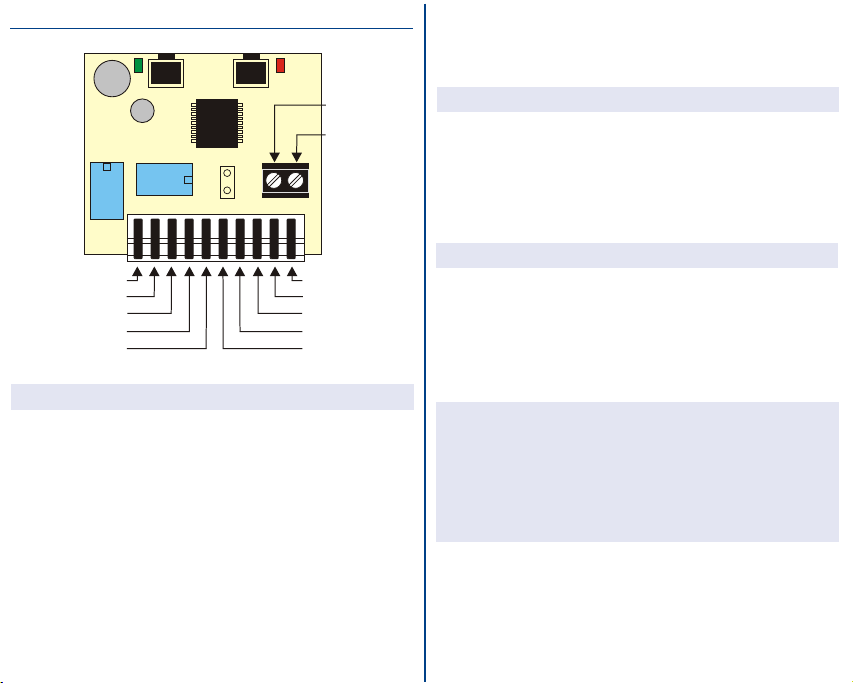

1D - Layout and connections giving the confirm of the successfully procedure.
Attention: If the led “LV” turns off before to activate the transmitter key it
is necessary to repeat the procedure.
The guarantee period of all Erone products is 24 months,
beginning from the manufacturer date. During this period, if
the product does not work correctly, due to a defective
component, the product will be repaired or substituted at the
discretion of the producer. The guarantee does not cover the
plastic container integrity. After-sale service is supplied at the
producer's factory.
GUARANTEE
