Esco CYCLONE 20380 User manual

1.800.352.9852 • [email protected] • www.esco.net 1
EQUIPMENT SUPPLY COMPANY
REV. 1.19
COPYRIGHT © 2019 EQUIPMENT SUPPLY CO., ALL RIGHTS RESERVED
Thank you for choosing ESCO tire service tools and equipment. We suggest you read this instruction manual
thoroughly before using the product. Save this instruction manual for future use.
INSTRUCTION MANUAL
CYCLONE BEAD SEATING TANK—5 GALLON
ESCO #20380

1.800.352.9852 • [email protected] • www.esco.net 2
TABLE OF CONTENTS
• Introduction……………………………………………………………………………………………….2
• Specifications…………………………………………………………………………………………….2
• General Safety Rules…………………………………………………………………………………....3
• Operating Instructions………………………………………………………………………………….4
• Parts Breakdown. ……………………………………………………………………………………… 5
• Warranty………………………………………………………………………………………………….. 6
• Parts and Repair Service……………………………………………………………………………… 7
INTRODUCTION
The Cyclone Bead Seating Tank has a 5-gallon capacity ideal for small and medium applica-
tions. The ergonomic design is easy to store in an upright position with a robust tank casted
out of steel and ASME certified. The Cyclone Bead Seater #20380 is a hassle-free, simple so-
lution to seat tire beads on equipment ranging in sizes from ATV and golf carts up to passen-
ger and light truck applications.
SPECIFICATIONS
CYCLONE BEAD SEATING TANK—5 GALLON #20380
TANK CAPACITY: 5 GALLONS
RECOMMENDED OPERATING
PRESSURE:
40-155 PSI
WEIGHT: 30 LBS (13.6 KG)
DIMENSIONS: 14” (355.6 MM) x 14” (355.6 MM) x 21 in (533.4 MM)

1.800.352.9852 • [email protected] • www.esco.net 3

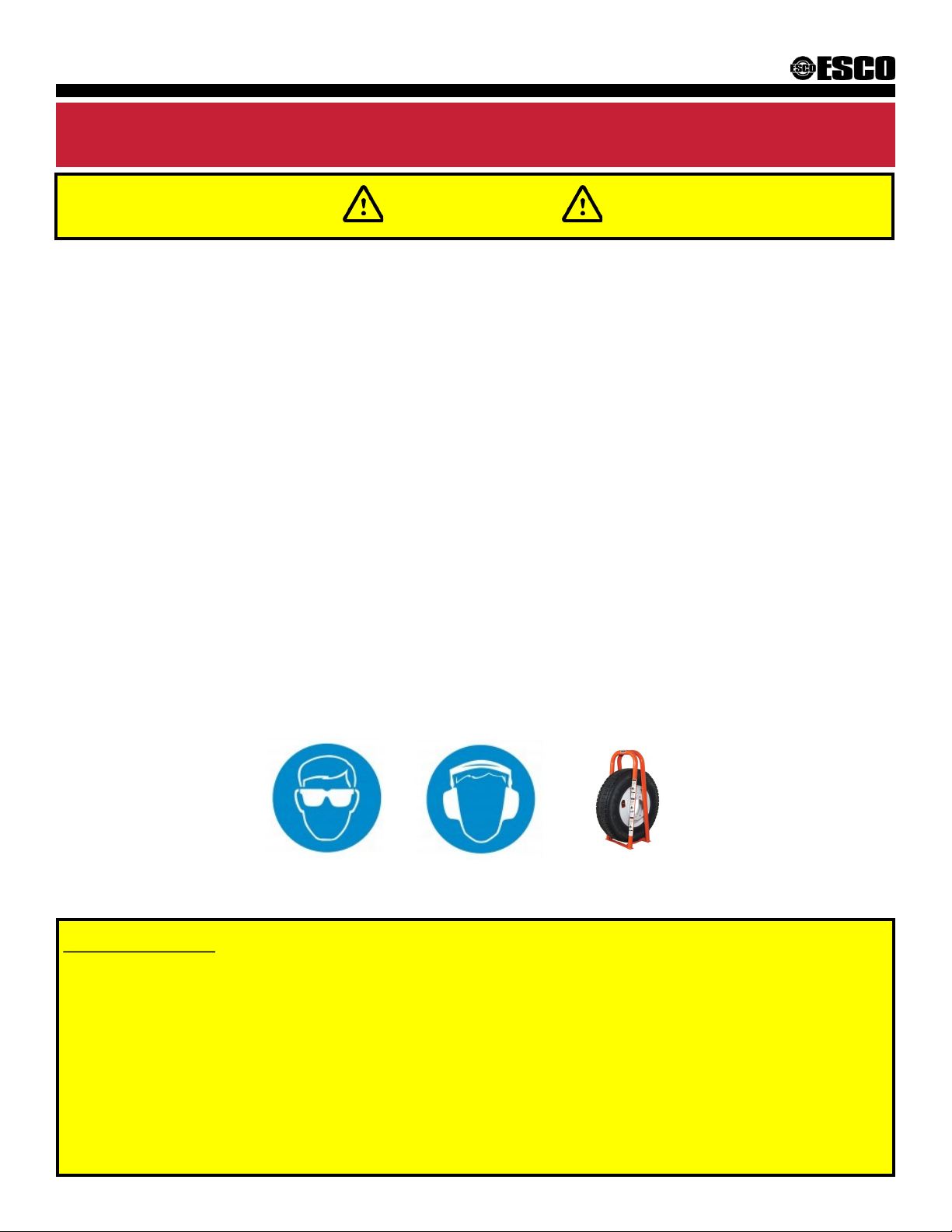

WARNING
• Read and understand all instructions. Failure to comply could result in death, bodily inju-
ry and/or damage to equipment.
• Do not allow children or untrained individuals to use this product.
• Always wear ANSI and OSHA standard Personal Protective Equipment when using this
product. Not wearing eye wear, non-slip shoes or hearing protection may result in injury.
• Do not modify or use non-factory authorized parts on this product.
• Do not inflator or over flate the tire.
• Keep bystanders 20 feet away when tank is charged.
• Do not use this product for any other purpose than what it is designed for.
• Do not store or transport charged bead seating tanks. Discharge the air tank when it is
not in use.
• Always follow OSHA 1910.77 standard* while using this product.
• Always visually inspect the product before use for damage. Do not use product if dam-
aged, altered, or in poor condition. Contact our technical service department with any
questions or issues by calling 800-352-9852.
CYCLONE BEAD SEATING TANK—5 GALLON #20380
EYE PROTECTION
MUST BE WORN
HEARING PROTECTION
MUST BE WORN
RESTRAINING DEVICE
MUST BE USED DURING
DE/INFLATION
GENERAL SAFETY RULES
*OSHA 1910.177 standard
1910.177(d)(1)
The employer shall furnish a restraining device for inflating tires on multi-piece wheels.
1910.177(d)(2)
The employer shall provide a restraining device or barrier for inflating tires on single piece wheels unless the rim wheel will be bolted onto a vehicle during
inflation.
1910.177(d)(3)
Restraining devices and barriers shall comply with the following requirements:
1910.177(d)(3)(i)
Each restraining device or barrier shall have the capacity to withstand the maximum force that would be transferred to it during a rim wheel separation occur-
ring at 150 percent of the maximum tire specification pressure for the type of rim wheel being serviced.
1910.177(d)(3)(ii)
Restraining devices and barriers shall be capable of preventing the rim wheel components from being thrown outside or beyond the device or barrier for any
rim wheel positioned within or behind the device;
1910.177(d)(3)(iii)
Restraining devices and barriers shall be visually inspected prior to each day's use and after any separation of the rim wheel components or sudden release of
contained air. Any restraining device or barrier exhibiting damage such as the following defects shall be immediately removed from service.

1.800.352.9852 • [email protected] • www.esco.net 4

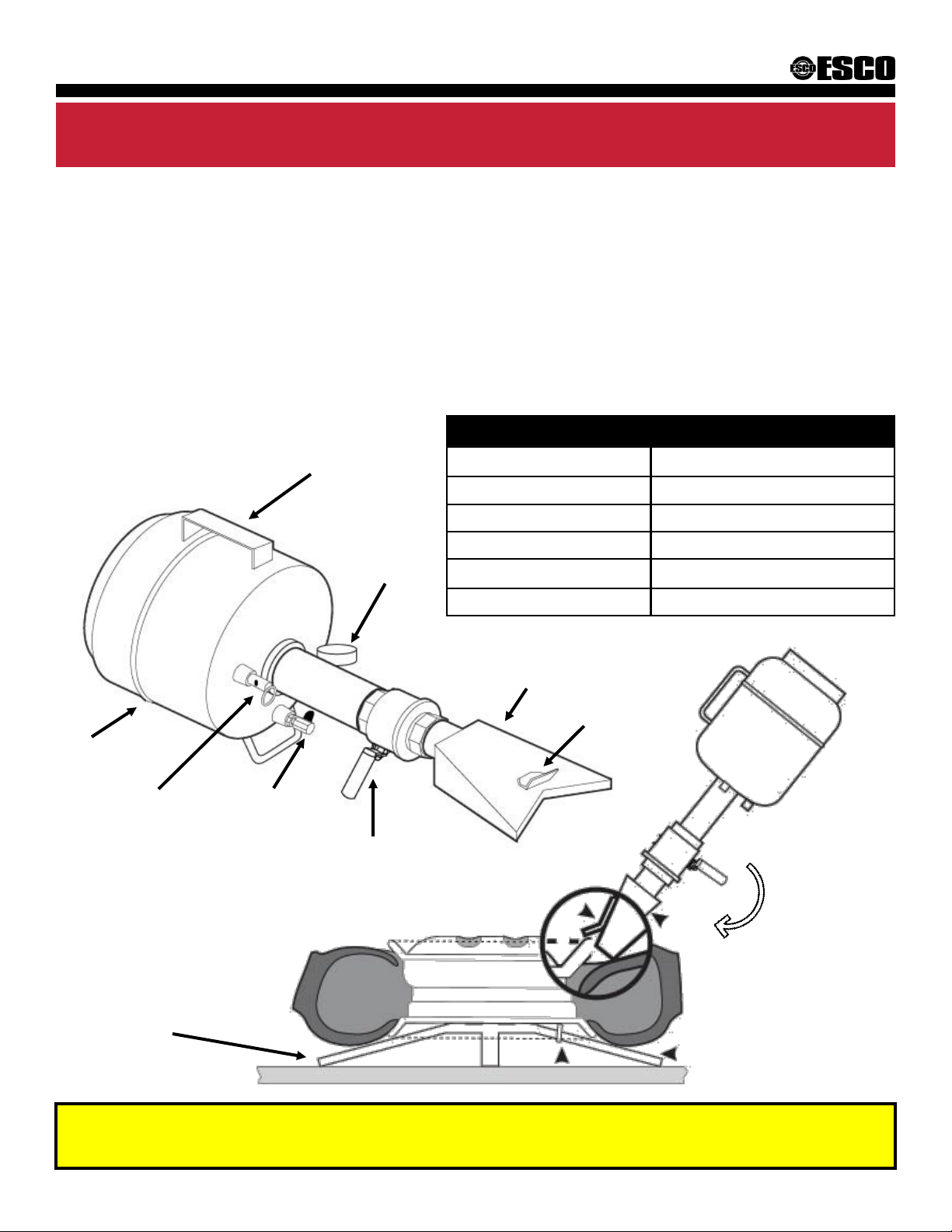

OPERATING INSTRUCTIONS
1. Always wear eyewear and hearing protection while operating bead seating tank.
2. Keep work area clear.
3. Lay mounted tire flat on ground or stand (optional) with wide flange up (inflating stem fac-
ing down) place stand under rim near inflating stem.
4. Attached self holding chuck from air supply to inflating stem on rim.
5. Hold bead seater at an approximately 45 degree angle (shown below) from floor with
guide on top of rim.
6. Hold handle tight and quickly open discharge valve.
7. Operating pressure of unit is 40-155 PSI from compressed air supply. Fill bead seating
tank to a minimum of 40 psi from air compressor. Increase pressure as necessary. The
safety pop-off is set at 165 psi (11.3 bar)
CYCLONE BEAD SEATING TANK—5 GALLON #20380
Larger tires may be too difficult to seat, please make sure to use the proper sized Bead Seater for the Size Tire.
45°
RECOMMENDED PRESSURE CHART
Tire Type Pressure
ATV 40 PSI / 2.75 BAR
Passenger Car Radial Tire 60 PSI / 4.15 BAR
LT/SUV 80 PSI / 5.5 BAR
Truck and Bus Radial Tire 100 PSI / 6.9 BAR
OTR 120-155 PSI / 8.25-10.6 BAR
HANDLE
AIR PRESSURE
GAUGE
AIR TANK
AIR INTAKE
AIR RELEASE
VALVE HANDLE
GUIDE
PRESSURE
RELEASE VALVE
FLARRED
BARREL
OPTIONAL STAND
(AVAILABLE FROM MULTIPLE
RETAIL OUTLETS)

1.800.352.9852 • [email protected] • www.esco.net 5

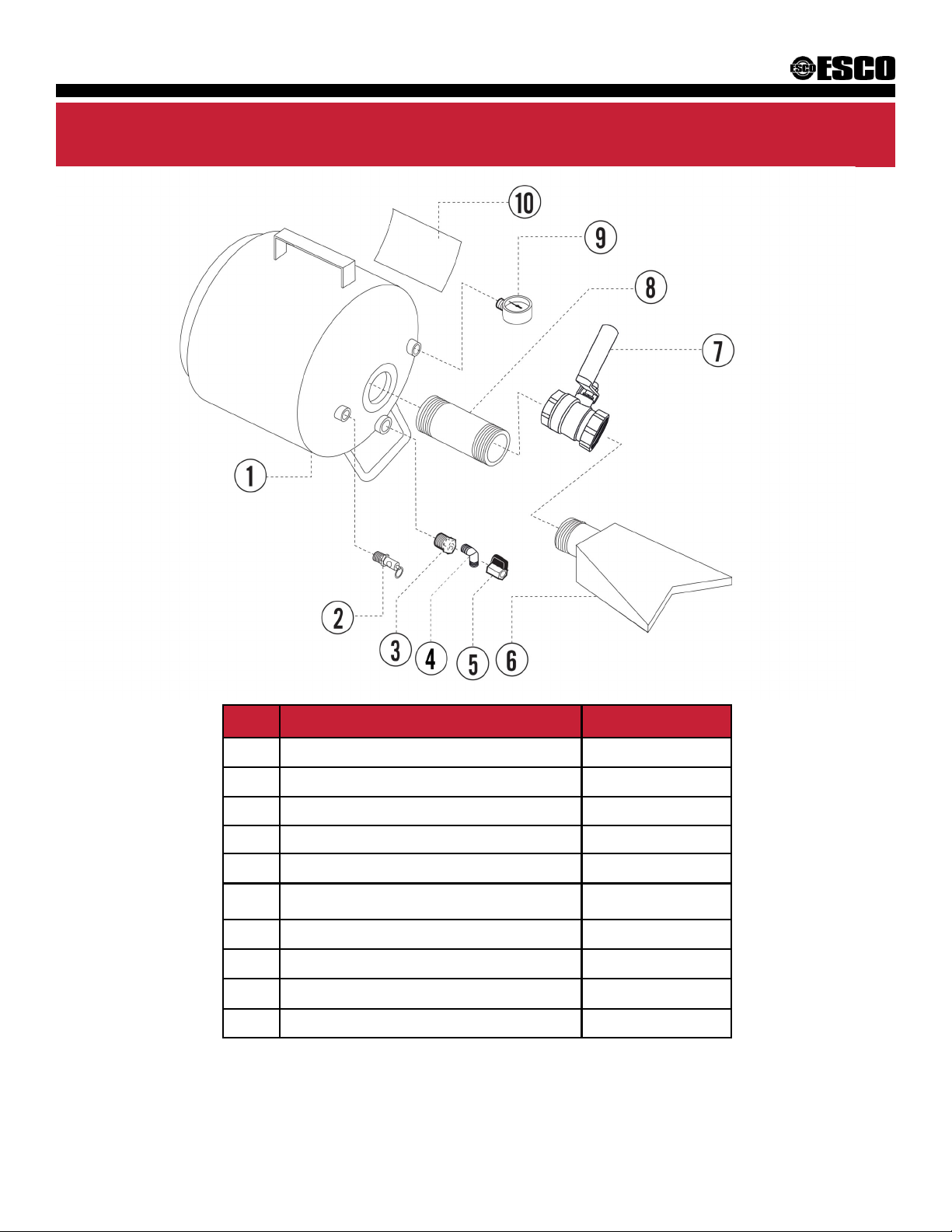

PARTS BREAKDOWN
CYCLONE BEAD SEATING TANK—5 GALLON #20380
DESCRIPTION PART NUMBER
1. AIR TANK N/A
2. SAFETY RELEASE VALVE 20390-7
3. 3/4”-1/4” BUSHING 20390-3
4. 90° VALVE 20390-9
5. FILLER VALVE 20390-8
6. FLARED BARREL 20390-2
7. 2” BUTTERFLY VALVE (W/HANDLE) 20390-4
8. 6” PIPE NIPPLE N/A
9. PRESSURE GAUGE 20390-5
10. DECAL N/A

1.800.352.9852 • [email protected] • www.esco.net 6
WARRANTY
CYCLONE BEAD SEATING TANK—5 GALLON #20380
Products sold by Equipment Supply Company (ESCO) are warranted to be free from de-
fects in material and workmanship under proper use, application, and maintenance in ac-
cordance with ESCO's written recommendations, instructions, and specifications for a pe-
riod of 1 year (365 days) from the date of shipment to the end user, unless otherwise noted.
ESCO's obligation under this warranty is limited to, and the sole remedy for any such de-
fect shall be the repair or replacement (at ESCO's discretion) of unaltered parts returned to
ESCO, freight prepaid, and proven to have such defect, provided such defect occurs within
the 90-day warranty period (or otherwise noted) and is reported within 14 days of occur-
rence.
This is the only authorized ESCO warranty and is in lieu of all other express or implied war-
ranties or representations, including any implied warranties of merchantability or fitness.
Warranty claims must be submitted and be processed in accordance with ESCO's estab-
lished warranty claim procedure. In no event will ESCO be liable for business interruptions,
loss of sales and/or profits, personal injury, costs of delay, or for any other special, indi-
rect, incidental or consequential losses, costs, or damages.
PURCHASE DATE:___________________________________________
MODEL NO.:________________________________________________
SERIAL NO. (If Applicable):____________________________________
NOTES:
___________________________________________________________
___________________________________________________________
___________________________________________________________
___________________________________________________________
___________________________________________________________

1.800.352.9852 • [email protected] • www.esco.net 7
PARTS AND REPAIR SERVICE
CYCLONE BEAD SEATING TANK—5 GALLON #20380
• ESCO will pick up product for repair/warranty at your location.
• ESCO will guarantee Repair/Service for 30 days.
• ESCO has rental tools available
• ESCO repairs IMT, FEC, Stellar, Blackhawk, OTC, Power Team,
Ame Int., & Enerpac hydraulic pumps, bead breaker, and
cylinders.
• Authorized ESCO Repair & Warranty Centers Located through
the US & Canada. For more information contact your ESCO
sales representative.
• Technical Support Over the Phone Available by Calling 1-800-352-9852
GUARANTEED 1-Day Turnaround Service.
Received by ESCO - Repaired in 24 Hours - Returned to you!
Prompt, reliable service after the sale is very important to ESCO. ESCO maintains an in-house repair facility in
Brooksville, Florida. To insure that our customers have as little down-time as possible, we offer a 1 day turna-
round service. Our factory repair service is equipped with all the tools and machinery needed to repair your
equipment quickly and affordably. Our trained technicians are the best in the industry. Not only do we service
our own products, but we also service our competitors’ products.
In addition to ESCO’s 30 years of providing quality repair service, ESCO has reached out and partnered with
more than 50+ hydraulic repair facilities across the US & Canada, to deliver quality repair and timely return of
products. Visit www.esco.net or call 1.800.352.9852 to hear more about the newly added “Authorized ESCO
Warranty & Repair Facilities” across the US.
If you have a bead breaker, ram, or hydraulic pump that needs repair, ESCO fixes your product with factory
parts and guarantees the repair. In addition to servicing ESCO brand products, we also re-pair CP, IMT, Elrick,
Branick, Goodyear, FEC, AME Int., and Haltec lines of hydraulic bead breakers, rams, pumps, jacks, and many
other hydraulic tire service equipment.

1.800.352.9852 • [email protected] • www.esco.net 8
EQUIPMENT SUPPLY COMPANY
REV. 1.19
COPYRIGHT © 2019 EQUIPMENT SUPPLY CO., ALL RIGHTS RESERVED
Thank you for choosing ESCO tire service tools and equipment. We suggest you read this instruction manual
thoroughly before using the product. Save this instruction manual for future use.
CONTACT INFO:
www.esco.net - [email protected]
15270 Flight Path Drive
Brooksville, FL 34604
PH. 352.754.1117
Toll Free. 1.800.352.9852 (US, Canada Only) Fax: [phone]
Stay Connected with ESCO….
CYCLONE BEAD SEATING TANK—5 GALLON #20380
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
