Essilor Instruments Vision-C 600 User manual

USER MANUAL

CONTENTS
I. INTRODUCTION 4
1. Main features of the chart screen 5
2. Instrument classification 5
3. Symbols used 5
4. Copyright 6
II. INSTRUMENT 7
1. Inspecting instrument 8
2.Checking the accessories 8
3. Unpacking, installation and connection 9
a. Unpackaging 9
b. Installation 10
c. Connection 15
4. Transport 15
5. Identification and locating of the elements 15
III. ADJUSTMENTS BEFORE THE EXAMINATION 17
1. Turning ON/OFF 18
2. Positioning the screen 19
3. Settings 19
a. Configuring the screen 19
b. Adjusting optotypes from console 21
IV. UPDATE THE SCREEN 28
1. Update by USB key 29
2. By LAN (IP) 32
V. TROUBLESHOOTING 35
VI. TECHNICAL DATA 37
VII. CAUTIONS & WARNINGS 39
1. Exclusion of liability clause 40
2. Cautions & Warnings 40
a. Power supply 41
b. Computer network 42
c. Disposal 42
3. Electromagnetic compatibility 43
a. Length of cables, cords, etc. 43
b. Recommended separation distance 44
c. Electromagnetic emissions 44
d. Magnetic and electromagnetic immunity 44
e. Electromagnetic immunity, radio frequencies 45
4.Cleaning & Maintenance 45
a. Cleaning 45
b. Maintenance 46
VIII. QR CODE 47
USER MANUAL > CONTENTS
Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE) 2

I. INTRODUCTION

The complete user manual is available on a web space.
To access other available languages, please scan the QR code available at the end of this user manual >
QR Code Chapter (p.47).
1. Main features of the chart screen
Vision-C 600 (VRS001) is a visual chart system, stand-alone type, which displays broad range of charts, based
on LCD panel.
2. Instrument classification
Vision-C 600 is a class I and B-type medical instrument.
It is marked .
Date of first marking 2020. Its estimated minimum lifetime is 7 years.
This instrument complies with regulation 2017/745/UE.
For a safer, more effective use, however, follow the instructions outlines in this manual.
This device complies with the restrictions imposed by section 15 of the FCC regulation. Its use meets the
following conditions: (1) this device must not cause interference and (2) must accept interference from external
sources, notably that are liable to cause malfunctions.
Those limits are set so as to ensure reasonable protection against interference in a residential environment. This
device generates, uses and can emit radio frequency energy, which may interfere with radio communications if
the device is not installed and used in strict conformity with manufacturer instructions. However, there is no
guarantee that there will be no interference in certain conditions. You can confirm that this device is the source
of interferences with radio or television reception by turning the device on and off.
In accordance with the requirements of FCC rules, any modification made to this equipment which is not
expressly approved by the manufacturer would nullify the user's right to use this device.
3. Symbols used
On the packaging
Caution: a hazardous situation that, if not avoided, could result in minor or moderate injury
Warning: a hazardous situation that, if not avoided, could result in death or serious injury
Danger: a hazardous situation that, if not avoided, will result in death or serious injury
Obligation to refer to the operating manual
Important and/or useful additional information to learn relating to the text in this manual
D.C. current
Manufacturer
Manufacturing date (year)
CE Marking (European regulation relating to medical devices)
Medical device
Compliant to FCC standards
USER MANUAL > INTRODUCTION
5Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

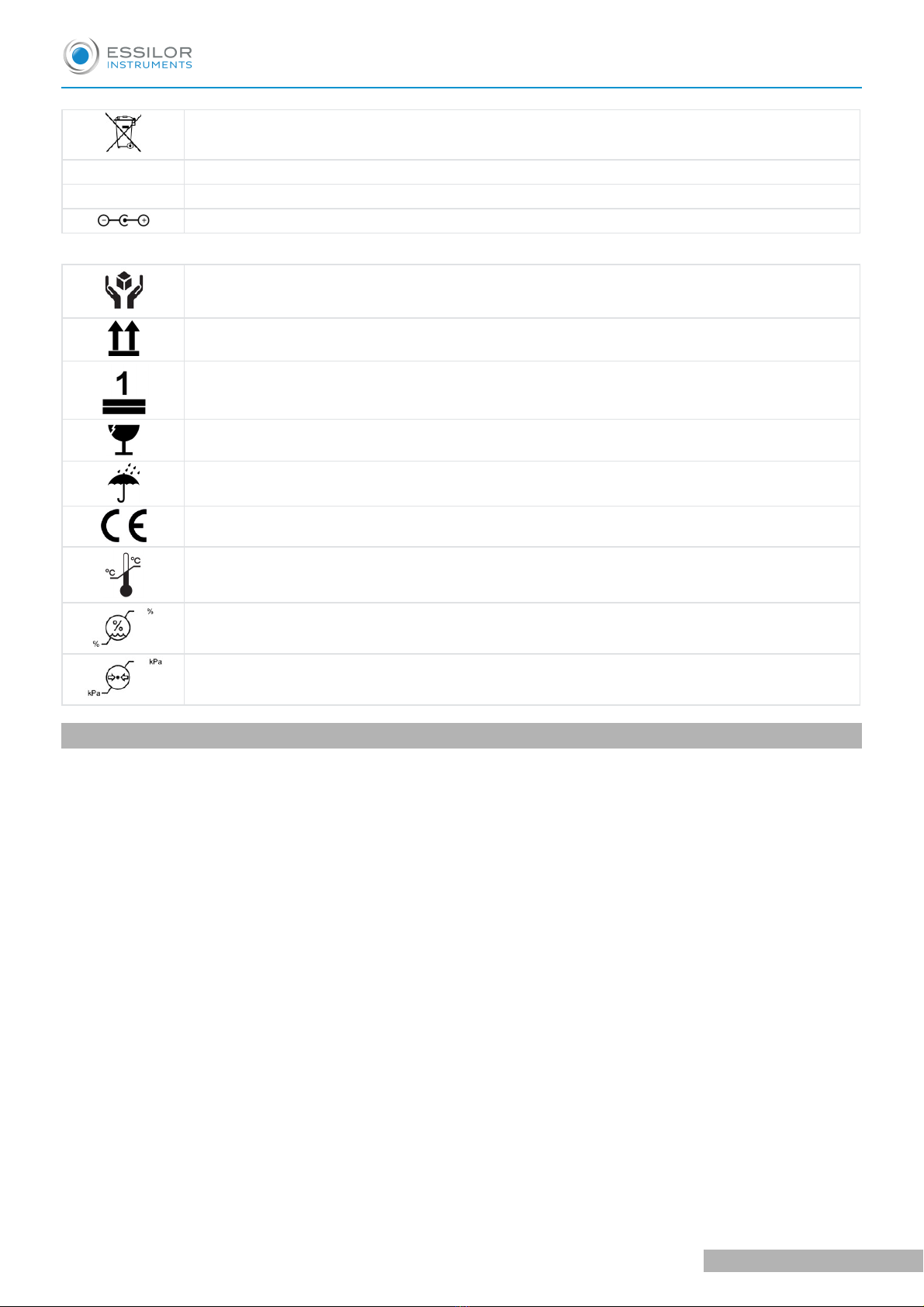

Waste disposal symbol in accordance with Directives 2012/19/EU and 2011/65/EU
I ON = Turned-on (power supply connected to the mains)
O OFF = Turned-off (power supply disconnected to the mains)
Polarity
On the packaging
Handle with care
This way up
Maximum stacking of 1 product above market product
Fragile
Keep dry
CE Marking (European regulation relating to medical devices)
Indicate the thermal limits to which the medical device can be exposed in complete safety
Indicate the humidity limits to which the medical device can be exposed in complete safety
Indicate the limits of atmospheric pressure to which the medical device can be exposed in
complete safety
4. Copyright
Copyright © 2021 Essilor - Original manual All rights reserved.
All reproduction of the content of this document, whether in part or as a whole, for the purpose of its publication
or dissemination by any means and in any format whatsoever, even free of charge, is strictly prohibited without
Essilor's prior written consent.
USER MANUAL > INTRODUCTION
Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE) 6

II. INSTRUMENT

1. Inspecting instrument
Inspect the instrument (once a week) to ensure that it is correctly fixed to the wall.

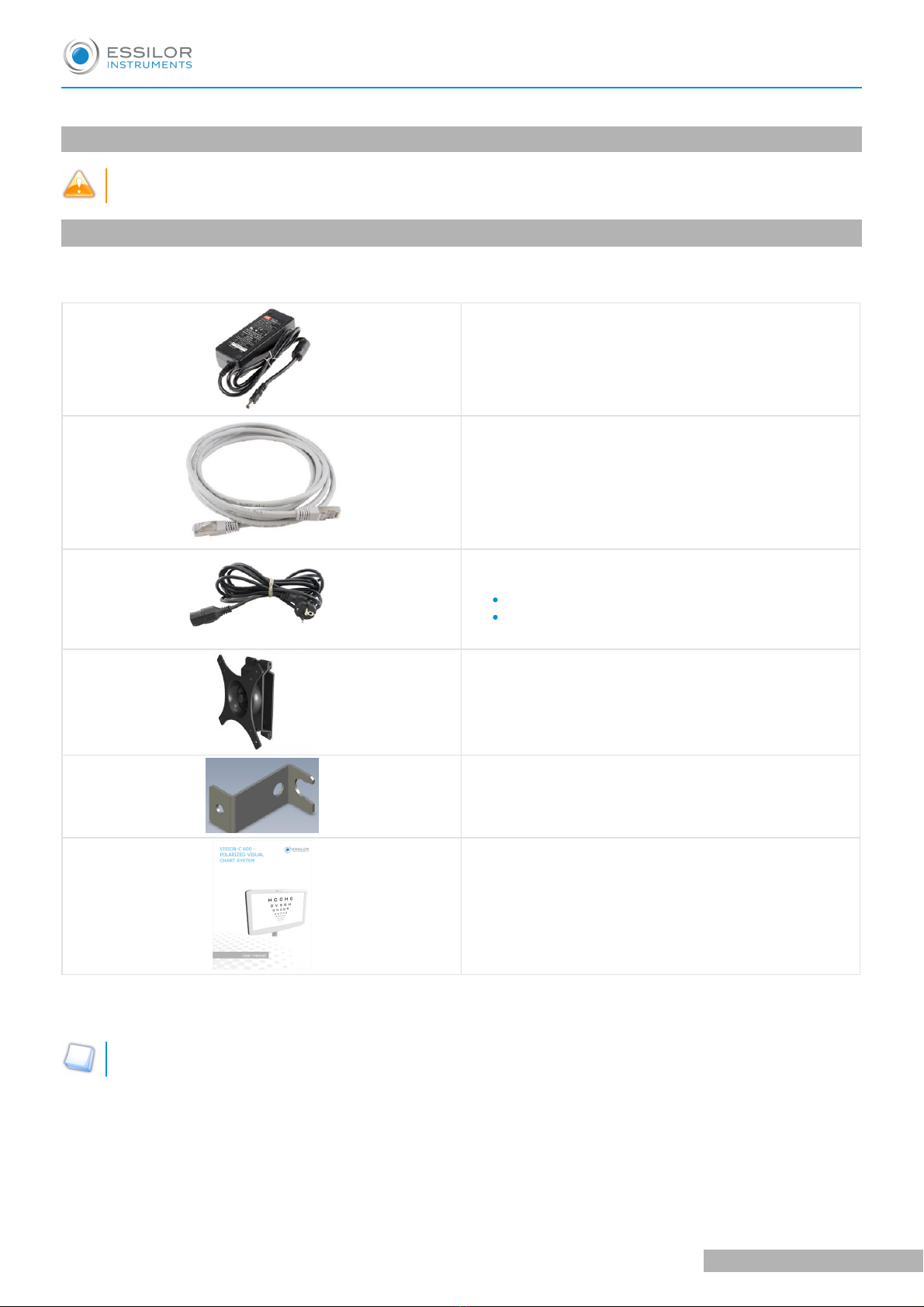

2. Checking the accessories
While unpacking, check that the following standard accessories are included.
Standard accessories and detachable parts
Power supply*
Ethernet cable, 2m
Power cable*, 1.80m x2
US: ref CA6096
Europe: ref VRSA05
Wall mounting bracket
Power cable holder
User manual
*
Detachable parts
Vision-C 600 is entirely compatible and designed to work with the Vision-RTM phoropters.
USER MANUAL > INSTRUMENT
Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE) 8

1

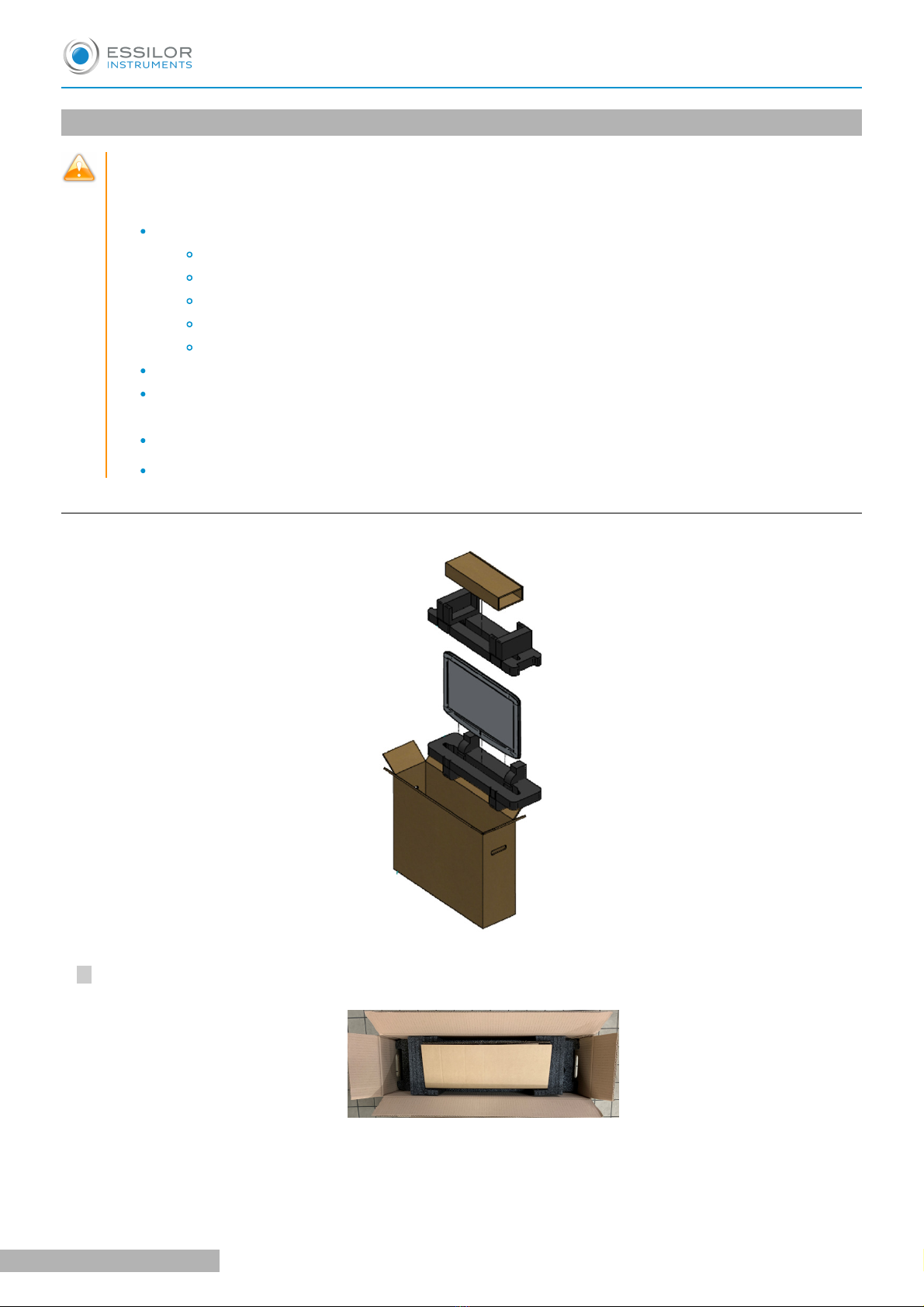

3. Unpacking, installation and connection
This instrument must be installed by a specialized technician. To install the instrument or to change its
connection, please contact your Essilor dealer.
Respect the precautions below:
Do not install the instrument in a location:
where dust or dirt accumulates,
directly exposed to the light rays,
oxygen rich,
displaying extreme temperatures and humidity levels,
likely to undergo strong oscillations or sudden shocks.
Do not use the instrument with flammable anaesthetics or in conjunction with flammable agents.
The instrument should not fall; that would likely cause malfunctions. If it does fall, the instrument
could also crush your body or feet.
Be sure to mount the device away from a power outlet.
Do not push the inserts too far into the wall.
a. Unpackaging
Open the box and remove the accessories box.
USER MANUAL > INSTRUMENT
9Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

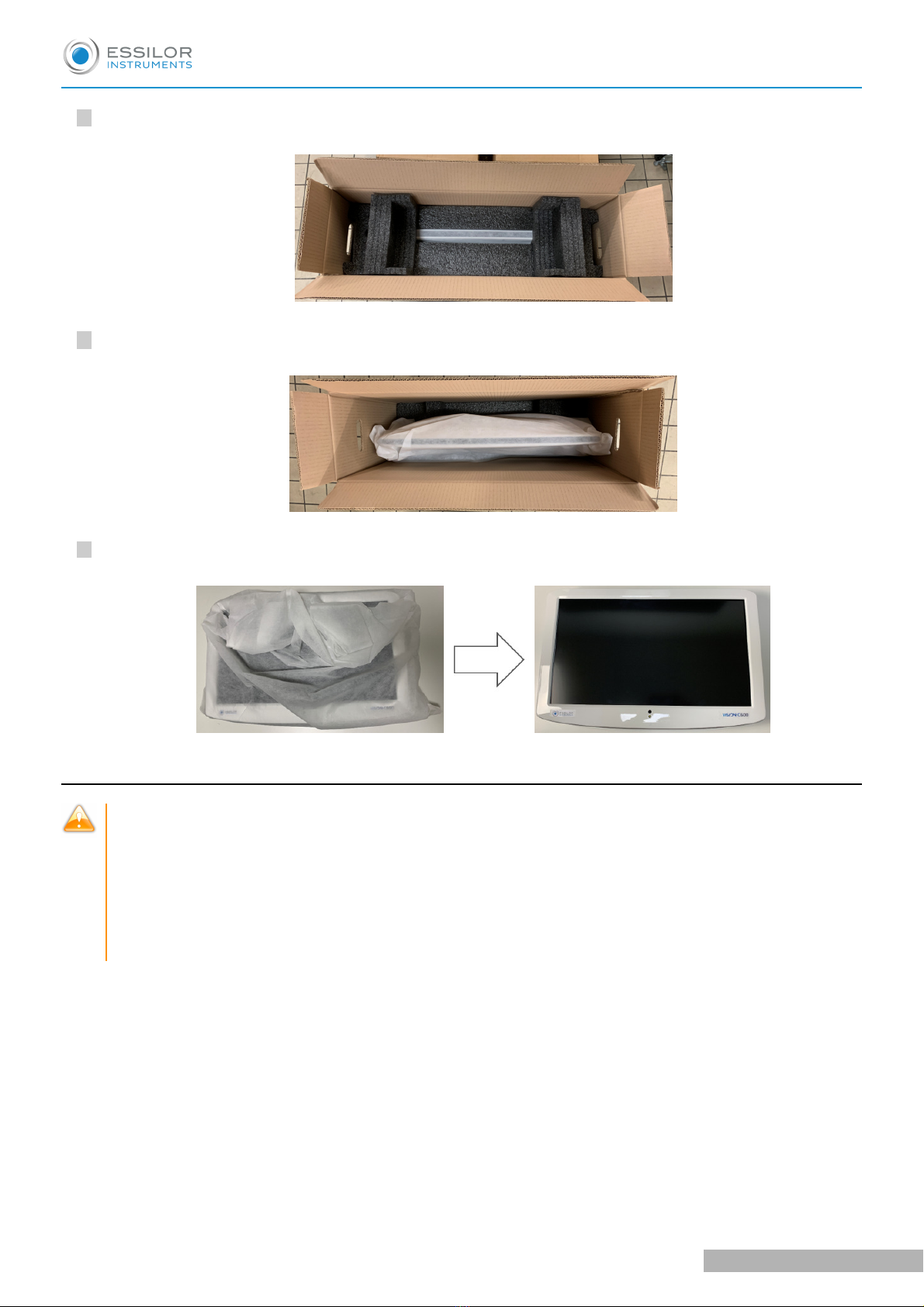

2
3
4
Remove the foam.
Gently remove the screen out of the box.
Remove the protective cover.
b. Installation
1. Find a suitable point on the wall to attach the wall mount bracket that will support the product.
> Make sure that the refraction distance meets the requirements for either direct view or mirror
arrangement.
2. Level the supplied wall mount bracket with the metal tabs facing up and out on your wall and mark the
holes for the installation.
3. Place the wall mount bracket on the wall, and screw or tap the screws (nail) into the holes.
4. Hang the product by lining up the holes on the back of the unit with the metal strips of the wall mount
bracket and hang the unit on these strips.
USER MANUAL > INSTRUMENT
Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE) 10

Size
Components
Screen plate, ion plate (x1)
Wall plate
Screw M4x16mm, ref. CV6273 (x4)
Fastening screw ST6.3*65 vmm (x2)
Expansion pipe (x2)
Washer (x2)
USER MANUAL > INSTRUMENT
11 Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

1
2
3
4

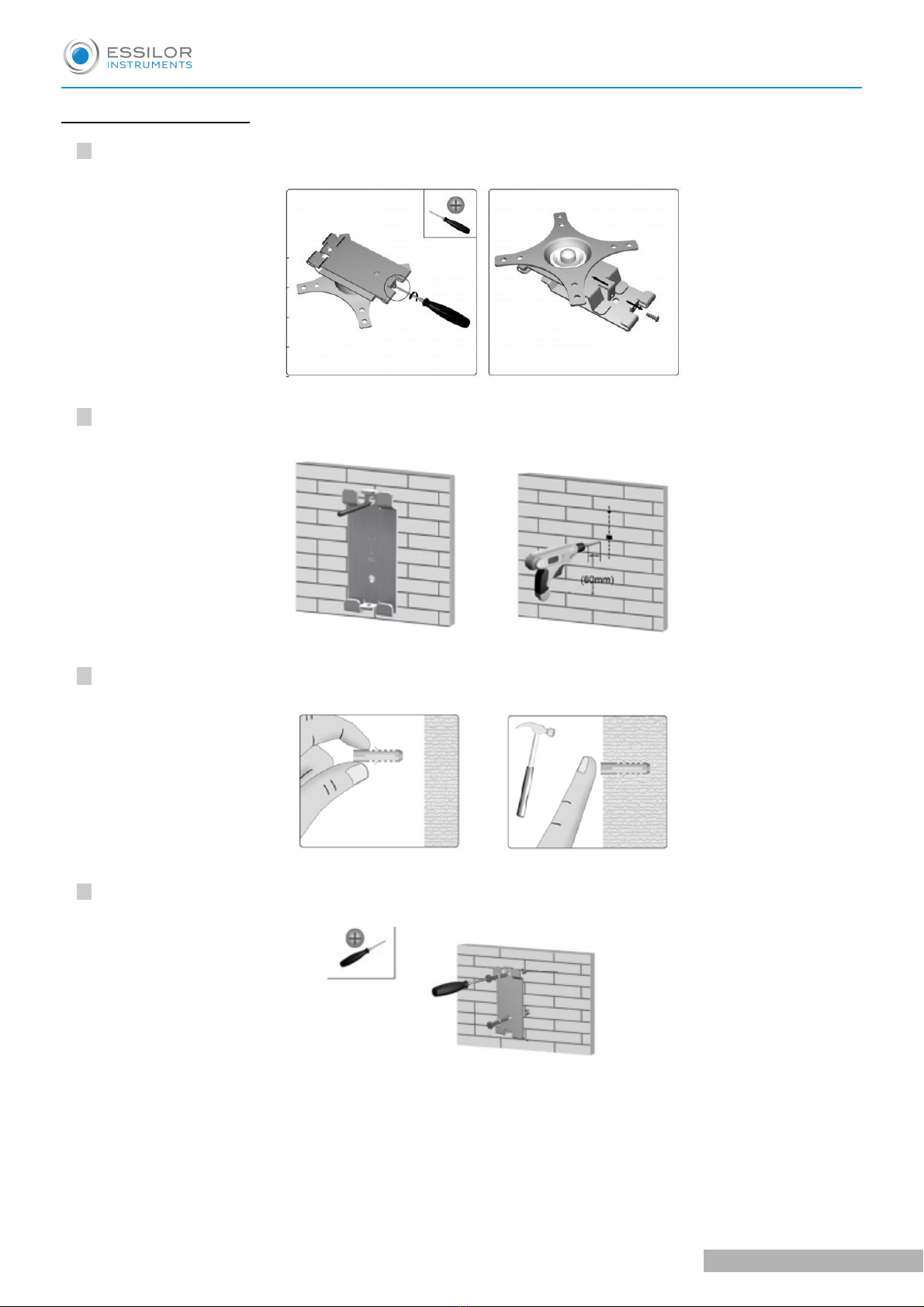

Installation of VESA brackett
Unscrew and remove the part to be fixed on the wall.
Position the wall part in order to mark the 2 fixing pants then, drill.
Fit the wooden dowel provided.
Screw the wall part of the support.
USER MANUAL > INSTRUMENT
Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE) 12

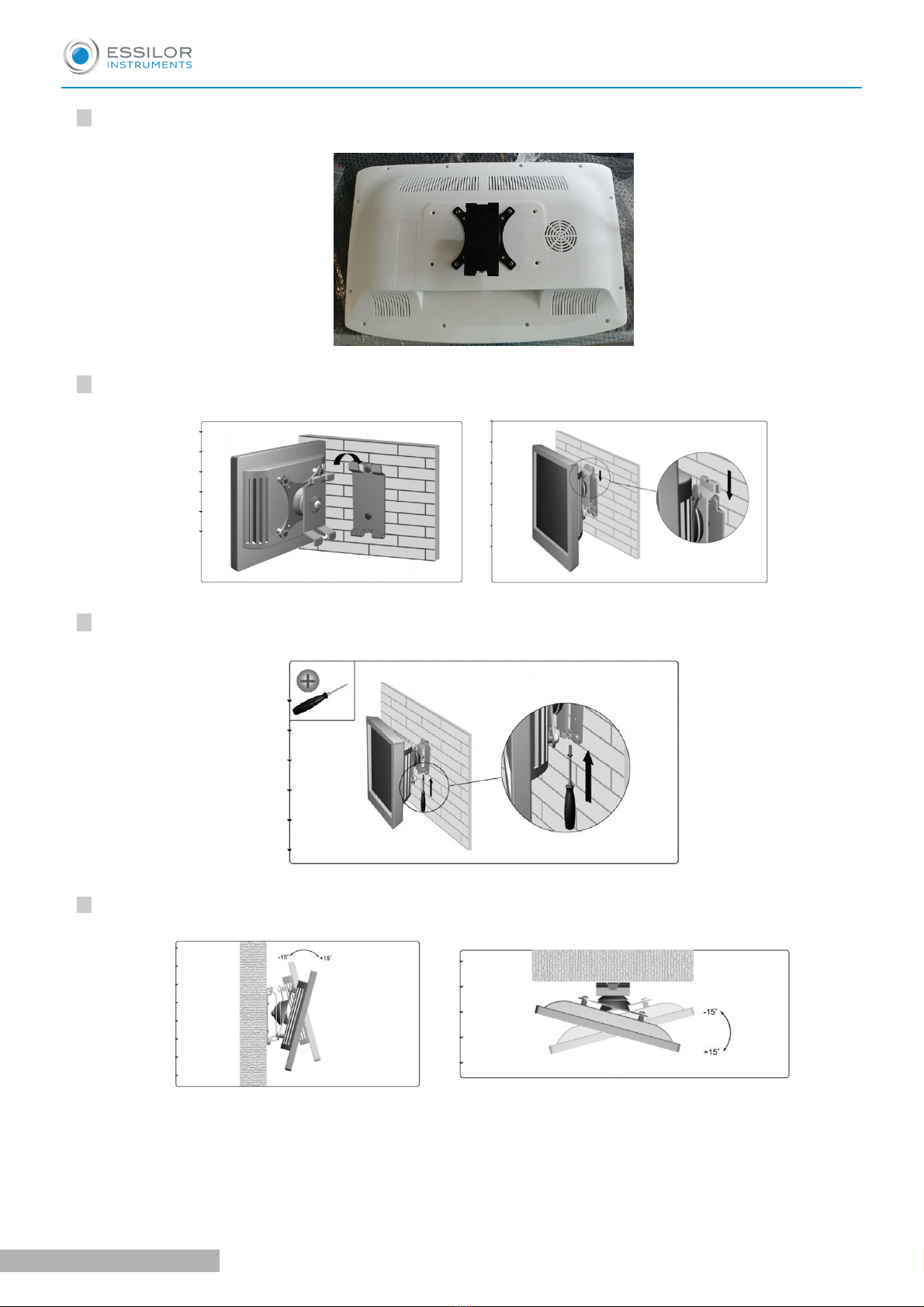

5
6
7
8
Screw the other part with the 4 screws ref CV6273 (M4x16mm).
Position the screen from above as shown below.
Screw the security screw.
Adjust the screen angle as needed.
USER MANUAL > INSTRUMENT
13 Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

1
2
It is also possible put the chart screen on a support (ref. CS510).
Installation of the power cord holder
Put the power cable mounting holder.
Screw the support to the right location.
The scew is supplied.
USER MANUAL > INSTRUMENT
Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE) 14

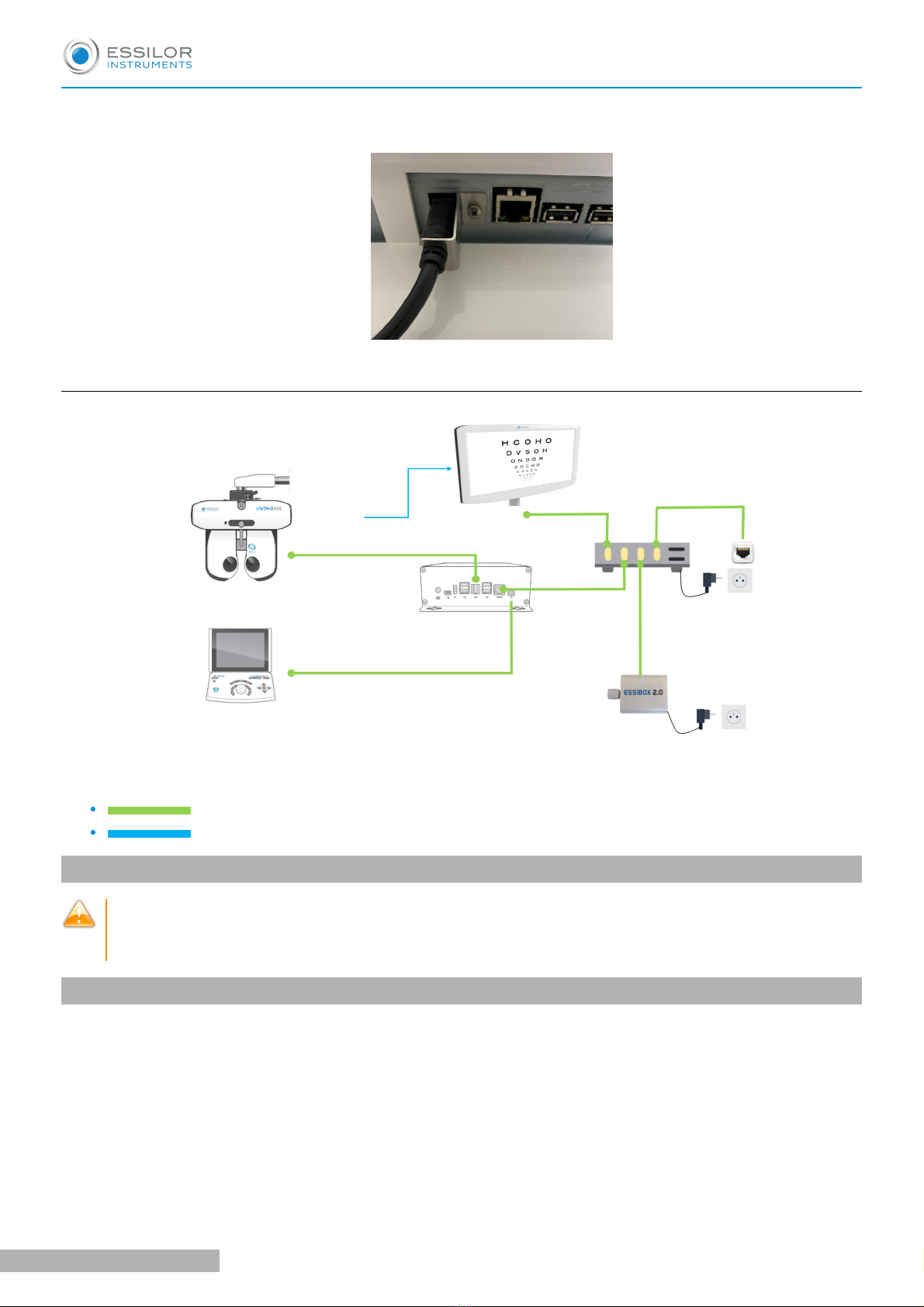

c. Connection
With:
Cable connection
Infra-red connection
4. Transport
The device must be transported and stored in its original packaging.
For the storage and transport conditions please refer to the specifications contained in this document.
Keep the original packaging with care in case the device needs to be transported again.

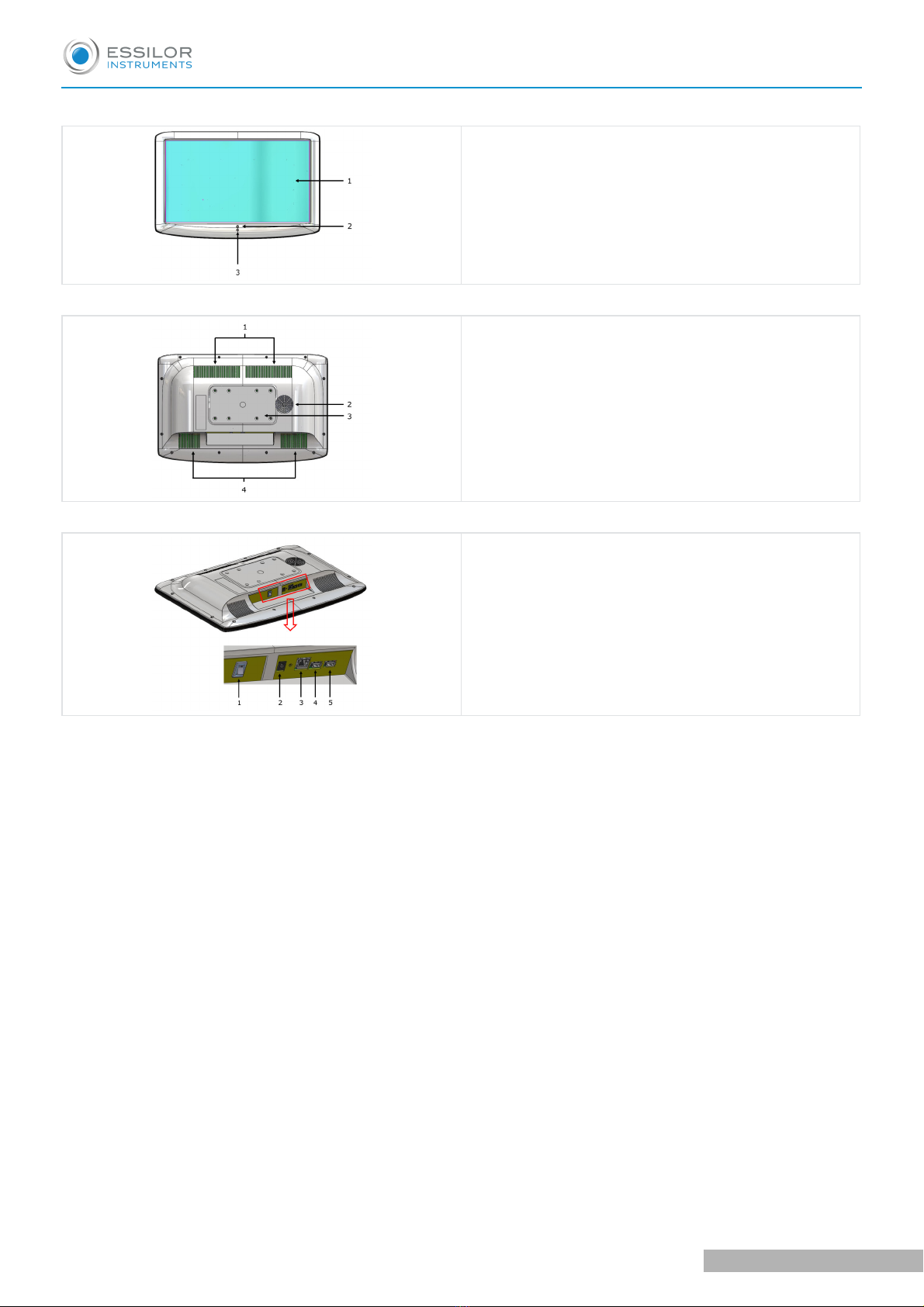

5. Identification and locating of the elements
The Vision-C 600's main components are shown below.
The power cord holder is mounted.>
USER MANUAL > INSTRUMENT
15 Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

Front face
1. Polarization LCD
2. IR sensor
3. White LED (test Maddox)
Rear face
1. Aeration
2. Speaker
3. Fixation zone
4. Aeration
Connection
1. Power switch ON/OFF
2. Power IN DC 12V
3. RH45 Lan
4. USB1
5. USB2
USER MANUAL > INSTRUMENT
Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE) 16

III. ADJUSTMENTS BEFORE THE EXAMINATION

1
1

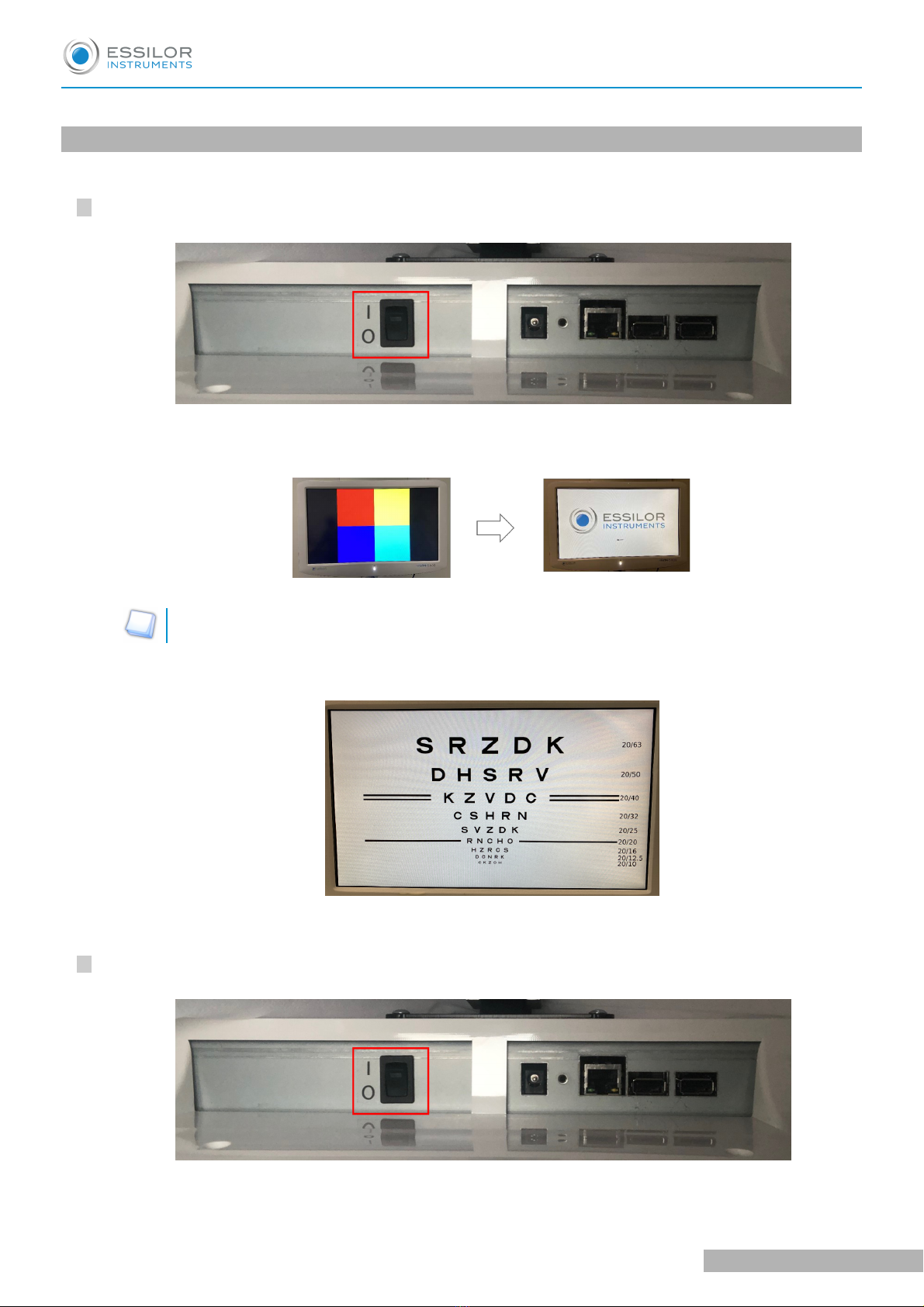

1. Turning ON/OFF
Turn on the instrument
Press the ON/OFF switch on the chart screen.
You can check the connection between the console keypad and the screen by clicking on the
optotypes (they should appear on the screen).
Turn off the instrument
Press the ON/OFF switch on the chart screen.
The screen switch on.>
The instrument is ready to be used.>
USER MANUAL > ADJUSTMENTS BEFORE THE EXAMINATION
Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE) 18

2. Positioning the screen
Please put the product so that the center of the LCD screen is at the level of patient's eyes.
Optotypes are generated based on screen adjustment distances.
3. Settings
a. Configuring the screen
All the Vision-C 600 settings are configured on the console of the Vison-R.
It is possible to modify the default settings of the screen by pressing on > of the console.
> The instrument settings page is displayed.
> Then click on .
>The following page appears:
For IP connection For IR connection
The screen switch off.>
USER MANUAL > ADJUSTMENTS BEFORE THE EXAMINATION
19 Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

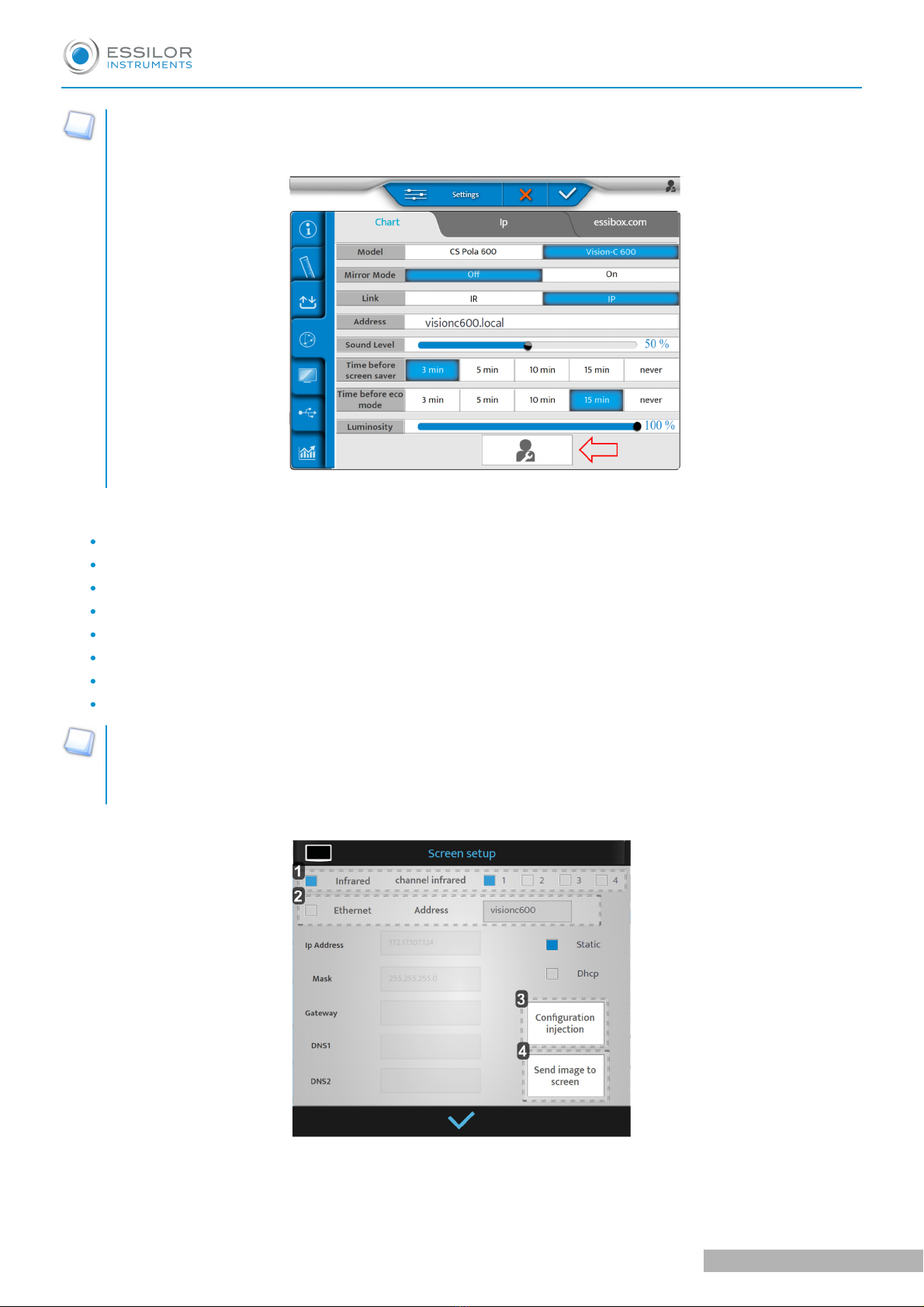

The [Vision-C 600 Configuration] button calls the popup of the Vision-C 600 configuration.
This button is only available in technician mode.
Now you can set the following settings:
[Model]
[Mirror mode]
[Link]
[Address]
[Sound level]
[Time before screen saver]
[Time before eco mode]
[Luminosity]
When [Chart Type] is set on [Vision-C 600], the IP communication is available.
If the IP communication is set, [IR Channel] is replaced by [IP Address].
When [Vision-C 600] is selected, [Time before eco mode] and [Time before screen saver] are available
as the [Vision-C 600 Configuration] button.
Click on [Vision-C 600 Configuration] button, the following pop up appears:
1. [Infrared]
Only when the [IR] is selected.
USER MANUAL > ADJUSTMENTS BEFORE THE EXAMINATION
Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE) 20
