Overview
The Echo Dual Tech Ceiling-mount Vacancy Sensor uses passive infrared (PIR)
technology and acoustic detection to provide reliable vacancy sensing for
lighting control. The sensor relies on local station control for manual on and
provides auto off functionality upon detection of vacancy.
The ceiling-mount sensor offers 360 degree coverage with optimized lens
options to accommodate small and large spaces.

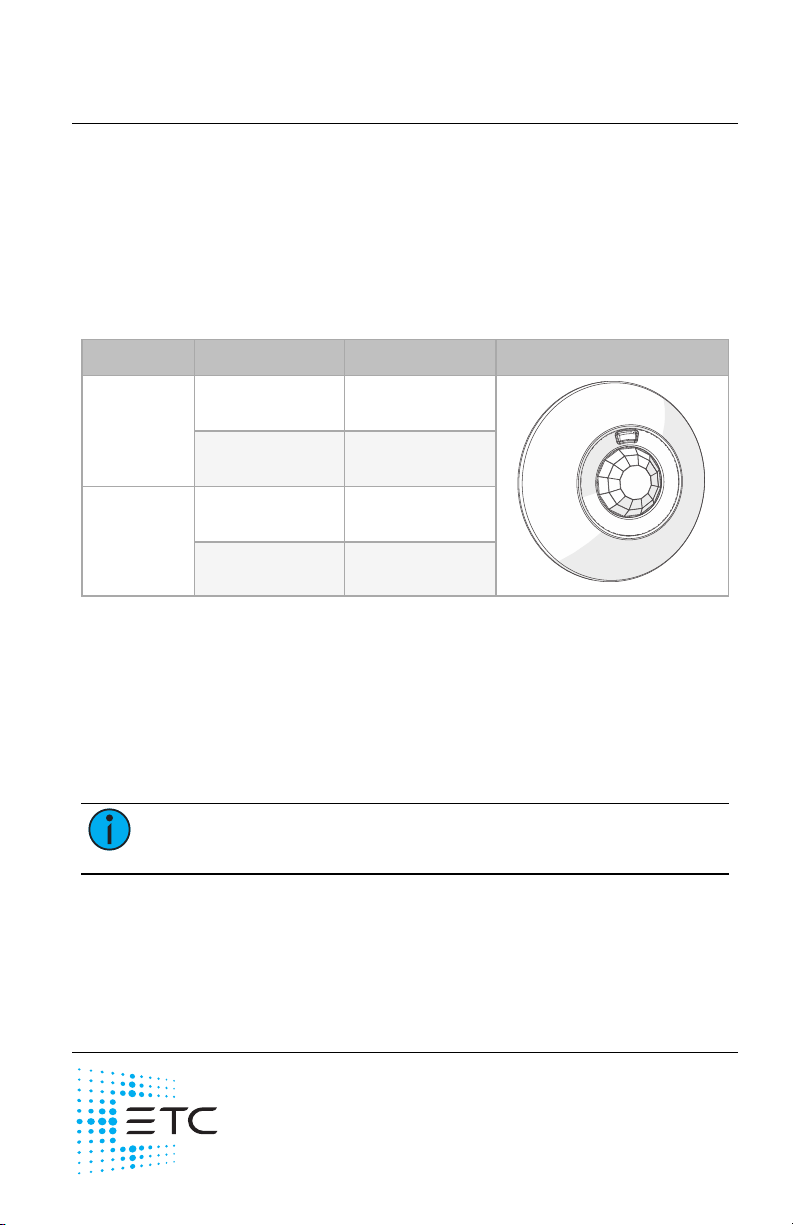

Model Coverage m2Coverage ft2
E-DVAC-C-SR
SmallRoom
41.8m2at2.4m 450ft2at8ft
74.3m2at 6.7m 800ft2at 12ft
E-DVAC-C-LR
LargeRoom
167m2at 2.4m 1,800ft2at 8ft
279m2at 6.7m 3,000ft2at 12ft
Field-installed lens masks are provided to allow customized detection fields
for each sensor lens type.
Custom Configuration
This document guides you through the installation and local DIP switch setup
of the sensor. For more detailed information about custom configuration
options available using EchoAccess, see the EchoAccess App integrated help
system.
Note: To use the configuration settings applied using EchoAccess,
DIP switch 2 must be enabled. See DIP Switches on page7.

ETC Installation Guide
Dual Tech Vacancy Sensor
Prepare for Installation
Ceiling-mount sensors are intended for installation to a finished ceiling
surface, soft ceiling tile mounted, or attached to a round or octagonal fixture
junction box.
Compliance
•
cULus Listed
•
CE compliant
For use with ETC Echo Control Systems, powered by an Echo station power
supply.
Environment
Ambient
For indoor, commercial controls use only. Operating temperature 0-40°C
(32-104°F), humidity maximum 90%(non-condensing).
Location
ETC recommends paying special attention to the installation environment:
•
When operating in PIR only modes, the sensor must have an
unobstructed view of the room. Do not mount behind or near tall
cabinets, shelves, hanging light fixtures, etc.
•
Do not install the sensor within eight feet from an HVAC airflow
duct/vent.
•
Install the sensor where it cannot easily sense movement in areas
outside of the intended space, such as hallways, glass partitions, or
adjacent rooms. If the installation location cannot avoid these
conditions, portions of the lens can be masked to block the sensor
view of these undesired areas. See Lens Masking on page10 .
Note: In areas of increased noise activity, enabling PIR only mode
may allow for better vacancy detection results. See DIP Switches on
page 7.
Dual Tech Vacancy Sensor Page 2 of 12 ETC

ETC Installation Guide
Dual Tech Vacancy Sensor
Wire Specification
The Dual Tech Vacancy Sensor connects to the EchoConnect communication
bus. EchoConnect is a bi-directional protocol that uses one pair of wires
(data+ and data-) for both data and power. ETC recommends using Belden
8471 Class 2 wire (or approved equal - see the ETC cable cross database
etcconnect.com/Support/Cable-Cross-Database for equal alternatives). The
total combined length of an EchoConnect wire run using Belden 8471 may
not exceed 500m (1,640ft), with a maximum distance of 400m(1,312ft)
between any two devices.
Note: All control wiring should be installed and terminated by a
qualified installer and should follow standard wiring installation
practices. Leave approximately 25.4cm (10in) of wiring in the back
box for connection and to allow slack for future service needs.
Note: ETC requires that all stations and devices be grounded for
ESDprotection. Pull an additional 2.5 mm2(14AWG) wire for
grounding when control wires are not installed in grounded metal
conduit.
Note: When using Category 5 (or equivalent) cable on the
EchoConnect communication bus, please note the following:
•
Cat5 wiring must be terminated using EchoConnect Cat5
Termination Kit and must be installed using a bus topology.
Refer to the installation guide that is provided with the Cat5
Termination Kit (7186A1207) for information to terminate
Cat5 wiring.
•
Not all topologies are supported using Cat5; careful planning
is required to ensure the proper termination kits are available
and the wire is pulled appropriately.
Supplies
The following supplies are provided with the sensor:
•
Soft ceiling tile adapters
•
2 each mounting screws, 6-32 x 3/4" and 6-32 x 1 3/4"
•
Lens masks
•
WAGO connectors, 3-position
Dual Tech Vacancy Sensor Page 3 of 12 ETC

ETC Installation Guide
Dual Tech Vacancy Sensor
Installation
Note: Installation must follow all national and local codes for
electrical equipment. NEC Class 2 product to be wired in accordance
to NEC Article 725 and local jurisdiction requirements.
The ceiling-mount sensor is provided with a mounting plate that can be
mounted to a junction box, finished ceiling, or soft ceiling tile. Determine the
installation method and follow the detailed instructions:
•
Junction Box or Surface Installation below
•
Soft Ceiling Tile Installation on the facing page
Junction Box or Surface Installation

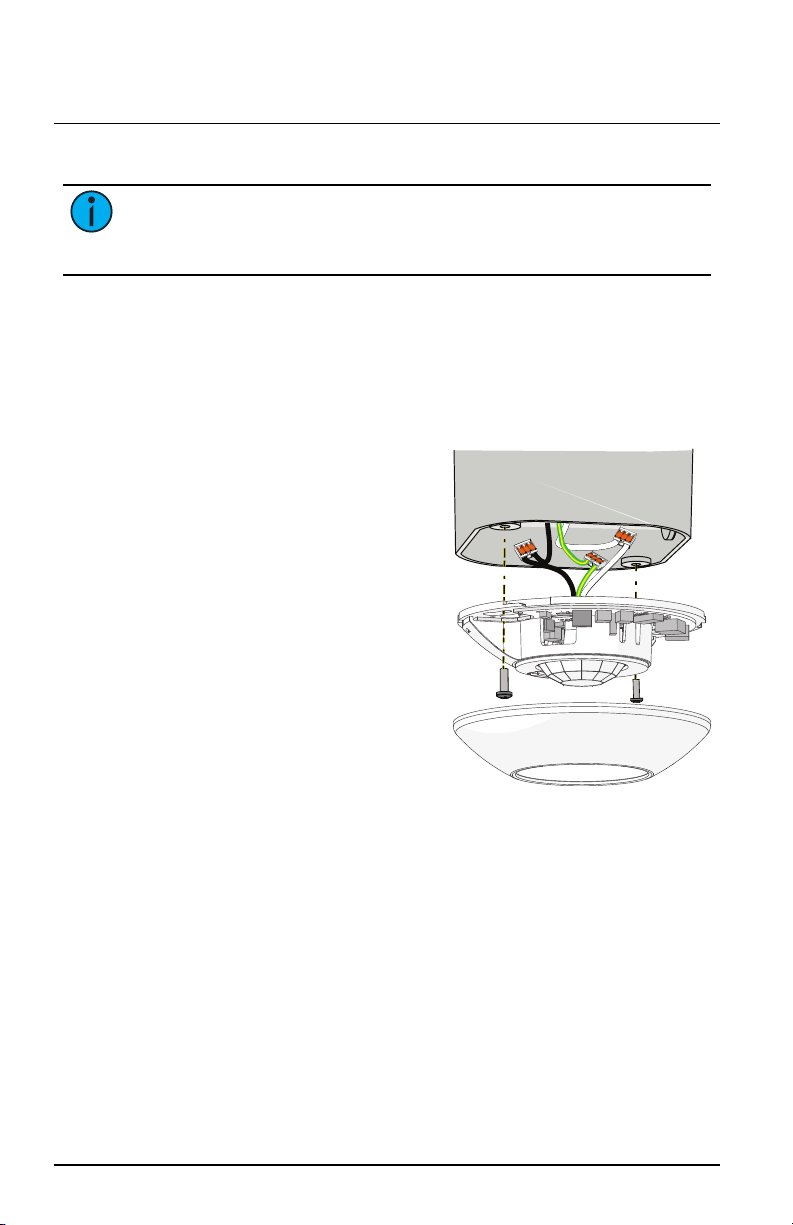

1. Pull the Belden 8471 (or
equivalent) and one 2.5mm2
(14AWG) ground wire to the
mounting location (junction
box or finished surface) and
strip each wire 11mm (7/16in).
2. Temporarily remove the sensor
cover to gain access to the
configuration switches and
mounting access holes. Hold
the sensor in one hand while
gently twisting the cover
clockwise.
3. Connect the EchoConnect wires
from the sensor to the installed
wires.
a. Connect the data-EchoConnect wire(black) from sensor to the
incoming data- EchoConnect wire (typically black) using a WAGO
wire termination connector.
b. Repeat the above step for the data+EchoConnect wire(typically
white) and for the ESD ground wire (typically green/yellow), using
a new WAGO connector for each termination type.
4. Orient the flat side of the sensor to the junction box or surface and
secure it in place using the screws provided (both short and long
screws are provided for installation convenience).
Dual Tech Vacancy Sensor Page 4 of 12 ETC

ETC Installation Guide
Dual Tech Vacancy Sensor
Soft Ceiling Tile Installation
Ceiling tile
adapter Ceiling tile
Ceiling tile adapter
1. Pull the Belden 8471 (or equivalent) and 2.5mm2(14AWG) ) ground
wire to the mounting location and strip each wire 11mm(7/16in).
2. Temporarily remove the sensor cover to gain access to the
configuration switches and mounting access holes. Hold the sensor in
one hand while gently twisting the cover clockwise.
3. Prepare the ceiling tile.
a. Align the flat side of the sensor to the finished side of the ceiling
tile and mark the center access hole for wire pass-through.
b. Remove the ceiling tile material from marked access hole.
c. Pull the sensor wires through the access holes to the unfinished
side of the ceiling tile.
4. Secure the sensor in place.
a. Insert the soft ceiling tile adapters through the provided pinholes
on the sensor, one set located on each side of the sensor near the
mounting keyholes.
b. Push the adapters through the ceiling tile, and then bend each
tine over in opposite directions for a secure fit on the unfinished
side of the ceiling tile.
5. Connect the EchoConnect wires from the sensor to the installed wires.
a. Connect the data - EchoConnect wire (black) from sensor to the
incoming data- EchoConnect (typically black) wire using a WAGO
wire termination connector (provided).
b. Repeat the above step for the data + EchoConnect wire (white)
and for the ESD ground wire (typically green/yellow), using a new
WAGO connector for each termination type.
Dual Tech Vacancy Sensor Page 5 of 12 ETC

ETC Installation Guide
Dual Tech Vacancy Sensor
Settings
DIP switches
Space and Address
switches
The Echo Dual Tech
Ceiling-mount
Vacancy Sensor
participates in an
Echo control system
using the configured
Space and Address,
which are selectable
using the rotary
switches on the sensor electronics located behind the removable cover.
Note: When the sensor is placed into Custom configuration mode,
DIP switch 2 set to On, all other DIP switch settings are ignored.
Note: The [MODE] and Auxiliary [A] buttons, and their related LEDs,
are not used and have no functionality on the Dual Tech Ceiling-
mount Vacancy Sensor.
Set Space and Address
Two rotary switches on the sensor electronics provide for Space and Address
assignment for the sensor. By default, these switches are set to Space1,
Address1. Commands are shared by all devices within a given space.
1. Set the Space rotary switch to the desired number (1 through 16) for
the space you want the sensor to control.
2. Set the Address rotary switch to desired address (1 through 16) for the
sensor identification in the selected space.
Note: Do not duplicate a device Address within the same Space.
Dual Tech Vacancy Sensor Page 6 of 12 ETC

ETC Installation Guide
Dual Tech Vacancy Sensor
DIP Switches
DIP switches on the sensor electronics provide for additional configuration
options including Use Custom Config, Vacancy Timeout, Enable/Disable
detection LEDs, PIR Only Mode, and the ability to restore the sensor to its
factory defaults.
Switch # Use
1Unused (leave Off)
2Enable/Disable Custom Config Mode
•
When “Custom Config” is set to Off (default), also known
as Basic configuration mode, the local DIP switch settings
for Vacancy Timeout, Enable PIR LED, and dual technology
features are used. See Configuration on page 8 .
•
When “Custom Config” is set to On, all other local DIP
switch settings are ignored. Instead, the settings made by
the EchoAccess App are used.
3 and 4 Vacancy Timeout
•
5 min = Switches 3 and 4 are Off
•
15 min = Switch 3 is Off and Switch 4 is On (default)
•
30 min = Switch 3 is On and Switch 4 is Off
•
Auto = Both switches are On
5Detection LEDs
•
When set to On (default), the occupancy detection LEDs
illuminate when movement is detected.
•
When set to Off, the occupancy detection LEDs are
disabled unless the unit is in Walk Test mode.
6PIR Only Mode
•
When set to On, acoustic detection technology is disabled
for the sensor.
•
When set to Off (default), both PIR and acoustic detection
technologies are used by the sensor.
7Unused (leave Off)
8Restore to Defaults at boot
•
When set to On and power is cycled to the sensor, the
unit restores to its factory default settings.
•
Off is the default setting.
Dual Tech Vacancy Sensor Page 7 of 12 ETC

ETC Installation Guide
Dual Tech Vacancy Sensor
Power Up
All EchoConnect terminations in the system must be made before applying
power to the system and sensor. When the sensor is powered up, the PIR and
acoustic detection LEDs illuminate for one minute for calibration and warm-
up. Both the PIR and acoustic detection features of the sensor will
automatically adjust the sensitivity threshold to eliminate nuisance tripping.
During this time configuration is not allowed and no events are triggered.
Configuration
Basic
When the sensor is in Basic configuration mode (DIP switch 2 set to Off), the
sensor will activate a Space Off command when vacancy is detected.
Custom
When functionality other than Space Off is required, place the sensor in
Custom configuration mode (DIP switch 2 set to On). Customization of the
sensor and all actions are configured using the EchoAccess App.
For more detailed information about custom configuration options available
using EchoAccess, see the EchoAccess App integrated help system.
Operation
Dual Technology
When both PIR and acoustic detection are used, the following logic is used:
•
When the space is vacant, only manual control can switch the state to
occupied.
•
When the space is occupied, PIR, acoustic detection, and manual
control can reset the vacancy timeout.
•
When the vacancy timeout in the space has only been reset by acoustic
detection for 60 minutes, acoustic detection is disabled until the next
PIR detection event.
PIR (only) Detection
When acoustic detection is disabled (DIP switch 6 set to On), the following
logic is used:
•
When the space is vacant, only manual control can switch the state to
occupied.
•
When the space is occupied, PIR detection and manual control can
reset the vacancy timeout.
Dual Tech Vacancy Sensor Page 8 of 12 ETC

ETC Installation Guide
Dual Tech Vacancy Sensor
Vacancy Timeout
Vacancy timeout is the amount of time the sensor waits to take action after
no movement is detected. By default, vacancy timeout is set to 15 minutes
(indicated by DIP switch 3 set to Off and 4 set to On; see DIP Switches on
page 7 ). When the vacancy timeout ends, the grace period begins.
When the sensor detects vacancy, the vacancy timeout period begins. If the
sensor does not detect occupancy again during the vacancy timeout period,
the lights turn off and a 30 second grace period begins.
Grace Period
The sensor features a 30 second grace period after a vacancy timeout occurs.
During this grace period, if the sensor detects occupancy, it will turn on or
restore the previous lighting condition.
Auto Vacancy Timeout
The “Auto” vacancy timeout setting varies the vacancy timeout between
5 and 30 minutes depending on how often it identifies an occupancy trigger
after a vacancy timeout occurs (during the grace period).
Dual Tech Vacancy Sensor Page 9 of 12 ETC

ETC Installation Guide
Dual Tech Vacancy Sensor
Walk Test
The sensor offers a Walk Test mode, which shortens the vacancy timer to ten
seconds and allows for simple and quick verification of the sensor’s coverage
and range in the installed space.
[Walk Test]
1. Prepare the site for configuration.
a. Make certain the sensor and lighting loads are powered and
connected for control by the Echo control system.
b. You will need direct access to the sensor in order to place it into
Walk Test mode.
2. Press the Walk Test button on the sensor to enable the Walk Test
feature. A green LED will flash, indicating Walk Test is enabled and the
vacancy timer will be shortened to ten seconds.
3. Move throughout the space including corners and areas that may be
obscured from line of sight to the sensor. Each time the sensor detects
movement, the lens illuminates red. If acoustic detection is enabled,
any sound detected will illuminate the lens green.
4. Adjust the lens masking, if installed, blocking certain areas of the
installed space from sensor detection. See Lens Masking below .
5. Walk Test mode automatically exits and the sensor returns to normal
operation after five minutes. You can also manually terminate by
pressing the Walk Test button again.
Lens Masking
Lens masks are provided in the packaging for your convenience. Use this to
block a section of the lens from detecting occupancy. To attach, cut to the
desired size, remove the backing and stick it on the sensor lens, covering the
desired sections.
Dual Tech Vacancy Sensor Page 10 of 12 ETC

ETC Installation Guide
Dual Tech Vacancy Sensor
Sensor Coverage
Small Room Lens
Side View
0
0
1.5 m
5 ft
1.5 m
5 ft
3.0 m
10 ft
3.0 m
10 ft
4.6 m
15 ft
4.6 m
15 ft
6.1 m
20 ft
6.1 m
20 ft
8 ft
2.4 m
10 ft
3.0 m
12 ft
3.7 m
Large RoomLens
Side View
0
8 ft
2.4 m
10 ft
3.0 m
12 ft
3.7 m
0
3.0 m
10 ft
3.0 m
10 ft
6.1 m
20 ft
6.1 m
20 ft
9.1 m
30 ft
9.1 m
30 ft
12.2 m
40 ft
12.2 m
40 ft
Dual Tech Vacancy Sensor Page 11 of 12 ETC

ETC Installation Guide
Dual Tech Vacancy Sensor
Dual Tech Vacancy Sensor Page 12 of 12 ETC
