1
Questions or Concerns? [e-mail] • [phone]
Smart Fitness Scale
Model: ESF93 Series
User Manual

2
Table of Contents
Package Contents
Specications
Safety Information
Function Diagram
Digital Display
Vesync App Setup
Using the Smart Scale
Maintenance
Troubleshooting
Warranty Information
Customer Support
2
2
3
5
6
7
8
10
13
17
19
1 x Smart Fitness Scale
1 x Micro-USB Charging Cable
1 x Quick Start Guide
Specifications
Package Contents
Input DC 5V, 500mA
Weight Capacity 400 lb / 28 st / 180 kg
Increments 0.1 lb / 0.05 kg
Weight Units lb / st / kg
Platform Tempered Glass
Dimensions 11.8 x 11.8 x 0.9 in /
30 x 30 x 2.3 cm
Battery Type 1000mAh Li-ion Battery
Charging Time 3 hours
Auto-Off 30 seconds
Note: To access additional smart fitness scale functions,
download the free VeSync app (see page 7).

3
Safety Information
READ AND
SAVE THESE
INSTRUCTIONS
Medical
General Use
• This scale should not be used to diagnose
or treat any medical condition.
• Scale data should not be used as a
substitute for medical advice from a
healthcare professional.
• This scale uses a harmless electrical
current to measure body fat. Consult a
healthcare professional before using the
• Check the scale before using. Do not use
the scale if it is damaged in any way.
• Do not strike or bang on the scale and do
not use the scale if there is a crack on the
glass. While tempered glass is stronger
and fractures more safely than ordinary
glass, it may shatter unexpectedly after
developing a slight crack. If you see a
crack, contact Customer Support (see
page 19).
• The glass platform is slippery when wet.
Always make sure the platform and
your feet are dry before stepping on for
measurement.
• Place the scale on a hard, at surface to
avoid tipping.
Please read and follow all instructions and
safety guidelines in this manual.
smart scale if you use medical electronic
equipment such as a pacemaker.

4
• To weigh safely and accurately, stand with
your feet shoulder-width apart while on
the scale. Do not stand on the edge of the
scale or jump on the scale.
• Avoid standing on the scale for a long
period of time, or when not weighing
yourself.
• Do not overload the scale. Maximum
weight capacity is 400 lb / 28 st / 180 kg.
• Keep the scale in a cool area with low
humidity. Keep the scale away from heat
sources, such as ovens or heaters. Avoid
temperature uctuations. Store the scale
in a horizontal position, not vertical.
• Do not use while charging. Remove the
charging cable before using.
• Handle with care.
• Not for commercial use. Household use
only.

5
UNIT
Function Diagram
A. USB Charging Cable
B. Weighing Platform
C. Display
D. USB Charging Socket
TOP UNDERSIDE
E. Reset Button
F. Unit Switching Button
G. Anti-Skid Padding
B
A
C
DE
F
G
UNIT

6
Digital Display
A. Weight Measurement
B. Battery Life Indicator
C. Bluetooth®Icon
D. Weight Units
lb
kg
B
C
D
A

7
VeSync App Setup
1. To download the VeSync app, scan the QR code
or search “VeSync” in the Apple App Store® or
Google Play Store.
Note: Due to app updates and improvements, the contents
of this manual may change without notice. The VeSync app
user interface may appear slightly different.
2. Open the VeSync app. If you already have an
account, tap Log In. To create a new account,
tap Sign Up.
Note:
• This scale uses the VeSync app, not the VeSyncFit
app.
• For Android™ users, you may need to select Allow
to use VeSync.
Note: You must create your own VeSync account to use
third-party services and products. These will not work
with a guest account. With a VeSync account, you can
also allow your family and friends to use your smart
fitness scale.
Note: You can change the name and icon at any time in
the smart fitness scale settings.
3. Make sure the scale is fully charged.
4. Make sure your phone has Bluetooth®turned on.
5. Tap +in the VeSync app and select your smart
tness scale.
6. Follow the in-app instructions to connect to your
smart tness scale.

8
Using the Smart Scale
Note:
• Fully charge before first use.
• To see measurements besides weight, you must
connect the scale to the VeSync app (see page 7).
• To switch between pounds (lb), stone (st), and
kilograms (kg), press the unit switching button on
the underside of the scale or change the units in the
VeSync app.
• If you are pregnant, scale measurements will not be
accurate.
• This scale is not recommended for children under the
age of 10 because data may be inaccurate.
Creating a User
If you are a new user, you will need to enter physical
information before weighing yourself for the rst
time so the scale can calculate your body metrics.
Follow the in-app instructions to create a user.
Note:
• Entering inaccurate information will make the
scale’s measurements less accurate.
• If you don’t identify with the available gender
options, or are unsure, pick the option that you
think best physically matches you. This choice is
used for physical measurements, such as body fat
percentages.

9

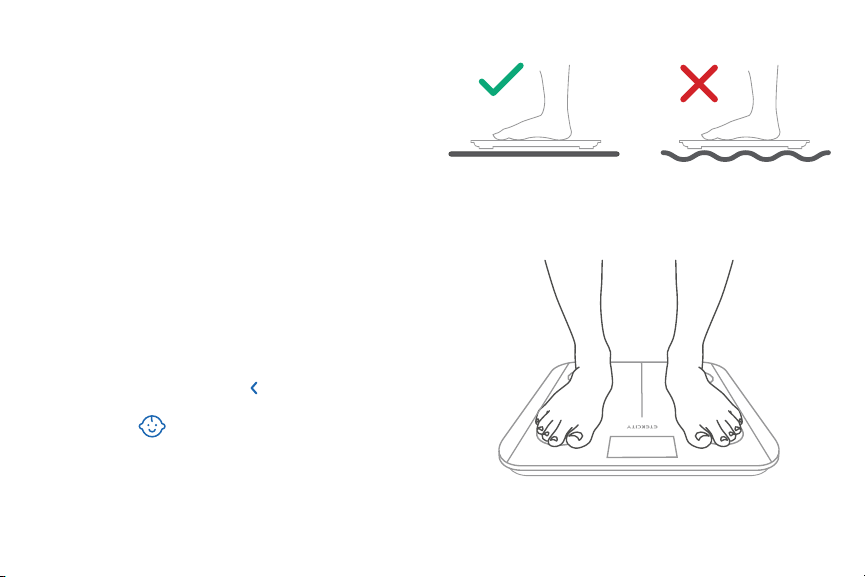

1. Place the scale on a hard, at surface (not a
carpet or mat). [Figure 1.1]
Figure 1.1
Figure 1.2
Note: Placing on carpet may cause inaccurate
measurements or tipping.
2. Make sure your feet are dry. Place bare feet
on the scale’s conductive areas. The scale will
automatically turn on and start measuring your
weight.
3. Continue standing on the scale until the digits
on the screen ash 3 times, showing your nal
measurement. [Figure 1.2] If your smart scale is
connected to the VeSync app, additional results
(such as BMI, body fat, etc) will show in the
app.
4. If you want to measure the weight of your baby
or pet, you can click the “ ”(Expand) button
in the lower right corner of the home page and
click the “ ”(Baby Mode) button to enter
the baby measurement mode and measure
according to the prompts. In baby mode, the
APP will only measure weight and BMI.

10
Maintenance
If the scale has been moved or ipped upside down,
it must be calibrated to ensure accurate results.
1. Place the scale on a hard, at surface.

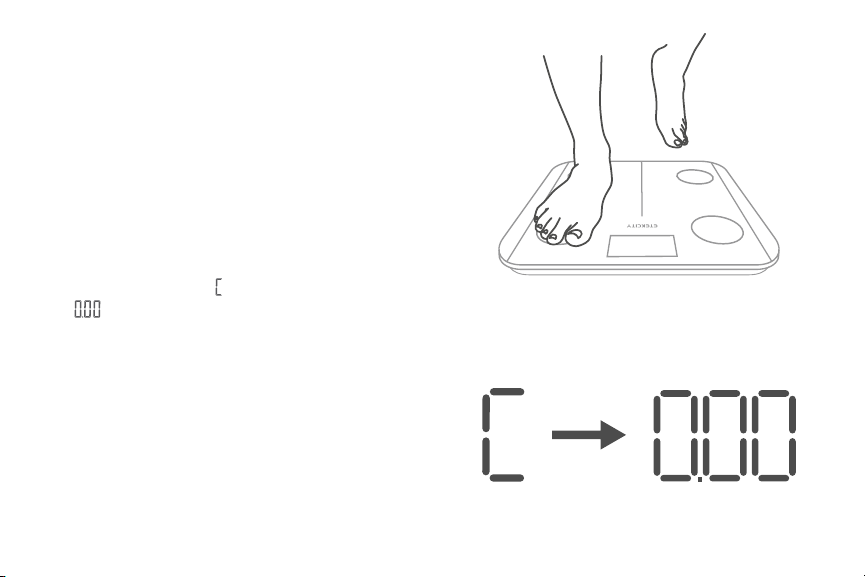

2. Step on the scale with 1 foot until digits appear
on the display [Figure 3.1] Then, step off.
3. The scale will show “ ” while calibrating, then
“ ” when complete. [Figure 3.2]
• Use a slightly damp cloth to clean the surface of
the scale, followed by a soft, dry cloth to wipe
away any remaining moisture.
• Do not use chemical or abrasive cleaning agents
to clean the scale.
Calibrating the Smart Scale
Cleaning the Scale
Figure 3.1
Figure 3.2

11
The display will show “ ” when the battery needs
to be charged.
1. Insert the USB charging cable into the USB
charging socket. [Figure 4.1]
2. Plug the USB charging cable into a DC 5V
adapter and plug into an outlet. You can also
plug the cable into a powered USB outlet.
[Figure 4.1]
Charging the Battery
Figure 4.1
3. The bars in the battery symbol ( ) will
continuously ll as the scale charges. When
charged, the symbol will be lled.
Note:
• Charging time is about 3 hours.
• For best results, fully charge your scale before using.
UNIT

12
Display Messages
Wireless Connection
Change Battery Overload Calibrating
No Wireless Connection

13
1. The scale doesn’t turn on.
• The scale may need to be charged. Plug it in
and charge for 3 hours.
2. Nothing happens when I press the unit button.
• The scale may need to be reset. Use a safety
pin or paper clip to press the “Reset” button
on the underside of the scale.
3. Information ashes on the screen and then
disappears.
• The battery is low and may need to be
charged.
4. The smart scale doesn’t connect with the
VeSync app.
• Make sure your phone’s operating system is
running on iOS™ 9.0+ or Android™ 4.3+.
• Close and relaunch the VeSync app. Make
sure you’re using the latest version.
• Turn on Bluetooth on your phone (for
Android users, make sure your Location is
turned on as well).
• Make sure your scale and phone are within
30 ft / 10 m of each other.
• Make sure the scale is not currently
connected to any other phone or app.
• Try turning off any VPN apps.
• The scale may need to be reset. Use a safety
pin or paper clip to press the “Reset” button
on the underside of the scale.
Troubleshooting

14
If you still need help, please contact Customer Support
(see page 19).

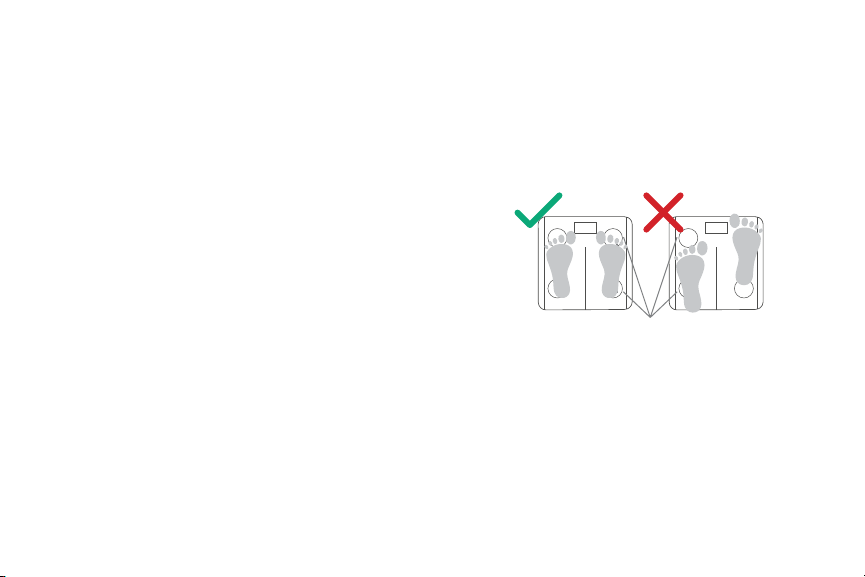

Conductive Areas
Figure 5.1
5. My scale will only measure my weight, or only
my weight and BMI.
• Set up your smart scale in the VeSync app.
Your weight will show on the scale display,
and more results will show on the app.
• Make sure Bluetooth is turned on.
• If you’re wearing shoes or socks, the scale
cannot measure health metrics such as body
fat. Step on the scale with bare feet.
• Make sure to place your feet on the scale’s
conductive areas. [Figure 5.1]
Note: Resetting the scale will fix many issues. To reset the
scale, use a safety pin or paper clip to press the “Reset”
button on the underside of the scale.

15
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receivin g antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment.

16
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must
follow the specic operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF
exposure compliance requirements, please follow operation instructions as documented in this manual. This transmitter
must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be
installed and operated with a minimum distance of 20 cm between the radiator and your body. The availability of some
specic channels and/or operational frequency bands are country dependent and are rmware programmed at the factory
to match the intended destination. The rmware setting is not accessible by the end user.
Attributions
iOS is a registered trademark of Cisco Systems, Inc. and/or its afliates in the United
States and certain other countries.
Apple App Store is a trademark of Apple Inc.
Android and Google Play are trademarks of Google LLC.
The Bluetooth®word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Etekcity Corporation is under license. Other
trademarks and trade names are those of their respective owners.

17
Warranty Information
Terms & Policy
Etekcity Corporation (“Etekcity”) warrants this
product to the original purchaser to be free from
defects in material and workmanship, under normal
use and conditions, for a period of 1 year from the
date of original purchase.
Etekcity agrees, at our option during the
warranty period, to repair any defect in material
or workmanship or furnish an equal product in
exchange without charge, subject to verication of
the defect or malfunction and proof of the date of
purchase.
There is no other express warranty. This warranty
does not apply:
• If the product has been modied from its
original condition;
• If the product has not been used in accordance
with directions and instructions in the user
manual;
• To damages or defects caused by accident,
abuse, misuse or improper or inadequate
maintenance;
• To damages or defects caused by service
or repair of the product performed by an
unauthorized service provider or by anyone
other than Etekcity;
• To damages or defects occurring during
commercial use, rental use, or any use for
which the product is not intended;
• To damages or defects exceeding the cost of
the product.
Etekcity will not be liable for indirect, incidental, or
consequential damages in connection with the use
of the product covered by this warranty.
Product Name Smart Fitness Scale
Model ESF93 Series
For your own reference, we strongly recommend that you record
your order ID and date of purchase.

18
This warranty extends only to the original consumer
purchaser of the product and is not transferable to
any subsequent owner of the product regardless
of whether the product is transferred during the
specied term of the warranty.
This warranty does not extend to products
purchased from unauthorized sellers. Etekcity’s
warranty extends only to products purchased from
authorized sellers that are subject to Etekcity’s
quality controls and have agreed to follow its quality
controls.
All implied warranties are limited to the period of
this limited warranty.
This warranty gives you specic legal rights and you
may also have other rights which vary from state
to state. Some states do not allow the exclusion or
limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply
to you.
If you discover that your product is defective within
the specied warranty period, please contact
Customer Support via [e-mail]. DO
NOT dispose of your product before contacting us.
Once our Customer Support Team has approved
your request, please return the product with a copy
of the invoice and order ID.
Extend Your Warranty by 1 Year
Register your product within 14 days of purchase at
www.etekcity.com/warranty to extend your 1-year
warranty by an additional year.
This warranty is made by:
Etekcity Corporation
1202 N. Miller St. Suite A
Anaheim, CA 92806

19
Customer Support
If you have any questions or concerns about your
new product, please contact our helpful Customer
Support Team.
Etekcity Corporation
1202 N. Miller St., Suite A
Anaheim, CA 92806
Email: [e-mail]
Toll-Free: [phone]
Support Hours
Monday—Friday
9:00 am—5:00 pm PST/PDT
*Please have your invoice and order ID ready before
contacting Customer Support.

Connect with us @Etekcity
Building on better living.
02.00_D_21D30_us
