EtherWAN EL2321 User manual

EL2321
Managed 10/100/1000BASE-
TX to
100/1000BASE-FX Dual Rate
Media Converter
User’s Guide

EL2321 Media Converter
1 EL2321 User’s Guide
FCC Statement
The FCC (Federal Communications Commission) restricts the amount of radio
frequency emission and radiation coming from computer equipment.
The equipment introduced in this manual has been tested and found to comply with the
limits for a Class A digital device pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy, and if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user is required to correct the interference at his/her own expense.
Any changes or modifications not expressly approved by the manufacture would void the
user’s authority to operate the equipment.
Trademarks
Product names mentioned in this manual may be trademarks or registered trademarks
of those products.
All trademarks or brand names mentioned are properties of their respective owners.
Preface
This OAM Managed 10/100/1000BASE-TX to 1000BASE-FX or 100/1000BASE SFP
Dual Rate Media Converter can be monitored and configured through management via
SNMP or browser interface. This manual describes how to install and use the Media
Converter. The Media Converter introduced here provides one channel media
conversion solution:
10/100/1000Base-TX to 1000Base-FX or 100/1000Base SFP interface
This Media Converter fully complies with IEEE802.3 10BASE-T, 802.3u 100BASE-TX,
802.3ab 1000BASE-T, 802.3z 1000BASE-X Ethernet standards.
In this manual, you will find:
 Product overview
 Features on the media converter
 Illustrative LED functions
 Installation instructions
 System configuration
 Specifications

EL2321 Media Converter
2 EL2321 User’s Guide
Table of Contents
FCC Statement ............................................................................................................... 1
Trademarks..................................................................................................................... 1
Preface ............................................................................................................................ 1
Table of Contents .......................................................................................................... 2
Introduction .................................................................................................................... 3
Product Overview ....................................................................................................... 3
Product Features ........................................................................................................ 4
Packing List ................................................................................................................ 4
Physical Ports ............................................................................................................. 5
Port Status LEDs ........................................................................................................ 5
Installation ...................................................................................................................... 6
Selecting a Site for the Equipment ............................................................................. 6
Connecting to Power .................................................................................................. 6
Installing in a Chassis ................................................................................................. 6
System Configuration ................................................................................................... 7
Logging on to the Media Converter ............................................................................ 7
Main Menu / Local Device Information ....................................................................... 8
Local Setting ............................................................................................................... 9
Remote Setting ......................................................................................................... 19
Logout ....................................................................................................................... 27
Reset Button................................................................................................................. 28
Specifications .............................................................................................................. 28

EL2321 Media Converter
3 EL2321 User’s Guide
Introduction
The EL2321 Media Converter provides one channel for media conversion between
10/100/1000Base-TX to 1000Base-FX fixed fiber or 100/1000Base SFP interface with
link-fault-pass-through function. It is 802.3ah OAM compliant, and can be used as a
stand-alone device or with an EtherWAN chassis as shown below.
Product Overview
Figure 1:
EL-2321 Media Converter with link-fault-pass-through function
NOTE: Chassis is ordered separately.

EL2321 Media Converter
4 EL2321 User’s Guide
Product Features
 Complies with IEEE802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T,
802.3z 1000BASE-X
 Complies with IEEE 802.3ah OAM standard
 Supports SNMP V1, V2 Management
 Supports IN-BAND Loop Back and Diagnostic
 Gigabit transmission supports 9K bytes jumbo frame
 One fiber interface supports dual rate 100BASE-FX and 1000BASE-SX/LX fiber
transmission
 Supports IEEE802.3x Flow controls: Flow control for full duplex and Back pressure
for half duplex
 Auto-Negotiation, Auto-MDI/MDIX
 Full wire-speed forwarding rate
 Supports Wall Mounting installation or use with EMC1600 media converter chassis
system.
Packing List
When you unpack this product package, you will find the items listed below. Please
inspect the contents, and report any apparent damage or missing items immediately to
your authorized reseller.
 The Media Converter
 User’s Manual
 AC to DC Power Adaptor

EL2321 Media Converter
5 EL2321 User’s Guide
Physical Ports
This converter provides one 10/100/1000Base-TX RJ45 port and one 1000Base-FX
fixed fiber port or a 100/1000 Dual Rate SFP socket. For the 100Base and 1000Base
dual rate SFP socket, it provides options of multi-mode/single-mode or WDM
multi-mode/single-mode fiber. For the RJ45 TX port supports auto negotiation and auto
MDIX.

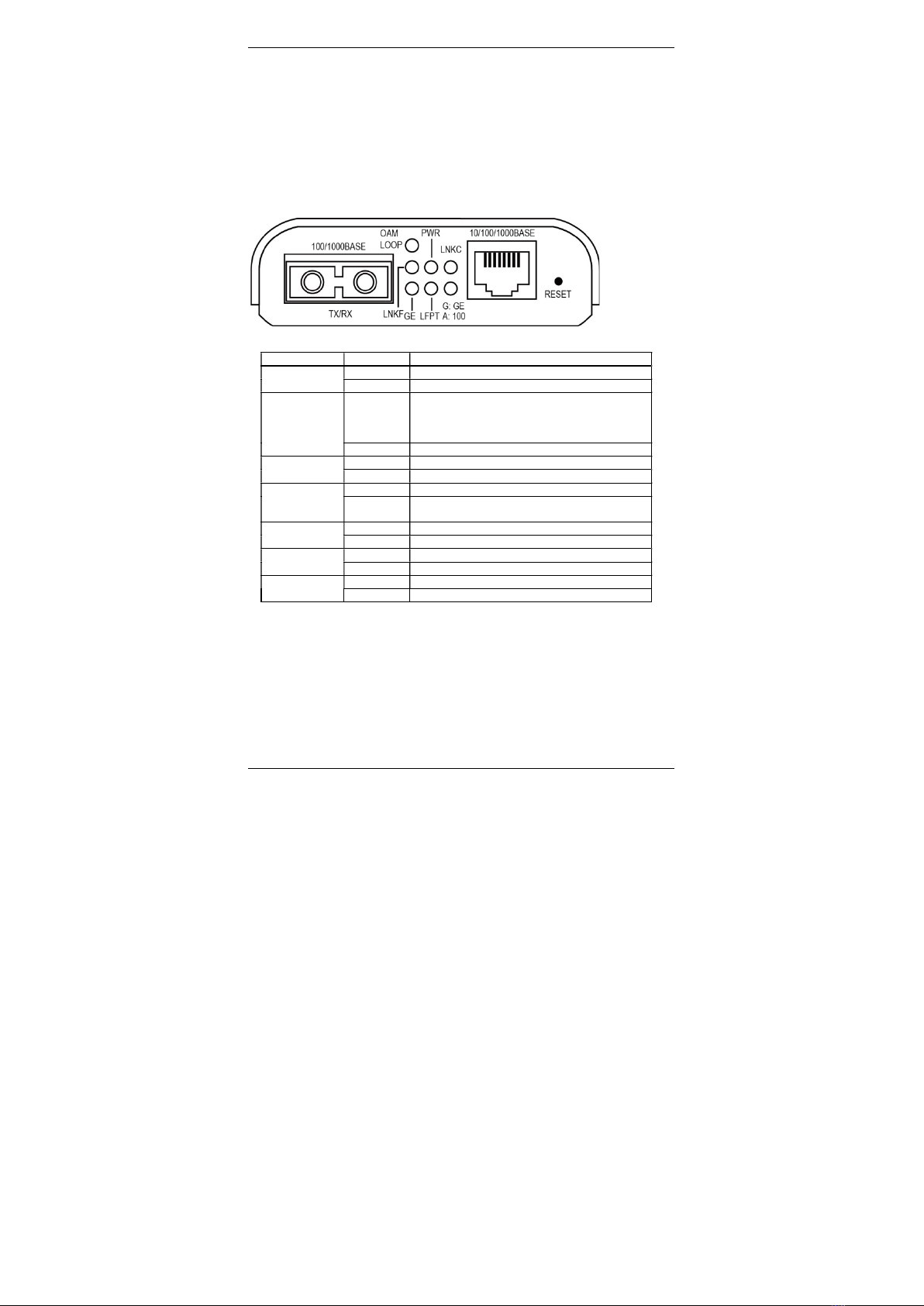

Port Status LEDs
The LED indicators give you instant feedback on status of the converter:
LED State Indication
PWR (Green) Steady Power On
Off Power Off
Copper Port
Speed
Steady Green: Copper Port connection at the speed of
1000Mbps
Amber: Copper Port connection at the speed of
100Mbps
Off Copper Port connection at the speed of 10Mbps
LNKC (Green)
Steady A valid network connection is established on TX port
Flashing Data transmitting
OAM LOOP
(Green)
Steady When device in OAM Active Mode
Flashing Blinks for 4 seconds if loopback testing pass, when
device in OAM Passive Mode
GE Steady Fiber port connection at the speed of 1000Mbps
Off Fiber port connection at the speed of 100Mbps
LNKF (Green) Steady A valid network connection is established on TX port
Flashing Data transmitting
LFPT (Green) Steady LFPT function enabled
Off LFPT function disabled

EL2321 Media Converter
6 EL2321 User’s Guide
Installation
This chapter gives step-by-step installation instructions for the Converter.
Selecting a Site for the Equipment
As with any electric device, you should place the equipment where it will not be
subjected to extreme temperatures, humidity, or electromagnetic interference.
Specifically, the site you select should meet the following requirements:
 The ambient temperature should be between 0 to 50 degrees Celsius (32 and 122
degrees Fahrenheit).
 The relative humidity should be less than 95 percent, non-condensing.
 Surrounding electrical devices should not exceed the electromagnetic field (RFC)
standards for IEC 801-3, Level 2 (3V/M) field strength.
 Make sure that the equipment receives adequate ventilation. Do not block the
ventilation holes of the equipment.
 The power outlet should be within 1.8 meters of the product.
Connecting to Power
This Converter is a plug-and-play device.
Connect the supplied AC to DC power adapter to the receptacle at the back of the
converter.
Attach the plug into a standard AC outlet.
Installing in a Chassis
The Converter is designed to fit into any of the expansion slots on an EtherWAN
rackmount chassis.
 Unscrew the carrier from the desired expansion slot on the chassis.
 Fit the converter onto the carrier.
 When the converter is completely seated onto the carrier, insert the carrier to the
guide rails of the expansion slot.
 Carefully slide in the carrier until it is fully and firmly fit the chassis.
 Fasten the carrier to the chassis by the screws.
NOTE: Never insert any converter into the chassis directly without using the
supplied carriers. The carriers allow secure and consistent placement of the
converters into the chassis’ backplane without causing any damage.

EL2321 Media Converter
7 EL2321 User’s Guide
System Configuration
This chapter provides network managers and system administrators with information
about how to configure the OAM Managed 10/100/1000BASE-TX to 100/1000BASE-FX
Dual Rate Media Converter via the Web Browser.
Logging on to the Media Converter
The default IP Address for the media converter is 192.168.1.10. Enter the factory default
Username (admin). Enter the factory default Password (no password). Then click on the
“Login” button to log on.

EL2321 Media Converter
8 EL2321 User’s Guide
Main Menu / Local Device Information
The information displayed on this page gives specific device information, network
information, and port status for the EL2321 and for a remote device that supports OAM.

EL2321 Media Converter
9 EL2321 User’s Guide
Local Setting
IP Configuration
DHCP Client: Click “DHCP Client” drop-down menu to choose “Disable” or “Enable”
from the “DHCP Client” drop-down list to disable or enable DHCP Client setting for the
media converter. You will need to set the IP Address, Subnet Mask, and Gateway
manually if DHCP Client is disabled. The IP Address will be provided by DHCP Server if
DHCP Client is enabled.
IP Address: Click in “IP Address” text box and type a new address to change the IP
Address.
Subnet Mask: Click in “Subnet Mask” text box and type a new address to change the
Subnet Mask.
Gateway: Click in the “Gateway” text box and type a new address to change the
Gateway.
Description: Click in the “Description” text box and type a description for the media
converter. Description field can only be a number, in English, or “*@_-“.
Apply: Click “Apply” button when you have finished the IP Configuration.

EL2321 Media Converter
10 EL2321 User’s Guide
Password Setting
Login Name: The factory default login name “admin” can’t be changed.
Old Password: Click in “Old Password” text box and type the old password. You must
type the old password into this field in order to set a new password.
New Password: In the “New Password” field, enter the new password. The password
must be “a”-“z”, “A”-“Z”, “0”-“9”, and “_”. The max length is 16 characters.
Confirm: Enter the new password again in this field.
Apply: Click “Apply” button when you have finished Password Setting.

EL2321 Media Converter
11 EL2321 User’s Guide
Converter Configuration
Jumbo Frame (9K): The media converter can pass packets up to 9KB in size if this
function is enabled.
Link Transparent: If the Link Transparent (Link-Fault-Pass-Through) is enabled, the
Link Loss Carry Forward will be active.
Link Loss Carry Forward: If this function is enabled, when the UTP port link down, the
fiber port will be forced link down. And the fiber will be resumed when UTP port link up.
Forward CRC Error Frame: The CRC error packets will be passed if this function is
enabled. Otherwise the CRC error packets will be dropped.
Forward Pause Frame: The media converter will forward pause frame and regard it as
a normal packet if this function is enabled.
Management Packet High Priority: Need to reset media converter then this function
will take effect. All management packets will be allocated to high priority queue to
guarantee bandwidth when Management Packet High Priority is enabled. Media
converter will enable QoS and four queues and set queue 3 as strict priority if this
function is enabled. All management packets such as 802.3ah OAM and SNMP packets
will be in queue 3 to guarantee bandwidth.
Broadcast Storm Filter: If this function is enabled, when too many broadcast packets
arrive in a period time, the broadcast packets will be dropped.
Multicast Storm Filter: If this function is enabled, when too many multicast packets
arrive in a period time, the multicast packets will be dropped.
Unknown DA Unicast Storm Filter: If this function is enabled, when too many unknown
DA unicast packets arrive in a period time, the unknown DA unicast packets will be
dropped.
Apply: Click “Apply” button when you have finished Converter Configuration.

EL2321 Media Converter
12 EL2321 User’s Guide

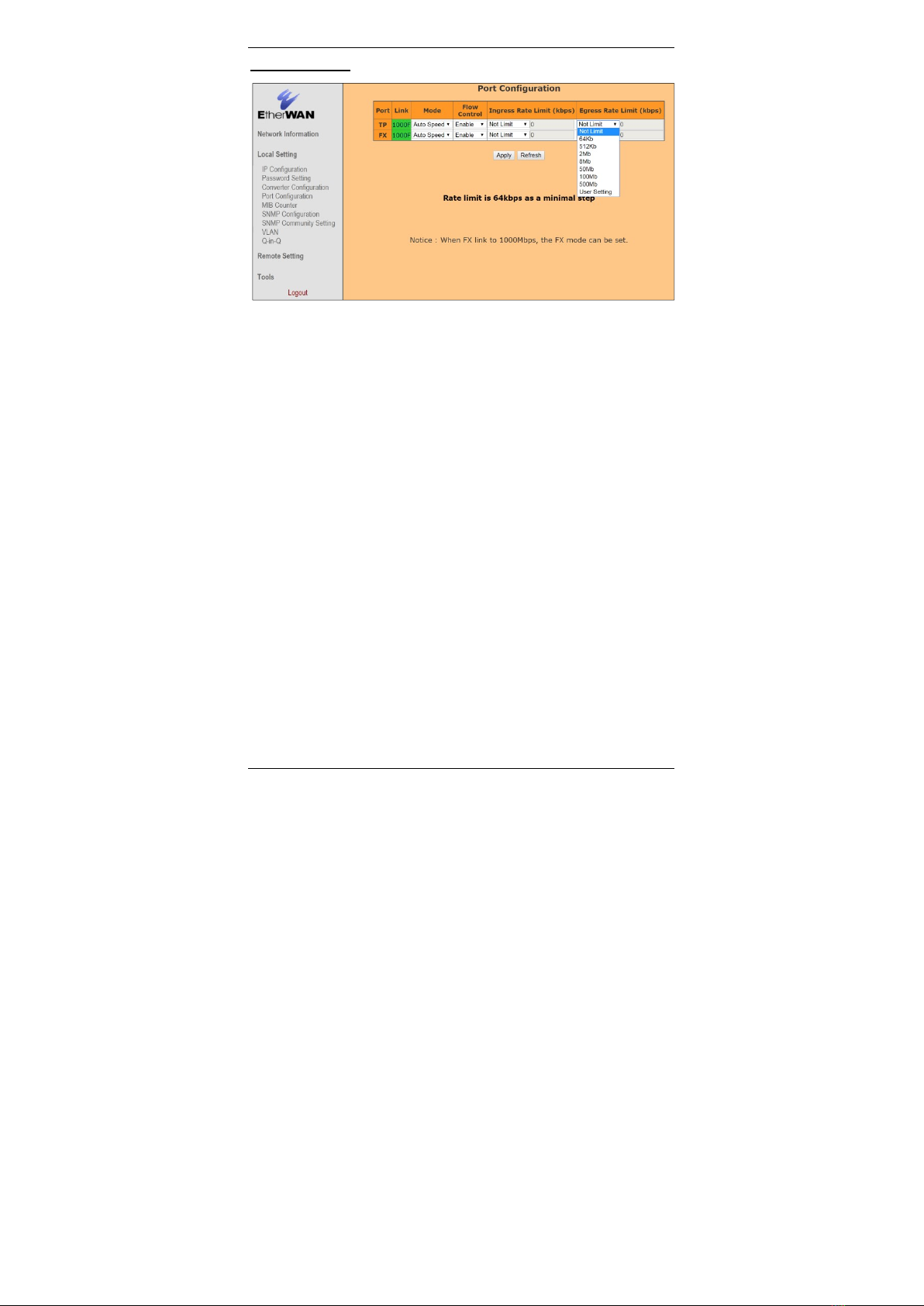

Port Configuration
Mode: Click “Mode” drop-down menu to choose “Auto Speed”, “1000 Full”, “100 Full”,
“100 Half”, “10 Full”, “10 Half” from the “Mode” drop-down list for TP or FX port.
Flow Control: Click “Flow Control” drop-down menu to choose “Disable” or “Enable”
from the “Flow Control” drop-down list to disable or enable Flow Control for TP or FX
port.
Ingress Rate Limit (kbps): Click “Ingress Rate Limit” drop-down menu to choose the
ingress rate limit from the “Ingress Rate Limit” drop-down list for TP or FX port. Or click
“Ingress Rate Limit” drop-down menu to choose the “User Setting” from the “Ingress
Rate Limit” drop-down list for TP or FX port. Then click in “Ingress Rate Limit” text box
and type an ingress rate limit for TP or FX port. The ingress rate limit should be divided
exactly by 64 because 64kbps is as a minimal step for ingress rate limit. The program
will change the ingress rate limit to 64 automatically if the ingress rate limit is not divided
by 64, for example 65.
Egress Rate Limit (kbps): Click “Egress Rate Limit” drop-down menu to choose the
egress rate limit from the “Egress Rate Limit” drop-down list for TP or FX port. Or click
“Egress Rate Limit” drop-down menu to choose the “User Setting” from the “Egress Rate
Limit” drop-down list for TP or FX port. Then click in “Egress Rate Limit” text box and
type an egress rate limit for TP or FX port. The egress rate limit should be divided
exactly by 64 because 64kbps is as a minimal step for egress rate limit. The program will
change the egress rate limit to 64 automatically if the egress rate limit is not divided by
64, for example 65.
Apply: Click “Apply” button when you have finished Port Configuration.
Refresh: Click “Refresh” button to show updated Port Configuration information.

EL2321 Media Converter
13 EL2321 User’s Guide

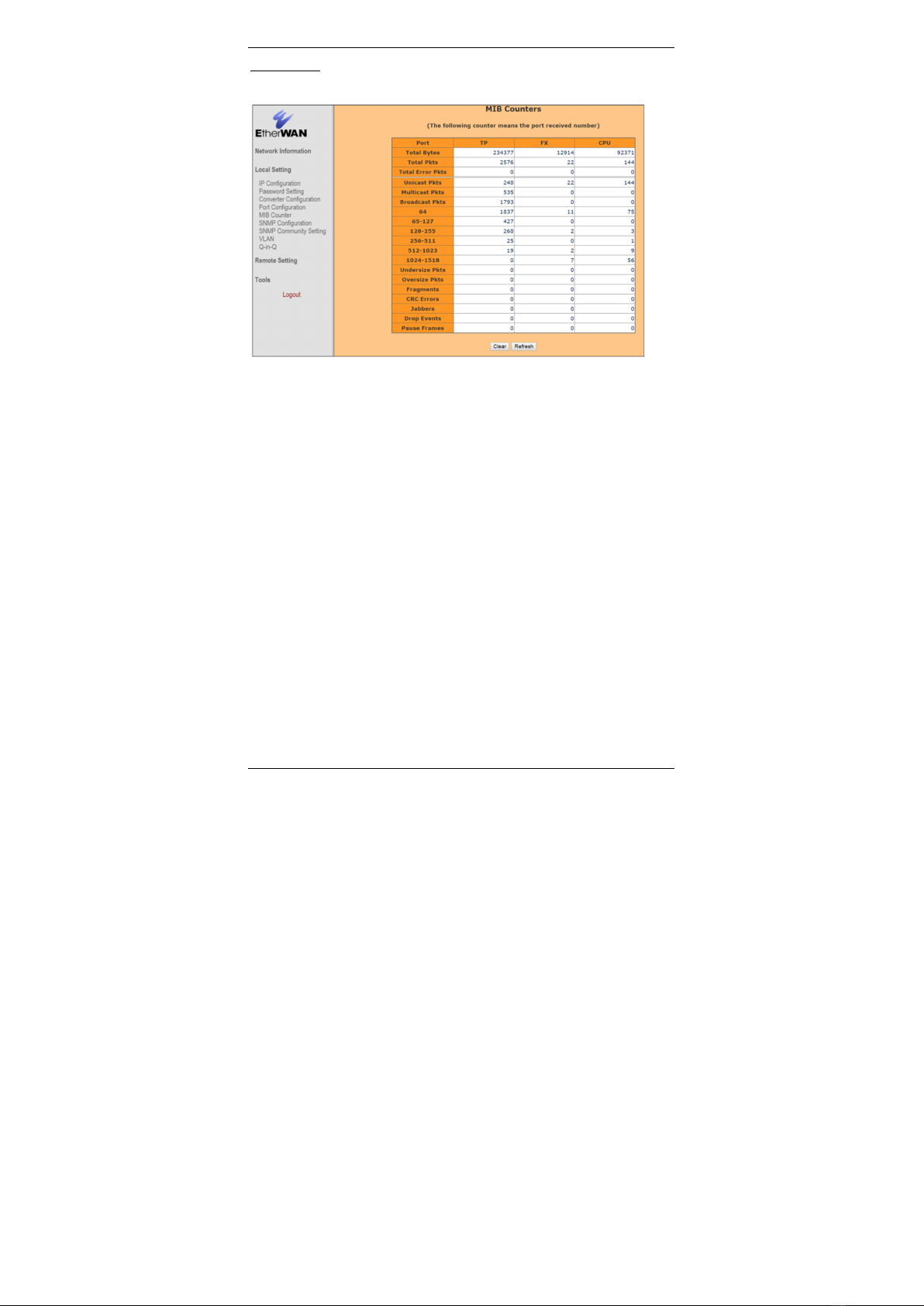

MIB Counter
This page shows local device’s MIB (management information base) counters.
Clear: Click the “Clear” button to reset all MIB counters to zero.
Refresh: Click the “Refresh” button to refresh the MIB counter information.

EL2321 Media Converter
14 EL2321 User’s Guide
SNMP Configuration
SNMP Ability: Click “SNMP Ability” drop-down menu to choose “Disable” or “Enable”
from the “SNMP Ability” drop-down list to disable or enable SNMP functions.
Trap Mode: Click “Trap Mode” drop-down menu to choose “Disable” or “Enable” from
the “Trap Mode” drop-down list to disable or enable to send trap event to SNMP server.
SNMP Trap IP Address: Click in “SNMP Trap IP Address” text box and type SNMP
server’s IP address used for trap destination IP.
Apply: Click “Apply” button when you have finished SNMP Configuration.

EL2321 Media Converter
15 EL2321 User’s Guide
SNMP Community Setting
This media converter supports up to 5 SNMP Read/Write Communities.
SNMP Read Community
Add Read Community: Click in “Add Read Community” text box and type a read
community name.
Delete Read Community: Click in “Delete Read Community” text box and type a read
community name to be deleted.
SNMP Write Community
Add Write Community: Click in “Add Write Community” text box and type a write
community name.
Delete Write Community: Click in “Delete Write Community” text box and type a write
community name to be deleted.
ClearReadAll: Click “ClearReadAll” button to clear all read community names.
ClearWriteAll: Click “ClearWriteAll” button to clear all write community names.
Apply: Click “Apply” button when you have finished SNMP Community Setting.

EL2321 Media Converter
16 EL2321 User’s Guide
VLAN
VLAN Group:
VLAN Mode: Click “VLAN Mode” drop-down menu to choose “Disable” or “Enable” from
the “VLAN Mode” drop-down list to disable or enable 802.1Q VLAN Group. There are 16
VLAN entries available if 802.1Q VLAN Group function is enabled.. Each VLAN entry
could set VID and member port. The VID should be 1~4094.
Apply: Click “Apply” button when you have finished VLAN Group setting.

EL2321 Media Converter
17 EL2321 User’s Guide
VLAN Per Port Setting:
Egress Link Type:
Replace Tag: The media converter will remove VLAN tags from packets then add new
tags to them. The inserted tag is the ingress port’s “Default tag”, which is indexed by port
“Port based VLAN index”. This is a replacement processing for tagged packets and an
insertion for untagged packets.
Remove Tag: The media converter will remove VLAN tags from packets if they are
tagged when these packets are output. The media converter will not modify packets
received without tags.
Add Tag: The media converter will add VLAN tags to packets if they are not tagged
when these packets are output on this port. The media converter will not add tags to
packets already tagged. The inserted tag is the ingress port’s “Default tag”, which is
indexed by port’s “Port based VLAN index”.
Don’t Touch Tag: Do not insert or remove VLAN tags to/from packet which is output on
this port.
Port VLAN Entry: Select Port based VLAN index. The number refers to the VLAN table
entry index, not VID.
Ingress Filter: Click “Ingress Filter” drop-down menu to choose “Disable” or “Enable”
from the “Ingress Filter” drop-down list to disable or enable VLAN ingress filter.
Apply: Click “Apply” button when you have finished VLAN Group setting.
Please make sure the VLAN port entry can go through CPU port.

EL2321 Media Converter
18 EL2321 User’s Guide
Q-in-Q
Q in Q Enable: Click “Q in Q Enable” drop-down menu to choose “Disable” or “Enable”
from the “Q in Q Enable” drop-down list to disable or enable Q in Q function.
Out Layer VLAN Tag EtherType (HEX): Click in “Out Layer VLAN Tag EtherType” text
box and type user defined Q-in-Q out layer VLAN tag Ether type.
Out Layer VLAN VID (DEC): Click in “Out Layer VLAN VID” text box and type user
defined Q-in-Q out layer VLAN tag VID.
Q in Q direction: Click “Q in Q direction” drop-down menu to choose “TP Add QinQ Tag.
FX Remove Tag.” or “FX Add QinQ Tag. TP Remove Tag.” from the “Q in Q direction”
drop-down list to select Q in Q direction.
Apply: Click “Apply” button when you have finished VLAN Group setting.
When Q-in-Q is enabled, web connection may be lost due to the addition of the VLAN
tag.

EL2321 Media Converter
19 EL2321 User’s Guide

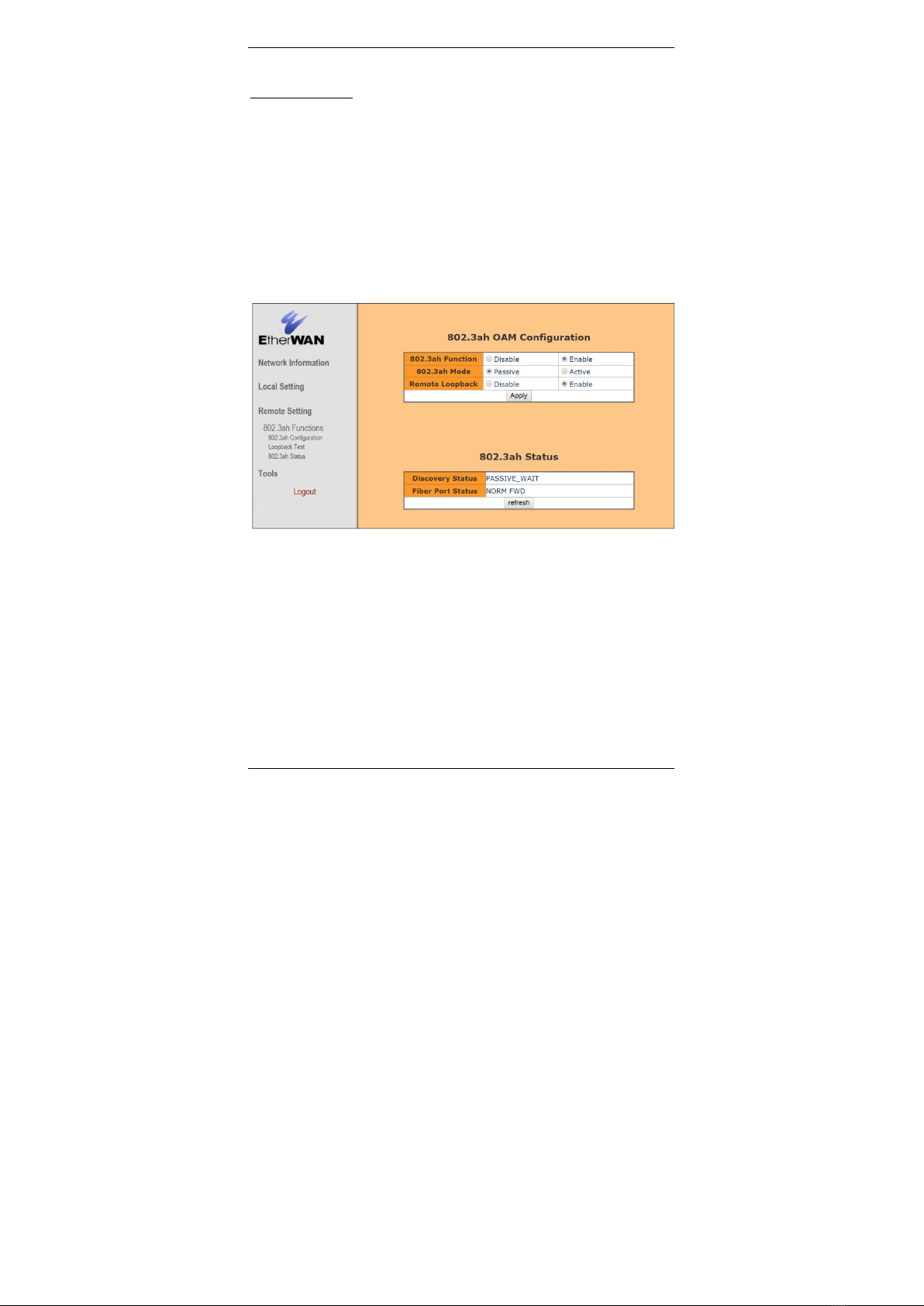

Remote Setting
802.3ah Functions
This converter supports IEEE 802.3ah, an OAM (Operations, Administration and
Maintenance) protocol that provides a uniform way to detect, confirm, and isolate faults.
OAM only works point-to-point over the fiber link. In addition to standard 802.3ah
functions like loop back and dying gasp, the EL2321 implements OAM to provide
complete provisioning of the remote fiber connected converter, without using Layer 3 IP
protocol. The 802.3ah auto-discovery function uses OAM PDUs, sent periodically, to
detect the presence of another 802.3ah device in the link.
802.3ah Configuration
Use this section to configure OAM settings.
802.3ah Function: Choose “Disable” or “Enable” to disable or enable 802.3ah function.
802.3ah Mode: This field is used when configuring an OAM pair. One unit of the pair is
set to ‘active’, and the other set to ‘passive’. In most situations, the remote converter is
the passive one.
Remote Loopback: In order to perform remote loopback test, this option must be
enabled in both converters. Choose “Disable” or “Enable” to disable or enable remote
loopback.
Apply: Click “Apply” button to save settings.
Refresh: If you have made changes to the configuration settings, click “Refresh” button
to show the Discovery Status and the Fiber Port Status, displayed in the window
below.
