EtherWAN EL1033 User manual

Industrial PoE Media Converter
1
Quick Start Guide
This quick start guide describes how to install and use the
Industrial PoE Media Converter. This is the Media Converter
of choice for harsh environments constrained by space.

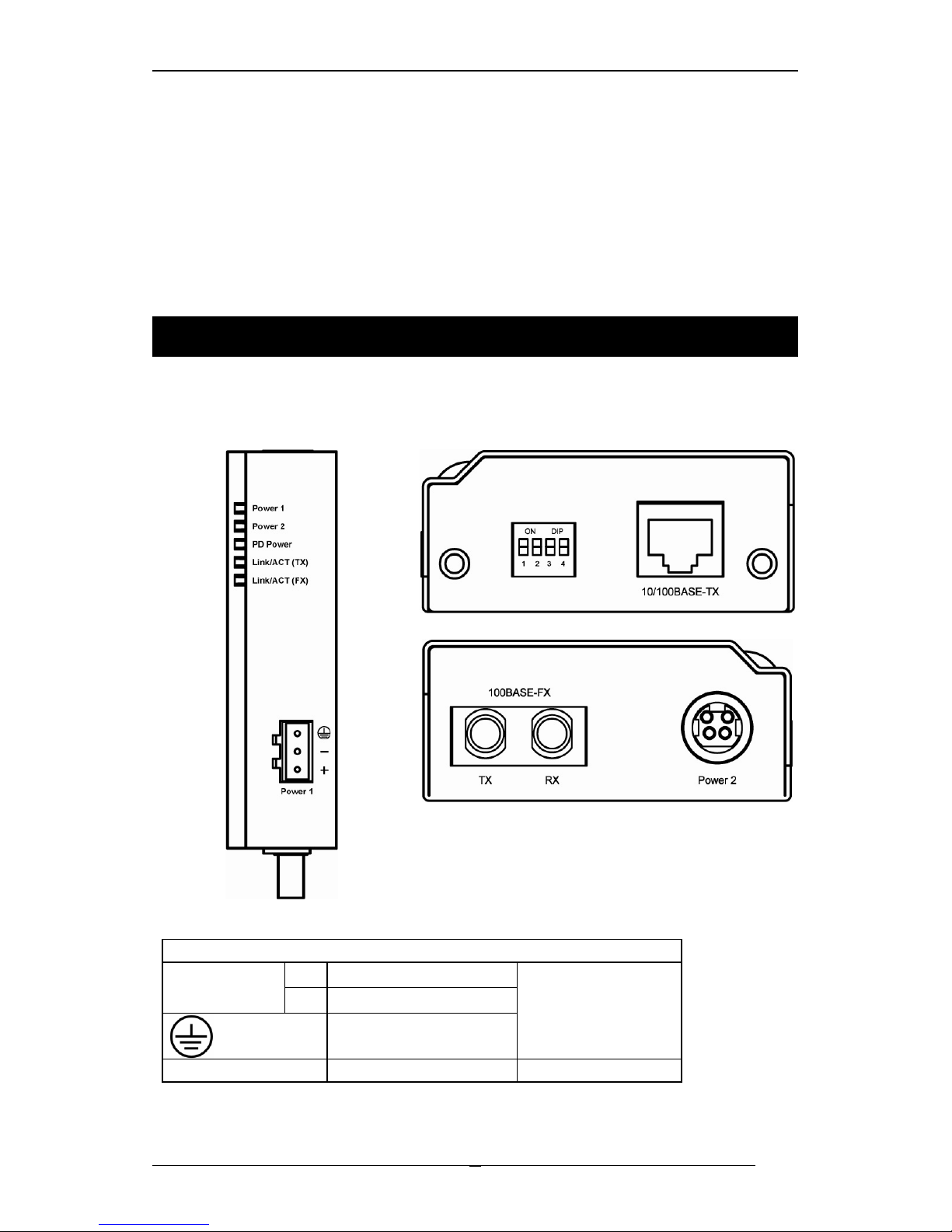

Physical Description
The Terminal Block and Power inputs
Power Input Assignment
＋48VDC
Power 1 －Power Ground
Earth Ground
Terminal Block
Power 2 48VDC DC Jack
DC Terminal Block Power Inputs: There are two power inputs
that can be used to power up this Industrial PoE Media

Industrial PoE Media Converter
2
Converter. Redundant power supplies function is supported.
The DIP Switch
DIP
Switch
On Off
1 Enable forced mode for TX port Enable auto negotiation for TX port
2 TX port forced to 10Mbps TX port forced to 100Mbps
3 TX port forced to half duplex mode TX port forced to full duplex mode
4 Enable Link-Fault-Pass-Through Disable Link-Fault-Pass-Through

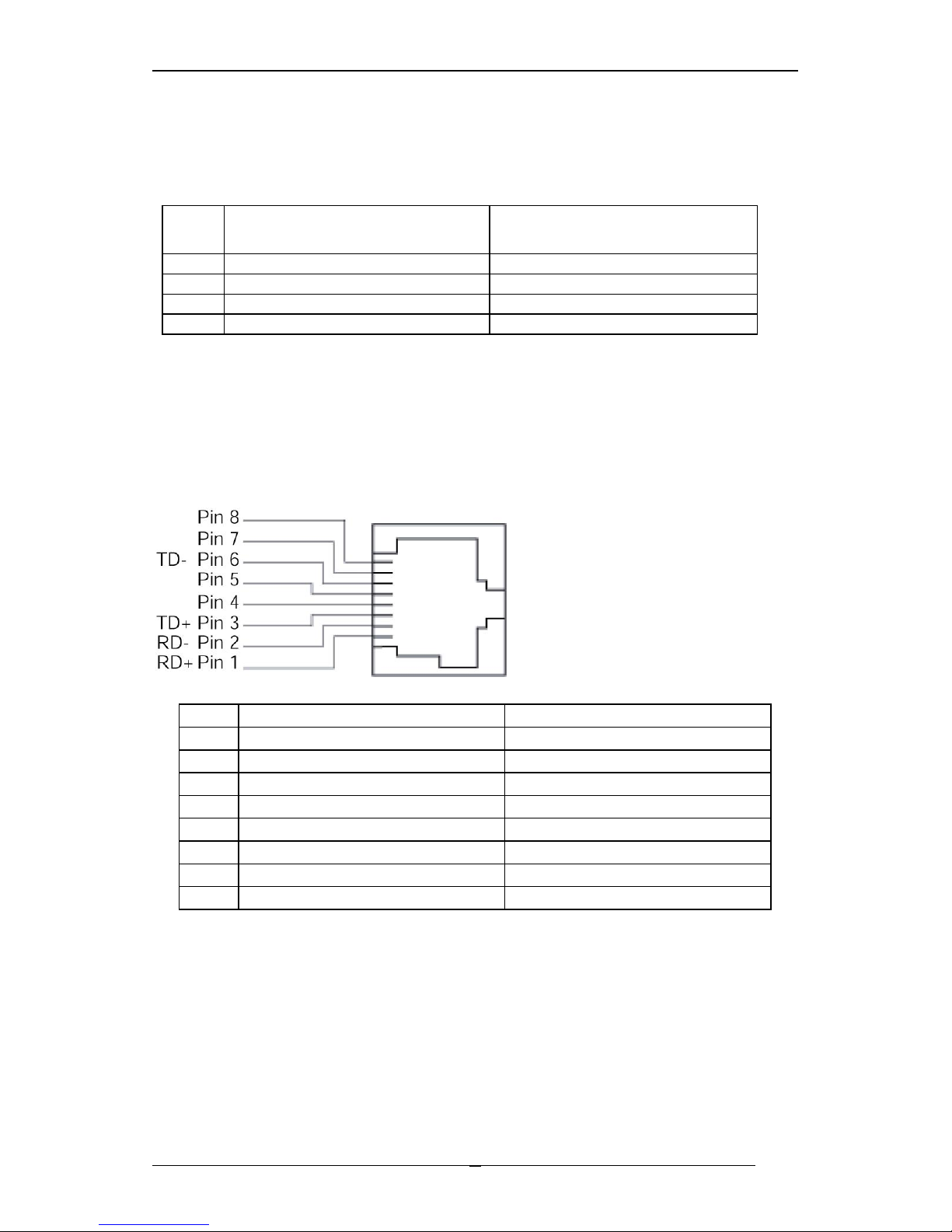

The 10/100Base-TX and 100Base-FX Connectors
1. The 10/100Base-TX Connections
The following lists the pinouts of 10/100Base-TX ports.
Pin Regular Ports Uplink port
1 Input Receive Data + Output Transmit Data +
2 Input Receive Data - Output Transmit Data -
3 Output Transmit Data + Input Receive Data +
4 NC NC
5 NC NC
6 Output Transmit Data - Input Receive Data -
7 NC NC
8 NC NC
2. The 100Base-FX Connections
The fiber port pinouts: The Tx (transmit) port of device I is
connected to the Rx (receive) port of device II, and the Rx
(receive) port of device I to the Tx (transmit) port of device II.

Industrial PoE Media Converter
3
3. The WDM 100Base-FX Connections
The fiber port pinouts: Only one single-mode optical fiber is
required to transmit and receive data.
The Port Status LEDs

Industrial PoE Media Converter
4
LED State Indication
Power over Ethernet (PoE)
Steady Power Sourcing Equipment (PSE) is connected.
PD Power Off Power Sourcing Equipment (PSE) is disconnected.
10/100Base-TX, 100Base-FX
Steady A valid network connection established.
Link/ACT Flashing Transmitting or receiving data.
ACT stands for ACTIVITY.
DIN-Rail Kits, Optional Wall Mounting Kits
Functional Description
•Meets EN61000-6-2 & EN61000-6-3 EMC Generic
Standard Immunity for industrial environment.
•Supports IEEE802.3af Power over Ethernet (PoE)
Power Device (PD).
•DIP Switch configuration for “Link-Fault-Pas-Through”,
speed, duplex mode.

Industrial PoE Media Converter
5
•Supports IEEE802.3/802.3u/802.3x. Auto-negotiation:
10/100Mbps, Full/Half-duplex, Auto-Negotiation, Auto
MDI/MDIX.
•100Base-FX: Multi/Single mode SC or ST type, WDM
Single mode SC type.
•Supports 1024 MAC addresses. Provides 2.25M bits
buffer memory.
•Power Supplies: Redundant 48VDC Terminal Block
power input and 48VDC DC JACK with 100-240VAC
external power supply. “For use with Model AS-120P-48
as power jack supply source by MEAN WELL
Enterprises Co., Ltd.".
•Operating voltage and Max. current consumption:
0.075A @ 48VDC. Power consumption: 3.6W Max.
•-10 to℃60 (℃14℉to 140℉) operating temperature
range.
•Supports DIN-Rail, Panel, or Wall Mounting installation.

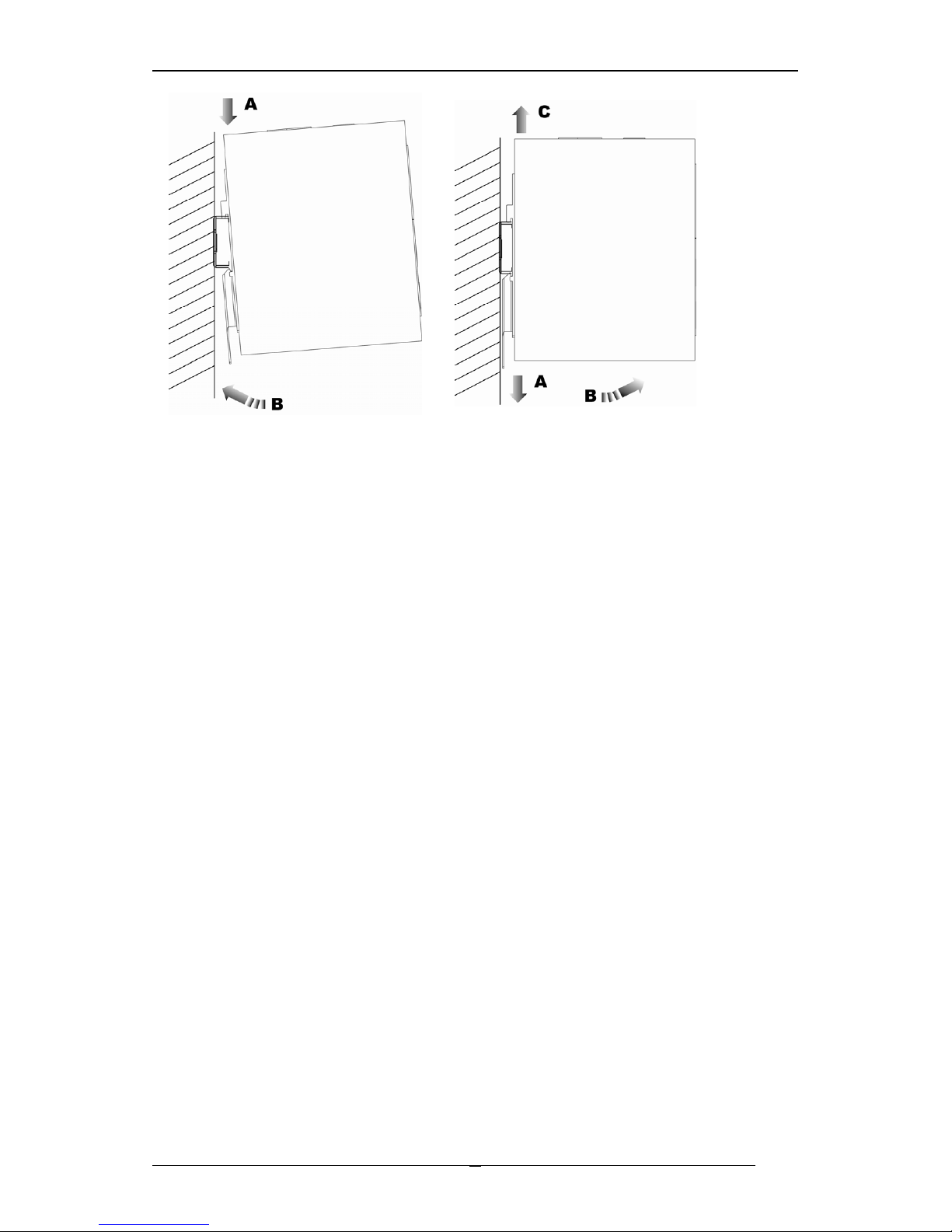

Assembly, Startup, and Dismantling
•Assembly: Place the Media Converter on the DIN rail
from above using the slot. Push the front of the Media
Converter toward the mounting surface until it audibly
snaps into place.
•Startup: Connect the supply voltage to start up the
Media Converter via the terminal block (or DC JACK).
•Dismantling: Pull out the lower edge and then remove
the Media Converter from the DIN rail.

Industrial PoE Media Converter
6

Industrial PoE Media Converter
7
Preface
A member of the growing family of Industrial Media
Converters, this Industrial PoE Media Converter addresses
a need for a Power over Ethernet (PoE) Media Converter.
Capable of operating at temperature extremes of -10℃ to
+60℃, this is the Media Converter of choice for harsh
environments.
The 10/100Base-TX port on this Media Converter supports
IEEE802.3af Power over Ethernet (PoE) Powered Device
(PD) and can be detected by an IEEE802.3af compliant
Power Sourcing Equipment (PSE). Data and power can be
transmitted from 10/100Base-TX port on Power Sourcing
Equipment (PSE) to Powered Device (PD) Media
Converter over the same twisted-pair Ethernet cable
through 10/100Base-TX port on the Powered Device (PD)
Media Converter. Powered Device (PD) Media Converter
also can use external 48VDC power inputs through
Terminal Block or Power Jack.
This manual describes how to install and use the Industrial
PoE Media Converter. This Media Converter integrates full
wire speed switching technology. And this Media Converter
brings the answer to complicated hardened networking
environments.
To get the most out of this manual, you should have an
understanding of Ethernet networking concepts.
In this manual, you will find:
•Features on the Media Converter
•Illustrative LED functions
•Installation instructions
•Specifications

Industrial PoE Media Converter
8
Table of Contents
QUICK START GUIDE 1
PHYSICAL DESCRIPTION 1
The Terminal Block and Power inputs 1
The DIP Switch 2
The 10/100Base-TX and 100Base-FX Connectors 2
The Port Status LEDs 3
DIN-Rail Kits, Optional Wall Mounting Kits 4
FUNCTIONAL DESCRIPTION 4
ASSEMBLY,STARTUP,AND DISMANTLING 5
PREFACE 7
TABLE OF CONTENTS 8
PRODUCT OVERVIEW 9
INDUSTRIAL POEMEDIA CONVERTER 9
PACKAGE CONTENTS 9
PRODUCT HIGHLIGHTS 10
Basic Features 10
FRONT PANEL DISPLAY 11
PHYSICAL PORTS 12
INSTALLATION 13
SELECTING A SITE FOR THE MEDIA CONVERTER 13
DIN RAIL MOUNTING 14
CONNECTING TO POWER 15
DC Terminal Block Power Input 15
48VDC DC Jack 15
DIP SWITCH 16
CONNECTING TO YOUR NETWORK 17
Cable Type & Length 17
Cabling 18
SPECIFICATIONS 19

Industrial PoE Media Converter
9
Product Overview
Industrial PoE Media Converter
Package Contents
When you unpack the product package, you shall find the
items listed below. Please inspect the contents, and report
any apparent damage or missing items immediately to your
authorized reseller.
3This Media Converter
3User’s Manual
3External power adapter & Power Cord
(Optional)

Industrial PoE Media Converter
10
Product Highlights
Basic Features
•Meets EN61000-6-2 & EN61000-6-3 EMC Generic
Standard Immunity for industrial environment.
•Supports IEEE802.3af Power over Ethernet (PoE)
Power Device (PD).
•DIP Switch configuration for “Link-Fault-Pass-Through”,
speed, duplex mode.
•Supports IEEE802.3/802.3u/802.3x.
•Auto-negotiation: 10/100Mbps, Full/Half-duplex; Auto
MDI/MDIX.
•100Base-FX: Multi/Single mode SC or ST type, WDM
Single mode SC type.
•Supports 1024 MAC addresses.
•Provides 2.25M bits buffer memory.
•Power Supplies: Redundant 48VDC Terminal Block
power input and 48VDC DC JACK with 100-240VAC
external power supply. “For use with Model AS-120P-48
as power jack supply source by MEAN WELL
Enterprises Co., Ltd.".
•Operating voltage and Max. current consumption:
0.075A @ 48VDC. Power consumption: 3.6W Max.
•-10℃to 60℃(14℉to 140℉) operating temperature
range.
•Supports DIN-Rail, Panel, or Wall Mounting installation.

Industrial PoE Media Converter
11

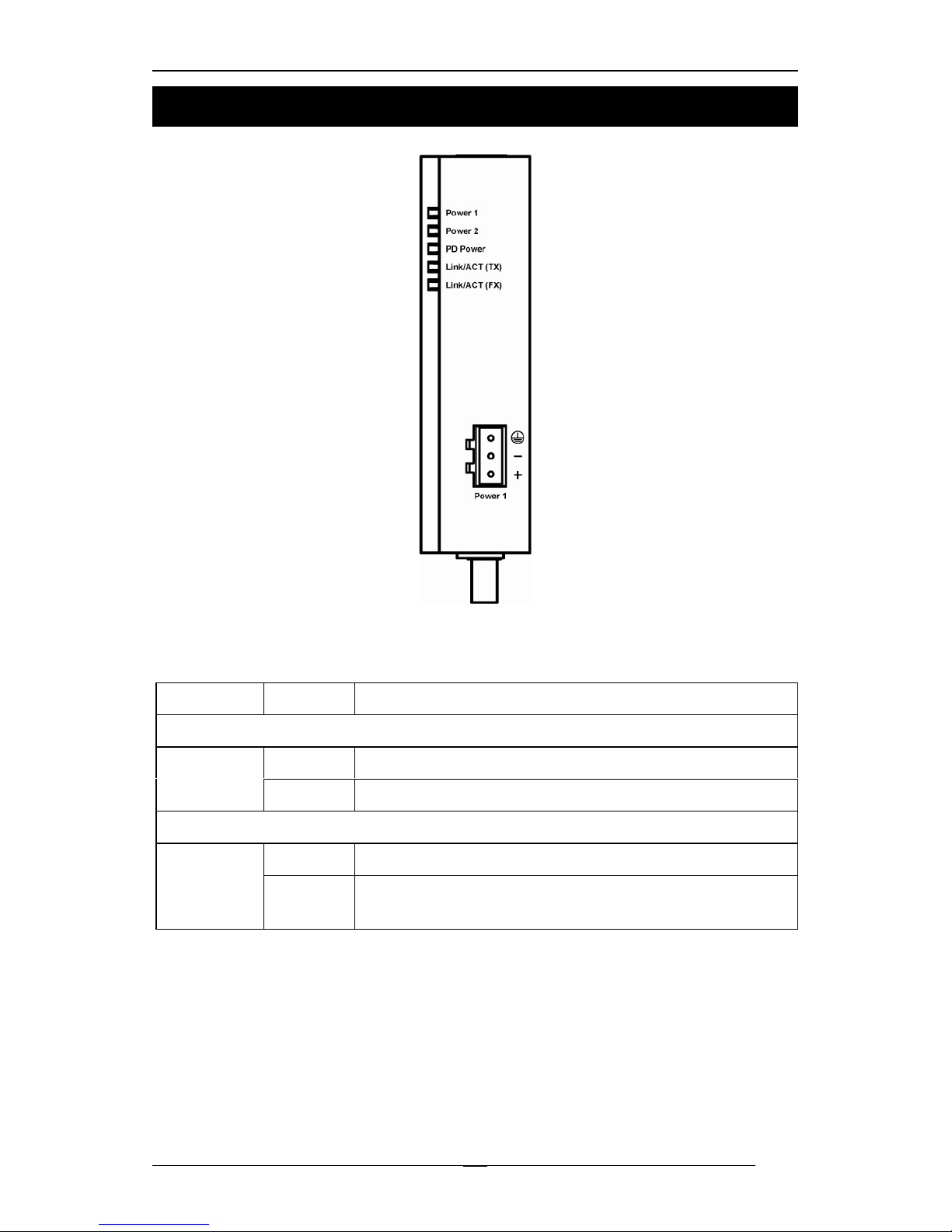

Front Panel Display
Status LEDs
LED State Indication
Power over Ethernet (PoE)
Steady Power Sourcing Equipment (PSE) is connected.
PD Power Off Power Sourcing Equipment (PSE) is disconnected.
10/100Base-TX, 100Base-FX
Steady A valid network connection established.
Link/ACT Flashing Transmitting or receiving data.
ACT stands for ACTIVITY.

Industrial PoE Media Converter
12
Physical Ports
This Media Converter provides:
•One 10/100Base-TX port + one 100Base-FX port
CONNECTIVITY
•RJ-45 connectors
•SC or ST connector on 100Base-FX fiber port.

Industrial PoE Media Converter
13
Installation
This chapter gives step-by-step instructions about how to
install the Media Converter:
Selecting a Site for the Media Converter
As with any electric device, you should place the Media
Converter where it will not be subjected to extreme
temperatures, humidity, or electromagnetic interference.
Specifically, the site you select should meet the following
requirements:
- The ambient temperature should be between -10 to 60
degrees Celsius.
- The relative humidity should be less than 95 percent,
non-condensing.
- Surrounding electrical devices should not exceed the
electromagnetic field (RFC) standards.
- Make sure that the Media Converter receives adequate
ventilation. Do not block the ventilation holes on each side
of the Media Converter.
- The power outlet should be within 1.8 meters of the
Media Converter.

Industrial PoE Media Converter
14

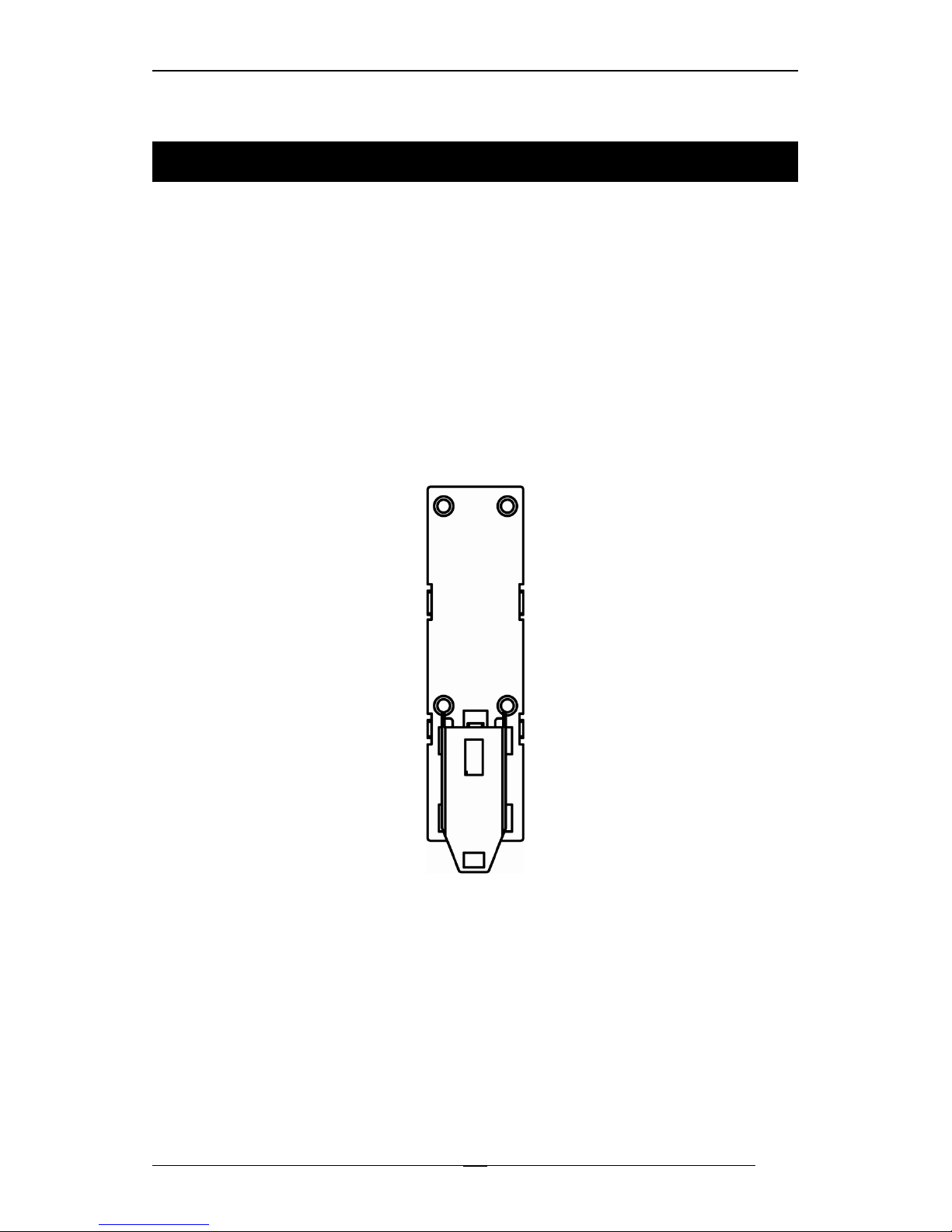

DIN Rail Mounting
Fix the DIN rail attachment plate to the back panel of the
Media Converter.
Installation: Place the Media Converter on the DIN rail from
above using the slot. Push the front of the Media Converter
toward the mounting surface until it audibly snaps into place.
Removal: Pull out the lower edge and then remove the Media
Converter from the DIN rail.

Industrial PoE Media Converter
15
Connecting to Power
Redundant DC Terminal Block Power Input and 48VDC
DC Jack:
DC Terminal Block Power Input
Step 1: Connect the DC power cord to the plug-able terminal block on the
Media Converter, and then plug it into a standard DC outlet.
Step 2: Disconnect the power cord if you want to shut down the Media
Converter.
48VDC DC Jack
Step 1: Connect the supplied AC to DC power adapter to the receptacle on
the Media Converter.
Step 2: Connect the power cord to the AC to DC power adapter and attach
the plug into a standard AC outlet with the appropriate AC voltage.

Industrial PoE Media Converter
16
Power Input Assignment
＋48VDC
Power 1 －Power Ground
Earth Ground
Terminal Block
Power 2 48VDC DC Jack
DIP Switch
There are four pins on the DIP switch for port settings.
Refer to the table below for more details.
DIP
Switch
On Off
1 Enable forced mode for TX port Enable auto negotiation for TX port
2 TX port forced to 10Mbps TX port forced to 100Mbps
3 TX port forced to half duplex mode TX port forced to full duplex mode
4 Enable Link-Fault-Pass-Through Disable Link-Fault-Pass-Through

Industrial PoE Media Converter
17
Connecting to Your Network
Cable Type & Length
It is necessary to follow the cable specifications below
when connecting the Media Converter to your network.
Use appropriate cables that meet your speed and cabling
requirements.
Cable pecificationsS
Speed Connector Port Speed
Half/Full
Duplex
Cable Max.
Distance
10Base-T RJ-45 10/20 Mbps 2-pair
UTP/STP
Cat. 3, 4, 5
100 m
100Base-TX RJ-45 100/200 Mbps 2-pair
UTP/STP
Cat. 5
100 m
100Base-FX SC, ST 100/200 Mbps MMF (50 or
62.5µm)
2 km
100Base-FX SC, ST 100/200 Mbps SMF (9 or
10µm)
20, 40, or 75
km

Industrial PoE Media Converter
18
Cabling
Step 1: First, ensure the power of the Media Converter and end devices are
turned off.
<Note> Always ensure that the power is off before any installation.
Step 2: Prepare cable with corresponding connectors for each type of port
in use.
Step 3: Consult the previous section for cabling requirements based on
connectors and speed.
Step 4: Connect one end of the cable to the Media Converter and the other
end to a desired device.
Step 5: Once the connections between two end devices are made
successfully, turn on the power and the Media Converter is
operational.

Industrial PoE Media Converter
19
Specifications
Industrial PoE
Media Converter
10/100Base-TX auto-negotiating port with
RJ-45 connector, 100Base-FX fiber port
Applicable
Standards
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/FX
Switching Method Store-and-Forward
Forwarding Rate
10Base-T:
100Base-TX/FX:
10 / 20Mbps half / full-duplex
100 / 200Mbps half / full-duplex
Performance 14,880pps for 10Mbps
148,810pps for 100Mbps
Cable
10Base-T:
100Base-TX:
100Base-FX:
4-pair UTP/STP Cat. 3, 4, 5
4-pair UTP/STP Cat. 5
Up to 100m (328ft)
MMF (50 or 62.5µm), SMF (9 or10µm)
LED Indicators Per unit –
Power status (Power 1, Power 2)
PoE status (PD Power)
Per port –
10/100TX or 100FX - Link/ACT
Dimensions 70mm (W) × 110mm (D) × 30mm (H)
(2.76” (W) × 4.33” (D) × 1.18” (H))
Net Weight 0.25Kg (0.55lb.)
Power Terminal Block: 48VDC
DC Jack: 48VDC, External AC/DC required
Operating Voltage &
Max. Current
Consumption
0.075A @ 48VDC
Power Consumption 3.6W Max.
Operating
Temperature
-10°C to 60℃(14℉to 140℉)
Storage Temperature -40°C to 85°C (-40℉to 185℉)
Humidity 5%-95% non-condensing
Safety UL508, EN60950-1, IEC60950-1
EMI
FCC Part 15, Class A
EN61000-6-3:
EN55022
EN61000-3-2
EN61000-3-3
EMS

Industrial PoE Media Converter
20
EN61000-6-2:
EN61000-4-2 (ESD Standard)
EN61000-4-3 (Radiated FRI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-5 (Surge Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)
EN61000-4-11 (Voltage Dips Standards)
Environmental Test Compliance
IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
IEC60068-2-32 Ed (Free Fall)
