EUROM ALUTHERM 1000 Wi-Fi User manual




Model: Alutherm Wi-Fi
Date: 4/11/2021
Version: v4.0
Alutherm Wi-Fi
1000 / 1500 / 2000 / 2500
User Manual

2
This product is only suitable for well insulated spaces of occasional use.
Denna produkt är endast lämplig för välisolerade område för tillfälligt bruk.
Dette produkt er kun egnet til lejlighedsvis brug i velisolerede omgivelser.
Model:
Product code:
Alutherm 1000 Wi-Fi
360714
Alutherm 1000 Wi-Fi (Swiss plug)
360721
Alutherm 1500 Wi-Fi
360745
Alutherm 1500 Wi-Fi (Swiss plug)
360752
Alutherm 2000 Wi-Fi
360776
Alutherm 2000 Wi-Fi (Swiss plug)
360783
Alutherm 2500 Wi-Fi
360790

3
Thank you for choosing this EUROM device. You have purchased a quality device that you will
enjoy for many years. Using this device with respect and care will reduce the risk of personal
injury or material damage.
CAUTION
It is important to read and understand this instruction manual before
assembling, installing and using the device.
Introduction
This manual describes the correct and safe use of this device. Keep this manual for future
reference. The manual is an essential part of the device and must be given to the new owner
upon resale or exchange. This manual has been compiled with the utmost care. Nevertheless,
we reserve the right to improve and adjust this manual at any time. The images used may
differ.
The following symbols and terms are used in this manual to alert the reader on safety issues
and important information:
WARNING
Indicates a hazardous situation which, if the safety instructions are not
followed, can lead to injuries to the operator or bystanders, light and/or
moderate damage to the product or to the environment.
CAUTION
Indicates a hazardous situation which, if the safety instructions are not
followed, can lead to light and/or moderate damage to the product or to the
environment.
Warranty
EUROM offers a 36-month warranty on this device from the date of purchase. The warranty
does not cover wear and tear from normal use. The warranty expires if a defect is the result
of unintentional or careless use of the device. The manufacturer, importer and supplier are
not liable for incorrect connections.
Identification

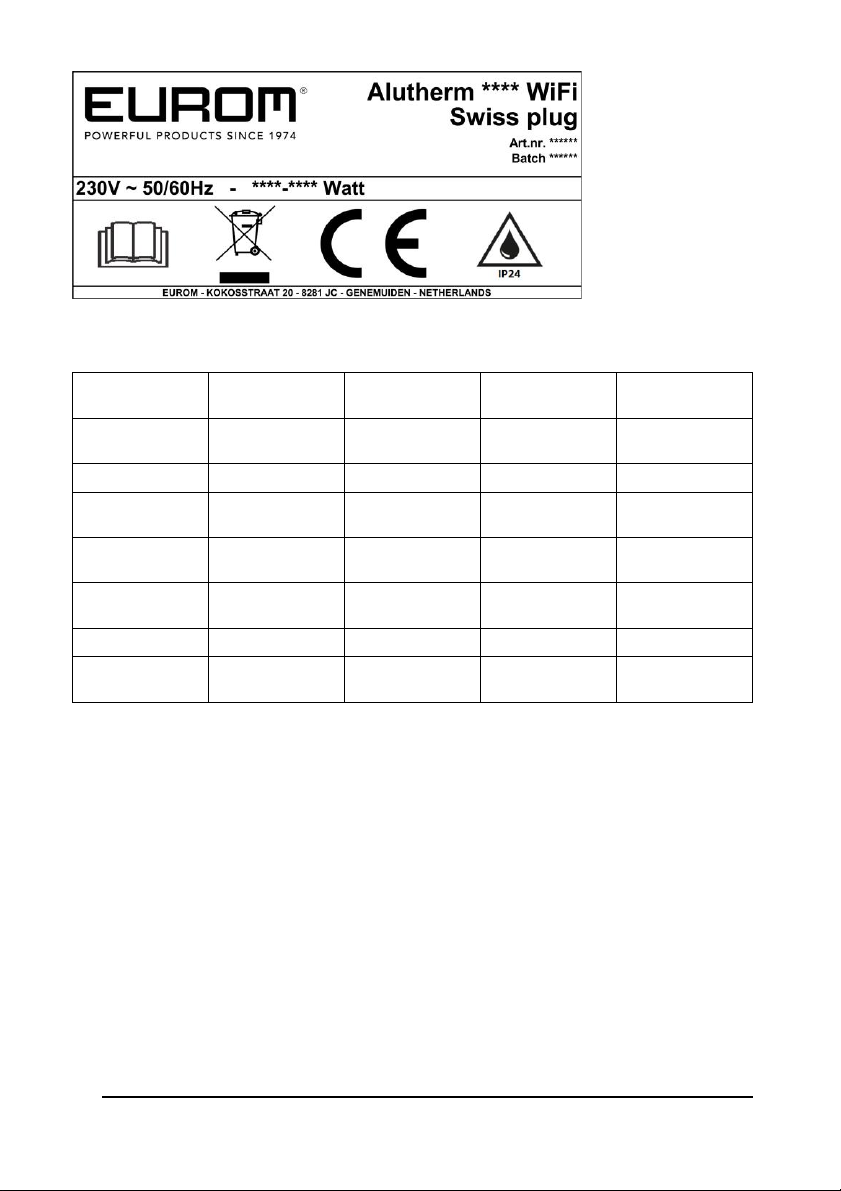

Figure 1

4
Figure 2
Specifications
Type:
Alutherm 1000
Wi-Fi
Alutherm 1500
Wi-Fi
Alutherm 2000
Wi-Fi
Alutherm 2500
Wi-Fi
Product size:
61.4 x 20.8 x
45.8 cm
75.9 x 20.8 x
45.8 cm
92.2 x 20.8 x
45.8 cm
102 x 20.8 x
45.8 cm
Weight:
3.9 kg
4.7 kg
5.5 kg
5.9 kg
Voltage:
230 V /
50/60 Hz
230 V /
50/60 Hz
230 V /
50/60 Hz
230 V /
50/60 Hz
Power (L/M/H):
400 / 600 /
1000 W
600 / 900 /
1500 W
800 / 1200 /
2000 W
1000 / 1500 /
2500 W
Protection
rating:
IP24
IP24
IP24
IP24
Protective class:
Class I
Class I
Class I
Class I
Minimal space
area:
10 m3
15 m3
20 m3
25 m3
Description
The Alutherm Wi-Fi is an easy-to-use electric heater for indoor use, see (Figure 3). The device
can be programmed on a day and a week timer. The Alutherm Wi-Fi can be used with the
Eurom Smart App.

5
Figure 3

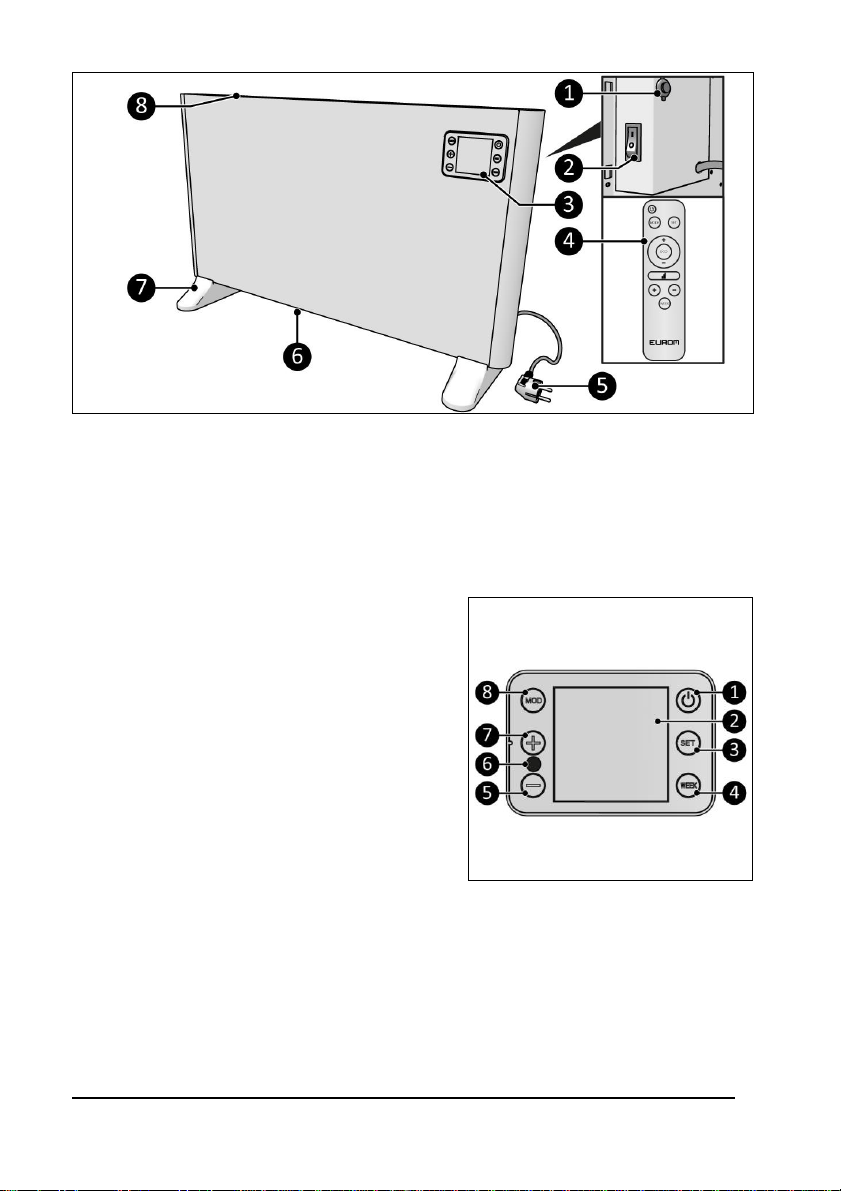

1. Connection external temperature sensor
1. ON/OFF switch
2. Control panel and LED display
3. Remote control
4. Power plug
5. Air inlet safety grill
6. Pedestals (Optional)
7. Heat outlet safety grill
Control panel
1. ON/OFF button
2. LED display
3. SET button
4. WEEK button
5. Minus button
6. Remote control receiver
7. Plus button
8. MOD button
Figure 4

6
LED display
The LED display will go dark if no adjustments are
made for 2 minutes. The LED display will light up
again when you press a button.
Status indication (Figure 5, pos. 1):
•The 3 suns indicate whether the heater is set
to low, medium or high capacity.
•The Wi-Fi symbol indicates if there is a Wi-Fi
connection.
•The “P”indicates that the program function is
active.
•The “M” indicates that the manual function is
active.
Figure 5
Temperature indication (Figure 5, pos. 2):
•SET indicates that a day or time can be set.
•ON indicates that the heater is switched on.
•OFF indicates that the heater has been switched off by the stand-by button or the
tipping safeguard.
•Temperature shown in degree Celsius.
Time indication (Figure 5, pos. 3):
•Time shown in 24-hours format.
Day indication (Figure 5, pos. 4):
•Number corresponds with the day of the week: 1 = Monday, 2 = Tuesday, and so on.
Remote control*
1. ON/OFF button
1. SET button
2. Circle plus button
3. Circle minus button
4. Minus button
5. WEEK button
6. Plus button
7. Heat capacity button
8. ECO button
9. MODE button
*Batteries not included
Figure 6

7
Safety
Please read and understand these safety instructions. Incorrect use can cause injury and will
void EUROM’s warranty.
This device is not suitable for use by persons with a physical, sensory or mental disability, or
lack of experience and knowledge (including children). Keep the device out of reach of
children, unqualified persons and pets. Never leave the device unattended while it is in
operation.
The device is equipped with an overheating protection, which switches it off automatically in
case of internal overheating. Switch the device off, unplug the power plug, remove the source
of overheating, let it cool down and use as normal. Do not use the device if the source of
overheating cannot be traced or if the problem persists, but always contact your supplier.
The device is fitted with a tipping safeguard, which ensures it automatically shuts off if it tips
over. When the device is returned to its upright position, it will resume functioning normally.
Before reusing the device, switch it off, unplug it and check it for damage. Do not use the
device if it is damaged or malfunctioning, but always contact your supplier.
This device is splashproof. When mounted to a wall, it may be used in bathrooms and other
damp rooms. The use of the device on pedestals is not permitted in bathrooms and damp
rooms. To prevent contact with water, the device must be installed at a fixed location at least
100 cm from water taps and water reservoirs.
General safety instructions
WARNING
•Prevent splashing water on or in the device.
•Do not immerse any part of the device in water or other liquids.
•Never insert fingers or other objects into the openings of the device.
•Do not expose the device to strong vibrations or mechanical stress.
WARNING
The device becomes very hot during use. Do not touch the device during use
or within five minutes after use.
CAUTION
Do not cover the device during usage or after use while the device is still hot.
To reduce the risk of fire, keep textiles, curtains, tent canvasses and other
flammable material at a minimum distance of 1 meter from the device.

8
Safety during operation
WARNING
Do not use the device:
•outdoors or in a small space;
•if any parts are dirty or wet;
•near large objects, like behind a door, under a shelf or cupboard;
•near a water source, like a bath, shower, swimming pool or open window;
•near or in a dusty and dirty environment, like a construction site;
•near flammable materials, liquids or fumes, like a shed, stable or green
house;
•near other heat sources and open fire;
•immediately below a socket outlet;
•with an appliance that automatically switches the device on, such as a
timer, dimmer or any other device.
If the device, the electric cable or plug shows damage or is malfunctioning,
immediately take the appliance out of use and disconnect the power supply.
Transport and storage
•Clean the device before storing it.
•Transport the device upright.
•Store the device upright in its original packaging in a cool, dry and dust-free area.
Assembly
WARNING
Never place the device on surfaces such as beds or deep-pile carpet as
openings could be blocked.
The device is packed in one box. Remove all packaging material and check that the device is
not damaged. Do not use the heater if it is damaged, but always contact your supplier. Keep
the packaging for safe storage and transport. The device can be assembled in two ways;
mounted on pedestals or mounted on a wall.

9
Mounting on pedestals
1. Lay the device down on a steady soft surface
(Figure 7, pos. 4).
2. Place the pedestals (Figure 7, pos. 3) on both
sides of the main body (Figure 7, pos. 5).
3. Screw and tighten the pedestals with a small
screw (Figure 7, pos. 1) using a Phillips
screwdriver (Figure 7, pos. 2).
Figure 7
4. Place the device on a horizontal, solid and
non-flammable surface.
5. Place the device with a minimum clearance
distance (Figure 8) of:
•100 cm on the top side;
•50 cm on the sides;
•30 cm on the back side;
•50 cm on the front side.
6. Do not place the device immediately below a
socket outlet.
Figure 8
Wall mounting
WARNING
The wall used for mounting must be made from non-flammable material and
should be able to withstand a minimum temperature of 200 °C.
CAUTION
Make sure to use suitable fastening materials, depending on the surface.
Never block the space between the device and the wall.

10
1. Place the device on a vertical and solid
surface. Use a spirit level when placing the
device (Figure 9, pos. 1).
2. Place the device with a minimum distance
(Figure 9) of:
•150 cm from the ceiling;
•30 cm from the side walls;
•30 cm from the floor;
•50 cm clearance on the front side.
3. Do not mount the device:
•immediately below a socket outlet;
•on a ceiling or roof.
Figure 9
4. Drill two holes at least 610 mm above the
floor and with a distance of (Figure 10,
pos. A):
•Alutherm 1000: 255 mm;
•Alutherm 1500: 400 mm;
•Alutherm 2000: 563 mm;
•Alutherm 2500: 655 mm.
5. Place wall plugs (Figure 10, pos. 2).
6. Screw and tighten a left and a right bracket
(Figuer 10, pos. 3) to the wall with a large
screw (Figure 10, pos. 4) using a Phillips
screwdriver (Figure 10, pos. 1).
Figure 10
7. Lay the device down on a soft steady surface
(Figure 11, pos. 4).
8. Screw and tighten two brackets (Figure 11,
pos. 1) on both sides of the main body
(Figure 11, pos. 5) with a small screw
(Figure 11, pos. 2) using a Phillips screwdriver
(Figure 11, pos. 3).
Figure 11

11
Figure 12
9. Place the bracket holes (Figure 12, pos. 4) over the wall brackets (Figure 12, pos. 1).
10. Let the device (Figure 12, pos. 2) drop into the openings of the wall brackets (Figure 12,
pos. 1).
11. Use the device brackets (Figure 12, pos. 3) to mark the bottom hole position on the wall.
12. Remove the device from the wall brackets (Figure 12, pos. 1).
13. Drill two holes at the marked positions and
place the wall plugs.
14. Place the device (Figure 12, pos. 2) back on
the wall brackets (Figure 12, pos. 1).
15. Screw and tighten the device brackets (Figure
13, pos. 4) with a large screw (Figure 13,
pos. 3) to the wall (Figure 10, pos. 3) using a
Phillips screwdriver (Figure 13, pos. 2).
Figure 13
Temperature sensor (Optional)
CAUTION
For accurate temperature measuring use the external temperature sensor.

12
1. Make sure the ON/OFF switch is in the OFF
position (Figure 14, pos. 3)
2. Connect the temperature sensor connector
(Figure 14, pos. 2) to the sensor plug (Figure
14, pos. 1).
3. Place the temperature sensor approximately
2 meters away from the device.
Figure 14
Installation
WARNING
Do not put the power plug into the wall socket before the device is correctly
mounted or stands in the right place.
Do not use an extension cable; this can cause overheating and fire. If using an
extension cable is unavoidable, make sure it is undamaged and earthed. Use
an extension cable with a minimum power of 2500 Watt. Always unwind the
extension cable completely to prevent overheating.
CAUTION
Make sure that the main voltage is the same as indicated on the identification
label of the device. All electrical connections must stay dry under all
circumstances.
1. Make sure the device is correctly assembled.
2. Make sure the ON/OFF switch is in the OFF
position (Figure 15, pos. 1).
3. Place the power plug (Figure 15, pos. 2) into
an earthed wall socket that is easily
accessible. Use an earthed wall socket with a
minimum power of 2500 Watt.
Figure 15

13
Remote control
1. Remove the cover (Figure 16, pos. 1).
2. Remove the batteries (if present).
3. Insert two batteries (AAA 1.5 V) (Figure 16,
pos. 2) as indicated in the battery
compartment. Make sure to insert the
batteries correctly.
4. Replace the cover.
Figure 16
Operation
WARNING
Before every use, make sure that:
•you operate the device with dry hands;
•the device is clean and dry;
•the device is not damaged;
•the device is not covered or blocked;
•the device is securely installed.
CAUTION
When the device is turned on or off, it may emit a sound. This is material
expanding and shrinking during heating and cool-down.
CAUTION
The day and time settings will be lost if the device is switched off using the
ON/OFF switch or is unplugged.

14
1. Set the ON/OFF switch to the ON position
(Figure 17, pos. 1).
2. The display (Figure 17, pos. 2) will show OFF.
3. Press the ON/OFF button.
4. Press and hold the SET button until SET
appears on the screen.
5. Use the plus and minus button to select the
correct day and confirm with the SET button.
6. Use the plus and minus button to set the
correct time:
•Hours, confirm with the SET button;
•Minutes, confirm with the SET button.
7. Press the MOD button to choose the desired
function: manual or program.

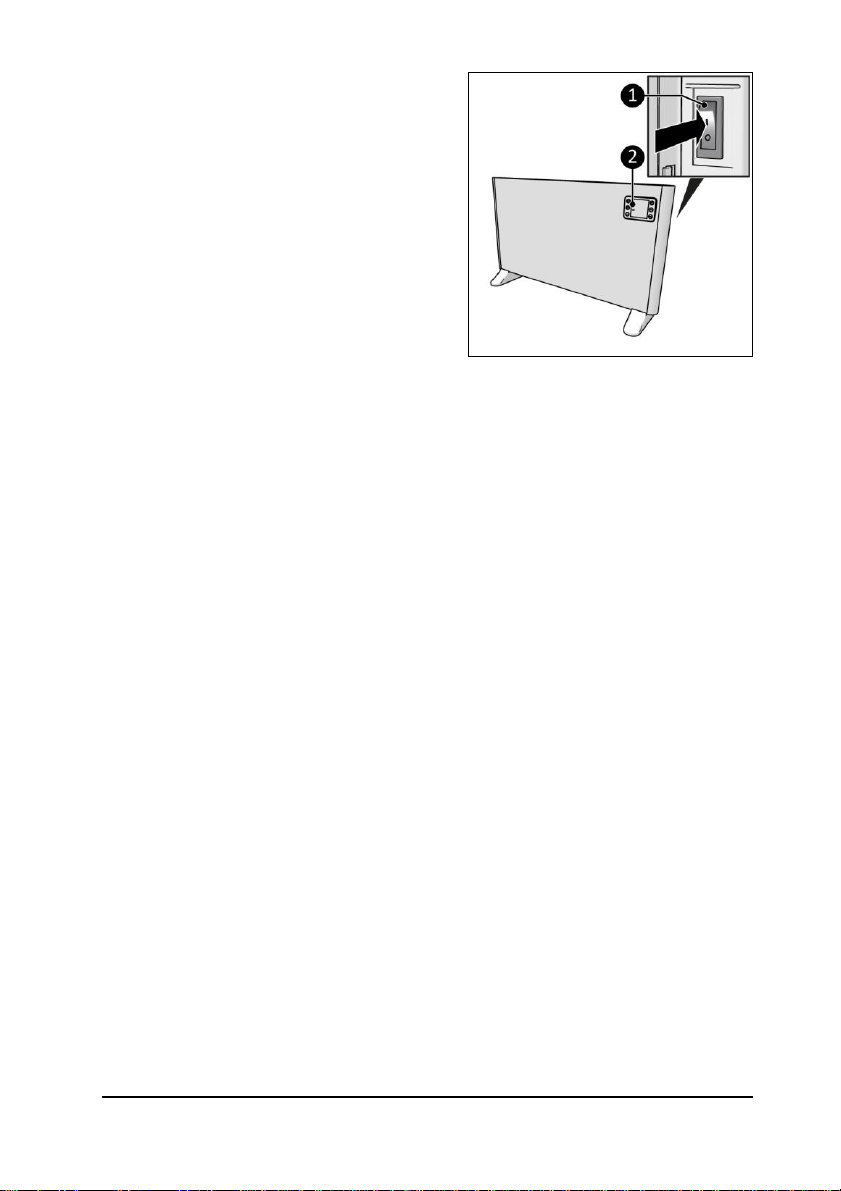

Figure 17
Manual function
1. Set the capacity at which the heater will work using the plus and minus button. The 3
suns indicate whether the heater is set to low, medium or high capacity.
Program function
1. Set the desired temperature for the device using the plus and minus button. The device
automatically chooses the correct heating capacity to reach and remain the desired
temperature;
•10 minutes after the desired temperature is reached the device will change from high
capacity to medium capacity;
•each 5 minutes the device will check the ambient temperature and adjust the heating
capacity:
-if ambient temperature is more than 1 degree below desired temperature, the
device will increase capacity;
-if ambient temperature is within 1 degree below and 1 degree above desired
temperature, the device will heat keep current capacity ;
-if ambient temperature is more than 1 degrees above desired temperature, the
device will decrease capacity;
-if ambient temperature is more than 2 degrees above desired temperature, the
device will stop heating after 5 minutes.
In most cases the device will heat up the room slightly higher than the desired temperature.
To save energy costs, it is recommended not to set the desired temperature too high and
adjust accordingly.
Weekly timer setting
1. Make sure the device is set to program function.
2. Press and hold the WEEK button until 01 appears on the screen.
3. Use the plus and minus button to choose the desired setting:
•01 –one-off setting (must fall in the current week).
•][ –every week setting.

15
4. Confirm with the SET button; ON appears blinking on the screen.
5. Use the plus and minus button to choose the desired anticipation setting:
•ON –the heater will anticipate the temperature 20 minutes before it is set. If it needs to
be heated, the heater will heat with high capacity in order to heat the room to the
desired temperature by the activation time.
•OFF –the heater will not anticipate the temperature and will turn on at set time.
6. Confirm with the SET button, 01 SET ON appears on the screen.
7. Use the plus and minus buttons to select:
•the desired day, confirm with the SET button;
•the desired temperature, confirm with the SET button;
•the desired hours, confirm with the SET button;
•the desired minutes, confirm with the SET button.
8. 01 SET OFF will appear on the screen; repeat step 7 to indicate the deactivation time.
9. 02 appears on the screen, there are two options:
•Set next activation and deactivation times, repeat step 7 and 8 for every desired time.
Make sure the timer settings do not contradict each other: maximum 28 per week,
maximum 4 per day.
•If you are done setting the activation and deactivation times, wait till screen returns to
standard settings.
10. The screen will show P and the device will automatically switch on and off at the set
time.
Viewweekly timersetting
1. Press repeatedly on WEEK. You will see the following timer settings, one after the other:
•one-off or repeated;
•anticipation on or off;
•temperature setting;
•timer on-time;
•timer off-time;
•next timer setting.
Turningoffweeklytimersetting
1. Press and hold the WEEK button until 01 appears on the screen.
2. Press and hold the MOD until TIME disappears from the screen to indicate that the data
will be retained but will not be active. By pressing MOD again until TIME appears, you
will reactivate the timer.
Deletingweeklytimersetting
1. Press and hold the WEEK button until 01 appears on the screen.
2. Go past 01- ][ and on/off first by pressing SET briefly.
3. When the number of the timer setting that you wish to change appears, press SET for a
little longer. You will hear a short beep and the selected setting has been deleted.
4. If you wish to delete all timer settings, press the WEEK button and hold. Press and hold
the MOD and SET buttons at the same time, until you hear a beep. The screen will show
88:88, indicating that all settings have been deleted.

16
ECO mode
The remote control has an ECO button for an energy-efficient mode; the device maintains the
room temperature at 16°C.
1. Press the ECO button to activate; EC appears on the screen.
2. Press the ECO button to deactivate.
If the heater is working in ECO mode and a timer setting becomes active, the device will start
to work according to the timer setting. When the timer setting ends and the device goes off,
the device will not return to the ECO mode.
Eurom Smart App
CAUTION
Do not use the weekly timer created on the device at the same time as the
weekly timer created by the Eurom Smart app. Timer settings created by the
Eurom Smart app are not visible on the device display. Timer settings created
on the device are not visible in the Eurom Smart app.
The device can be operated using an app on a smartphone or tablet. The Eurom Smart app
can be used:
•to switch the device on and off (without anticipation);
•regulate the temperature and capacity;
•set the ECO setting.
The app can also be used to set twenty on and off timer settings daily, on the weekly timer.
1. Open the Eurom Smart App manual with the
QR code (Figure 18) or go to
www.eurom.nl/nl/manuals.
2. Complete the Eurom Smart App manual.
•When the device is connected with Wi-Fi, the
Wi-Fi symbol appears on the screen.
•If the Wi-Fi symbol is blinking there is no
connection.
Figure 18
SmartTimer
1. Create a schedule with days and times in the Eurom Smart app. Timer settings set in the
app:
•will be stored on the device;
•will not be visible on the device;
•will remain available if Wi-Fi disconnects;

17
•will remain available if the device is switched off or unplugged;
•can only be removed via the app.
2. Check the data in the app regularly.
ResetWi-Ficonnection
1. Press and hold the MOD button. Existing connections will be deleted, the Wi-Fi symbol
will start blinking and a new connection will be made.
SwitchoffWi-Ficonnection
1. Press and hold the OFF button until a long beep sounds. The Wi-Fi is switched off and
the Wi-Fi symbol will disappear from the screen.
2. Press and hold the OFF button until a short beep sounds. The Wi-Fi is switched on and
the Wi-Fi symbol will appear on the screen.
After operation
CAUTION
Do not use the power cable to unplug or carry the device. Do not wind the
power cable too tightly or in sharp corners. Do not wrap the power cable
around the device.
1. Make sure the ON/OFF switch is in the OFF position (Figure 15, pos. 1).
2. Disconnect the power plug from the power outlet (Figure15).
3. Let the device cool down before touching it.
4. Wind the power cable.
5. Remove the batteries from the remote control (Figure 16).
Maintenance
WARNING
Do not perform any repairs or modifications to this device.
Maintenance and repairs must be carried out by a EUROM authorized professional. If the
electric cable and/or electric plug is damaged, it should be replaced by the manufacturer or
its service employee or persons with similar qualifications to prevent risks.
Cleaning
WARNING
The device becomes very hot. Make sure the device is turned off, unplugged
and completely cooled down.

18
CAUTION
Do not use:
•scouring pads;
•hard brushes;
•flammable, aggressive or chemical cleaning products.
Prevent water from entering the device. Do not immerse any part of the device
in water or other liquids.
It is recommended to clean the device after each use and prior to storage.
1. Carefully vacuum the openings to remove dust and dirt.
2. Wipe the device with a damp, clean, soft, lint-free cloth or a soft brush.
3. Let the device dry completely prior to use and storage.
Disposal
At its end of life, discard the device according to the local laws and regulations, or deliver the
device to your supplier. Remove the batteries from the remote control for separate disposal.
Attachments
The CE declaration can be found at the end of this manual.

19
Information requirement for the electric local space heaters
Model identifier(s): Alutherm 1000 WiFi
Item
Symbol
Value
Unit
Item
Unit
Heat output
Type of heat input, for electric storage local space
heaters only (select one)
Nominal heat output
Pnom
1,0
kW
manual heat charge control, with
integrated thermostat
No
Minimum heat output
(indicative)
Pmin
0
kW
manual heat charge control with room
and/or outdoor temperature feedback
No
Maximum continuous
heat output
Pmax,c
1,0
kW
electronic heat charge control with room
and/or outdoor temperature feedback
No
Auxiliary electricity consumption
fan assisted heat output
No
At nominal heat output
elmax
0
kW
Type of heat output/room temperature control
(select one)
At minimum heat output
elmin
0
kW
single stage heat output and no room
temperature control
No
In standby mode
elSB
0
kW
Two or more manual stages, no room
temperature control
No
with mechanic thermostat room
temperature control
No
with electronic room temperature control
No
electronic room temperature control plus
day timer
No
electronic room temperature control plus
week timer
Yes
Other control options (multiple selections possible)
room temperature control, with presence
detection
No
room temperature control, with open
window detection
No
with distance control option
Yes
with adaptive start control
Yes
with working time limitation
No
with black bulb sensor
No
Contact details
Eurom - Kokosstraat 20 - 8281 JC - Genemuiden - The Netherlands

20
Information requirement for the electric local space heaters
Model identifier(s): Alutherm 1500 WiFi
Item
Symbol
Value
Unit
Item
Unit
Heat output
Type of heat input, for electric storage local space
heaters only (select one)
Nominal heat output
Pnom
1,5
kW
manual heat charge control, with
integrated thermostat
No
Minimum heat output
(indicative)
Pmin
0
kW
manual heat charge control with room
and/or outdoor temperature feedback
No
Maximum continuous
heat output
Pmax,c
1,5
kW
electronic heat charge control with room
and/or outdoor temperature feedback
No
Auxiliary electricity consumption
fan assisted heat output
No
At nominal heat output
elmax
0
kW
Type of heat output/room temperature control
(select one)
At minimum heat output
elmin
0
kW
single stage heat output and no room
temperature control
No
In standby mode
elSB
0
kW
Two or more manual stages, no room
temperature control
No
with mechanic thermostat room
temperature control
No
with electronic room temperature control
No
electronic room temperature control plus
day timer
No
electronic room temperature control plus
week timer
Yes
Other control options (multiple selections possible)
room temperature control, with presence
detection
No
room temperature control, with open
window detection
No
with distance control option
Yes
with adaptive start control
Yes
with working time limitation
No
with black bulb sensor
No
Contact details
Eurom - Kokosstraat 20 - 8281 JC - Genemuiden - The Netherlands
