evertz 7700 Series User manual

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
Revision 1.6
TABLE OF CONTENTS
1. OVERVIEW..................................................................................................................................... 1
2. CARD EDGE CONTROLS..............................................................................................................4
2.1. DETERMINING CURRENT IP ADDRESS SETTINGS.......................................................... 4
2.2. RESTORING FACTORY DEFAULTS.................................................................................... 4
2.3. CARD EDGE LEDS ............................................................................................................... 4
3. TECHNICAL SPECIFICATIONS..................................................................................................... 5
3.1. DATA INPUT SERIAL PORT................................................................................................. 5
3.2. ELECTRICAL......................................................................................................................... 5
3.3. PHYSICAL ............................................................................................................................. 5
4. CONFIGURATION.......................................................................................................................... 6
4.1. CONFIGURATION STEPS .................................................................................................... 6
4.2. DEBUG/MONITOR PORT CONNECTION............................................................................. 6
4.3. MAIN MENU........................................................................................................................... 8
4.4. NETWORK CONFIGURATION.............................................................................................. 9
4.5. SERIAL PORT SETUP ..........................................................................................................9
4.5.1. Parameters .................................................................................................................9
4.5.2. Rear Plate.................................................................................................................10
4.5.3. RS-232 Wiring........................................................................................................... 11
4.5.4. RS-422 Wiring........................................................................................................... 12
4.6. CTP PROTOCOL SETUP.................................................................................................... 13
4.6.1. VGPI Image Video Display Id ...................................................................................14
4.6.2. VGPI Refresh Count.................................................................................................14
4.6.3. Program Output Number...........................................................................................15
4.6.4. Program VGPI Offset................................................................................................15
4.6.5. Tx Program UMD...................................................................................................... 16
4.6.6. Program UMD Display Id..........................................................................................16
4.6.7. Preview Output Number............................................................................................16
4.6.8. Preview VGPI Offset.................................................................................................17
4.6.9. Tx Preview UMD....................................................................................................... 17
4.6.10. Preview UMD Display Id...........................................................................................18

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
Revision 1.6
4.6.11. Transmit Source Names...........................................................................................18
4.6.12. Source Names Refresh Count..................................................................................18
4.6.13. Source Names Display ID Offset..............................................................................18
4.6.14. Include Non-Physical Sources with VGPIs and Source Names ...............................20
4.7. UNDER MONITOR DISPLAY SETUP .................................................................................20
5. TROUBLESHOOTING TIPS.........................................................................................................21
5.1. CHECKING SWITCHER COMMUNICATION......................................................................21
5.2. CHECKING UMD COMMUNICATION.................................................................................22
6. PERFORMING A FIRMWARE UPGRADE...................................................................................23
6.1. FTP PROCEDURE............................................................................................................... 23
6.2. SERIAL PROCEDURE ........................................................................................................23
7. VISTALINK®REMOTE MONITORING/CONTROL ......................................................................25
7.1. WHAT IS VISTALINK®?.......................................................................................................25

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
Revision 1.6
Figures
Figure 1-1: Typical 7700PTX-CTP Setup.........................................................................................................1
Figure 1-2: 7700PTX-CTP Example.................................................................................................................3
Figure 2-1: PTX Card Edge ..............................................................................................................................4
Figure 4-1: Upgrade Jumper.............................................................................................................................6
Figure 4-2: ‘Connect To’ Window .....................................................................................................................7
Figure 4-3: COM1 Properties............................................................................................................................7

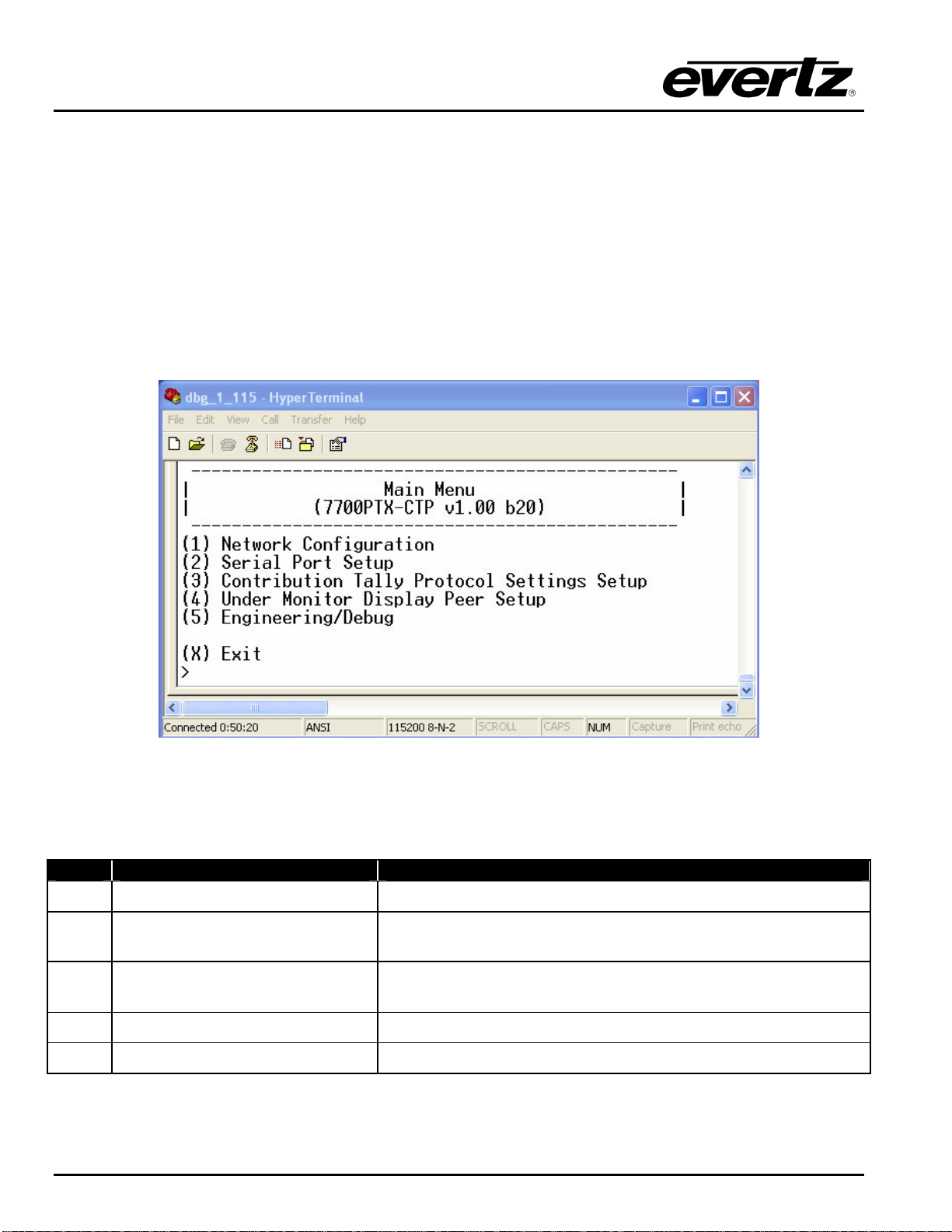

Figure 4-4: HyperTerminal Main Menu.............................................................................................................8

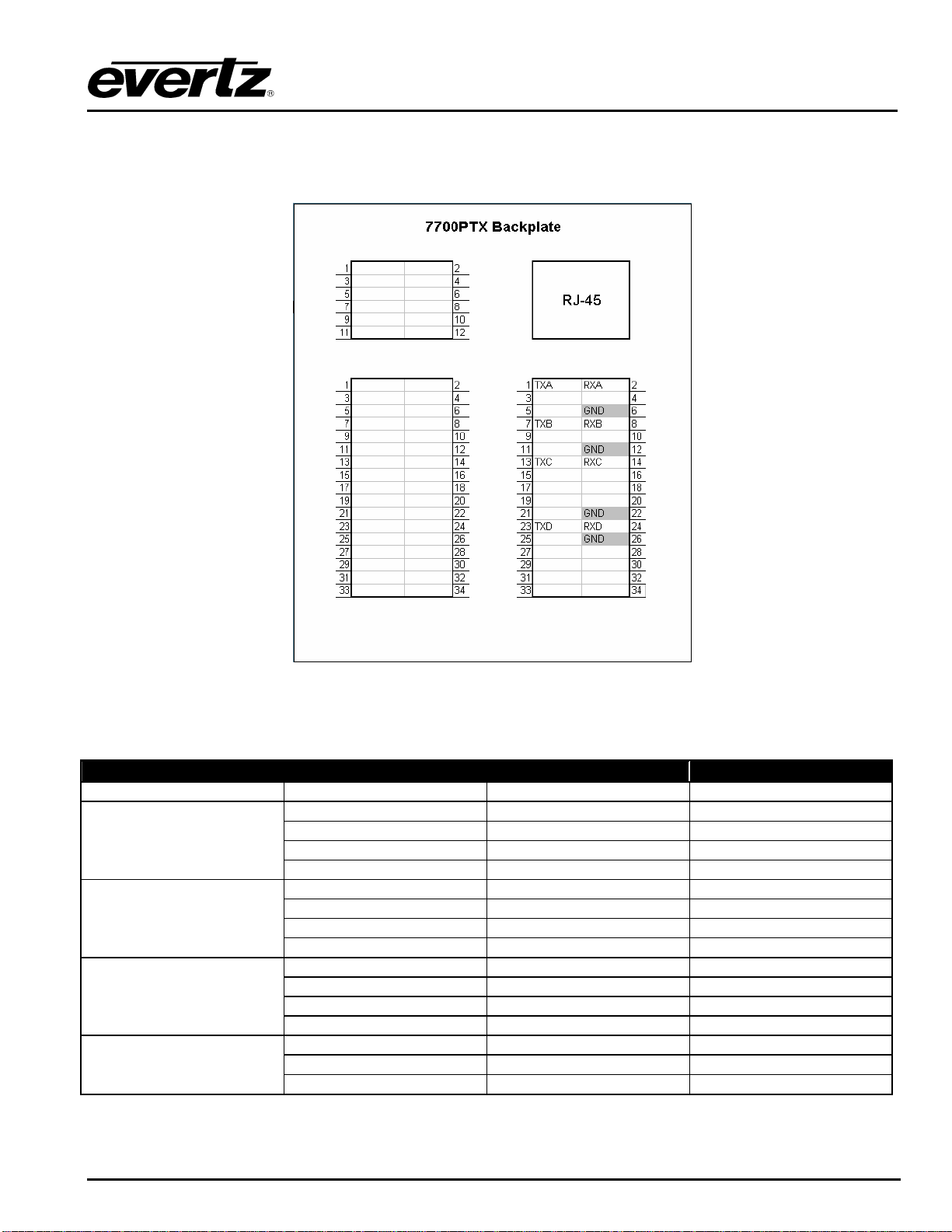

Figure 4-5: 7700PTX Rear Plate ....................................................................................................................10
Figure 4-6: RS-232 Pins .................................................................................................................................11

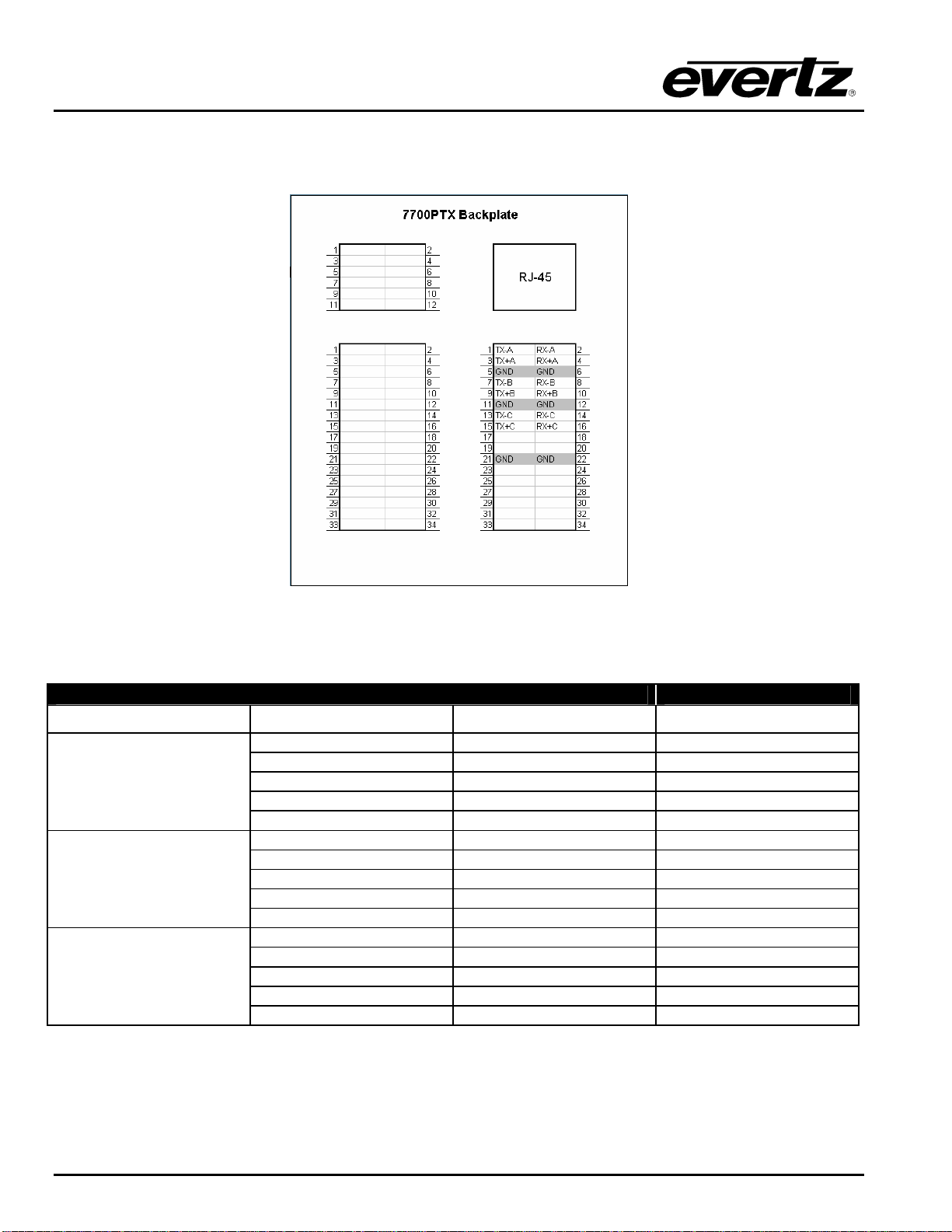

Figure 4-7: RS-422 Pins .................................................................................................................................12
Figure 4-8: CTP Protocol Parameters ............................................................................................................13

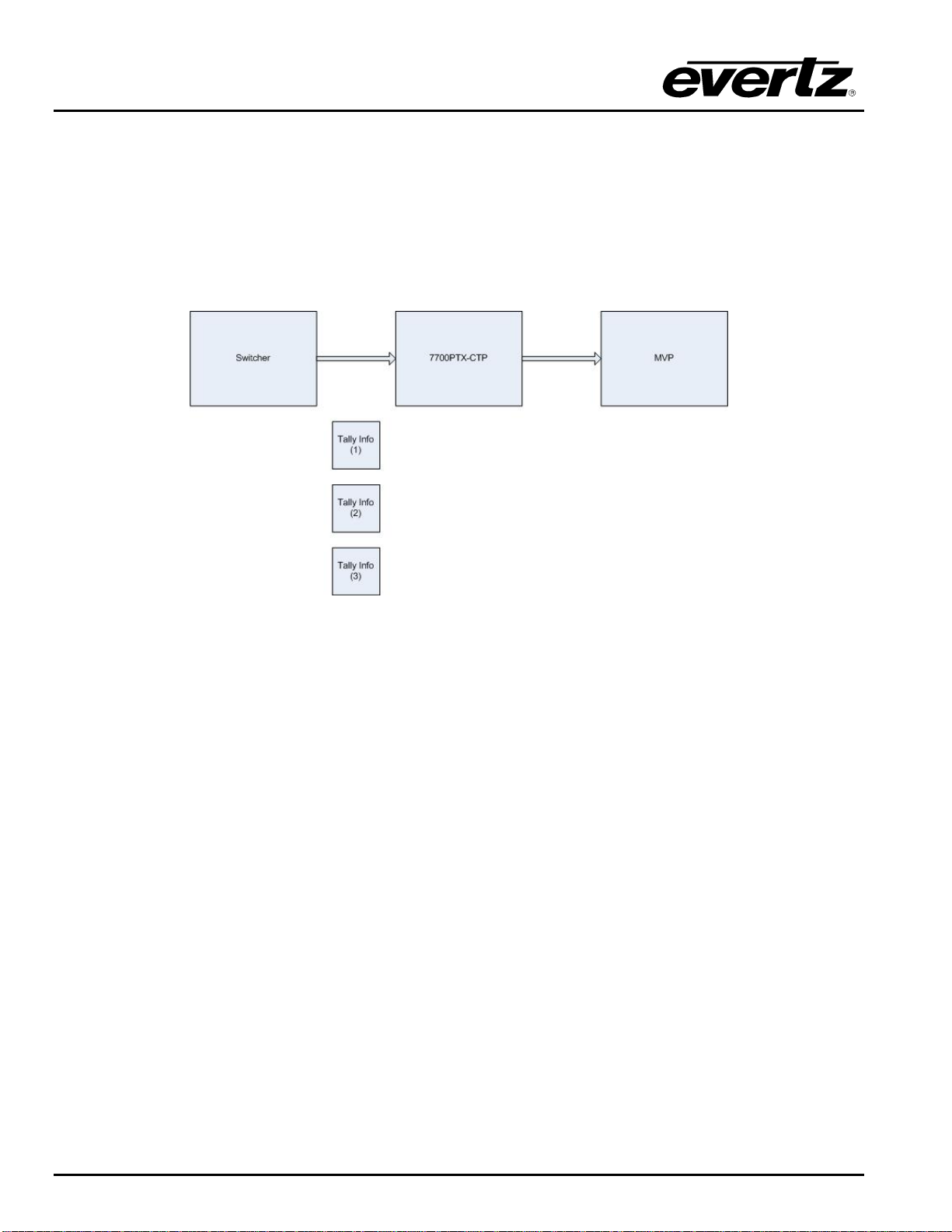

Figure 4-9: Tally Info Transmission ................................................................................................................14
Figure 4-10: VGPI Refresh .............................................................................................................................15
Figure 4-11: Program UMD ............................................................................................................................16
Figure 4-12: Preview UMD .............................................................................................................................17
Figure 4-13: Example Display Layout for Source Names ..............................................................................19
Figure 4-14: UMD Peer Configuration............................................................................................................20
Figure 5-1: CTP Status...................................................................................................................................21
Figure 5-2: UMD Peer Status .........................................................................................................................22
Tables
Table 4-1: 7700PTX-CTP Main Menu ..............................................................................................................8
Table 4-2: Serial Port Parameters....................................................................................................................9
Table 4-3: RS-232 Wiring ...............................................................................................................................11
Table 4-4: RS-422 Wiring ...............................................................................................................................12
Table 4-5: CTP Source Number to Program VGPI Mapping..........................................................................15
Table 4-6: CTP Source Number to Preview VGPI Mapping...........................................................................17
Table 4-7: CTP Source Number to Display ID Mapping.................................................................................18

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
Revision 1.6
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 First Release Apr 07
1.1 Added information on source name offset and VGPI transmission Oct 07
1.2 Updated card edge drawing Nov 07
1.3 Updated Preview VGPI Offset information Apr 08
1.4 Added features, block diagram, technical specs and VistaLINK section.
Updated CTP protocol setup. Nov 08
1.5 Removed references to GPI, GPO, LTC specifications Apr 09
1.6 Removed block diagram Nov 09
Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor
for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning
performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or implied. The
only warranty offered by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order
confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no
warranty is granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or
order confirmation. Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If
you encounter an error, please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make
changes in equipment design or specifications.

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
Revision 1.6 7700PTX-CTP - 1
1. OVERVIEW
The 7700PTX Universal Protocol Translator module provides an interface between third-party and Evertz
equipment. The 7700PTX communicates with third-party equipment either via one of four serial ports or
via a built in Ethernet port. These ports can provide bi-directional protocol support.
Function:
The function of the 7700PTX generally falls into one of 4 categories:
1. Third-Party Router Control: In this mode the 7700PTX affords VistaLINK®the ability to control
and monitor third-party routers. The 7700PTX can convey UMD information to Evertz monitoring
equipment.
2. Third-Party UMD Interface: In this mode the 7700PTX translates third-party UMD protocol data
into a format suitable for Evertz monitoring equipment.
3. Third-Party Switcher Interface: In this mode the 7700PTX extracts tally information from third-
party switchers and translates and conveys that tally information to Evertz monitoring equipment.
4. Third-Party Device Control: In this mode the 7700PTX allows VistaLINK®to control third-party
devices such as satellite controllers.
Features:
•4 serial ports RS232/422 selectable
•Modular, conveniently fits into 7700FR-C 3RU frame
•Frame status trigger
•VistaLINK®- capable for remote monitoring and control via SNMP (using VistaLINK®PRO)
The 7700PTX-CTP is a protocol translator that can accept, on any of its 4 serial ports, the Contribution
Tally Protocol.

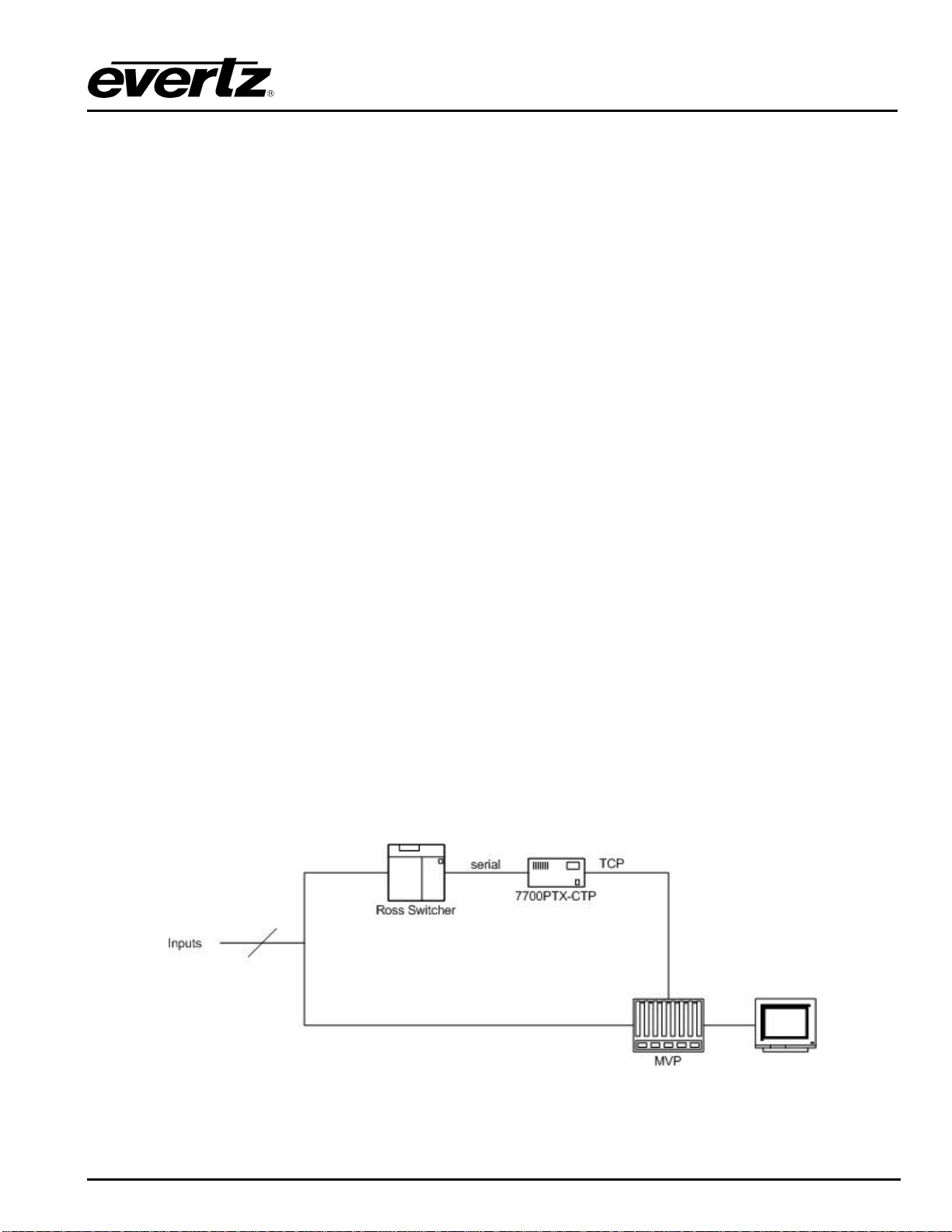

The typical environment, as Figure 1-1 shows, has the 7700PTX-CTP connecting to a switcher. The
7700PTX-CTP, in turn, communicates with a MVP via a TCP link.
Figure 1-1: Typical 7700PTX-CTP Setup

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
7700PTX-CTP - 2 Revision 1.6
The function of the 7700PTX-CTP is to monitor the Contribution Tally Protocol to:
1. Determine which, if any, of the switcher’s inputs is contributing to the switcher’s program output.
This is represented by the 7700PTX-CTP as a collection of virtual GPIs and conveyed via TCP to
the display card(s) of an MVP.
2. Determine which, if any, of the switcher’s inputs is contributing to the switcher’s preview output.
This is represented by the 7700PTX-CTP as a collection of virtual GPIs and conveyed via TCP to
the display card(s) of an MVP.
3. Determine the names of the switcher’s inputs/sources and convey them via TCP to the display
card(s) of an MVP.
As an example, suppose:
1. 12 video sources are supplied to inputs 1 – 12 of the switcher.
2. A MVP is monitoring these sources.
3. A 7700PTX-CTP communicates with the switcher via a RS-422 link.
4. The 7700PTX-CTP communicates with the display card of the MVP via TCP.
5. The MVP’s output card display matches that of Figure 1-2 where each input has associated with it
a program tally, a preview tally, and a UMD.

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
Revision 1.6 7700PTX-CTP - 3
Figure 1-2: 7700PTX-CTP Example
The names of the switcher inputs will appear on the UMD located beneath each display window. If the
input contributes to the program output the tally on the left will be active. If the input contributes to the
preview output the tally on the right will be active.

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
7700PTX-CTP - 4 Revision 1.6
2. CARD EDGE CONTROLS
2.1. DETERMINING CURRENT IP ADDRESS SETTINGS
To read the current IP address during normal operation, press the toggle switch DOWN. The IP address
can be read on the four-character alphanumeric display.
2.2. RESTORING FACTORY DEFAULTS
To restore all settings to factory defaults, apply power to the card while holding the toggle switch UP until
the green LED is illuminated.
2.3. CARD EDGE LEDS
LED 22 is illuminated when Ethernet activity is detected.
All other card edge LEDs are for factory use only.
LED 15 LED 12
LED 19LED 13LED 20LED 14
LED 22
Red Gr
LED 7LED 2LED 8LED 3 LED 1
Toggle
P
T
X
Figure 2-1: PTX Card Edge

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
Revision 1.6 7700PTX-CTP - 5
3. TECHNICAL SPECIFICATIONS
3.1. DATA INPUT SERIAL PORT
Number of Ports: 4 RS-232 or 3 RS-422
Connector: Phoenix Terminal Block pins
Baud Rate: Up to 1Mbaud
3.2. ELECTRICAL
Voltage: +12V DC
Power: < 6W
Safety: ETL Listed, complies with EU safety directives
EMI/RFI: Complies with FCC Part 15, Class A
EU EMC Directive
3.3. PHYSICAL
Number of Slots: 2

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
7700PTX-CTP - 6 Revision 1.6
4. CONFIGURATION
4.1. CONFIGURATION STEPS
The basic steps required to configure the 7700PTX-CTP are as follows:
1. Connect a PC running a console application to the PTX debug/monitor port via the adapter cable.
2. Configure the network parameters of the 7700PTX-CTP.
3. Configure the parameters of each serial port to match those of the connected switcher.
4. Configure the CTP protocol parameters should changes to the defaults be required.
5. Configure the IP address and TCP port of the UMD peer(s).
6. Save all configuration parameters.
7. Power off the 7700PTX-CTP.
8. Physically wire the serial port(s) of the 7700PTX-CTP to the switcher.
9. Power on the 7700PTX-CTP.
4.2. DEBUG/MONITOR PORT CONNECTION
The 7700PTX-CTP is configured via the debug/monitor port, the header of which is labeled J1. A special
Evertz adapter cable allows this port to connect to the COM port of a personal computer. The following
steps describe this procedure.
1. Locate the small, keyed, four–pin end of the upgrade cable provided by Evertz.
2. Connect it to the four-pin interface (J1) near the front of the 7700PTX, directly above the card
unlock latch.
Figure 4-1: Upgrade Jumper

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
Revision 1.6 7700PTX-CTP - 7
3. Connect the other end of the upgrade cable to a straight-through serial cable. Connect the serial
cable to the serial or COM port of the computer.
4. Initiate HyperTerminal on your computer by selecting:
“Start\Programs\Accessories\Communications\HyperTerminal”.
5. Enter a name for your connection, for example: PTX.
6. Press the <Enter> key. A new “Connect To” window opens.
Figure 4-2: ‘Connect To’ Window
7. Select COM1 for the “Connect using’ setting. If COM1 is in use, choose an alternate COM port.
8. Press the <Enter> key or select OK. This opens the “COM Properties” window.
Figure 4-3: COM1 Properties

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
7700PTX-CTP - 8 Revision 1.6
9. Enter the information as listed in the screen above.
10. Press the <Enter> key or select OK. The “COM Properties” window closes, leaving the
HyperTerminal window open.
11. Apply power if the 7700PTX-CTP does not have power. The boot sequence and Main Menu are
displayed in the HyperTerminal window.
12. If the 7700PTX-CTP has power, press the <Enter> key to view the 7700PTX-CTP’s menu system.
13. Various 7700PTX-CTP parameters are configurable via the 7700PTX-CTP’s menu system, the root
of which is called Main Menu.
Figure 4-4: HyperTerminal Main Menu
4.3. MAIN MENU
Table 4-1 lists the entries available in the 7700PTX-CTP’s Main Menu.
Entry Item Notes
1 Network Configuration IP address, subnet mask, gateway, etc.
2 Serial Port Setup Baud rate, number of data bits, etc. of serial ports that are
connected to the switcher.
3 Contribution Tally Protocol
Settings Setup Parameters pertaining to the Contribution Tally Protocol.
4 Under Monitor Display Setup IP address and TCP port of UMD peers.
5 Engineering/Debug Used for troubleshooting.
Table 4-1: 7700PTX-CTP Main Menu

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
Revision 1.6 7700PTX-CTP - 9
4.4. NETWORK CONFIGURATION
1. From the Main Menu select Network Configuration.
2. If DHCP (Dynamic Host Configuration Protocol) is desired, then the Use DHCP field is set to True.
Otherwise, the IP address, subnet mask, and gateway (if any) are set and the Use DHCP field is
set to False.
3. Once the network settings are configured, select Save and Exit before exiting the Network
Configuration to save the settings, otherwise select Exit.
"The 7700PTX-CTP must be rebooted for any network setting changes to take effect.
4.5. SERIAL PORT SETUP
4.5.1. Parameters
The 7700PTX-CTP has 4 serial ports. The parameters associated with each serial port are listed in Table
4-2.
Parameter Special Notes
Baud Rate
Data Bits
Parity
Stop Bits
Standard For serial port 4, only RS-232 is valid.
Table 4-2: Serial Port Parameters
Typically the switcher uses 8 data bits, no parity, and 1 stop bit. The highest baud rate supported by both
the switcher and 7700PTX-CTP should be used (typically 115200).
"The serial port settings of the 7700PTX-CTP must match those of the switcher. The
7700PTX-CTP must be rebooted for any serial parameter changes to take effect.

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
7700PTX-CTP - 10 Revision 1.6
4.5.2. Rear Plate
Figure 4-5 provides an illustration of the 7700PTX rear plate.
Figure 4-5: 7700PTX Rear Plate

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
Revision 1.6 7700PTX-CTP - 11
4.5.3. RS-232 Wiring
Figure 4-6 shows which pins of the back plate are used for RS-232 serial connections.
Figure 4-6: RS-232 Pins
Table 4-3 outlines how to connect the 7700PTX-CTP to the switcher for RS-232 operation.
7700PTX-CTP Switcher
Port Pin Name Pin Pin Name
TXA 1 RX
RXA 2 TX
GND 6 GND
1
TXB 7 RX
RXB 8 TX
GND 12 GND
2
TXC 13 RX
RXC 14 TX
GND 22 GND
3
TXD 23 RX
RXD 24 TX
4 GND 26 GND
Table 4-3: RS-232 Wiring

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
7700PTX-CTP - 12 Revision 1.6
4.5.4. RS-422 Wiring
Figure 4-7 displays which pins of the back plate are used for RS-422 serial connections.
Figure 4-7: RS-422 Pins
Table 4-4 outlines how to connect the 7700PTX-CTP to the CTP switcher for RS-422 operation.
7700PTX-CTP Switcher
Port Pin Name Pin Pin Name
TX-A 1 RX-
TX+A 3 RX+
RX-A 2 TX-
RX+A 4 TX+
1
GND 6 GND
TX-B 7 RX-
TX+B 9 RX+
RX-B 8 TX-
RX+B 10 TX+
2
GND 12 GND
TX-C 13 RX-
TX+C 15 RX+
RX-C 14 TX-
RX+C 16 TX+
3
GND 22 GND
Table 4-4: RS-422 Wiring

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
Revision 1.6 7700PTX-CTP - 13
"The 7700PTX-CTP’s fourth serial port is not RS-422 capable.
4.6. CTP PROTOCOL SETUP
Figure 4-8: CTP Protocol Parameters
"The 7700PTX-CTP must be rebooted for any CTP protocol parameter changes to take
effect.

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
7700PTX-CTP - 14 Revision 1.6
4.6.1. VGPI Image Video Display Id
This value is used for the transport of the VGPI data. A value should be selected that does not conflict
with another display ID.
4.6.2. VGPI Refresh Count
The switcher sends tally information to the 7700PTX-CTP on a continuous and repetitive basis, even in
the absence of changes to this tally information.
Figure 4-9: Tally Info Transmission
The VGPI refresh count parameter specifies how many iterations of non-changing tally information the
7700PTX-CTP receives before it provides a VGPI refresh to the MVP. For instance, if the VGPI refresh
count is set to 750 it means the 7700PTX-CTP will receive the unchanging tally information 750 times
before it sends a VGPI refresh to the MVP. The VGPI refresh is beneficial should the MVP lose power.

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
Revision 1.6 7700PTX-CTP - 15
Figure 4-10: VGPI Refresh
4.6.3. Program Output Number
This parameter represents the output of the switcher that corresponds to the program output. The default
for this parameter is 5.
4.6.4. Program VGPI Offset
This is the value added to the switcher’s source number to obtain the program VGPI number that the
7700PTX-CTP transmits to the PPV(s). Table 4-5 shows the default offset (0) as well as a user-defined
offset (1). Selecting an offset of –1 will disable the transmission of the program VGPIs.
CTP Source Number Offset = 0, VGPI Number Offset = 1, VGPI Number
1 1 2
2 2 3
3 3 4
4 4 5
5 5 6
.
.
.
.
.
.
.
.
.
88 88 89
89 89 90
90 90 91
91 91 92
92 92 93
Table 4-5: CTP Source Number to Program VGPI Mapping

7700 MultiFrame Manual
7700PTX-CTP Contribution Tally Protocol Translator
7700PTX-CTP - 16 Revision 1.6
"Setting the program VGPI offset to –1 disables the transmission of the program
VGPIs.
4.6.5. Tx Program UMD

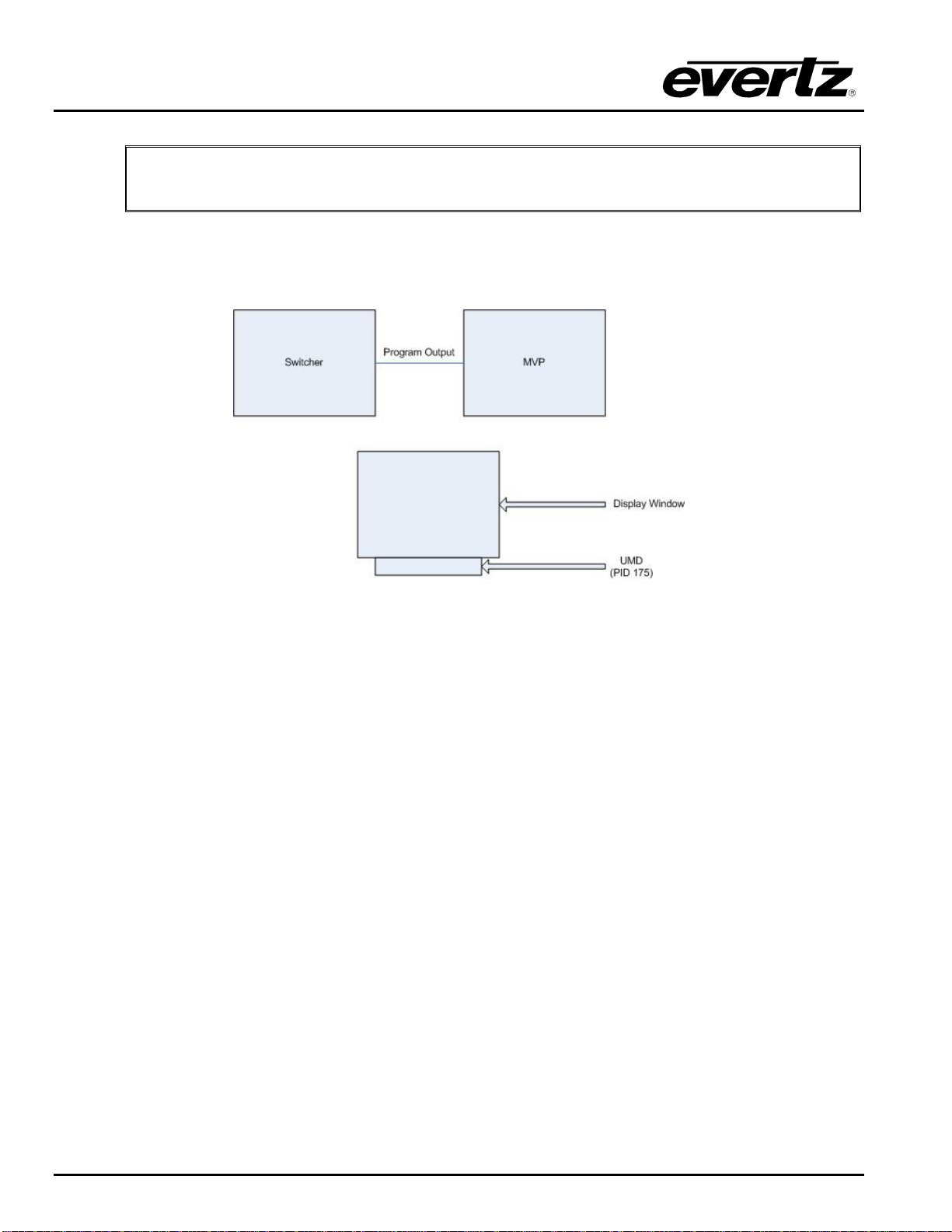

Suppose the switcher’s program output is being monitored by a display window of the MVP.
Figure 4-11: Program UMD
The display window can have a UMD associated with it. When the Tx Program UMD parameter is set to
yes, the 7700PTX-CTP will transmit the name(s) of the switcher source(s) contributing to the program
output.
4.6.6. Program UMD Display Id
This parameter should match the protocol ID of the UMD displaying the names of switcher source(s)
contributing to the program output. For the example of Figure 4-11, the program UMD display ID would be
set to 175.
4.6.7. Preview Output Number
This parameter is the output of the switcher that corresponds to the preview output. The default for this
parameter is 6.
