OVERVIEW Revision 1.0 Page - 1
1. OVERVIEW
The 3080IPG-NAT platform is a complete hardware based solution to remove the need for service
providers to enforce address range restrictions and VLAN schemes for their customers in multi-tenant
environments.
Controlled by the industry leading VistaLINK®PRO, the 3080IPG-NAT-2-10GE is a high density Network
Address Translator (NAT) used specifically for video applications. It allows to bridge two IP networks by
appropriately translating IP addresses of one network to another. When datagrams from one network
enter into the inbound port of the NAT, its addresses in these datagrams get translated, and then delivered
to a second network connected to the outbound port of the NAT.
The 3080IPG-NAT provides the following three modes of operation:
•The IP NAT which allows a static mapping between one unicast/multicast IP address from one
network to another unicast/multicast IP address from another network.
•The VLAN based NAT which allows a VLAN tagged datagram from one network to seamlessly
enter into another network by encapsulating it as regular multicast.
•The Port based NAT which allows applying a multicast IP address to all incoming datagrams on a
physical port, and makes the datagrams appear as if they were a video stream when it enters into
another network.
The 3080IPG-NAT occupies two card slots and can be housed in, a 3RU frame which will hold up to 2
modules, 6RU frame which will hold up to 7 modules, and 3700 frame which will hold up to 2 modules.
Features:
•IP NAT
•VLAN base NAT
•Port based NAT
•Point-to-point and multi-point signal delivery over Ethernet
•Operates over a IP/MPLS/VPLS core network
•High Performance Studio Interconnects
•In-band Management (Management Traffic transport over Multicast)
•Fully controlled and monitored via VistaLINK® PRO
•Flexible SFP Ethernet I/O for 4x1/10GE (SFP+)

EMX3/EMX6/3000FR/3700 MultiFrame Manual
3080IPG-NAT-2-10GE High Density Network Address Translator
Page - 2 Revision 1.0 OVERVIEW
IP Receiver IP Address
Translator
IP
Decapsulator
Mode
Select
IP Receiver
(VLAN filter)
IP
Encapsulator
CPU
IP Receiver IP Address
Translator
IP
Decapsulator
Mode
Select
IP Receiver
(VLAN filter)
IP
Encapsulator
1/10GigE
(SFP 2)
1/10GigE
(SFP 4)
VistaLlNK®
control
10/100
RJ45
1/10GigE
(SFP 3)
1/10GigE
(SFP 1)
Figure 1-1: 3080IPG-NAT-2-10GE Block Diagram

EMX3/EMX6/3000FR/3700 MultiFrame Manual
3080IPG-NAT-2-10GE High Density Network Address Translator
SPECIFICATIONS Revision 1.0 Page - 3
2. SPECIFICATIONS
2.1. ONE-TO-ONE NAT
•2048xstatic mapping
2.2. VLAN BASED NAT
•2048xVLAND ID mapping
2.3. PORT BASED NAT
•2xdatagrams flow mapping (from 2x1/10GE)
2.4. SFP MODULES
•4xSFP Modules
•4x10GbE Optical 1310nm (+SFPTR13-10G)
2.5. PHYSICAL (NUMBER OF SLOTS)
3000FR: 2
3700FR: 2
EMX3: 2
EMX6: 7
2.6. ORDERING INFORMATION
3080IPG-NAT-2-10GE: High density NAT with 4xSFP 10GE

EMX3/EMX6/3000FR/3700 MultiFrame Manual
3080IPG-NAT-2-10GE High Density Network Address Translator
Page - 4 Revision 1.0 SPECIFICATIONS
This page left intentionally blank

EMX3/EMX6/3000FR/3700 MultiFrame Manual
3080IPG-NAT-2-10GE High Density Network Address Translator
INSTALLATION Revision 1.0 Page - 5
3. INSTALLATION
3.1. REAR PLATE DESCRIPTION
The 3080IPG-NAT comes standard with a companion +6RU rear plate. Figure 2-1 provides an illustration
of the 3080IPG-NAT rear plate.
Figure 2-1: Universal Rear Plate for 3080IPG-NAT-2-10GE

EMX3/EMX6/3000FR/3700 MultiFrame Manual
3080IPG-NAT-2-10GE High Density Network Address Translator
Page - 6 Revision 1.0 INSTALLATION
3.1.1. Ethernet Connection Control
The 3080IPG-NAT Series uses 10Base-T (10 Mbps), 100Base-TX (100 Mbps) or Gigabit (1Gbps) twisted
pair Ethernet cabling systems. When connecting for 10Base-T systems, category 3, 4, or 5 UTP cable as
well as EIA/TIA – 568 100ΩSTP cable may be used. When connecting for 100Base-TX systems,
category 5 UTP cable is required. The cable must be “straight-through” with an RJ-45 connector at each
end. Establish the network connection by plugging one end of the cable into the RJ-45 receptacle of the
Frame Controller of the chassis and the other end into a port of the supporting hub.
The straight-through RJ-45 cable can be purchased or can be constructed using the pin-out information in
Table 2-1. A colour coded wiring table is provided in Table 2-1 for the current RJ-45 standards (AT&T
258A or EIA/TIA 258B colour coding shown). Also refer to the notes following the table for additional
wiring guide information.

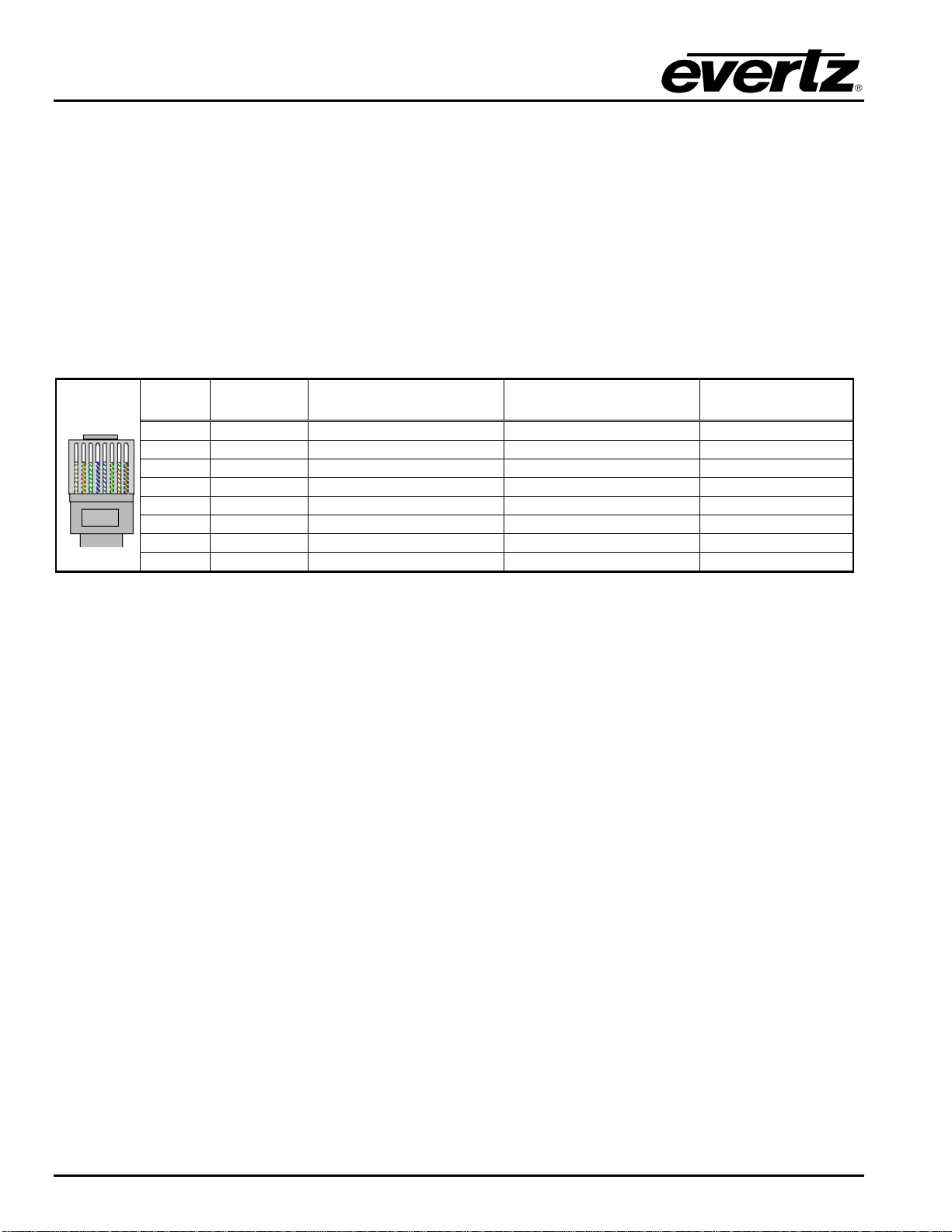

Pin
1
Pin # Signal EIA/TIA 568A
AT&T 258A or
EIA/TIA 568B
10BaseT
or 100BaseT
1
Transmit +
White/Green
White/Orange
X
2
Transmit –
Green/White or White
Orange/White or Orange
X
3
Receive +
White/Orange
White/Green
X
4
N/A
Blue/White or Blue
Blue/White or Blue
Not used (required)
5
N/A
White/Blue
White/Blue
Not used (required)
6
Receive –
Orange/White or Orange
Green/White or Green
X
7
N/A
White/Brown
White/Brown
Not used (required)
8
N/A
Brown/White or Brown
Brown/White or Brown
Not used (required)
Table 3-1: Standard RJ-45 Wiring Colour Codes
Note the following cabling information for this wiring guide:
•Only two pairs of wires are used in the 8-pin RJ-45 connector to carry Ethernet signals.
•Even though pins 4, 5, 7 and 8 are not used, it is mandatory that they be present in the cable.
•10BaseT and 100BaseT use the same pins (a crossover cable made for one will also work with the
other).
•Pairs may be solid colors and not have a stripe.
•Category 5 cable must use Category 5 rated connectors.
The maximum cable run between the router and the supporting hub is 300 ft (90 m). The maximum
combined cable run between any two end points (i.e. router and PC/laptop via network hub) is 675 feet
(205 m).
Devices on the Ethernet network continually monitor the receive data path for activity as a means of
checking that the link is working correctly. When the network is idle, the devices also send a link test
signal to one another to verify link integrity. The rear panel is fitted with two LEDs to monitor the Ethernet
connection.
1000: This Amber LED is ON when a 100Base-TX link is last detected. The LED is OFF when a
10Base-T link is last detected (the LINK LED is ON). Upon power-up the LED is OFF as the
last detected rate is not known and therefore defaults to the 10Base-T state until rate
detection is completed.
