Evikon PluraSens E2618-N2O User manual

PluraSens®
Nitrous Oxide Transmitter
E2618-N2O
User Manual

E2618-N2O Rev 08.05.2023
Table of contents
Nitrous Oxide 3
Specifications 4
Product description 5
Safety requirements 5
Operating conditions 5
Installation guidelines 6
Wall mount version 6
Duct mount version 6
Mounting dimensions 7
Sensor probe handling 8
Gas sensor replacement procedures 8
Electrical connections 9
Correct and incorrect cabling for 24 VAC 10
Operation 11
Maintenance 11
Calibration 11
Delivery set 12
Order code for E2618-N2O options 12
Configuring 13
Return to default settings 13
Modbus RTU Communication 14
RS485 communication interface 14
Communication parameters 14
Modbus holding registers 14
Warranty 18
Manufacturer contacts 18
2

E2618-N2O Rev 08.05.2023
Nitrous Oxide
Nitrous oxide is a colorless non-flammable gas, with a slight metallic scent and taste. It is
also known as laughing gas or nitrous.
Chemical formula
N2O
Molar weight
44
Relative gas density (to air)
1.53
Conversion
1 ppm= 1.8 mg/m3
Boiling point
-88.48 °C
Odor
Slightly sweetish
Hazards
Will support combustion, and may increase the intensity
of the fire. Containers may explode when heated.
Inhalation causes intense analgesia; concentrations of
over 40-60% cause loss of consciousness preceded by
hysteria. Contact of liquid with eyes or skin causes
frostbite burn.
Exposure
limits (ACGIH)
TWA
25 ppm
Conversion of ppm to mg/m3is calculated for 25°C and 1 atm.
3

E2618-N2O Rev 08.05.2023
Specifications
Sensor type
Optical (NDIR)
Sampling method
Diffusion
Typical detection range
0...1000 ppm
Max. overload
2000 ppm
Resolution
1 ppm
Response time T90
< 30s
Sensor lifetime
> 5 years
Calibration interval
12 months
Signal update
Every 1 second
Power supply
12...36 VDC (default)
24 VAC as option
Power consumption
< 2 VA
Load resistance
RL< (Us - 2 V) / 22 mA for 4-20 mA
RL> 250 kOhm for 0-10 V mode
Digital interface
RS485, Modbus RTU protocol
No galvanic isolation
Analog outputs
2 × 4-20 mA / 0-10 V, user settable
Outputs assignment
OUT1 2 gas; OUT2 2 gas
Output scale width
> 10 × resolution
Recommended: 20-100% of the detection range
Enclosure
Grey ABS, wall mount, protection class IP65
Dimensions
H82 × W80 × D55 mm
CE marking
According to 2014/30/EU and 2014/35/EU, EN 50491-4-1:2012
EN 61000-6-3:2020, EN 61326-1:2013(EMC, emissions)
EN 61000-6-1:2019, EN 61000-6-2:2019(EMC, Immunity)
EN 60079-29-1:2016, EN 60079-29-2:2015 and EN 60079-29-3:2014
Operating conditions
-20 °C to +50 °C
0 to 95% RH non-condensing;
0,9...1,1 atm; explosion-safe areas
Non-aggressive atmosphere
NOTE: The sensor has cross-sensitivity to CO2, ask from manufacturer
details
Other options
4

E2618-N2O Rev 08.05.2023
Remote probe
Protection IP65, default cable length 3.0 m;
max-height 80 mm, max diameter 65 mm
5

E2618-N2O Rev 08.05.2023
Product description
E2618 series transmitters belong to the PluraSens®family of multifunctional measurement
instruments. The instruments utilize gas sensors of various types with excellent
repeatability, stability, and long lifetime.
E2618 series provide two independent analog outputs OUT1 and OUT2, user-selectable to
4-20 mA or 0-10 V, proportional to the chosen scale for gas concentration. RS485 Modbus
RTU digital communication interface allows easy instrument configuration and integration
into various automation systems. 24 VAC is available as options.
Remote probe and duct mount versions are available.
The version of your transmitter is marked on the package. If the ⚠ symbol is marked on
the product, consult the documentation for further information.
Safety requirements
Misuse will impair the protection of the product. Always adhere to the safety provisions
applicable in the country of use.
Do not perform any maintenance operation with the power on. Do not let water or foreign
objects inside the device.
Removal of the PCB from the enclosure voids the warranty. Do not touch the electronic
components directly, as they are sensitive to static electricity.
Connection diagrams can be found in the electrical connections section. The device might
not perform correctly or be damaged if the wrong power supply is connected.
External circuits connected to the equipment should have sufficient insulation rating
according to the environmental conditions and equipment power.
A disconnecting device that is marked as such and easily accessible should be included in
the installation of this product.
Operating conditions
The device should be used both in a non-hazardous area and in a basic electromagnetic
environment, where the latter is defined in EN 61326-1. Avoid strong mechanical shock and
vibrations. Avoid corrosive atmosphere and areas highly contaminated with dust, oil mist,
etc. Keep the instrument away from direct sunlight. A sudden temperature or humidity
change might affect the sensitivity of the sensor.
6

E2618-N2O Rev 08.05.2023
Installation guidelines
Before proceeding with the installation it is mandatory to read the Safety requirements
section and make sure to comply with all listed instructions. Installation standards EN
60079-29-2 and EN 45544-4 are also recommended for further instructions and related
information about the installation. During the installation of the transmitter the following
points must be considered:
●Application (air quality and leakage control.)
●Properties of the space under investigation (room geometry, direction, and
velocity of airflows, etc.),
●Nitrous oxide is heavier than air. The recommended location is close to or below
the potential leakage source.
●The device should be accessible for maintenance and repair.
The aforementioned conditions above will affect the coverage area of the device. however,
the coverage area for a detector-transmitter is usually between 2.5 to 5 meters radius.
For early leakage detection install the sensor as close as possible to the potential leakage
sources (flanges, valves, pressure reducers, pumps, etc.), taking into consideration other
points listed above.
For general area monitoring without definite leakage sources, the transmitter should be
distributed evenly in the room.
For personal safety control, the transmitters are installed in the breathing zone (at the
height of the head of people or animals). The recommended sensor position is vertical,
pointing downwards.
Wall mount version
Unscrew four lid screws and detach the lid from the transmitter. Attach the device to a wall
with screws passing through mounting holes (for dimensions see the drawing in the next
section).
Duct mount version
Cut a hole with a diameter of 36...45 mm in the air duct at the chosen mounting place.
Place the rubber flange aligning the holes in the flange and the air-duct and fix the flange
with four self-tapping screws. Pass the sensor probe through the flange and adjust it to the
appropriate depth. Unscrew four lid screws and detach the lid from the transmitter.
7

E2618-N2O Rev 08.05.2023

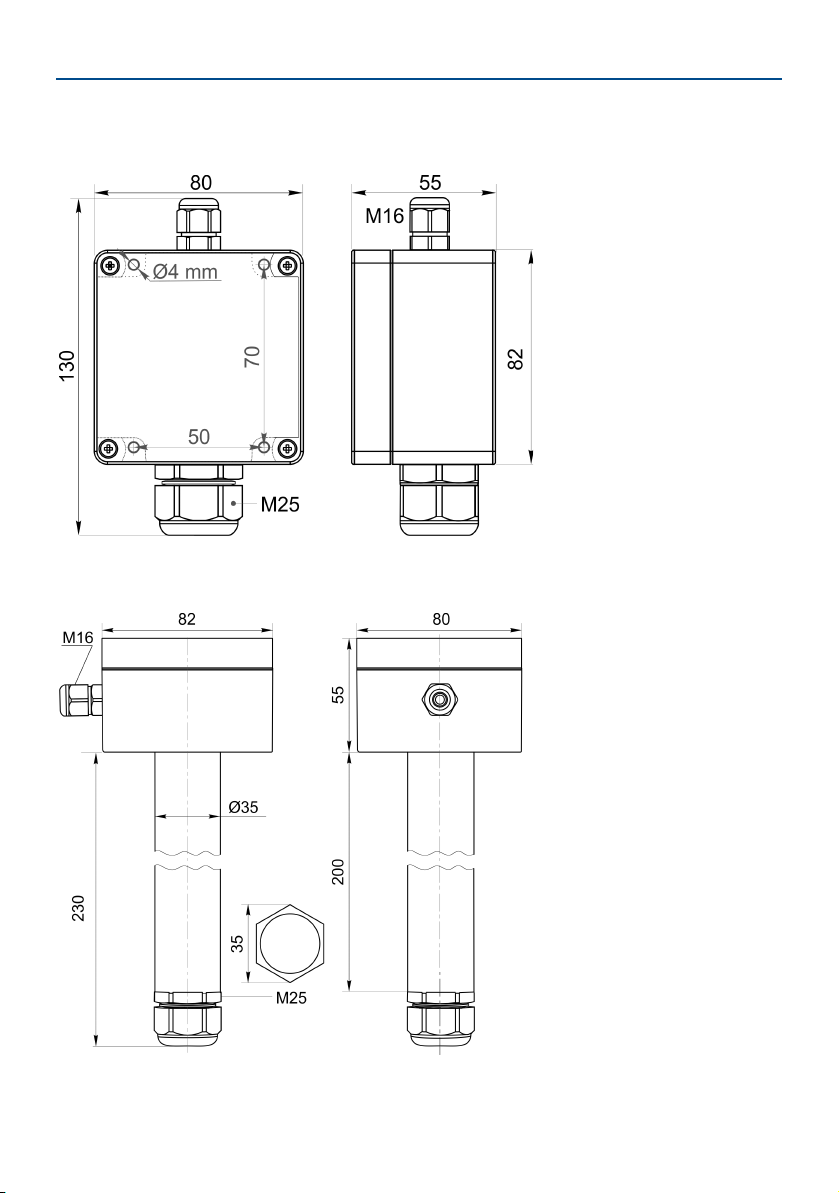

Mounting dimensions
Wall mount version
Duct mount version
8

E2618-N2O Rev 08.05.2023
Sensor probe handling
The wall mount version of the transmitter is available with a remote probe (see drawing
below for dimensions). The remote probe is connected to the main unit with a shielded
cable. The default remote probe cable length is 3 m.
A) Wall mount remote probe with fixing clamp (default version),
B) Remote probe with rubber flange and three self-tapping screws (on request)
The sensor probes of all types are equipped with a hydrophobic microporous PTFE filter to
protect the sensor from dust, dirt, and water drops. The filter should be replaced if it gets
strongly contaminated. To replace the PTFE filter, unscrew the sensor head cap and
remove the old filter. Place a new filter into the cap and tighten it again.
NOTE! Never stab or press the filter near its center where the sensor is located since this
may damage the sensor. Do not remove the filter as it may cause the device to show
incorrect values and/or break the sensor.
The recommended orientation of the sensor probe is vertical with the sensor tip pointing
downwards. This prevents the possible accumulation of condensed water on the sensor
protection filter.
Gas sensor replacement procedures
1. Remove the sensor head cap from the device (or the remote probe),
2. Remove the PTFE filter (if it is not removed within the cap),
3. Remove the O-ring rubber,
4. Detach the NDIR sensor from the device,
5. Insert the new NDIR sensor inside,
6. Put back the O-ring rubber, PTFE filter, and the head cap, respectively.
9

E2618-N2O Rev 08.05.2023
Electrical connections
Unscrew four lid screws and detach the lid from the device. Use the M16 cable gland to let
in cables of the power supply and of the external devices. Attach the power cable to the
device without turning it on. Using the connection diagram below, connect the analog
outputs and digital interface terminals to the relevant devices according to your tasks.
PCB without PSU and relays
Jumpers
J1
OUT1 type (open: 4-20 mA; closed 0-10 V)
J2
OUT2 type (open: 4-20 mA; closed 0-10 V)
X6
Reset Modbus network parameters to default
X4 terminals
OUT1
4-20 mA / 0-10 V output
OUT2
4-20 mA / 0-10 V output
0V
0 V / 24 VAC Neutral (optional)
A
RS485 A / Data +
B
RS485 B / Data -
+U
+24 VDC / 24 VAC Phase (optional)
10

E2618-N2O Rev 08.05.2023
The screwless quick connect spring terminals on the E2618 series devices are suitable for
a wide range of wires with a cross-section of 0.2...1.5 mm2. We recommend striping the
wire end by 8...9 mm and using wire end sleeves.
To connect the wire, insert the wire end into the terminal hole. To disconnect, push the
spring-loaded terminal lever, pull the wire out, and release the lever.
Use a twisted-pair cable, e.g. LiYY TP 2×2×0.5 mm2or CAT 5, to connect the device to the
RS485 network. A and B on the device represent DATA+ and DATA- respectively, polarity
must be respected when connecting to an external RS485 network.
Both analog outputs can be independently changed between 4-20 mA and 0-10 V type
using jumpers J1 (OUT1) and J2 (OUT2). By closing pins on a specific jumper the related
output is 0-10 V, with an open jumper the output is 4-20 mA. Power restart is required after
changing the position of the jumpers.
Correct and incorrect cabling for 24 VAC
11

E2618-N2O Rev 08.05.2023
Operation
Turn on the power. The instrument warm-up time takes about 1 minute after switching on
and the final sensor stabilization time to maximum accuracy takes about 5 minutes. The
operating status is indicated by the LED on the PCB of the device. The control LED (red)
response to different processes is presented in the following table:
Mode
LED mode
During calibration mode or sensor heating
period (if activated)
0.5 Hz (50% on, 50% off)
During Modbus communication cycle
Short on-off pulses
Normal operating/measurement
Continuously on or off
Make sure that the transmitter is properly mounted, the external devices connected, power
LED (green) on and control LED (red) constantly lit. Place the lid back and fix it with the
screws. The device is ready to use.
Maintenance
Do not perform any maintenance operation with the power on.
Clean the device with a soft damp cloth. Do not use any abrasive cleaning agents. Do not
immerse the device in water or any cleaning media.
Calibration
E2618-N2O gas transmitters have been calibrated by the Manufacturer with standard gas
mixtures before delivery. Provided that the sensor is used under moderate conditions, the
recommended interval for field recalibration is 12 months. Please contact your dealer for
more information.
12

E2618-N2O Rev 08.05.2023
Delivery set
●Gas transmitter E2618 (wall mount, duct mount, or remote probe version)
●Mounting accessories:
○4 screws with plastic dowels for wall mount version
○Square Rubber flange for Duct mount option
○Round rubber flange for Remote probe option
○Fixing clamp for Remote probe option
Order code for E2618-N2O options
E2618 options
Order code
Remote probe, 3 m cable
E2618-N2O-RP33-3
Remote probe, 10 m cable
E2618-N2O-RP33-10
Duct mount option, stem Ø35×L230 mm
E2618-N2O-DM
Integrated 24 VAC power supply module
E2618-N2O-24VAC
13

E2618-N2O Rev 08.05.2023
Configuring
A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas
tubing with applicators, and a software pack. Please contact your Seller for more
information.
Gas transmitters E2618 share all functionalities of the PluraSens®multifunctional
transmitter platform. The features and options include:
●Digital output change rate-limiting filter
●Digital integrating (averaging) filter
●Free assignment of each analog output to the chosen parameter
●Flexible setting of analog output scales for each output
●Output zero and slope adjustment for calibration
The output scales can be changed by Modbus commands by using the configuration
software and the standard configuration kit (see Modbus RTU Communication).
Return to default settings
To reset the device’s Slave ID, baud rate, and stop bit numbers to factory settings, proceed
as follows:
1. De-energize the device
2. Connect the X6 jumper
3. Turn on the device
4. De-energize the device
5. Disconnect the X6 jumper
6. Turn on the device
NOTE! Cables should be connected/disconnected from PCB when the power supply is
unplugged. Connecting or Disconnecting Live wires can result in Corrupt Firmware.
14

E2618-N2O Rev 08.05.2023
Modbus RTU Communication
RS485 communication interface
Databits: 8
Parity: none / odd / even
Stop bits: 1 or 2
Protocol: Modbus RTU
Supported Modbus functions:
03 – Read multiple registers
06 – Write a single register
Communication parameters
Parameter
Permitted values
Default
Supported baud rates
1200, 2400, 4800, 9600, 19200, 38400, 57600
9600
Data bits
8
8
Parity
none / odd / even
none
Stop bits
1, 2
1
Protocol
Modbus RTU
Modbus functions
03 - Read multiple registers
06 - Write a single register
Error codes
01 – Illegal function
02 – Illegal data address
03 – Illegal data value
04 – Slave device failure
(details of last error 04 can be read from register 0x0008)
Modbus holding registers
Register addresses are shown 0-based, Address in hexadecimal, Reg in decimal format.
Modbus holding register numbers MHR are shown in the decimal 1-based format and may
be addressed either from 00001 or 40001 base.
Address
Reg / MHR
RW
Description
Supported values (dec)
Default
0x0001
1 / 40002
R
Hardware version
-
0x0002
2 / 40003
R
Software version
-
0x0003
3 / 40004
R
Product serial number
1...65535
-
0x0004
4 / 40005
RW
Slave ID (net address) *
1...247 **
1
15

E2618-N2O Rev 08.05.2023
0x0005
5 / 40006
RW
Baud rate *
1200, 2400, 4800, 9600, 19200,
38400, 57600
9600
0x0006
6 / 40007
RW
Response delay, ms
1...255
10
0x0007
7 / 40008
RW
Stop bits, parity bit *
1 – No parity bit, 1 stop bit
(default after factory reset)
2 – No parity bit, 2 stop bits
3 – Odd parity, 1 stop bit
4 – Even parity, 1 stop bit
NOTE: 3 and 4 are available
starting from the Software
version 0x218 (dec. 536)
1
0x0008
8 /40009
R
Last error code
1...255
-
0x0011
17 / 40018
RW
Technological:
age of last data in seconds
(read) / restart (write)
0...65535 s (read),
writing 42330 restarts the
instrument
-
0x00A5
165 /
40166
RW
Zero adjustments for gas
data, ADC
-32000...+32000 ADC units
0
0x00A6
166 /
40167
RW
Slope adjustment for gas
data
1...65535
512
0x00A7
167 /
40168
RW
Change rate limit for gas
data, ppm (‰ for O2) / s
1...32000, 0 - no limit
0
0x00A8
168 /
40169
RW
Integrating filter time
constant, s
1...32000 (seconds),
0 - no filter
0
Address
Reg / MHR
RW
Description
Supported values (dec)
Default
0x00C9
201 /
40202
RW
Parameter tied to analog
output 1
0 – None
2 – Gas concentration
9 – Forced Modbus control,
value set in MHR / 40204
2
0x00CA
202 /
40203
RW
Parameter tied to analog
output 2
0 – None
2 – Gas concentration
9 – Forced Modbus control,
value set in MHR / 40205
2
0x00CB
203 /
40204
RW
Forced value for analog
output 1***
0...1000
(0.0%...100.0% of output scale)
0
0x00CC
204 /
40205
RW
Forced value for analog
output 2***
0...1000
(0.0%...100.0% of output scale)
0
16

E2618-N2O Rev 08.05.2023
0x00FF
255 /
40256
RW
Sensor, analog outputs,
LED and buzzer status
bit[0]=0/1 – sensor
present/absent, RO
bit[1]=0/1 – analog outputs
deactivated/activated
bit[2]=0/1 – in case the sensor
is absent, turn signaling off/on
analog output1
bit[3]=0/1 – in case the sensor
is absent, turn on signaling with
low current/high current on
analog output1; if bit[2]=0 this
bit will be ignored
bit[4]=0/1 – in case of sensor
absent, turn signaling off/on
analog output2
bit[5]=0/1 – in case of sensor
absent, turn on signaling with
low current/high current on
analog output2; if bit[4]==0 this
bit will be ignored
bit[6]=0/1 – current/voltage
output detected on output1, RO
bit[7]=0/1 – current/voltage
output detected on output2, RO
bit[8]=0/1 – LED
deactivated/activated
bit[9]=0/1 – buzzer
deactivated/activated (always
0 for E2618)
bit[10]=0/1 - LED is on/off in
normal condition
Address
Reg / MHR
RW
Description
Supported values (dec)
Default
0x0101
257 /
40258
R
Raw gas sensor data
0...4095, ADC units
0x0103
259 /
40260
R
Gas concentration,
gas units
0...65535, gas units
0x0105
261 /
40262
RW
0% value
for analog output 1
-32000...+32000
(gas unit/°C)
User
defined
0x0106
262 /
40263
RW
100% value
for analog output 1
-32000...+32000
(gas unit/°C)
User
defined
0x0107
263 /
40264
RW
0% value
for analog output 2
-32000...+32000
(gas unit/°C)
User
defined
0x0108
264 /
40265
RW
100% value
for analog output 2
-32000...+32000
(gas unit/°C)
User
defined
17

E2618-N2O Rev 08.05.2023
* – The new value is applied after restart.
** – Broadcast slave ID 0 can be used to assign a new ID to the instrument with an
unknown ID. When addressing by ID 0 the device shall be the only Modbus instrument in
the network. The device will not respond to the Master command when addressed by ID 0.
*** – This value is dynamic and not kept in EEPROM after a restart.
18

E2618-N2O Rev 08.05.2023
Warranty
This product is warranted to be free from defects in material and workmanship for a period
of one year from the date of the original sale. During this warranty period, the Manufacturer
will, at its option, either repair or replace a product that proves to be defective. This
warranty is void if the product has been operated in conditions outside ranges specified by
the Manufacturer or damaged by customer error or negligence or if there has been an
unauthorized modification.
Manufacturer contacts
Evikon MCI OÜ
Teaduspargi 9, Tartu
50411 Estonia
[email protected]
www.evikon.eu
19
