Evolution Aqua evoUV Series User manual

INSTALLATION AND OPERATING MANUAL
Complete instructions for all models of evoUV
WARNING:
Evolution Aqua Ltd. - Evolution House - Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP
t [phone] - f+44 (0) 1942 418489 - e[email protected] - wwww.evolutionaqua.com
15 25 30 55 75
UK/EU English
• Ensure that the unit is switched off at the mains before you attempt to conduct
any type of maintenance on the evoUV.
• Ensure the unit is installed in the recommended orientation, see page 9.
• Ensure that the end cap is tight before running the unit.
• After replacing bulbs or before tightening the end cap, make sure that the O-Rings
are in the correct position, and the bulb sockets are dry.
• If the electrical connections get wet, dry thoroughly before switching power on.
• Do not attempt to tamper or access the electrical connections inside the evoUV,
as doing so will invalidate the warranty.
EVO1291120171MAN
Affix serial number here

WARNING: PLEASE READ THE FOLLOWING
SAFETY INFORMATION FIRST.
IMPORTANT SAFETY INFORMATION
- Never look directly at an illuminated UV bulb.
- Do not run this unit dry.
- Do not cover this unit.
- Please ensure that the unit is full of water before switching it on.
- Always isolate the unit from mains electricity and turn off any water supply before carrying out
any maintenance.
- Always disconnect all pond appliances from the mains supply before putting your hands into
the water.
- Use in the area of the garden pond only if the installation complies with the relevant wiring
regulations.
- Power must be supplied through a Residual Current Device (RCD) with a residual operating
current not exceeding 30mA.
- This unit must be earthed when earth wire is fitted.
- Never use a fuse larger than 3 amps on the power lead.
- The unit must not be submerged in water.
- The unit should be mounted in the recommended position for damp / wet environments.
- If the quartz sleeve is cracked, replace it immediately.
- The unit must be either fully frost protected or taken inside during Winter months.
- Young children should always be supervised near water.
PRODUCT INFORMATION
- Rating UK and EU:
evo15 and evo25: 220-240V, 50Hz.
evo30, evo55, evo75 and evo110: 220-240V, 50/60Hz.
- Rating in USA only:
All models: 100-277V, 50/60Hz.
- Class 1, IPX5 (IP64 for evo110 only).
- All components are CE compliant.
Disposal Of Your Old Product
Your product is designed and manufactured with high quality material and components,
which can be recycled and reused. When this crossed-out wheeled bin symbol is
attached to a product, it means the product is covered by the European Directive
2002/96/EC. Please contact your local authority about correct disposal for electrical
and electronic equipment. Our WEE Registration Number is WEE/FE1471RR.
Please act according to your local rules and do not dispose of your old products with
your normal household waste. The correct disposal of your old product will help prevent
potential negative consequences for the environment and human health.

INTRODUCING EVOLUTION AQUA’S evoUV
Congratulations on purchasing an Evolution Aqua evoUV. Our range of evoUV pond
clarifiers have been manufactured using the latest technology and design techniques.
evoUVs have been designed to clear green water which is caused by single celled
green algae, and prevent it from returning. evoUVs will work alongside many different
filtration systems but when used alongside Evolution Aqua’s pond filtration systems, the
evoUV will deliver crystal clear and healthy pond water.
Please read this instruction manual carefully from start to finish before attempting to
install your evoUV.
UNBOXING THE evoUV
On opening the box, you can see that the UV bulb and quartz sleeve are packed
separately for safe transit. Please refer to pages 7 and 8 of this manual for instructions
on how to install the bulb and quartz sleeve. Quartz Sleeve O-Rings and End Cap
Sealing Rings are packed in a small bag inside the box.
On the evo110 the stainless steel mounting brackets are located in the cardboard end
fitment, please remove these and fit to the evo110 as instructed on page 9.
Please take time to familiarise yourself with your evoUV and its components.
3
CONTENTS
evoUV Diagram and components list PAGE 4
Flow Rates PAGE 6
Installing the quartz sleeve PAGE 7
Installing the UV bulb PAGE 8
Positioning and Mounting the evoUV PAGE 9
Connection to Your Pipework PAGE 11
Connection to the Electricity Supply PAGE 15
UV Bulb Replacement PAGE 16
Replacing / Cleaning the Quartz Sleeve PAGE 17
In Built Protection PAGE 18
Trouble Shooting PAGE 19
Frequently Asked Questions PAGE 20
Guarantee PAGE 21

4
INLET / OUTLET
(A) (E)
(B)
(C)(D) (H)
(G)
(F)
(I)
Professional UV Clarifier
Description Diagram Code EA Order Code
1½” Hosetail AHOSETAIL15TH
End Cap BEVOCONNUT
UV Bulb CAvailable from your EA Dealer*
Quartz Sleeve DAvailable from your EA Dealer*
Hosetail O-Ring EEVOUVORINGHOSET
Bulb Socket FLAMPHOLDER-T8
Quartz Sleeve O-Ring GEVOUVORINGZ
Locking Nut HEVO-M/F
End Cap Sealing Ring IEVOUVOFLATWASHER
evoUV DIAGRAMS AND COMPONENTS LIST
Please familiarise yourself with the components shown in the diagram below:
*For optimum performance, the electronic ballast has been configured for UV
bulbs supplied by Evolution Aqua. When sourcing replacement UV Bulbs or quartz
sleeves always buy components supplied by Evolution Aqua from your nearest
Evolution Aqua stockist.
These O-Rings are packed in
a small bag inside the box.
QTY X 2: Quartz Sleeve
O-Rings (G)
QTY x 2: End Cap
Sealing Rings (I)
IDENTIFYING THE O-RingS
Quartz Sleeve
O-Ring (G)
End Cap Sealing
Ring (I)
Round
O-Ring
Flat
Washer

Description Diagram Code EA Order Code
End Cap BEVOCONNUT
UV Bulb CAvailable from your EA Dealer*
Quartz Sleeve DAvailable from your EA Dealer*
Hosetail O-Ring EEVOUVORINGHOSET
Bulb Socket FLAMPHOLDER-T8
Quartz Sleeve O-Ring GEVOUVORINGZ
Locking Nut HEVO-M/F
End Cap Sealing Ring IEVOUVOFLATWASHER
evoUV DIAGRAMS AND COMPONENTS LIST (evo110)
Please familiarise yourself with the components shown in the diagram below:
For European models two 2" imperial to 63mm metric reducers are supplied.
*For optimum
performance, the
electronic ballast has
been configured for
UV bulbs supplied by
Evolution Aqua. When
sourcing replacement UV
Bulbs or quartz sleeves
always buy components
supplied by Evolution
Aqua from your nearest
Evolution Aqua stockist.
These O-Rings are packed in
a small bag inside the box.
QTY X 4: Quartz Sleeve
O-Rings (G)
QTY x 4: End Cap
Sealing Rings (I)
IDENTIFYING THE O-RingS
Quartz Sleeve
O-Ring (G)
End Cap Sealing
Ring (I)
Round
O-Ring
Flat
Washer
(B) (C)
(F)
(I)
(D) Thread
(G)
(H)
5

Your evoUV will keep your pond clear of green water up to its maximum capacity.
However, it is important to note that there are factors that affect how you select the
right size of evoUV for your pond.
You will need to take into consideration such things as stocking levels, sunlight /
shade, daily sunshine amounts etc. This is not always possible to calculate, and if
this is the case, use the tables below as a guide. It must be stressed however,
that these are only guidelines, and you should take advice from your local
Evolution Aqua dealer
USA - Southern States / Mediterranean 3 Watts UV per 1,000 litres
Northern Europe including UK 2 Watts UV per 1,000 litres
USA - Northern States / Canada 1 Watts UV per 1,000 litres
*evo110 offers even more UV per volume than the evo75 for more demanding situations
FLOW RATES
Please note: For optimum performance we recommend that you pass the entire
volume of your pond through the evoUV unit once every 2 to 3 hours.
We do not recommend the use of pumps with operating pressures in excess of 3 bar.
Model Max. pond size Max. flow rate Bulb power Inlet /
Outlet Fittings supplied
15,000 Litres
3,300 UK Gallons
3,963 US Gallons
7,500 Litres/hr
1,650 UK Gallons/hr
1,982 US Gallons/hr
15W (1 x 15W T8) 1½"
2 x 1½"
Threaded
Hosetails
20,000 Litres
4,400 UK Gallons
5,284 US Gallons
10,000 Litres/hr
2,200 UK Gallons/hr
2,642 US Gallons/hr
25W (1 x 25W T8) 1½"
2 x 1½"
Threaded
Hosetails
30,000 Litres
6,600 UK Gallons
7,925 US Gallons
15,000 Litres/hr
3,300 UK Gallons/hr
3,962 US Gallons/hr
30W (1 x 30W T8) 1½"
2 x 1½"
Threaded
Hosetails
55,000 Litres
12,100 UK Gallons
14,530 US Gallons
20,000 Litres/hr
4,400 UK Gallons/hr
5,284 US Gallons/hr
55W (1 X 55W T8) 1½"
2 x 1½"
Threaded
Hosetails
75,000 Litres
16,500 UK Gallons
19,815 US Gallons
25,000 Litres/hr
5,500 UK Gallons/hr
6,605 US Gallons/hr
75W (1 X 75W T8) 1½"
2 x 1½"
Threaded
Hosetails
75,000 Litres
16,500 UK Gallons
19,815 US Gallons
25,000 Litres/hr
5,500 UK Gallons/hr
6,605 US Gallons/hr
110W (2 X 55W T8) 2"
No
Fittings
Supplied
30
15
25
55
75
POND IS IN
FULL SHADE POND IS IN PART SHADE POND IS IN FULL SUN
POND SIZE
LOW
STOCK HIGH STOCK LOW STOCK HIGH STOCK LOW STOCK HIGH STOCK
<7,500 Litres
<1,650 UK Gallons
<1,982 US Gallons
evo15 evo15 evo15 evo15 evo15 evo25
<15,000 Litres
<3,300 UK Gallons
<3,963 US Gallons
evo15 evo25 evo15 evo25 evo25 evo30
<20,000 Litres
<4,400 UK Gallons
<5,284 US Gallons
evo25 evo30 evo30 evo30 evo30 evo55
<30,000 Litres
<6,600 UK Gallons
<7,925 US Gallons
evo30 evo55 evo55 evo55 evo55 evo55
<55,000 Litres
<12,100 UK Gallons
<14,530 US Gallons
evo55 evo75 /
evo110* evo75 / evo110* evo75 / evo110* evo75 / evo110* evo75 / evo110*
<75,000 Litres
<16,500 UK Gallons
<19,815 US Gallons
evo75 /
evo110* evo75 / evo110* evo75 / evo110* evo75 / evo110* evo75 / evo110* evo75 / evo110*
6

1. Starting at one end of the unit, unscrew the black end cap (B). You will notice
that this black end cap houses the bulb socket (F).
2. Unscrew the white locking nut (H) from the same end.
3. Repeat steps 1 and 2 at the other end of the unit.
4. Take the quartz sleeve (D) from the packaging box and slide it through the evoUV
until it finds the hole at the far end of the unit.
5. Take the quartz sleeve O-Ring (G) and fit it around one end of the quartz sleeve.
6. Slide this quartz sleeve O-Ring (G) towards the thread on the evoUV body,
ensuring that equal amounts of quartz sleeve are visible at each end of the unit.
7. Fit the quartz sleeve
O-Ring (G) at the
other end of the quartz
sleeve, again ensuring
that equal amounts
of quartz sleeve are
visible at each end of
the unit.
8. Now screw the white
locking nut (H) back
into position.
9. Ensure the locking nut is HAND TIGHTENED to prevent causing damage to the
O-Ring. No tools are needed.
10.Repeat steps 8 and 9 at the other end of the unit.
11.The quartz sleeve is now in position ready to take the UV bulb.
End Cap (B) UV Bulb (C)
Bulb Socket (F)
End Cap Sealing Ring (I)
Quartz
Sleeve (D) Thread
Quartz
Sleeve
O-Ring (G)
Locking
Nut (H)
evoUV
Body
INSTALLING THE QUARTZ SLEEVE
EQUAL AMOUNTS MUST BE VISIBLE
IMPORTANT: Ensure that equal amounts of the
quartz sleeve are visible at each end of the unit
before fitting the locking nuts.
HAND TIGHTEN FITTINGS ONLY - DO NOT USE TOOLS 7

1. Remove all packaging from the UV bulb (C).
2. Slide the UV bulb (C) carefully through the quartz sleeve (D) that you have
just fitted, as per the instructions on page 6.
3. While holding one of the black end caps (B) gently push the cable through the
end cap which will make it easier to fit the bulb socket (F) in step 5.
IMPORTANT:Do not pull the cable by holding just the bulb socket.
4. Fit the End Cap Sealing Ring (I) over the bulb socket and locate it into the end
cap so it is seated on the inside lip of the end cap.
IMPORTANT:Ensure the end cap sealing ring is not twisted and it remains in
this location throughout the installation.
5. In no particular order,
align the UV bulb
pins with the holes in
the bulb socket and
carefully push the bulb
socket firmly onto the
UV bulb pins. You may
need to hold the other
end of the UV bulb to
help you fit the socket.
6. Ensure the UV bulb socket is firmly connected to the UV bulb.
7. Repeat steps 3 to 6 at the other end of the unit.
8. Now at one end of the unit, slide the black end cap (checking that the sealing ring
in position) over the bulb socket while carefully holding the cable to prevent the
bulb connector disconnecting from the UV bulb.
9. Screw this end cap onto the thread on the white locking nut (H) already
connected to the UV body. HAND TIGHTEN ONLY.
10.Repeat steps 8 and 9 at the other end of the unit.
11.Check that all of the fittings are hand tightened. No tools are needed.
INSTALLING THE UV BULB
(B) (I) (F) (C) (H)
Illustration shows a finished evoUV set-up
8

If you are going to position your evoUV outside or in an area where it is likely to get
splashed regularly with water, then you must mount the unit the correct way up,
as shown in the illustration below. If your evoUV will be positioned in a
permanently dry environment then it can be installed in any position.
Your evoUV must not be submerged in water or placed in a position where water
may collect around the unit. The electrics within the evoUV units are sealed in a
water tight unit. evoUV has an IP rating of X5, the evo110 model is IP64.
Please ensure that there is enough space at one end of the evoUV to enable bulb /
quartz sleeve removal and maintenance.
Fix your evoUV into position using the stainless steel brackets provided.
The brackets come pre-fitted on evo15, 25, 30, 55 and 75 models.
PLEASE NOTE: Wall mounting screws and washers are not provided.

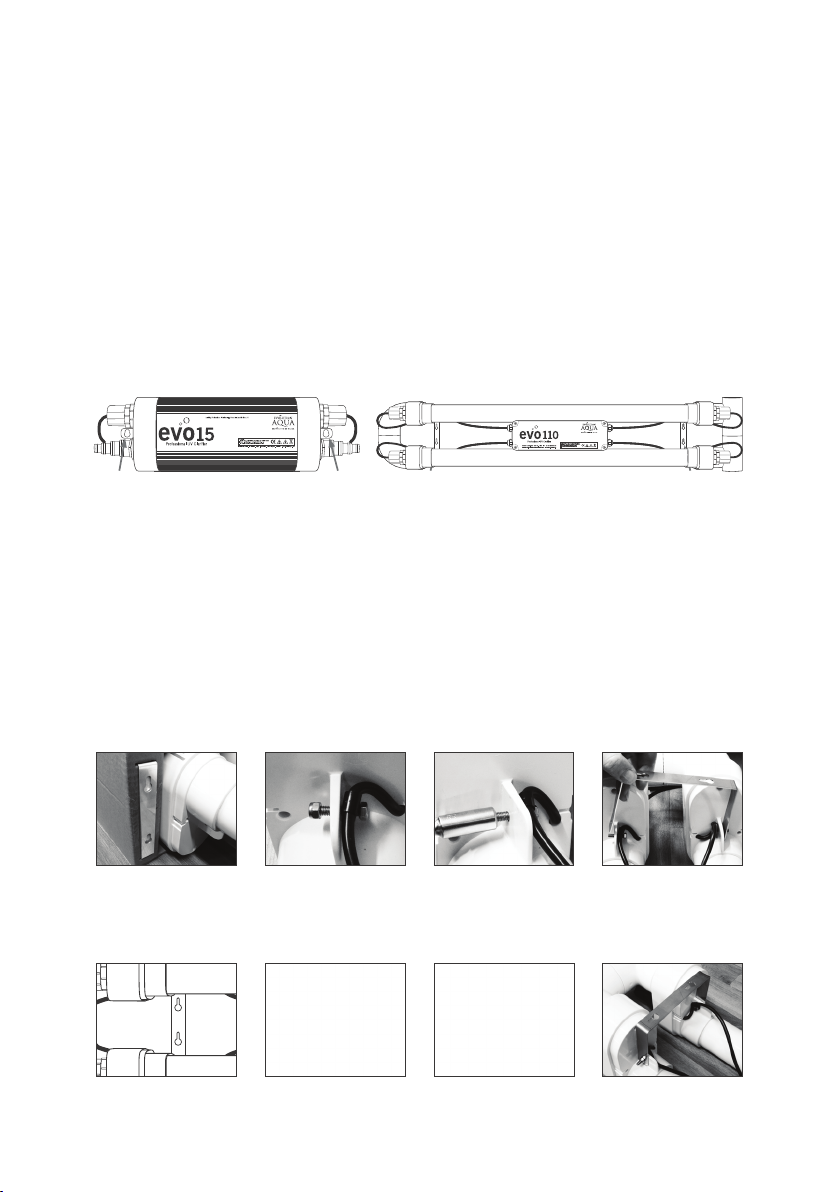

Fitting evo110 mounting brackets
Two stainless steel mounting brackets are included with the evo110. These are
located within the cardboard packaging end fitment. Hex screws and nuts are
pre-installed in position to secure the brackets to the unit. Follow the steps below to
undertake this. PLEASE NOTE: Wall mounting screws and washers are not provided.
Remove brackets
from both cardboard
packaging end
fitments.
Double check the
brackets are the correct
way up to help with
wall mounting.
Screws and nuts are
pre-installed in position
where the brackets
need to go.
At one end of the UV,
unscrew the nuts only
but leave the screws
and cable holder in
place.
With the nuts off, fit the
bracket over the screw
threads with drill holes
facing upwards - ready
for wall mounting.
POSITIONING AND MOUNTING THE evoUV
MOUNTING
BRACKETS
MOUNTING
BRACKETS
MOUNTING
BRACKETS
MOUNTING
BRACKETS
9
Using an 8mm spanner
to hold the screw
heads, tighten up the
nuts to secure the
bracket.
Repeat the process for
the bracket at the other
end of the UV.
Your evo110 is now
ready to be mounted to
the wall.

POND
FILTER
EVOUV
MAINS
POWER
LEAD
POND
WATER
PUMP
PUMP
SYMBOL KEY:
DIRECTION OF
WATER FLOW
POSITIONING AND MOUNTING THE evoUV
Gravity Fed Installation
Pump Fed Installation
If installing the unit prior to or without a pond filter, we would recommend the use
of a pre-filter on the water pump to prevent excess solids from being pumped into
the unit. The evoUV may be connected to the water flow on any pumped line, this
could be, for instance, a skimmer line or any other additional pumped line. The two
most common forms of set up are pump fed and gravity fed, shown below:
Most evoUV are designed to take 1½" threaded fittings.
Note: evo110 is 2" plain fittings only.
*If your evoUV will be positioned in a permanently dry environment then it can be
installed in any position.
PLEASE NOTE:
On Gravity Fed systems it is recommended to install a ball valve either side of the
evoUV for maintenance.
POND
WATER LEVEL
PUMP
SYMBOL KEY:
DIRECTION OF
WATER FLOW
BALL VALVE /
SERVICE VALVE
POND
FILTER
WATER
PUMP EVOUV
MAINS
POWER
LEAD
10

CUT AND REMOVE
UNWANTED HOSETAILS
CONNECTION TO YOUR PIPEWORK (evo15, 25, 30, 55, 75 only)

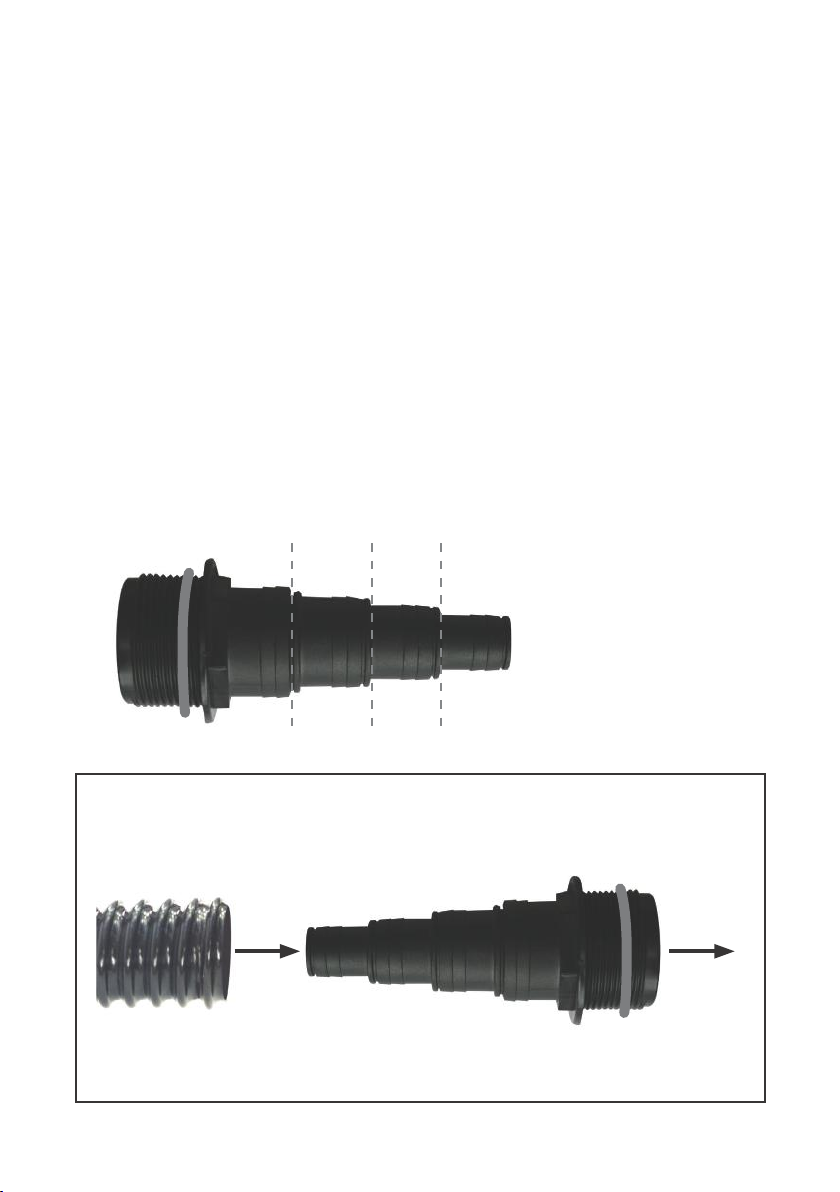

Connection with flexible hose
The evoUV is supplied with two universal hosetails to take ¾”, 1”, 1¼”, and
1½” diameter flexible hose. If you are using one of the two larger sizes, the smaller
sections of the hosetails must be cut off to ensure sufficient water flow and to prevent
possible damage to the pump. We recommend that you use the largest diameter hose
available. The hosetails should be trimmed away from the unit as shown in the diagram
below. Once the hosetails have been trimmed, attach them to the unit as shown below.
Secure the flexi-hose to the hosetail with a stainless steel hose clip (not provided).
The two universal hosetails supplied with the evoUV, should be screwed into the
inlet / outlet at either end of the unit. Hosetails should be tightened using hand
pressure only. Ensure that the O-Rings are in position before assembling. Please
note that there is no correct direction of flow through the unit, either end of the unit
may be used as the inlet or outlet.
IMPORTANT: Do not overtighten fittings.
CUT
1½” 1¼” 1” ¾”
CUT CUT
Screw into
evoUV
(Hand tight only)
Use these fittings to connect 1½" Flexible Hose to an evoUV.
Use a stainless steel hose clip (not supplied) to secure the hose to the fitting.
DO NOT OVERTIGHTEN HOSETAIL
CONNECTION TO FLEXIBLE HOSE
EA FITTING CODE:
HOSETAIL15TH
Threaded Hosetail Fitting
O-Ring
11

CONNECTION TO YOUR PIPEWORK (evo15, 25, 30, 55, 75 only)
Connection using rigid pipe
The unit may also be rigid plumbed by the use of an adaptor (not supplied).
Use these fittings for a versatile option to connect 1½" Pressure Pipe.
This option allows for easy removal of the evoUV.
OPTION 1 - CONNECTION TO 1½" PRESSURE PIPE
OPTION 2 - VERSATILE CONNECTION TO 1½" PRESSURE PIPE

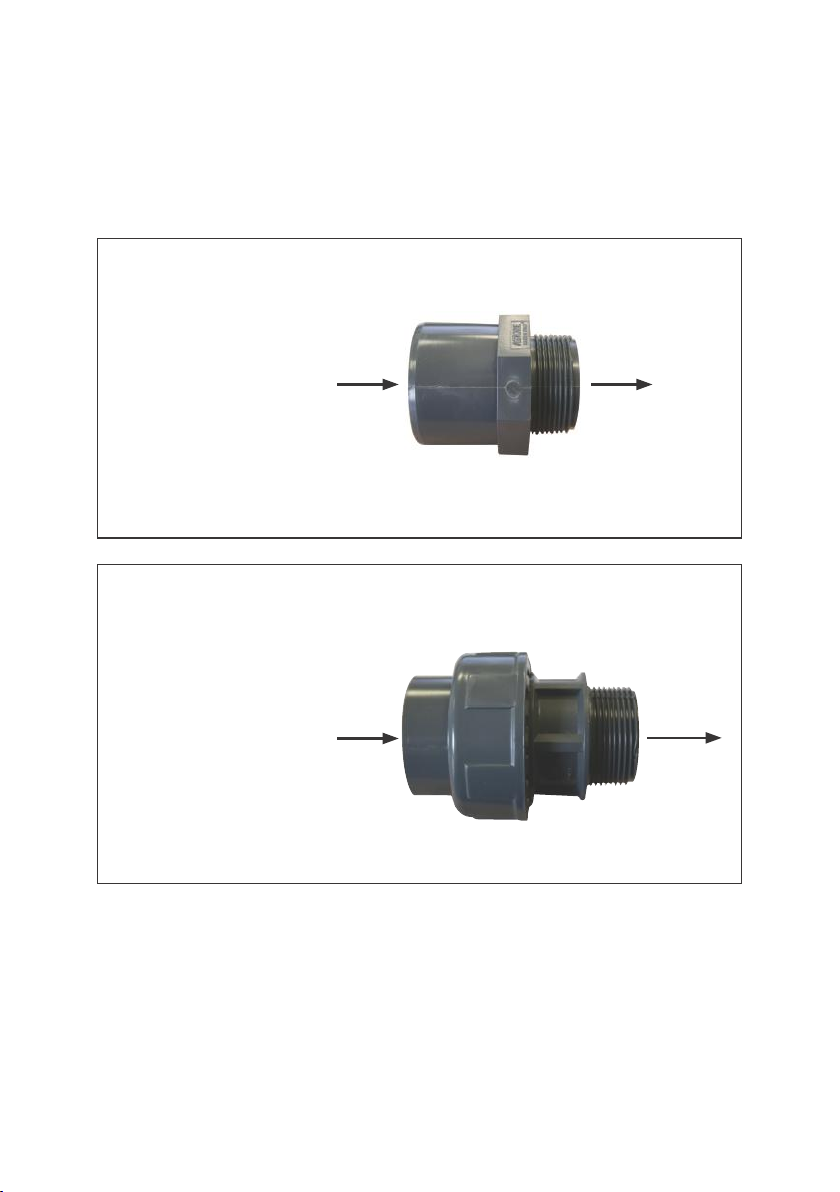

EA FITTING CODE:
K82-23-55
1½" Straight Connector Converter
Threaded Male to Plain Female
EA FITTING CODE:
K82-78-55
1½" Single Union
Threaded Male to Plain Female
EA PIPEWORK CODE:
U10-050
1½" Pressure Pipe
EA PIPEWORK CODE:
U10-050
1½" Pressure Pipe
Screw into
evoUV
Screw into
evoUV
Use these fittings to connect the evoUV to 1½" Pressure Pipe.
DO NOT OVERTIGHTEN FITTINGS
DO NOT OVERTIGHTEN FITTINGS
IMPORTANT: DO NOT OVERTIGHTEN FITTINGS
12

CONNECTION TO YOUR PIPEWORK (evo110)
EA CODE:
K25-50-63"
2" Double
Union
Ball Valve
EA CODE:
K25-50-63"
2" Double
Union
Ball Valve
EA PIPEWORK CODE:
U10-0632"
2" Pressure Pipe
EA PIPEWORK CODE:
U10-0632"
2" Pressure Pipe
EA PIPEWORK CODE:
U10-0632"
2" Pressure Pipe
EA PIPEWORK CODE:
U10-0632"
2" Pressure Pipe
13
CONNECTION USING RIGID PIPE
All fittings connected to the evo110 should be
glued using solvent weld adhesive.
EA CODE: S79-0-500
We recommend using a 2" Double Union Ball
Valve glued to a length of 2" Pressure Pipe at
each end of the UV. This will enable you to
isolate the UV during maintenance.
EUROPEAN MODELS (NOT UK)
European adapter fittings are supplied with EU
models to allow connection to 63mm pipe.
IMPORTANT: DO NOT OVERTIGHTEN FITTINGS

POND
FILTER
POND
WATER
PUMP
PUMP
SYMBOL KEY:
DIRECTION OF
WATER FLOW
BALL VALVE /
SERVICE VALVE
POND
WATER LEVEL
PUMP
SYMBOL KEY:
DIRECTION OF
WATER FLOW
BALL VALVE /
SERVICE VALVE
POND
FILTER
WATER
PUMP
EVO 110 CONNECTION TO PIPEWORK
Gravity Fed Installation
Pump Fed Installation
PLEASE NOTE:
On Gravity Fed systems it is recommended to install a ball valve either side of the
evoUV for maintenance.
14

CONNECTION TO THE ELECTRICITY SUPPLY
Electrical installations must be done by a qualified electrician.
Do not attempt to tamper with or access the electrical control box or casing
inside the evoUV, as doing so will invalidate the warranty.
The power supply must meet the specifications on the product.
The cores in the supply cable are coloured in accordance with the following code:
Brown = Live. Blue = Neutral. Earth = Green/Yellow
(WHERE FITTED).
Do not use the supply cable to lift the evoUV as this may cause
damage.
WARNING - A Residual Current Device (RCD), also known as the
Residual Current Circuit Breaker (RCCB), with a tripping current not
exceeding 30mA must be installed in the supply circuit. A means
of disconnection from the supply having a contact separation of at
least 3mm in all poles must be incorporated in the wiring.
Caution: Use in the area of the garden pond only if the installation complies with
the relevant wiring regulations. Please consult a qualified electrician.
Caution: Always disconnect all pond appliances from the mains supply before
putting your hands into the water.
All electrical installations and wiring must be adequately protected to prevent
any damage.
Enough electrical cable is supplied with the unit to connect to the mains electric.
This unit must be connected to permanent wiring. A switch with 3mm contact
separation must be provided in the fixed wiring to provide disconnection from the
electricity supply.
15

TO REMOVE A UV BULB:
It is not necessary to stop the water circulating through the evoUV to change
the bulb.
1. Disconnect the electricity supply.
2. Unscrew the black end cap at one end of the unit. Take care not to unscrew the
white locking nut also.
3. Carefully slide the black end cap over the wire to reveal the bulb socket.
Take care not to lose the end cap sealing ring.
4. Disconnect the bulb socket.
5. Repeat steps 2 to 4 at the other end of the evoUV.
6. With the end caps out of the way, carefully slide out the UV bulb.
WARNING: If the end caps / electrical connections get wet during this procedure,
please ensure that they are thoroughly dried before re-connecting.
TO INSTALL A NEW UV BULB:
Follow the instructions on page 8 to fit a new UV bulb.
IMPORTANT: After checking all the fittings are correctly tightened you can switch
your unit back on.
As already mentioned, it is essential that the unit is protected from frost during
the winter months, or disconnected from water and electricity supplies and stored
indoors. During the spring and summer season, the quartz sleeve, which separates
the UV bulb from the water passing through the unit, will need to be cleaned two or
three times. This is essential, as dirt or limescale building up on the quartz sleeve
will inhibit the penetration of the ultraviolet light into the water and affect the
efficient working of the unit.
UV BULB REPLACEMENT
ALWAYS ISOLATE THE UNIT FROM ANY ELECTRICITY AND WATER SUPPLIES
BEFORE CARRYING OUT MAINTENANCE ON THE UNIT.
16

REPLACING / CLEANING QUARTZ SLEEVE
ALWAYS ISOLATE THE UNIT FROM ANY ELECTRICITY AND WATER SUPPLIES
BEFORE CARRYING OUT MAINTENANCE ON THE UNIT.
TO REMOVE A QUARTZ SLEEVE:
PLEASE NOTE: Removing the quartz sleeve will cause water to flow out of the unit.
1. Remove the UV bulb as described on page 16.
2. With the electricity supply disconnected, evoUV isolated and UV Bulb removed,
unscrew the locking nut at one end of the evoUV.
3. Carefully remove the quartz sleeve O-Ring and keep safe.
4. Unscrew the locking nut from the other end and remove the quartz sleeve O-Ring
and keep safe.
5. Carefully remove the quartz sleeve taking care not to allow it to drop inside the
UV body.
6. To drain any water that may be left in the unit, we would recommend that you
unscrew the mounting bracket(s), disconnect the unit from the pipework, and tilt
the unit to drain the chamber of water.
7. Clean the sleeve and polish with a soft cloth or paper towel. If you live in a hard
water area, you may get limescale on the quartz sleeve; this can be easily
removed by using vinegar or a cold water descaler.
WARNING: If the end caps / electrical connections get wet during this procedure,
please ensure that they are thoroughly dried before re-connecting.
TO RE-INSTALL A QUARTZ SLEEVE:
Follow the instructions on pages 7 and 8 to re-install the quartz sleeve and UV bulb.
IMPORTANT: After checking all the fittings are correctly tightened you can switch
your unit back on.
TROUBLESHOOTING
During this procedure or if you notice water leaking from around the end caps you
should check the following:
1. Check the O-Ring is undamaged.
2. Check there are no cracks and breaks in the quartz sleeve.
3. Check that the locking nut is compressing the O-Ring to form a water tight seal.
4. Check that the end caps are sufficiently tight.
5. All components are clean and free from dirt and debris.
*Please note that the items list 1-5 are service items and therefore not subject to a
claim under warranty. The service items listed are available from your EA stockist. 17

IN BUILT PROTECTION
The evoUV range of pond clarifiers have thermal overload protection which
automatically shuts down and then enables a fast re-start when the problem
has been cleared. This may be as a result of water in the end caps. Please see
the troubleshooting section.
Thermal Overload Protection -
This will automatically switch off the unit should the temperature exceed the
maximum operating temperature limits.
Automatic start up and shut down protection -
This protects the electrical components in the event of a power surge.

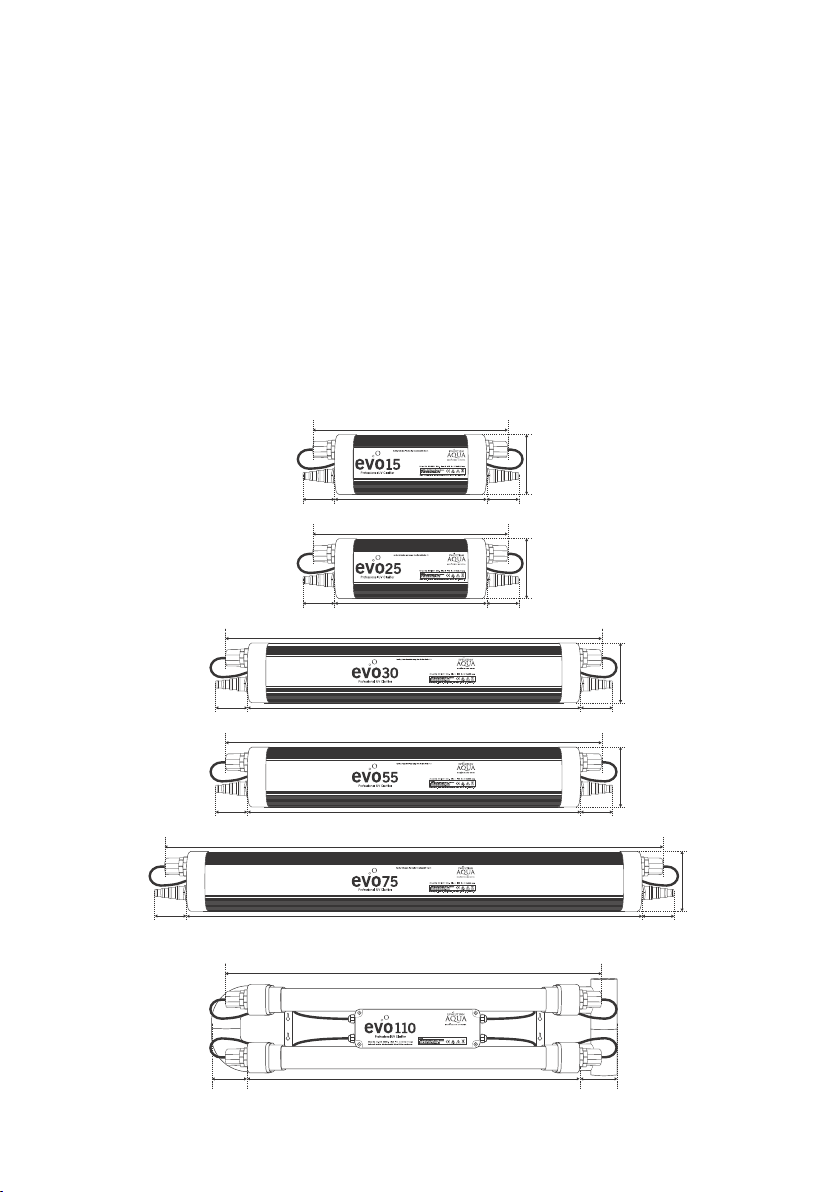

evo110 UNITS ARE 160mm DEEP
DIMENSIONS 530mm
380mm
ALL UNITS ARE 88mm DEEP
100mm 100mm
167mm
530mm
380mm100mm 100mm
167mm
980mm
830mm100mm 100mm
167mm
980mm
830mm100mm 100mm
167mm
1280mm
980mm
835mm
1130mm100mm 100mm
110mm110mm
167mm
18

TROUBLE SHOOTING
My pond water is not clear, is this due to the evoUV not working correctly?
Koi, goldfish and other pond inhabitants can cause murky water by stirring up the
bottom of the pond. This murky water should not be confused with suspended algae.
Always check all your pond filtration is working and is being maintained correctly
prior to checking the evoUV. Mechanical filtration is necessary.
If the UV bulb is not lit, then you need to investigate the power to your unit.
• Has your RCD tripped? If yes, check your wiring and reset.
• Examine the UV bulb for signs of failure, and replace if necessary.
• Is the UV bulb fitted correctly? Unscrew the end caps and ensure correct fitting as
per the instructions as described in this manual.
• Are the end caps dry? If not, allow to dry thoroughly. We recommend the use of a
hair-dryer for this.
The unit worked well when I first installed it but recently my pond has gradually
gone green again – what is wrong?
Quartz sleeve may have become dirty and requires cleaning. Also make sure you have
the right model for your pond size. Ensure your pond filtration is removing fish waste
and debris efficiently. Dirt in ponds will affect the efficiency of the evoUV. Check that
your pond water volume is pumping through the evoUV every 2 to 3 hours.
Only after you have carried out these checks should you contact your Evolution Aqua
dealer, who will then be able to advise you further.
The unit appears to be leaking from the end fittings?
This could possibly be caused by an incorrectly fitted, damaged or overtightened
O-Ring on the quartz sleeve. Please check the quartz sleeve O-Ring, reposition it or if
necessary replace it with a new one.
19

FREQUENTLY ASKED QUESTIONS
How often should I change the UV bulb?
The evoUV bulb has an effective lifespan of 9000 hours, but it is an accepted
practice to replace a UV bulb once a year, at the start of every pond season.
How long after I install the unit will my pond become clear?
There are many factors which affect how long your evoUV will take to clear your
pond, such as the levels of nutrients available to the algae, the water temperature
and the level of sunlight. Assuming that you have installed the correct size unit,
most ponds should clear within 3-14 days. However, this may take up to six weeks
in some instances.
Does the evoUV harm fish, plants or wildlife?
Ultraviolet bulbs leave no residues, and only affect the water pumped through
the unit. Unlike many chemical treatments, your evoUV will not harm plants and
animals living in the main pond.
Is the evoUV suitable for salt water use?
The evoUV is manufactured from materials that will not corrode in salt water,
however the stainless steel bracket will. Use alternative mounting means when using
evoUV on saltwater systems.
Can I use my evoUV if I am using any treatments for my fish?
Always check the manufacturer’s instructions before using any water treatment as
they will tell you whether it’s recommended that the evoUV can be switched off
or on.
How long can I leave the unit running?
evoUVs have been designed and manufactured to the highest standards, and should
be run 24 hours a day, every day, from mid March to early October, depending on
the weather conditions. If the unit is frost protected it may be left running throughout
the winter. Otherwise, the unit should be removed, drained and stored safely for
the winter.
Can I bury the unit underground?
No. The evoUV, although weatherproof, is not suitable for installing in any situation
that may be subject to immersion in water.
Can it be used with ozone?
Yes. The evoUV is safe to use with ozone units, however, the O-Rings on the
hosetails are not. When using ozone units please use rigid pipe.
When replacing the bulb I cannot locate it into the bulb socket at the opposite end
of the evoUV?
Please follow the procedure for cleaning / replacing the quartz sleeve. This will
explain the correct procedure for removing both end caps and sockets and explain
the method for easy installation.
20
