Evolution Aqua K1 MICRO BEAD 20 Quick guide

INSTALLATION AND INSTRUCTION MANUAL
Evolution Aqua Ltd. - Evolution House - Kellet Close - Wigan - Lancashire - United Kingdom - WN5 0LP
t [phone] - f+44 (0) 1942 216562 - e[email protected] - wwww.evolutionaqua.com
UK
English
K1MICROBEAD011703171MAN
PLEASE READ INSTALLATION INSTRUCTIONS
THOROUGHLY BEFORE INSTALLATION.
PLEASE NOTE: Do not operate the multi-port valve with
the circulating pump switched on. The ball valve on the air blower
line must be closed when the circulating pump is switched on.

INTRODUCING THE K1 MICRO BEAD FILTERS
2
The K1 Micro Bead Filters are a range of pressurised systems that deliver incredible
levels of filtration for ponds. By using the new K1 Micro filter media instead of
conventional beads, these filters offer class-leading mechanical filtration along with
unparalleled biological filtration. This is due to the vast PROTECTED SURFACE AREA
of K1 Micro filter media. The media also improves flow through the filter meaning
lower energy pumps can be used and a consistent flow rate can be achieved.
For more detailed information on K1 Micro visit our website www.evolutionaqua.com
Please read this instruction manual carefully from start to finish
before attempting to install your new K1 Micro Bead Filter.

CONTENTS
K1 Micro Bead Filter parts list PAGE 4
Specifications PAGE 5
K1 Micro Bead Filter dimensions PAGE 6
MPV and Blower Pipework Fittings PAGE 7
How the K1 Micro Bead Filter works PAGE 8
The Multi-Port Valve PAGE 9
K1 Micro Bead Filter installations PAGE 10
K1 Micro Bead Filter set-up PAGE 11
K1 Micro Bead Filter installations PAGE 15
K1 Micro Bead Filter cleaning instructions PAGE 16
Quick cleaning / backwash instructions PAGE 17
How to get the best from your K1 Micro Bead Filter PAGE 18
Winter Maintenance PAGE 19
Troubleshooting PAGE 20
Warranty PAGE 21
Warranty Card PAGE 22
3

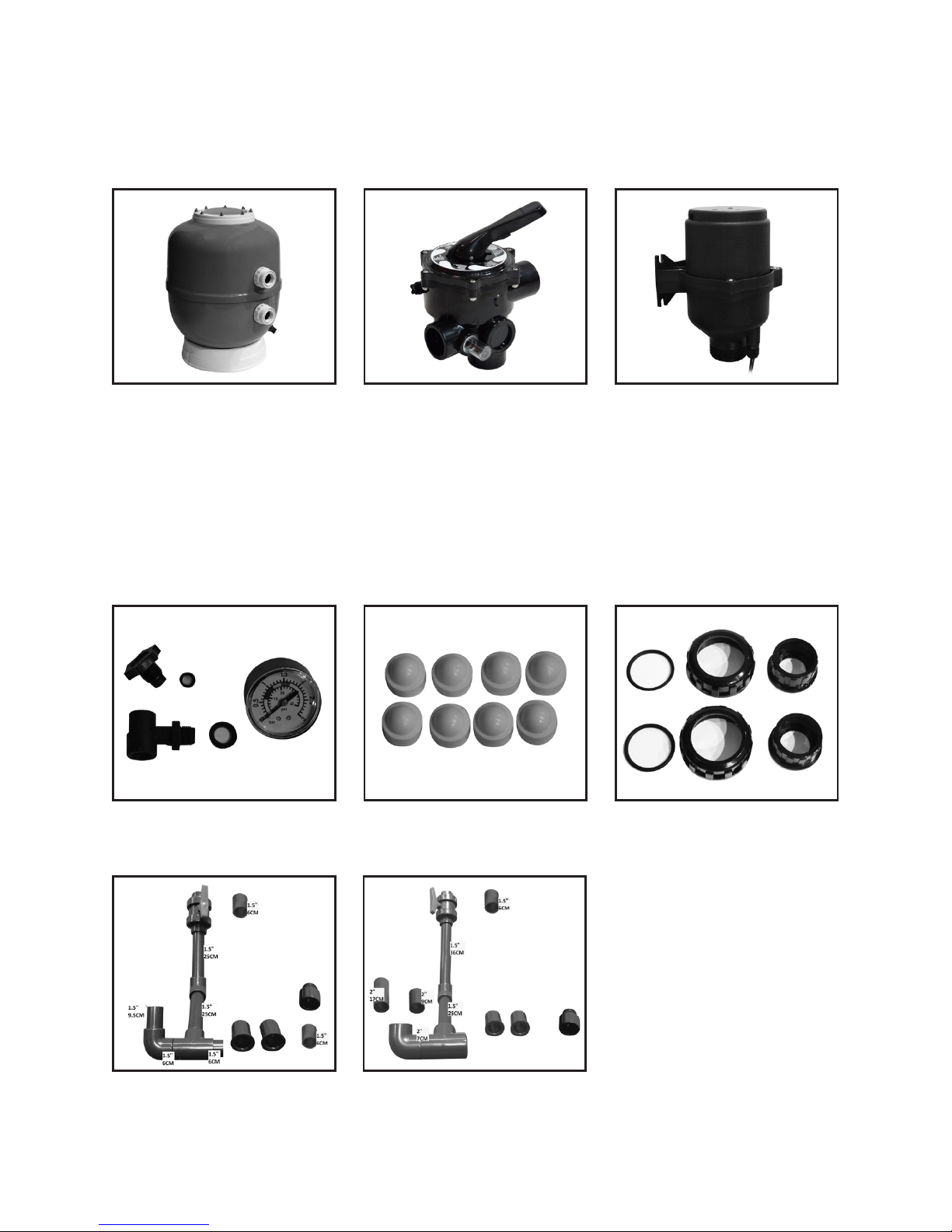

K1 MICRO BEAD FILTER PARTS LIST
1) K1 MICRO
BEAD FILTER
(Including lid)
2) MULTI-PORT VALVE +
BALL VALVE +
FITTINGS
20” model supplied
with 1½” MPV.
24”, 30” and 36”
models supplied with
2” MPV.
4) PRESSURE GAUGE
AND FITTINGS
3) AIR BLOWER
20” and 24” models
supplied with
200W Air Blower.
30” and 36” models
supplied with
300W Air Blower.
5) COVER CAPS FOR LID 6) INLET AND OUTLET
THREADED COLLARS
7) PIPEWORK &
FITTINGS (1½”)
For 20” models.
8) PIPEWORK &
FITTINGS (2”)
For 24”, 30”, 36”
models.
4
Your K1 Micro Bead Filter comes complete with the following items:

K1 MICRO BEAD FILTER SPECIFICATIONS
AIR BLOWER SIZE
The maximum working pressure of all K1 Micro Bead Filters is 2.5 Bar.
K1 MICRO BEAD 20 FILTER (20”) = 200W Air Blower
K1 MICRO BEAD 24 FILTER (24”) = 200W Air Blower
K1 MICRO BEAD 30 FILTER (30”) = 300W Air Blower
K1 MICRO BEAD 36 FILTER (36”) = 300W Air Blower
On the pipe run between the MPV and the Air Blower
there is a 1½” ball valve fitted.
The ball valve handle must always be closed when
the circulating pump is switched on. This indicates
that the ball valve is CLOSED.
This is designed to prevent water flowing back
into the air blower.
Only open the ball valve when the pump is
switched off and before operating the air blower.
FAILURE TO FOLLOW THESE INSTRUCTIONS
MAY INVALIDATE THE WARRANTY.
5
MODEL NO. K1MICROBEAD20 K1MICROBEAD24 K1MICROBEAD30 K1MICROBEAD36
Diameter 20” 24” 30” 36”
Volume of
K1 Micro
Media
50 Litres 100 Litres 150 Litres 250 Litres
Multi-Port
Valve size 1½” 2” 2” 2”
Maximum
pond size
4,000 UK Gallons 8,000 UK Gallons 12,000 UK Gallons 20,000 UK Gallons
18,000 Litres 36,000 Litres 54,500 Litres 91,000 Litres
4,800 US Gallons 9,600 US Gallons 14,500 US Gallons 24,000 US Gallons

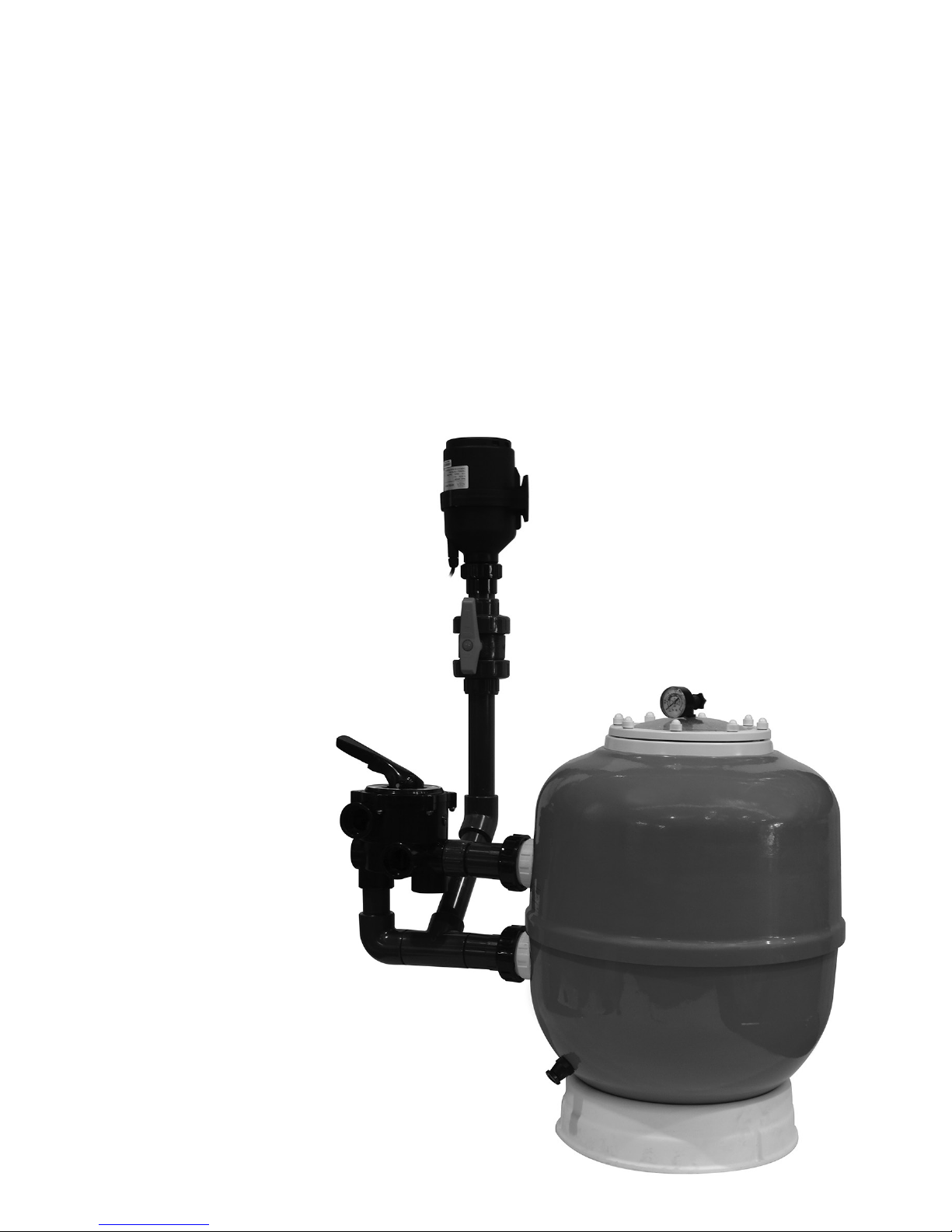

Figure 1a.
Figure 1b
BALL VALVE FITTED
BELOW THE AIR BLOWER
IMPORTANT
PLEASE READ

DIMENSIONS
6
K1 MICRO BEAD 20 FILTER
24”
30” 36”
20”
Ø964mm
1085mm
400mm 230mm
Ø793mm
940mm
330mm 230mm
Ø610mm
805mm
290mm 155mm
Ø500mm
265mm
155mm
760mm
Figure 2a.
K1 MICRO BEAD 24 FILTER
24”
30” 36”
20”
Ø964mm
1085mm
400mm 230mm
Ø793mm
940mm
330mm 230mm
Ø610mm
805mm
290mm 155mm
Ø500mm
265mm
155mm
760mm
Figure 2b.
K1 MICRO BEAD 30 FILTER
Figure 3a.
24”
30” 36”
20”
Ø964mm
1085mm
400mm 230mm
Ø793mm
940mm
330mm 230mm
Ø610mm
805mm
290mm 155mm
Ø500mm
265mm
155mm
760mm
K1 MICRO BEAD 36 FILTER
Figure 3b.
24”
30” 36”
20”
Ø964mm
1085mm
400mm 230mm
Ø793mm
940mm
330mm 230mm
Ø610mm
805mm
290mm 155mm
Ø500mm
265mm
155mm
760mm

FIT TO MPV ON
30” AND 36”
MODELS ONLY
FIT BETWEEN
AIR BLOWER
AND BALL VALVE
TO REPLACE
COLLAR INSERTS
ON FILTER
INLET AND
OUTLETS
TO SCREW
INTO
MPV
FIT TO
MPV ON
24”
MODELS
ONLY
A
DE
B
A C
7

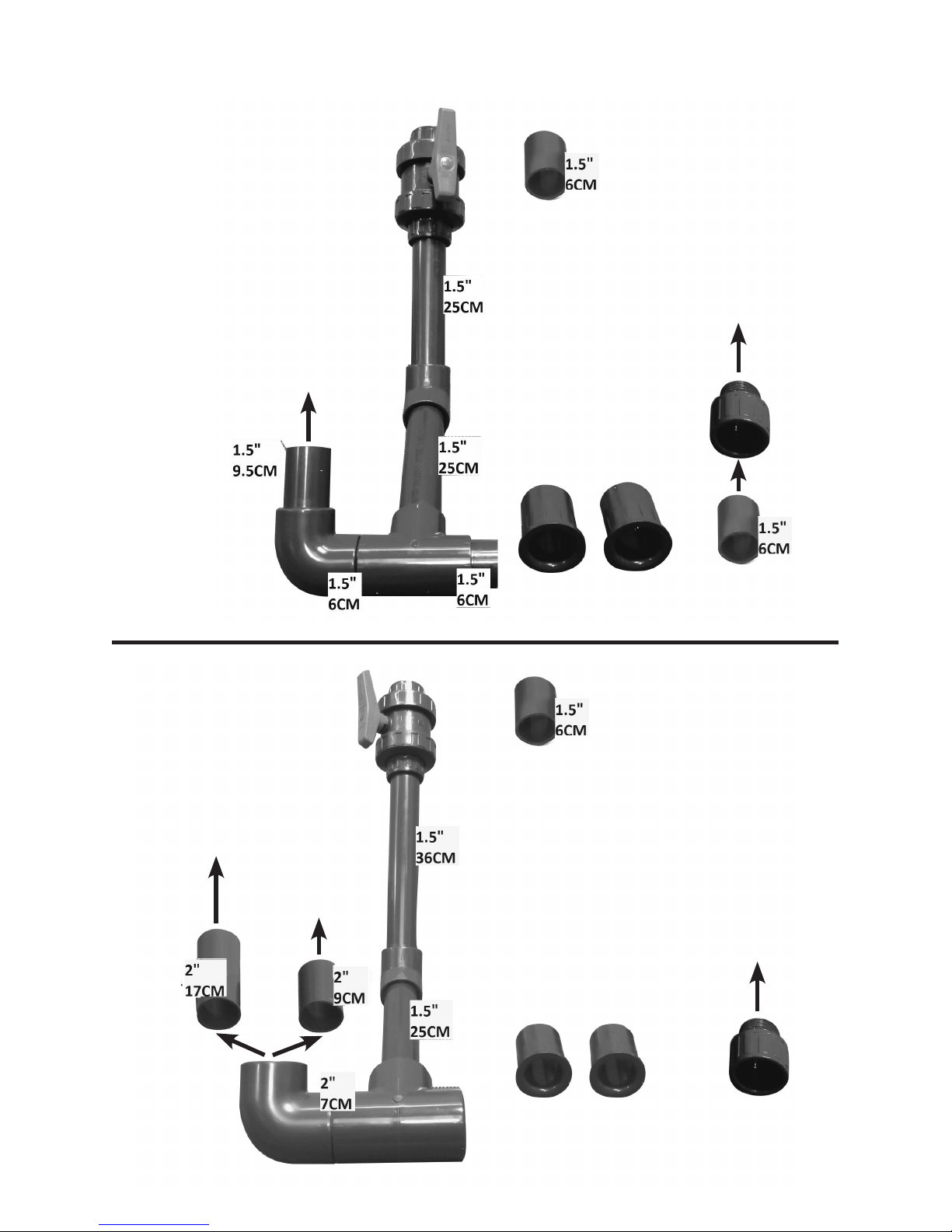

MPV AND BLOWER PIPEWORK FITTINGS
SUPPLIED WITH
20” MODELS FIT BETWEEN
AIR BLOWER
AND BALL VALVE
TO REPLACE
COLLAR INSERTS
ON FILTER
INLET AND
OUTLETS
TO SCREW
INTO
MPV
FIT TO
MPV ON
20”
MODELS
ONLY
SUPPLIED WITH
24”, 30” AND
36” MODELS
Figure 4.
Figure 5.
A A B
B
C

Water enters the filter from the pond into the multi-port valve (MPV) and is directed to
the bottom of the unit. As the water is pumped through the K1 Micro Bead Filter, dirt,
debris and waste are trapped by the K1 Micro and then the massive protected surface area
housing the filter bacteria biologically breaks down the Ammonia and Nitrite into Nitrate.
The filtered water is returned to the top of the unit through the multi-port valve and back to
the return line flowing back into the pond.

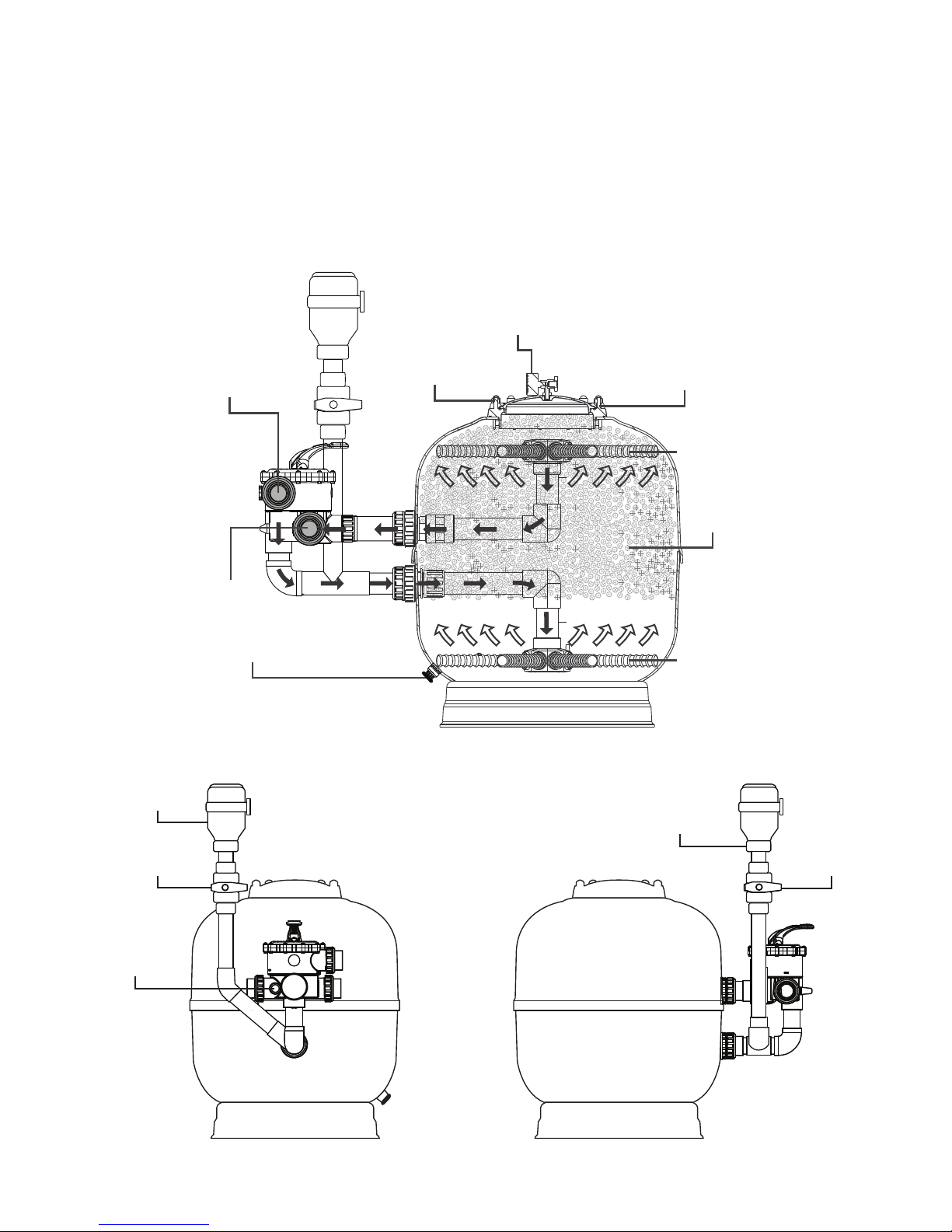

HOW THE K1 MICRO BEAD FILTER WORKS
INLET
K1 MICRO
LATERALS
COLLAR
BOLT DOWN LID
LATERALS
MULTI-
PORT
VALVE
WASTE
OUTLET
(Rear of MPV)
PRESSURE GAUGE
AIR
BLOWER
DRAIN
VALVE
OUTLET
AIR
BLOWER
BALL
VALVE
SIGHT
GLASS
BALL
VALVE
AIR
BLOWER
8
Figure 6b.
Figure 6a.

The K1 Micro Bead Filter is operated by a multi-port
valve. This multi-port valve functions by pushing down
on the handle, turning it and relocating it into one of
the operating positions shown on the multi-port valve
(see figure 7). The valve must always be operated with
the circulating pump switched OFF.The ball valve
positioned below the air blower must be closed when
the pump is running. Below we offer an explanation of
each of the multi-port valve’s functions:
1) FILTER: Incoming water from the pond enters
the MPV at point (A) (see figure 8). The water enters
the vessel at point (D) then flows upwards through
the K1 Micro filter media to the top exit bar (B).
The filtered water is returned through the multi-port
valve at point (C) and back into the pond.
2) BACKWASH: This is the position the multi-port
valve should be in for cleaning the K1 Micro filter
media. With the valve in this position, water flow is
reversed through the filter bed so that the water
flow is directed to the top of the unit (B) and exits
the unit at (D) and goes out to the waste line (E).
3) RINSE: This is the position the multi-port valve
should be in for agitating the K1 Micro filter media.
With the valve in this position, air (supplied by the
air blower) is used to agitate the filter media.
Later on in the cleaning process, water is used to
rinse the K1 Micro and exit to waste (E).
4) WASTE: This is the position the multi-port valve should be in to allow water to by-pass
the filter bed and drain to waste (E). With the multi-port valve in this position, the water
flow is directed straight to waste by-passing the unit. This function can be used to lower the
water level or for vacuuming your pond without soiling the filter.
5) RE-CIRCULATE: This is the position the multi-port valve should be in to allow water
to completely by-pass the filter. With the valve in this position, water is pumped from the
pond to the multi-port valve and directly back to the pond, without flowing through the K1
Micro Bead Filter. This is particularly handy if you are treating your pond.
6) CLOSED: This is the position the multi-port valve should be in for closing all flow to the
filter. This position is not to be used with the pump running.
THE MULTI-PORT VALVE
backwash
filter
recirculate
waste
closed
rinse
Figure 7.
9
Do not operate the multi-port valve with the circulating pump switched on.
The ball valve must be closed when the circulating pump is running.
A
C
E
WASTE OUTLET
ON REAR OF MPV B
D
Figure 8.

K1 MICRO BEAD FILTER INSTALLATIONS
The K1 Micro Bead Filter is a versatile unit. It can be used:
• as a filter on its own
• in conjunction with a pre-filter
• on skimmer lines
• as a polisher at the end of a system
• on pump-fed systems
• on gravity fed systems
• installed at any height or location

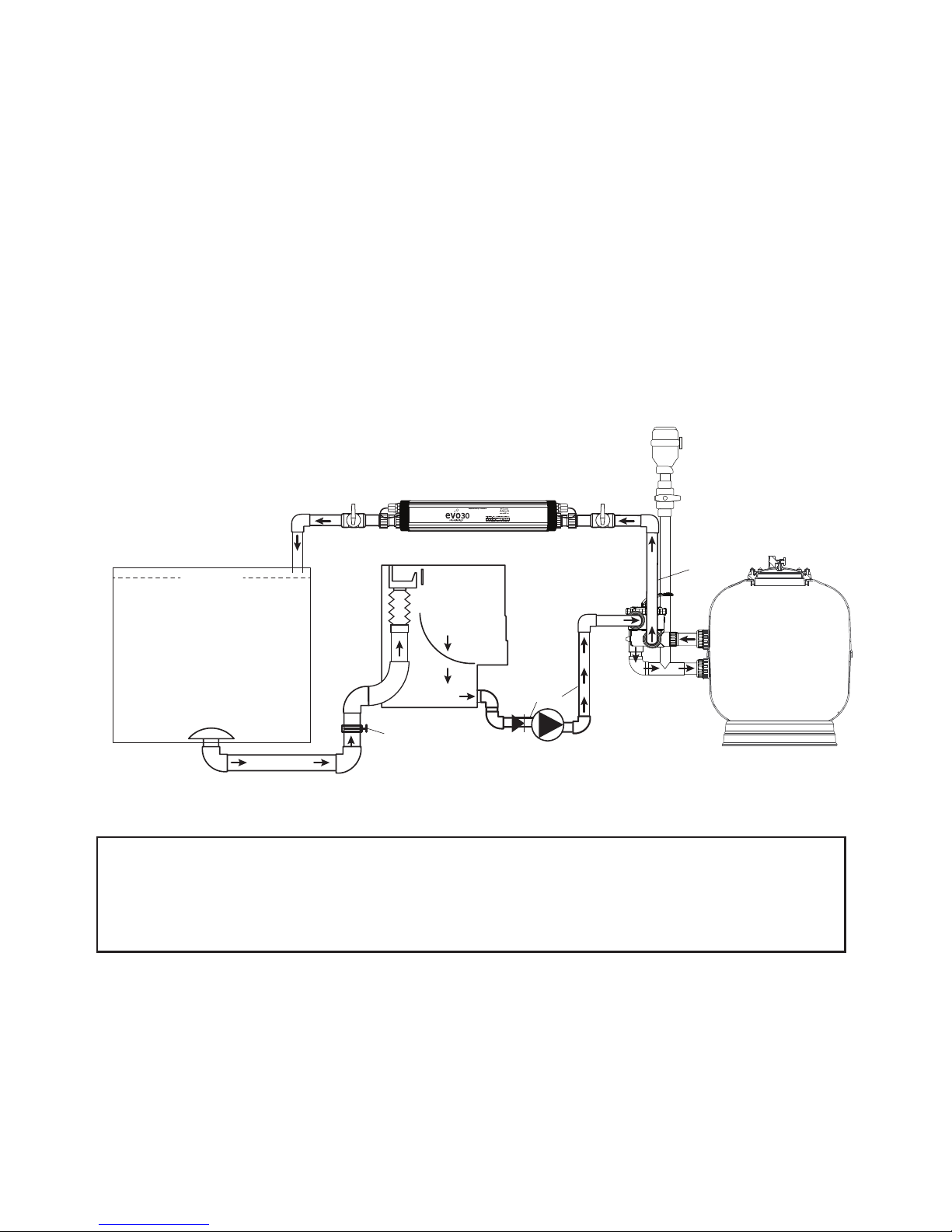

Here is a diagram showing a typical installation for a K1 Micro Bead Filter:
Recommended Installation
CETUS
SIEVE
POND K1 MICRO BEAD
FILTER
WATER LEVEL
4” (110mm) Pipe
2” Pipe*
Slide Valve
PUMP
INLET
RETURN TO POND
NON
RETURN
VALVE
2” Pipe*
Air Blower
Ball Valve
UV
Figure 9.
10
The K1 Micro Bead Filter can be installed as shown above if you are planning to use a
pre-filter such as the Evolution Aqua Cetus Sieve. If you are not planning to use a pre-filter
we highly recommend that you fit a strainer basket to the pump. This will prevent leaves,
string algae etc. from entering the filter and pump.
* It is recommended that all pipework on the pump side (from the pump to the filter and
back to the pond) is installed on 2” pipe. Please note on the K1MicroBead20 Filter you
will have to reduce your pipe down to 1½” to connect to the multi-port valve. This will
ensure that your pump is working at its maximum flow.
Do not operate the multi-port valve with the circulating pump switched on.
The ball valve must be closed when the circulating pump is running.

K1 MICRO BEAD FILTER SET-UP
FITTING THE INLET AND OUTLET THREADED COLLARS
We recommend following these instructions to install the K1 Micro Bead Filter.
Remove the K1 Micro Bead Filter, the multi-port valve, air blower, pipe work,
and fittings from the box, and familiarise yourself with the parts. (See page 4 and 7).
Discard the inserts supplied
with the threaded collars.
Fit the threaded collar, with
the insert (A) onto the outlet.
Fit the threaded collar, with
the insert (A), onto the outlet,
and tighten up.
Instead use the inserts (A)
supplied inside the pipework
kit bag. (See page 7)
Tighten up the collar. HAND
TIGHTEN ONLY.
Discard the inserts supplied
with the threaded collars.
Tighten up the collar.
HAND TIGHTEN ONLY.
Fit the O-ring into the seal
on the outlet.
Now fit the O-ring into the
seal on the inlet.
11
A

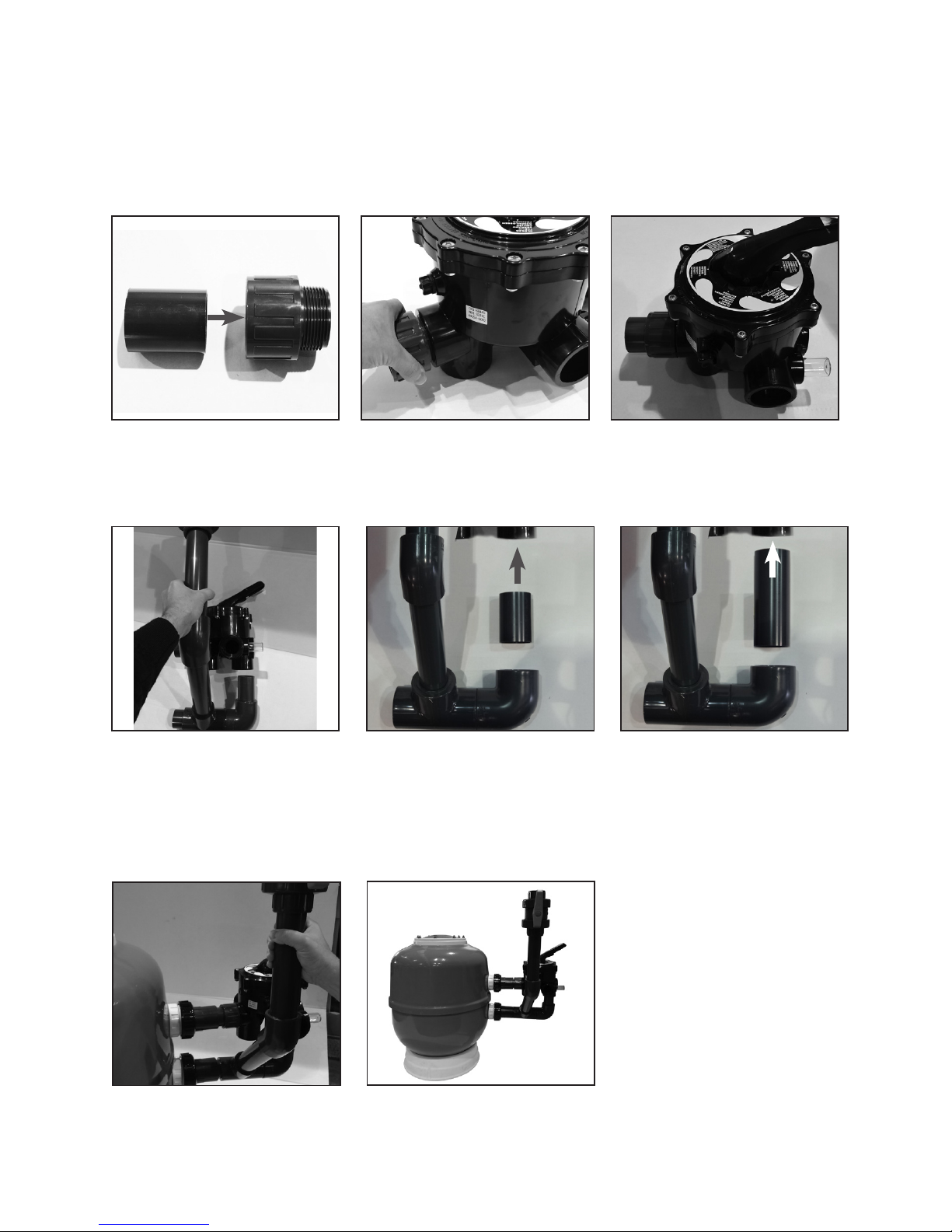

FITTING THE MULTI-PORT VALVE
ONLY ON 20” MODELS
Glue 6cm pipe (B) into the
female end of the threaded
insert (C)
ONLY ON 20” MODELS
Take the pre-assembled
pipework (with ball valve)
and insert the end with the
piece of 1½” pipe into the
MPV. Glue connections.
ONLY ON 24” MODELS
Take the pre-assembled
pipework (with ball valve)
and insert 9cm pipe (E)
between the MPV and 2”
Elbow. Glue connections.
ON 30” AND 36” MODELS
Take the pre-assembled
pipework (with ball valve)
and insert 17cm pipe (D)
between the MPV and 2”
Elbow. Glue connections.
ON ALL MODELS
Screw insert (C) into the
female thread on the MPV.
HAND TIGHTEN ONLY.
Take the MPV assembly and
pipework and fit to the inlet
and outlet on the filter. Glue
connections.
The filter set up should now
look like this
The MPV assembly should
look like this. (Image shows
20” model version)
K1 MICRO BEAD FILTER SET-UP
12
PLEASE NOTE: We strongly recommend that you fit all pipework dry to check that you have
fitted them correctly before permanently fixing them with solvent weld adhesive.
B
E
D
C

13
FITTING THE PRESSURE GAUGE
K1 MICRO BEAD FILTER SET-UP
Take the component parts
needed to fit the pressure
gauge onto the filter lid
Screw the pressure gauge
into the smaller threaded end
on the elbow.
Fit the smallest washer
between the thread and
the plug on the valve
Fit the larger washer on the
threaded end ready to screw
into the lid.
Screw valve into the larger
female threaded end on
the elbow
Screw the pressure gauge
assembly into the lid.
DO NOT OVER TIGHTEN.
FITTING THE BLOWER (DO NOT expose blower to rain fall or water ingress)
Screw the insert and collar
onto the blower. HAND
TIGHTEN ONLY.
Glue the reducing pipe (B)
in place in the ball valve
and glue into the blower.
The assembly should look
like this.

14

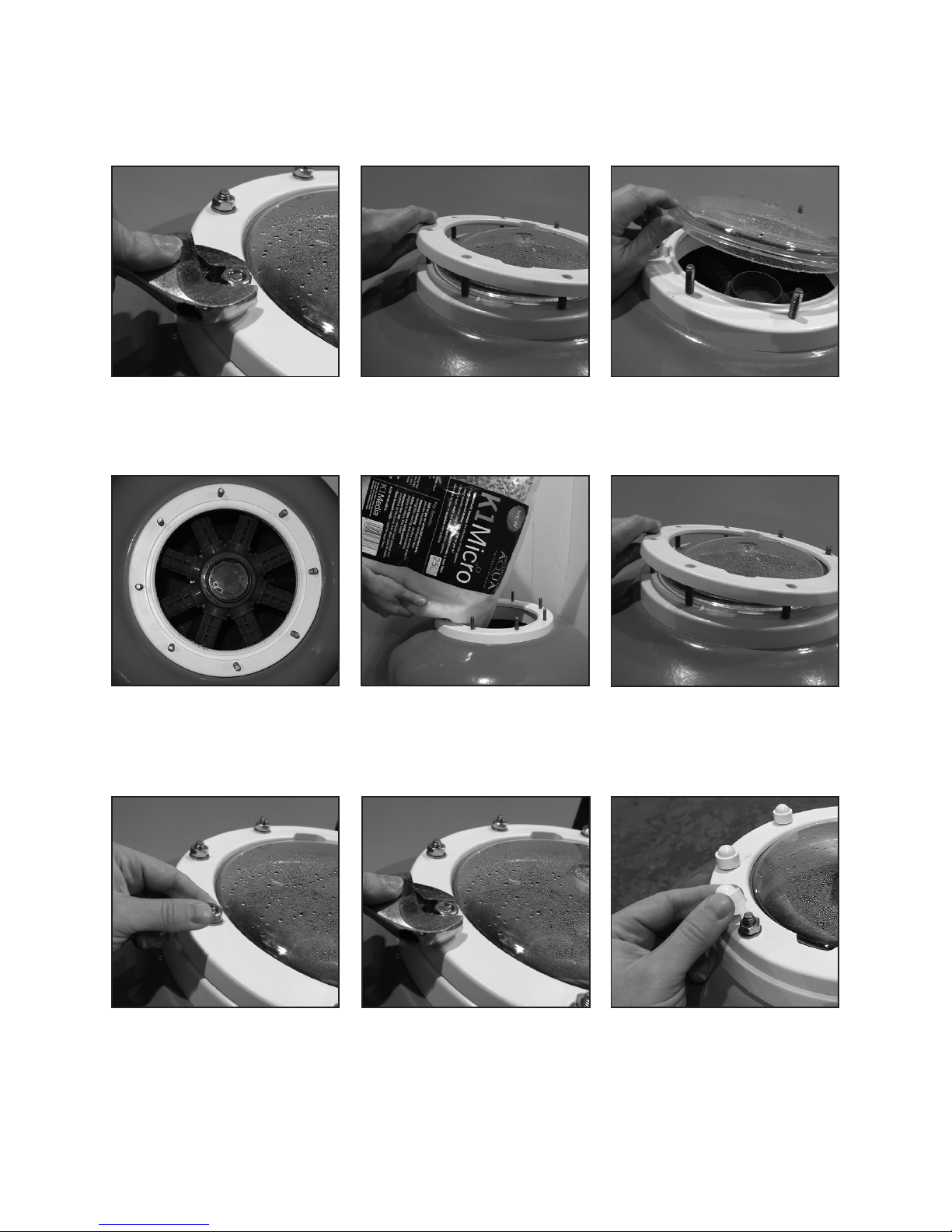

REMOVING AND FITTING THE LID
K1 MICRO BEAD FILTER SET-UP
Carefully undo the M8 size
nuts and washers holding the
lid collar in place.
With the lid off, familiarise
yourself with the internals of
the filter.
Re-fit the nuts and washers
around the lid and hand
tighten the nuts.
Then tighten alternate nuts
with a spanner in sequence
i.e. at 12 ‘o’ clock and
6 ‘o’ clock then 1 ‘o’ clock
and 7 ‘o’ clock. Tighten to a
reasonable degree. DO NOT
OVER TIGHTEN.
Fit the plastic caps over the
top of the nuts to protect the
threads and nuts.
Carefully lift the collar off
the threads.
For your size of filter, you
should add the recommended
amount of K1 Micro straight
into the filter.
Remove the clear plastic lid.
Refit the clear plastic lid
and the collar.

15
K1 MICRO BEAD FILTER INSTALLATION INSTRUCTIONS
We recommend following these instructions to install the K1 Micro Bead Filter.
1. Remove the K1 Micro Bead Filter, the multi-port valve, air blower, pipe work,
and fittings from the box, and familiarise youserlf with the parts. (See page 4 parts list).
2. Set up the filter as shown on pages 11 to 14, ready for installation.
IMPORTANT: The unit must be installed on a flat, level base, on firm ground or equivalent.
Ensure the ground will not subside and strain pipework. We recommend using a flat solid
concrete surface as a base for installation. Depending on the model of your K1 Micro
Bead Filter, the dimensions of this base will be different.
3. Position the filter as close as possible to the pond.
4. The filter should also be in a location that is free from flooding, is away from sumps,
guttering, garden hollows and areas that may experience sub-zero conditions etc.
DO NOT position the blower in an area where it is exposed to rain-fall or water ingress.
5. Allow room all the way around the K1 Micro Bead Filter to enable easy maintenance and
servicing. Do not install the unit in a tight space.
6. Make sure the multi-port valve and fittings are properly positioned. Hand tighten
the unions only. The multi-port valve must not move during operation.
7. Make pipe connections onto the valve. Pump line (inlet), return line and waste lines are
marked on the valve. A ball valve, slide valve or non-return valve needs to be installed on
the pumps suction line from the pond / pre-filter to the pump. We highly recommend a
non-return valve (see figure 9). Refer to your pump manufacturer’s manual to see if the
pump is self-priming. For the avoidance of doubt install your pump below the pond water
level. Allow a full 24 hours for all glued pipework joints to harden.
8. Install a UV on the return line back to the pond.
9. Connect the air blower to the manifold (Figure 6b). Ensure the ball valve is attached,
connected properly and the handle can be moved without restriction for cleaning.
The air blower should be installed higher than the top of the filter. The air blower is
only operated during the cleaning procedure. IMPORTANT: The ball valve must be in the
CLOSED position when the circulating pump is running.
10. If you have not already done so, remove the lid and pour the K1 Micro into the filter from
the top. Then re-fit the lid (as shown on page 14).
11. Set the multi-port valve to the FILTER position. Turn on the pump and allow the unit to fill
with water. Check for any leaks. Your K1 Micro Bead Filter will be operational.
12. When the unit is running, the biological side of the K1 Micro Bead Filter will take
approximately 8 weeks to mature. We recommend adding PUREPOND to the unit
to drastically speed up this process.
Do not operate the multi-port valve with the circulating pump switched on.
The ball valve must be closed when the circulating pump is running.

K1 MICRO BEAD FILTER CLEANING INSTRUCTIONS
CLEANING - RINSE & BACKWASH INSTRUCTIONS
The function of rinsing and backwashing is to separate the deposited particles of waste
from the filter media and to flush these particles to waste. On the initial start up of the
unit it is sound advice to let the unit run for a full 2 weeks before you perform the first
rinse and backwash.
Frequency of cleaning will depend on your pond size, feeding rates, algae levels, loss of flow
etc. We recommend, after the first 2 weeks, to rinse and backwash the unit once or twice a
week. The instructions below are relevant for installations that include a non-return valve on
the pumps suction line. If you have installed a slide valve or ball valve then you will need to
close this valve every time you switch the pump off.
Follow the instructions below to clean (rinse and backwash) the K1 Micro Bead Filter.
1. Switch off the pump.
2. Turn the handle on the ball valve fitted just below the air blower to OPEN.
3. Turn the multi-port valve to the RINSE position.
4. Switch the air blower on for 2 minutes. This will agitate the K1 Micro media. Some
water will exit the filter to waste. After 2 minutes switch off the blower.
5. IMPORTANT: Turn the handle on the ball valve fitted just below the blower to CLOSE.
6. Leaving the MPV in the RINSE position, loosen one of the air pressure release valves
and switch on the water pump. Look at the sight glass on the MPV and when the water
runs clear, switch off the pump.
7. Turn the MPV to the BACKWASH position. Switch the pump on and look at the
sightglass on the manifold. Water is going to waste. After a very short while, the
sight glass will run dirty. When this runs clear, switch the pump off. It is important
when performing the BACKWASH that the filter is full with water to remove the waste
properly. Release any trapped air by using the air pressure release valve. This will keep
the unit filled with water.
8. Move the MPV to the RINSE position again. Switch on the water pump only, and bleed
off any air using the air pressure valve and again look at the sight glass. This will flush
out any remaining dirt in the unit and pipework. Failure to do this may result in a cloud
of debris going back to the pond. When water is running clear, switch off the pump.
9. Move the MPV to the FILTER position and switch the pump back on, ensuring all the
air has been bled from the unit.
The filter is now clean and fully operational.
In extreme cases when the unit has not been backwashed for some time, extend the
length of time the blower is running for a more thorough clean or perform a couple of extra
rinses. In extreme conditions, performing a backwash first and then following the cleaning
instructions can free up any packed media.
Do not operate the multi-port valve with the circulating pump switched on.
Do not operate the multi-port valve with the circulating pump switched on.
The ball valve must be closed when the circulating pump is running.
The ball valve must be closed when the circulating pump is running.
16

17
HOW TO GET THE BEST FROM YOUR K1 MICRO BEAD FILTER
The biological side of the filter can take anywhere between 4 to 8 weeks to fully mature.
To speed up this process, add the award winning PUREPOND to the filter.
Top tips for optimum biological performance:
• For best results for the prevention of green water use an evoUV pond clarifier.
A UV-C is recommended on every pond installation.
• Maintain a stable pond pH of 7 or higher.
• Maintain a pond Nitrate reading of 50mg/l or less.
• Always dechlorinate your mains water. Use an Evolution Aqua Dechlorinator for
removal of harmful chlorine when topping up with mains water.
• Add PUREPOND to the filter media inside the K1 Micro Bead Filter.
• Feed your fish Evolution Aqua’s own food range which has been designed to create
less fish waste.
Ask your local EA dealer for advice.
QUICK CLEANING / BACKWASH INSTRUCTIONS
PUMP OFF
RINSE
AND BLOWER
FOR 2 MINUTES
RINSE
AND PUMP
UNTIL CLEAR
BACKWASH
AND PUMP
UNTIL CLEAR
RINSE
AND PUMP
UNTIL CLEAR
FILTER
AND PUMP
• Switch PUMP OFF.
• Turn the ball valve to OPEN.
• Turn the MPV to the RINSE position.
• Switch the AIR BLOWER ON for 2 minutes.
• After 2 minutes switch the AIR BLOWER OFF.
• Turn the ball valve to CLOSE.
• Leave the MPV in the RINSE position, switch the WATER PUMP ON.
• When water runs clear through the sight glass, switch the WATER PUMP OFF.
• Turn the MPV to the BACKWASH position.
• Switch the WATER PUMP ON.
• When water runs clear through the sight glass, switch the pump WATER PUMP OFF.
• Move the MPV to the RINSE position.
• Switch the WATER PUMP ON.
• When water is running clear, switch off the WATER PUMP OFF.
• Move the MPV to the FILTER position.
• Switch the WATER PUMP ON.
• The filter is now clean and fully operational.
Do not operate the multi-port valve with the circulating pump switched on.
The ball valve must be closed when the circulating pump is running.

18
WINTER MAINTENANCE
Shutting down for Winter
If you live in an area, or have installed the K1 Micro Bead Filter in a position that will
experience sub zero temperatures, you may decide to shut your filter down for the Winter.
Here is a guide on how to do this:
1. Perform a thorough rinse and backwash of the filter, then move the MPV to the
“CLOSE” position.
2. Close any in-line valves before and after the K1 Micro Bead Filter.
3. Open the air pressure release valve at the top of the unit.
4. Open the drain plug at the base of the unit. Water will drain from the vessel.
5. Loosen all connections and drain water from valves, pipes, pumps and UVs.
Ensure that no water is trapped. Remember water can expand by 10% when it is ice and
can cause permanent damage.
Starting up for Spring
1. Add PUREPOND balls to the K1 Micro Bead Filter.
2. Tighten up all connections that were undone over Winter, including the drain plug.
3. Tighten the air pressure release valve.
4. Move the multi-port valve to the FILTER position and switch pump on. Check for leaks.
Your K1 Micro Bead Filter is fully operational.
5. The K1 Micro Bead Filter Media will mature quickly. Monitor water readings for the first
2 weeks.

19
TROUBLE SHOOTING
Dirty Water 1. Insufficient filtration time
2. Low flow
3. Dirty filter requires rinsing and backwashing
4. Pump has blocked.
5. Inlet line is blocked.
6. Pump is not primed.
7. Incorrect water chemistry. Check pH and other water readings.
Check UV is working correctly (replace UV bulbs older than
6 - 12 months).
8. Clogged or channelled media. Perform an extra long rinse and
backwash.
Short filtration
cycles
Too much algae. Excessive water flow and pressure.
Check pump size. Overloaded with fish. Excessive feeding.
Filter blocked through calcium.
Above normal
or excessive
force is needed
to operate the
multi-port valve
Scoring or jamming with foreign matter or debris. If this condition
persists after rinsing, disassemble the valve to clear. Continued
operation may result in leaking due to damage to the multi-port
valve (spider gasket). See dealer or installer.
Filter media has
gelled / stuck
together
• Switching the Air Blower ON and OFF 2 or 3 times and performing
multiple rinses can free up media.
• Performing a backwash prior to following the cleaning instructions
can free up the media.
• Operating the filter on re-circulate will determine if the restriction
is in the filter.
• If you don’t succeed when following the two points above,
switch off the pump, isolate and drain the filter. Manually drain
the filter, remove the lid and inspect the inside of the unit.
The media may need to be removed and cleaned.

20
WARRANTY
Your K1 Micro Bead Filter comes with a one year warranty. To activate an extra one year
warranty please complete and tear out the warranty card and send it to the address below.
Warranties
Evolution Aqua,
Kellet Close,
Wigan,
Lancashire,
WN5 0LP
WARRANTY
1. Your K1 Micro Bead Filter is covered by your warranty for 1 year from the date of
purchase (2 years if the warranty card is correctly completed and returned) provided
that:
a. It is installed, operated and regularly maintained in accordance with the
instruction manual.
b. Any warranty repairs to the K1 Micro Bead Filter must be undertaken by
Evolution Aqua Ltd or its authorised representatives.
c. A proof of purchase will be required when making a warranty claim.
2. Though the warranty period may not have expired, payment for repairs must be
made in the following cases:
a. When the fault is due to misuse or unauthorised repairs have been attempted.
b. When the fault is due to fire, natural disaster, act of God etc.
c. If the warranty has been lost, incorrectly completed or details
fraudulently changed.
Evolution Aqua Ltd. accepts no responsibility or liability for any consequential loss
caused by or arising from the use of any Evolution Aqua products. Therefore, any
dispute arising from the provisions of the warranty will be dealt with under the laws
of England and Wales subject to the exclusive jurisdiction of the English Courts.
