Exerpeutic 1115 User manual

‘‘Mobile App Tracking’’
Programmable Recumbent Bike
IMPORTANT: Read all instructions carefully before using this product.
Retain this owner’s manual for future reference.
The specifications of this product may vary from this photo, subject to change
without notice.
Item #1115
OWNER’S MANUAL

SERVICE ------------------------------------------------------------------------ 2
LABEL PLACEMENT --------------------------------------------------------- 3
PRODUCT SAFETY ---------------------------------------------------------- 4
OVERVIEW DRAWING ------------------------------------------------------ 5
PARTS LIST --------------------------------------------------------------------- 6
HARDWARE LIST & TOOLS ----------------------------------------------- 8
ASSEMBLY ---------------------------------------------------------------------- 9
COMPUTER ---------------------------------------------------------------------20
ADJUSTMENTS ----------------------------------------------------------------28
TROUBLE SHOOTING & MAINTENANCE ----------------------------- 29
WARM UP ---------------------------------------------------------------------- 30
WARRANTY -------------------------------------------------------------------- 31
FAX FORM ---------------------------------------------------------------------- 32
1
TABLE OF CONTENTS

IMPORTANT: FOR NORTH AMERICA ONLY
To request product service and order
replacement parts, please call our
customer service department at:
1-866-924-1688
Monday through Friday, 8:00 AM-5:00 PM Pacific Standard Time,
or email us at: [e-mail]
Please visit our website at www.paradigmhw.com.
Please have the following information ready when requesting for service:
Your name
Phone number
Model number
Serial number
Part number
Proof of Purchase
*Before returning this product to the store please contact
customer service at the contact number.
Paradigm Health & Wellness, Inc.
1189 Jellick Ave.
City of Industry, CA 91748, USA
SERVICE
2

3
LABEL PLACEMENT

Basic precautions should always be followed, including the following
safety instructions when using this equipment. Read all instructions
before using this equipment.
1. Read all the instructions in this manual and do warm up exercises before
using this equipment.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercise
of every position of the body is necessary. Refer to Warm Up pages.
After exercise, relaxation of the body is suggested for cool-down.
3. Please make sure all parts are not damaged and fixed well before use.
This equipment should be placed on a flat surface when using. Using a
mat or other covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not
wear clothes that might catch any part of the equipment; remember to
tighten the pedaling straps.
5. Do not attempt any maintenance or adjustments other than those
described in this manual. Should any problems arise, discontinue use
and consult an Authorized Service Representative.
6. Do not use the equipment outdoors.
7. This equipment is for household use only.
8. Only one person should be on the equipment while in use.
9. Keep children and pets away from the equipment while in use. This
machine is designed for adults only. This product requires a minimum of
6 feet of space for safe operation.
10. If you feel any chest pains, nausea, dizziness, or short of breath, you
should stop exercising immediately and consult your physician before
continuing.
11. The maximum weight capacity for this product is 325 lbs/147 kgs.
WARNING: Before beginning any exercise program consult
your physician. This is especially important for the people who are over
35 years old or who have pre-existing health problems. Read all
instructions before using any fitness equipment.
CAUTION: Read all instructions carefully before operating this
product. Retain this Owner’s Manual for future reference.
PRODUCT SAFETY
4

15
15
25
25
28
28
97
97
25
25
27
27
39
39
40
40
39
39
40
40
40
40
39
39
39
39
1
86
1
12
12
9
5
4
3
2
7
20
20
23
23
10
10
22
22
24
24
16
16
8
7
24
24
20
20
10
10
22
22
14
14
6
13
13
10
10
11
11
18
18
19
19
30
30
33
33
39
39
63
63
40
40
32
32
26
26
14
14
29
29
31
31
30
30
34
34
38
38
34
34
37
37
60
60
56
56
58
58
58
58
59
59
58
58
61
61
62
62
65
65
67
67
64
64
66
66
39
39
40
40
39
39
40
40
41
41
42
42
29
29
56
56
59
59
71
71
90
90
95
95
94
94
93
93
92
92
91
91
95
95
94
94
93
93
92
92
91
91
96
96
88
88
3
86
86
87
87
87
87
86
86
85
85
84
84
83
83
82
82
89
89
43
43
44
44
45
45
49
49
40
40
48
48
47
47
46
46
39
39
36
36
40
40
49
49
54
54
50
50
51
51
52
52
53
53
55
55
44
44
56
56
57
57
50
50
66
66
67
67
68
68
69
69
70
70
72
72
76
76
75
75
74
74
73
73
35
35
36
36
77
77
78
78
77
77
37
37
79
79
80
80
81
81
81
81
80
80
79
79
21
21
35
35
36
36
17
17

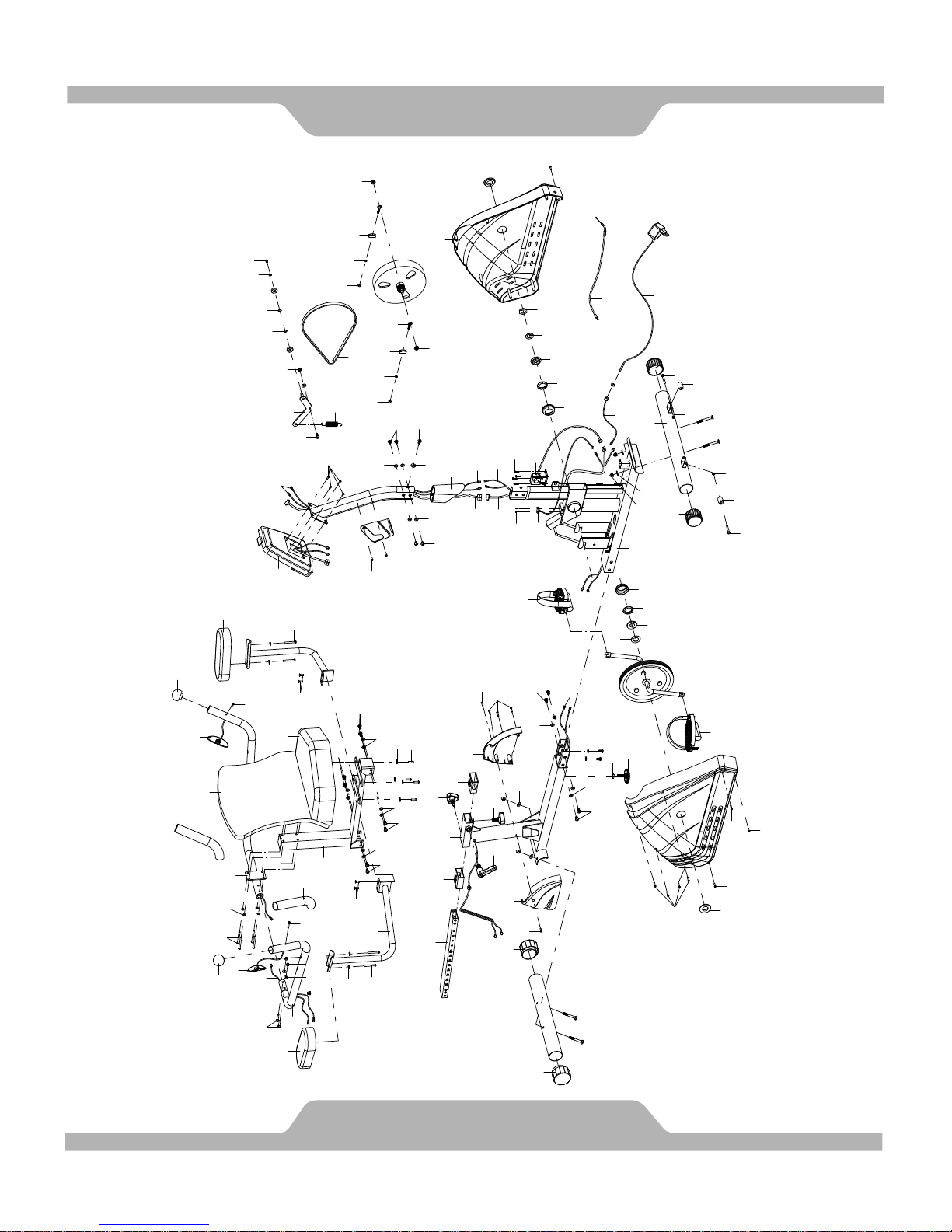

OVERVIEW DRAWING
5

No. Description Qty No. Description Qty
001 Handrail End Cap Ø32x1.5 2 025 Bushing 2
002 Bolt M6x70 4 026 Rear Main Frame 1
003 Washer Ø6xØ12x1.0 5 027 Side Triangle Knob M12 1
004 Left Handrail Ø32x1.5x1085 1 028 Bottom Triangle Knob M12 1
005 Backrest 465x465x135 1 029 Extension Hand Pulse Sensor
Wire I L=1300 mm 1
006 Hand Pulse Sensor with Wire
L=1150 mm 2 030 Phillips Self Tapping Screw ST4.8x20 2
007 Screw ST4.2x30 2 031 Right Decorate Cover Ø60 1
008 Handrail Foam Grip
Ø31xØ37x230 2 032 Left Decorate Cover Ø60 1
009 Bolt M6x35 2 033 Screw ST4.8x25 3
010 Big Curve Washer Ø6xØ16x1.5 6 034 Rear Stabilizer End Cap Ø60 2
011 Cap Nut M6 2 035 Cap Nut M8 4
012 Right Handrail Ø32x1.5x929 1 036 Big Curve Washer Ø8xØ20x2.0 5
013 Extension Hand Pulse Sensor
Wire L=300 mm 1 037 Bolt M8x70 4
014 Wire Grommet Ø12.1 2 038 Rear Stabilizer Ø60x1.5x580 1
015 Seat Sliding Tube 53x23x2 1 039 Bolt M8x15 15
016 Seat 430x330x90 1 040 Washer Ø8xØ16x1.5 18
017 Back and Seat Support Bracket
53x23x2 1 041 Hexagon Nut M10xH5 1
018 Big Washer Ø6xØ18x1.5 4 042 Adjustable Leveler M10 1
019 Bolt M6x20 4 043 Computer M7-570 1
020 Armrest 250x110x45 2 044 Extension Hand Pulse Sensor
Wire III L=650 mm 2
021 Right Handrail Support Tube
Ø25x1.5 1 045 Bolt M5x10 4
022 Bolt M6x50 4 046 Bolt M5x15 2
023 Left Handrail Support Tube
Ø25x1.5 1 047 Bottle Holder 1
024 Bolt M6x15 4 048 Front Post 70x30x1.5 1
PARTS LIST
6

No. Description Qty No. Description Qty
049 Bolt M8x10 4 074 Power Supply Cable L=300 mm 1
050 Extension Sensor Wire I
L=650 mm 1 075 Hexagon Nut 1/2” 1
051 Extension Sensor Wire L=600 mm 1 076 Adapter L=2000 mm 1
052 Screw ST2.9x12 2 077 Front Stabilizer End Cap Ø60 2
053 Sensor with Wire L=300 mm 1 078 Front Stabilizer Ø60x1.5x580 1
054 Front Post Cover 1 079 Bolt M6x45 2
055 Extension Hand Pulse Sensor
Wire II L=1200 mm 1 080 Transport Wheel Ø23xØ6x32 2
056 Phillips Self Tapping Screw
ST4.2x20 6 081 Nylon Nut M6 2
057 DC Motor with Wire L=300 mm 1 082 Bolt M8x20 1
058 Screw ST4.2x25 6 083 Idler Arm 1
059 Cover Cap Ø40xØ25x10 2 084 Big Washer Ø8xØ20x2 1
060 Right Cover 672x79x448 1 085 Nylon Nut M8 1
061 Right Foot Pedal (YH-63X) 1 086 Bearing 6000-2Z 2
062 Crank with Belt Pulley Ø240 1 087 Washer Ø10xØ14x1.0 2
063 Left Foot Pedal (YH-63X) 1 088 Bolt M6x10 1
064 Washer Ø24xØ40x3.0 1 089 Spring Ø17x80xØ2.5 1
065 Bearing Nut I 15/16" 1 090 Belt PJ360 J6 1
066 Ball Bearing 2 091 Nut M6 2
067 Bearing Cup 2 092 Spring Washer Ø6 2
068 Bearing Nut II 7/8" 1 093 Tension Bracket 2
069 Washer Ø23xØ34.5x2.5 1 094 Adjustable Bolt M6x36 2
070 Hexagon Nut 7/8” 1 095 Nut M10x1.0x6 2
071 Left Cover 672x83x448 1 096 Flywheel Ø230 1
072 Magnetic Brake Cable L=280 mm 1 097 L Shape Knob M6x1.5 1
073 Front Main Frame 80x40x2 1
7
PARTS LIST

8

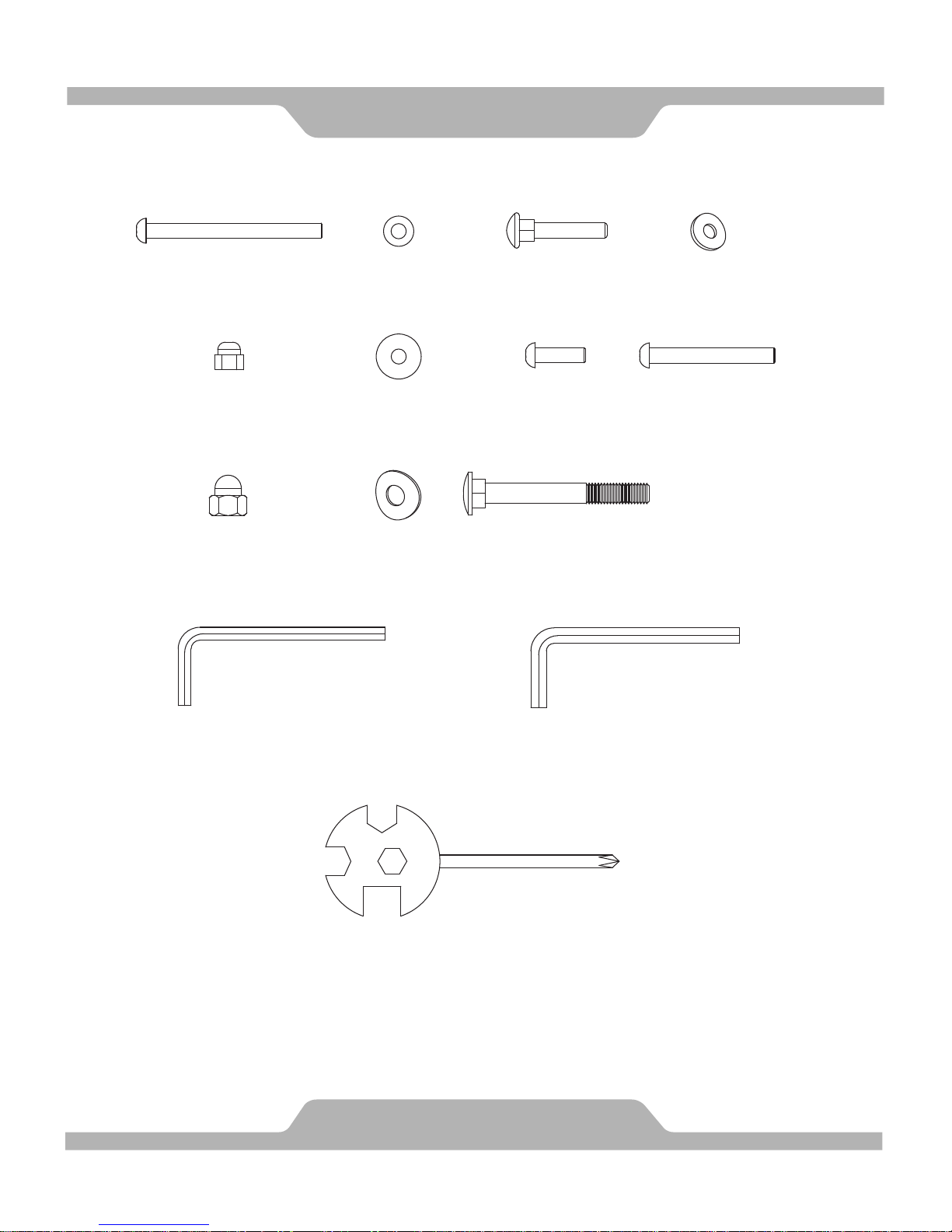

HARDWARE LIST & TOOLS
(#10) Big Curve Washer
6
PCS
(#11) Cap Nut
2 PCS
(#18) Big Washer
4 PCS
(#19) Bolt
4 PCS
(#22) Bolt
4 PCS
(#35) Cap Nut
4 PCS
(#36) Big Curve Washer
4 PCS
(#37) Bolt
4PCS
(#2) Bolt
4 PCS
(#3) Washer
4 PCS
(#9) Bolt
2 PCS
Allen Wrench 5mm
1 PC
Allen Wrench 6mm
1 PC
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
1 PC

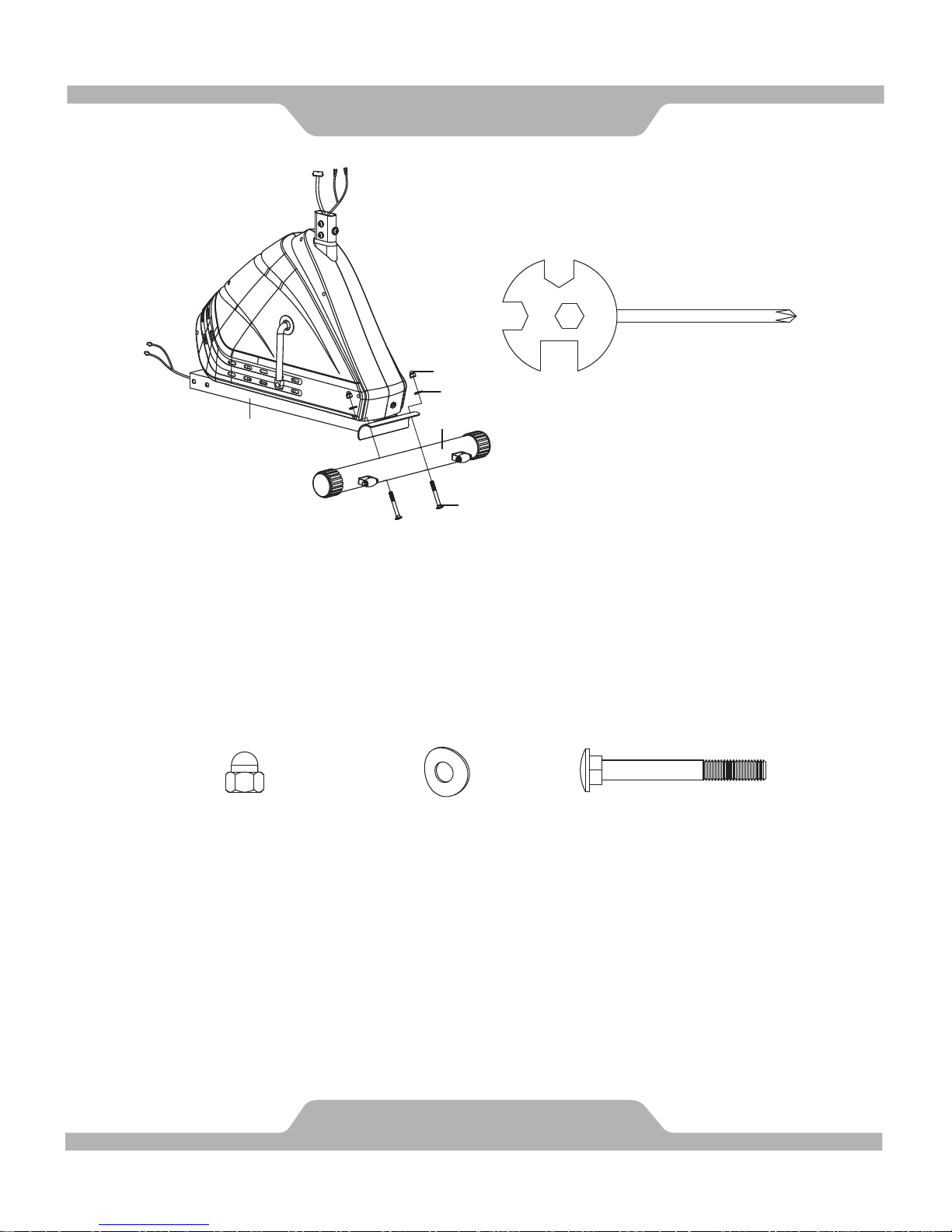

1. Front Stabilizer Installation
Lift up the Front Main Frame (73) towards the front, and then align the Front Stabilizer (78)
onto the front curve of the Front Main Frame (73). Attach two Bolts (37) and on the other
ends of bolts with two Big Curve Washers (36) and two Cap Nuts (35). Hold the Front
Stabilizer (78) to the Front Main Frame (73) and use the Multi Hex Tool with Phillips
Screwdriver to tighten the Cap Nuts (35) until firm and secure.
Hardware:
ASSEMBLY
9
(#35) Cap Nut
2 PCS
(#36) Big Curve Washer
2 PCS
(#37) Bolt
2 PCS
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
Tool:
78
78
78
78
73
73
73
73
35
35
35
35
36
36
36
36
37
37
37
37

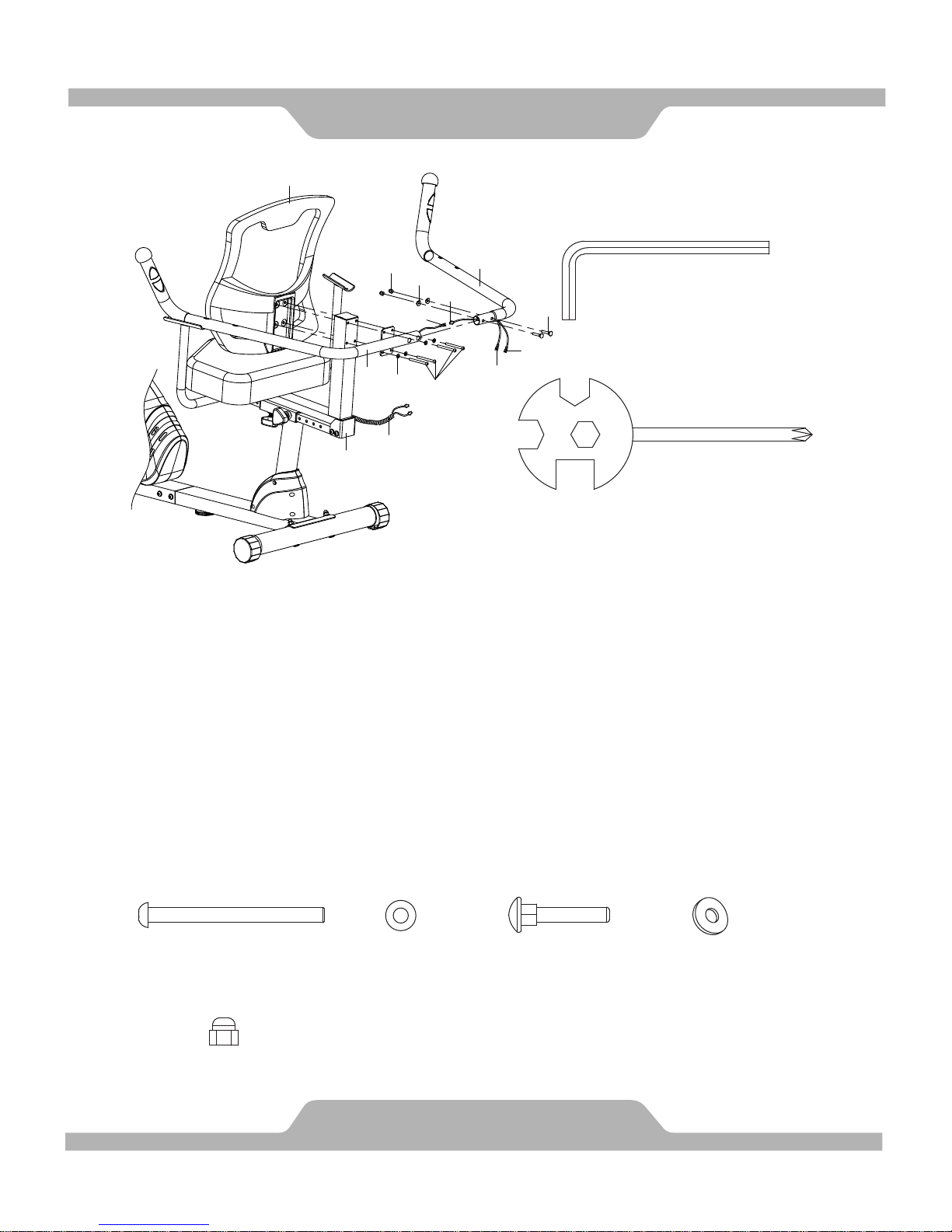

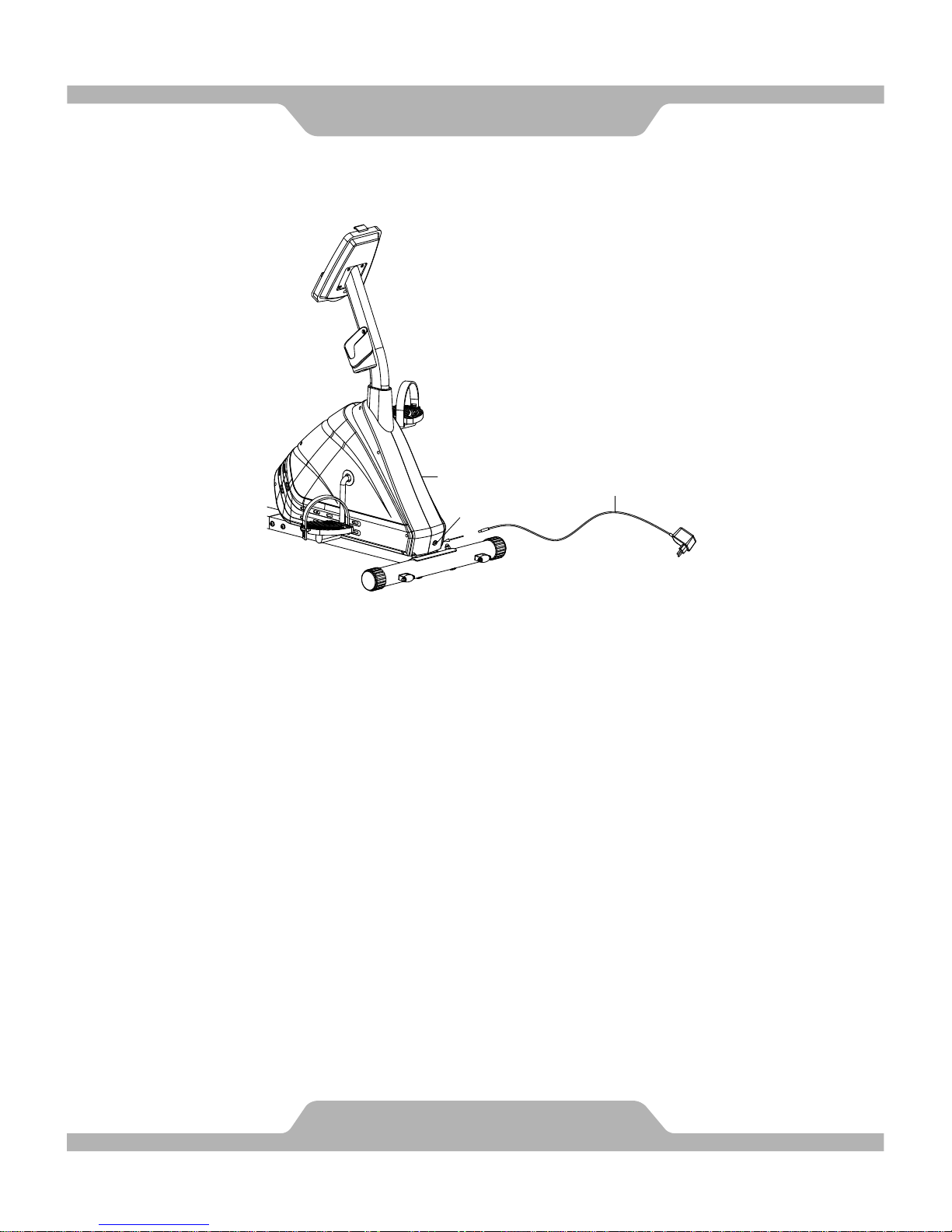

2. Rear Stabilizer Installation
Lift up the Rear Main Frame (26) towards the end, and then align the Rear Stabilizer (38)
onto the rear curve of the Rear Main Frame (26). Attach two Bolts (37) and on the other
ends of bolts with two Big Curve Washers (36) and two Cap Nuts (35). Hold the Rear
Stabilizer (38) to the Rear Main Frame (26) and use the Multi Hex Tool with Phillips
Screwdriver to tighten the Cap Nuts (35) until firm and secure.
Hardware:
ASSEMBLY
10
(#35) Cap Nut
2 PCS
(#36) Big Curve Washer
2 PCS
(#37) Bolt
2 PCS
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
Tool:
35
35
35
35
36
36
36
36
26
26
26
26
37
37
37
37
38
38
38
38

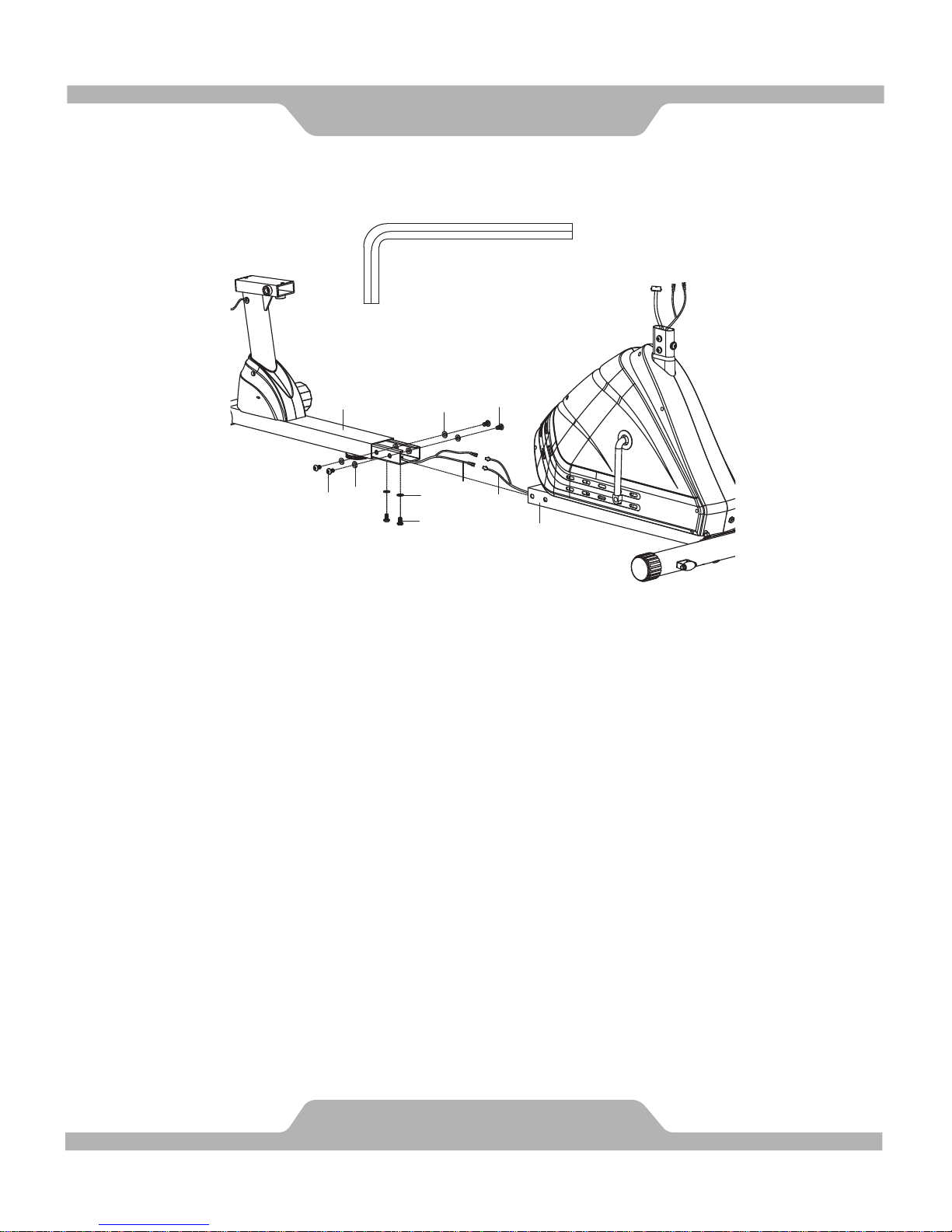

3. Rear Main Frame Installation
Use 6mm Allen Wrench to remove six Bolts (39) and six Washers (40) from the Rear Main
Frame (26).
Connect the Extension Hand Pulse Sensor Wire I (29) from the Rear Main Frame (26) with
the Extension Hand Pulse Sensor Wire II (55) from the Front Main Frame (73). Insert the
Rear Main Frame (26) into Front Main Frame (73). Make sure the wires stay connected.
Tighten the six Bolts (39) and six Washers (40) by 6mm Allen Wrench.
ASSEMBLY
11
Allen Wrench 6mm
Tool:
39
39
39
39
39
39
39
39
39
39
39
39
40
40
40
40
40
40
40
40
40
40
40
40
29
29
29
29
55
55
55
55
73
73
73
73
26
26
26
26

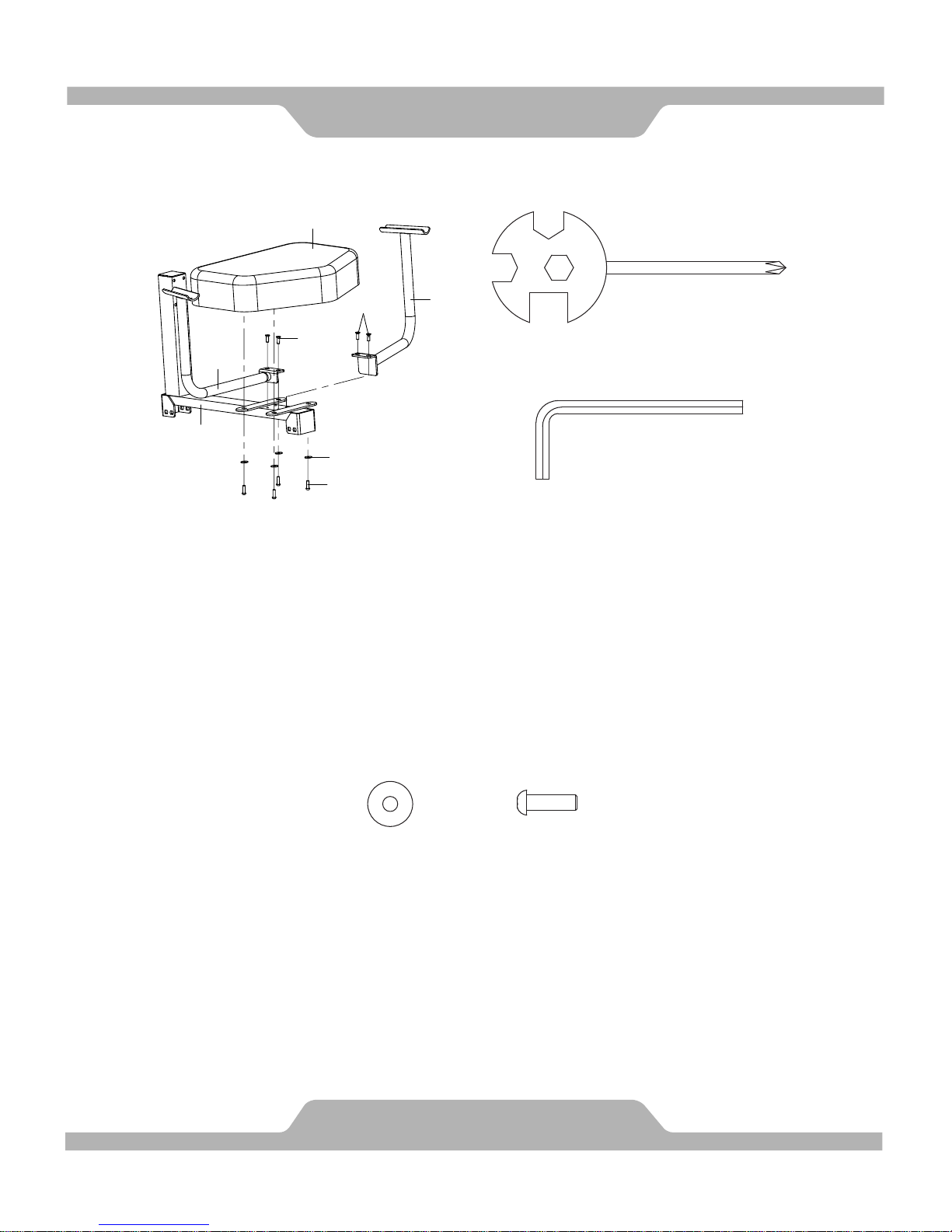

4. Seat and Right/Left Handrail Support Tubes Installation
Use the Multi Hex Tool with Phillips Screwdriver to remove four Bolts (24) from the Back and
Seat Support Bracket (17).
Align and hold the Right Handrail Support Tube (21) onto the Back and Seat Support
Bracket (17), use the Multi Hex Tool with Phillips Screwdriver to tighten the Bolts (24) until
firm and secure.
Repeat the same assembly steps to the Left Handrail Support Tube (23).
Align and hold the Seat (16) onto the Back and Seat Support Bracket (17), use 5mm Allen
Wrench to tighten four Big Washers (18) and four Bolts (19) until firm and secure.
Hardware:
ASSEMBLY
12
(#19) Bolt
4 PCS
(#18) Big Washer
4 PCS
Allen Wrench 5mm
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
Tool:
23
23
16
16
17
17
21
21
24
24
18
18
19
19
24
24

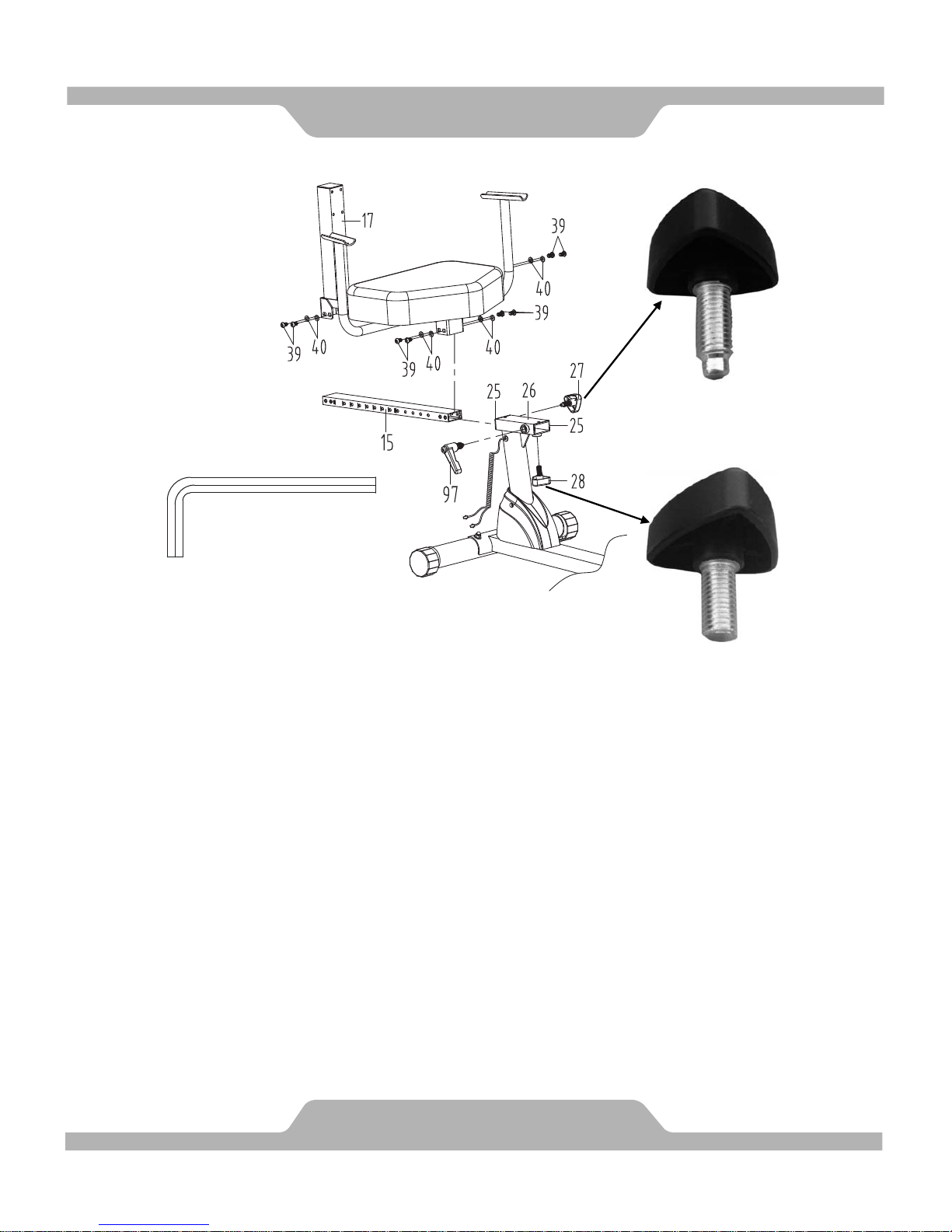

5. Back/Seat Support Bracket and Seat Sliding Tube Installation
Use 6mm Allen Wrench to remove eight Bolts (39) and eight Washers (40) from the Seat
Sliding Tube (15).
Insert the Seat Sliding Tube (15) into the Bushings (25) of the Rear Main Frame (26).
Attach the Back and Seat Support Bracket (17) onto the Seat Sliding Tube (15) with eight
Bolts (39) and eight Washers (40) that were removed. Tighten bolts with 6mm Allen
Wrench provided.
Adjust the seat position and insert the Side Triangle Knob (27), Bottom Triangle Knob (28),
and L Shape Knob (97). Turn all knobs in the clockwise direction to tighten.
ASSEMBLY
13
Allen Wrench 6mm
Tool:
(27)
(28)

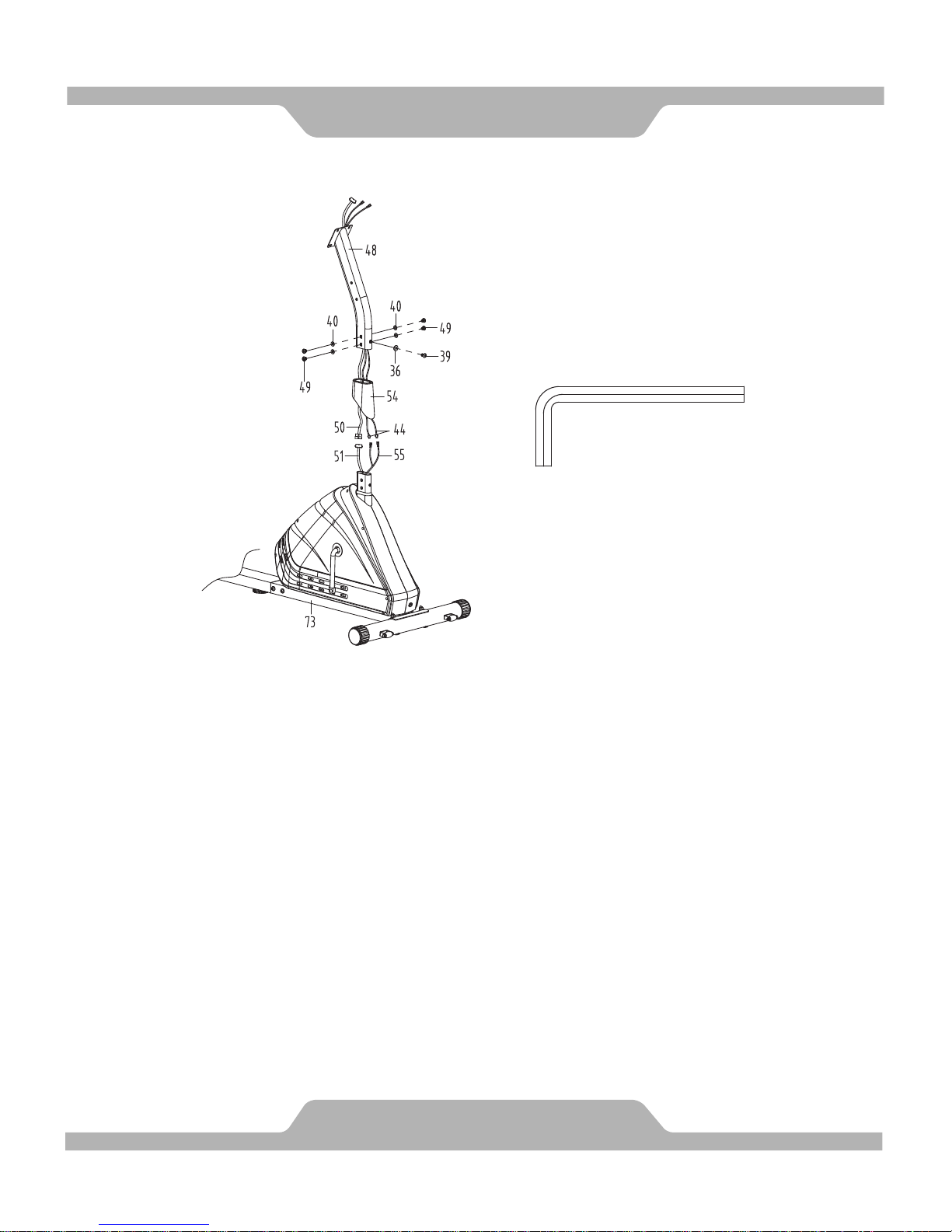

6. Front Post and Front Post Cover and Foot Pedals Installation
Use 6mm Allen Wrench to remove four Washers (40), four Bolts (49), one bolt (39), and one
Big Curve Washer (36) from the tube of the Front Main Frame (73).
Slide the Front Post Cover (54) up to the Front Post (48).
Connect the Extension Sensor Wire (51) and Extension Hand Pulse Sensor Wire II (55)
from the Front Main Frame (73) to the Extension Sensor Wire I (50) and Extension Hand
Pulse Sensor Wire III (44) from the Front Post (48).
Insert the Front Post (48) onto the tube of the Front Main Frame (73) and secure with four
Washers (40), four Bolts (49), one bolt (39), and one Big Curve Washer (36) that were
removed. First lightly tighten four Bolts (49) on the side of the Front Post (48) and one Bolt
(39) on the front of the Front Post (48) by hand. After all five bolts are lightly tightened by
hand, the next step is to tighten the front Bolt (39) with 6mm Allen Wrench until firm. Then
tighten the other four Bolts (49) on the side of the Front Post (48) with 6mm Allen Wrench
until firm.
Slide the Front Post Cover (54) down to the Front Main Frame (73).
ASSEMBLY
Allen Wrench 6mm
Tool:
14

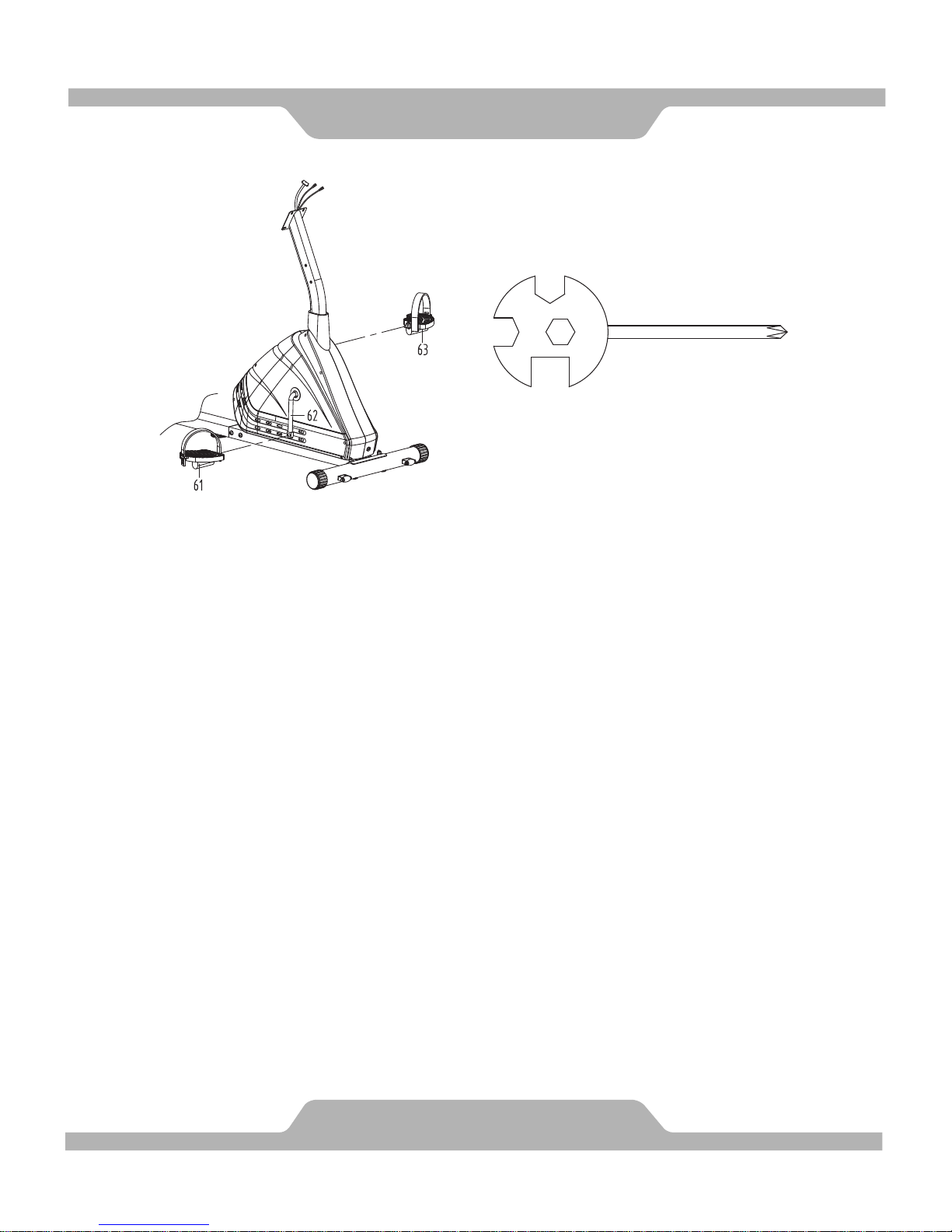

7. Left and Right Foot Pedals Installation
The Cranks, Pedal Shafts, and Foot Pedals are marked “R” for Right and “L” for Left.
Insert the pedal shaft of Left Foot Pedal (63) into threaded hole in the left Crank (62). Turn
the pedal shaft by hand in the counter-clockwise direction until snug.
Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip the
threads.
Tighten the pedal shaft of Left Foot Pedal (63) with the Multi Hex Tool with Phillips
Screwdriver provided. Insert pedal shaft of Right Foot Pedal (61) into threaded hole in right
Crank (62). Turn the pedal shaft by hand in the clockwise direction until snug. Tighten
pedal shaft of Right Foot Pedal (61) with the Multi Hex Tool with Phillips Screwdriver
provided.
ASSEMBLY
15
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
Tool:














8. Left/Right Handrails and Backrest Installation
Align and hold the Left Handrail (4) and Backrest (5) onto the Back and Seat Support
Bracket (17), use 5mm Allen Wrench to tighten four Bolts (2) and four Washers (3) until
firm and secure.
Connect the Hand Pulse Sensor Wire (6) from the Left Handrail (4) to the Extension Hand
Pulse Sensor Wire (13) from the Right Handrail (12).
Insert the Right Handrail (12) into the tube hole of the Left Handrail (4) and secure with two
Bolts (9), two Big Curve Washer (10), and two Cap Nuts (11). Tighten cap nuts with Multi
Hex Tool with Phillips Screwdriver provided.
Connect the Extension Hand Pulse Sensor Wire I (29) to the Hand Pulse Sensor Wire (6)
and Extension Hand Pulse Sensor Wire (13).
Hardware:
ASSEMBLY
16
(#2) Bolt
4 PCS
(#3) Washer
4 PCS
(#9) Bolt
2 PCS
(#10) Big Curve Washer
2
PCS
(#11) Cap Nut
2 PCS
Allen Wrench 5mm
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
Tool:
29
29
3
42
6
5
9
12
12
11
11
10
10
13
13
6
13
13
17
17

9. Armrests Installation
Align and hold the Armrest (20) onto the Right Handrail (12), use 5mm Allen Wrench to
tighten two Bolts (22) and two Big Curve Washers (10) until firm and secure.
Repeat the same assembly steps to the other Armrest (20) onto the Left Handrail (4).
Hardware:
17
ASSEMBLY
12
12
20
20 4
20
20
23
23
46 47
45
44
48
50
43
21
21
22
22
10
10
Allen Wrench 5mm
Tool:
(#22) Bolt
4 PCS
(#10) Big Curve Washer
4
PCS

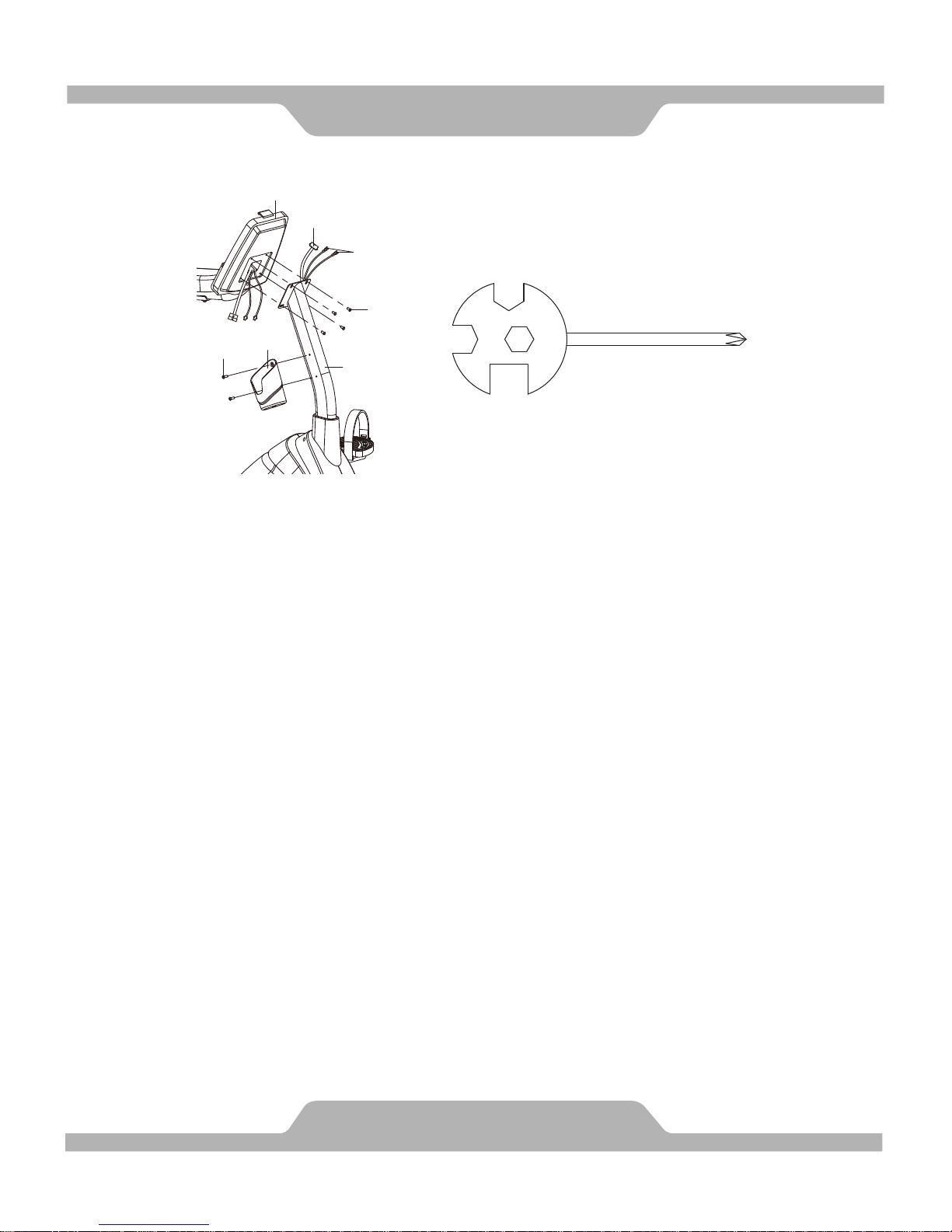

10. Computer and Bottle Holder Installation
Use the Multi Hex Tool with Phillips Screwdriver to remove four Bolts (45) from the
Computer (43).
Connect the Extension Hand Pulse Sensor Wires III (44) and Extension Sensor Wire I
(50) to the wires that come from the Computer (43). Tuck wires into the Front Post (48).
Attach the Computer (43) onto the top end of the Front Post (48) with four Bolts (45) that
were removed. Tighten bolts with the Multi Hex Tool with Phillips Screwdriver provided.
Use the Multi Hex Tool with Phillips Screwdriver to remove two Bolts (46) from the Front
Post (48).
Attach the Bottle Holder (47) onto the Front Post (48) with two Bolts (46) that were
removed. Tighten bolts with the Multi Hex Tool with Phillips Screwdriver provided.
18
ASSEMBLY
12
20 4
20
23
46
46
47
47
45
45
44
44
48
48
50
50
43
43
21
22
10
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
Tool:

11. Adapter Installation
Plug one end of the Adapter (76) into the power jack of the Power Supply Cable (74) on
the Left Cover (71). Before plugging in, make sure to check carefully the specifications
on the Adapter. Plug the other end of the Adapter (76) into the electrical wall outlet.
19
ASSEMBLY
76
76
74
74
71
71
