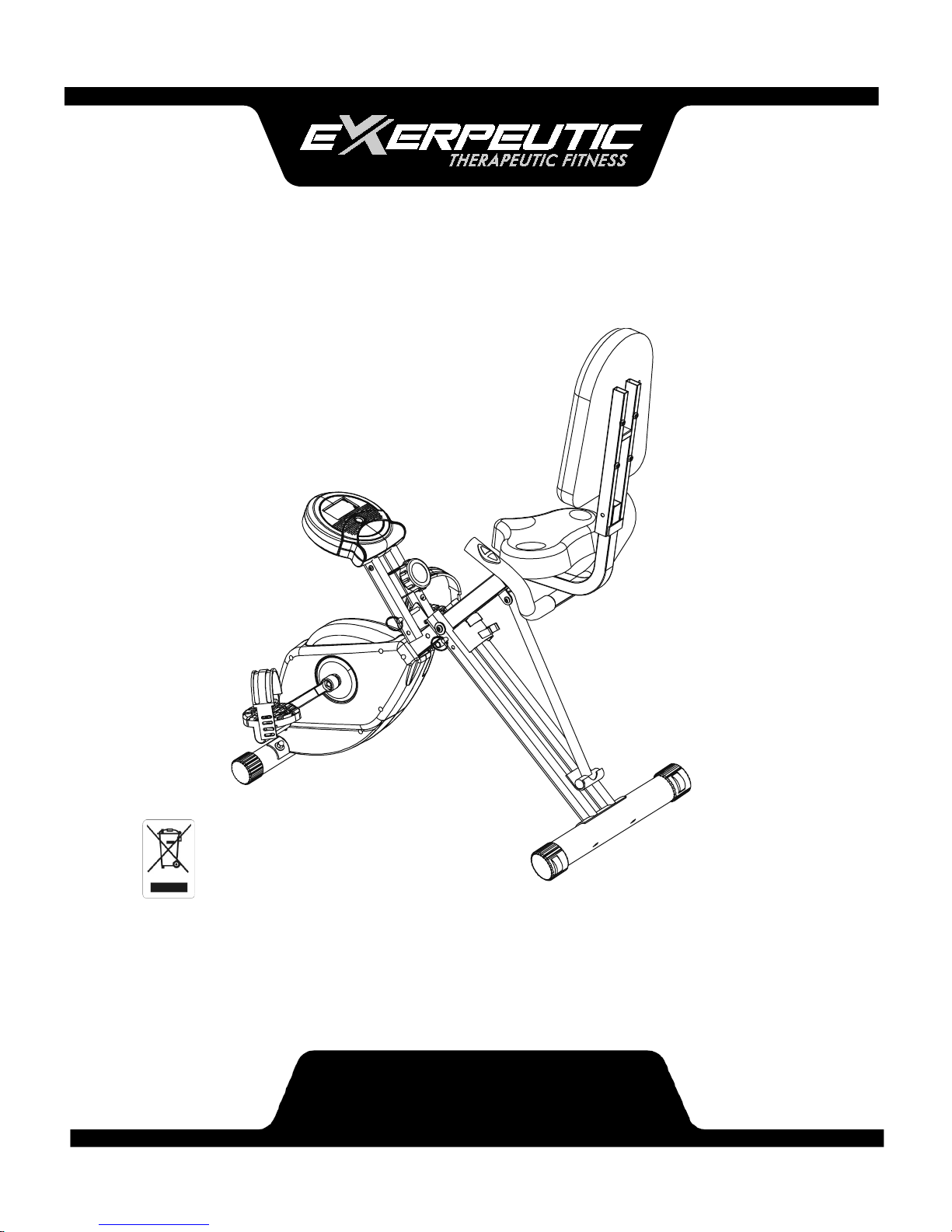

Exerpeutic 1110.6 User manual

Foldable Semi-Recumbent Bike
IMPORTANT: Read all instructions carefully before using this product.
Retain this owner’s manual for future reference.
The specifications of this product may vary from this photo, subject to change
without Notice
1110.6-062216
OWNER’S MANUAL

SERVICE------------------------------------------------------------------------------2
LABEL PLACEMENT --------------------------------------------------------------3
PRODUCT SAFETY----------------------------------------------------------------4
OVERVIEW DRAWING -----------------------------------------------------------5
PART LIST ---------------------------------------------------------------------------6
HARDWAR PACK ------------------------------------------------------------------7
ASSEMBLY---------------------------------------------------------------------------8
COMPUTER ------------------------------------------------------------------------14
ADJUSTMENTS -------------------------------------------------------------------15
MOVING THE BIKE----------------------------------------------------------------16
MAINTENANCE & TROUBLE SHOOTING----------------------------------17
WARRANTY--------------------------------------------------------------------------18
PART REQUEST FORM----------------------------------------------------------19
TABLE OF CONTENTS
1

IMPORTANT: FOR NORTH AMERICA ONLY
For damaged or defective product, questions, replacement parts or any
other service support, please contact our customer service department
(8:00 AM - 5:00 PM Pacific Standard Time, Daily) by the below methods:
For Best Service Email:
[email protected]
Website:
www.paradigmhw.com
Toll-Free:
1-844-641-7921
Please have the following information ready when requesting for service:
Your name
Phone number
Model number
Serial number
Part number
Proof of Purchase
For damaged or defective product please contact our customer service
before returning to the store.
*Emailing us with the information above will be the best method to
recieve a response during peak business hours.
**Response time may vary.
Paradigm Health & Wellness, Inc.
1189 Jellick Ave.
City of Industry, CA 91748, USA
SERVICE
2

LABEL PLACEMENT
3

Basic precautions should always be followed when using this
equipment. Read all instructions before using this equipment which
include the following safety instructions:
1. Read all the instructions in this manual and do warm up exercises before
using this equipment.
2. Before exercising, and in order to avoid injuring your muscles, it is
recommended that you perform warm-up exercises for every muscle
group.
3. Make sure all the components are not damaged and tightened well
before use. This equipment should be placed on a flat surface when
using. Using a mat or other covering material on the ground is
recommended.
4. Wear proper clothes and shoes when using this equipment; do not
wear loose clothes that might get caught by any part of the equipment;
remember to tighten the pedaling straps.
5. Do not attempt any maintenance or adjustments other than those described
in this manual. Should any problems arise, discontinue use and consult
customer service.
6. Do not use or leave the equipment outdoors.
7. This equipment is for household use only.
8. Only one person should be on the equipment while in use.
9. Keep children and pets away from the equipment while in use. This
machine is designed for adults only. This product requires a minimu of 6
square feet of space for safe operation.
10. If you feel any chest pains, nausea, dizziness, or shortness of breath, you
should stop exercising immediately and consult your physician before
continuing.
11. DO NOT pedal in reverse.
12. The maximum weight capacity for this product is 300 lbs/136 kgs.
WARNING:Before beginning any exercise program consult
your physician. This is especially important for the people who are over
35 years of age or who have pre-existing health problems. Read all
instructions before using any fitness equipment.
CAUTION:Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.
PRODUCT SAFETY
4

OVERVIEW DRAWING
5

Part #
Description
Qty
Part #
Description
Qty
01
Rear Frame
1
32
Flat Washer Ø8.2xØ25x1.5t
2
02
Front Frame
1
33
Flat Washer Ø8.2
3
03
Rear Stabilizer
1
34
Nylon Nut M8
2
04
Computer Bracket
1
58
Hexagon Socket Bolt M8x15
3
05
Seat Post
1
59
Rubber Cushion
1
06
Seat Cushion
1
62
Safety Pin B
1
07
Left Pedal
1
73
Hexagon Socket Bolt M6x12
4
08
Right Pedal
1
74
Spring Washer Ø6.2
4
09
Computer
1
77
Back Cushion
1
11
Front Stabilizer End Cap
2
78
Back Frame
1
12
Seat Post Plastic Bushing
1
80
Spring Washer Ø8.2
4
13
Tension Control Knob
1
81
Carriage Bolt M8x50L
2
14
Seat Height Adjustment Knob
1
82
Handlebar
1
15
Connection Wire A
1
83
Hexagon Socket Bolt M8x40L
2
16
Support Tube
1
84
Wheel Cap
2
17
Computer Post
1
85
Front Stabilizer
1
18
Left Shroud
1
91
Hand Pulse Wire
1
19
Right Shroud
1
92
Connection Wire B 350MM
1
20
Top Shroud
1
93
Connection Wire C 330MM
2
22
Safety Pin A
1
94
Connection Wire D 270MM
1
23
Left Crank
1
98
Front Frame Support Tube
Holder
1
24
Right Crank
1
101
Nylon Nut 9/16 UNC12(R)
1
29
Hexagon Nut Cap M8
4
102
Nylon Nut 9/16 UNC12(L)
1
30
Curve Washer Ø8.2xØ22.2
6
103
Left Pedal Strap
1
31
Hexagon Socket Bolt M8x45L
4
104
Right Pedal Strap
1
PART LIST
6

7
HARDWARE PACK

Tool:
13 – 15mm Wrench
ASSEMBLY

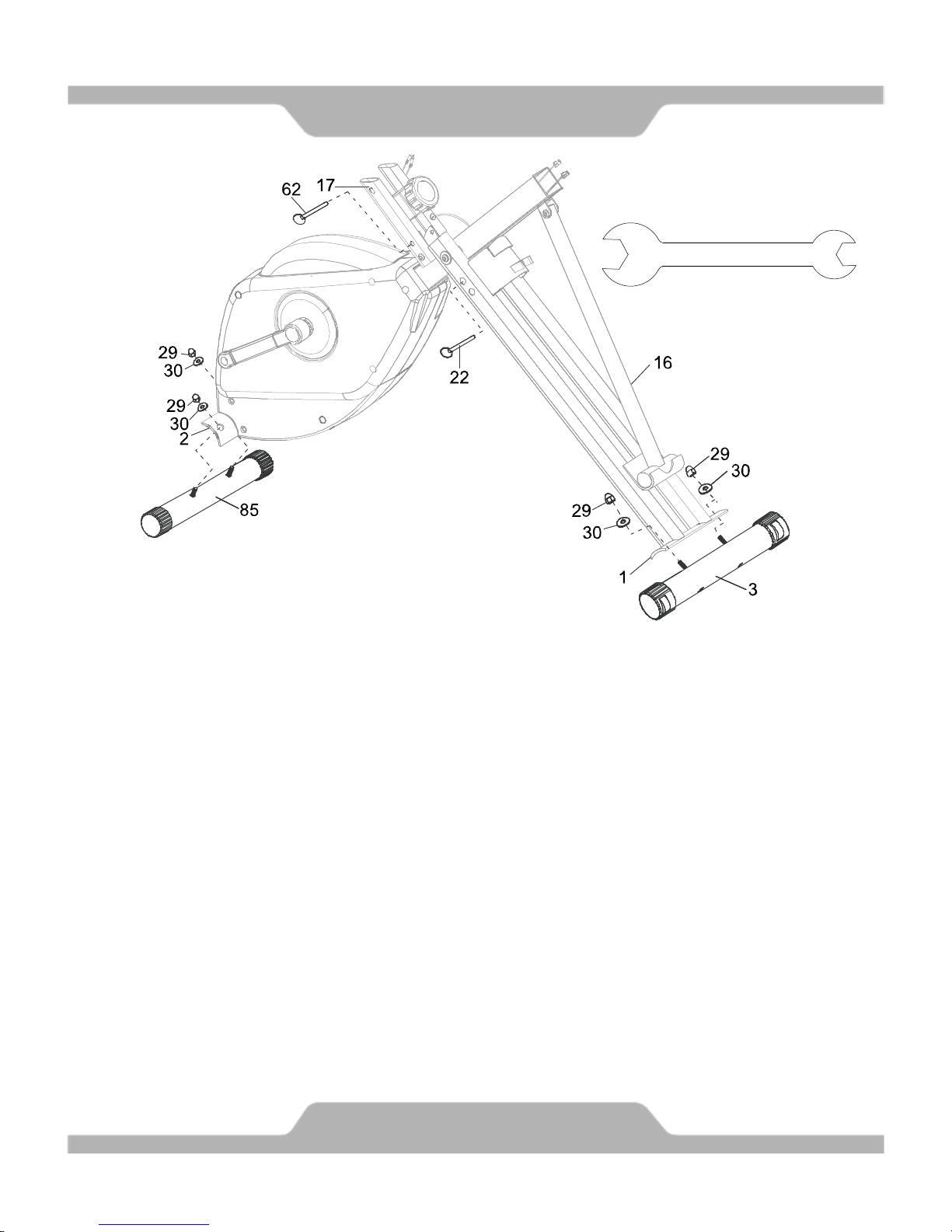

Step 1
Remove the Safety Pin A (22) from the Rear Frame (1) and the Safety Pin B (62) from
the Computer Post (17). Pull the Rear and Front Frames (1, 2) apart from each other. Rest
the Support Tube (16) into the hooked plate on the Rear Frame (1). Align the upper pin
holes on the Rear and Front Frames (1, 2), then insert the removed Safety Pin A (22) into
the upper holes to lock the frames in place. Align the pin holes on the Computer Post (17)
and Front Frame (2), and then insert the removed Safety Pin B (62) into the holes to lock
the Computer Post (17) in place.
Remove the two Hexagon Nuts Cap (29) and two Curve Washers (30) from the Front
Stabilizer (85), and the Rear Stabilizer (3).
Attach the Front Stabilizer (85) to the curved bracket on the Front Frame (2) with the
two Hexagon Nuts Cap (29) and two Curve Washers (30) that were removed. Tighten the
Hexagon Nut Caps (29) with the 13 – 15mm Wrench provided.
Attach the Rear Stabilizer (3) to the curved bracket on the Rear Frame (1) with the two
Hexagon Nuts Cap (29) and two Curve Washers (30) that were removed. Tighten the
Hexagon Nut Caps (29) with the 13 – 15mm Wrench provided.
8

5mm Allen Wrench with Phillips Screwdriver
Tool:
ASSEMBLY
Step 2
Remove the four Hexagon Socket Bolts (73) and four Spring Washers (74) from
the Computer Bracket (4). Connect the Connection Wire A (15) from the Computer
Post (17) to the wire that comes from the Computer (9). Plug in the Connection Wire
D (94) from the Computer Post (17) into the receptacle on the back of the Computer
(9) labeled “Pulse”.
Slide the Computer Bracket (4) into the Computer Post (17).
Re-install the four Hexagon Socket Bolts (73) and four Spring Washers (74) that
were removed.
Tighten bolts with the 5mm Allen Wrench with Phillips Screwdriver provided.
9

ASSEMBLY
Step 3
The Seat Cushion (6) has 2 sets of adjustment holes. It is recommended that
users between 5’1” – 5’6” use the holes at the rear of the seat. It is recommended
that users between 5’7” to 6’3” us the holes at the front of the seat.
To attach the Seat Cushion (6) to the Seat Post (5) first, align the holes, then attach it
using three Flat Washers (33) and three Hexagon Socket Bolts (58).Tighten the bolts with
the 5mm Allen Wrench with Phillips Screwdriver provided.
Connect the Connection Wires B (92) from the Seat Post (5) to the Connection
Wires C (93) from the Front Frame (2) as shown in Fig. AA-2.
Insert the Seat Post (5) into the Seat Post Plastic Bushing (12) and install the Seat
Adjustment Knob (14) to the threaded hole on the right side of the Front Frame (2) by
turning it clockwise, making sure that the safety pin of the Adjustment Knob (14) catches
one of the height adjustment holes of the Seat Post (5) Prior to fully tightening.
Hardware:
10
Tool:
13- 15mm Wrench
5mm Allen Wrench
with Phillips Screwdriver
(33) Flat Washer Ø8.2
3 PCS
(58) Hexagon Socket
Bolt M8x15 3 PCS
(14) Seat Height
Adjustment Knob
1 PC

Tool:
13 – 15mm Wrench
5mm Allen Wrench with Phillips
Screwdriver
ASSEMBLY
Step 4
Remove the four Hexagon Socket Bolts (31) and four Spring Washers (80) from the
Back Frame (78). Then attach the Back Cushion (77) onto the Back Frame (78) with the
four Hexagon Socket Bolts (31) and four Spring Washers (80) that were removed. Tighten
bolts with the 5mm Allen Wrench with Phillips Screwdriver provided.
Remove two Flat Washers (32), two Nylon Nuts (34), and two Carriage Bolts (81) from
the Back Frame (78). Then attach the Back Frame (78) onto the Seat Post (5) with the two
Flat Washers (32), two Nylon Nuts (34), and two Carriage Bolts (81) that were removed.
Tighten the bolts and nuts with the 5mm Allen Wrench with Phillips Screwdriver and 13 –
15mm Wrench provided.
11

Tool:
5mm Allen Wrench with Phillips
Screwdriver
ASSEMBLY
Step 5
Remove the two Curve Washers (30) and two Hexagon Socket Bolts (83) from the
Handlebar (82). Then attach the Handlebar (82) onto the Back Cushion Frame (78) with
the two Curve Washers (30) and two Hexagon Socket Bolts (83) that were removed.
Tighten the bolts with the 5mm Allen Wrench with Phillips Screwdriver provided.
Connect the Hand Pulse Wire (91) from the Handlebar (82) to the Connection
Wire B (92) from the Seat Post (5) as shown in Fig. AA-3.
12

ASSEMBLY
Step 6
Loosen the Nylon Nut (L)(102) and Nylon Nut (R)(101) from the Left and Right
Pedals (7) & (8) first. The Cranks, Pedals, Pedal Shafts and Pedal Straps are
marked “R” for Right and “L” for Left.
Insert the Left Pedal (7) into the threaded hole in the Left Crank (23). Turn the
pedal shaft by hand in a counter-clockwise direction until snug.
Note: DO NOT turn the left pedal shaft in a clockwise direction, doing so will strip
the threads. Tighten the Left Pedal (7) with the 13-15mm Wrench provided, then
tighten the Nylon Nut (L) (102) with the 19mm Wrench provided as shown in Fig. AA-4.
Insert the Right Pedal (8) into the threaded hole in the Right Crank (24).Turn the
pedal shaft by hand in a clockwise direction until snug.
Tighten the Right Pedal (8) with the 13-15mm Wrench provided then tighten the Nylon
Nut (R) (101) with the 19mm Wrench provided.
Important:
Make sure the right pedal matches up with
the right crank and the left pedal matches up
with the left crank.
If reversed the cranks may become
damaged or stripped.
Important:
Screw Right Pedal (8) into right crank
hole clockwise!
Screw Left Pedal (7) into Left crank
hole counter-clockwise!
13
Tool:
13 – 15mm Wrench
19mm Wrench

SPECIFICATIONS:
TIME --------------------------------------- 0:00-99:59 MIN: SEC
SPEED ------------------------------------ 0.0-999.9 ML/H
DISTANCE ------------------------------- 0.0-999.9 ML
CALORIE --------------------------------- 0.0-999.9 KCAL
ODOMETER ----------------------------- 0.0-999.9 ML
PULSE ------------------------------------ 40-240 BEATS/MIN
COMPUTER FUNTIONS:
AUTO ON/OFF: If you leave the computer idle for 4 minutes, the power will
shut off automatically.
SCAN: Press the button until the screen displays SCAN; the computer will
automatically scan the functions of TIME, ODOMETER, CALORIE, PULSE,
SPEED, and DISTANCE, every 6 seconds.
TIME: Displays your elapsed workout time in minutes and seconds. The
computer will automatically count up from 0:00 to 99:59 in one second
intervals.
SPEED: Displays your workout speed in miles per hour.
DISTANCE: Displays the cumulative distance traveled during each
workout up to a maximum of 999.9 miles.
CALORIE: The computer will estimate the cumulative calories burned at
anygiven time during your workout. The computer will count up from 0.0 to
999.9 calories.
ODOMETER: Displays the total cumulative distance traveled, to a maximum
of 999.9 miles. The data values of ODOMETER can not be reset to zero by
pressing and holding the button more than 2 seconds. If the batteries are
removed from the computer, the ODOMETER data values will reset to zero.
PULSE: The computer will display your pulse rate in beats per minute when
holding on to the handlebar grip sensors during workout. To ensure
the pulse readout is precise, always hold on to the handlebar grip sensors
with two hands.
RESET: pressing and holding the button for more than 2 seconds will reset
all workout values to zero except the odometer data values.
HOW TO INSTALL THE BATTERIES:
1. Remove the battery cover at the rear of the console.
2. Place two "SIZE-AAA" batteries into the battery housing.
3. Insure the batteries are correctly positioned and the battery springs are
in proper contact with the batteries.
4. Re-install the battery cover.
5. If the display is illegible or only partially legible, remove the batteries
and wait 15 seconds before reinstalling.
COMPUTER
14

Adjusting the Tension Control Knob
To increase the resistance, turn the tension control knob in a clockwise direction.
To decrease the resistance, turn the tension control knob in a counterclockwise
direction.
Adjusting the Seat Height
Turn the seat height adjustment knob in a counter-clockwise direction until the seat
post can be slid up or down. Slide the seat post to a confortable position and then lock
the seat post in place by tightening the seat height adjustment knob in a clockwise
direction.
NOTE: When adjusting the height of seat post, make sure the MAX line on the
right side of the seat post does not exceed the plastic bushing.
STORAGE:
For your convenience, the bike can be folded up and relocated.
1. Remove the Safety Pin A (22) from the upper hole on the Rear Frame (1) and
remove the Safety Pin B (62) from the Computer Post (17).
2. Push the Rear and Front Frames (1, 2) together until they are at their closest
position. Then reinsert the Safety Pin A (22) into the lower hole on the Rear Frame
(1) to lock the Rear and Front Frames (1, 2) together.
3. Pivot the Computer Post (17) down and reinsert the Safety Pin B (62) into the hole
from which it was removed.
4. Push the Front Frame Support Tube (16) into the Front Frame Support Tube
Holder (98).
5. Pivot th Back Cushion (77) down to lay flat against the Seat Cushion (6).
ADJUSTMENTS
15

Transporting the Bike
Hold the Handlebar (82) and pull the machine until the wheels on the Rear
Stabilizer (3) make contact with the floor. Push or pull the unit to the desired
location, then gently lower the Front Stabilizer (85) to the ground.
MOVING THE BIKE
16

MAINTENANCE
Cleaning
The bike can be cleaned with a soft cloth and mild detergent. Do not use
abrasives or solvents on plastic parts. Wipe your perspiration off the bike after
each use. Be careful not get excessive moisture on the console display panel as
this might cause an electrical hazard or electronics to fail.
Keep the bike, specifically, the console, out of direct sunlight to prevent screen
damage. Inspect all the assembly bolts and the pedals on the machine for
proper tightness every week.
Storage
Store the bike in a clean and dry environment away from children.
TROUBLESHOOTING
PROBLEM: There is no display on the console.
SOLUTION: Check if the batteries are correctly positioned and battery springs
are in proper contact with batteries.
SOLUTION: The batteries in the console may be dead. Install new batteries.
PROBLEM: There is no heart rate reading or it is erratic and inconsistent.
SOLUTION: Make sure that the wire connections for the hand pulse sensors are
secure.
SOLUTION: To ensure the pulse readout is accurate, always hold on to the
handlebar grip sensors with both hands.
SOLUTION: Gripping the hand pulse sensors too tight. Try to maintain moderate
pressure while holding onto the hand pulse sensors.
PROBLEM: The bike makes a squeaking noise when in use.
SOLUTION: The bolts may be loose on the bike,inspect all of the bolts and
tighten the loose bolts.
17
MAINTENANCE & TROUBLE SHOOTING

MANUFACTURER’S LIMITED WARRANTY
Paradigm Health & Wellness warrants to the original purchaser that this product is free
from defects in material and workmanship when used for the purpose intended, under the
conditions that it has been installed and operated in accordance with Paradigm’s Owner’s
Manual. Paradigm’s obligation under this warranty applies to the following:
COMPONENT LENGTH OF WARRANTY
Structural Frame 1 year
All Other Components 90 days
(computer display, electronics, upholstery, foam, ball bearings, pulleys, belts, cables,
wires, shocks, covers, tension, internal mechanism, wheels, pedals, knobs, accessories
and hardware)
Exclusions from Warranty Coverage:
Paradigm does not warrant against and is not responsible for, and no implied warranty shall be deemed to cover, any
product failure, product malfunction, or damages attributable to:
1. Improper installation and/or failure to abide by Paradigm’s installation guidelines;
2. Use of this product beyond normal home use, or in an application for which it was not designed;
3. Cosmetic items such as scratches, dents or discolorations;
4. Damage caused by normal wear and tear, vandalism, accidental or by animals;
5. Any act of Nature (such as fire, flooding, snow, ice, hurricane, earthquake, lightning or other natural disaster),
environmental condition (such as air pollution, mold, mildew, etc.), or staining from foreign substances (such as dirt,
grease, oil, etc.);
6. Normal weathering due to exposure to sunlight, weather and atmosphere which can cause colored surfaces to,
among other things, flake, chalk, accumulate dirt or stains.
7. Improper operation, alteration, handling, storage, abuse or neglect of the products.
Paradigm, using its sole discretion, will either repair or replace free of charge any part(s)
proven to be defective under normal home use. Any repair or replacement shall provide no
new warranty coverage, but shall retain only the remaining portion of the original
product’s warranty. This warranty is offered only to the original purchaser and is not
transferable. Proof of original purchase is required.
Ordering Replacement Parts
Replacement parts can be ordered by emailing our customer service department:
[e-mail]
Open Daily 8:00 AM - 5:00 PM (PST).
When ordering replacement parts please have the following information ready:
1. Owner’s Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase
18
WARRANTY
