OWNER’S MANUAL
Item#1111
RECUMBENT BIKE
IMPORTANT: Read all instructions carefully before using this product.
Retain this owner’s manual for future reference.
The specifications of this product may vary from this photo, subject to
change without notice.

1111.3-082615

SERVICE ------------------------------------------------------------------------ 2
LABEL PLACEMENT --------------------------------------------------------- 3
PRODUCT SAFETY ---------------------------------------------------------- 4
OVERVIEW DRAWING ------------------------------------------------------ 5
PARTS LIST ---------------------------------------------------------------------6
HARDWARE PACKING LIST & TOOLS --------------------------------- 8
ASSEMBLY --------------------------------------------------------------------- 9
COMPUTER ---------------------------------------------------------------- 15
ADJUSTMENTS ----------------------------------------------------------------18
TROUBLE SHOOTING & MAINTENANCE ----------------------------- 19
WARM UP ----------------------------------------------------------------------- 20
WARRANTY -------------------------------------------------------------------- 22
PART REQUEST FORM ----------------------------------------------------- 23
TABLE OF CONTENTS
1

IMPORTANT: FOR NORTH AMERICA ONLY
For damaged or defective product, questions, replacement parts
or any other service support, please contact our customer
service department (8:00 AM - 5:00 PM Pacific Standard Time,
Daily) by the below methods:
For Best Service, please Email:
[e-mail]
Response Time: 1-2 Business Days
Website:
www.paradigmhw.com
Toll-Free:
1-844-641-7920
Response time may vary.
Please have the following information ready when requesting for service:
Your name
Phone number
Model number
Serial number
Part number
Proof of Purchase
For damaged or defective product please contact our customer service
before returning to the store.
Paradigm Health & Wellness, Inc.
1189 Jellick Ave.
City of Industry, CA 91748, USA
SERVICE
2

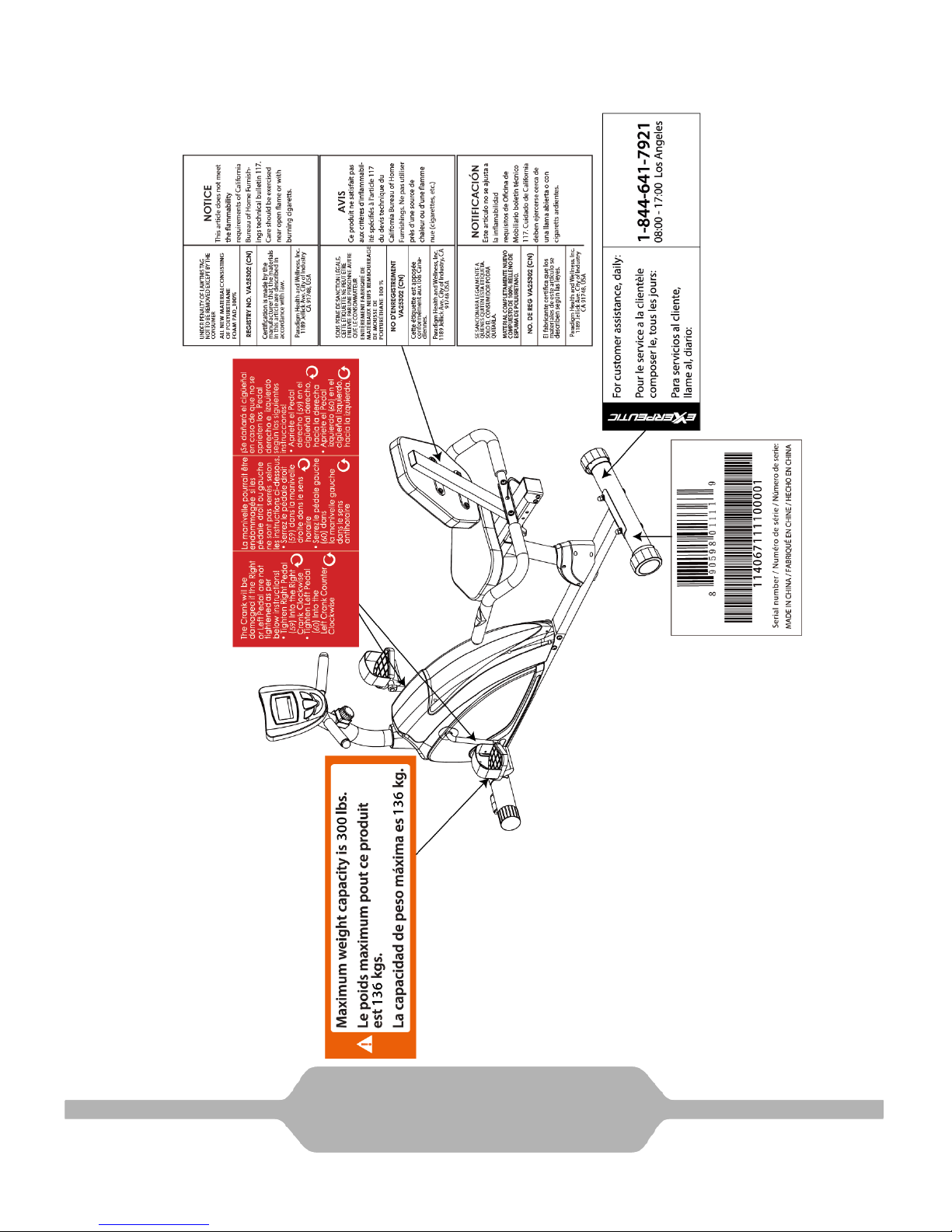

LABEL PLACEMENT

PRODUCT SAFETY
3

Basic precautions should always be followed, including the following
safety instructions when using this equipment. Read all instructions
before using this equipment.
1. Read all the instructions in this manual and do warm up exercises before using
this equipment.
2. Before exercise, in order to avoid injuring your muscles, warm-up exercise
for every muscle group is highly recommended. Please refer to the Warm
Up pages for pre and post workout.
3. Please make sure all components are not damaged and in working order before
use. This equipment should be placed on a flat surface while in use. Using a
mat or other material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear
clothes that get caught in any part of the equipment.
5. Do not attempt any maintenance or adjustments other than those described in
this manual. Should any problems arise, discontinue use and consult an
Authorized Service Representative.
6. Keep Dry - do not operate in wet or moist condition.
7. Always hold on to the handlebar while using the training bike.
8. To dismount, reduce pedaling speed gradually before you stop.
9. Do not use the equipment outdoors.
10.This equipment is for household use only.
11.Only one person should be on the equipment while in use.
12. Keep children and pets away from the product while in use. This machine
is designed for adults only. This product requires a minimum of 6 feet of
space for safe operation.
13. If you feel any chest pains, nausea, dizziness, or short of breath, you should
stop exercising immediately and consult your physician before continuing.
14. The maximum weight capacity for this product is 300 lbs/ 136 kgs.
WARNING:Before beginning any exercise program consult your
physician. This is especially important for the people who are over 35 years
old or who have pre-existing health problems. Read all instructions before
using any fitness equipment.
CAUTION:Read all instructions carefully before operating this
product. Retain this Owner’s Manual for future reference.
OVERVIEW DRAWING
4

5

No.
Description
Qty
No.
Description
Qty
001
Back and Seat Support Bracket
53x23x2.0
1
027
Wire Plug Ø12.1
2
002
Front Stabilizer Ø60x1.5x580
1
028
Bolt M8x18
1
003
Rear Main Frame
1
029
Locknut M6
2
004
Rear Stabilizer Ø60x1.5x580
1
030
Bolt M8x70
4
005
Front Main Frame 80x40x2
1
031
Spring
1
006
Front Handlebar Post Ø50x1.5
1
032
Cap Nut M8
6
007
Seat Cushion
1
033
Left Cover
1
008
Back Cushion
1
034
Right Cover
1
009
Computer (JVT29121)
1
035
Screw ST4.2x25
8
010
Handlebar Foam Grip
Ø30xØ24x510
2
036
Bolt M5x25
1
011
Hand Pulse Sensor
2
037
Adjustable Bolt M6x33
2
012
Round End Cap for Handlebar
Ø25x1.5
4
038
Big Curve Washer Ø5
1
013
Handlebar Ø25x1.5
1
039
Bolt M5x10
4
014
Tension Control Knob
1
040
Tension Cable L=1000mm
1
015
Seat Sliding Tube 23x53x1.5
1
041
Axle Bush
2
016
Left Cover Cap Ø60xØ24x2
1
042
Bearing
2
017
Round Knob M16x1.5
1
043
Axle Sleeve I 15/16"
1
018
Right Cover Cap Ø60xØ24x2
1
044
Nut 7/8"
1
019
Front Handlebar Foam Grip
Ø30xØ24x160
2
045
Washer Ø34.5xØ23x25
1
020
Nylon Nut M8
2
046
Crank Ø200
1
021
Bolt M6x15
8
047
Flywheel Ø230
1
022
Backrest and Seat Support
Bracket End Cap 23x53x1.5
1
048
Idle Wheel Bracket
1
023
Bolt M8x15
16
049
Bolt M8x30
2
024
Washer Ø8
18
050
Front Stabilizer End Cap Ø60
2
025
Curve Washer Ø8
10
051
Transport Wheel Ø23xØ6x32
2
026
Screw ST4.2x20
2
052
Nut M6
2
PARTS LIST
6
PARTS LIST

No.
Description
Qty
No.
Description
Qty
053
Nut M10x1
2
067
Pan Head Phillips Self Drilling
Screw ST4.2x15
1
054
Bushing
2
068
Hand Pulse Sensor Wire L=650mm
2
055
Middle Section Hand Pulse
Sensor Wire
2
069
Pan Head Phillips Self Drilling
Screw ST4.2x25
6
056
Idle Wheel
1
070
Bolt M8x45
2
057
Rear Stabilizer End Cap Ø60
2
071
Bolt M6x48
2
058
Washer Ø6
8
072
Axle Sleeve II
1
059
Right Foot Pedal YH-30X
1
073
Washer 7/8"
1
060
Left Foot Pedal YH-30X
1
074
Front Handlebar Post Cover
1
061
Sensor with Wire L=500mm
1
075
Right Rear Main Frame Cover
1
062
Belt 340J6
1
076
Left Rear Main Frame Cover
1
063
Extension Wire L=350mm
2
077
Triangle Knob M12x33
1
064
Extension Sensor Wire
L=350mm
1
078
U Bracket
2
065
Extension Hand Pulse Sensor
Wire L=1800mm
2
079
Spring Washer Ø6
2
066
Triangle Knob M12x27
1
080
Clip
1
7
HARDWARE PACKING LIST & TOOLS

(24) Washer Ø8
2 PCS
(32) Cap Nut M8
6 PCS
(30) Bolt M8x70
4 PCS
(25) Curve Washer Ø8
6 PCS
(70) Bolt M8x45
2 PCS
Allen Wrench S6
1 PC
Multi Hex Tool with Phillips Screwdriver
1 PC
TOOLS
8
ASSEMBLY

9
Remove two M8x30 Bolts (49), four M8x15 Bolts (23), and six Ø8 Washers (24)
from the Rear Main Frame (3). Remove bolts with the Allen Wrench provided.
Connect the Middle Section Hand Pulse Sensor Wires (55) from the Rear Main
Frame (3) to the Extension Hand Pulse Sensor Wires (65) from the Front Main
Frame (5). Attach the Rear Main Frame (3) into the Front Main Frame (5) with two
M8x30 Bolts (49), four M8x15 Bolts (23), and six Ø8 Washers (24) that were
removed. Tighten bolts with the Allen Wrench provided.
1. Rear Main Frame Installation
ASSEMBLY
Allen Wrench S6
Tool:

4 Bolts (M8x70)
4 Curve Washers (Ø8)
4 Cap Nuts (M8)
Position the Front Stabilizer (2) in front of the Front Main Frame (5) and align bolt
holes. Attach the Front Stabilizer (2) onto the front curve of the Front Main Frame
(5) with two M8x70 Bolts (30), two Ø8 Curve Washers (25), and two M8 Cap Nuts
(32). Tighten cap nuts with the Multi Hex Tool with Phillips Screwdriver provided.
Position the Rear Stabilizer (4) behind the Rear Main Frame (3) and align bolt
holes. Attach the Rear Stabilizer (4) onto the rear curve of the Rear Main Frame
(3) with two M8x70 Bolts (30), two Ø8 Curve Washers (25), and two M8 Cap Nuts
(32). Tighten cap nuts with the Multi Hex Tool with Phillips Screwdriver provided.
2. Front and Rear Stabilizers Installation
Tool:
Multi Hex Tool with
Phillips Screwdriver
Hardware:
10

Allen Wrench S6
Tool:
Multi Hex Tool with
Phillips Screwdriver

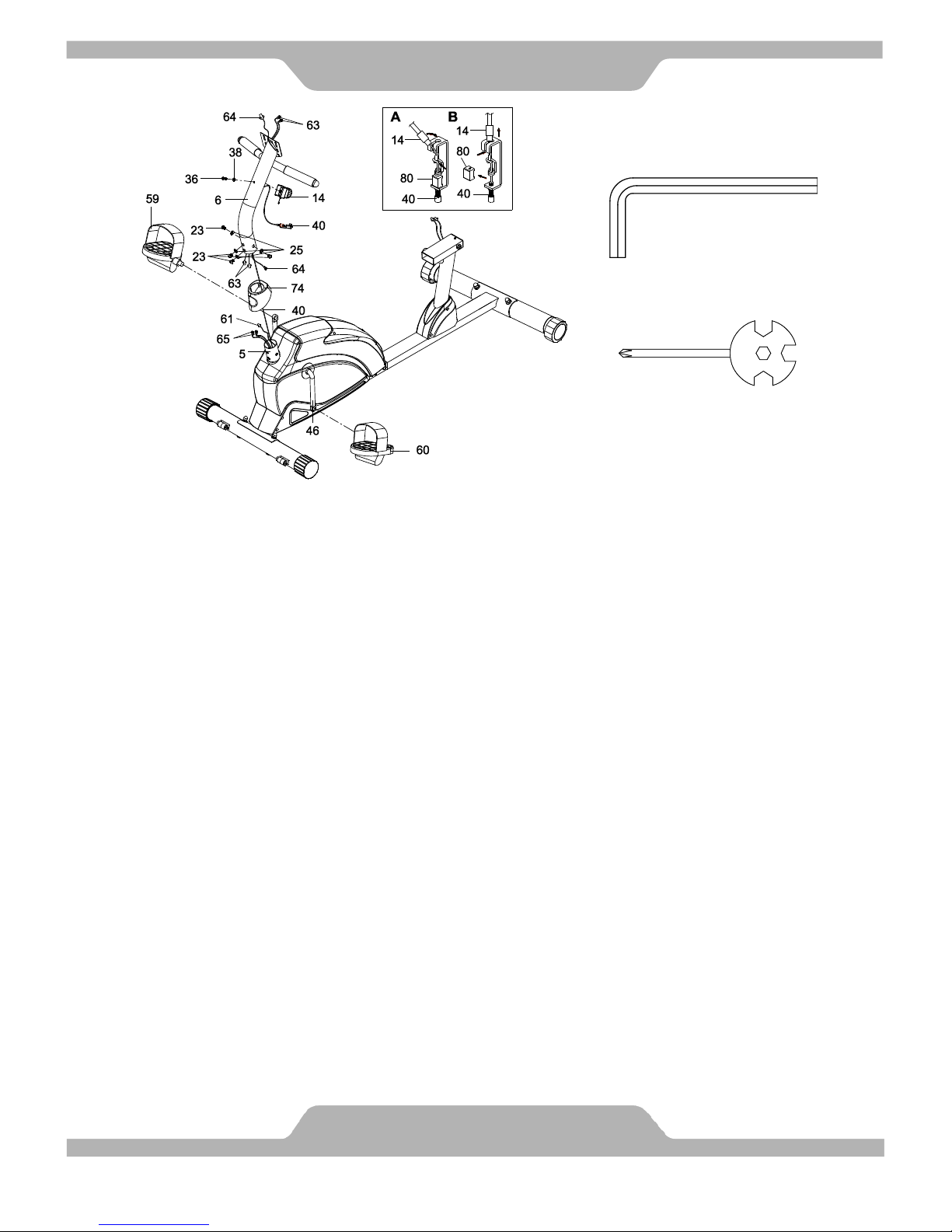

Remove four M8x15 Bolts (23) and four Ø8 Curve Washers (25) from the Front Main
Frame (5). Slide the Front Handlebar Post Cover (74) up to the Front Handlebar Post
(6).Insert the Tension Cable (40) through into the bottom hole of Front Handlebar Post
(6) and pull it out from the square hole of Front Handlebar Post (6).
Connect the Sensor Wire (61) and Extension Hand Pulse Sensor Wires (65) from the
Front Main Frame (5) to the Extension Sensor Wire (64) and Extension Wires (63)
from the Front Handlebar Post (6). Insert the Front Handlebar Post (6) onto the tube
of the Front Main Frame (5) and secure with four M8x15 Bolts (23) and four Ø8 Curve
Washers (25) that were removed. Slide the Front Handlebar Post Cover (74) down to
the Front Main Frame (5). Remove the M5x25 Bolt (36) and Ø5 Big Curve Washer
(38) from the Tension Control Knob (14).
Put the cable end of resistance cable of Tension Control Knob (14) into the spring hook
of Tension Cable (40) as shown in drawingA. Pull the resistance cable of Tension
Control Knob(14) up and force it into the gap of metal bracket of Tension Cable (40)
and gently remove the Clip (79) after well-connected the resistance cable of Tension
Control Knob (14) and Tension Cable (40) as shown in drawing B. Attach the Tension
Control Knob (14) onto the Front Handlebar Post (6) with the M5x25 Bolt (36) and Ø5
Big Curve Washer (38) that were removed.
The Cranks, Foot Pedals, Pedal Shafts and Pedal Straps are marked “R” for
Right and “L” for Left.
Insert the pedal shaft of Left Foot Pedal (60) into threaded hole in the left Crank (46).
Turn the pedal shaft by hand in the counter-clockwise direction until snug.
Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip
the threads.
Tighten the pedal shaft of Left Foot Pedal (60) with the Multi Hex Tool with Phillips
Screwdriver provided. Insert pedal shaft of Right Foot Pedal (59) into threaded hole in
right Crank (46).Turn the pedal shaft by hand in the clockwise direction until snug.
Tighten pedal shaft of Right Foot Pedal (59) with the Multi Hex Tool with Phillips
Screwdriver provided.
3. Front Handlebar Post and Foot Pedal Installation
ASSEMBLY
11

4. Seat Sliding Tube, Back/Seat Support Bracket, and Handlebar Installation
Remove eight M8x15 Bolts (23) and eight Ø8 Washers (24) from the Back/Seat
Support Bracket (1) and Seat Sliding Tube (15). Remove bolts with the Allen
Wrench provided.
Insert the Seat Sliding Tube (15) into the Bushings (54) of the Rear Main
Frame (3).
Attach the Seat Sliding Tube (15) to the Back and Seat Support Bracket (1)
with eight M8x15 Bolts (23) and eight Ø8 Washers (24) that were removed.
Tighten bolts with the Allen Wrench provided.
Adjust the seat position and insert the Round Knob (17), M12x33 Triangle
Knob (77), and M12x27 Triangle Knob (66). Turn the Round Knob (17),
M12x33 Triangle Knob (77), and M12x27 Triangle Knob (66) in the clockwise
direction to tighten.
Attach the Handlebar (13) onto the Back and Seat Support Bracket (1) with two
M8x45 Bolts (70), two Ø8 Curve Washers (25), two Ø8 Washers (24), and two
M8 Cap Nuts (32). Tighten bolts with the Multi Hex Tool with Phillips
Screwdriver provided.
Connect the Middle Section Hand Pulse Sensor Wires (55) from the Rear Main
Frame (3) to the Hand Pulse Sensor Wire (68) from the Handlebar (13).
ASSEMBLY
Allen Wrench S6
Tool:
Multi Hex Tool with
Phillips Screwdriver
12

.
2 Bolts (M8x45)
2 Curve Washers (Ø8)
2 Washers (Ø8)
2 Cap Nuts (M8)
Tool:
Multi Hex Tool with
Phillips Screwdriver
ASSEMBLY
Hardware:

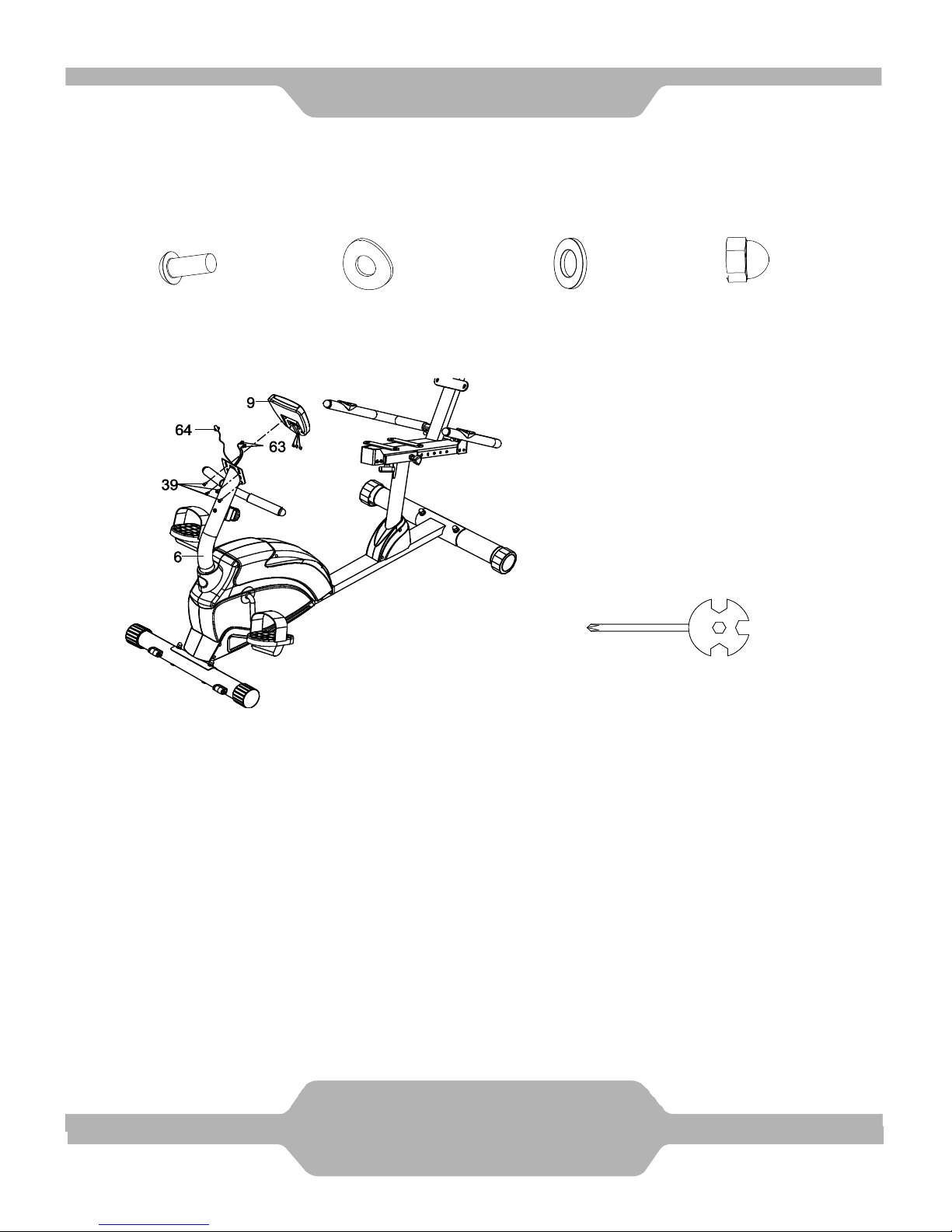

5. Computer Installation
Remove four M5x10 Bolts (39) from the Computer (9). Remove bolts with the
Multi Hex Tool with Phillips Screwdriver provided.
Connect the Extension Wires (63) and Extension Sensor Wire (64) to the wires
that come from the Computer (9). Tuck wires into the Front Handlebar Post (6).
Attach the Computer (9) onto the top end of the Front Handlebar Post (6) with four
M5x10 Bolts (39) that were removed. Tighten bolts with the Multi Hex Tool with
Phillips Screwdriver provided.
13
ASSEMBLY

Tool:
Multi Hex Tool with
Phillips Screwdriver
6. Seat and Back Cushions Installation
Remove eight M6x15 Bolts (21) and eight Ø6 Washers (58) from the back of the
Seat and Back Cushions (7, 8). Remove bolts with the Multi Hex Tool with Phillips
Screwdriver provided. Then attach the Seat and Back Cushions (7, 8) onto the
Back and Seat Support Bracket (1) with eight M6x15 Bolts (21) and eight Ø6
Washers (58) that were removed. Tighten bolts with the Multi Hex Tool with
Phillips Screwdriver provided.
14
COMPUTER

SPECIFICATIONS:
TIME --------------------------------------------------- 0:00-99:59 MIN: SEC
SPEED ------------------------------------------------ 0.0-999.9 MPH
DIST (DISTANCE) ---------------------------------- 0.0-999.9 MILE
CAL (CALORIES) ----------------------------------- 0.0-999.9 KCAL
ODO (ODOMETER) -------------------------------- 0.0-999.9 MILE
(PULSE) ------------------------------------------ 40-240 BEATS/MIN
OPERATING THE COMPUTER
BUTTON FUNCTIONS:
MODE: Press MODE button to select each function of computer.
Press and hold MODE button for 3 seconds, all data values will clear to zero except
the ODO (ODOMETER) data values.
SET:Press SET button to set data values of TIME, DISTANCE, CALORIES, or
Pulse for target presetting.
RESET: Press RESET button to clear data values of TIME, DISTANCE, or
CALORIES to zero.
Press RESET button to clear data values of TIME, DISTANCE, CALORIES, or
Pulse to zero for target presetting.
Press and hold RESET button for 3 seconds, all data values will clear to zero
except the ODO (ODOMETER) data values.
COMPUTER FUNTIONS:
AUTO ON/OFF: When you start to exercise or press any key on the computer, the
computer will turn on. If you leave the equipment for 4 minutes, the power will turn
off automatically.
SCAN: Press MODE button until the screen displays a flash SCAN; the computer
will automatically scan the function of TIME, SPEED, DIST (DISTANCE), CAL
(CALORIES),ODO (ODOMETER), and (PULSE) every 6 seconds.
TIME: Press MODE button until the screen displays TIME; the computer will
display your elapsed workout time in minutes and seconds. When you start to
exercise, time starts counting up from 0:00 to 99:59 minutes per 1 second
increment. You may also preset target time before training. Press MODE button
to select TIME function and then press SET button to preset target time. Press
RESET button to clear the target values of TIME to zero. The preset target time
range is from 0:00 to 99:00 minutes. Once you preset target time and then start to
exercise, time starts counting down from preset target time to 0:00 per 1 second
backward. When the preset target time counts down to 0:00, time will start to
count up immediately and the computer will begin beeping to remind you.
15
COMPUTER

DIST (DISTANCE): Press MODE button until the screen displays DIST; the
computer will display the accumulative distance traveled during workout. When
you start to exercise, distance starts counting up from 0.0 to 999.9 miles per 0.1
mile increment. You may also preset target distance before training. Press
MODE button to select DIST function and then press SET button to preset target
distance. Press RESET button to clear the target values of DISTANCE to zero.
The preset target distance range is from 0.0 to 999.0 miles. Once you preset
target distance and then start to exercise, distance starts counting down from
preset target distance to 0.0 per 0.1 mile backward. When the preset target
distance counts down to 0.0, distance will start to count up immediately and the
computer will begin beeping to remind you.
SPEED: Press MODE button until the screen displays SPEED; the computer will
display the current training speed.
CAL (CALORIES): Press MODE button until the screen displays CAL; the
computer will display the total accumulated calories burned during workout. When
you start to exercise, calories start counting up from 0.0 to 999.9 calories. You
may also preset target calories before training. Press MODE button to select CAL
function and then press SET button to preset target calories. Press RESET button
to clear the target values of CALORIES to zero. The preset target calories range is
from 0.0 to 999.0 calories. Once you preset target calories and then start to
exercise, calories start counting down from preset target calories to 0.0. When the
preset target calories count down to 0.0, calories will start to count up immediately
and the computer will begin beeping to remind you. (This data is a rough guide for
comparison of different exercise sessions and should not be used in medical
treatment).
ODO (ODOMETER): Press MODE button the screen displays ODO; the computer
will display the total accumulative distance traveled. The data values of ODO can
not be clear to zero by pressing and holding MODE or RESET button for 3 seconds.
If you take out the batteries from the computer, the ODO data values will clear to
zero.
(PULSE): Press MODE button until the screen displays a symbol; the
computer will display your current heart rate figures after you hold both two hands
on handlebar grip sensors during exercise. To ensure the pulse readout is more
precise, please always hold on to the handlebar grip sensors with two hands
instead of just with one hand only when you try to test your heart rate figures.
You may also preset target heart rate before training. Press MODE button to
select PULSE function and then press SET button to preset target heart rate.
Press RESET button to clear the target heart rate to zero. The preset heart rate
range is from 40 to 240 beats/minute. Once you preset target heart rate and then
start to exercise, please hold both two hands on handlebar grip sensors during
exercise. If the heart rate detected greater than the target heart rate, the computer
will begin beeping to remind you.
16
COMPUTER

HOW TO INSTALL THE BATTERIES:
1. Remove the battery cover at the rear of computer.
2. Place two "SIZE-AA" batteries into the battery housing.
3. Insure batteries are correctly positioned and battery springs are in proper
contact with batteries.
4. Re-install the battery cover.
5. If the display is illegible or only partial legible, remove batteries and wait 15
seconds before reinstalling.
17

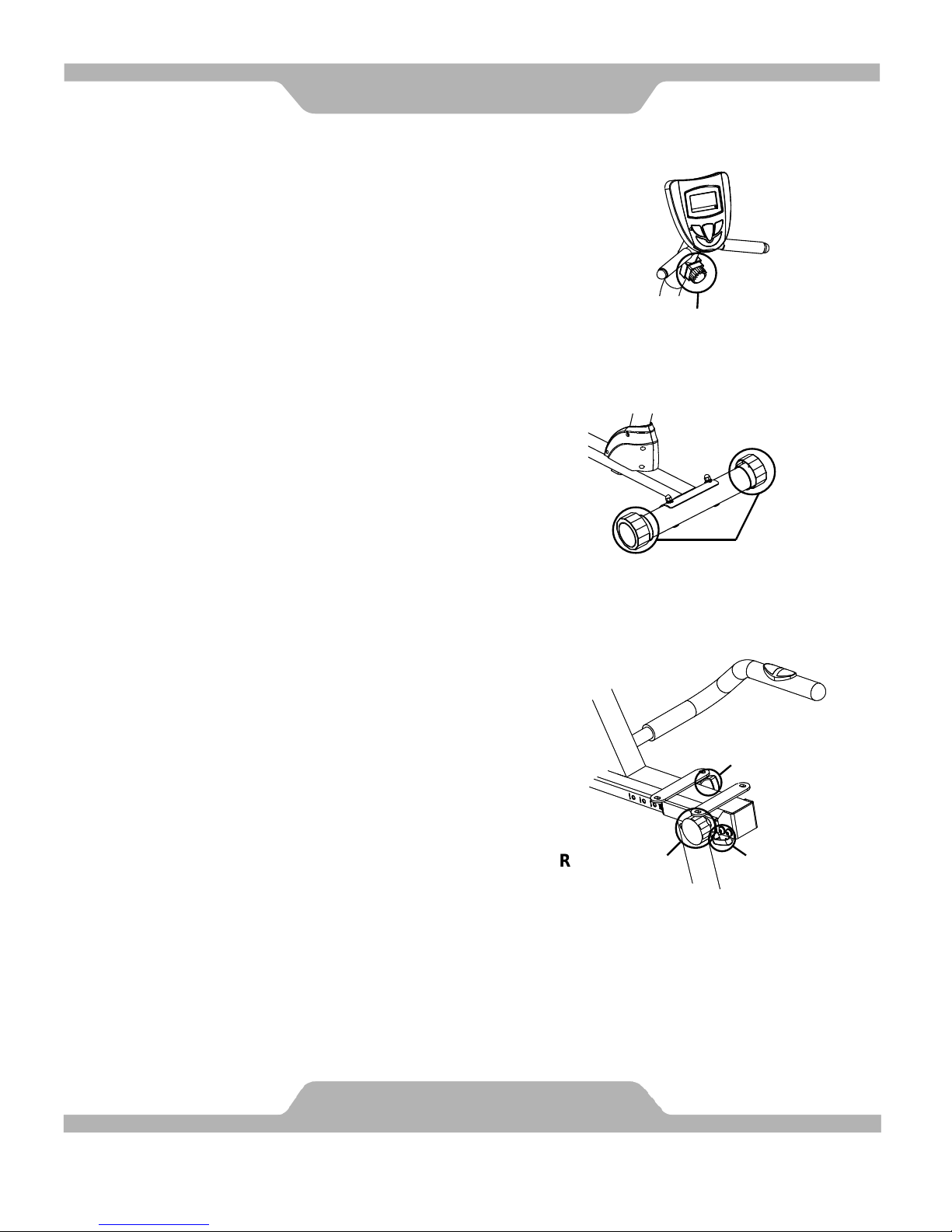

Tension Control Knob
Rear Stabilizer End Cap
Triangle Knob
M12x33
Round Knob
Triangle Knob
M12x27
ADJUSTMENTS
Adjusting the Tension Control Knob
To increase the load, turn the tension control knob in a
clockwise direction.
To decrease the load, turn the tension control knob in a
counterclockwise direction.
Adjusting the Rear Stabilizer End Cap
Turn the rear stabilizer end cap on the rear stabilizer as
needed to level the elliptical trainer
Adjusting the Seat Forward or Back
Release the both triangle knobs from the rear main frame.
Turn the round knob in a counterclockwise direction until it
can be pulled out. Pull out the round knob and then slide
the back and seat support bracket back or forth direction to
the suitable position. Lock the back and seat support
bracket in place by releasing the round knob and sliding the
back and seat support bracket back or forth slightly until the
round knob "pops" down into the hole of the seat sliding
tube. For added safety, tighten the round knob and both
triangle knobs in a clockwise direction.
NOTE: When adjusting the seat back or forth
direction, make sure the bushing does not
exceed the mark line on the seat sliding tube.
18
