Expert Electronics SunSDR2 Pro User manual

ASoftware Defined Radio
Expert Electronics
2015
V1.1

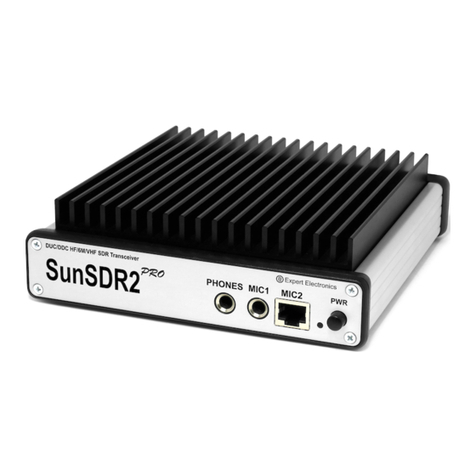

SunSDR2
DUC/DDC HF/6M/VHF SDR Transceiver
PRO
DUC/DDC HF/6M/VHF SDR Transceiver
PHONES MIC1 MIC2
PWR
EExpert Electronics
SunSDR2
PRO
Hardware manual

Expert Electronics SunSDR2 PRO transceiver
Contents
1. Operating rules........................................................................................................................3
2. Technical characteristics.........................................................................................................5
3. Local operation.......................................................................................................................6
4. Remote operation....................................................................................................................8
5. Operation...............................................................................................................................10
5.1 Operating controls...............................................................................................................10
5.2 Default ettings...................................................................................................................13
6. Terminal descriptions............................................................................................................14
6.1 EXT CTRL pinout...............................................................................................................14
6.2 MIC1 pinout........................................................................................................................15
6.3 MIC2 pinout........................................................................................................................15
6.4 PTT footswitch cable pinout...............................................................................................16
6.5 CW-keyer connector pinout................................................................................................17
6.5.1 Changing of CW Paddle Polarity.....................................................................................17
7. Regulatory requirements.......................................................................................................18

Expert Electronics SunSDR2 PRO transceiver
IMPORTANT
READ THIS INSTRUCTION MANUAL CAREFULLY before attempting to operate the transceiver.
SAVE THIS INSTRUCTION MANUAL. This manual contains important safety and operating instructions
for the SunSDR2 PRO.
1. Operating r les
•Visually inspect the SunSDR2 PRO transceiver for the absence of mechanic damages before
connecting it to PC;
•Learn attentively the manual, before using the Transceiver. Connecting and operation of the
Transceiver without the instructions can bring to the fatal errors;
•If Transceiver was held in the climatic conditions, different from the operational, it is
recommended not to switch it on within 2 hours holding it in operational conditions;
•Connecting the Transceiver to a PC should be done in accordance with the connection diagram,
given in the Manual;
•Check the presence of the ground connection of the PC and the ground wire of the antenna
connector (SMA) of the Transceiver before switching;
•It is forbidden to connect the Transceiver to PC with the voltage presence on it or in the switched
condition;
•It is forbidden to use the power supply with the voltage more that +16 V. Remember! The
transceiver's power is the voltage direct current!
•Before connecting the external devices to connector EXT CTRL read the Manual, learn the tables
and the diagrams of connecting the external devices;
•Remember! The transistor switches have the limitations over supply voltage and current, going
through them. The power swap is forbidden;
•It is forbidden to use the Transceiver in the temperatures lower than 0ºC (32ºF) and higher than
+75ºC(167ºF);
•It is forbidden to use and store the Transceiver in the dusted rooms and on exposure to direct
sunlight;
•Avoid exposure of the atmospheric precipitations on the Transceiver. Never spill any liquids
(especially aggressive) on the Transceiver;
•It if forbidden to use the Transceiver during storms;
•Don't open the Transceiver. It contains the radio elements, which have the high sensitivity to the
static electricity. This document contains all the necessary information about the internal design
to satisfy the curiosity of Users. To repair the Transceiver ask the manufacturer;
•Always unplug the Transceiver's antenna, if you don't control it or if there appear a danger of
atmospheric electricity damage;
•Save the Transceiver, cables and wires from the influence of the magnetic pickups (emergency
states), out controlled currents and voltages and the domestic animals;
3

Expert Electronics SunSDR2 PRO transceiver
•To exclude the damage of the devices and not to produce the harmful interference on air don't
allow to control the Transceiver people with the doubtful reputation;
•Keep out of the reach of children.
4

Expert Electronics SunSDR2 PRO transceiver
2. Technical characteristics
General coverage receiver in HF, MHz 0.09...65
General coverage receiver in VHF, MHz 95...148
Frequency coverage in HF in TX mode, MHz All HF and 6m amateur frequencies
Frequency coverage in VHF in TX mode, MHz 144...148
Sensitivity, uV 0,07
Maximum transmitter's output power in HF, W 15
Maximum transmitter's output power in VHF, W 7
Blocking dynamic range in HF mode (BDR), dB 129
Blocking dynamic range in VHF mode (BDR), dB >114
RF ADC clock frequency, MHz 160
RF ADC resolution, bit 16
RF DAC clock frequency, MHz 640
RF DAC resolution, bit 14
Recommended power supply, V 15
Supply voltage range, V 12...16
Local oscillator's stability, ppm +/ 0.5
Maximum consumption current, А 5
Built in audio codec resolution, bit 24
ALC input voltage range, V 0..4
Dimensions, mm (inches) 165х165х35 (6” ½ x 6” ½ x 1” 3/8)
Operating temperature, ºC (ºF) 0(32) to +75(167)
Weight, kg (lbs) 1,5 (3.3)
5

Expert Electronics SunSDR2 PRO transceiver
3. Local operation
Local operation is when SunSDR2 PRO transceiver is connected directly to a PC’s Ethernet port with
CAT5 cable. Make connections to the transceiver over the following steps below:
1. Connect headphones and microphone to the transceiver. If you have an electret microphone or PC
headset, connect the microphone to jack MIC1. If you have a dynamic microphone, plug it into the
jack MIC2. Headphones are plugged into the PHONES connector;
Figure 3.1 – In the standard conditions the headphones and the microphone are connected to SunSDR2
PRO transceiver
2. Connect HF antenna to connector A3;
3. Connect CAT5 Ethernet cable between PC and transceiver;
Figure 3.1.1 “ON/OFF” button location. Left top corner.
4. Turn “On” the transceiver: Red rectangle left top corner. Figure 3.1.1 above.
5. Open menu Options→ Device and set the check boxes in accordance with the figure 3.2:
Figure 3.2 – Transceiver's settings
6

Expert Electronics SunSDR2 PRO transceiver
6. In the main ExpertSDR2 software dialogue window specify the connector to which your microphone
is connected (see Figure 3.3 below);
Figure 3.3 – Selecting correct microphone inputs of the transceiver
7. Go to So nd Card menu and verify check box “Enable” is unchecked. See figure 3.4;
Figure 3.4 – Controlling the microphone inputs of the transceiver
8. Click OK. If everything is done correctly, you will see the air noise track on the panoramic display and
hear the sound in the headphones.
7

Expert Electronics SunSDR2 PRO transceiver
4. Remote operation
SunSDR2 PRO transceiver has the ability to work remotely.
1. Connect the headphones and microphone or the PC headset to the sound card of the PC (see figure
4.1);
Figure 4.1 – Connecting headphones and microphone when work remotely
2. Connect HF antenna to connector A3;
3. Set up a wired LAN connection to a PC. For that read the Getting Started Manual for details at the
manufacturers web site;
4. Turn on the transceiver;
5. Open menu Options→ Device and set the check box in accordance with the figure 4.2:
Figure 4.2 – Transceiver's settings
6. In the Sound Card menu choose Driver and select input and output devices and click the check box
Enable (see Figure 4.3);
8

Expert Electronics SunSDR2 PRO transceiver
Figure 4.3 – Transceiver's settings
7. Choose MicPC in the drop down menu of the main program window (see Figure 4.4);
Figure 4.4 – Choose the microphone connected to PC
Figure 4.5 – Press Start button to turn radio “ON”
8. Press the Start button in the software (Left top corner of Figure 4.5). If everything is done
correctly, you will see the air noise track on the panoramic display and hear the sound in the
headphones.
You are good to go!
9

Expert Electronics SunSDR2 PRO transceiver
5. Operation
5.1 Operating controls
Transceiver SunSDR2 PRO has several external operating controls. Transceiver's front panel (see
Figure 5.1) has connectors for headphones and two types of microphones, dynamic and electret, LED to
indicate the operation modes and power switch. Rests of operating controls are placed on the rear panel
(see Figure 5.2).
Figure 5.1 – Front panel of the transceiver
Figure 5.2 – Rear panel of the transceiver
10

Expert Electronics SunSDR2 PRO transceiver
Pin out of the power connector (see Figure 5.3).
Figure 5.3 – The power connector pinout
Table 1 – Description of the operating controls
№ Operating controls description Comments
1. Jack for connecting the headphones Headphones with the resistance 16 32 Ohm or
active dynamics can be connected to this jack
2. Jack for connecting the electret
microphone
Electret microphone of the PC's headset or similar
can be connected to this jack
3. Jack for connecting the dynamic
microphone
This jack is intended to connect the dynamic
microphone MH 31 or any other dynamic
microphone with the connector RJ 45 and
corresponding pinout
4 Power indication LED This indicator displays operation modes of the
transceiver:
green color: LAN is active/connected;
orange color: WiFi is active/connected (when
the transceiver has a WiFi option);
red color: transmit mode is “ON”;
blinking green or orange color: network setup
state, wait for a solid color.
5. Power button This button switches on and off the transceiver's
power
6. Connector for connecting of WiFi
antenna
This connector is installed when the transceiver
has a WiFi(WLAN) option
7. Input of the external reference oscillator
10MHz
10 MHZ CMOS level input
Voltage with the amplitude of 10 13 dB/mW and
frequency 10MHz can be applied to this input.
Warning! Improper use or higher voltage may
damage the transceiver!
8. RX OUT Output of the internal receiver's front end
Warning! Improper use or higher voltage may
damage the transceiver!
9. Connector of the ADC uncomplemented
input
This connector is intended for connection the
external signal sources to the input of high speed
ADC directly, bypass all the filters.
Warning! Improper use or higher voltage may
damage the transceiver!
10. Connector of the direct output of high
speed DAC
Connector is intended for direct connection of the
external devices to the output of the high speed
11

Expert Electronics SunSDR2 PRO transceiver
DAC, bypass all the filters, amplifiers, etc.
Warning! Improper use or higher voltage may
damage the transceiver!
11. Power connector Connector is intended for connection of DC power
source with voltage of up to +15V and maximum
load current 5A.
Transceiver schematic incorporates shutdown
circuit protecting device from the power polarity
reversal.
12. LAN connector Connector is intended for connecting the
transceiver to the local network via LAN cable
13. Telegraph key connector (CW) Connector is intended for connection of the
telegraph key. Polarity of dots/dashes can be
changed in the software. See Page 17.
14. PTT footswitch connector Connector is intended for connecting the PTT
footswitch
15. External control connector (EXT CTRL) Connector is intended for controlling the external
devices, pinout is shown at the figure 6.3
Warning! Improper use of this connector can
damage keys with open collector and damage the
transceiver!
16. ALC input ALC input for external power amplifier
17. Connector A1 for VHF antenna Connector is intended for connection the VHF
antenna. Antenna should be connected to this
connector when receiving and transmitting signals
with the frequencies on 2m band.
Note! All the antennas from connectors A2 and A3
should be disabled during the VHF receipt!
18,
19.
Connectors A2 and A3 for HF antennas HF antennas should be connected to connectors
A2 and A3 when operating HF or 6m. Control of
the antenna switch is done from ExpertSDR2
software.
20. Button to reset transceiver’s IP address
settings to default settings
This button is intended to reset IP address and
UDP ports of the transceiver to the default IP
values: 192.168.16.200, ports: 50001, 50002.
Instructions how to reset transceiver’s IP address
are provided in Clause 5.2.
21. Button to switch operating modes
between LAN and WLAN (Wi Fi)
This button is intended to switch the transceiver
from LAN to WLAN. If WLAN option is not
installed, transceiver will not operate when the
WLAN mode is selected. Single pressing of the
button changes operation mode.
12

Expert Electronics SunSDR2 PRO transceiver
5.2 Defa lt Settings
Sometimes it is necessary to reset transceiver's settings. Follow steps below:
1. Switch off the transceiver's power supply with PWR switch;
2. Press RST button on the rear panel of the transceiver and hold it. You will hear a light click;
3. Switch “ON” transceiver’s power supply with PWR switch. The LED will blink different colors (green
and red);
4. Release RST button;
5. Wait until the LED turns to green color. Solid green color indicates the completion of the reset of the
transceiver's settings to default settings.
“Deep” reset. Follow steps below:
1. Switch off the transceiver's power supply with PWR switch ;
2. Press simultaneously the buttons L/W and RST on the rear panel of the transceiver and hold them;
3. Switch “ON” transceiver's power supply with PWR switch. The LED will blink different colors (green
and red);
4. Release RST and L/W buttons;
5. Wait till the LED turns to solid green color;
6. Solid green color indicates the completion of the reset of the transceiver's settings to default settings.
After the reset procedure transceiver will have the IP address by default 192.168.16.200 and ports
50001 and 50002.
Warning!
Do not switch “Off” transceiver's PWR button while LED is blinking.
After switching on the RST button won't be active. Pressing it doesn't have any effect.
13

Expert Electronics SunSDR2 PRO transceiver
6. Terminal descriptions
6.1 EXT CTRL pino t
onnector EXT CTRL is intended for control of external devices, such as power amplifiers, antenna
switching units and tuners, wide of narrow band pass filters. Control is done directly from SDR software.
At figure 6.1 is given the layout of the connector at the transceiver's rear panel and its pin out.
Figure 6.1 – Layout and pinout of the EXT CTRL connector. View from back of transceiver.
Table 2 – Pins description of the EXT CTRL connector
No. Pin Name Description
1. X1 – X7 Open collector’s pins (programmable I/O with software)
2. X8 Open collector’s pin for control of PTT for external PA
3. CP Protective diode pin
4. +12V Pin for power supply +12V, MAX current 0.5 A
Attention! Do not connect loads with current above 0.5 A, it will
damage transceiver.
5. G Transceiver's ground terminal
6. I1, I2 Button sensors, works on the input
7. RA, RB RS485 Interface
14

Expert Electronics SunSDR2 PRO transceiver
6.2 MIC1 pino t
Connector MIC1 is intended for connection the electret microphone, PC headset or any other electret
microphone, which is intended to work with PC. Connector JACK6.3 to JACK 3.5 is used for connection
(included into the set). Circuit diagram for the electret microphone is shown at the figure 6.2.
Figure 6.2 – JACK 6.3 мм connector pinout for connection to MIC1
6.3 MIC2 pino t
Dynamic microphones are less sensitive to the extraneous noises due to greater focus. Dynamic
microphones have a higher speech quality and signal/noise ratio during operation.
MIC2 connector is intended to connect the dynamic microphones. This connector has a pinout which
corresponds to the dynamic microphone. At the figures below you can find the appearance of dynamic
microphone MD 15 (figure 6.3), PTT diagram (figure 6.4) and the direction of numbering (figure 6.5).
Figure 6.3 – The appearance of the PTT MD 15.
15

Expert Electronics SunSDR2 PRO transceiver
The PTT diagram consists of the dynamic microphone and the minimum amount of details. It includes
the button PTT which moves the transceiver in transmit mode.
Figure 6.4 – Pin description of the dynamic microphone connector
Figure 6.5 – Pin description of MIC2 connector and the direction of numbering. View from front of
connector.
6.4 PTT footswitch cable pino t
The PTT footswitch is intended for switching the SunSDR2 PRO transceiver into transmit mode. Cable
pinout is given at figure 6.6, appearance – figure 6.7.
16

Expert Electronics SunSDR2 PRO transceiver
Figure 6.6 – Cable pinout for connecting the PTT footswitch
Figure 6.7 – PTT footswitch appearance
6.5 CW-keyer connector pino t
Different CW keyers have different connectors, the cable for it should be produced individually. JACKs
6,5 mm are also used for connection to PC. The CW key jack pinout is provided at the figure 6.9.
Figure 6.9 – CW keyer connector pinout
6.5.1 Changing of CW Paddle Polarity
Use BreakIn drop down menu: Iambic/Reverse paddle. Normal and reverse polarity can be selected as
well as Iambic.
17

Expert Electronics SunSDR2 PRO transceiver
7. Reg latory req irements
We Expert Electronics LLC. C
6 ”V” Lesnaya Birzha St., Taganrog,
Rostov Region, Russian Federation, 347900
declare that S nSDR2 PRO transceiver has been tested in accordance to essential protection requirements of the
R&TTE Directive 1999/5/EC on the approximation of the laws of the Member States relating to Radio Spectrum
Matters and found the rest results indeed meet the limitation of the relevant test standard(s) listed below:
EMC
EN 301 489 1: V 1.9.2 (2011)
EN 301 489 15: V 1.2.1 (2002)
Radio Spectrum
EN 301 783 1: V 1.2.1 (2010)
EN 301 783 2: V 1.2.1 (2010)
Type of Equipment: Base Station
Equipment Class: B
The system is to be operated in accordance with the laws of the telecommunications regulatory agency in the
country of use. A license is required to use this equipment, and the operator must comply with the national
frequency allocations for the county of use.
Testing Company: Worldwide Testing Service (Taiwan) Co., Ltd.
Place of issue: 6F, NO.58, LANE 188, RUEY KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C.
Date of testing: August 14, 2015
Person Responsible: Rex Kao (Signature on file)
RoHS Directive
Expert Electronics LLC confirms that we place on the market products sourced from suppliers who have confirmed
that their products are RoHS compliant. Expert Electronics LLC declares that this equipment complies with the
restriction of the use of certain hazardous substances in electrical and electronic equipment.
Waste Disposal
The device may not be disposed of with household waste! This device complies with EU Directive on Electronic
and electrical equipment (WEEE regulation) and will therefore not be disposed of with household waste. Dispose of
the device to your local collection points for electronic equipment!
18

Expert Electronics
2015
© Copyright 2015, Expert Electronics LLC. All Rights Reserved.
DUC DDC SDR Series, SunSDR2 PRO Transceiver. Specifications are subject to change without
notice or obligation and specifications are only guaranteed within the amateur radio bands.
V1.1 - 28.10.2015
www.eesdr.com
