Extel Umii XC500 User manual

The tools and screws required for the installation must be in good condition and compliant with applicable safety standards. Please use screws compatible with
the bracket to which the motors will be attached (e.g. anchoring studs, threaded rod with chemical seal, etc.).
ø6mm
Thank you for purchasing an EXTEL automatic gate opener.
This document is a quick start guide detailing the main installation steps as well as the equipment required. To perform the installation, please
download the installation manual at the following address: www.avidsen.com
Warning: The safety instructions and installation instructions can be found in the installation manual. Follow all these instructions, as an
incorrect installation can cause serious injuries.
V1
Ref. 761004
EN
124 V geared motor
250cm rack and screws
3Flashing light and screws
4Remote control
5Release key
6Photocells and their screws
7Disengagement label
8 Accessory for solar kit
9Installation template
10 Backup fuses
1x 1 3x 1 3x 2 3x 2 2x 8 2x 12 2x 12 4x 2 5x 2
6x 1 6x 6 6x 6 6x 4 7x 1 9x 1 8x 1 10 x 2
XC500
ELECTRIC GATE
OPENER KIT
For sliding gates
¡[
[ [
¡[ ¡
3m cable
2 x 0.5mm2
8m cable
2 x 1.5mm2
10m cable
4 x 6/10
MotorFlashing light Photocells
1. DESCRIPTION
2. EQUIPMENT REQUIRED (NOT SUPPLIED)

Safety guidelines: Please refer to the installation manual for all safety instructions.
To perform the installation, please download the installation manual at the following address: www.avidsen.com

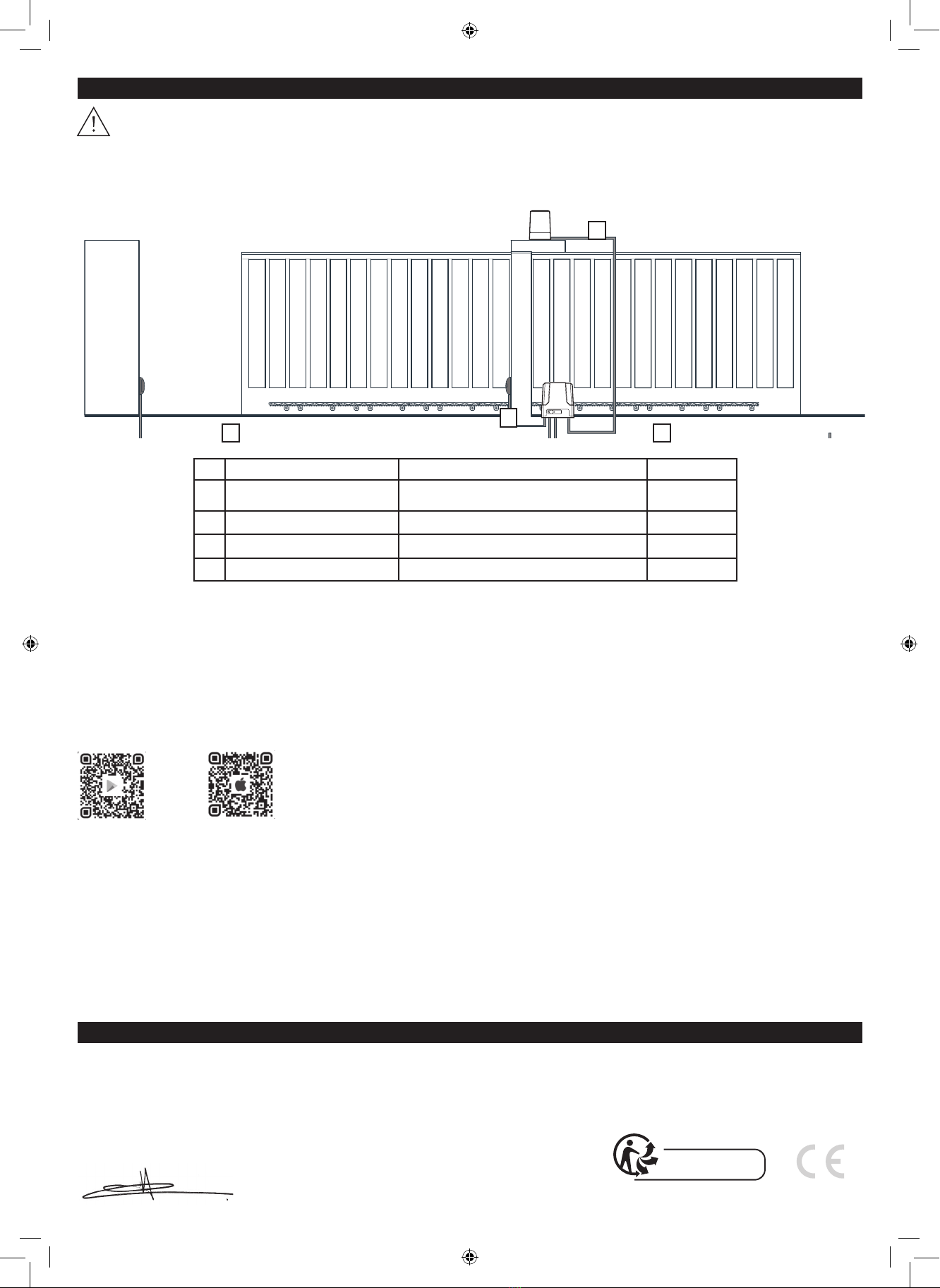

Overview:
The cables used must be appropriate for outdoor use (such as H07RN-F for example).
The cable run between the two posts must comply with applicable standards (NFC 15-100).
The table below contains our recommendations for the choice of cable type.
1
2
3
4
List of cables:
2-wire Cable Max length
1 230VAC power line Cable 3 x 2.5mm2 (more than 30m long)
Cable 3 x 1.5mm2 (less than 30m long) Unlimited
2 Flashing light Cable 2 x 0.5mm2 15m
3Transmission photocell (TX) 4-strand telephone cable 10m
4Reception photocell (RX) 4-strand telephone cable 10m
The installation is a 4-step process:
1. Installing the geared motor on a concrete bracket designed to support an electric gate opener. Installing racks, the flashing light and photocells.
2. Electrical connection:
- of the flashing light to the electronic card. This is mandatory from the time that the gate is installed at the roadside.
- of the photocells to the electronic card
- of the transformer to the mains. This connection must be performed by qualified personnel (electrician, etc.).
- of optional products such as a videophone, a keypad or a backup battery.
3. Settings and operation:
Getting started from the EXTEL UMII application
Download the app to your smartphone:
Warning: Only switch on the geared motor once all connections have been made.
Register on the EXTEL UMII app and add your motor (the blue light on the motor should flash, if it doesn’t, perform a reset). Then follow the steps for a faster
setup.
Advanced settings can be configured in the app. Please refer to the manual for more information.
Getting started from the electronic card "in manual mode"
- Initiate the self-learning process: Press the button 3 times. The orange light will flash whilst the motor sweep learning process is in progress.
Add a remote control: Press the button once. The green light will flashes until the remote control is paired. Press the button at the top left of the remote control to
pair it with the motor.
Reset: Press and hold the button for 8 seconds. The light will flash purple 5 times to confirm that the reset is complete. The light will flash blue again to indicate
that you can add the motor to the app.
4. Operational testing: To familiarise yourself with the automatism and ensure it operates properly, read the chapter on usage and conduct operational tests (open/
close, initiate obstacle detection, cut the photocell beam). Upon completion of these tests, you may have to modify certain settings (e.g. motor power) and redo
the self-learning.
avidsen declares that the equipment complies with the essential applicable requirements of RED Directive 2014/53/EU.
Directive 2014/35/EU: (protection of users’ health and safety)
Directive 2014/30/EU: (protection requirements relating to electromagnetic compatibility).
Directive 2014/53/EU: (efficient use of the radio spectrum, in order to avoid harmful interference).
The full declaration of compliance is available on the website www.avidsen.com
IN Tours, 15/06/2023
Alexandre Chaverot, CEO Pour en savoir plus :
www.quefairedemesdechets.fr
Avidsen
19 avenue Marcel Dassault - ZAC des Deux Lions - 37200 Tours - France
3. INSTALLATION
4 - EU DECLARATION OF CONFORMITY
