FabiaTech Fanless Series User manual

Copyright
Copyright © 2014 FabiaTech Corporation, The content of this publication may not
be reproduced in any part or as a whole, transcribed, stored in a retrieval system,
translated into any language, or transcribed in any form or by any means,
electronic, mechanical, and magnetic… or otherwise without the prior written
permission of FabiaTech Corporation.
Disclaimer
FabiaTech makes no representation of warranties with respect to the contents of
this publication. In an effort to continuously improve the product and add features,
FabiaTech reserves the right to revise the publication or change specifications
contained in it from time to time without prior notice of any kind from time to time.
FabiaTech shall not be reliable for technical or editorial errors or omissions, which
may occur in this document. FabiaTech shall not be reliable for any indirect,
special, incidental or consequential damages resulting from the furnishing,
performance, or use of this document.
Trademarks
Trademarks, brand names and products names mentioned in this publication are
used for identification purpose only and are the properties of their respective
owners.
Technical Support
If you have problems or difficulties in using the system or setting up the relevant
devices, and software that are not explained in this manual, please contact our
Returning Your Board for Service & Technical Support
If your board requires servicing, contact the dealer from whom you purchased the
product for service information. You can help assure efficient servicing of your
product by following these guidelines:
A list of your name, address, telephone, facsimile number, or email address
where you may be reached during the day
Description of you peripheral attachments
Description of your software (operating system, version, application
software, etc.) and BIOS configuration
Description of the symptoms (Extract wording any message)
For updated BIOS, drivers, manuals, or product information, please visit us at
www.fabiatech.com
ii

Table of Contents
FX5637/S1/S2 User’ Manual ..............................................................................................i
Chapter 1 Introducing the FX5637 System ............................................................................... 1
Overview..................................................................................................................................1
Series Comparison Table.......................................................................................................2
Layout.......................................................................................................................................3
Specifications..........................................................................................................................6
Packing List..............................................................................................................................7
Chapter 2 Hardware Installation ............................................................................................... 9
Before Installation...................................................................................................................9
To install Hardware- remove the bottom cover...........................................10
LED Indicators (On the Front Panel)...............................................................20
I/O Peripheral Connectors ..............................................................................20
Connecting the DC Power and Power Button ............................................24
Internal Connector and Jumper Setting.......................................................25
Chapter 3 BIOS Setup............................................................................................................... 27
Overview................................................................................................................................27
Boot Manager Setup........................................................................................28
Device Manager Setup ...................................................................................29
SCU Setup...........................................................................................................33
Keyboard Convention ..............................................................................................34
Main Setup ............................................................................................................................35
Advanced Setup..................................................................................................................36
Boot Configuration...........................................................................................37
Peripheral Configuration .................................................................................38
SATA Configuration...........................................................................................39
Video Configuration.........................................................................................41
USB Configuration.............................................................................................44
Chipset Configuration......................................................................................46
Console Redirection Setup..............................................................................48
Chipset PCIE Controller....................................................................................51
Security setup........................................................................................................................52
iii

iv
Power Setup..........................................................................................................................54
Advanced CPU Controller ..............................................................................55
Boot Setup.............................................................................................................................60
Legacy > Boot Device Priority.........................................................................62
Chapter 4 Software Installation ............................................................................................... 63
System Driver.........................................................................................................................63
Windows 7/8/8.1 X86/X64- System Driver ...............................................................63
VGA Driver.............................................................................................................................64
WIN7/8/8.1 X86/X64 Driver........................................................................................64
USB Driver...............................................................................................................................64
WIN7 X86/X64 Driver ..................................................................................................64
Audio Driver...........................................................................................................................65
WIN7/8/8.1 X86/X64 Driver........................................................................................65
LAN Driver (Intel I210AT).......................................................................................................65
WIN7/8 X86/X64 Driver...............................................................................................65
BIOS Flash Utility.....................................................................................................................65
Watchdog Timer...................................................................................................................66
Watchdog Timer Setting...........................................................................................67
Watchdog Timer Enabled ........................................................................................68
Watchdog Timer Trigger ...........................................................................................68
Watchdog Timer Disabled........................................................................................69
TTL I/O (DI-0/DI-1, DO-0/DO-1) programming..................................................................70
Chapter 5 Technical Reference .............................................................................................. 73
Technical Reference............................................................................................................73
Physical and Environmental.....................................................................................73
I/O Port Address Map................................................................................................74
Interrupt Request Lines (IRQ)....................................................................................75
Serial Ports ...................................................................................................................76
Appendix................................................................................................................................... 80
Dimension..............................................................................................................................80

FabiaTech Corporation
Chapter1IntroducingtheFX5637System
Overview
The FX5637x is an embedded system with Intel® Core™ i7/i5/i3 (HASWELL) CPU
module inside. This user’s manual provides information on the physical features,
installation, and BIOS setup of the FX5637 series.
Built to unleash the total potential of the 4th generation Intel® Core™ i7/i5/i3
Processor, Able to support 1.6 GHz ~ 2.4 GHz CPU, this system supports two
10/100/1000M Base –TX LAN ports, two PCIE Mini Card connector for Wireless/GPRS
modules, two SATA 6 Gb/s ports (One for CFAST, and other one for SATA SSD or
Hard disk), four USB 2.0 and two USB 3.0 ports, Audio, GPIO, one So-DIMM socket
supports up to 8GB DDR3L RAM, free expansion slot for expansion PCI (32bit) or
PCIE cards, and HD/DP/ VGA display ports.
Each FX5637x has four ports for I/O communications. Two RS-232C ports and two
RS232/RS422/RS485 port are available.
The FX5637x is perfect for ATM machines, KIOSK, point-of-sales/point-of- information,
gaming and infotainment, measurement technology, lotteries, banking and Thin
Client and Embedded Control.
1

FabiaTech Corporation
2
SeriesComparisonTable
Note: OPI (Optional Item)
Model FX5637
-i3/-i5 FX5637S1
S1-i3/S1-i5 FX5637S2
S2-i3/S2-i5
Intel ®Processor i7-4700EQ™ i3 -4102E™ i5-4422E™
Clock Speed 2.4GHz 1.6GHz 1.8GHz
Smart Cache 6M 3M 3M
Intel® Turbo Boost
Technology2.0:
3.4 GHz - 2.9 GHz
Memory
204 Pin-DIMM*1(Max.) DDR3L/1600/1.35V
8GB
Graphics Display CRT, DP, HD (Intel HD4600)
Chipset QM87
Storage Space One CFAST CF and One SATA
USB Two USB (3.0) and four USB(2.0) ports
Audio Ear-Phone And MIC-In
RJ45 LAN port Two Intel I210
PCIE Mini Card Two Socket
Multi I/O Two RS-232 and
Two RS232/RS422/RS485
GPIO 2 In/ 2Out
Watchdog Timer Yes
Half size mini PCIE
Module Adapter kits
(OPI)
AK1006
PN:0606010028G
Wall Mounting Kit
(OPI) FX5636K1
P/N:0606010027G
Fixed DDR3-RAM
Anti- Vibration kit (OPI) FX5637K1
P/N:0606010033R
One PCI & PCIE
Riser Card Kit (OPI) -
- FB4745
P/N: 0120010004R
One/Two PCI Bus
Riser Card Kit (OPI) - FB4705
P/N:0153000001G
FB4730
P/N: 0153010001G
One/Two PCIE Bus
Riser Card Kit (OPI) - FB4744
P/N: 0120010003R
FB4756
P/N: 0153010006G
Fixed PCI(e) Interface
Card Kit (OPI) - FX5637K2
P/N:0606010034G
FX5637K3
P/N: 0606010035G
Operating
Temperature -20~+50℃(-4 ~122℉)
Dimensions (Unit: mm)
W X D X H 210 x 252 X 77.2 210 x 252 X 99.2
210 x 252 X 120.2

FabiaTech Corporation
Specifications
Processor Board –
4th Generation Intel® Core™ i3/i5/i7 Processor (3M/6M Cache, Speed 1.6
GHz to 2.4 GHz (Intel® Turbo Boost Technology up 2.9Hz to 3.4GHz)) with
8GB DDR3L-RAM
I/O Outlets –
Two 10/100/1000 Base-T Ethernet LAN ports with RJ45
Two USB 3.0 (front side) and four USB 2.0 (rear side) ports
Two RS-232 and two RS232/422/485 ports with DB9
Supports VGA, HD, DP display ports
Two audio connectors for Earphone, and Microphone-in
Two-In and two-out GPIO with terminal block
Two PCIE Mini card socket modules, especially for WLAN/GPRS module
One DC-In jack connector/terminal block with power push button switches
LED Indicator –
One power LED, One HD/CFAST access LED, and two LAN-Link LED
Storage Bay-
CFAST Compact Flash socket for CFAST Compact Flash modules
One 2.5" SATA hard disk space
Power requirement –
+12 ~ +24V DC, 3.35A maximum (2.42A typical) with 19V input voltage
Dimensions -
FX5637/i3/I5 - 210mm (W) x 252mm (D) x 77.2mm (H)
FX5637S1/S1-i3/S1-i5 - 210mm (W) x 252mm (D) x 99.2mm (H)
FX5637S2/S2-i3/S2-i5 - 210mm (W) x 252mm (D) x 120.2mm (H)
6

FabiaTech Corporation
PackingList
Upon receiving the package, verify the following things. Should any of the
mentioned happens, contact us for immediate service.
•Unpack and inspect the FX5637 package for possible damage that may
occur during the delivery process.
•Verify the accessories in the package according to the packing list and see
if there is anything missing or incorrect package is included.
•If the cable(s) you use to install the FX5637 is not supplied from us, please
make sure the specification of the cable(s) is compatible with the FX5637
system.
Note: after you install the FX5637, it is recommended that you keep the diskette or
CD that contains drivers and document files, and keep the document
copies, or unused cables in the carton for future use.
The following lists the accessories that may be included in your FX5637 package.
Some accessories are optional items that are only shipped upon order.
•One FX5637x embedded system.
•One AC to DC power adapter and 1 AC power cord.
•One pack of 2.5” SATA hard disk installation kit with fixed screws.
•One 3-pin apartable terminal block. (For Power Source)
•One 6-pin apartable terminal block. (For GPIO)
•One compact disc includes software utility and manual.
Optional Items for All FX5637x:
•AK1006- Half size mini PCIE module adapter kits. (PN: 0606010028G)
•FX5636K1- Wall mounting Kit (P/N: 0606010027G)
•FX5637K1- Fixed DDR3L-RAM Anti- Vibration kit (P/N: 0606010033R)
Optional Items for FX5637S1:
•FB4705- 1 Slot (32bit) PCI riser card. (PN: 0153000001G)
•FB4744- 1 Slot PCIE riser card. (PN: 0120010003R)
•FX5637K2- Add On Card kit for PCI/PCIE Interface Card (P/N: 0606010034G)
7

FabiaTech Corporation
Optional Items for FX5637S2:
•FB4730- 2 Slot (32bit) PCI riser card. (PN: 0153010001G)
•FB4745- 1 Slot 32bit PCI + 1 slot PCIE riser card. (PN: 0120010004R)
•FB4756- 2 Slot 32bit PCIE riser card. (PN: 0153010006G)
•FX5637K3- Add On Card kit for PCI + PCIE Interface Card (P/N: 0606010035G)
8

FabiaTech Corporation
Chapter2HardwareInstallation
This chapter introduces the system connectors & jumper settings, and guides you to
apply them for field application.
BeforeInstallation
Before you install the system, make sure you follow the following descriptions.
1. Before removing the cover, shut down the operation System and disconnect
power switch to off and unplug AC-to DC Adapter cable.
2. Install or unplug any connector, CFAST Compact Flash, and hard disk be sure
that the power is disconnected or power switch to off from the system. If not,
this may damage the system.
3. The ESD (Electricity Static Discharge) may be created from human body that
touches the board. It may do damage to the board circuit.
9

FabiaTech Corporation
To install Hardware- remove the bottom cover
If you are installing following hardware items, you can remove the bottom cover.
They include SATA 2.5" HDD inside, mini PCIE WLAN or GPRS module, PCI or PCIE
Riser card kit, PCI or PCIE expansion card and DDR3L-RAM module to the FX5637.
(Please see the spots circled.)
a. Unscrew Bottom cover
a1.FX5637- Use a cross-head screwdriver to remove ten screws that secure the
bottom cover.
10

FabiaTech Corporation
a2.FX5637S1- Use a cross-head screwdriver to remove ten screws that secure the
bottom cover.
a3.FX5637S2- Use a cross-head screwdriver to remove fourteen screws that
secure the bottom cover.
11

FabiaTech Corporation

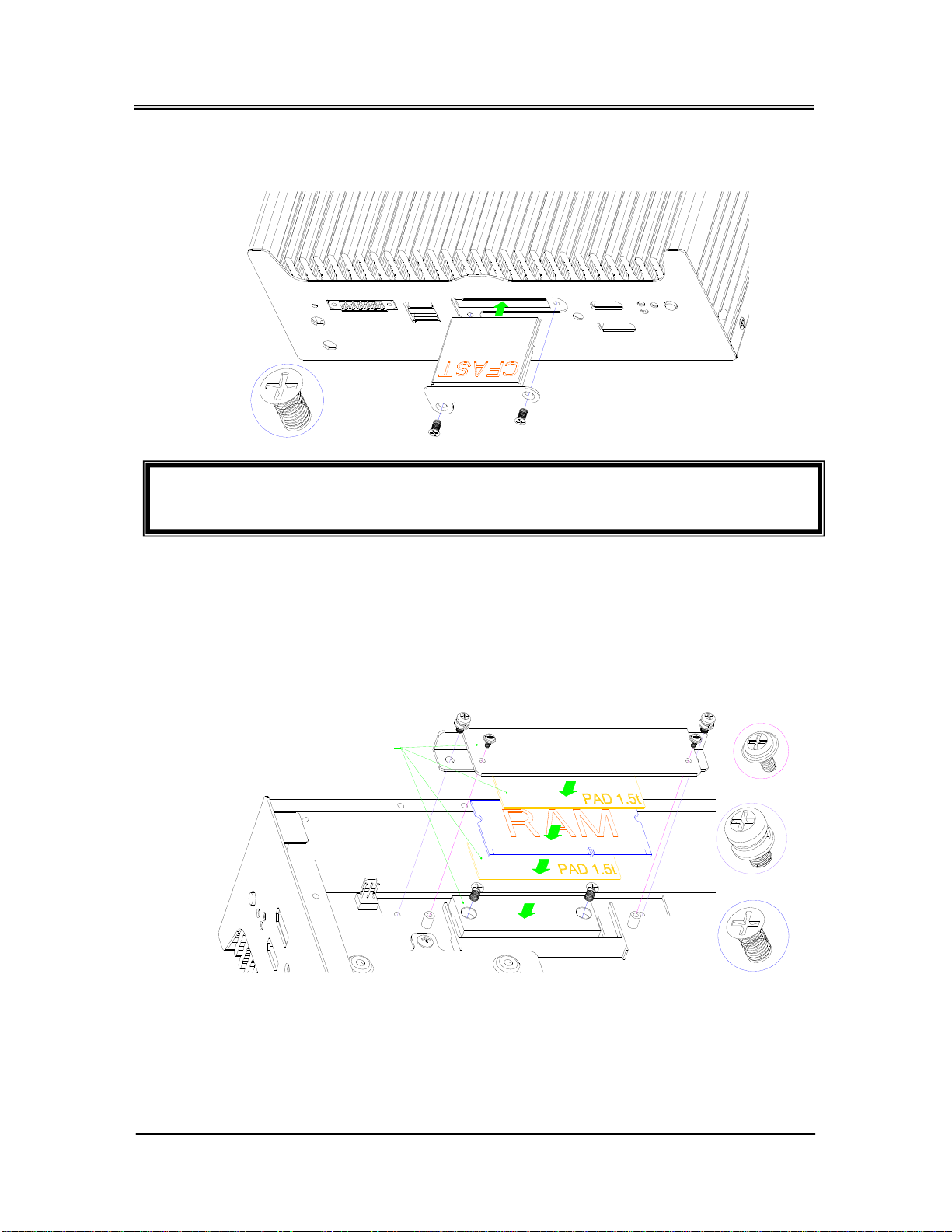

b. Installing CFAST Compact Flash
Note: The CFAST Compact Flash socket supports CFAST Compact Flash Modules.
c. Installing FX5637K1 Anti-Vibration kit (Option) – Fixed DDR3L RAM Module
If you may extend additional fixed thermal pad and heat sink with 6 screws on
FX5637, See as following figure. The 204 pin So-DIMM socket supports 2GB to 8GB
(Max. 8GB) DDR3L RAM module.
FX5637K1 (OPTION)
12

FabiaTech Corporation

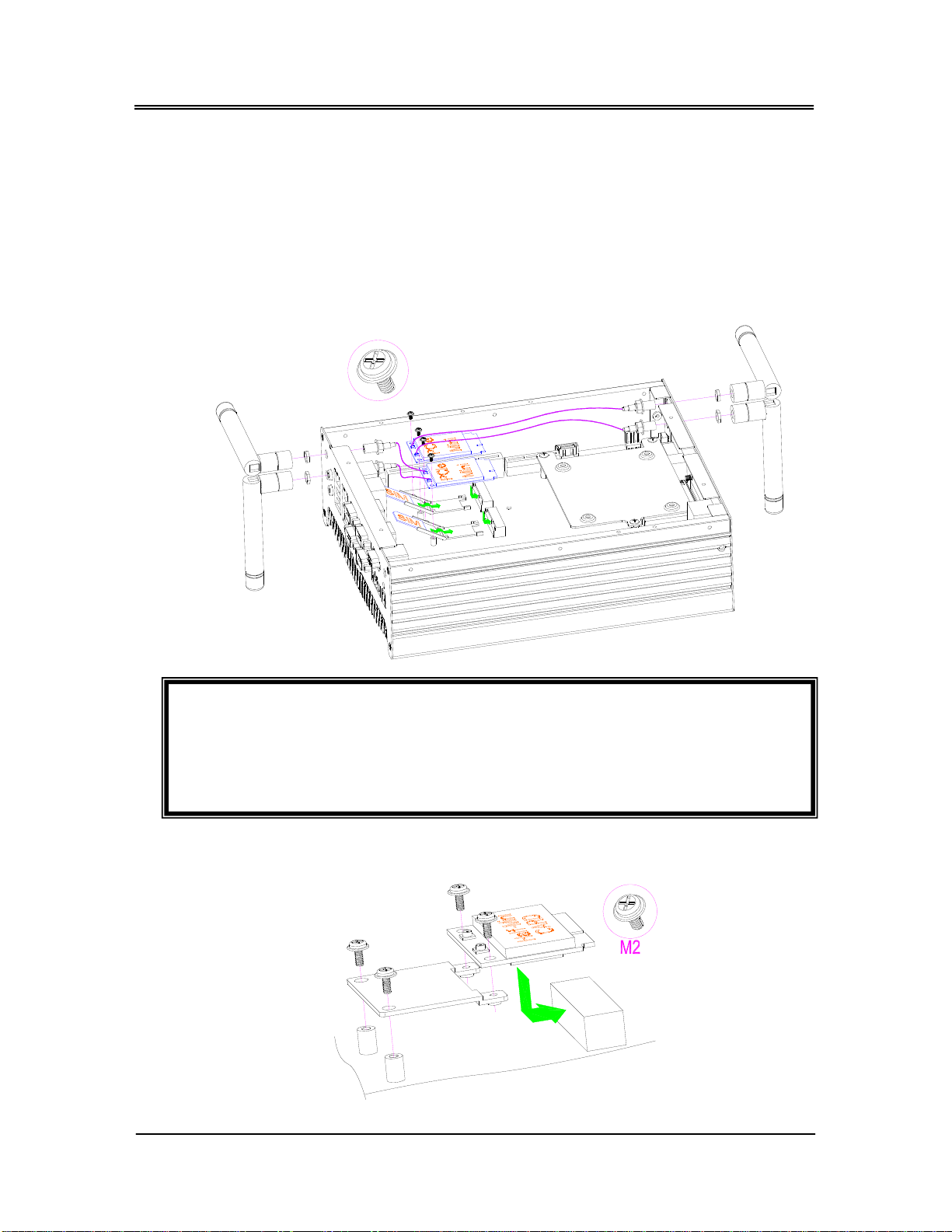

d. Installing PCIE Mini Card Module
FX5637 supports 2 PCIE mini card sockets; you may extend additional PCIE mini
card module and SIM card to system. Connect to the antenna cable from front
and rear side antenna holes to GPRS or Wireless LAN module and install the SIM
card for GPRS. See following figures.
d1. Installing PCIE Mini Card and SIM card
Note: 1. To install PCIe GPRS Mini card on FX5637 system, it needs to install the
SIM Card to system board.
2. Open the cover with SIM socket then insert SIM card into the SIM card
hold. Make sure that the SIM card is properly inserted and that golden
contact area on the card is facing downwards.
d2. Installing AK1006 kit (Optional) - for Half Size Mini PCIE module
13

FabiaTech Corporation

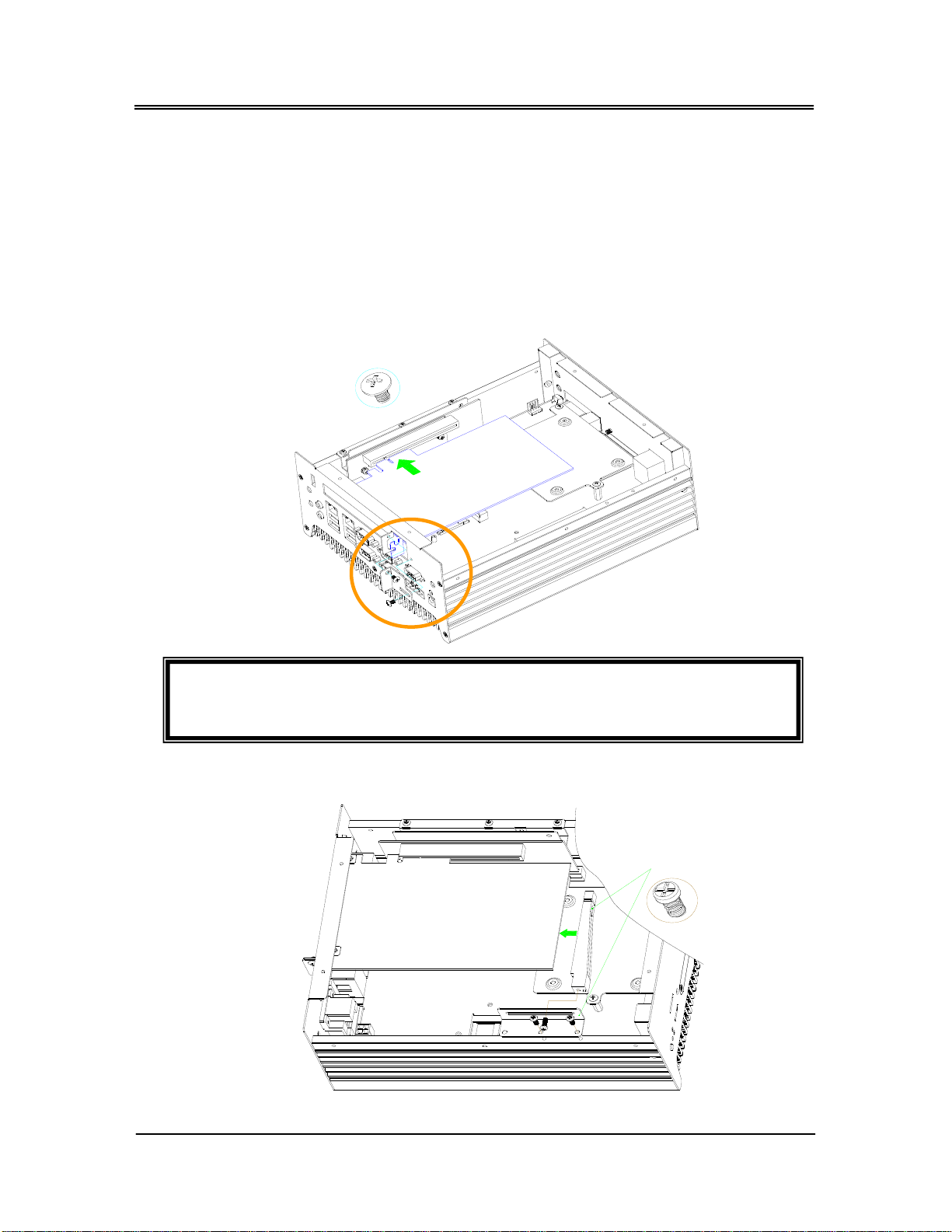

e. Installing Hard Disk
Screw up the Hard disk device to HDD metal frame and connect the SATA HDD
cable and power cable. See following figures.
CN4
CN8
Note: Be careful with the pin orientation when installing connectors and the
cables.CN8 is used to connect a SATA 2.5" HDD including SATA cable,
CN4 is for SATA power connector.
14

FabiaTech Corporation
15
f. Installing PCI or PCIE Riser Card kit (Optional) - for Expansion Card
FX5637S1/S2 provides FB4705 kit- 1 slot PCI bus, FB4744 kit -1 slot PCIE bus, FB4745 kit-
1 slot PCI and 1 slot PCIE bus, FB4730 kit -2 slot PCI bus and FB4756 kit -2 slot PCIE bus.
If you are installing the riser card kit and aux. power cable for Expansion PCIE
hardware, you can remove the bottom cover.The following figure will guide you
how to install riser card kit inside the FX5637S1/S2., See following figures.
f1. Installing FB4705 or FB4744 kit- PCI or PCIE Riser Card
CN9
RISER CARD (OPTION)
f2.Installing FB4730, FB4745, or FB4756- 2PCI, 2PCIE or PCI+PCIE Riser Card
CN9
RISER CARD (OPTION)
Note: 1. If the expansion card +12V current up to 2A, it need used the external
+12V power supply from external DC-IN +12V CARD input (+12V/8A Max).
2. The CN9 (2x2 Pin) connector can support +12V to FB4744/FB4745 Riser
card of CN1 connector with cable.

FabiaTech Corporation
16
g. To installing Expansion Card – PCI/PCIE Card
If you are installing Expansion PCI or PCIE hardware interface card, you can
remove the bottom side cover.The following figure will guide you how to install
PCI/PCIE interface card inside the FX5637 system and screw the L-Type Metal on
the PCI/PCIE card Bracket and expansion card holder. (Please see the spots
circled.)
g1. Installing PCI or PCIE Expansion Card- for FX5637S1
168mmREF(6.6inch)
PCIExpresshalf_lengthCARD
¾g1-1. Installing FX5637K2 Kit (Optional) - Expansion card holder
FX5637K2 (OPTION)
Note: 1. The PCI Slot supports +3.3V/+5V/+12V (1A)/-12V (500mA).
2. The PCIE bus supports x1/x2/x4 lanes via PCIE X16 slot.
Other manuals for Fanless Series
8
This manual suits for next models
3
Table of contents
Other FabiaTech Desktop manuals

FabiaTech
FabiaTech FX5632 Series User manual

FabiaTech
FabiaTech FX5634 Fanless Series User manual

FabiaTech
FabiaTech FX5612 User manual

FabiaTech
FabiaTech FX5503 User manual

FabiaTech
FabiaTech FX5327 User manual

FabiaTech
FabiaTech Fanless Series FX5403 User manual

FabiaTech
FabiaTech FX5653 User manual

FabiaTech
FabiaTech FX5502 User manual

FabiaTech
FabiaTech FX5201 User manual

FabiaTech
FabiaTech FX5654 User manual
