FabiaTech Corporation
1
Chapter1IntroducingtheFX5612System
Overview
The FX5612 is an embedded system with low-power CPU module inside. This user’s
manual provides information on the physical features, installation, and BIOS setup
of the FX5612.
Built to unleash the total potential of the Celeron-M or Pentium-M Processor, Able
to support 600MHz ~ 1.4GHz CPUs, this system supports two 10/100/1000M Base –TX
LAN ports, 256MB SDRAM on board, mini PCI socket for wireless LAN, Four USB2.0
ports, and a VGA controller.
Each FX5612 has one port for I/O communications. Two RS-232C ports are available.
The FX5612 is perfect for ATM machines, KIOSK, point-of-sales/point-of- information,
gaming and infotainment, measurement technology, lotteries, banking and Thin
Client and small Embedded Control. The unit is only 178.0mm (D) X249.0mm (W)
X72mm (H).

FabiaTech Corporation
2
SeriesComparisonTable
Model FX5612 FX5612A
Processor Intel Celeron-M
600MHz Intel Pentium-M 1.4GHz
1 184 Pin-DIMM (Max.) 256MB/1GB 512MB/1GB
Chipset 855GME+ICH4
CRT VGA Yes
Watchdog Timer Yes
Multi I/O Two Serial and One Parallel
Enhanced IDE or CF One
USB 2.0 Four
Audio Line -Out And MIC-In
RJ45 WAN port
(100/1000Mbps) Two
Mini-PCI Socket One
Dimensions (Unit: mm) 178(D) x 249(W) X 72(H)

FabiaTech Corporation
3
Layout
POWER
HDD LAN1
LAN2
DC12~24V
1 2
KB PRT
COM1
MOUSE VGA
COM2 Antenna
LAN
LINE OUT
USB
MIC
POWER BUTTON
RESET
HDD
CF
FX5612

FabiaTech Corporation
4
Specifications
 Processor Board –
Celeron-M 600MHz or Pentium-M 1.4GHz CPU with 256MB SDRAM.
 I/O Outlets –
Two 100/1000 base-TX Ethernet LAN ports.
Two RS-232 ports with DB9 and One parallel port with DB25 port.
One CRT and one PS/2 compatible keyboard and mouse interfaces.
Four USB ports (V2.0).
One Audio Line-Out and Microphone-Input
One Mini PCI Socket for Wireless LAN module.
One DC-In plug connector with power switch.
One Push button reset switch.
One power LED, One HDD/CF access LED, and Six status LED’s.
 Storage Bay-
One Compact Flash slot with plug-in aperture and cover,
One 2.5" hard disk space.
 Power requirement –
FX5612:+12~+24V DC, 27VA minimum with 2.5” HDD and 19V input
Voltage.
FX5612:A+12~+24V DC, 36VA minimum with 2.5” HDD and 19V input
Voltage.
 Dimensions -
178.0mm(D) x 249.0mm(W) x 72.0mm(H)

FabiaTech Corporation
5
PackingList
Upon receiving the package, verify the following things. Should any of the
mentioned happens, contact us for immediate service.
• Unpack and inspect the FX5612 package for possible damage that may
occur during the delivery process.
• Verify the accessories in the package according to the packing list and see
if there is anything missing or incorrect package is included.
• If the cable(s) you use to install the FX5612 is not supplied from us, please
make sure the specification of the cable(s) is compatible with the FX5612
system.
Note: after you install the FX5612, it is recommended that you keep the diskette or
CD that contains drivers and document files, and keep the document
copies, or unused cables in the carton for future use.
The following lists the accessories that may be included in your FX5612 package.
Some accessories are optional items that are only shipped upon order.
• One FX5612 embedded system.
• One AC to DC power adapter and 1 AC power code.
• One pack of 2.5” hard disk installation kit with fixed screws and 2-pin
apartable terminal block.
• One compact disc includes software utility.

FabiaTech Corporation
6
Chapter2HardwareInstallation
This chapter introduces the system connectors & jumper settings, and guides you to
apply them for field application.
BeforeInstallation
Before you install the system, make sure you follow the following descriptions.
1. Before removing the cover, shut down the operation System and disconnect
power switch to off and unplug AC-to DC Adapter cable.
2. Install or unplug any connector, Compact Flash, and hard disk be sure that the
power is disconnected or power switch to off from the system. If not, this may
damage the system.
3. The ESD (Electricity Static Discharge) may be created from human body that
touches the board. It may do damage to the board circuit.

FabiaTech Corporation
7
Note:Use caution when handling the hard disk to prevent damage to IDE
connector as you insert hard disk. Gently slide the hard disk into the IDE and stop
when you feel resistance.
 Installing/Ejecting 2.5” HDD

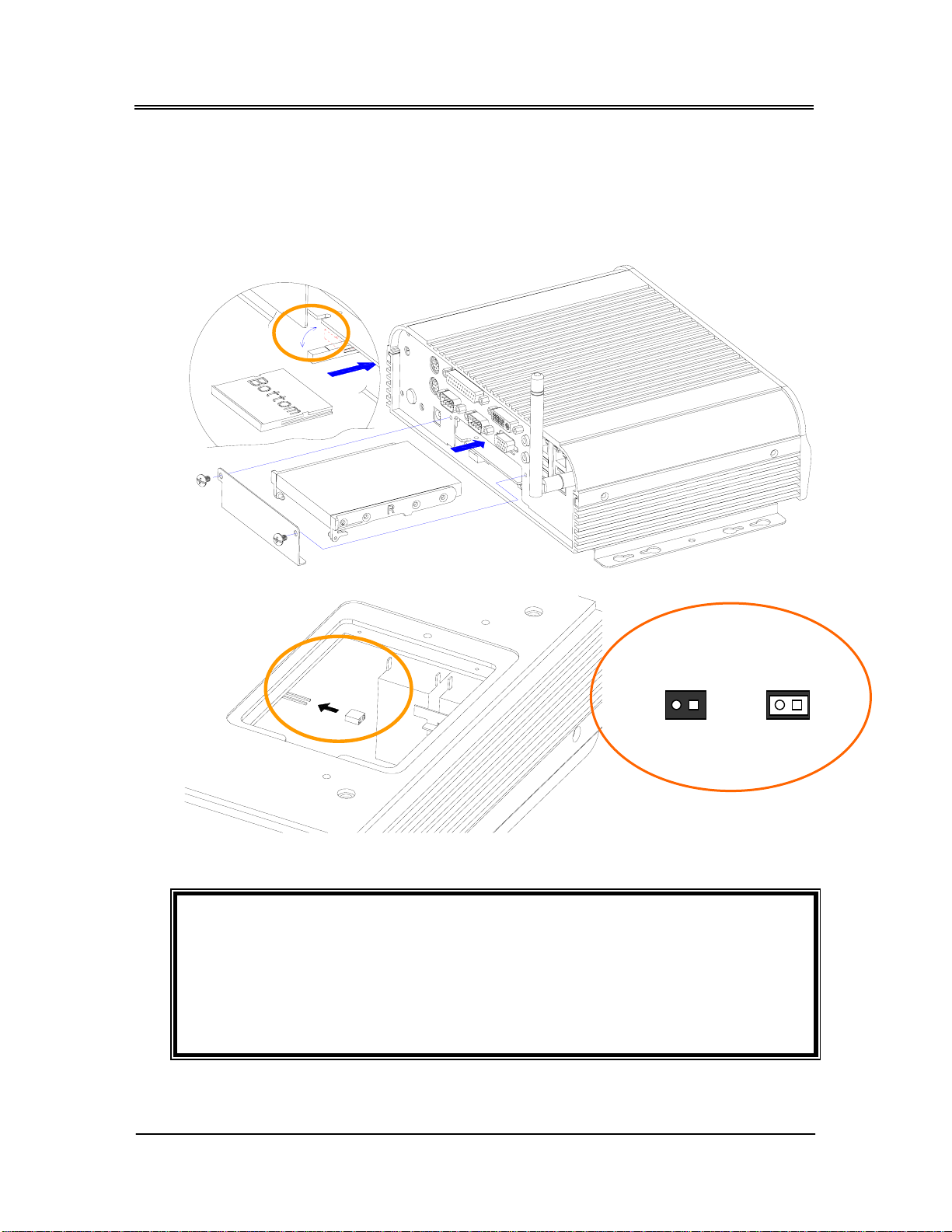

If you are installing hardware option, you can remove the back cover. The

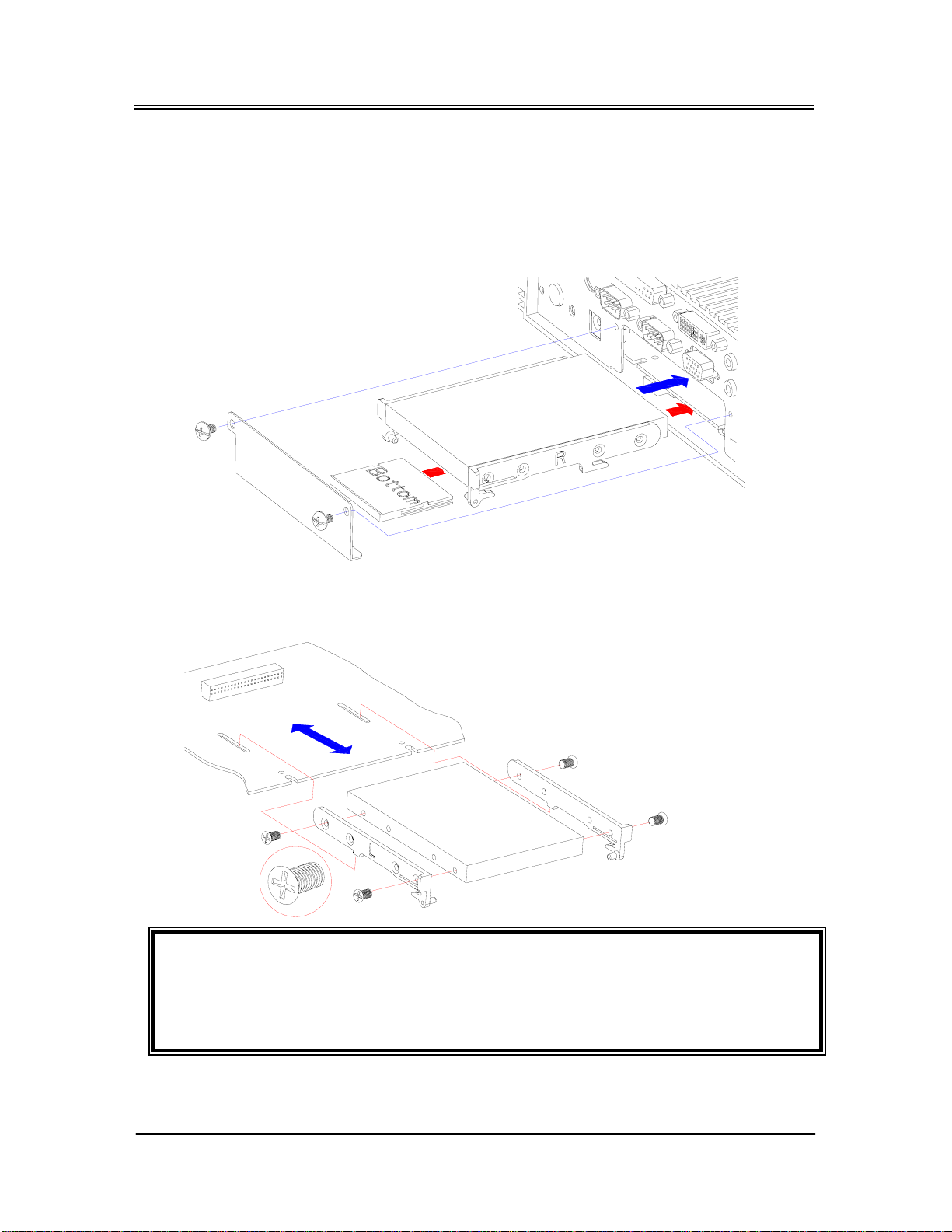

following figure will guide you how to install 2.5" HDD inside the FX5612 and how to
install the FX5612 fixers.
 Installing HDD
The following figure will guide you install fix support HDD and to inside the FX5612.
HDD

FabiaTech Corporation
8
 Installing Compact Flash

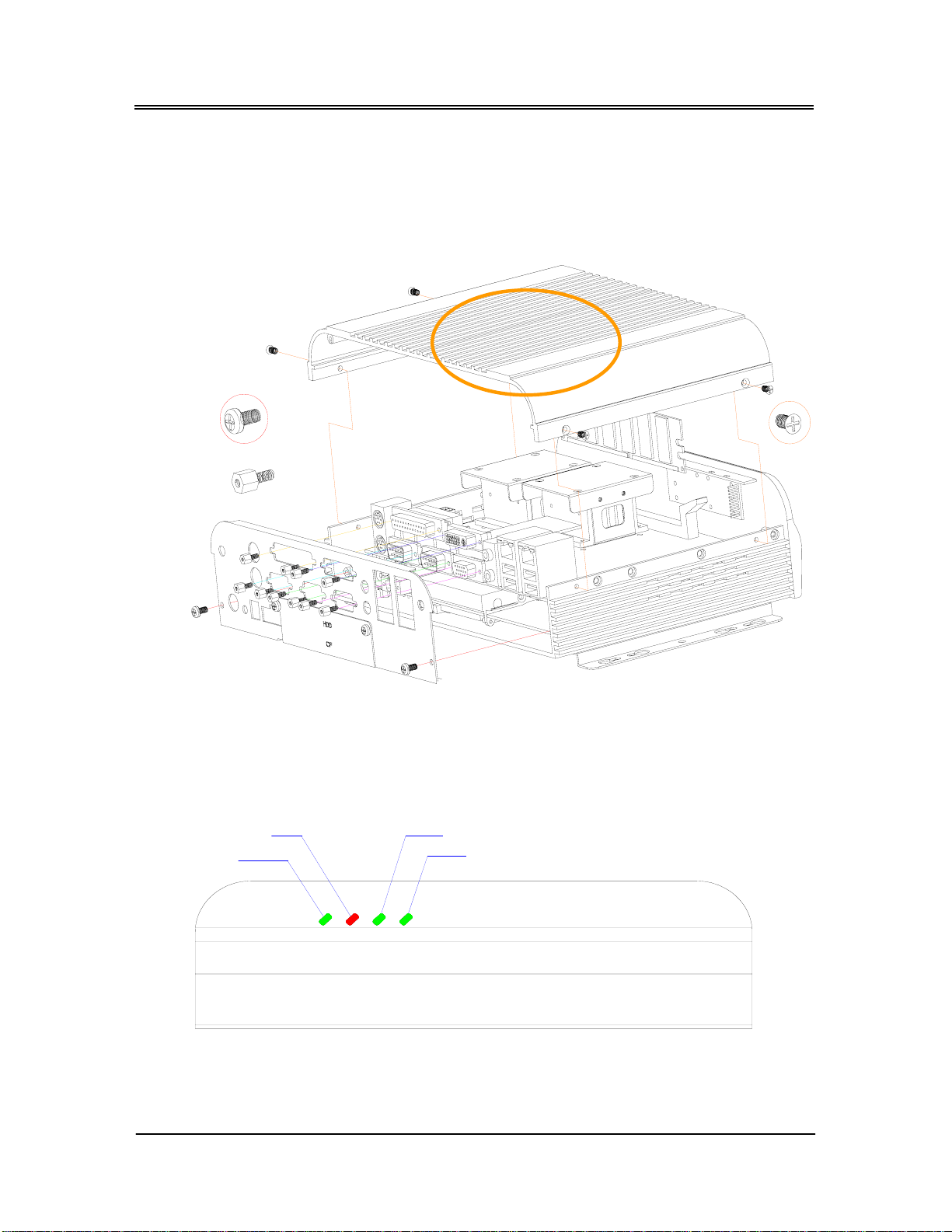

If you are installing Compact Flash modules you need to remove a backside
cover. It is necessary to bend the CF ejector outside before closing the cover.
(Please see the spots circled.)
1
2
Factory Preset
Open Close
Slave
1
2
Master or slave drives
select for Compact Flash
Note: Unscrew the screws when installing Compact Flash module.
The Compact Flash socket (on the FX5612) supports 3.3V Compact Flash
and Micro Drives. The Jumper is used to select master/slave device of this
socket. Be sure to avoid the same master/slave setting with which connects
to IDE connector, if you use CF and IDE hard disk simultaneously.

FabiaTech Corporation
9
 Ejecting HDD –Depend on Screwdriver
If you are removing HDD option, you can use I-type screwdriver or equivalent as
shown on right-down figure and push ahead to eject the hard disk with guiders
 Installing Mini PCI Card: Mini PCI Socket for WLAN Modules
You may extend additional mini PCI WLAN module to FX5612 by removing the
bottom cover. Connect the antenna cable from backside antenna hole to Mini
PCI WLAN (the auxiliary board). Release the screws on the bottom of the unit.
(Please see the spots circled.)

FabiaTech Corporation
10
 Installing Memory: DIMM Socket For DDR Modules
You may extend additional memory to FX5612 by removing the top cover, See as
following figure and rear pictures. The DIMM socket supports 128MB to 1GB of DDR
RAM modules.
 LED Indicators (On the Front Panel)
The Power and HDD LED’s has two distinctive status: Off for inactive operation and
blinking light for activity. And the 2 LED’s for LAN ports. The LAN1 and LAN2 LED’s
(Green) indicate on-line/access status of LAN1 and LAN2 respectively.
POWER
HDD LAN1
LAN2

FabiaTech Corporation
11
 Connecting the Monitor, Keyboard and Mouse
If you are connecting the monitor, keyboard, mouse to the FX5612 using the
connections provided on the side of the chassis. See following figure and a side
pictures.
1. A VGA connector is provided for CRT display
2. The down side connector (Purple) can attach standard PS/2 type keyboard and
up side (Green) can attached PS/2 mouse. Standard PS/2 keyboard and Mouse
can be plugged into this connector without any adapter cable.
 Connecting the COM ports and Parallel Port
The DB9 (COM1/2) is standard serials port connector. The following tables show
the signal connections of these connectors.
COM
DB-9 RS-232 Signal
1 -DCD
6 -DSR
2 RXD
7 -RTS
3 -TXD
8 -CTS
4 -DTR
9 -RI
5 Ground
Case Case Ground
KB /Mouse Description
1 -
2 Keyboard / Mouse Data
3 Ground
4 VCC
5 -
6 Keyboard/ Mouse Clock
DB15 Signal
1 Red
2 Green
3 Blue
13 Hsync
14 Vsync
12 DDC Data
15 DDC Clock
5 & 10 Digital Ground
6,7,8 Analog Ground
Others Not Used

FabiaTech Corporation
12
 The printer is standard DB25 connector.
 Connecting the L1/L2 LAN ports and USB Ports
The RJ45 connector with 2 LED’s for WAN/LAN. The left side LED (orange) indicates
data is being accessed and the right side LED (green) indicates on-line status. (On
indicates on-line and off indicates off-line)
The following lists the pin assignment of RJ45.
L1/L2
The FX5612 supports a four port USB connector. Any USB device can be attached to
USB ports with plug-and-play supported. The left side port is USB # 1/2 and the right side
port is USB # 3/4
DB-25 Description DB-25 Description
1 -STROBE 14 -AUTO FORM FEED
2 DATA 0 15 -ERROR
3 DATA 1 16 -INITIALIZE
4 DATA 2 17 -PRINTER SELECT IN
5 DATA 3 18 Ground
6 DATA 4 19 Ground
7 DATA 5 20 Ground
8 DATA 6 21 Ground
9 DATA 7 22 Ground
10 ACKNOWLEDGE 23 Ground
11 BUSY 24 Ground
12 PAPER 25 Ground
13 PRINTER SELECT -- No Used
LAN1/LAN2 Signal LAN1/LAN2 Signal
1 TPTX+ 5 TPTX1-
2 TPTX - 6 TPRX -
3 TPRX+ 7 TPRX1+
4 TPTX1+ 8 TPRX1-
USB#1~4 Signal
Pin 1 USBV
Pin 2 USBD-
Pin 3 USBD+
Pin 4 USBG
RJ45 connector
1
8
4
1

FabiaTech Corporation
13

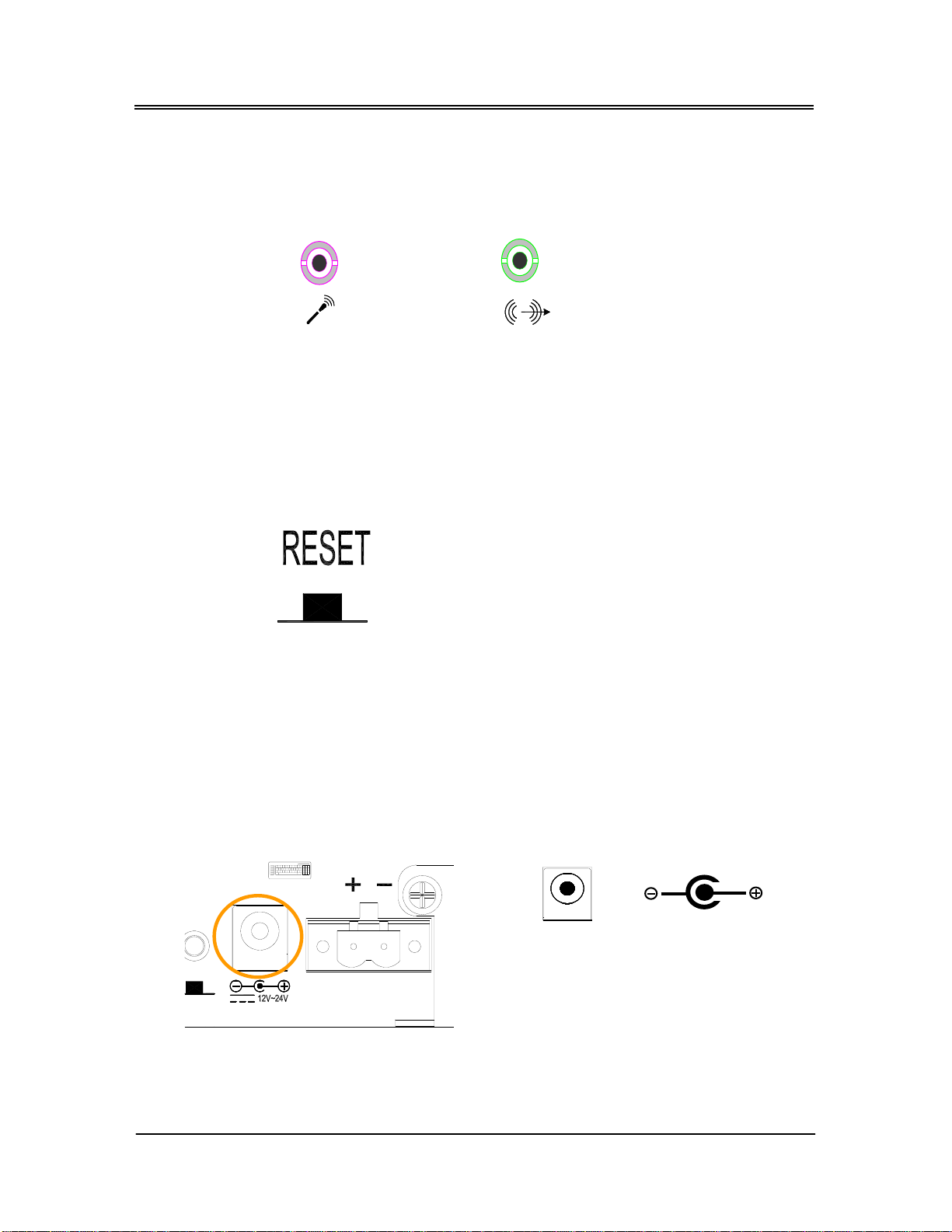

 Connecting the Audio Microphone In/ Speak Out
 Reset Push Button
The FX5612 has a push button switcher for system reset; Push and release the
button will cause hardware reset of FX5612 and restart system booting.
 Connecting the DC Power and Power Button
Power is supplied through an external AC/DC power adapter or power DC In.
Check the technical specification section for information about AC/DC power
input voltage. See following figure and a side pictures.
1. DC-Power Jack: Use External AC/DC power adapter
DC12~24V
Line-Out
Mic-In
FX5612:DC +10~+24V, 48VA minimum
FX5612A:+10~24V, 60VA minimum

FabiaTech Corporation
14

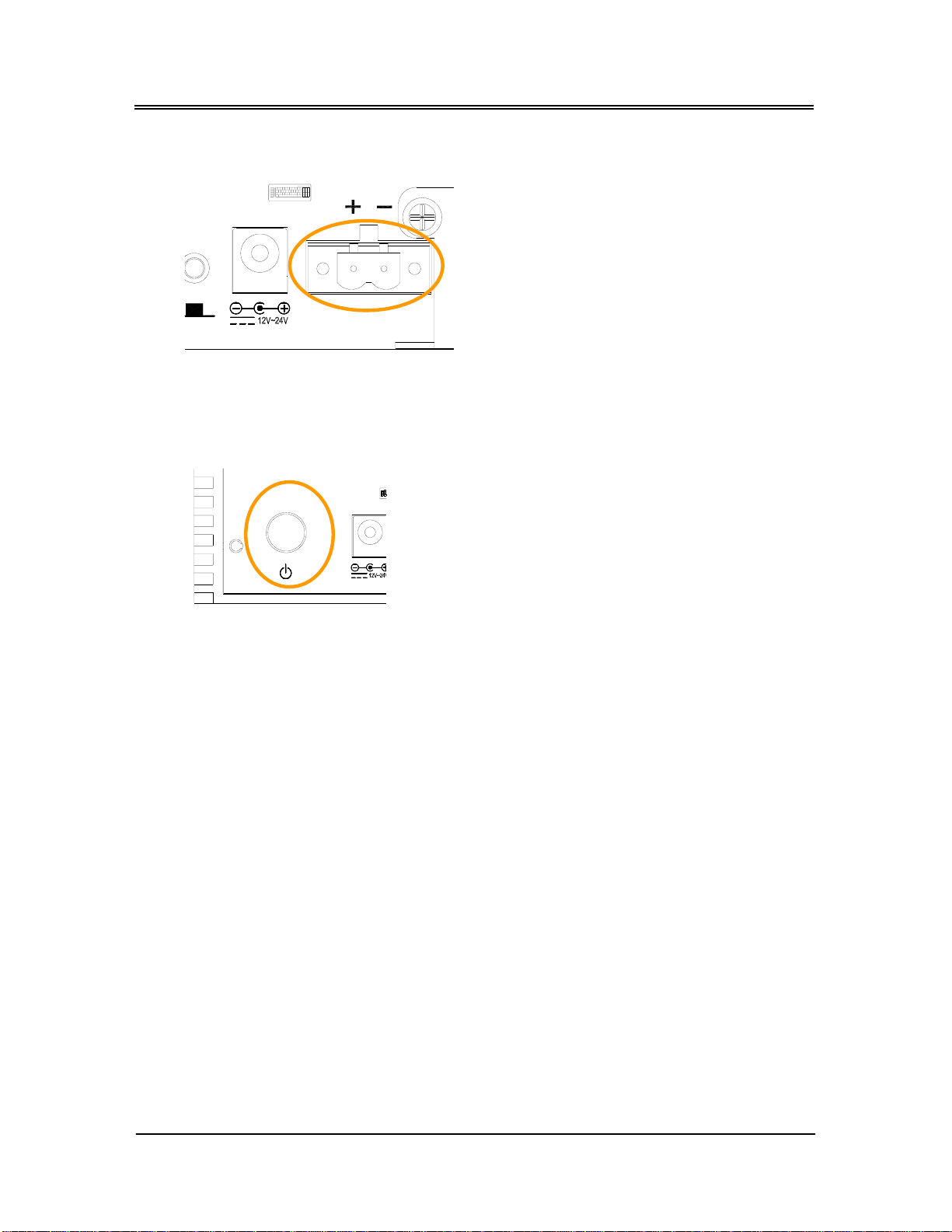

2. DC Power Connector: Use external 2-pin apartable terminal block.
DC12~24V
3. Power Button: Pushing the Power button once will switch the FX5612 on and off,
depending on system BIOS (Power Management Setup) or OS setting. Pushing
the power button while in the on mode for more than 4 seconds will turn the
FX5612 system off.
Power button: On/Off

FabiaTech Corporation
15
Chapter3BIOSSetup
This chapter describes the BIOS setup.
Overview
BIOS are a program located on a Flash memory chip on a circuit board. It is used
to initialize and set up the I/O peripherals and interface cards of the system, which
includes time, date, hard disk drive, the ISA bus and connected devices such as
the video display, diskette drive, and the keyboard. This program will not be lost
when you turn off the system.
The BIOS provides a menu-driven interface to the console subsystem. The console
subsystem contains special software, called firmware that interacts directly with the
hardware components and facilitates interaction between the system hardware
and the operating system.
The BIOS default values ensure that the system will function at its normal capability.
In the worst situation the user may have corrupted the original settings set by the
manufacturer.
All the changes you make will be saved in the system RAM and will not be lost after
power-off.
When you start the system, the BIOS will perform a self-diagnostics test called Power
On Self Test (POST) for all the attached devices, accessories, and the system. Press
the [Del] key to enter the BIOS Setup program, and then the main menu will show
on the screen.
Note: Change the parameters when you fully understand their functions and
subsequence.
