Chapter1IntroducingtheFX5653System
Overview
The FX5653 is an embedded system with Intel® Atom™ D2550 low-power CPU
module inside. This user’s manual provides information on the physical features,
installation, and BIOS setup of the FX5653.
Built to unleash the total potential of the Intel® Atom™ D2550 -Dual Core Processor,
Able to support 1.86 GHz CPU, this system supports two 10/100/1000M Base –TX LAN
ports, two PCIe Mini Card connector for GPRS/GPS modules, five USB2.0 ports,
Audio, and two So-DIMM socket supports up to 4GB DDR3 RAM, and a VGA
controller.
Each FX5653 has four ports for I/O communications. Four RS-232C ports are
available.
The FX5653 is perfect for communication and small Embedded Control. The unit is
only 180 mm (D) X 250 mm (W) X 50 mm (H).
1

FabiaTech Corporation
SeriesComparisonTable
Model FX5653
Processor Intel ® Atom™
D2550 1.86GHz
S-Chipset NM10
Memory
204-Pin So-DIMM DDR3-800/1066 4GB
Storage One CFast, SD and
One SATA HDD
Display (Dual-Display) VGA, HDMI, DP
Watchdog Timer Yes
Multi I/O Four R232
USB 2.0 Port Five
Audio Ear-Phone and MIC-In
RJ45 LAN port
(10/100/1000 Mbps) Two Realtek RTL8111C
PCIe Mini Card Two
Operating Temperature 0~+50℃(32~122℉)
Storage Temperature -20~+60℃(4~140℉)
Dimensions (Unit: mm) 180(D) x250(W) X 50(H)
2

FabiaTech Corporation
3
Layout
HDD
1
LINK
ACTIVE
SIM
CFAST
2SD
POWER BUTTON HDD ACTIVE CFAST SD USB RESET
STANDBY LINK SIM
LAN
STANDBY
Antenna
2
4
1
2
3
10101 1HDMI DP
Antenna
MIC
ANTENNA COM2 LAN1 COM1 HDMI DISPLAY CRT ANTENNA
EAR-PHONE LAN2 COM4 COM3 USB DC-IN

FabiaTech Corporation
Specifications
Processor Board –
Intel ® Atom™ D2550 Dual Core (1M L2 Cache, 1.86GHz) Low Power
Processor with 4GB DDR3-RAM.
I/O Outlets –
Two 10/100/1000 base-TX Ethernet LAN ports with RJ45.
Four RS-232 serial ports with DB9 .
Five USB ports (2.0) and one VGA connector with DB15.
One HDMI and one Display Port(DP).
Two audio connectors for Ear-phone and Microphone-in.
Two PCIe Mini Card socket modules, especially for WLAN/GPRS module.
One DC-In jack connector with power push button switch.
One push button reset switch.
LED Indicator –
One power LED with Power Button, One HDD/CF access LED, One Status
LED and Four LAN LED.
Storage Bay-
One CFast socket for CFast modules.
One SD socket supports up to 32GB SDHC.
One SATA hard disk space.
Power Requirement –
DC +12V~+24V, 2.56A maximum (1.44A Typical) with DC 19V input.
Dimensions -
180.0mm (D) x 250.0mm (W) x 50.0mm (H).
4

FabiaTech Corporation
PackingList
Upon receiving the package, verify the following things. Should any of the
mentioned happens, contact us for immediate service.
•Unpack and inspect the FX5653 package for possible damage that may
occur during the delivery process.
•Verify the accessories in the package according to the packing list and see
if there is anything missing or incorrect package is included.
•If the cable(s) you use to install the FX5653 is not supplied from us, please
make sure the specification of the cable(s) is compatible with the FX5653
system.
Note: after you install the FX5653, it is recommended that you keep the diskette or
CD that contains drivers and document files, and keep the document
copies, or unused cables in the carton for future use.
The following lists the accessories that may be included in your FX5653 package,
Some accessories are optional items that are only shipped upon order.
•One FX5653 embedded system.
•One AC to DC power adapter and 1 AC power code.
•One pack of 2.5” SATA hard disk installation kit with fixed screws.
•One compact disc includes software utility and manual.
Optional:
•AK1006- Half size mini PCIe module adapter kits. (PN: 0606010028G)
•One FX5504K1 Panel Mount Kit (VESA 75*75/100*100).(P/N: 0606010012G)
•One FX5501K1 Wall-Mount Kit.(P/N: 0606010009G-20)
•One FX5622K1 Rack-Mount Kit.(P/N: 0606010024G)
5

FabiaTech Corporation
Chapter2HardwareInstallation
This chapter introduces the system connectors & jumper settings, and guides you to
apply them for field application.
BeforeInstallation
Before you install the system, make sure you follow the following descriptions.
1. Before removing the cover, shut down the operation System and disconnect
power switch to off and unplug AC-to DC Adapter cable.
2. Install any connector, CFast and hard disk is sure that the power is
disconnected or power switch to off from the system. If not, this may damage
the system.
3. The ESD (Electricity Static Discharge) may be created from human body that
touches the board. It may do damage to the board circuit.
6

FabiaTech Corporation
Removing Covers –Installing hardware

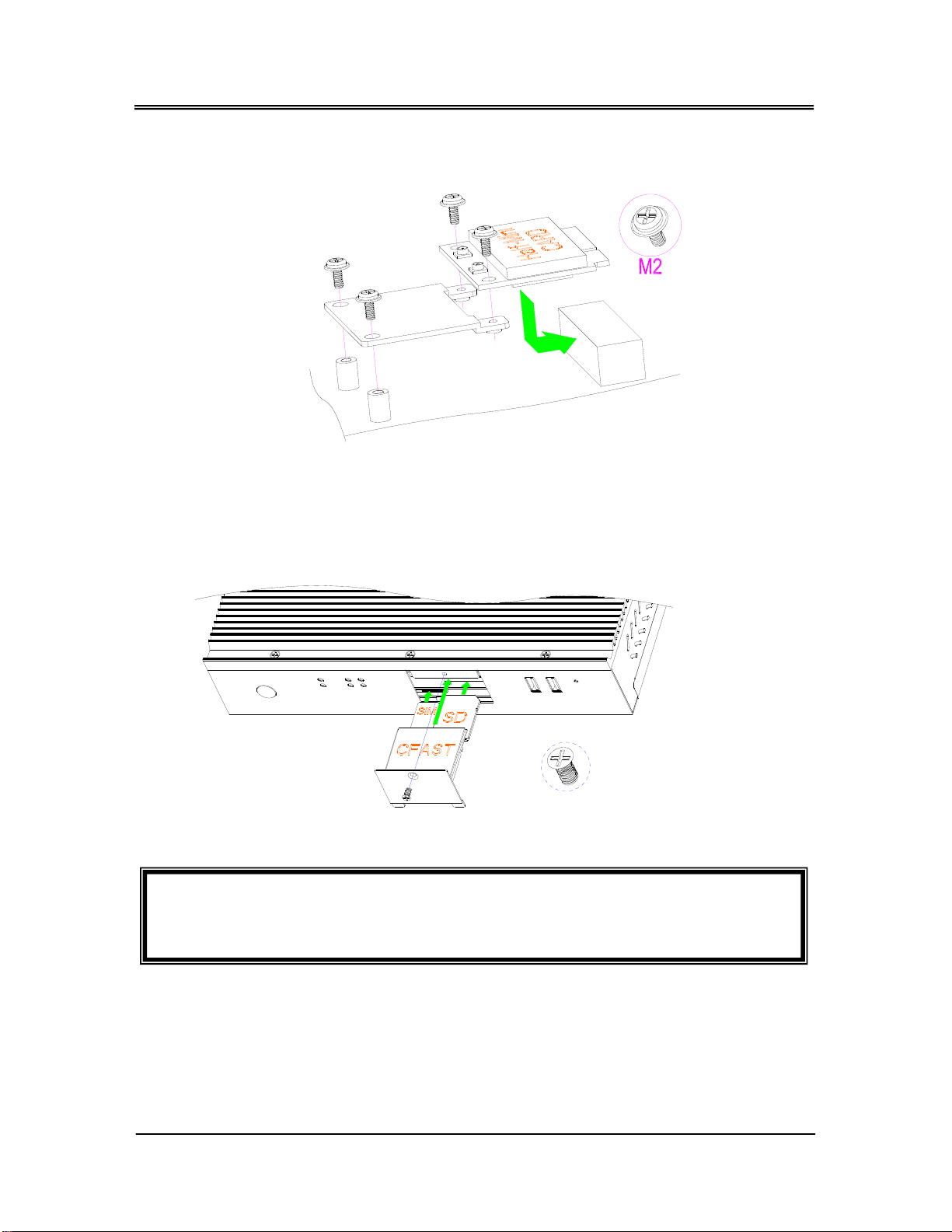

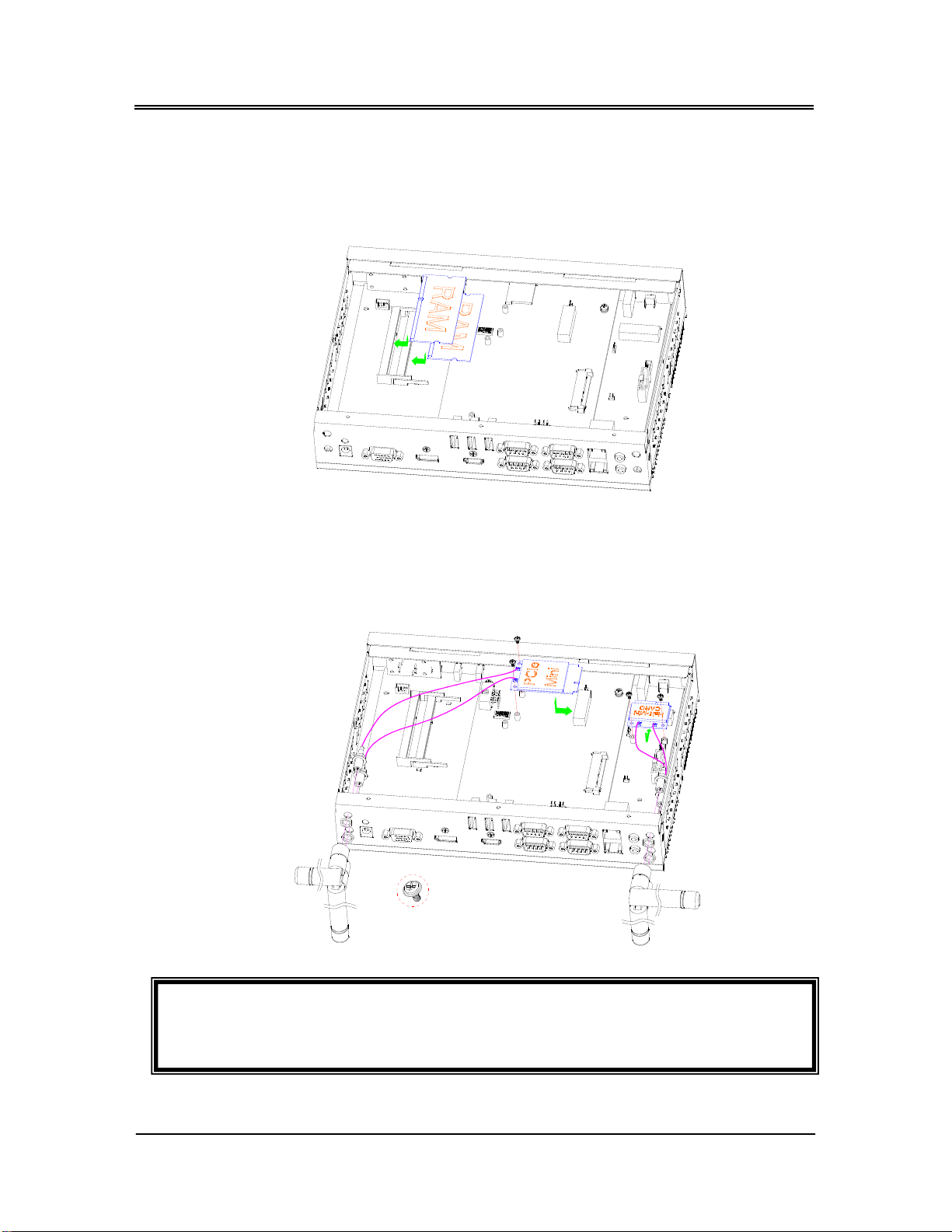

If you are installing hardware option, you can remove the bottom cover. The
following figure will guide you how to install 2.5" HDD, CFast modules, and DDR3
RAM module to FX5653 and how to install the FX5653 fixers. (Please see the spots
circled.)
a. Unscrew bottom cover
b. Installing hard disk
Fasten screws up the Hard disk device to HDD metal frame and connect the SATA
connector. See as following figure.
Note: Use caution when handling the hard disk to prevent damage to SATA
connector as you insert hard disk. Be careful with the orientation when
installing connectors.
7

FabiaTech Corporation
c. Installing memory
You may extend additional memory to FX5653, See as following figure.The 204 pin
So-DIMM socket supports 1GB to 4GB of DDR3 RAM modules.
d. Installing PCIe Mini Card module
You may extend additional PCIe Mini Card module to FX5653. Connect the
antenna cable from backside antenna hole to GPRS or Wireless LAN module. See
as following figure.
Note: FX5653 provides two PCIe Mini Card socket, one full size and one half size,
half size socket can’t support GPRS module.
8

FabiaTech Corporation
d1. Installing half size mini Card module kit (Optional)
e. Installing CFast, SD and SIM Card
Note: When installing PCIe GPRS Mini card on FX5653 system, also need the
installing the SIM Card to system board.
9

FabiaTech Corporation
g. Installing the universal fixers on FX5653
Please refer to the down side figure for installing the FX5653 with universal fixers.
g1. FX5504K1- Panel Mount (VESA 75*75/100*100)
M3*P0.5
g2. FX5501K1- Wall Mount
M3*P0.5
10

FabiaTech Corporation
g3. FX5622K1 – Rack Mount
11

FabiaTech Corporation
12
LED indicators
The Power button and HDD LED’s has two distinctive statuses: Off for inactive
operation and blinking light for activity, the Standby LED’s indicates system state:
off for normal state and blinking for suspend state, and the 4 LED’s for 2 LAN port,
The up side LED (Orange) indicates data is being accessed and the down side
LED’s (Green) indicates on-line status.
HDD
1
LINK
ACTIVE
SIM
CFAST
2SD
POWER BUTTON HDD ACTIVE CFAST SD USB RESET
STANDBY LINK SIM
LAN
STANDBY
I/O peripheral connectors
View from the back side, If you are connecting the monitor, LAN, audio, COM and
USB to the FX5653. See following figure and a side pictures.
Antenna
2
4
1
2
3
10101 1HDMI DP
Antenna
MIC
ANTENNA COM2 LAN1 COM1 HDMI DISPLAY CRT ANTENNA
EAR-PHONE LAN2 COM4 COM3 USB DC-IN
1. A VGA connector is provided for VGA signals.
DB15 Signal
1 Red
2 Green
3 Blue
13 Hsync
14 Vsync
12 DDC Data(*)
15 DDC Clock(*)
5 & 10 Digital Ground
6,7,8 Analog Ground
Others Not Used

FabiaTech Corporation
2. HDMI and Dsiplay port
HDMI connector Display Port connector
Note: The FX5653 don’t support dual display in boot DOS mode. and don’t
recommend connecting three tpye monitors at the same time.
3. COM ports
The DB9 (COM1~COM4) is standard serials port connector. The following tables
show the signal connections of these connectors.
DB15 RS-232
1 -DCD
6 -DSR
2 RXD
7 -RTS
3 -TXD
8 -CTS
4 -DTR
9 -RI
5 Ground
Metal Case Ground
4. LAN port
The RJ45 connector with 2 LED’s for LAN. The orange LED indicates data is being
accessed and the green LED indicates on-line status.
RJ45 connector
1
8
RJ45 LAN RJ45 LAN
1 MDI0+ 5 MDI2+
2 MDI0- 6 MDI2-
3 MDI1+ 7 MDI3+
4 MDI1- 8 MDI3-
(Front View)
13

FabiaTech Corporation
14
5. USB Ports
The FX5653 supports a five port USB connector. Any USB device can be attached
to USB ports with plug-and-play supported.
6. Connecting the Audio Microphone In/ EAR-Phone
Connecting the DC power and power button
Power is supplied through an external AC/DC power adapter DC In. Check the
technical specification section for information about AC/DC power input voltage.
See following figure and a side pictures.
1. DC-Power Jack: External AC/DC power adapter plug into DC-jack (2) and use
the cable mount to fix hole (1), then pull at cable(3).
USB#1~5
Signal
Pin 1 USBV
Pin 2 USBD-
Pin 3 USBD+
Pin 4 USBG
Mic-In EAR-Phone
DC +12V~+24V, 60VA minimum
1
4

FabiaTech Corporation
2. Power Button & Reset Push Button: Pushing the Power button once will switch
the FX5653 on and off, And Reset push button is switcher for system reset; Push
and release the button will cause hard ware reset of FX5653 and restart system
booting.
Power button: On/Off Reset Push Button: Restart
Jumper setting
The JP11, JP12, H_JP5, H_JP6 for serial ports power source select , The JP4 and
H_JP3 is used to select 3VSB/3.3V voltage with PCIe Mini Card module (See a PCIe
Mini Card module specification.), and J4 is used to clear CMOS data.
H_J2
H_SW1
H_JP5
H_JP6
JP11 JP12
H_JP3
JP4
J3
J4
15

FabiaTech Corporation
a. JP11, JP12, H_JP5 and H_JP6: COM1 ~ COM4 power source selection
The COM1 to COM4 Serial ports provide power source will driver the “RI” signal pin-
9 with DB9 connect, JP11 (COM1) and JP12 (COM2) in the lower position of the
daughter board, the settings will need to remove the daughter board. You can
refer to the the dismantling figure below.
JP11
COM
Pin9: RI
Factory Preset
5
2
6
1
5
COM
PIN9:+12V
2
6
1
COM
PIN9:+5V
5
2
1
6
JP12
COM
PIN9:+5V
5
2
6
1
COM
Pin9: RI
Factory Preset
5
2
6
1
5
2
6
1
COM
PIN9:+12V
COM
Pin9: RI
Factory Preset
5
2
6
1
H_JP5/H_JP6
COM
PIN9:+12V
5
2
6
1 1
2
6
5
COM
PIN9:+5V
16
