FabiaTech FX5507 User manual

FabiaTech Corporation
IPC Solution
Website: http://www.FabiaTech.com
Email: [e-mail]
Small Cube System
Fanless Series
FX5507 User’s Manual
DEC 2013
Version: 1.1
Part Number: FX5507

Copyright
Copyright © 2011 FabiaTech Corporation, The content of this publication may not
be reproduced in any part or as a whole, transcribed, stored in a retrieval system,
translated into any language, or transcribed in any form or by any means,
electronic, mechanical, and magnetic… or otherwise without the prior written
permission of FabiaTech Corporation.
Disclaimer
FabiaTech makes no representation of warranties with respect to the contents of
this publication. In an effort to continuously improve the product and add features,
FabiaTech reserves the right to revise the publication or change specifications
contained in it from time to time without prior notice of any kind from time to time.
FabiaTech shall not be reliable for technical or editorial errors or omissions, which
may occur in this document. FabiaTech shall not be reliable for any indirect,
special, incidental or consequential damages resulting from the furnishing,
performance, or use of this document.
Trademarks
Trademarks, brand names and products names mentioned in this publication are
used for identification purpose only and are the properties of their respective
owners.
Technical Support
If you have problems or difficulties in using the system or setting up the relevant
devices, and software that are not explained in this manual, please contact our
service engineer for service, or send email to [e-mail].
Returning Your Board For Service & Technical Support
If your board requires servicing, contact the dealer from whom you purchased the
product for service information. You can help assure efficient servicing of your
product by following these guidelines:
A list of your name, address, telephone, facsimile number, or email address
where you may be reached during the day
Description of you peripheral attachments
Description of your software (operating system, version, application
software, etc.) and BIOS configuration
Description of the symptoms (Extract wording any message)
For updated BIOS, drivers, manuals, or product information, please visit us at
www.fabiatech.com.
ii

Table of Contents
FX5507 User’s Manual ...........................................................................................................i
Chapter 1 Introducing the FX5507 System ............................................................................... 1
Overview..................................................................................................................................1
Series Comparison Table.......................................................................................................2
Layout.......................................................................................................................................3
Specifications..........................................................................................................................4
Packing List..............................................................................................................................5
Chapter 2 Hardware Installation ............................................................................................... 7
Before Installation...................................................................................................................7
Removing Covers –Installing Hardware...........................................................8
LED Indicators....................................................................................................13
I/O Peripheral Connectors ..............................................................................13
Connecting the DC Power and Power Button ............................................15
Chapter 3 BIOS Setup............................................................................................................... 17
Overview................................................................................................................................17
BIOS Functions...................................................................................................18
Keyboard Convention ..............................................................................................19
Main Setup ............................................................................................................................20
Advanced Setup..................................................................................................................21
CPU Configuration............................................................................................21
IDE Configuration..............................................................................................22
SuperIO Chipset - Configuration Win627 Super IO Chipset........................25
Hardware Health Configuration.....................................................................27
Advanced ACPI Settings.................................................................................28
MPS Configuration............................................................................................29
AHCI Configuration ..........................................................................................30
USB Configuration.............................................................................................31
PCIPnP Setup.........................................................................................................................33
Boot Setup.............................................................................................................................35
Boot Setting Configuration..............................................................................36
Boot Device.......................................................................................................38
iii

Hard Disk Drives.................................................................................................39
Security setup........................................................................................................................40
Chipset Setup........................................................................................................................42
North Bridge Configuration.............................................................................43
South Bridge Configuration.............................................................................45
Chapter 4 Software Installation ............................................................................................... 47
System Driver.........................................................................................................................47
Windows XP/7- System Driver...................................................................................47
VGA Driver.............................................................................................................................48
WIN XP/7 Driver...........................................................................................................48
Audio Driver...........................................................................................................................48
WIN XP/7 Driver...........................................................................................................48
LAN Driver (RTL 8111C).........................................................................................................49
WINXP/7 Driver............................................................................................................49
BIOS Flash Utility.....................................................................................................................49
Watchdog Timer...................................................................................................................50
Watchdog Timer Setting...........................................................................................51
Watchdog Timer Enabled ........................................................................................52
Watchdog Timer Trigger ...........................................................................................52
Watchdog Timer Disabled........................................................................................53
Programming RS-485............................................................................................................54
Send out one character (Transmit).........................................................................55
Send out one block data (Transmit – the data more than two characters)...55
Receive data..............................................................................................................55
Basic Language Example.........................................................................................55
Chapter 5 Technical Reference .............................................................................................. 57
Trouble Shooting for Post Beep and Error Messages.......................................................57
Technical Reference............................................................................................................60
Physical and Environmental.....................................................................................60
Real-Time Clock and Non-Volatile RAM ................................................................60
CMOS RAM Map........................................................................................................62
I/O Port Address Map................................................................................................63
Interrupt Request Lines (IRQ)....................................................................................64
DMA Channel Map ...................................................................................................65
iv

DMA Controller 2........................................................................................................65
Serial Ports ...................................................................................................................66
Appendix................................................................................................................................... 70
Dimension..............................................................................................................................70
v

vi

FabiaTech Corporation
Chapter1IntroducingtheFX5507System
Overview
The FX5507 is an embedded system with Intel® Atom™ D525 low-power CPU
module inside. This user’s manual provides information on the physical features,
installation, and BIOS setup of the FX5507.
Built to unleash the total potential of the Intel® Atom™ D525 -Dual Core Processor,
Able to support 1.8 GHz CPU, this system supports two 10/100/1000M Base –TX LAN
ports, one PCIe Mini Card connector for GPRS/GPS modules, six USB2.0 ports, Audio,
and one So-DIMM socket supports up to 2GB DDR3 RAM, and a VGA controller.
Each FX5507 has four ports for I/O communications. Three RS-232C ports and one
RS232/RS422/RS485 port are available.
The FX5507 is perfect for ATM machines, KIOSK, point-of-sales/point-of- information,
gaming and infotainment, measurement technology, lotteries, banking and Thin
Client and small Embedded Control. The unit is only 148.0mm (D) X203.0mm (W)
X55mm (H).
1

FabiaTech Corporation
SeriesComparisonTable
Model FX5507
Processor Intel ® Atom™
D525 1.8GHz
S-Chipset 82801HBM(ICH8M)
Memory
204 Pin-DIMM*1(Max.)
DDR3/800
2GB
Storage HDD One CF and One SATA
Display VGA/CRT
Watchdog Timer Yes
Multi I/O Three RS-232 and
One RS232/RS422/RS485
USB 2.0 Port Six
Audio Ear-Phone And MIC-In
RJ45 LAN port
(10/100/1000 Mbps) Two Realtek RTL8111C
PCIe Mini Card One
Operating Temperature 0~+50℃(32~122℉)
Storage Temperature -20~+60℃(4~140℉)
Dimensions (Unit: mm) 148(D) x 203(W) X 55(H)
2

FabiaTech Corporation
Layout
POWER
HDD
LINK/ACT1LINK/ACT2
Antenna
4
DC12~24V
+
-
3
Antenna
/2 1
DC IN KB/MOUSE COM2 COM1 USB MIC RESETPOWER BUTTON
USB
ANTENNA COM4 LAN2LAN1 ANTENNA
EAR-PHONECOM3 CRT
3

FabiaTech Corporation
Specifications
Processor Board –
Intel ® Atom™ D525 Dual Core (1M L2 Cache, 1.8GHz) Low Power Processor
with 2GB DDR3-RAM.
I/O Outlets –
Two 10/100/1000 base-TX Ethernet LAN ports.
Six USB ports (2.0) and Three RS-232 and one RS232/422/485 ports with DB9.
Support VGA and one PS/2 compatible keyboard and mouse interfaces.
One Earphone-Out and Microphone-Input connectors.
One PCIe Mini card socket modules, especially for WLAN/GPRS module.
One DC-In plug connector and one terminal block with power button.
One power LED, One HDD/CF access LED, and two LAN LED’s.
One push button reset switch.
Storage Bay-
Compact Flash socket for Compact Flash modules or MicroDrives.
One 2.5" SATA hard disk space
Power requirement –
+12 ~ +24V DC, 2.33A maximum (1.18A typical) with 19V input voltage.
Dimensions -
148.0mm(D) x 203.0mm(W) x 55.0mm(H)
4

FabiaTech Corporation
PackingList
Upon receiving the package, verify the following things. Should any of the
mentioned happens, contact us for immediate service.
•Unpack and inspect the FX5507 package for possible damage that may
occur during the delivery process.
•Verify the accessories in the package according to the packing list and see
if there is anything missing or incorrect package is included.
•If the cable(s) you use to install the FX5507 is not supplied from us, please
make sure the specification of the cable(s) is compatible with the FX5507
system.
Note: after you install the FX5507, it is recommended that you keep the diskette or
CD that contains drivers and document files, and keep the document
copies, or unused cables in the carton for future use.
The following lists the accessories that may be included in your FX5507 package.
Some accessories are optional items that are only shipped upon order.
•One FX5507x embedded system.
•One AC to DC power adapter and 1 AC power cord.
•One pack of 2.5” SATA hard disk installation kit with fixed screws.
•One 2-pin apartable terminal block.
•One compact disc includes software utility and manual.
Optional:
•One pack of half size mini PCIe module adapter kits.
•One pack of FX5501k1 wall mounting fixers and 4 screws. (PN:0606010009G)
•One pack of FX5501k2 rack mounting fixers and 4 screws. (PN:0606010010G)
•One pack of FX5504k1 panel back mounting fixers and 2 screws (VESA 75*75
/100*100).(PN:0606010012G)
•One Y-type (3-end) PS2 Keyboard plus mouse port adapter cable.
(PN:7003000008G)
5

FabiaTech Corporation
6

FabiaTech Corporation
Chapter2HardwareInstallation
This chapter introduces the system connectors & jumper settings, and guides you to
apply them for field application.
BeforeInstallation
Before you install the system, make sure you follow the following descriptions.
1. Before removing the cover, shut down the operation System and disconnect
power cords or unplug AC-to DC Adapter cable.
2. Install any connector, Compact Flash, and hard disk is sure that the power
cable is disconnected the system. If not, this may damage the system.
3. The ESD (Electricity Static Discharge) may be created from human body that
touches the board. It may do damage to the board circuit.
7

FabiaTech Corporation
Removing Covers –Installing Hardware
If you are installing hardware option, you can remove the bottom cover. The
following figure will guide you how to install SATA 2.5" HDD inside, Compact Flash
modules, PCIe mini card module, and DDR3-RAM module the FX5507. (Please see
the spots circled.)
¾a. Unscrew Bottom cover
8

FabiaTech Corporation
¾b. Installing Compact Flash
¾c. Installing Memory
You may extend additional memory to FX5507, See as following figure.The 204 pin
So-DIMM socket supports 1GB to 2GB of DDR3 RAM modules.
Note: The Compact Flash socket supports Compact Flash Modules and Micro Drives.
9

FabiaTech Corporation
10
¾d. Installing PCIe Mini Card Module
You may extend additional PCIe mini card module and SIM card to FX5507.
Connect the antenna cable from backside antenna hole to GPRS or Wireless LAN
module and installing the SIM card for GPRS. See as following figure and rear
pictures.
d1. Installing PCIe Mini Card and SIM card
d2. Installing Half Size Mini PCIe module kit (Optional)
Note: 1. When installing PCIe GPRS Mini card on FX5507 system these is need
the installing the SIM Card to system board.
2. Open the cover with SIM socket then insert SIM card into the SIM card
hold. Make sure that the SIM card is properly inserted and that golden
contact area on the card is facing downwards.

FabiaTech Corporation
¾e. Installing Hard Disk
Fasten screws up the Hard disk device to bottom inside HDD metal frame and
connect the SATA HDD cable and power cable. See as following figure and rear
pictures.
e1. Fasten screw the SATA HDD
e2. Installing SATA Cable
CN7
CN5
CN8
Note: Be careful with the pin orientation when installing connectors and the
cables.CN5 and CN7 are used to connect a SATA 2.5" HDD with included
SATA cable, CN8 is for SATA power connector. (The CN8 support +5V
Voltage only)
11

FabiaTech Corporation
¾f. Installing the universal fixers on FX5507
Please refer to the down side figure for installing the FX5507 with universal fixers.
f1. FX5501K1- Wall Mounting.
f2. FX5504K1 – Panel Back Mounting (VESA Mount 75*75 / 100*100).

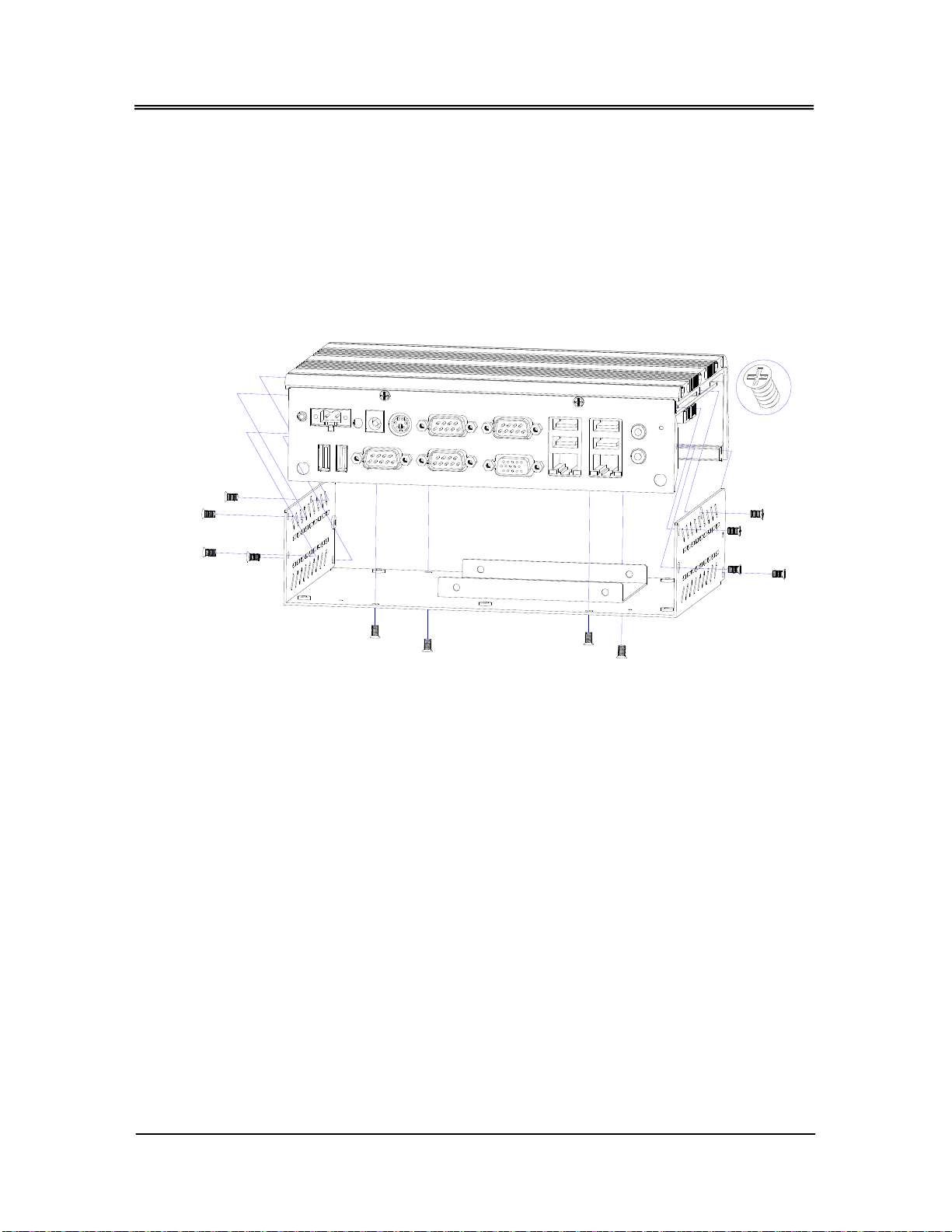

f3. FX5501k2 - Rack Mounting.
12

FabiaTech Corporation
LED Indicators
The Power and HDD LED’s has two distinctive statuses: Off for inactive operation
and blinking light for activity. And the 2 LED’s for LAN ports. The LAN1 and LAN2
LED’s (Green) indicate on-line/access status of LAN1 and LAN2 respectively.
POWER
HDD
LINK/ACT1LINK/ACT2
I/O Peripheral Connectors
View from the back side, If you are connecting the monitor, keyboard, mouse, LAN,
audio, COM and USB to the FX5507. See following figure and a side pictures.
Antenna
4
DC12~24V
+
-
3
Antenna
/2 1
DC IN KB/MOUSE COM2 COM1 USB MIC RESET
POWER BUTTON
USB
ANTENNA COM4 LAN2LAN1 ANTENNA
EAR-PHONECOM3 CRT
1. A VGA (CRT) connector is provided for VGA signals.
DB15 Signal
1 Red
2 Green
3 Blue
13 Hsync
14 Vsync
12 DDC Data
15 DDC Clock
5 & 10 Digital Ground
6,7,8 Analog Ground
Others Not Used
13

FabiaTech Corporation
14
2. The connectors use the adapter cable you can attach standard PS/2 type
keyboard and mouse.Standard PS/2 keyboard can be plugged into this
connector without any adapter cable. If PS/2 keyboard and mouse will be used
simultaneously, a Y-type (3-terminal) adapter cable is needed.
3. Connecting the COM port
The DB9 COM1/3/4 is standard RS232 serials port, and the DB9-COM2 is designed
for multiple proposes. The COM2 can select RS232/RS422/RS485 by BIOS CMOS
setting. The following tables show the signal connections of these connectors.
4. Connecting the LAN port
The RJ45 connector with 2 LED’s for WAN/LAN. The right side LED (orange) indicates
data is being accessed and the left side LED (green) indicates on-line status. (On
indicates on-line and off indicates off-line)The following lists the pin assignment of
RJ45.
DB-9 RS-232 RS-422 RS-485
1 -DCD
6 -DSR
2 RXD RX- 485-
7 -RTS TX-
3 -TXD RX+ 485+
8 -CTS TX+
4 -DTR
9 -RI
5 Ground
Metal Case Ground
LAN Signal LAN Signal
1 TPTX+ 5 TPTX1-
2 TPTX - 6 TPRX -
3 TPRX+ 7 TPRX1+
4 TPTX1+ 8 TPRX1-
KB /Mouse Description
1 Keyboard Data
2 Mouse Data
3 Ground
4 VCC
5 Keyboard Clock
6 Mouse Clock
1
8
(Front View)
