FabiaTech FX5401 User manual

FabIATech Corporation
IPC Solution
Website: http://www.fabiatech.com
Email: [email protected]
FX5401EmbeddedComputers
SmallSystemUser’sManual
FEB 2005
Version: 1.1
Part Number: FX5401

ii
Copyright
©Copyright 2002FabIATech Corporation, The content of this publication may not
be reproduced in any part or as a whole, transcribed, stored in a retrieval system,
translated into any language, or transcribed in any form or by any means,
electronic, mechanical, and magnetic… or otherwise without the prior written
permission of FabIATech Corporation.
Disclaimer
FabIATech makes no representation of warranties with respect to the contents of
this publication. In an effort to continuously improve the product and add features,
FabIATech reserves the right to revise the publication or change specifications
contained in it from time to time without prior notice of any kind from time to time.
FabIATech shall not be reliable for technical or editorial errors or omissions, which
may occur in this document. FabIATech shall not be reliable for any indirect,
special, incidental or consequential damages resulting from the furnishing,
performance, or use of this document.
Trademarks
Trademarks, brand names and products names mentioned in this publication are
used for identification purpose only and are the properties of their respective
owners.
Technical Support
If you have problems or difficulties in using the system or setting up the relevant
devices, and software that are not explained in this manual, please contact our
service engineer for service, or send email to [email protected].
Returning Your Board For Service & Technical Support
If your board requires servicing, contact the dealer from whom you purchased the
product for service information. You can help assure efficient servicing of your
product by following these guidelines:
! A list of your name, address, telephone, facsimile number, or email address
where you may be reached during the day
! Description of you peripheral attachments
! Description of your software (operating system, version, application
software, etc.) and BIOS configuration
! Description of the symptoms (Extract wording any message)
For updated BIOS, drivers, manuals, or product information, please visit us at
www.fabiatech.com

iii
Table of Contents
FX5401 Embedded Computers....................................................................................................i
Small System User’s Manual.........................................................................................................i
Chapter 1 Introducing the FX5401 System ............................................................................... 1
Overview..................................................................................................................................1
Series Comparison Table.......................................................................................................2
Layout.......................................................................................................................................3
Specifications..........................................................................................................................4
Packing List..............................................................................................................................5
Chapter 2 Hardware Installation ............................................................................................... 7
Before Installation...................................................................................................................7
Removing Covers –Installing HDD or Compact Flash....................................8
Connecting the Monitor, Keyboard, Mouse...................................................9
Connecting the COM ports and Parallel Port ..............................................10
Connecting the LAN ports and USB Ports......................................................11

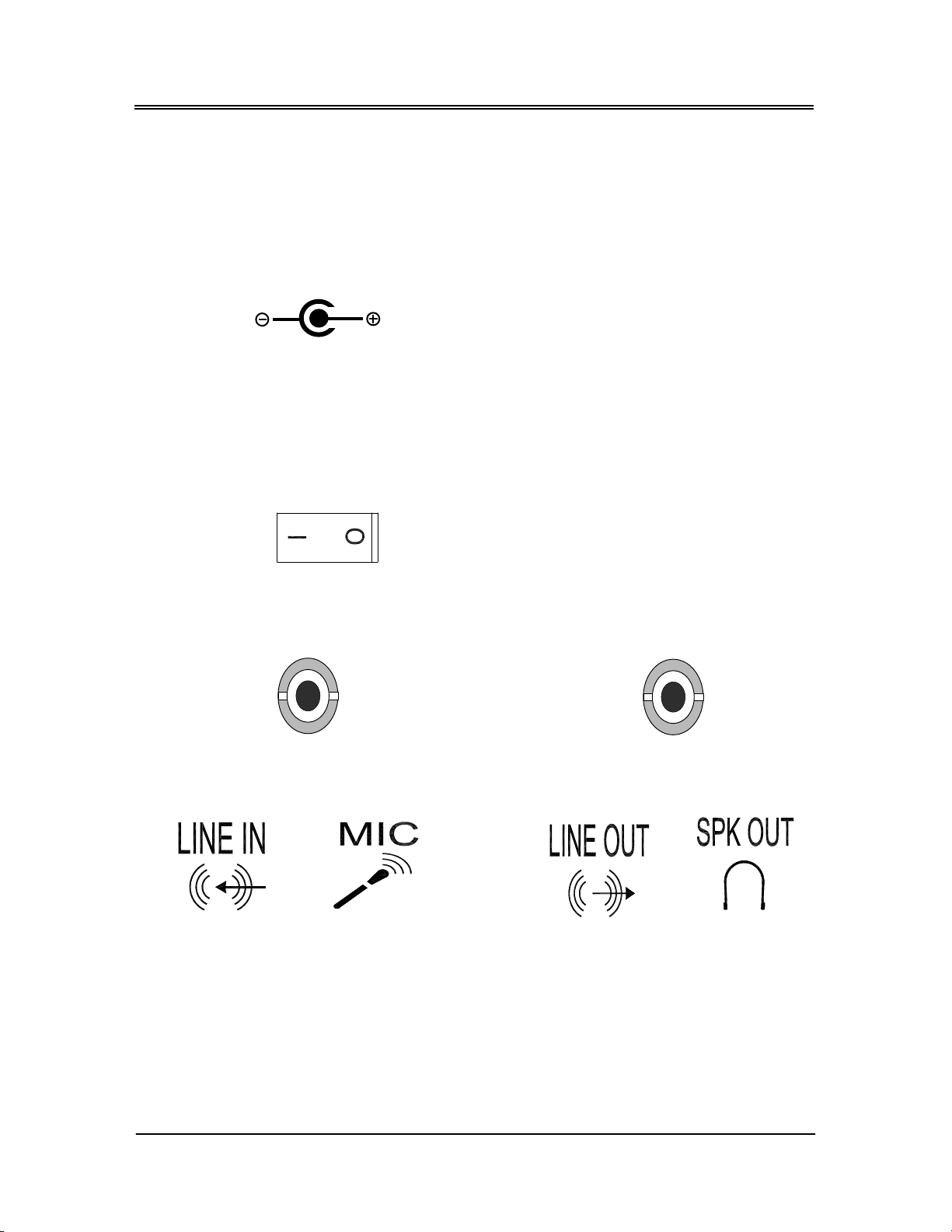

Connecting the DC Power Jack and Power Switch ...................................13
Connecting the Audio Microphone In/ Speak Out.....................................13
Chapter 3 BIOS Setup............................................................................................................... 15
Overview................................................................................................................................15
BIOS Functions ............................................................................................................16
Keyboard Convention ..............................................................................................17
Standard CMOS Setup........................................................................................................18
BIOS Features Setup.............................................................................................................21
Chipset Features Setup........................................................................................................25
Power Management ...........................................................................................................28
PCI/Plug and Play ................................................................................................................30
Peripheral Setup ...................................................................................................................32
Password Setup.....................................................................................................................35
Chapter 4 Software Installation ............................................................................................... 37
Installation WIN 95/98...........................................................................................................37
VGA Drivers ...........................................................................................................................37
WIN98/WIN95 Driver...................................................................................................37
LAN Utility & Driver...............................................................................................................38

iv
Audio Drivers .........................................................................................................................38
WIN 95/98 Driver.........................................................................................................38
Watchdog Timer...................................................................................................................39
Watchdog Timer Setting...........................................................................................40
Watchdog Timer Enabled ........................................................................................41
Watchdog Timer Trigger ...........................................................................................41
Watchdog Timer Disabled........................................................................................42
Chapter5 Error Coding ............................................................................................................. 43
Trouble Shooting for Post Beep and Error Messages.......................................................43
Appendix................................................................................................................................... 47
Dimension..............................................................................................................................47
Technical Reference............................................................................................................48
Physical and Environmental.....................................................................................48
Real-Time Clock and Non-Volatile RAM ................................................................48
CMOS RAM Map........................................................................................................50
I/O Port Address Map................................................................................................51
Interrupt Request Lines (IRQ)....................................................................................52
DMA Channel Map ...................................................................................................53
DMA Controller 2........................................................................................................53
Serial Ports ...................................................................................................................54
Parallel Ports................................................................................................................58

v

FabIATech Corporation
1
Chapter1IntroducingtheFX5401System
Overview
The FX5401 is a 1U embedded system with 3.5" low-power Pentium CPU module
inside. This user’s manual provides information on the physical features, installation,
and BIOS setup of the FX5401.
Built to unleash the total potential of the Pentium Processor, Able to support 300
MHz CPUs, this system supports dual 10/100M interface network port, audio, 1 So-
DIMM socket for up to 256MB PC-100 SDRAM, and a 4MB PCI-VGA controller.
Each FX5401 has two ports for I/O communications. Two RS-232C ports are
available.
The Fx5401 is perfect for POS and POI applications, Internet Router, VPN Gateway,
fire wall, Mail Server, WBT, Thin Client and small Embedded Control. The unit is only
200mm(L) X 130mm(W) X 44mm (H), offering unparalleled performance in a very
small footprint.

FabIATech Corporation
2
SeriesComparisonTable
Model FX5401
Processor GX1-300Mhz
Chipset CS5530A
1So-DIMM(Max. SDRAM) 128MB Standard
256MB/512MB (Option)
CRT VGA Yes
Watchdog Timer Yes
Multi I/O Two RS232
Enhanced IDE or CF One
USB Two
Audio Line-In/Out
RJ45 Ethernet (10/100Mbps) Dual
Dimensions (Unit: mm) 200(L) x 130(W) X 44(H)

FabIATech Corporation
3
Layout
18~30V
/2
112
18~30V
1
1 2
2
/

FabIATech Corporation
4
Specifications
! Processor Board –
FB2530 inside, 300 MHz low-power Pentium CPU with 128MB SDRAM.
! I/O Outlets –
Dual 100M / 10M Ethernet with RJ-45 ports.
One parallel port with DB25 port.
Two Serials RS-232 with DB9 ports.
PS/2 compatible keyboard and mouse interface.
Audio function supports Line-In, Line -Out and MIC-In connector.
Two USB ports.
One Line-In and One Line-Out ear-jet connectors.
One DC-In plug connector
One Push bottom reset switch.
One power LED and hard disk/ Compact n Flash access LED.
! Storage Bay-
One Compact Flash slot with plug-in aperture and cover, one 44-pin
DiskOnModule space. One 2.5" hard disk space with HDD clamp holder.
! Power requirement –
+24V with 25% tolerance, 0.8A minimum.
! Dimensions (1U height)-
130.0mm(D) x 200.0mm(W) x 44.2mm(H)

FabIATech Corporation
5
PackingList
Upon receiving the package, verify the following things. Should any of the
mentioned happens, contact us for immediate service.
• Unpack and inspect the FX5401 package for possible damage that may
occur during the delivery process.
• Verify the accessories in the package according to the packing list and see
if there is anything missing or incorrect package is included.
• If the cable(s) you use to install the FX5401 is not supplied from us, please
make sure the specification of the cable(s) is compatible with the FX5401
system.
Note: after you install the FX5401, it is recommended that you keep the diskette or
CD that contains drivers and document files, and keep the document
copies, or unused cables in the carton for future use.
The following lists the accessories that may be included in your FX5401 package.
Some accessories are optional items that are only shipped upon order.
• One FX5401 embedded system.
• One AC to DC24V power adapter and 1 AC power code.
• One 2.5" HDD clamp holder accessory pack.
• One Y-type (3-terminal) PS/2 keyboard plus mouse port adapter cable.
(Optional)
• L-type universal fixers and 6 screws.
• 6 stamp pads for this enclosure.
• One compact disc includes software utility.

FabIATech Corporation
6

FabIATech Corporation
7
Chapter2HardwareInstallation
This chapter introduces the system connectors & jumper settings, and guides you to
apply them for field application.
BeforeInstallation
Before you install the system, make sure you follow the following descriptions.
1. Before removing the cover, shut down the operation System and disconnect
power switch to off and unplug AC-to DC Adapter cable.
2. Install or unplug any connector, Compact Flash, and hard disk be sure that the
power is disconnected or power switch to off from the system. If not, this may
damage the system.
3. The ESD (Electricity Static Discharge) may be created from human body that
touches the board. It may do damage to the board circuit.

FabIATech Corporation
8
# Removing Covers –Installing HDD or Compact Flash
If you are installing hardware option, you can remove the top cover or left side
cover. The following figure will guide you how to install 2.5" HDD inside the FX5401
and how to install the FX5401 fixers.
If you are only installing Compact Flash modules, you don’t need to remove top
cover. The following figure will guide you select JP (open or close) are all use to
select Master or Slave device on IDE.
Compact Flash
Note: Tighten the screws when handling the hard disk and Compact Flash
modules.

FabIATech Corporation
9
If you are installing hard disk, you need to remove top cover. The following figure
will guide inserting the hard disk before you must verify the pin behind the pivot
end of the hard disk in the IDE2.
# Connecting the Monitor, Keyboard, Mouse
To connector the peripheral control devices and monitor to the FX5401, refer to the
following procedure.
Connector the monitor, keyboard and mouse to the FX5401 using the
connections provided on the rear of the chassis. See following figure and rear
pictures.
SWITCH
DC IN 24V
KB/MOUSE
COM2
Parallel
CRTCOM1 RESET HD LED POWER LED
LAN1 USB LAN2
Compact flash
Note: Use caution when handling the hard disk to prevent damage to IDE2
connector as you insert hard disk. Gently slide the hard disk into the IDE2 and
stop when you feel resistance.
HDD

FabIATech Corporation
10
1. A VGA connector is provided for CRT display
2. The connector use the included adapter cable you can attach standard PS/2
type keyboard and mouse. Standard PS/2 keyboard can be plugged into this
connector without any adapter cable. If PS/2 keyboard and mouse will be used
simultaneously, a Y-type (3-terminal) adapter cable is needed.
# Connecting the COM ports and Parallel Port
The DB9 (COM1/2) is standard serials port connector. The following tables show
the signal connections of these connectors.
DB-9 RS-232 Signal
1 -DCD2
6 -DSR2
2 RXD2
7 -RTS2
3 -TXD2
8 -CTS2
4 -DTR2
9 -RI2
5 Ground
Case Case Ground
Pin 1 Mouse Data
Pin 2 Keyboard Data
Pin 3 Ground
Pin 4 VCC
Pin 5 Mouse Clock
Pin 6 Keyboard Clock
DB15 Signal
1 Red
2 Green
3 Blue
13 Hsync
14 Vsync
12 DDC Data
15 DDC Clock
5 & 10 Digital Ground
6,7,8 Analog Ground
Others Not Used

FabIATech Corporation
11
The printer is standard DB25 connector.
# Connecting the LAN ports and USB Ports
The RJ45 connector with 2 LED’s for LAN. The left side LED (orange) indicates data is
being accessed and the right side LED (green) indicates on-line status. (On
indicates on-line and off indicates off-line)
The following lists the pin assignment of RJ45.
DB-25 Description DB-25 Description
1 -STROBE 14 -AUTO FORM FEED
2 DATA 0 15 -ERROR
3 DATA 1 16 -INITIALIZE
4 DATA 2 17 -PRINTER SELECT IN
5 DATA 3 18 Ground
6 DATA 4 19 Ground
7 DATA 5 20 Ground
8 DATA 6 21 Ground
9 DATA 7 22 Ground
10 ACKNOWLEDGE 23 Ground
11 BUSY 24 Ground
12 PAPER 25 Ground
13 PRINTER SELECT -- No Used
LAN1/LAN2 Signal LAN1/LAN2 Signal
1 TPTX+ 5 FBG1
2 TPTX - 6 TPRX -
3 TPRX+ 7 FBG2
4 FBG1 8 FBG2
1
13
14
25
1
8
RJ45 connector
(Front View)

FabIATech Corporation
12
The Fx5401 supports a dual port USB connector. Any USB device can be attached to
USB ports with plug-and-play supported. The up side port is USB #1 and the down side
port is USB #2
# System Reset header and Power /HDD LED
The Fx5401 has a push bottom switcher for system reset; Push and release the
bottom will cause hardware reset of FX5401 and restart system booting.
The Power, Watchdog and HDD LED has two distinctive status: Off for inactive
operation and blinking light for activity.
USB
2 4
5 8 USB#1/#2
Signal USB#1/#2 Signal
Pin 1 USBV0 Pin5 USBV1
Pin 2 USBD0- Pin6 USBD1-
Pin 3 USBD0+ Pin7 USBD1+
Pin 4 USBG0 Pin8 USBG1
HD
Front View Watchdog LED
Hard Disk Access LED (Red)
Power LED (Green) &

FabIATech Corporation
13
# Connecting the DC Power Jack and Power Switch
Power is supplied through an external AC/DC power adapter. Check the technical
specification section for information about AC/DC power input voltage.
Since the switch does include a power switch, plugging its power adapter into a
power outlet then switch power to on (1), when you final installed system hardware
device.
# Connecting the Audio Microphone In/ Speak Out
DC +24V, 25% tolerance
0.8A minimum
Line - In (Left Side) Line – Out (Right Side)
1 : Power On
O: Power Off

FabIATech Corporation
14

FabIATech Corporation
15
Chapter3BIOSSetup
This chapter describes the BIOS setup.
Overview
BIOS are a program located on a Flash memory chip on a circuit board. It is used
to initialize and set up the I/O peripherals and interface cards of the system, which
includes time, date, hard disk drive, the ISA bus and connected devices such as
the video display, diskette drive, and the keyboard. This program will not be lost
when you turn off the system.
The BIOS provides a menu-driven interface to the console subsystem. The console
subsystem contains special software, called firmware that interacts directly with the
hardware components and facilitates interaction between the system hardware
and the operating system.
The BIOS default values ensure that the system will function at its normal capability.
In the worst situation the user may have corrupted the original settings set by the
manufacturer.
All the changes you make will be saved in the system RAM and will not be lost after
power-off.
When you start the system, the BIOS will perform a self-diagnostics test called Power
On Self Test (POST) for all the attached devices, accessories, and the system. Press
the [Del] key to enter the BIOS Setup program, and then the main menu will show
on the screen.
Note: Change the parameters when you fully understand their functions and
subsequence.
