fadini TALOS M50 User manual
Security bollard with fully retractable post. Certied and tested in compliance with:
- ASTM F2656-15 C750 (former K12)
- PAS 68:2013 V/7500 (N3)/80
- IWA 14-1:2013 V/7200 [N3C]/80
GB Instructions manual pages
the gate opener
EN 13241
EN 12453
EN 12445
1 - 20
English
Anti-terrorism retractable oil-hydraulic bollard
GENERAL WARNINGS FOR PEOPLE SAFETY
THANK YOU
Thank you for purchasing a Fadini product.
Please read these instructions carefully before using this appliance.
The instructions contain important information which will help
you get the best out of the appliance and ensure safe and proper
installation, use and maintenance. Keep this manual in a
convenient place so that you can always refer to it for the safe and
proper use of the appliance.
INTRODUCTION
This operator is designed for a specic scope of applications as
indicated in this manual, including safety, control and signaling
accessories as minimum required with Fadini equipment. □Any
applications not explicitly included in this manual may cause
operation problems or damages to properties and people. □
Meccanica Fadini snc is not liable for damages caused by the
incorrect use of the equipment, or for applications not included in
this manual or for malfunctioning resulting from the use of
materials or accessories not recommended by the manufacturer. □
The manufacturer reserves the right to make changes to its
products without prior notice. □All that is not explicitly indicated
in this manual is to be considered not allowed.
BEFORE INSTALLATION
Before commencing operator installation assess the suitability of
the access, its general condition and the structure. □Make sure
that there is no risk of impact, crushing, shearing, conveying,
cutting, entangling and lifting situations, which may prejudice
people safety. □Do not install near any source of heat and avoid
contacts with ammable substances. □Keep all the accessories
able to turn on the operator (transmitters, proximity readers,
key-switches, etc) out of the reach of the children. □Transit trough
the access only with stationary operator. □Do not allow children
and/or people to stand in the proximity of a working operator. □To
ensure safety in the whole movement area of a gate it is advisable
to install photocells, sensitive edges, magnetic loops and
detectors. □Use yellow-black strips or proper signals to identify
dangerous spots. □Before cleaning and maintenance operations,
disconnect the appliance from the mains by switching o the
master switch. □If removing the actuator, do not cut the electric
wires, but disconnect them from theterminal box by loosening the
screws inside the junction box.
INSTALLATION
All installation operations must be performed by a qualied
technician, in observance of the Machinery Directive 2006/42/CE
and safety regulations EN 12453 - EN 12445. □Verify the presence
of a thermal-magnetic circuit breaker 0,03 A - 230 V - 50 Hz
upstream the installation. □Use appropriate objects to test the
correct functionality of the safety accessories, such as photocells,
sensitive edges, etc. □Carry out a risk analysis by means of
appropriate instruments measuring the crushing and impact force
of the main opening and closing edge in compliance with EN
12445.
□Identify the appropriate solution necessary to eliminate and
reduce such risks. □In case where the gate to automate is
equipped with a pedestrian entrance, it is appropriate to prepare
the system in such a way to prohibit the operation of the engine
when the pedestrian entrance is used. □Apply safety nameplates
with CE marking on the gate warning about the presence of an
automated installation. □The installer must inform and instruct the
end user about the proper use of the system by releasing him a
technical dossier, including: layout and components of the
installation, risk analysis, verication of safety accessories,
verication of impact forces and reporting of residual risks.
INFORMATION FOR END-USERS
The end-user is required to read carefully and to receive
information concerning only the operation of the installation so
that he becomes himself responsible for the correct use of it. □The
end-user shall establish a written maintenance contract with the
installer/maintenance technician (on -call). □Any maintenance
operation must be done by qualied technicians. □Keep these
instructions carefully.
WARNINGS FOR THE CORRECT OPERATION OF THE
INSTALLATION
For optimum performance of system over time according to safety
regulations, it is necessary to perform proper maintenance and
monitoring of the entire installation: the automation, the
electronic equipment and the cables connected to these. □The
entire installation must be carried out by qualied technical
personnel, lling in the Maintenance Manual indicated in the
Safety Regulation Book (to be requested or downloaded from the
site www.fadini.net/supporto/downloads).
□Operator: maintenance inspection at least every 6 months, while
for the electronic equipment and safety systems an inspection at
least once every month is required. □The manufacturer, Meccanica
Fadini snc, is not responsible for non-observance of good
installation practice and incorrect maintenance of the installation.
DISPOSAL OF MATERIAL
Dispose properly of the packaging materials such as cardboard,
nylon, polystyrene etc. through specializing companies (after
verication of the regulations in force at the place of installation in
the eld of waste disposal). Disposal of electrical and electronic
materials: to remove and dispose through specializing companies,
as per Directive 2012/19/UE.
Disposal of substances hazardous for the environment is
prohibited.
Meccanica Fadini s.n.c.
Director in charge
CE DECLARATION OF CONFORMITY of the manufacturer:
Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under its own responsibility that Talos M50 is
in compliance with the Machinery Directive 2006/42/CE, moreover: it is to be sold and installed as a comprehensive
“Automatic System”, including the accessories and components as recommended by the Manufacturing Company. In
observance of the current directives, any automatic system is to be regarded as a“machine”. Therefore it is required that all
the applicable safety norms be strictly complied with by the installation agents, who are also required to issue a
Declaration of Conformity of their own. The manufacturing company is not liable for incorrect applications or misuse of its
products that are declared to be produced in compliance with the following norms: EN 12445 & EN 12453 ie. analysis of the
risk and actions to cure them , Low Voltage Directive 2014/35/UE, Electro-magnetic Compatibility Directive 2014/30/UE.
In order to certify the product, the Manufacturer declares under own responsibility the compliance with the PRODUCT
NORMS EN 13241-1.
2

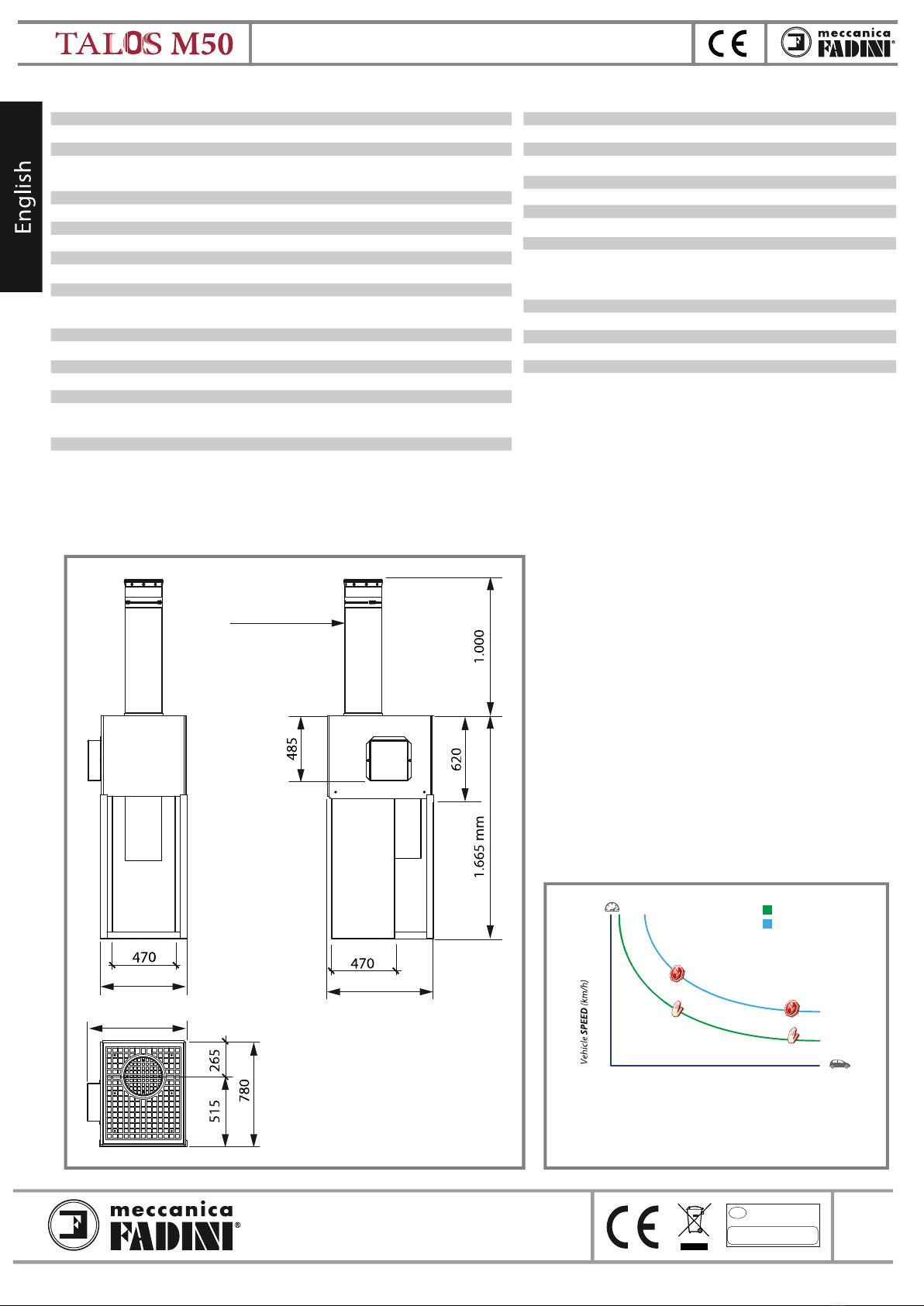

Ø 275
Ø 10,8 in
1.000 mm
39,37 in
1.045 mm
41,14 in
620 mm
24,4 in
780 mm
30,7 in
630 mm
24,8 in
730 mm
28,7 in
1.665 mm
65,55 in
pic. 1
470 x 470 mm
16,9 x16,9 in
English
Anti-terrorism retractable oil-hydraulic bollard
GENERAL DESCRIPTION
Security bollard tted with a post, that retracts completely at with the road level, and an incorporated oil-hydraulic motor-pump.
Suitable for heavy duty applications being certied and tested in compliance with:
- ASTM F2656-15 C750
- PAS 68:2013 V/7500 (N3)/80
- IWA 14-1:2013 V/7200 [N3C]/80
The bollard is designed and constructed to be able to stop vehicles weighing 7.500 kg, running at a speed of 80 km/h and to
absorb at least 1.872.000 Joules of energy, in compliance with the ASTM F2656-15, PAS 68:2013 and IWA 14-1:2013 standards.
This bollard is designed for the protection of special areas, such as: military bases, airports, embassies, consulates, banks, prisons,
etc. and all those areas requiring a high level of security and perimeter protection.
The bollards is tted with a post (cylinder) rising 1.000 mm from ground level, diameter 275 mm, thickness 20 mm.
The post of the bollard (when in fully raised position) remains 50 cm (constraint) inside the enclosure and is supported by two
reinforcement plates, the thickness of each is 15 and 30 mm respectively.
The post is made of S355K2H steel, the surface is cataphoresis treated and coated by polyester powder; the post of the bollard is
well visible in any climate conditions, being tted with an approved, back-reecting band sticker. The post head is completed with
a rubber edge providing protection in case of accidental impacts with pedestrians, etc. and 12 LEDs ashing.
The foundation casing is made of treated steel, hot dip galvanized, while the structure of the inner assembly of the bollard is cold
dip galavanized.
It is tted with two magnetic limit switches: one for the post in raised position and one for the post in lowered position.
All the inner electrical connections (oil-hydraulic motor-pump, limit switches, LEDs and possible accessories) are factory pre-wired
in a watertight junction box tted with a quick disconnection connector for the power supply cable.
The protection grade of the connector tted to the junction box is IP 66.
Available, on request, even IP 67 and explosion-proof.
The oil-hydraulic drive unit is made up of two pumps, each operated by a 230 Vac electric motor. Protection grade IP 67.
They are located in the upper part of the foundation enclosure, outside of the post, and are easy to be accessed once the
rectangular cover plate has been removed.
High pressure tubes (300 bars) connect the oil-hydraulic drive unit to the actuator.
ELPRO S50 is a printed circuit control board powered with 230 Vac voltage, external to the bollard and housed in a plastic box
made of polycarbonate. Connections between the bollard and the control board must be made by using a multipole cable type
FG 7OR 12x1,5 mm² up to 20 m maximum; beyond this distance, cable section must be adequate, according to the rules of good
installation praxis.
Post cover with rubber edge
Steel retractable post
Ø 275 mm (Ø 10,8 in) thickness 20 mm (0,78 in)
Casing for concrete embedding
complete with inner assembly inclu-
ding actuator, oil-hydraulic drive unit
and terminal board for the electrical
connections
LEDs with ashing light
Reecting sticker
3
! !
!
4,0 m (157,8 in)
4,0 m (157,8 in)
=
=
[A] dimension depending on the road surface
nshing (asphalt, porphyry, concrete...)
3,0 m
(118,1 in)
1,35 m (53,1 in)
20 cm
(7,8 in)
48,5 cm
(19 in)
pic. 2
0.00.0 1-2 cm
English

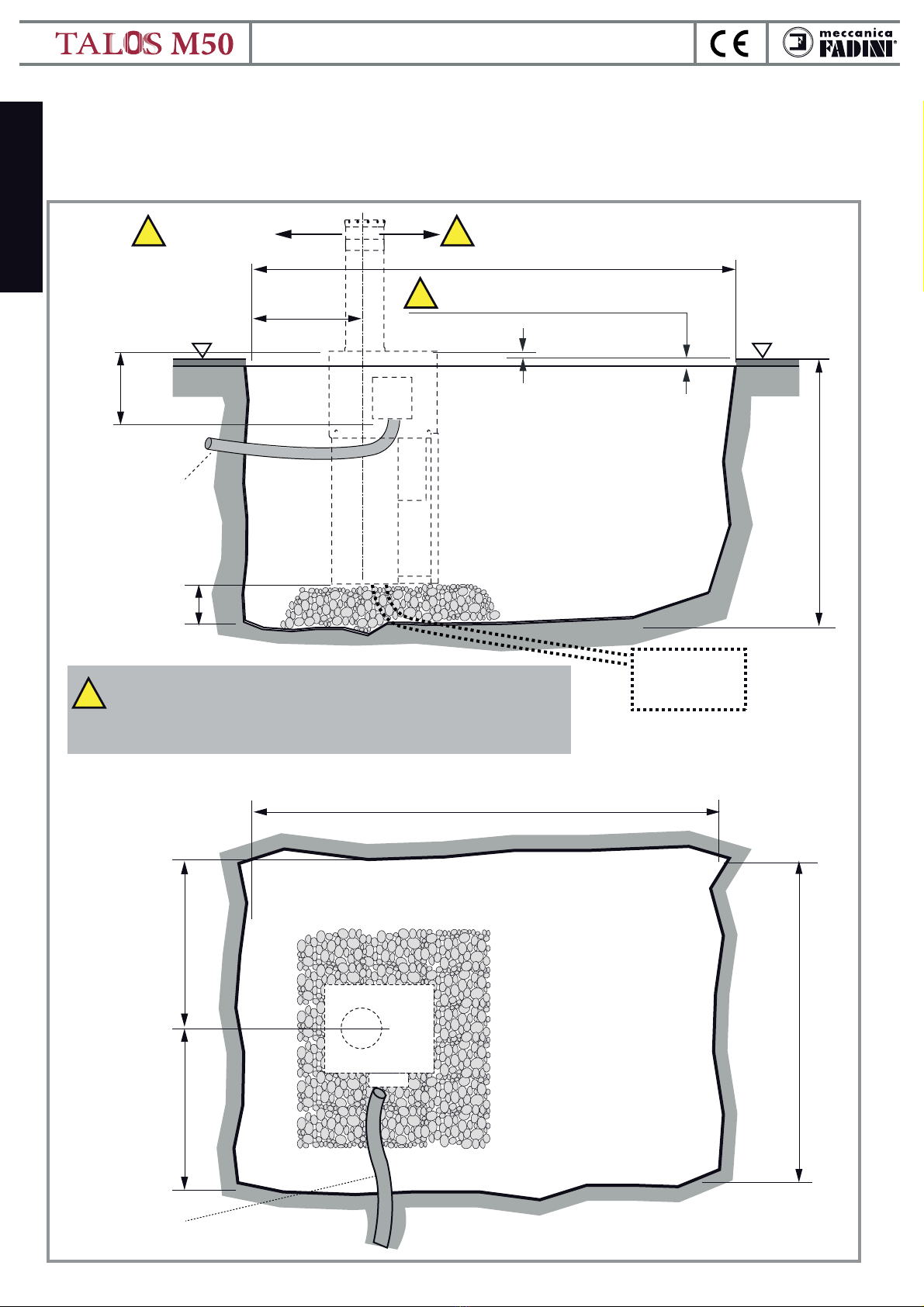

EXCAVATION FOR POSITIONING OF THE CASING IN A CONCRETE FOUNDATION
Dig a pit in the soil of about 4x3 m (157,8x118,1 in) and about 1,8 m (70,8 in) deep from the nished road level [A], as indicated
in pic. 2.
Put a layer of pebbles in the bottom for rain water to soak away. Should rain water drainage be dicult in the bottom, create
a smaller pit for water to gather in it and be pumped out of the bottom of the main pit by a submersed pump. Lay a Ø 50 mm
(Ø 1,9 in) corrugated tube, suitable for the electric cables required to operate the bollard to be pulled through it.
PLAN VIEW
Anti-terrorism retractable oil-hydraulic bollard
INTERNAL SIDE TO PROTECTEXTERNAL SIDE
possible
submersed
pump
nished
road
level
Ø 50 mm
(Ø1,9 in) tube for
the electric cables
to go through
Ø 50 mm (Ø1,9 in)
tube for the electric
cables to go
through
SECTIONAL VIEW
!
Check soil natural permeability: 50 liters (13,2 gal) of water must be
able to soak away in no longer than 30/40 minutes. Otherwise
provide a pipe to allow rain water to ow either into the sewage
system or a sump well equipped with a submersed pump.
4
1,85 m [A]
(72,8 in)
1,35 m (53,1 in)
pic. 3
pic. 4
pic. 5
Dissuasore antiterrorismo oleodinamico a scomparsa
0.00.0
!
1-2 cm
English

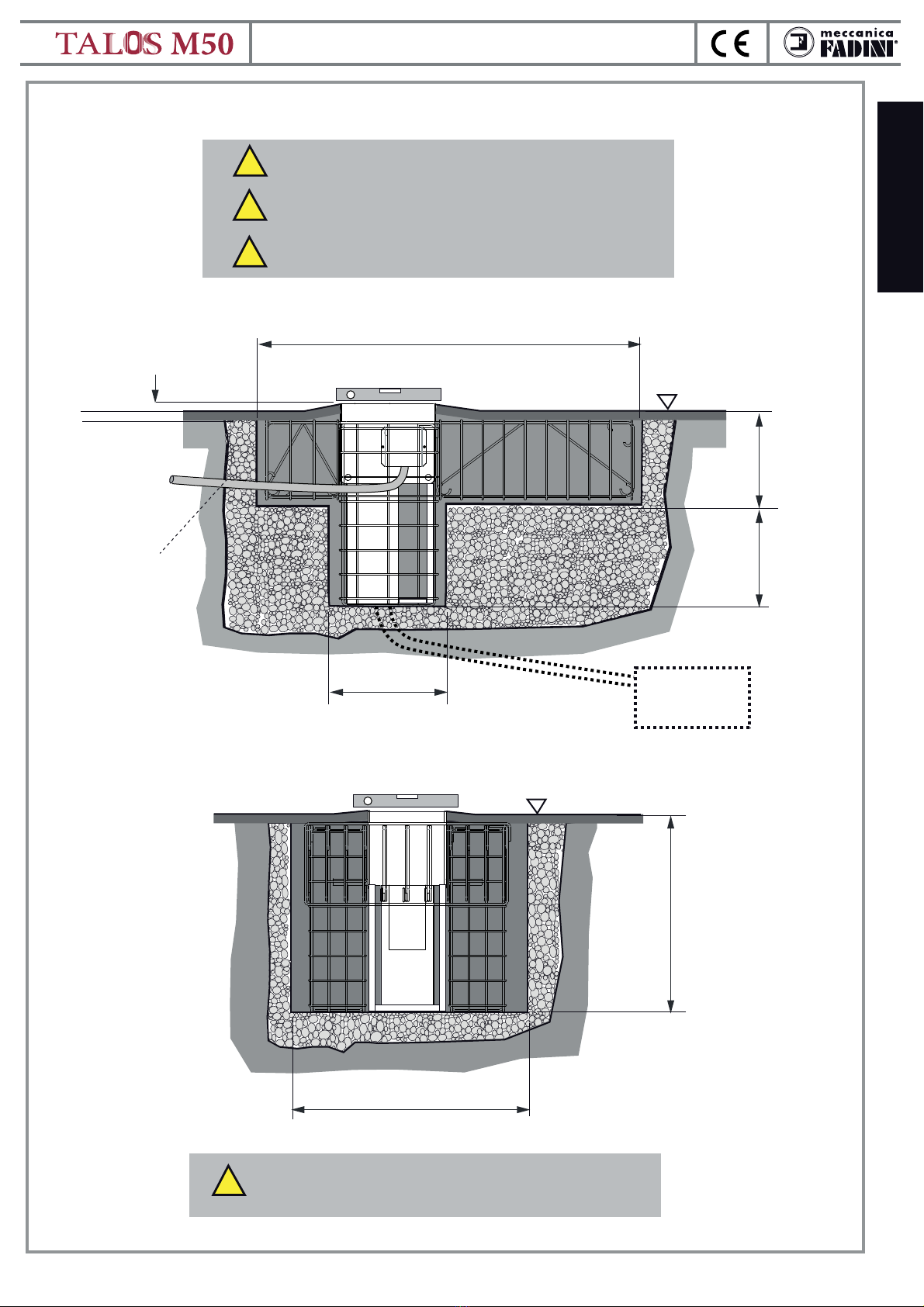

INSERTING THE BOLLARD INTO ITS SEAT
Unscrew the six M12 screws that x the cover plate and remove it by means of M16 supplied screws.
Remove the four x M18 screws and replace them with the four lifting rings allowing for the bollards to be hoisted.
Position the bollard as indicated in the picture, and use a level to make sure it is in axis.
POSSIBLE FUNCTIONING TEST (non mandatory for the installation)
Talos M50 is factory-tested in all normal conditions of functioning,
before being sent out to customer.
Nevertheless, to allow that a few running tests to assess functioning are
carried out before the installation, it is possible to access the inner
terminal board with the electrical connections by removing the hatch
cover: undo the two lateral screws of the cover and pull out the junction
box with its connector.

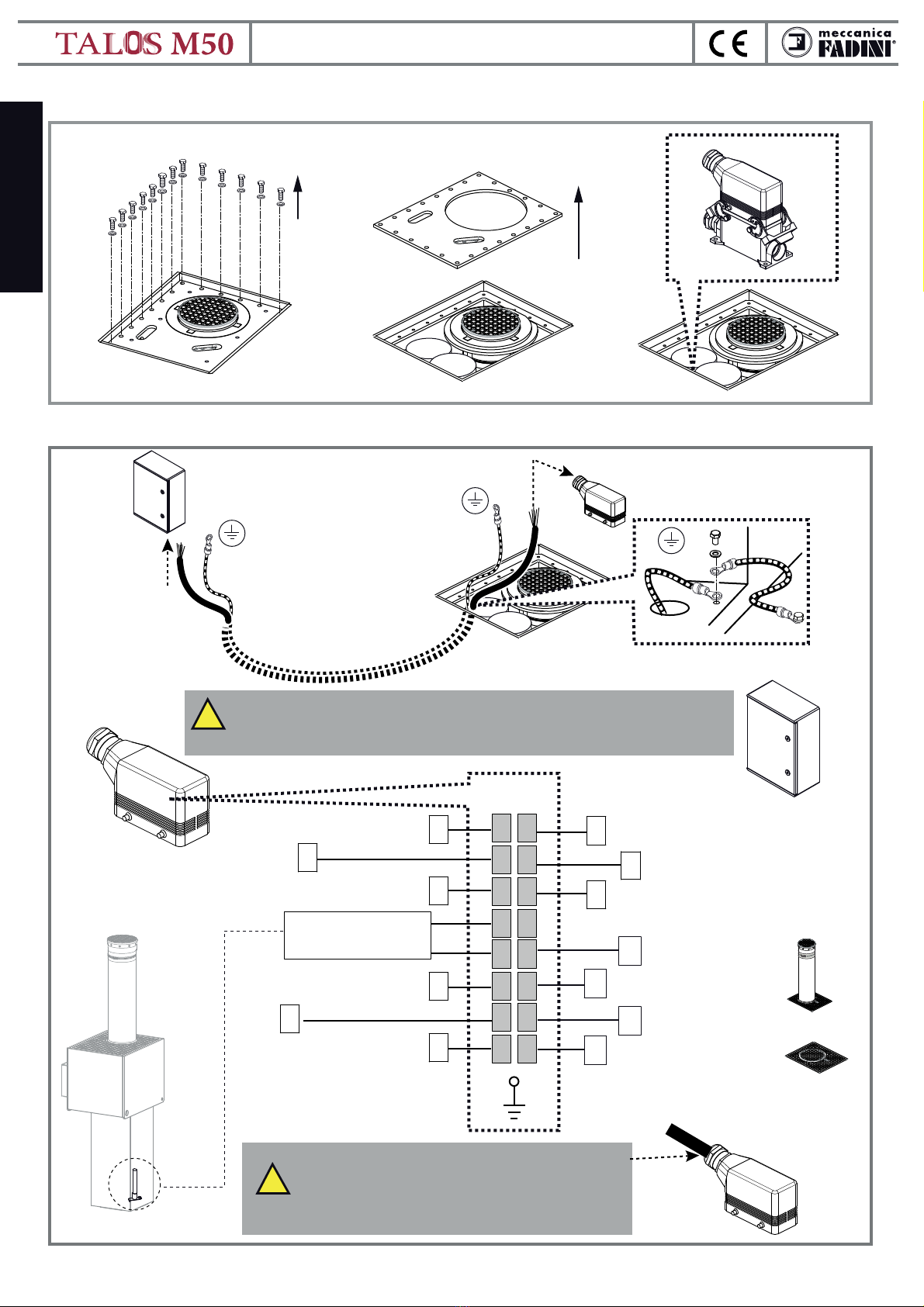

Open the connector and carry out the electrical connections as
illustrated in pic. 16 page 12.
ATTENTION: Once the rst running test is nished, t
back the junction box and close back the hatch.
junction box
with connector
Anti-terrorism retractable oil-hydraulic bollard
SECTIONAL VIEW
INTERNAL SIDE TO PROTECTEXTERNAL SIDE
possible
submersed
pump
nished
road
level
Ø 50 mm (Ø1,9 in)
tube for the
electric cables
to go through
Elpro S50-T1 or Elpro S50-T2
or Elpro S50-T3
5
M16 M16
M18
M18
M12
!
!
pic. 6
1.650 (64,9 in)
3.000 (118,1 in)
English
CONSTRUCTION OF THE FOUNDATION CAGE TO CEMENT (not provided by the manufacturer)
The foundation cage is to be made on the installation site.
Anti-terrorism retractable oil-hydraulic bollard
dimensions in millimeters (margin of tolerance of ± 0,5 cm -
(1,9 in))
The bollard is to be positioned and levelled on plane
before casting concrete around the foundation
cage
The steel framework is to be class B450C (ASTM A615 Grade
60) made of ribbed bars, yield point ≥ 450 MPa and breaking
point ≥ 540 MPa
TOTAL WEIGHT of iron grid: 350 kg
6
1650 (64,9 in)
470
(18,5 in)
470
(18,5 in)
1.515 (59,6 in)
3.000 (118,1 in)
610 (24 in)
650
(25,6 in)
820 (32,3 in)
100
(3,9 in)

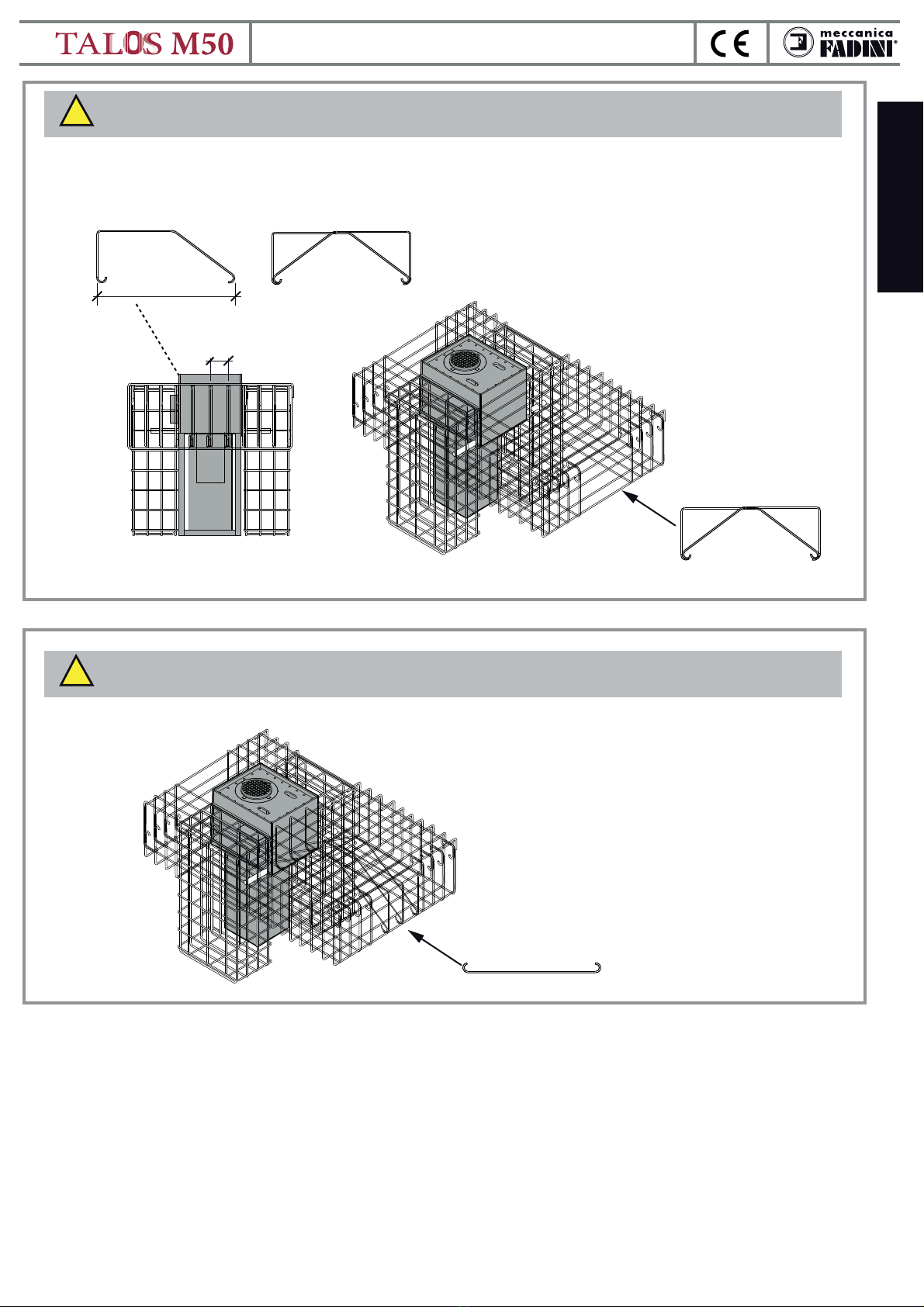

Joining of the cages and of the entire steel framework can be made by steel wire or welding
!
pic. 7
pic. 8
440
(17,3 in)
1.480
(58,428 in)
Ø 16 (0,62 in) n°8 pcs.
per cage
Ø 16 (0,62 in)
n°3 pcs per cage
785
(30,9 in)
Ø 16 (
0,62 in)
n°4 pcs .
per cage
50 (1,9 in)
n°2 lateral cages
200
(7,8in)
250
(9,8 in)
810
(31,8 in)
1.515
(59,6 in)
470
(18,5 in)
English
Anti-terrorism retractable oil-hydraulic bollard
7
140
(5,5 in)
200
(7,8 in)
250
(9,8 in)
810
(31,8 in) 470
(18,5 in)
- Fix the roll-over bars into the holes in the ground casing with screws .
!
(supplied)
300
(11,8 in)
Ø 50 mm
(1,18 in)
n°4 pcs.
M18x35 TE
n°4 pcs.
!
pic. 9
pic. 10
Ø 16 (
0,62 in)
n°16 pcs. n°8 pcs.
Ø 16 (
0,62 in)
n°14 pcs

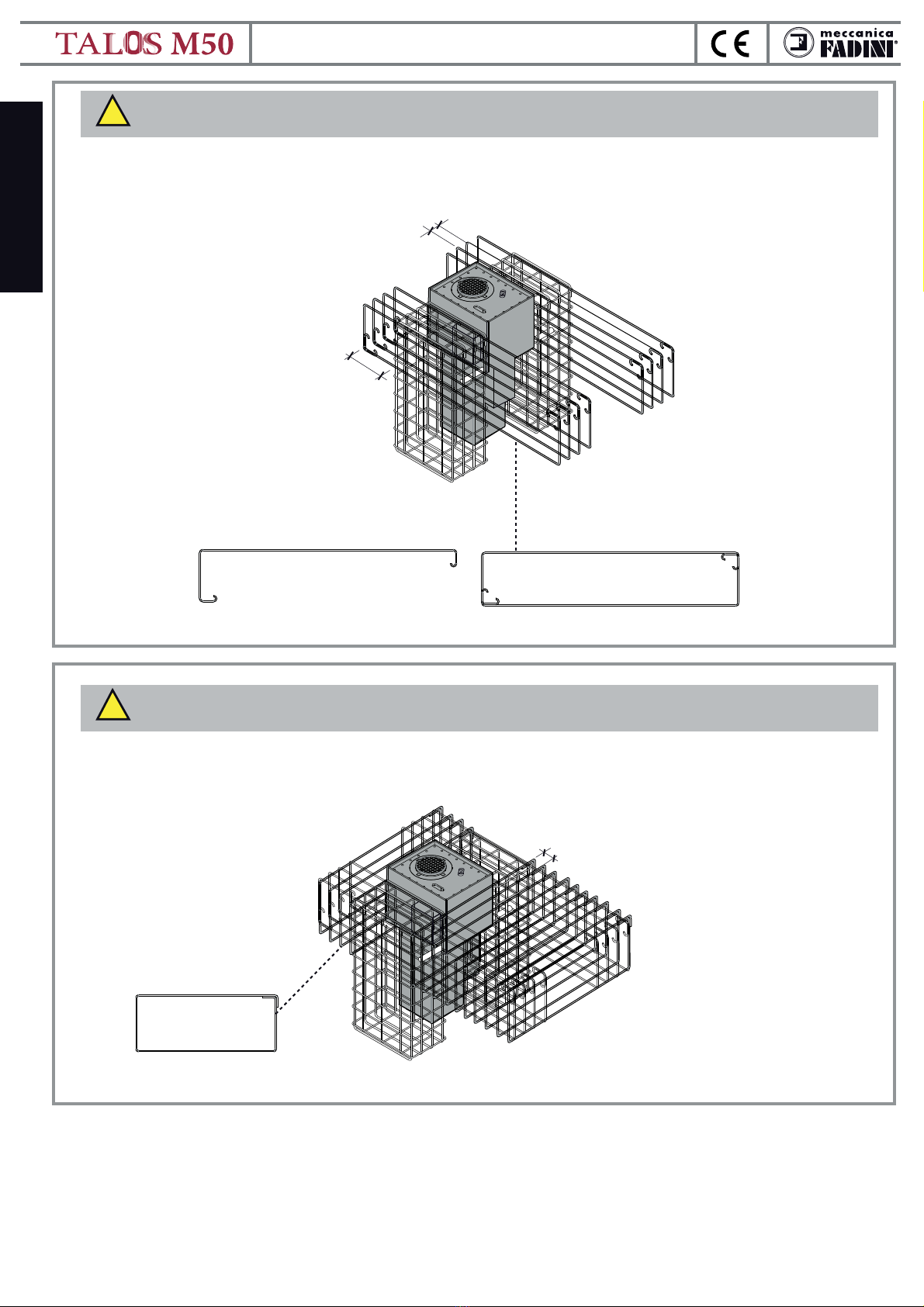

nos. 8 Longitudinal rectangular rebar rings
Joining of the cages and of the entire steel framework can be made by steel wire or welding
!
nos.14 Transverse rectangular rebar rings
=
1.650 (64,9 in)
3.000 (118,1 in)
650
(25,6 in)
615
(24,2 in)
English
Joining of the cages and of the entire steel framework can be made by steel wire or welding
Anti-terrorism retractable oil-hydraulic bollard
8
610
(24 in)
150
(5,9 in)
175
(6,8 in)
Joining of the cages and of the entire steel framework can be made by steel wire or welding
!
Joining of the cages and of the entire steel framework can be made by steel wire or welding
!
pic. 11
pic. 12
900
(35,4 in)
1.600
(62,9 in)
1.600
(62,9 in)
600
(23,6 in)
=
Ø 16 (0,62 in)
n°6 pcs.
n°3 pcs.
n°3 pcs.
Ø 16 (0,62 in)
n°3 pcs.
nos. 3 Longitudinal rebars
nos. 3 Reinforcing bars to be tied at the base of the longitudinal rebars
English
Anti-terrorism retractable oil-hydraulic bollard
9
160
(6,3 in)
Joining of the cages and of the entire steel framework can be made by steel wire or welding
!
pic.13
600
(23,6 in)
600
(23,6 in)
600
(23,6 in)
300
(11,8 in)
=
Ø 16 (0,62 in)
n°6 pcs.
n°3 pcs.
n°3 pcs
n°3 pcs.
Ø 16 (0,62 in)
n°3 pcs.
n°3 Reinforcing bars for the external side
English
Anti-terrorism retractable oil-hydraulic bollard
10
160
(6,3 in)
dimensions in millimeters (margin of tolerance of ± 0,5 cm -
(1,9 in))
Concrete casting: let it set rmly for 7 days before carry on
with the installation of the bollard
!
!
!
pic. 14
English
3200
(125,9 in)
1020
(40,15 in)
1770
(69,7 in)
770
(30,3 in)
0.0
0.0
nished
road
level
nished
road
level
1-2 cm
5-10 cm
850
(33,4 in)
1620
(63,7 in)
Anti-terrorism retractable oil-hydraulic bollard
Concrete features:
A - Class C25/30, 10-30 aggregates and
Rck value ≥ 30 N/mm² according to UNI EN 12620
Concrete Volume: 6 m³
Soil: 90% compaction index, with “Proctor”optimal curve in
compliance with UNI EN 13286-2:2005
possible
submersed
pump
Ø 50 (Ø1,9 in)
tube for the
electric cables
to go through
!
11
8
pic. 15
pic. 16
Connector
LED
motor
common
motor live
(Pic.19) [B]
motor live
(Pic.19) [B]
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
53
51
52
17
16
18
ATTENTION: TIGHTEN THE CABLE GLAND VERY
WELL BEFORE CLOSING THE CONNECTOR,
OTHERWISE GRADE OF PROTECTION AGAINST
SEEPAGE CANNOT BE GUARANTEED
IP 66
!
(see the instructions
attached to this accessory)
English
motor
common
motor live
(Pic.19) [B]
motor live
(Pic.19) [B]
18
17
16
IP 66
!
multipolar cable (not
supplied) and earth cable
IP 66
Connections to the terminals of Elpro S50-T1 or Elpro S50-T2 or
Elpro S50-T3 controllers (by cable type BUT FLESSIBILE FG 7OR 12x1,5 mm²)
Earth cable size based on the characteristics of the place of installation.
OPENING THE PROTECTION COVER PLATE
Remove all the screws to be able to pull away the plate and then access the bollard inside for the electrical connections.
A watertight box is factory-tted inside the bollard and pre-wired with all the required electrical connections to the bollard
(electric motor, limit switches, LED lights).
Anti-terrorism retractable oil-hydraulic bollard
asher and/or
beeper
“Talos series heater”
card
optional on demand
common led and/or beeper
12
11
56 limit switch GND
green wires of the blue and grey cables
limit switch opening
grey cable - white wire
(Pic.18) [C]
limit switch closing
blue cable - white wire (Pic.18) [C]
55
limit switch +24 Vdc
brown wires of the
blue and grey cables
Elpro S50-T1 or
Elpro S50-T2 or
Elpro S50-T3
Elpro S50-T1 or
Elpro S50-T2 or
Elpro S50-T3
12
M18
pic. 17
pic. 18
pic. 19
FIRST RUNNING TESTS
!
NC
230 V
ATTENTION: power supply the installation only after
all the electrical connections have been completed.
Once satised that all the safety (all NC contact to Elpro S50 controller must be
closed) and command accessories have been connected, and the respective
connections to the Elpro S50 controller made, the rst running tests can be
performed.
It is recommended that, before this phase, an accurate analysis of the risks be
executed.
If a radio transmitter is available, after having match encoded it with the radio
receiver following the provided instructions, pulse it once to raise the post.
[C] Check the electrical connections to the limit switches. Once the system has been power supplied, check the LEDs status
rst of all: with the post in the lowered position L12 LED is OFF, while L13 LED is ON. If this does not happen, swap
connections to terminals 11 and 12 on the Elpro S50 control board.
L12 = Limit switch Opening M3, normally ON, it is o with post in down position
L13 = Limit switch Closing M3, normally ON, it is o with post in up position
!
ATTENTION: the post must be fully down.
If during the installation phase the post rises, even partially, operate the
manual release to bring it fully down to end of stroke (page 15).
Close all NC
contacts to
Elpro S50
controller
connections to the electric motor of
the oil-hydraulic drive unit
bollard with post in up position:
gateway closed
1° pulse
[B] Once electric power is supplied, provided that the LEDs of the limit switches are correctly alight (post down L12 led OFF), by
the rst pulse the post should rise. If not, swap the connections to the motor live terminals (on Elpro S50) after having
disconnected the electric power supply from the installation.
common
common
English
Anti-terrorism retractable oil-hydraulic bollard
11 12 55 56 11 12 55 56
13
pic. 20
pic. 21
FIXING THE BOLLARD TOP PLATES
NOTE WELL: THE BOLLARD POST AND THE PROTECTION
PLATE MUST BE PERFECTLY CENTERED, SO THAT THE
GAP BETWEEN THE POST AND PLATE IS UNIFORM ALL
AROUND
The protection plate must seat perfectly onto the
entire surface, and adhere also to the circular
ange all around the post !
!
GREASE
NOTE WELL: IT IS RECOMMENDED
THAT ALL THE FIXING SCREWS BE
LUBRICATED BY GREASE
English
Anti-terrorism retractable oil-hydraulic bollard
14
M18 M12
pic. 22

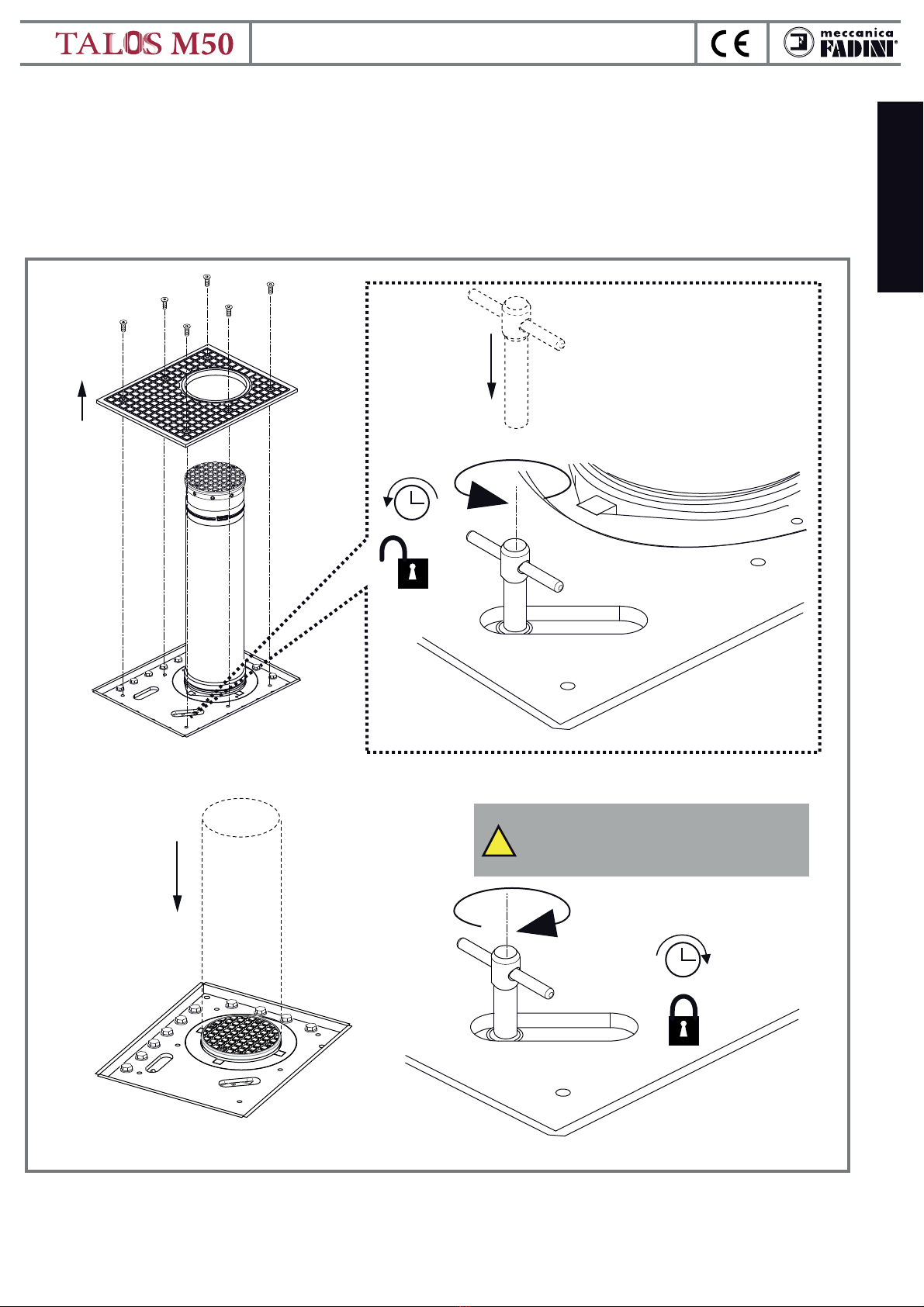

RELEASE OPERATIONS FOR THE MANUAL LOWERING OF THE POST (IN CASE OF AN EMERGENCY)
In case of power failure or disconnection the bollard is designed to keep the post in the up position.
It is possible, in particular situations of danger and/or emergency, to lower the post manually. The following operations are to
be carried out:
Pull away the aluminium cover plate, after having removed all the xing screws.
Insert the release spanner in the slit on the right, into the release device having a triangular prole: turn once anticlockwise.
IMPORTANT: with the post in fully down position tighten hard clockwise by the release spanner.
NOTE WELL: with the post in fully down
position tighten hard clockwise by the
release spanner.
!
English
Anti-terrorism retractable oil-hydraulic bollard
15
Anti-terrorism retractable oil-hydraulic bollard
MAINTENANCE RECORD
hand over to the end user of the installation
Installation address:
Installation type:
Sliding gate
Over-head door
N°
1
2
3
4
5
6
Service date
Stamp and signature
installation technician/maintainer Signed for acceptance
end user
buyer
Technical maintainer End user/sService description
Lateral folding
door
Swinging gate
Folding door
Bollard
.............................
Road barrier
Operator model:
Dimensions per gate leaf:
Weight per gate leaf: Installation date:
Quantity of models
installed:
Maintainer: Date:
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance,
repairs and replacements to be made only by using Fadini original spare parts.
This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must
be handed over the end user/s.
The installer/maintainer are liable for the functionalities and safety features of the installation only if maintenance is
carried on by qualied technical people appointed by themselves and agreed upon with the end user/s.
X
the gate opener
16
Anti-terrorism retractable oil-hydraulic bollard
17
Anti-terrorism retractable oil-hydraulic bollard
OPERATIONS FOR ORDINARY ROUTINE MAINTENANCE OF FADINI AUTOMATIC BOLLARDS (EVERY SIX MONTHS)
The standard maintenance routine sequence is as follows:
• Clean the ground cylinder and suck all material settlements.
• Clean water drains located at the bottom of the ground cylinder and/or excavation pit.
• Check any possible oil leaking from the hydraulic piston and, in case, x it.
• Overhaul the screws fastening the bollard to the ground cylinder, making sure they are properly tightened and lubricated.
• Check the oil-hydraulic motor-pump and oil pressure by assessing the rising times of the bollard. If required, top up oil in the
reservoir and/or parallel add an extra capacitor to the existing one (instructions manual is to be referred to).
• Check the correct functioning of the signal LED lights (if incorporated) in the bollard head.
• Sight check the electronic board controlling the bollard/s (e.g.: “ooded” relay contacts, oxidized terminal clamps, etc.).
• Check the correct functioning and positioning of the limit switches.
• Check the release system for bollard manual operations.
• Clean and recondition the rising cylinder if required, e.g.: paint patching up, replacing the back reecting sticker and /or the
cover tted with rubber edge.
IF OPTIONAL ACCESSORIES ARE INCLUDED, FURTHER MAINTENANCE IS REQUIRED AS FOLLOWS:
• Check the correct functioning of the safety accessories such as the inductive loop/s and the photocells.
• Check the correct functioning of the radio receiver and all of the remote controls.
• Check the correct functioning of the pressure switch.
• Check the correct functioning of the beeper.
• Check the correct functioning of the traffic lights and the respective control card.
• Check the correct functioning of the solenoid valve in emergency cases such as power failure or disconnection, assess
therefore the status of the 24 Vdc voltage stabilizer.
• Check the correct functioning of EAR 35 acoustic analyzer to lower the bollard in emergency.
18
Anti-terrorism retractable oil-hydraulic bollard
!
!
!!
INFORMATION ABOUT SAFETY AND PROPER FUNCTIONING OF THE SYSTEM
1) Installation operations, testing, analysis of the risks and future maintenance are to be executed by qualied and
authorized technicians in compliance with the existing regulations (www.fadini.net/supporto/download).
2) This automatic system is intended to be exclusively used for the applications described in this manual, including at least
the minimum safety, command and signalling accessories as required.
3) Any application not indicated in this manual may cause malfunctioning or damages to people and properties.
4) Providing a suitable reinforcement metallic framework ensures that the breakout resistance value be respected as stated
in this manual. NOTE: the iron framework (all of the steel rebars) is not supplied by our company. It has to be made locally in
compliance with the technical data, drawings and all of the indications described in this installation manual. The
components of the structure developed in this way are able to make the most of the performance features of each
component and ensure the impact resistance features of the bollard as indicated.
5) Make sure the soil is adequate to take the bollard to avoid that settling at a later stage causes problems to the system.
6) Make sure the site is free from utilities that may interfere with the installation.
7) Make sure that electromagnetic sources are at a suitable distance from the accessories, especially from the loop
detectors. The magnetic elds of other sources may affect the detection of the loops as well as those of other
command and safety devices of the system.
8) Make sure the power supply to the electric motor is 230 V (50 Hz).
9) Recommended power supply cable: BUT FLESSIBILE FG 7OR 12x1,5 mm² up to 20 metres max.
Ground cable to have a section as required to comply with the site regulations.
10) In case any components or accessories need replacing, use only original parts as provided by the manufacturer.
11) The installer shall provide the nal user with information related to all of the operating commands and functions of the
system, including that concerning lowering of the post in case of an emergency (manual release operation).
12) The installer shall inform the nal user of the dangers coming from the presence of persons, especially children, in the
proximity of the bollard.
13) The manufacturer reserves the right to change this manual without previous notice.
As far as conguration and execution of the system are concerned, these are to comply with the laws in the country of
installation.
Meccanica Fadini is not liable for any possible damages derived from incorrect use or from any use not
indicated in this manual, furthermore it is not answerable for malfunctioning caused by the use of materials
or accessories not approved by the company itself.
It is to be noted that the product respects the impact and breakout resistance values as indicated provided
that the installation of the same is carried out in observance of the specications included in this manual of
instructions. Various factors are to be carefully taken into consideration such as compaction index, soil
permeability coefficient, concrete type, which may affect the indicated values even signicantly.
This symbol indicates that a particular attention is required on the installation phases and on running
the operator. Failure to observe these indications may cause incorrect functioning of the bollard.
PRODUCT SPECIFICATIONS
Fully retractable automatic bollard for heavy duty applications, certied and tested according to ASTM F2656-15 C750, PAS
68:2013 V/7500 (N3)/80 standards and IWA 14-1:2013 V/7200 [N3C]/80 standards; made up of two oil-hydraulic motor pump
units incorporated in the structure and one oil-hydraulic actuator inside the rising cylinder. Designed to stop a vehicle of 7,5
t at a speed of 80 km/h and remain perfectly intact and operative for the protection of sites under risk of attack and all those
areas where a high level of security and perimeter protection are required in case of a terrorist assault. IP 67. The height of the
rising cylinder (from ground) is 1.000 mm. Rising cylinder made of S355K2H steel, thickness 20 mm, cataphoresis treated and
powder coated. AISI 304 brushed stainless steel cover sleeve available for the rising cylinder. Rubber ring on rising cylinder
head with 12 signalling LEDs with ashing light. Cataphoresis treated aluminium cover, nished to provide a slip-proof
treading surface. Rising cylinder tted with high intensity, microprismatic, retroreecting approved sticker (h 80 mm). Hot
dip galvanized steel casing for ground foundation. Impact resistance 700.000 J, breakout resistance 2.000.000 J. static load
max 2.800 kg in standing position, max 20.000 kg in lowered position. Working temperature -40 °C +80 °C. Supply voltage
230 Vac ± 10%, 50 Hz. Absorbed power 3.100 W. Connector and junction box IP 66 for cabling. Rising time ~ 5,0 s. Frequency
of use 2.000 cycles/day. Hydraulic device locking the bollard in standing position.
19
TECHNICAL DATA
ELECTRIC MOTOR
Absorbed power 3.100 W (1.550 + 1.550)
Voltage supply 230 V
Frequency 50 Hz
Rated current 10 ÷ 13 A
Maximum current 15 A
Intermittent service S3
Capacitor 80 µF
Start capacitor 40 µF
Motor rotation speed 2.800 rpm
OIL-HYDRAULIC DRIVE UNIT TUNIT 9.20LP
Pump type P20 + P20
Working pressure 2 MPa (20 bar)
Working temperature -20 °C +80 °C
Oil type Fadini Oil - code 708L
Oil reservoir 4,5 liters + 4,5 liters
Protection grade IP 67
BOLLARD
Post diameter Ø 275 mm
Post tickness 20 mm
Post height 1.000 mm
Post nish polyester powder coating
RAL 7016 anthracite grey
Piston diameter 40 mm
Shaft diameter 30 mm
Actual shaft travel 1.010 mm
Frequency of use intensive (2.000 cycles/day)
Led power feeder in: 230 V - 50 Hz out: 12 Vdc 600 mA
Led lights 12 Vdc
Post material S355K2H steel
Impact resistance 700.000 J
Crash resistance 2.000.000 J
Maximun static load 20.000 kg
Weight complete with casing 770 kg
Environment working temperature -20 °C +80 °C
Environment working temperature
with heater -40 °C +80 °C
Rising speed 20 cm/s (~ 5,0 s)
Lowering speed 31 cm/s (~ 3,2 s)
Anti-terrorism retractable oil-hydraulic bollard
GB 2012/19/UE Directive
Re. disposal of electric
and electronic waste
DISPOSE PROPERLY OF MATERIALS
ARMFUL TO THE ENVIRONMENT
Via Mantova, 177/A - 37053 Cerea (VR) Italy
Ph. +39 0442 330422 Fax +39 0442 331054
e-mail: inf[email protected] - www.fadini.net
51
93
87
157
2.100 7.500
700.000 J
2.000.000 J
Vehicle
MASS (kg)
Various factors, such as the compaction index, soil
permeability coefficient and kind of concrete may reduce the
values indicated in the diagram even signicantly.
630
730
Ø 275
thickness 20
780
20220126
Table of contents
Other fadini Safety Equipment manuals
